A-NAFTULY HVAC Blend Door Actuator for Ford F-150, Escape, Expedition — 5-Pin Direct-Fit, Reinforced ABS

This A-NAFTULY HVAC blend door actuator is a direct-fit replacement for select Ford, Lincoln and Mercury vehicles, restoring proper vent airflow and temperature control.

If your vehicle’s HVAC vents hesitate, make noise, or fail to change temperature zones, the blend door actuator is often the cause. The A-NAFTULY replacement unit (fits OE numbers 604-241, 604241, 8L8Z19E616C, 7L1Z19E616F, ZCA61A8Z) is built to match factory fit and function for many Ford F-150, Expedition, Escape, C-Max, Navigator, Tribute and Mariner years. Constructed from reinforced ABS with upgraded internal circuits, it’s designed for an easier swap and longer service life than a worn OEM actuator.

How do I know this actuator fits my vehicle?

Compatibility covers specific model years and actuator locations—main or mode actuator—so always confirm the year/make/model before ordering. This A-NAFTULY unit matches the 5-pin connector style used in the listed vehicles and replaces the factory part numbers cited.

• Fits: 2009–2014 Ford F-150, 2007–2017 Expedition, 2008–2012 Escape.
• Also fits: 2013–2018 Ford C-Max, 2006–2017 Lincoln Navigator.
• Additional fits: 2008–2011 Ford Tribute and Mercury Mariner.
• Only for vehicles using a 5-pin main/mode actuator; verify OEM part number.

What improvements does this replacement offer over a failing actuator?

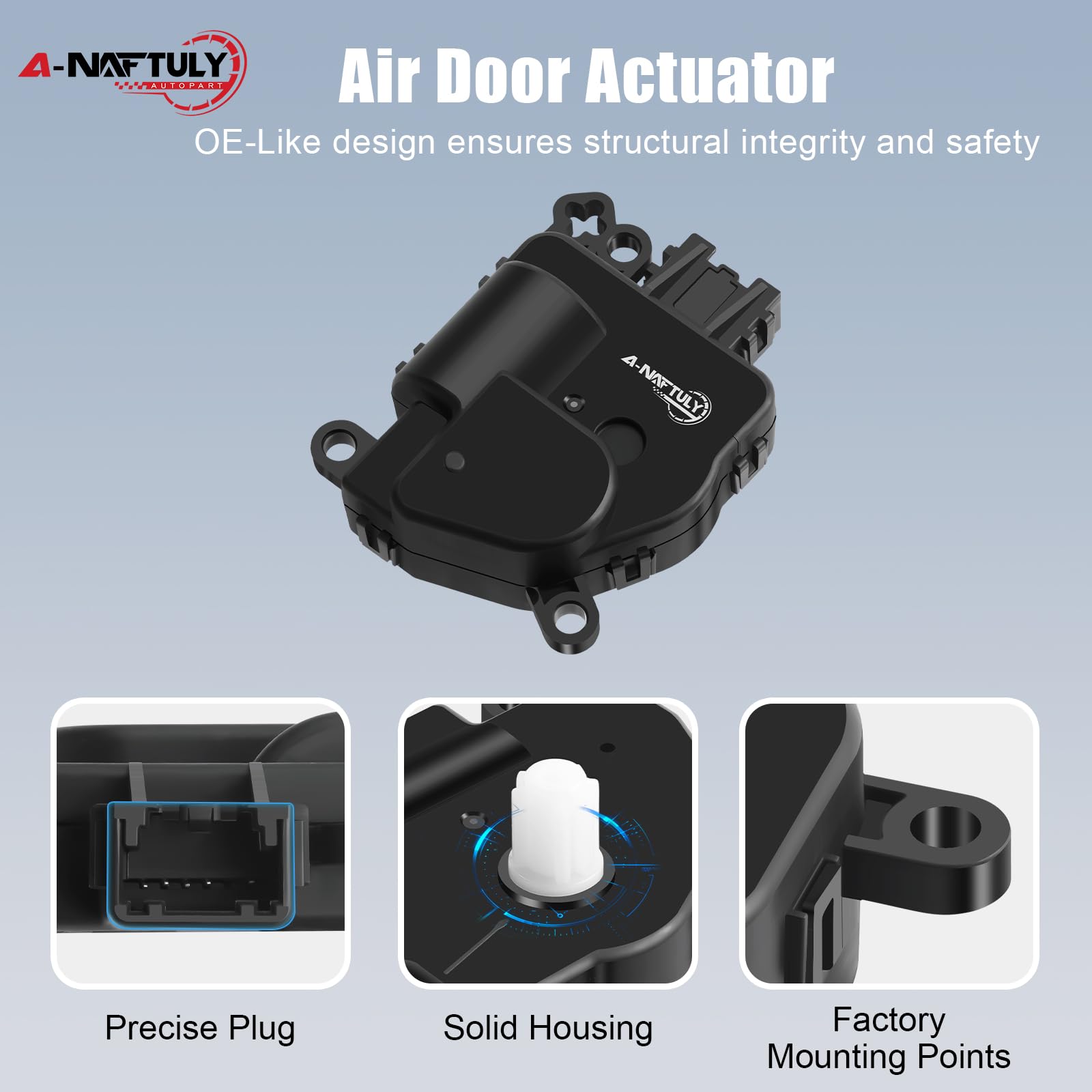

The A-NAFTULY actuator restores accurate air-door positioning so vents respond correctly to temperature and mode commands. Its OE-like housing and upgraded circuit board help reduce electrical failures and grinding noises common with worn actuators.

• Replaces noisy or non-responsive blend doors for consistent airflow control.
• Reinforced ABS shell resists breakage from heat and vibration.
• High-tech internals reduce risk of electrical burnout and premature failure.
• Drop-in fit reduces installation time for DIY or technician replacement.

How difficult is installation and what should I do after swapping it in?

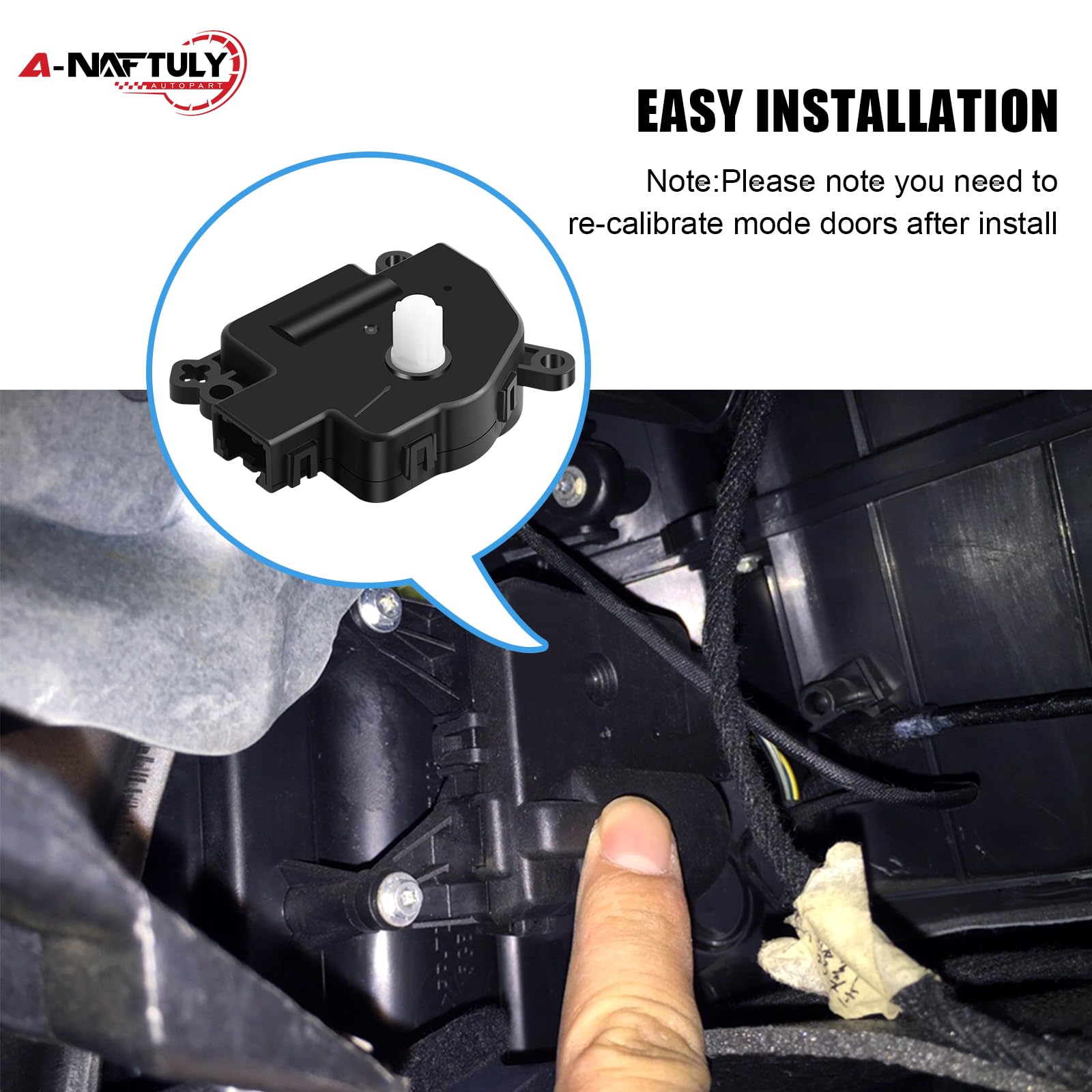

Installation is intended as a straightforward, one-person job for anyone comfortable with basic dash or glove-box work. The unit is designed for a direct replacement of the OEM actuator, but your HVAC system will usually require recalibration after installation to ensure proper position sensing and performance.

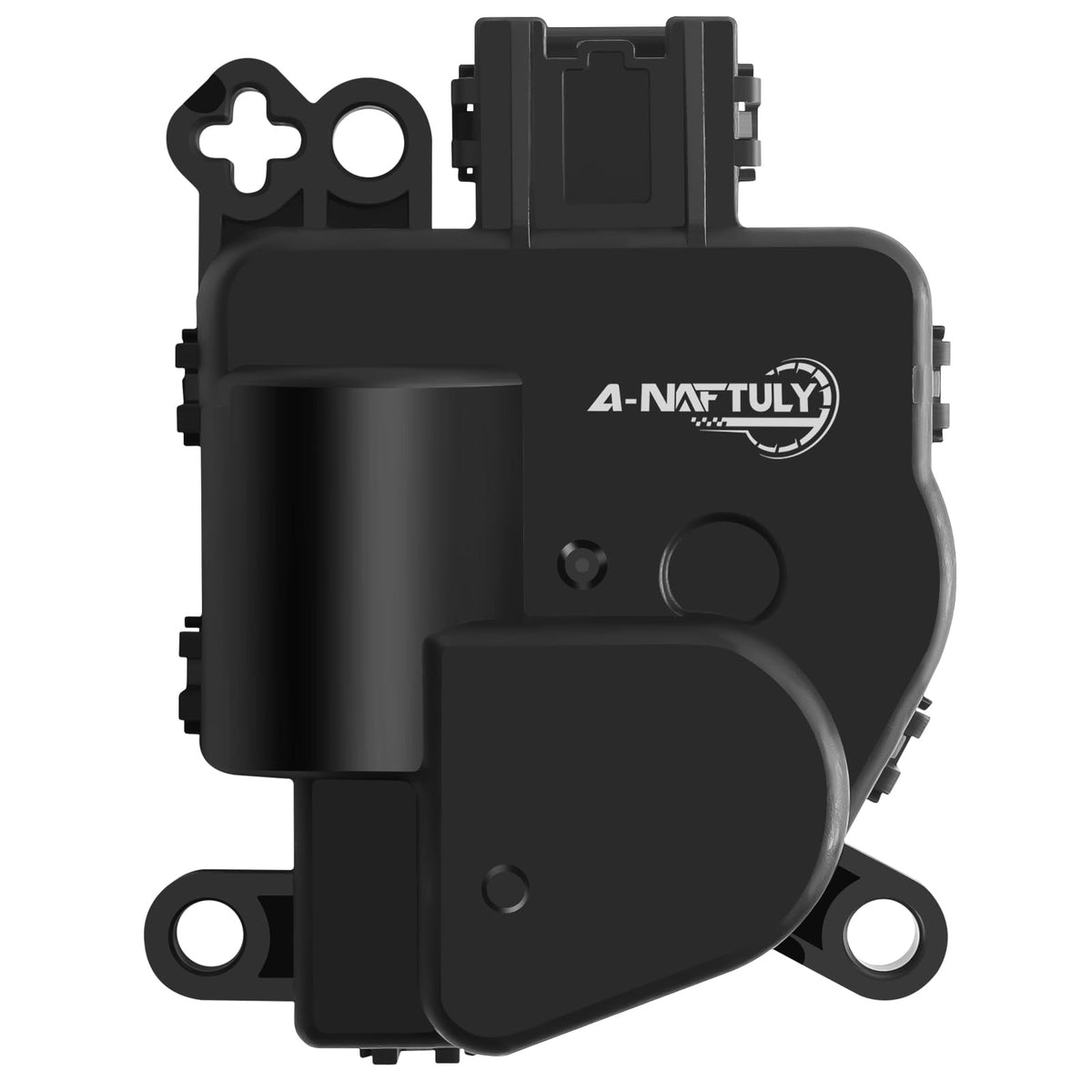

• Direct-replacement design—matches mounting points and connector style.
• Simple hand tools typically needed; follow vehicle-specific removal steps.
• Recalibrate the HVAC system after installation to reset positions.
• Includes a welcome guide and A-NAFTULY’s 18-month warranty for support.

Which symptoms indicate the actuator needs replacement?

Common signs include unusual clicking or grinding from the dash, inability to change vent mode or temperature zones, and uneven passenger-side vs driver-side temperatures. If you experience any of these issues, replacing the blend door actuator is a practical next step before more invasive HVAC repairs.

• Audible clicking, grinding, or intermittent motor noise from the HVAC area.
• Vents won’t switch between floor, dash, or defrost modes reliably.
• Temperature controls seem unresponsive or produce uneven cabin temperatures.
• Diagnostic checks point toward blend/mode actuator error codes.

Who is this for: Drivers and technicians restoring proper HVAC function in compatible Ford, Lincoln and Mercury vehicles who want a cost-effective, OEM-style replacement. It’s ideal for DIY mechanics comfortable with basic dash removal and anyone looking to fix noisy or non-responsive vents without replacing major HVAC components. Remember to confirm the 5-pin connector and the OEM part number for a correct match, and run the vehicle’s HVAC recalibration after installation.
