acegoo 12V Dimmer Switch High-Side PWM for RV, Boat & Camper - 6A Flicker-Free Panel-Mount

Acegoo 12V Dimmer Switch is a compact high-side PWM controller that gives smooth, flicker-free dimming for 12V LED, halogen and incandescent lights up to 6A, designed for RVs, boats, campers and custom panels.

Whether you're upgrading cabin lighting in a camper, adding mood lighting to a boat, or building a custom control cluster in a truck, this Acegoo high-side PWM dimmer delivers efficient, quiet dimming with simple installation. It replaces basic on/off controls with a variable knob that reduces battery drain and avoids the buzzing or flicker common with low-quality dimmers. The unit is small enough to mount behind a panel or in tight spaces and includes a front panel plate for finished installs.

How does this dimmer improve lighting performance?

The Acegoo dimmer uses high-side PWM (pulse-width modulation) to vary light output while maintaining energy efficiency and avoiding audible buzzing. PWM rapidly switches power on and off to control brightness without altering voltage, which suits many 12V light types. The result is a stable light level across the range with a smooth tactile knob action for the user.

• High-side PWM reduces heat and increases efficiency compared with resistive dimming.
• Flicker-free operation for most non-regulated LED, halogen and incandescent loads.
• Smooth transition from full brightness down to dim, with a definitive finish click.

What lights and loads does it support?

This dimmer is built for 12V DC systems and supports a range of fixtures: non-regulated LED drivers, halogen bulbs, incandescent lamps and LED strip lights. It’s rated to dim up to 48 watts under typical 12V conditions and the unit supports up to a 6A output for short runs or higher-draw setups. Note that some LED products—particularly RGB, multi-color, or certain filament-style bulbs—may not be compatible with PWM dimming.

• Compatible: non-regulated 12V LED fixtures, halogen, incandescent, LED strip lights.
• Output capacity: up to 6A maximum; practical dimming up to ~48W at 12V.
• Not universally compatible: RGB/multi-color controllers and some LED filaments may not dim correctly.

How easy is installation and panel integration?

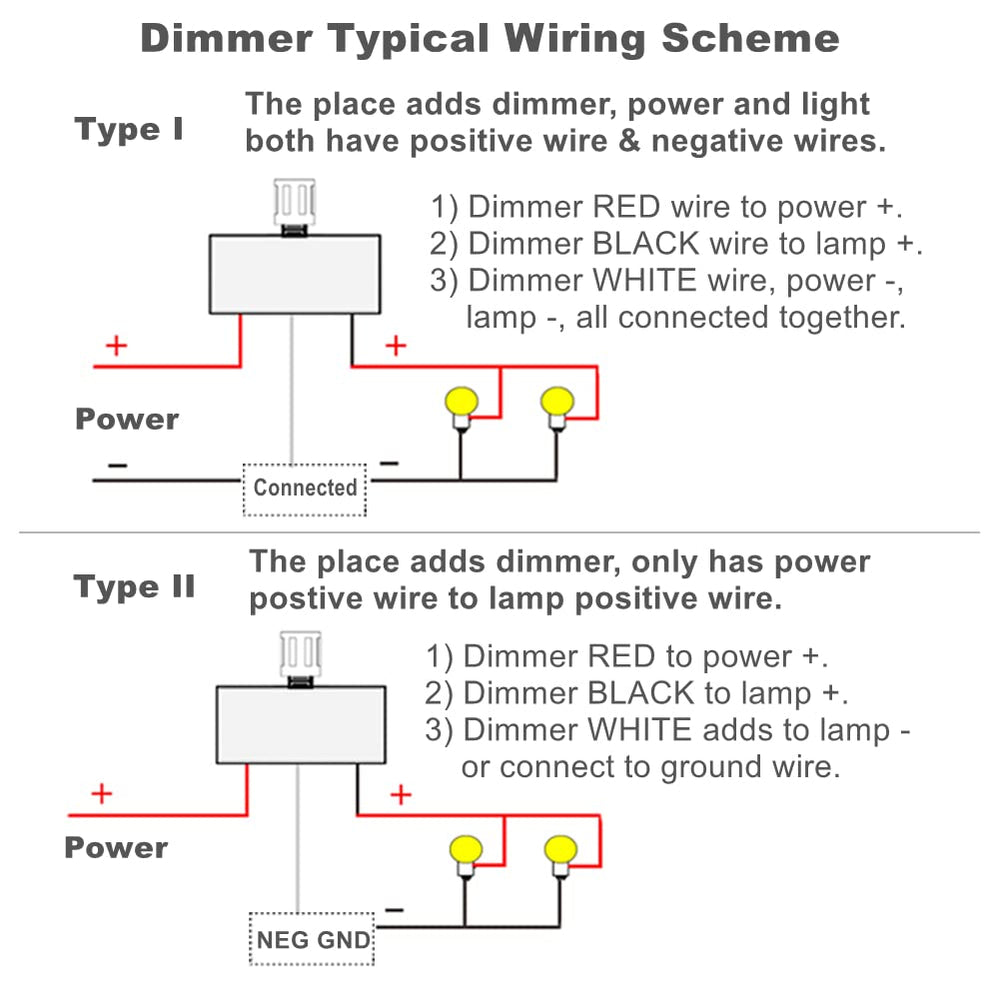

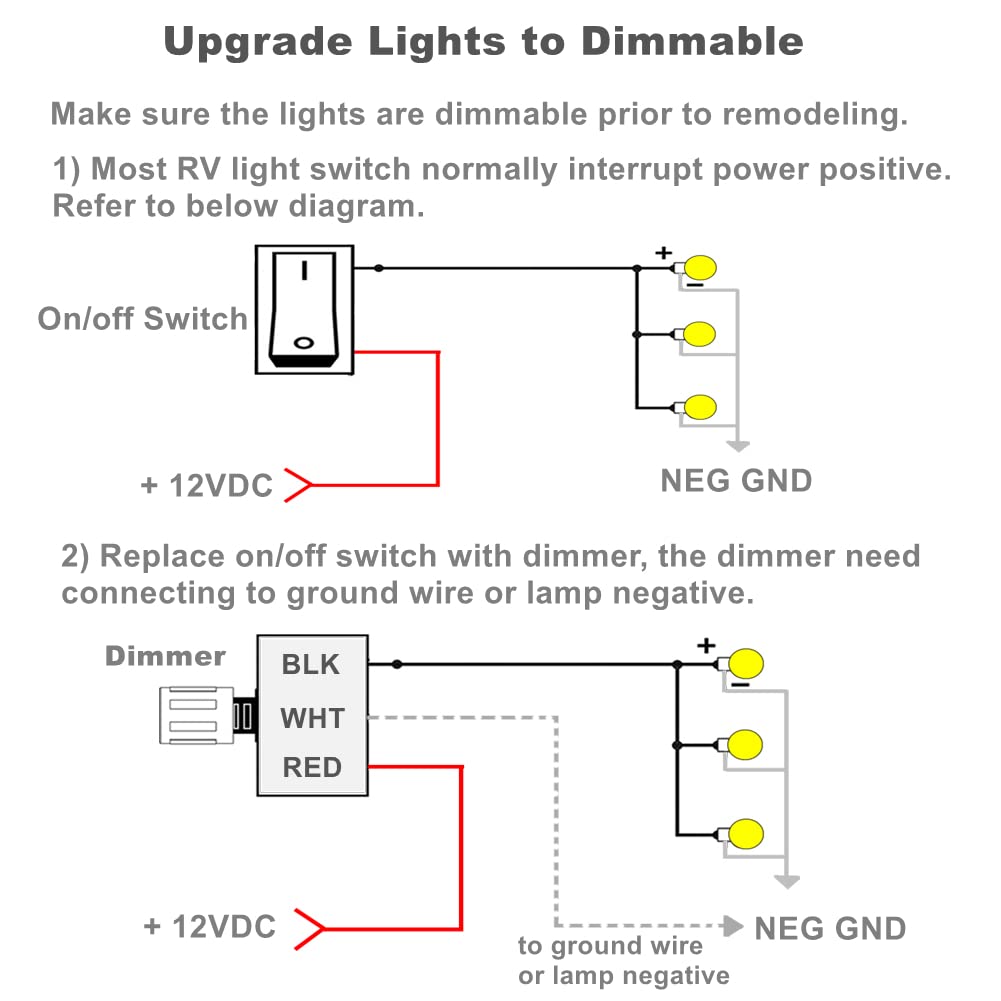

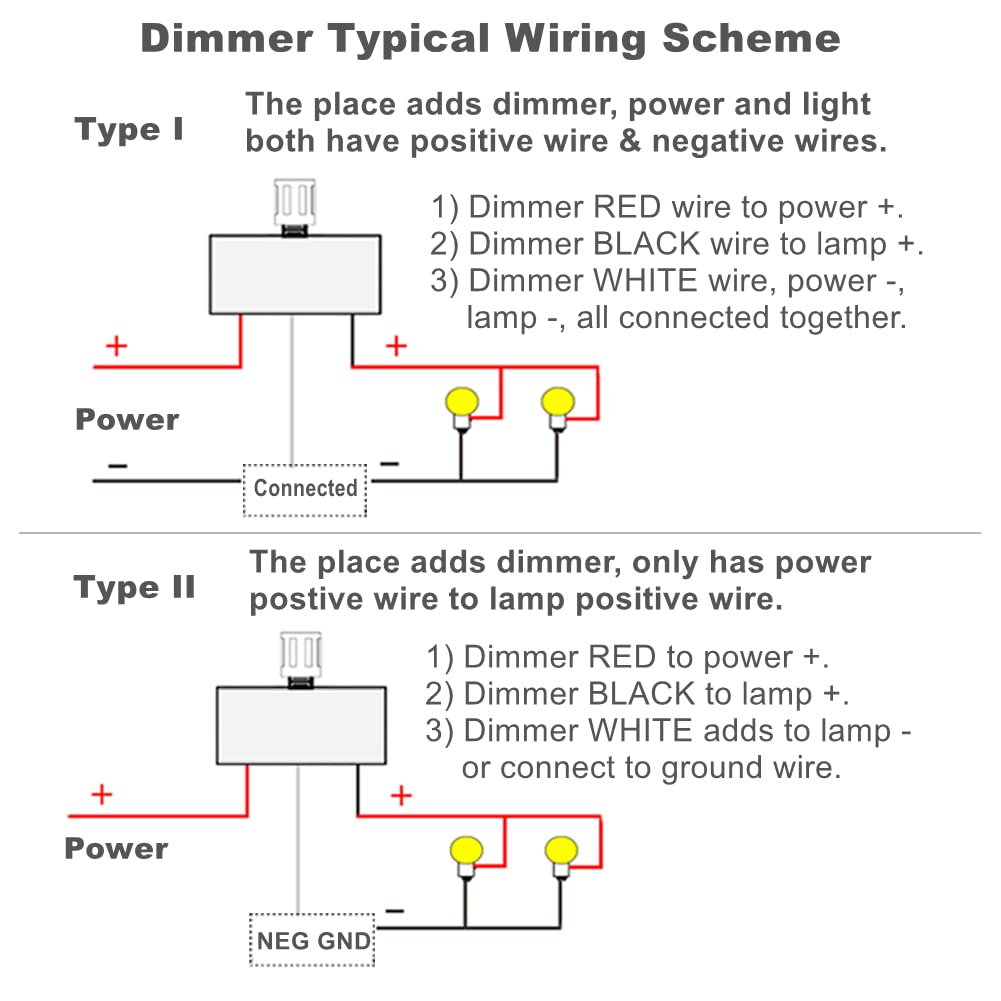

The unit’s compact footprint makes it straightforward to tuck behind a control panel or inside a junction box, and a front panel plate is included for a neat, finished look. Basic wiring requires connecting power, ground and the load lead; the device works as a high-side switch so it installs between +12V and your fixture. Acegoo also offers support if you run into fitment or wiring questions during installation.

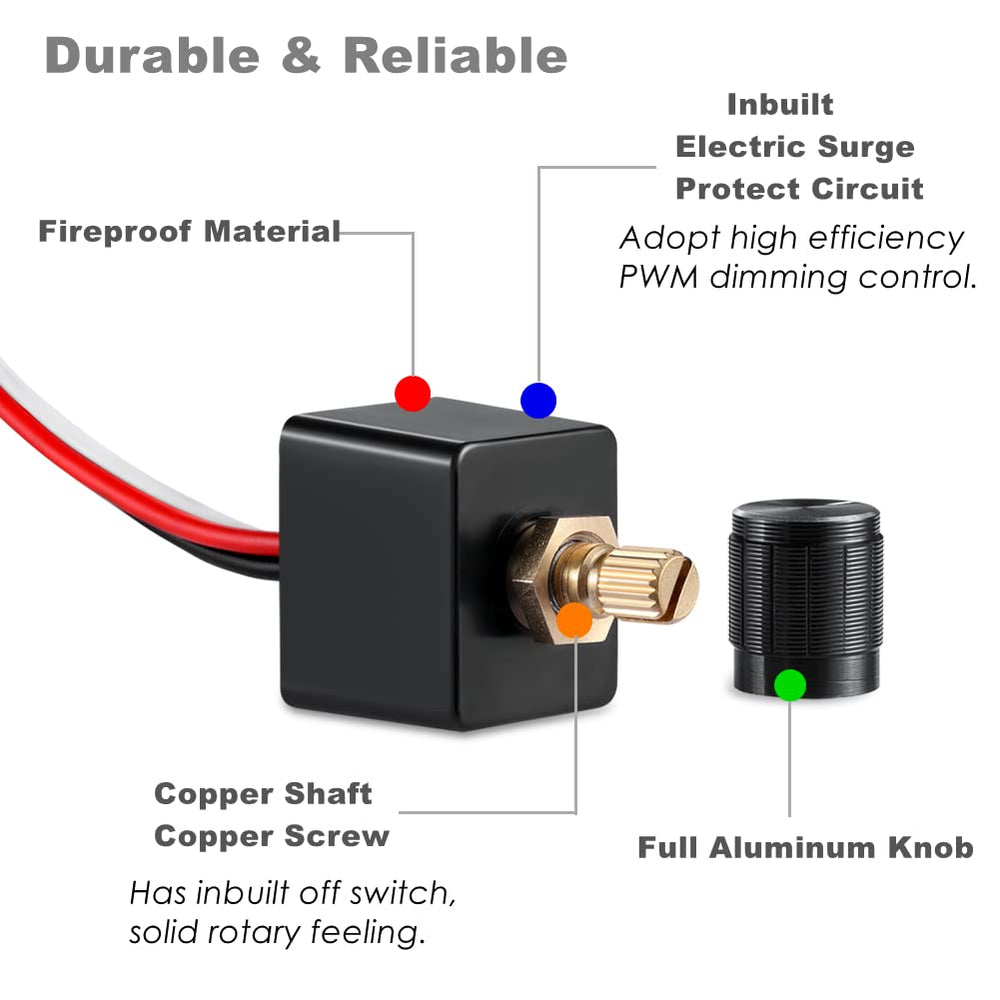

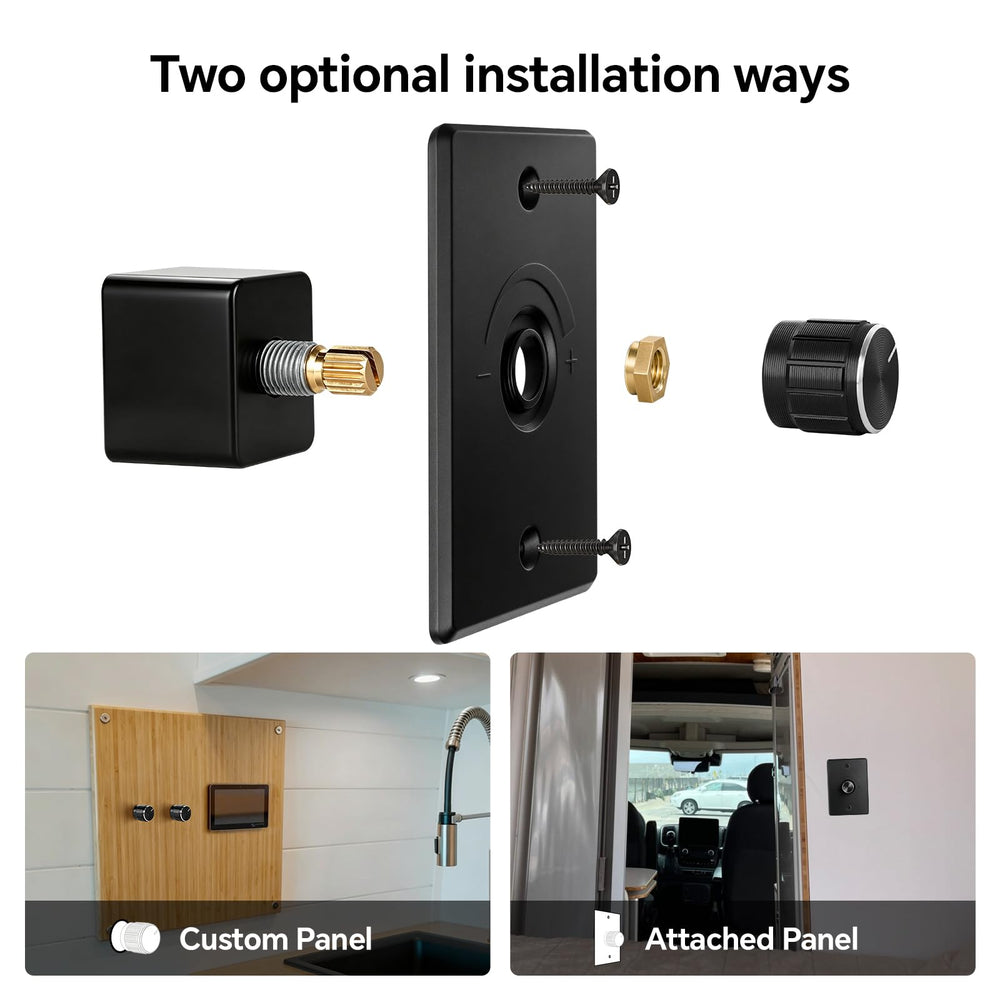

• Small chassis fits inside custom panels or behind dash spaces.

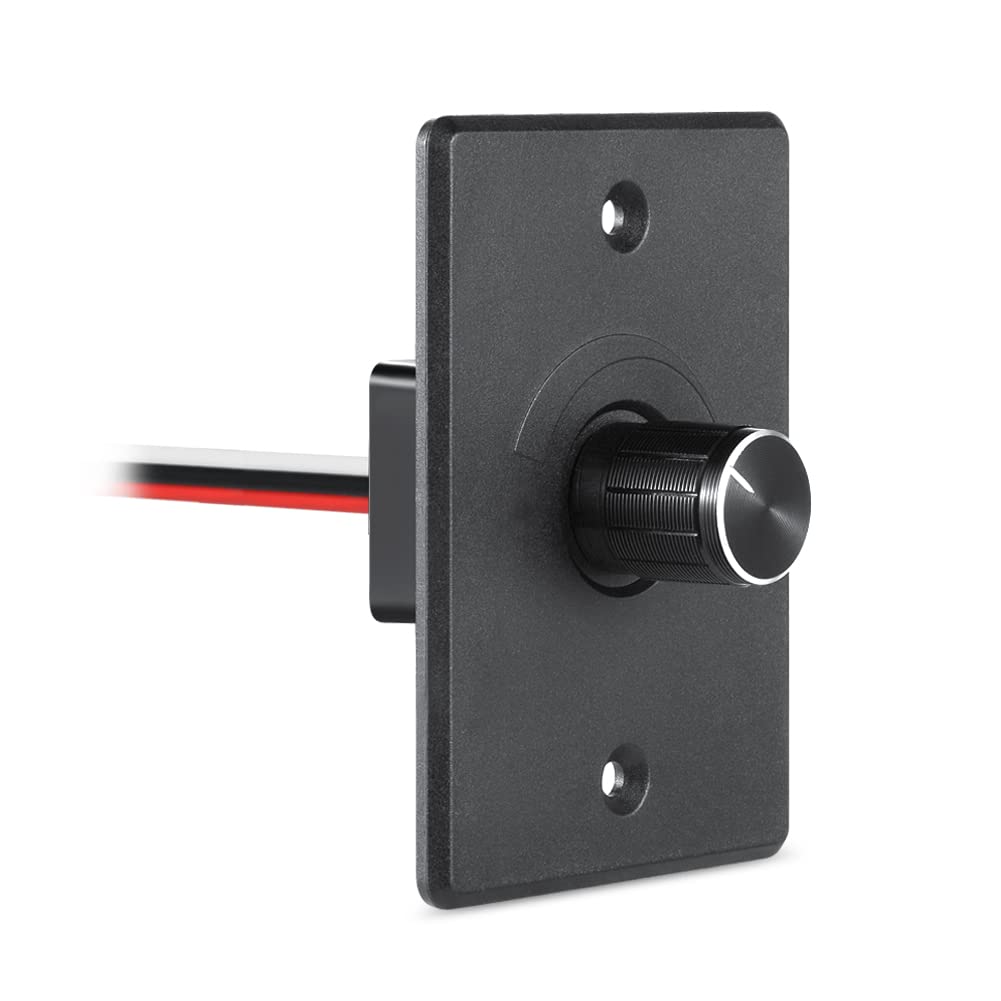

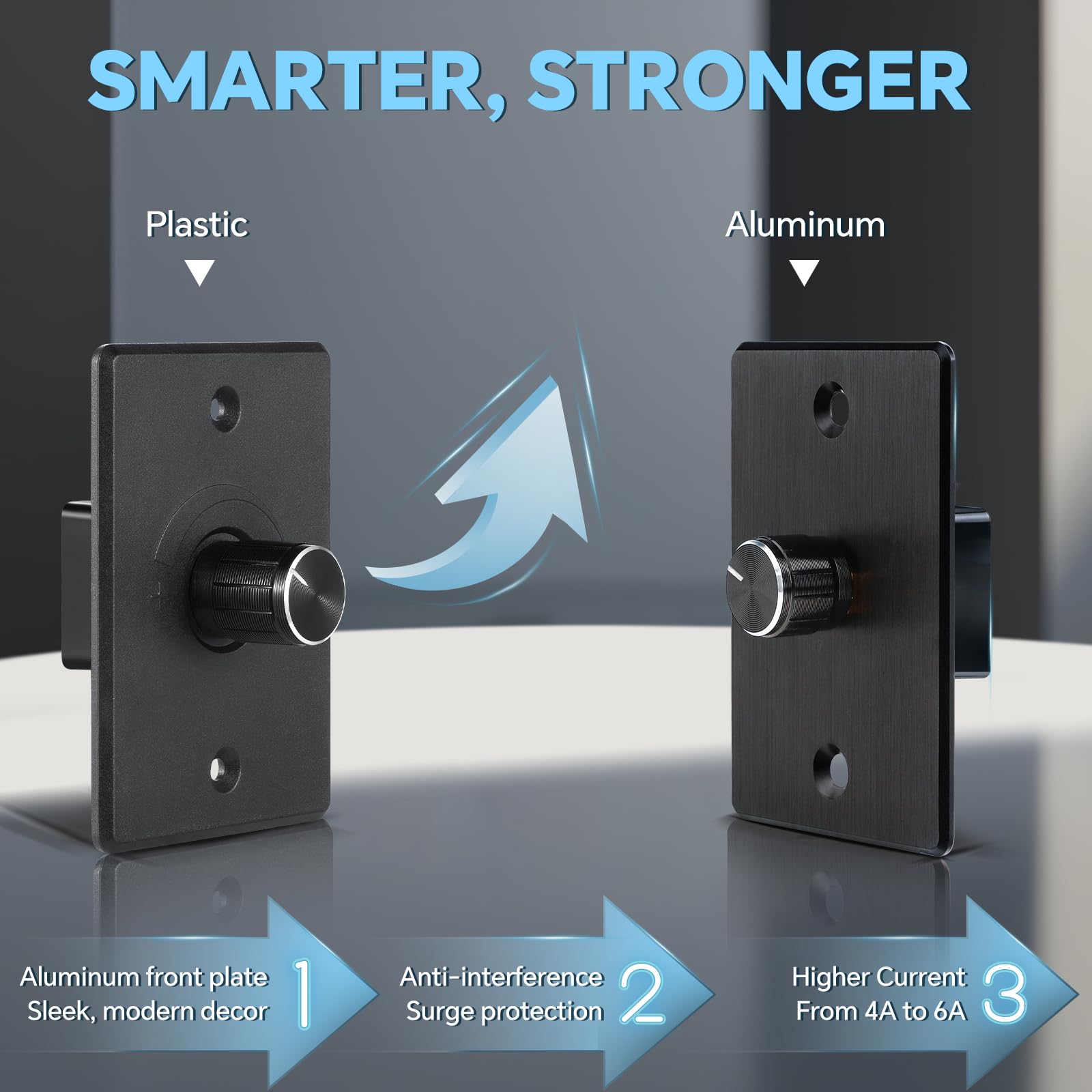

• Included front panel plate for clean mounting and knob alignment.
• Simple three-wire hookup: +12V, ground, and switched output to light.

Will it save battery life in mobile applications?

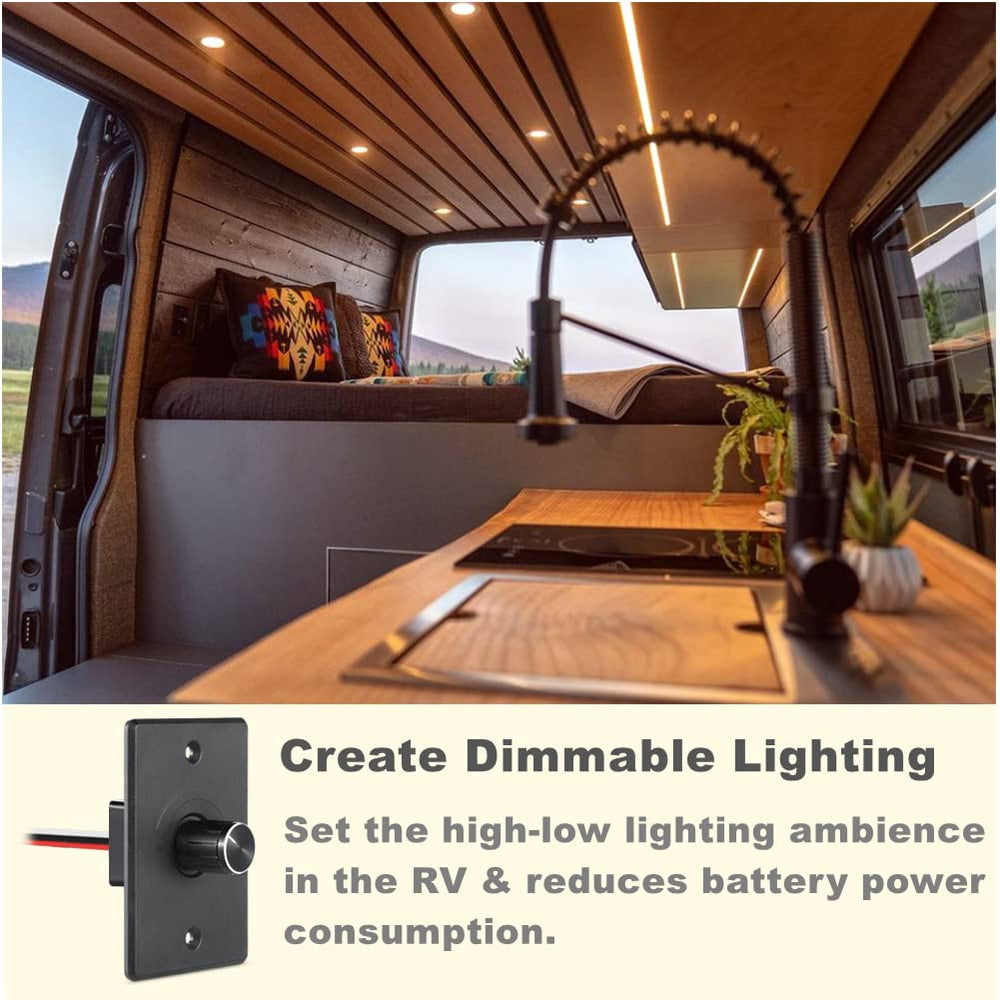

By using PWM to reduce average power to the lamp, the dimmer lowers energy draw when lights are set below full brightness. This makes it a practical upgrade in off-grid or battery-powered vehicles where every amp matters. While savings depend on how often lights are dimmed and the type of lamp, PWM is more efficient than resistive dimming.

• Reduces power draw when lights are not at full brightness.
• Better energy performance compared with simple resistive dimmers.
• Helps extend battery runtime during low-light use on boats and RVs.

Who is this for? The Acegoo 12V Dimmer Switch is aimed at DIYers, RV and boat owners, vanlifers and professional retrofitters who need a compact, efficient way to add smooth dimming to 12V lighting circuits. If you’re upgrading non-dimmable fixtures, building a custom dash or trying to reduce battery drain on a mobile system, this dimmer provides a practical, low-profile solution—just verify your specific LEDs are PWM-compatible before installing.
