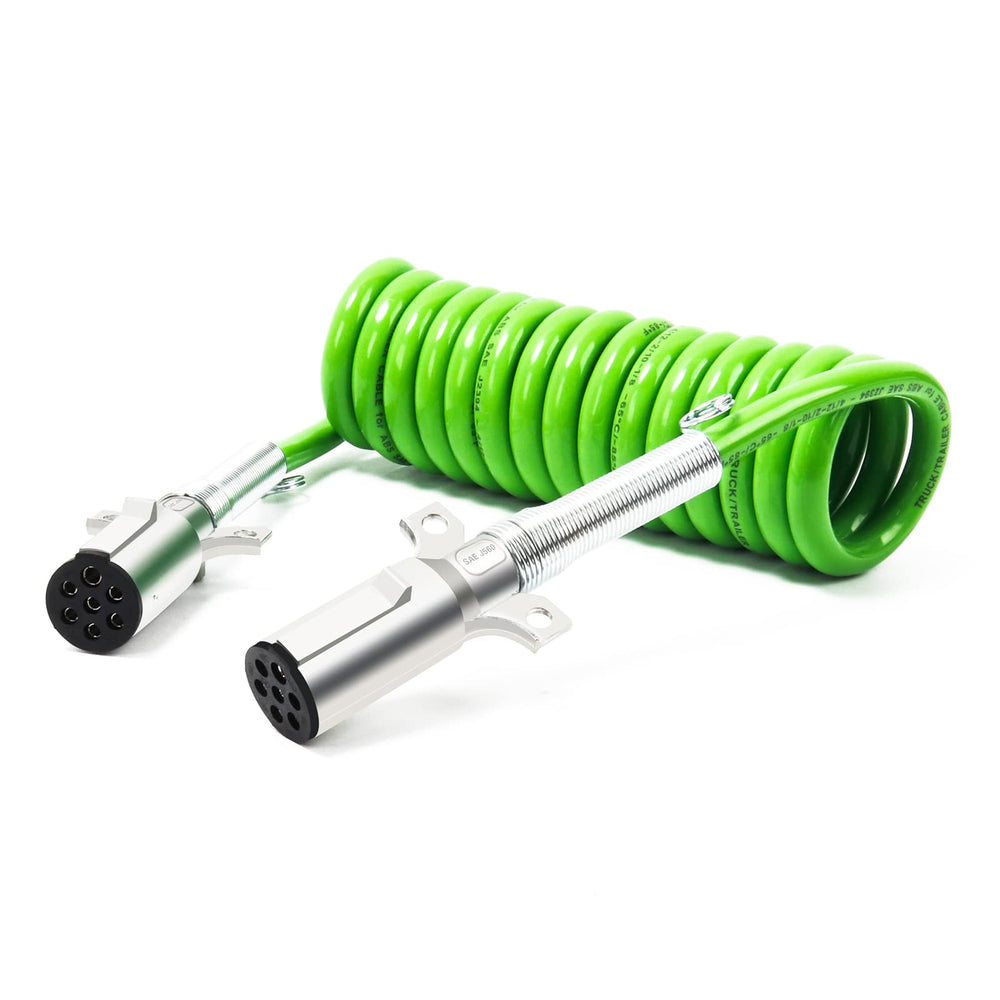

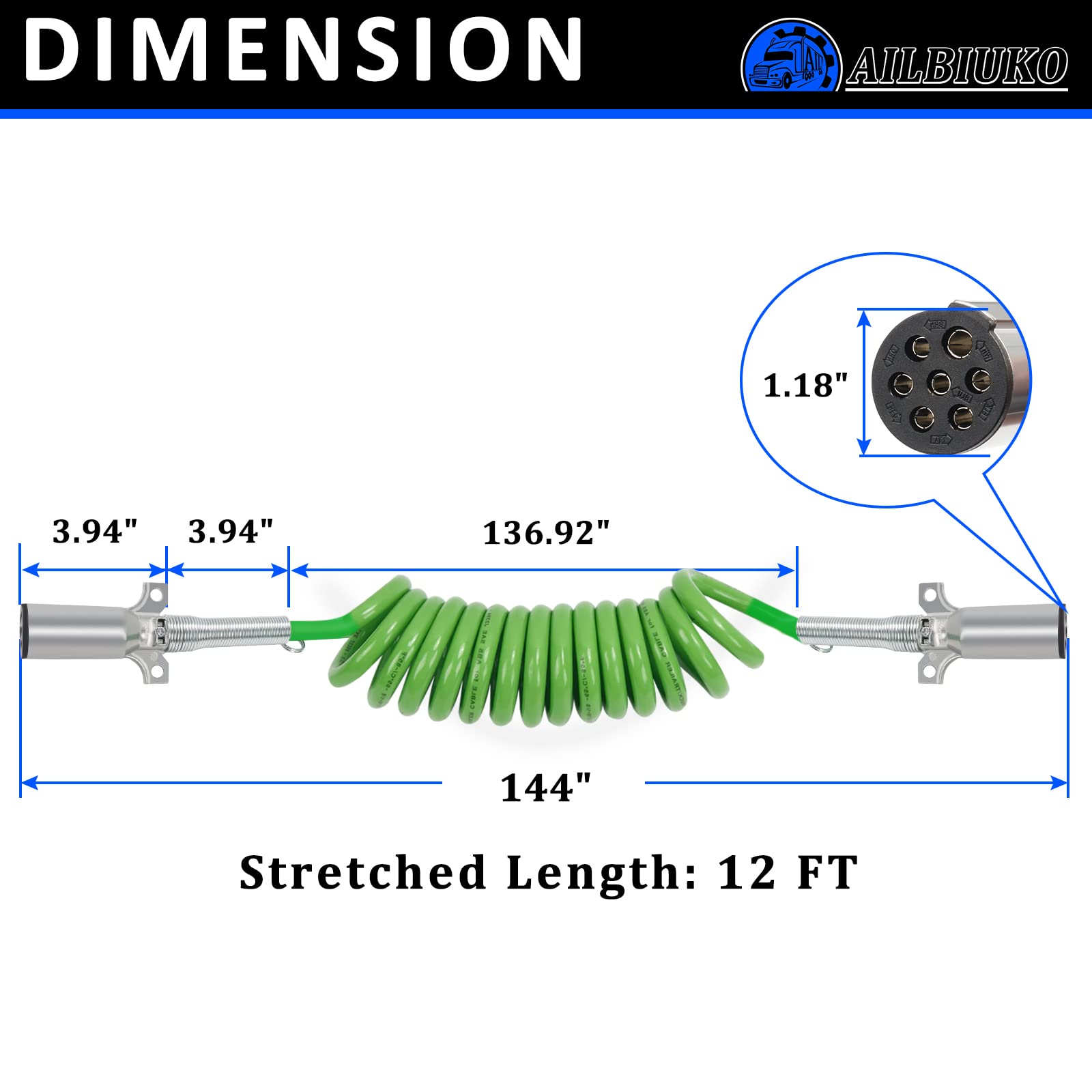

Ailbiuko 12 ft 7-Way Coiled Power Cord — Green ABS, SAE J560 24V Durable Towing Cable

Ailbiuko's 12-foot green ABS 7-way coiled electrical power cord supplies reliable 24V connections between truck and trailer with durable copper conductors and an SAE J560 plug.

This heavy-duty coiled cable is built for towing applications that require a compact, flexible lead to power lights, brakes, reverse lamps, and auxiliary circuits. Designed to meet SAE J2394 and J560 guidelines, the assembly pairs a zinc die-cast 7-way plug with seven pure-copper conductors inside a green ABS jacket. Stainless-steel spring guards at both ends protect against strain and kinking while keeping the cord tidy when not stretched.

How does this cord keep trailer lights and brakes working properly?

The Ailbiuko 7-way cable uses seven dedicated copper wires to separate lighting, braking, and auxiliary power, preserving signal integrity and preventing cross-talk. The SAE J560-compatible plug ensures correct pin mapping with most heavy-duty towing rigs.

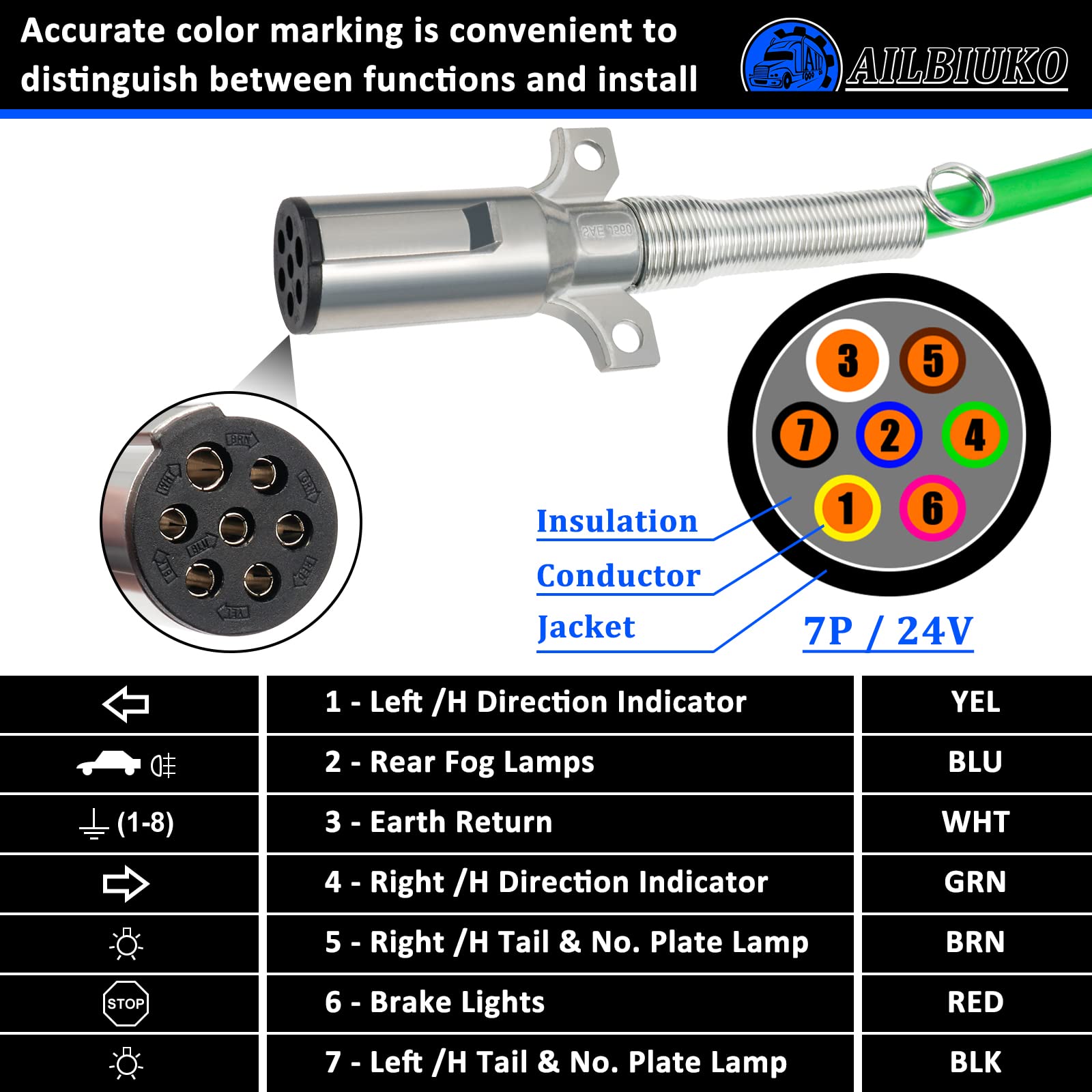

• Seven insulated copper conductors for distinct circuits (turn, brake, tail, reverse, auxiliary, ground, etc.).
• SAE J560 plug for standardized pin alignment and safe mating.
• 24V wiring suited for truck/trailer electrical systems.
• Green ABS outer jacket for visibility and abrasion resistance.

How durable is the coiled cable in real-world towing conditions?

Durability comes from quality materials and reinforced ends. Pure copper wiring offers excellent conductivity and heat tolerance, while stainless-steel spring joints protect the transition points from repeated flexing and abrasion.

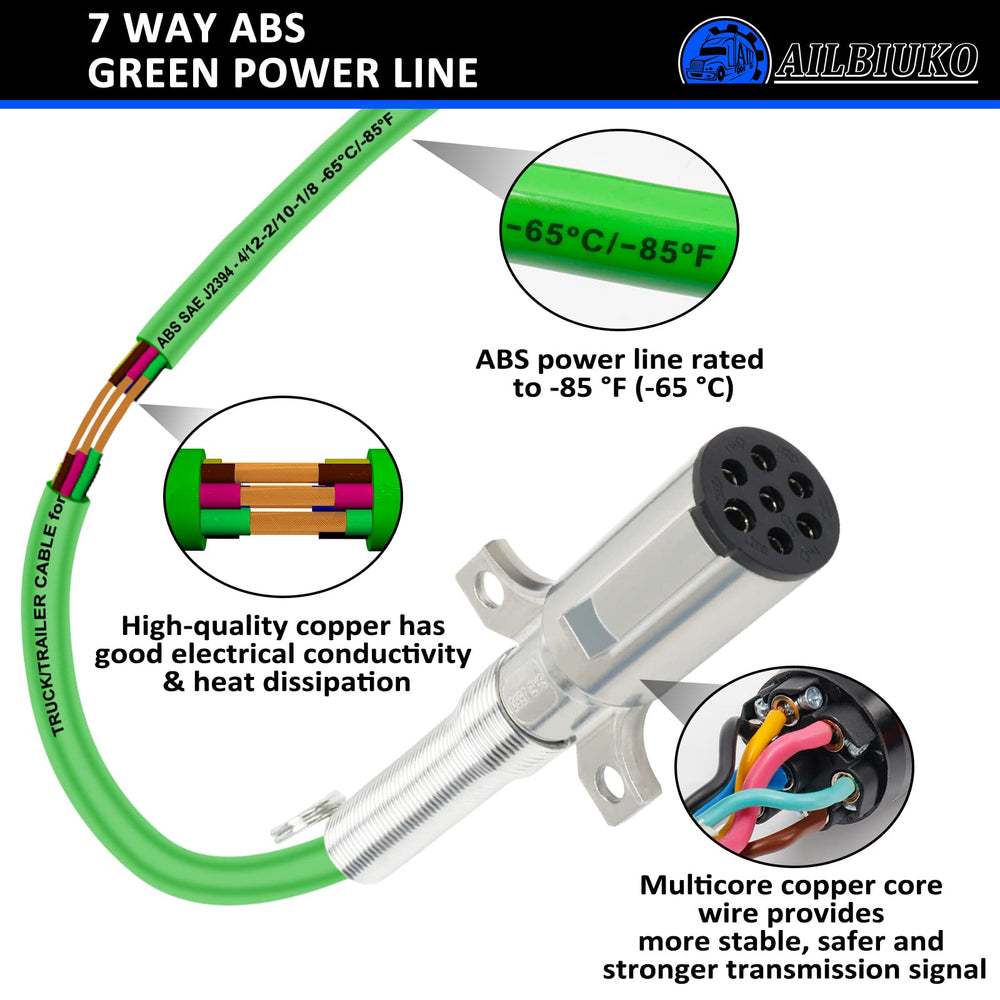

• Pure copper conductors for longer life and consistent electrical performance.
• ABS outer sheath resists weather, oils, and road debris.

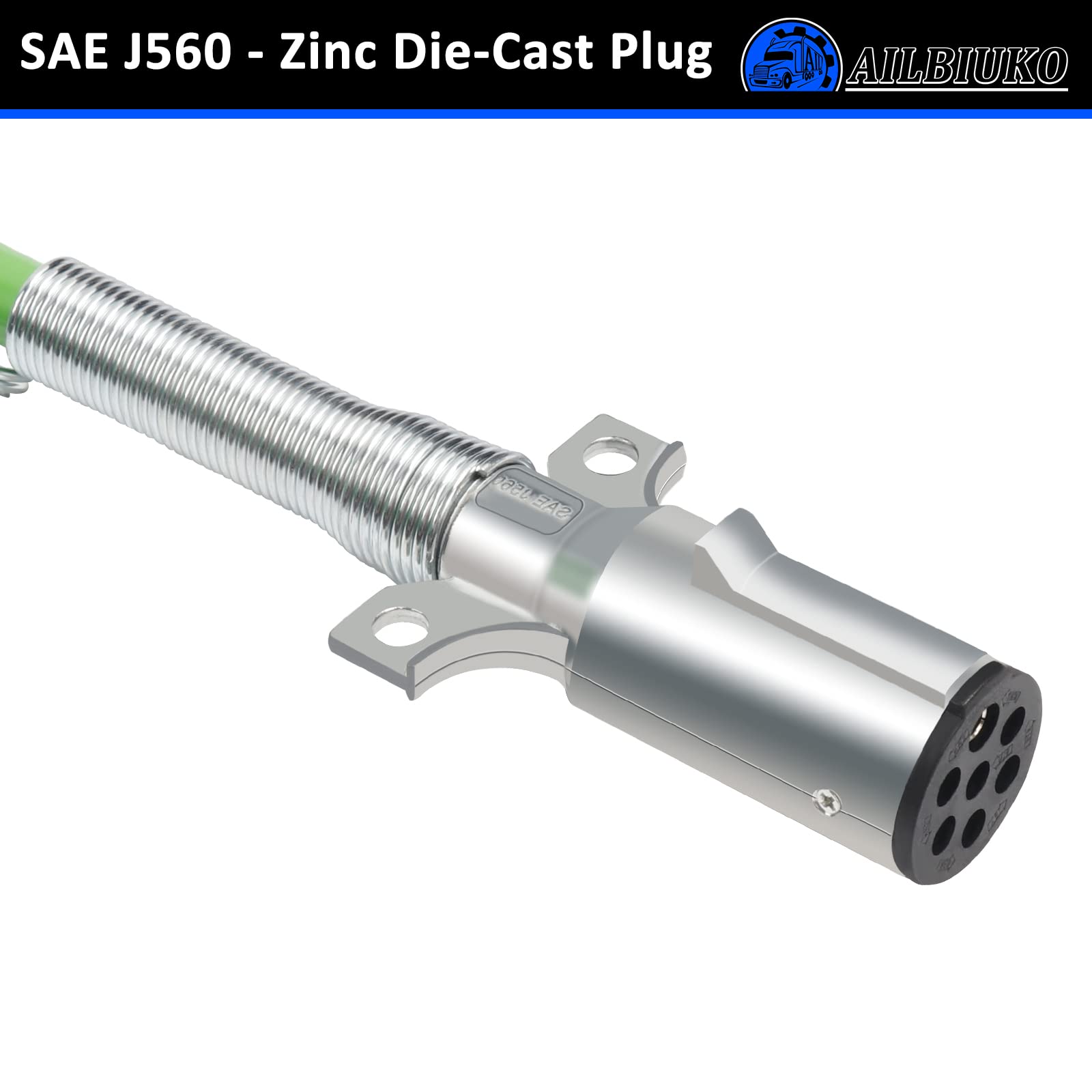

• 3.94-inch stainless-steel spring guards prevent kinks and reduce strain at connectors.

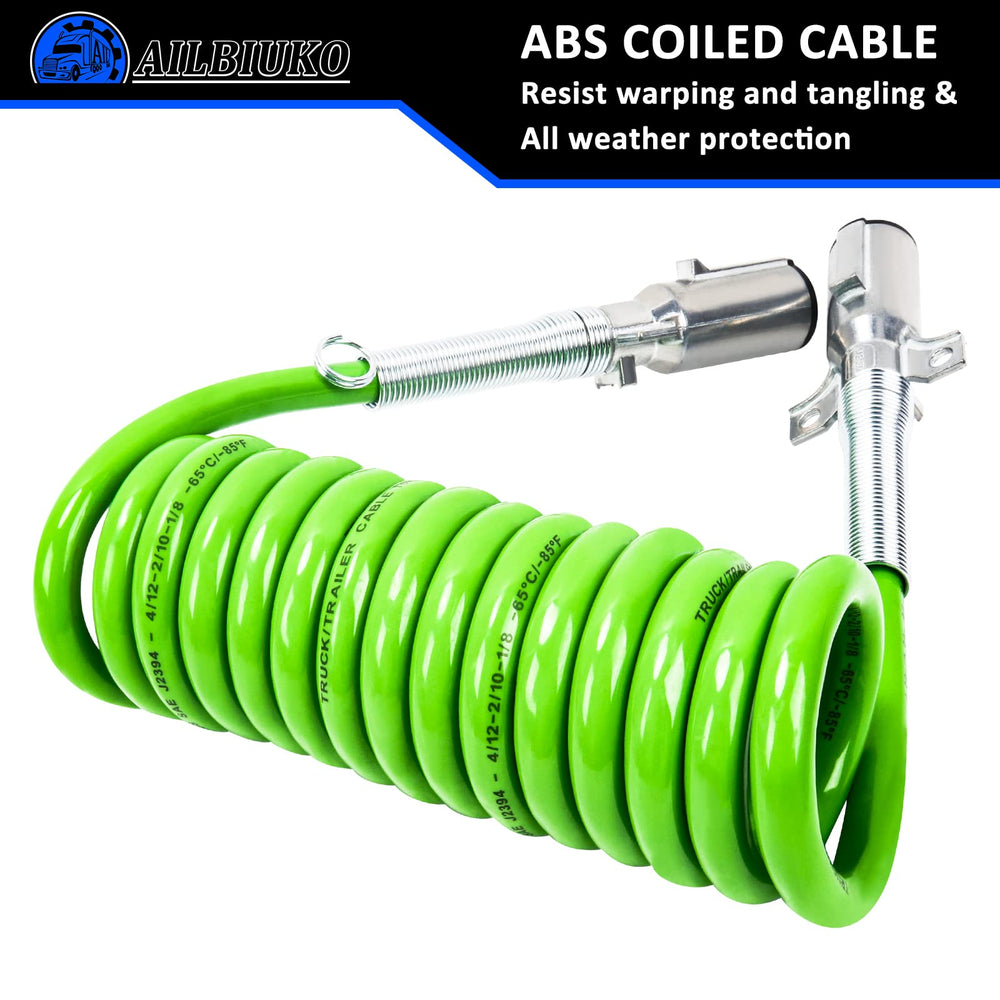

• Coiled design retracts when slack, lowering snag and drag risks behind the vehicle.

How do I install and use the Ailbiuko 12 ft 7-way cord safely?

Installation is straightforward: align the SAE J560 plug with your vehicle’s receptacle and secure the connection. Always inspect wiring and connections before towing, follow the wiring diagram provided, and avoid routing the cable where it can be pinched or chafed.

• Match the plug to the SAE J560 socket and twist-lock or latch as appropriate.
• Verify each function (turn signals, brake, tail, reverse) before travel.
• Keep slack managed; the coil should retract but not be tightly stretched during turns.
• Replace the cable if insulation is cut, copper exposed, or springs deform.

What vehicles and setups are compatible with this 7-way cable?

This cable is intended for heavy-duty towing setups that use a 7-pin 24V electrical configuration, including commercial trucks, trailers, RVs, and caravans that follow SAE standards. It works well on food trucks, utility trailers, and any towed unit requiring separated brake and lighting circuits.

• Designed for truck-to-trailer and tractor-trailer 7-way 24V systems.
• Suitable for RVs, campers, caravans, food vans, and utility trailers.
• Best used where a retractable/coiled cord reduces drag and tangling.
• Refer to vehicle wiring diagrams to confirm SAE J560 compatibility.

Who is this for: Professional drivers, fleet managers, and owners of towed vehicles who need a compact, reliable 7-way 24V connection will benefit from the Ailbiuko 12 ft coiled cable. It’s also a practical choice for contractors, RV enthusiasts, and anyone who wants a robust, easy-to-stow lead that preserves full lighting and auxiliary functions during towing.
