Alltooetools Noid Light Test Kit Fuel Injector & IAC Tester — Multi‑Shape Noid Lights, Extension Lead

The Alltooetools Noid Light Test Kit is a handheld diagnostic set that quickly verifies fuel injector and idle air control (IAC) electrical signals without disassembling the engine.

If your vehicle cranks but won’t start, the problem could be an interrupted injector pulse or a faulty IAC signal. This kit provides a simple, visual way to confirm whether the engine control wiring is delivering the correct pulses. Compact and easy to use, the set plugs into factory harnesses and uses LED indicators to show whether circuits are pulsing normally, steady, or absent.

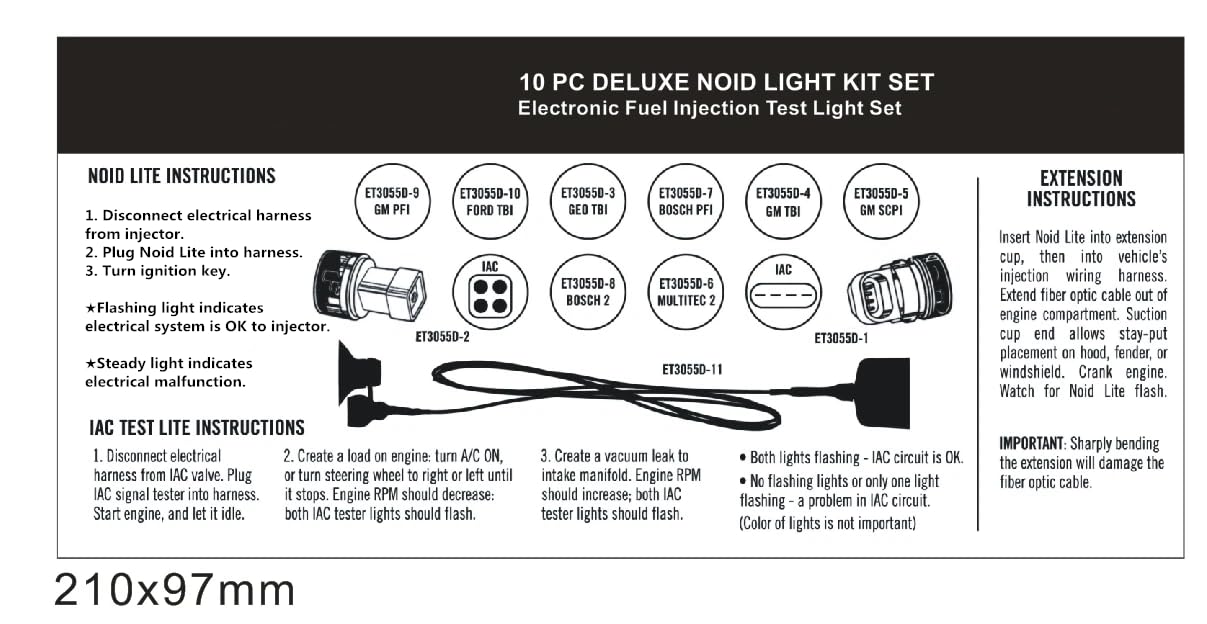

How do I use the noid light to check my fuel injectors?

Locate and unplug the electrical connector from the injector, then plug the matching noid light into the harness. Crank the engine for a few seconds; a flashing LED shows the ECU is sending proper pulses. A steady-on or non-illuminated light signals a wiring or control problem.

• Unplug injector connector and insert noid light
• Use extensions when access is tight
• Crank engine briefly to observe LED behavior
• Flash = proper pulse; steady or dark = fault

Can this kit diagnose idle air control (IAC) issues?

Yes — the included IAC signal tester replicates the electrical load and checks the IAC circuit while the engine idles. When the IAC is operating correctly, multiple LEDs will flash to indicate varying duty cycles; missing flashes point to bad wiring, a failed valve, or control module issues. Testing is noninvasive and avoids disassembling the valve during initial troubleshooting.

• Disconnect IAC harness and plug in the IAC tester
• Create a load or let engine idle for observation
• Two or more flashing LEDs indicate proper signal
• Single or no flash suggests a fault needing further testing

Which vehicles and connectors are supported by the kit?

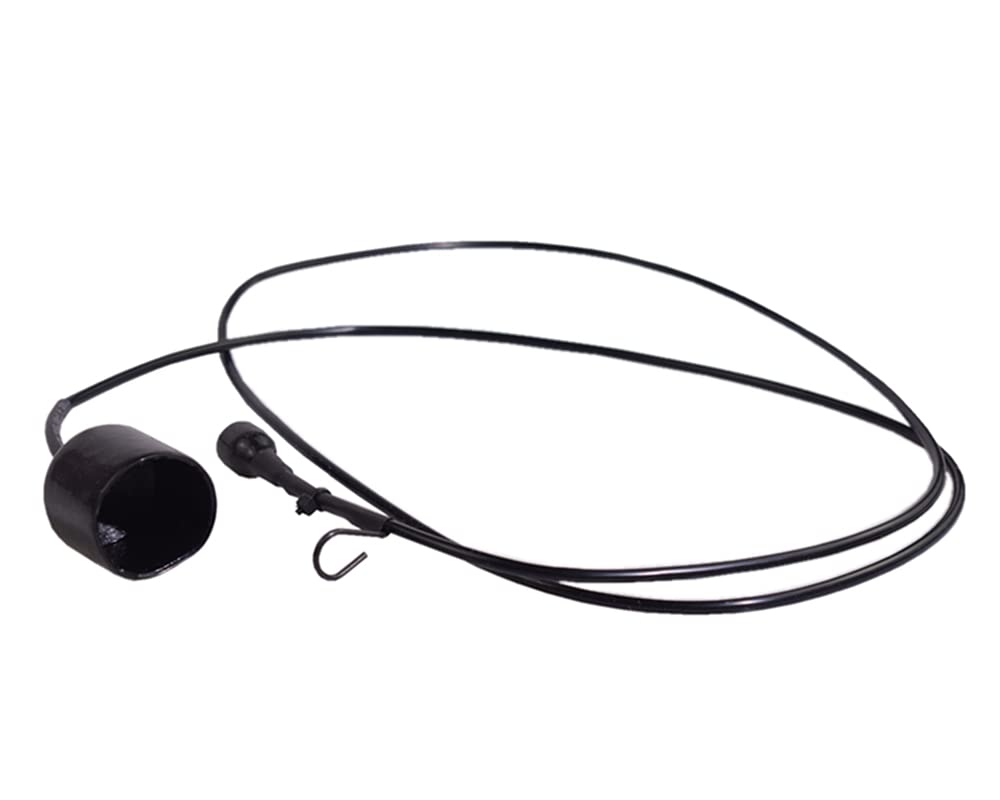

The set is designed to work with common automotive injector and IAC harness types across many gasoline engine platforms. It includes multiple noid lights and an extension lead so you can reach tight or recessed connectors. Always match the noid plug shape to the vehicle harness to avoid connector damage.

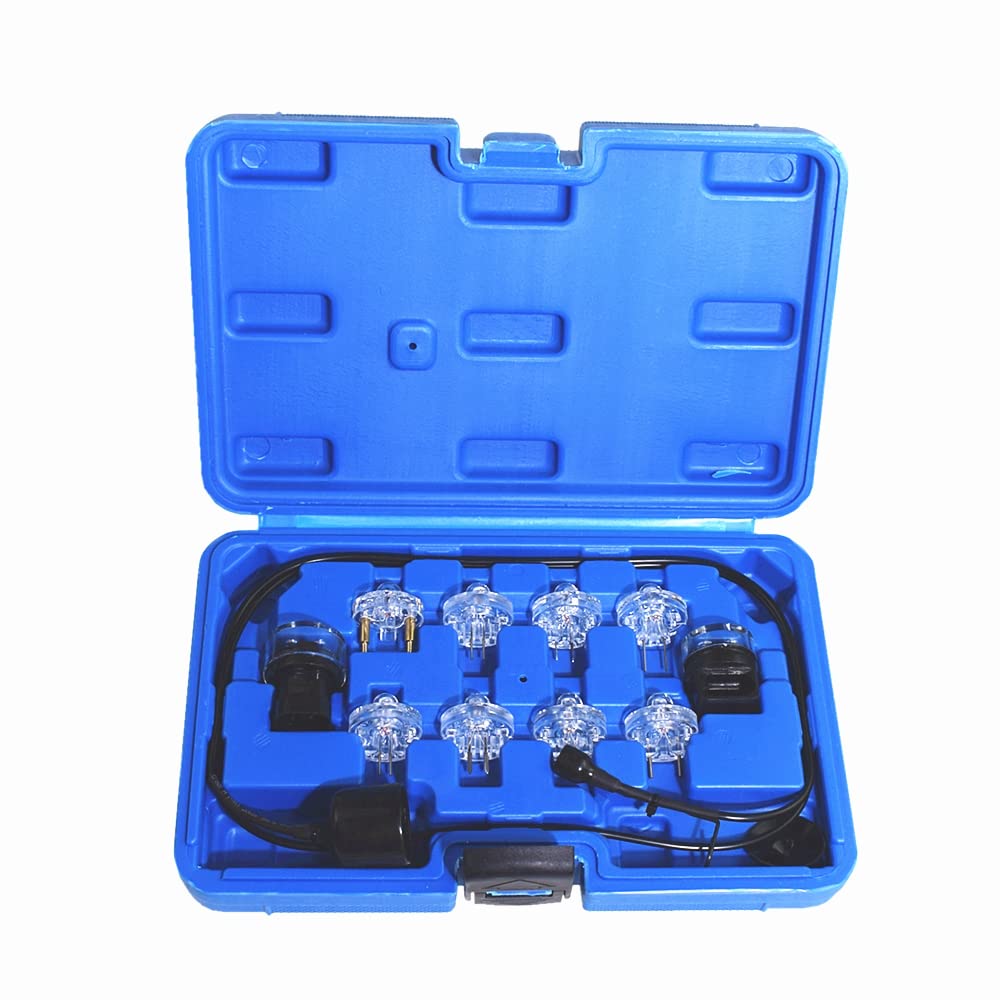

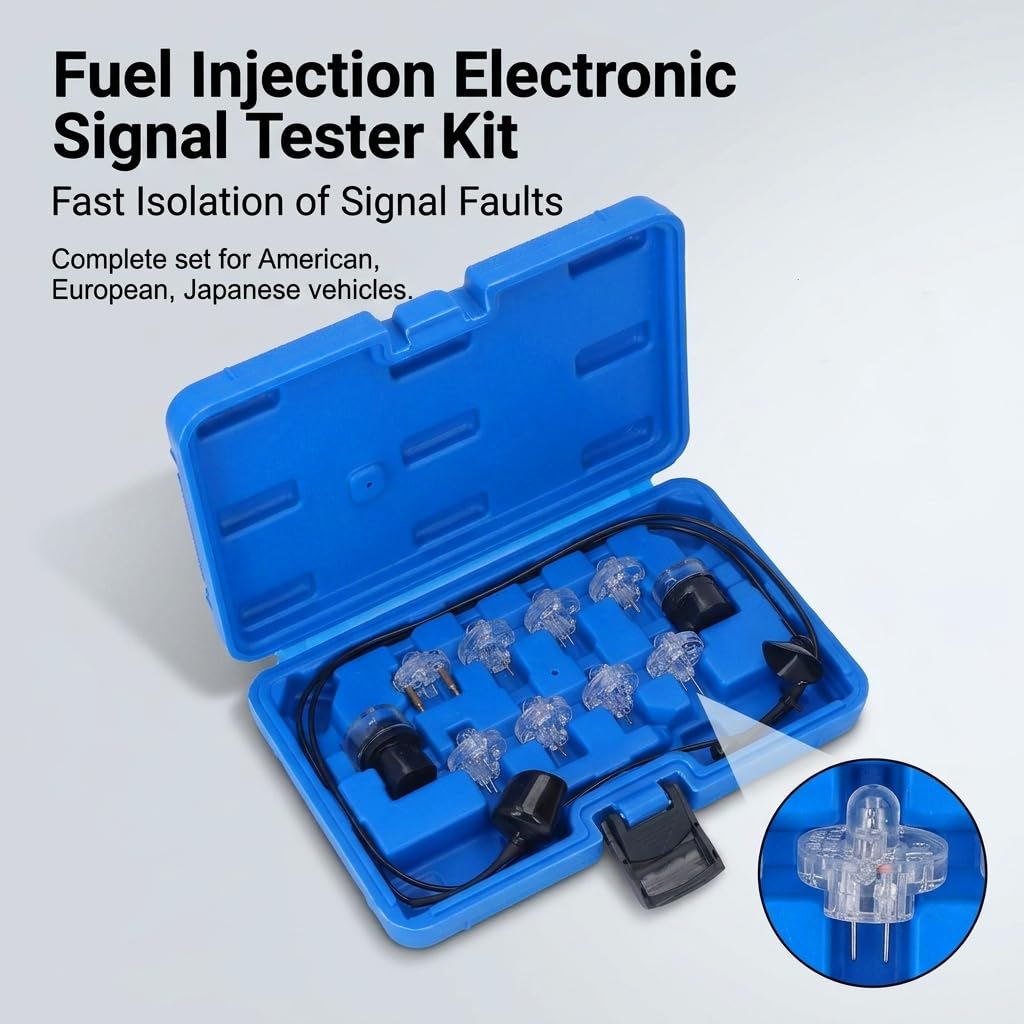

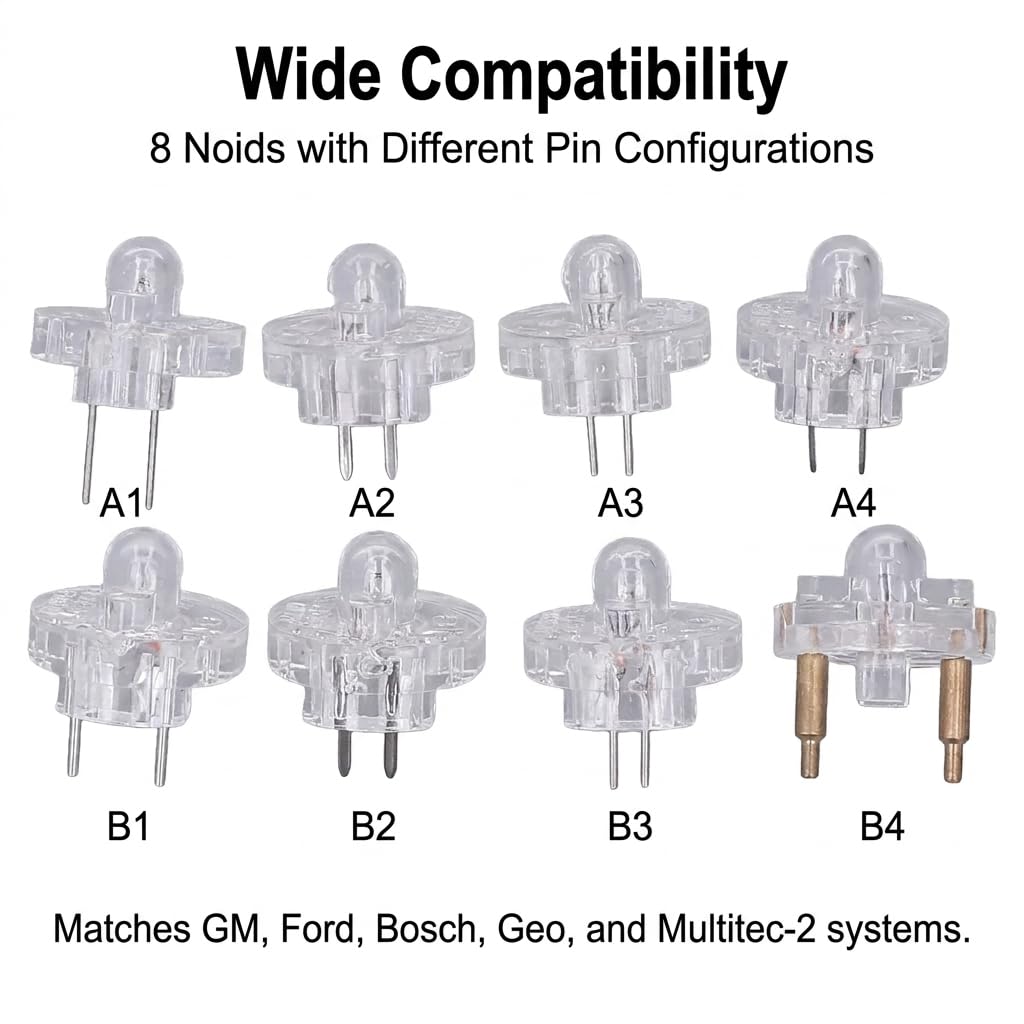

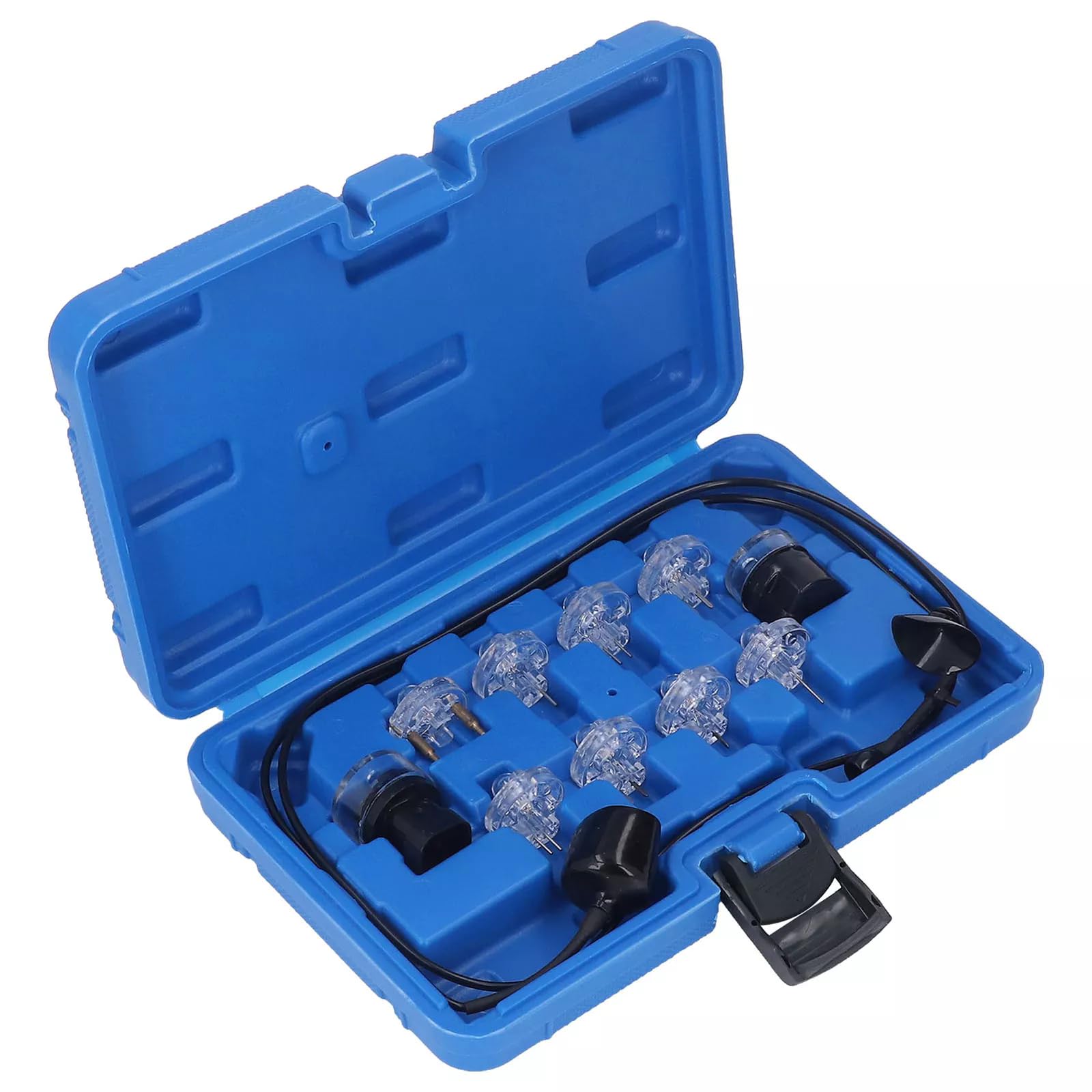

• Multiple noid light shapes for common injector harnesses

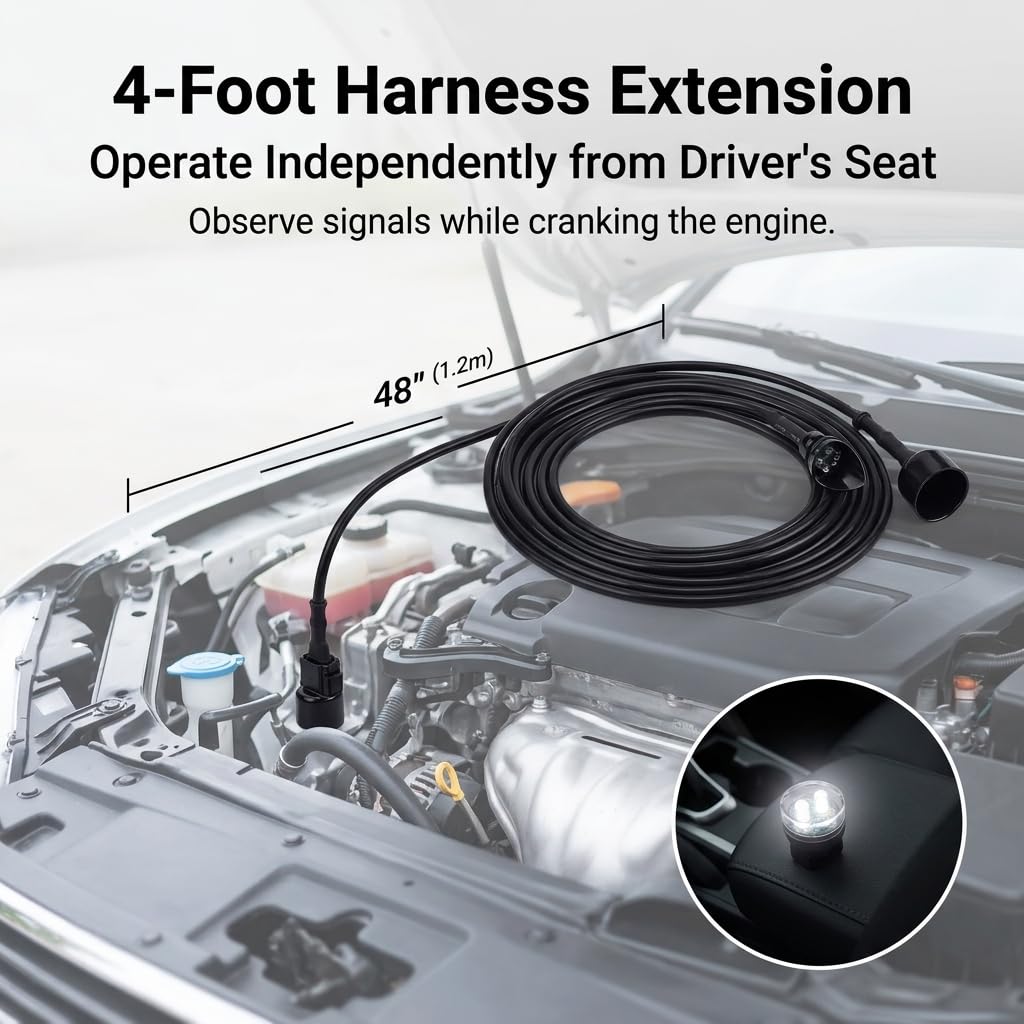

• Extension lead for hard-to-reach connections
• Universal for most EFI and IAC systems on gasoline engines
• Non-powered LED indicators — no battery required

Who is this for: The Alltooetools Noid Light Test Kit suits DIY mechanics, mobile technicians, and shop professionals who need a fast, reliable way to isolate electrical faults in fuel injector and IAC circuits. It’s ideal when a vehicle cranks but won’t start, when intermittent stalls occur, or during routine troubleshooting before replacing costly components.
