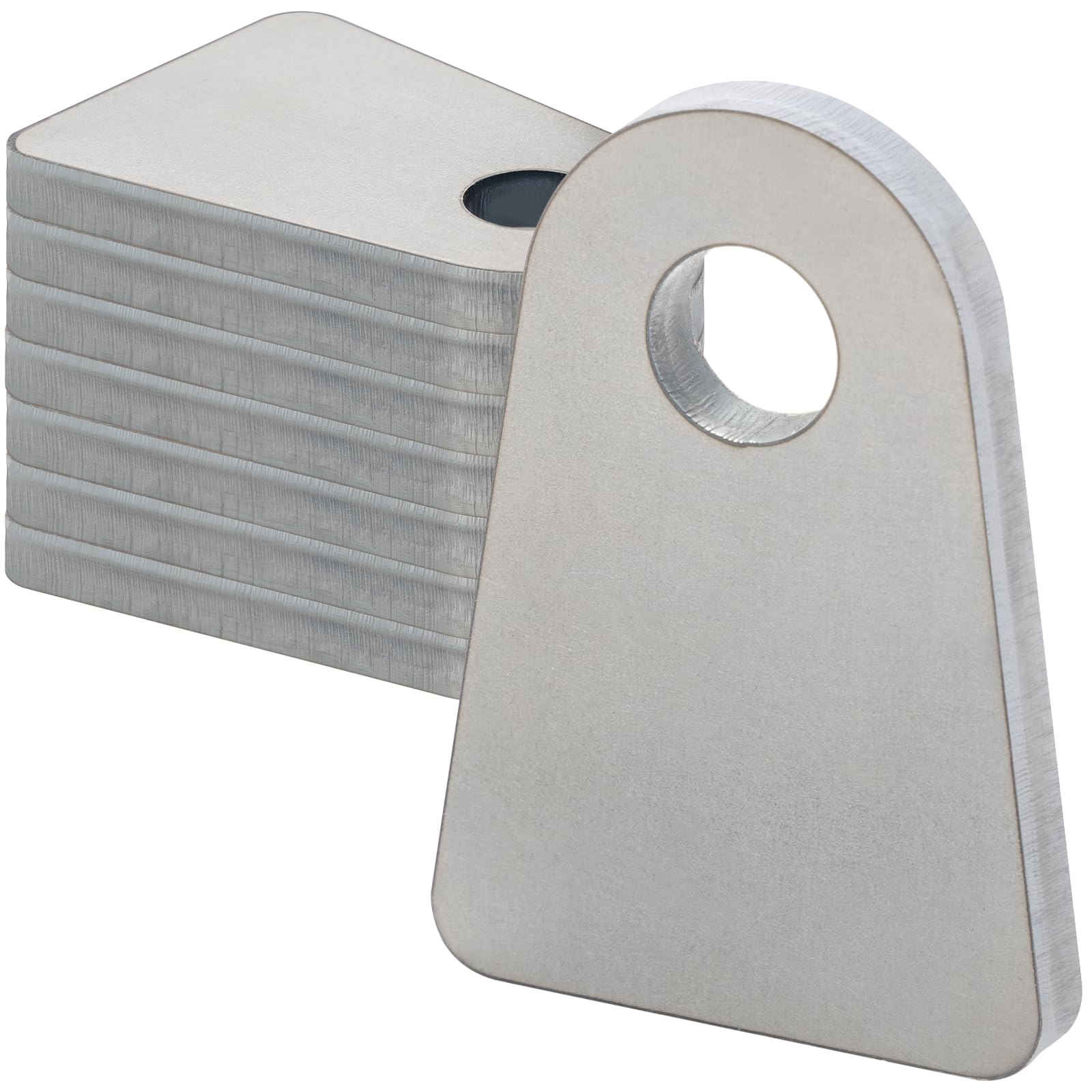

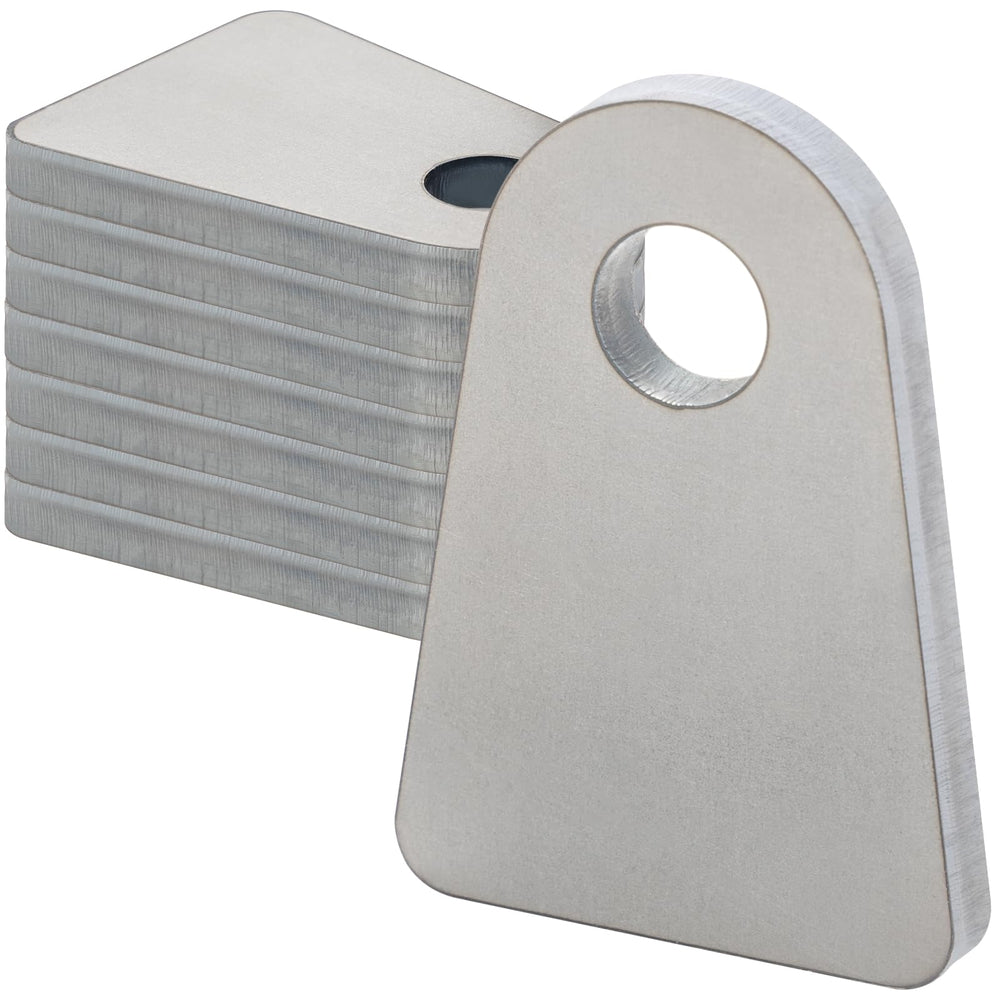

Alvktora Weld-On Tabs 1/2" Hole Flat-Bottom Shock Mount Brackets — 8 Pc, 15° Chamfer & 18 kN Shear

These weld-on tabs are engineered for demanding structural and suspension applications where consistent hole alignment, superior weldability, and long-term durability matter. Each plate is precision-machined from acid-washed, stress-relieved steel, featuring a chamfered bottom and anti-sway center-hole design to reduce fastener tilt. The result is a ready-to-weld bracket designed to minimize welding defects, resist tear-out, and withstand high shear loads in automotive, off-road, marine, and industrial builds.

How do these tabs make welding easier and more reliable?

The tabs arrive with laser-cleaned, zinc-free surfaces and a 15° chamfer on the flat bottom to eliminate gaps and reduce porosity during welding. Vacuum degassing and stress-relief annealing lower hydrogen content and residual stress, helping to prevent cracking and distortion.

• Laser-cleaned surfaces reduce porosity to under 0.5% for cleaner welds.
• Zinc-free, low-silicone chemistry cuts toxic fumes and reduces spatter by ~30%.
• 15° chamfer fills gaps for full-penetration welds and consistent joint geometry.
• Compatible with MIG/TIG using ER70S-6 wire for common workshop processes.

What mechanical strength and fatigue resistance can I expect?

These brackets are specified to Mil-Spec-like mechanical values—HV130-150 hardness and verified 18 kN shear performance—so each tab resists pull-through and supports heavy suspension loads. Finite Element Analysis (FEA) informed thicker edge geometry to significantly improve tear-out resistance.

• HV130–150 hardness balances toughness and strength for fatigue resistance.
• 18 kN shear capacity approximates the load of suspending a pickup truck from a single bracket.
• FEA-optimized edge thickness (9.7 mm) improves tear-out resistance by ~150% vs. standard plates.
• 0.1 mm center-hole gap control prevents fastener tilt under vibration.

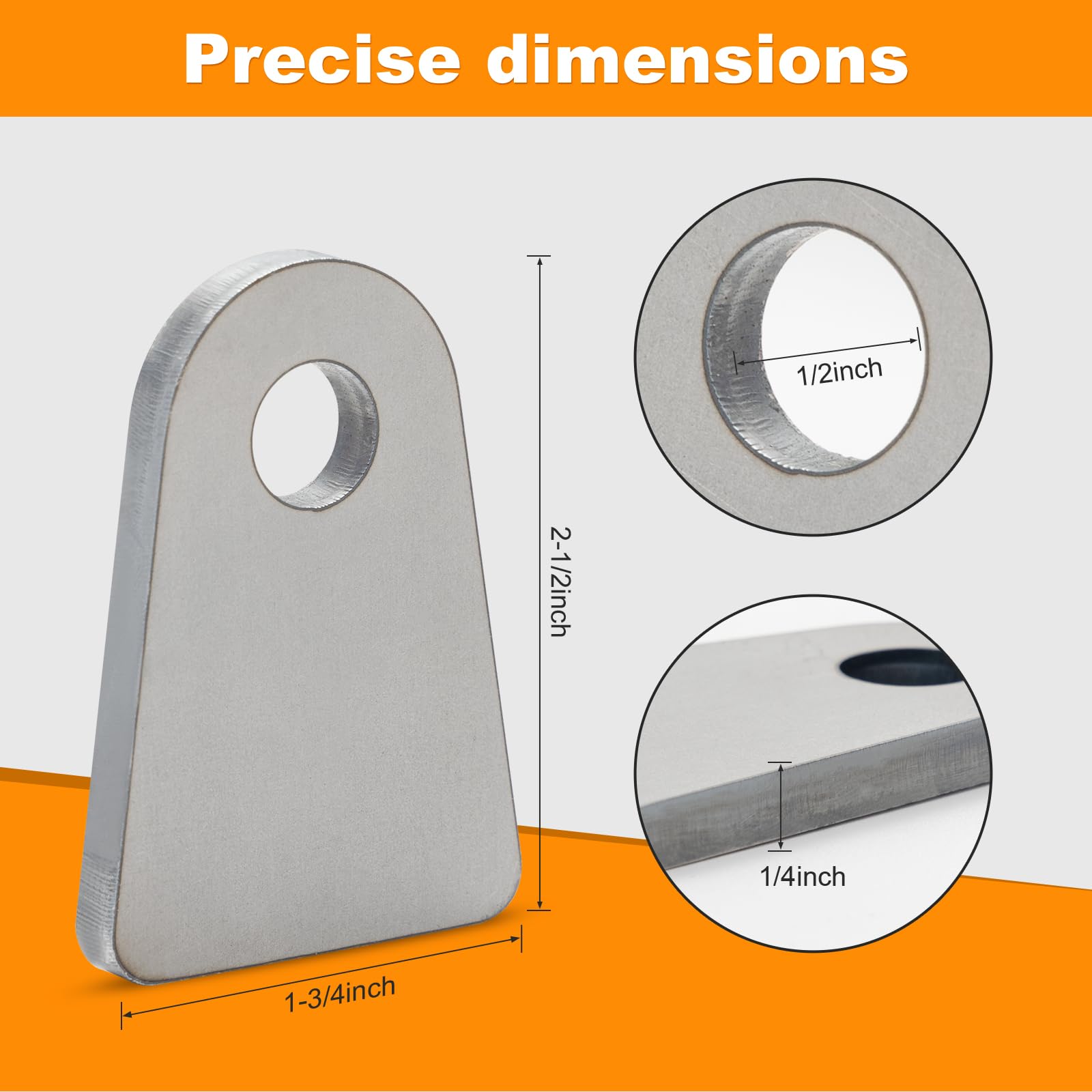

What are the exact dimensions and fit features I should know?

Each weld tab is sized for universal suspension and mounting tasks, with dimensions chosen to fit common shock and bracket hardware while maintaining robust cross-section thickness. The controlled flatness and tight tolerances make them easy to position and align before welding.

• Center hole diameter: 1/2" for standard hardware compatibility.
• Overall: 2-1/2" height × 1-3/4" width × 1/4" thickness.
• Chamfered bottom (15°) for gap filling and secure tack welding.
• Plate flatness better than 0.1 mm/m minimizes fit-up distortion.

How do these tabs hold up to corrosion and real-world environments?

The steel receives acid cleaning, pickling, and vacuum treatments to reduce contamination and delay surface rust, especially when followed by standard primer and topcoat. These pre-treatments extend service life in wet or salty environments compared with untreated raw steel.

• Pickling and acid wash delay rusting up to three times longer than untreated steel.
• Vacuum degassing keeps hydrogen below 2 ppm, reducing corrosion-initiated cracking risk.
• Stress-relief annealing at 650°C reduces residual stress by ~40% for dimensional stability.
• Recommended finish: primer + paint for multi-year protection in exposed conditions.

Who this is for: fabricators, off-road builders, trailer and suspension shops, and serious DIY mechanics who need compact, high-strength weld-on brackets that weld cleanly and maintain hole alignment under heavy vibration. If your project requires reliable shock or mount attachment points that resist tear-out and simplify welding, these Alvktora weld-on tabs are built to meet those demands.
