ANKG 50A Quick Connect Battery Plug Connector — 6–8 AWG Silver-Plated Terminals, Flame-Retardant Shell

ANKG 50 Amp Battery Quick Connect/Disconnect Jumper Cable Plug Connector provides a fast, durable, tool-friendly way to attach and detach 50A DC battery leads for winches, RVs, trailers, and off-grid systems.

This compact battery disconnect is built for rugged electrical use where reliable power and repeated connections matter. Designed around silver-plated copper terminals and a flame-retardant polycarbonate shell, the ANKG 50A quick connect supports heavy-gauge 6–8 AWG cables and is rated for 50 amps at up to 600V DC. It aims to reduce resistance and heat while giving an easy, vibration-resistant mating solution for vehicles, marine gear, solar setups, and portable power kits.

How does the ANKG connector keep connections cool and efficient?

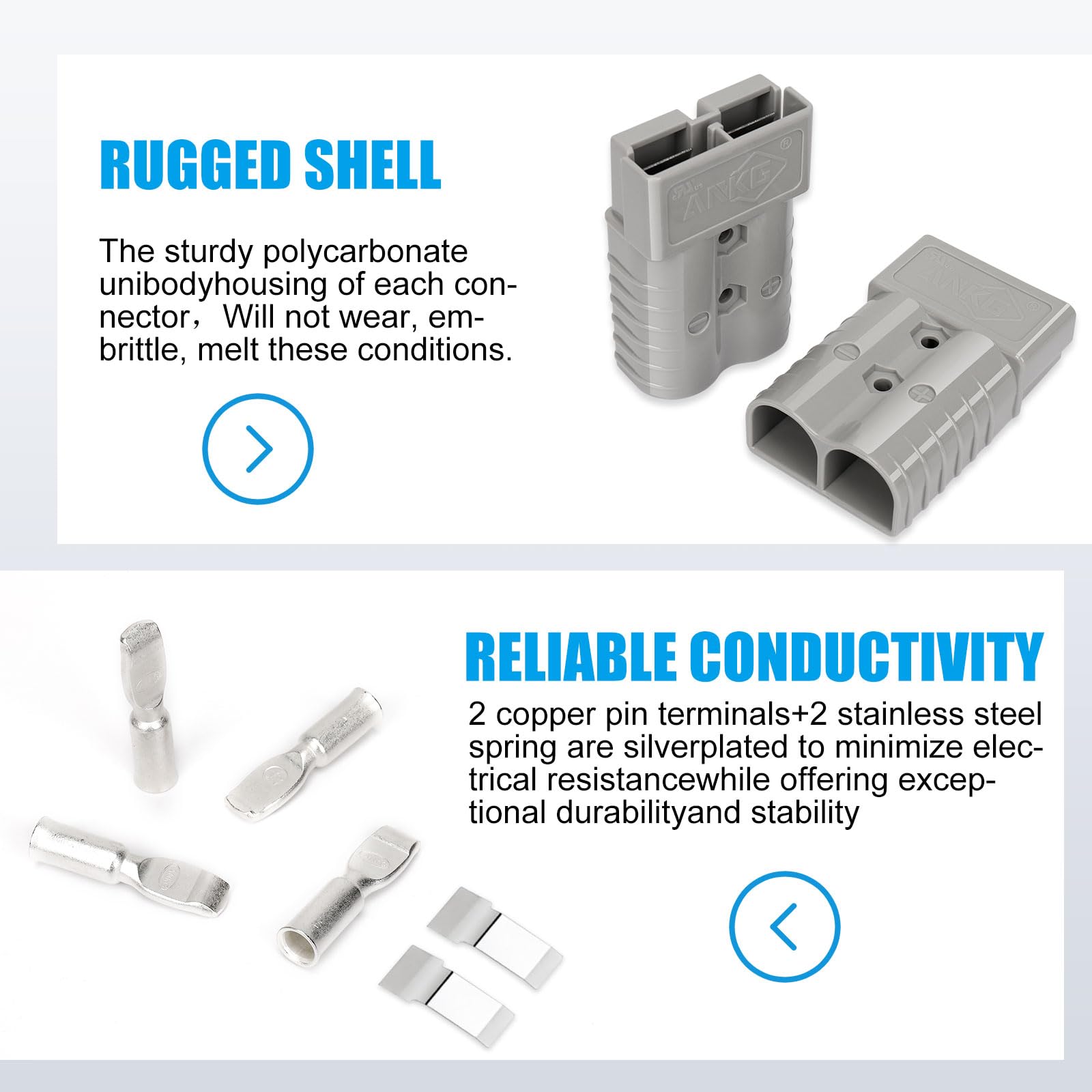

The connector uses silver-plated copper conductors to lower contact resistance and improve current flow, which reduces heat buildup under load. Precision-machined terminals ensure consistent contact surface area for steady performance during continuous draws.

• Silver-plated copper terminals for improved conductivity and corrosion resistance
• Rated 50A, 600V DC for heavy-duty applications
• Precision ports sized for optimal contact with 6–8 AWG wire

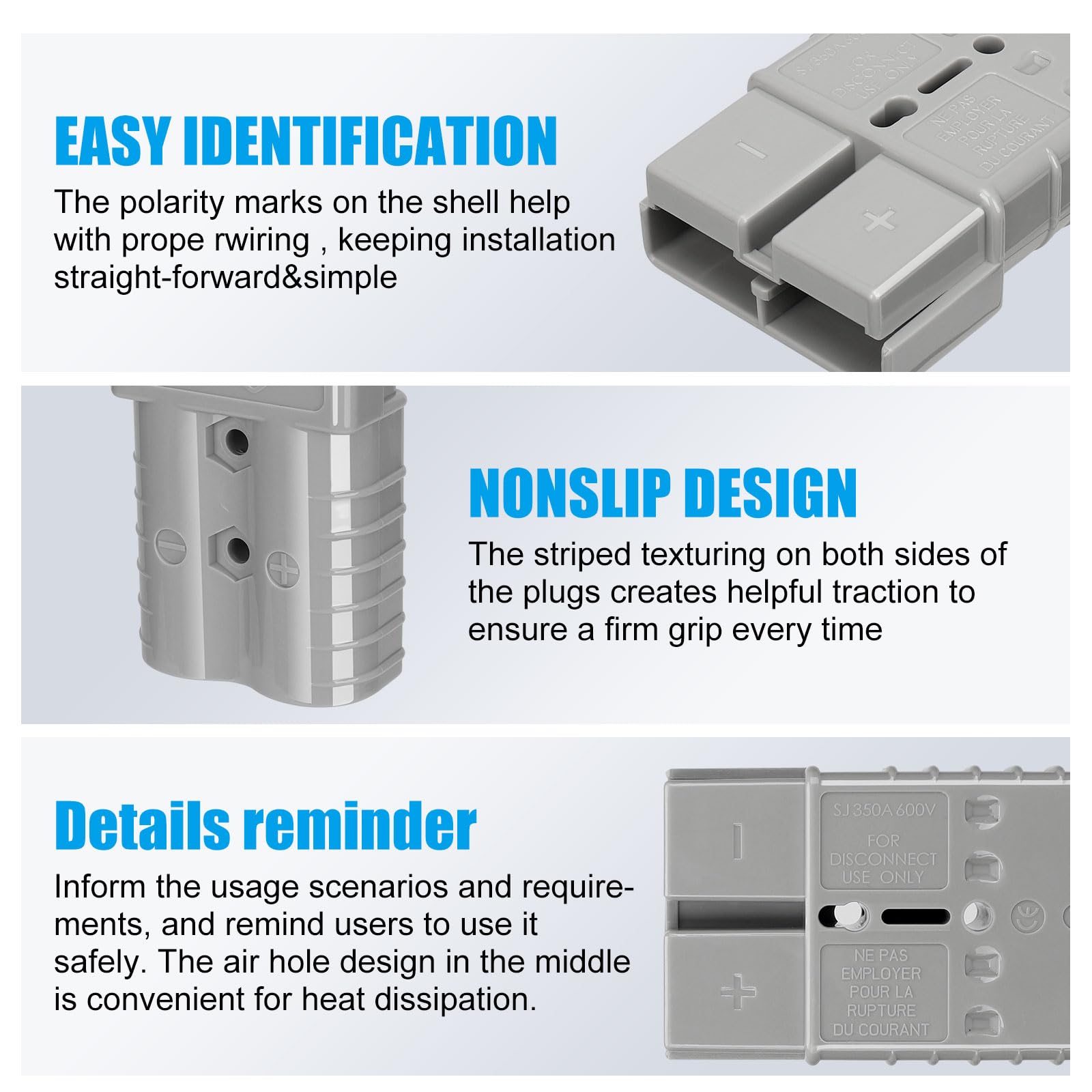

• Anti-loose stainless steel spring tabs maintain constant pressure

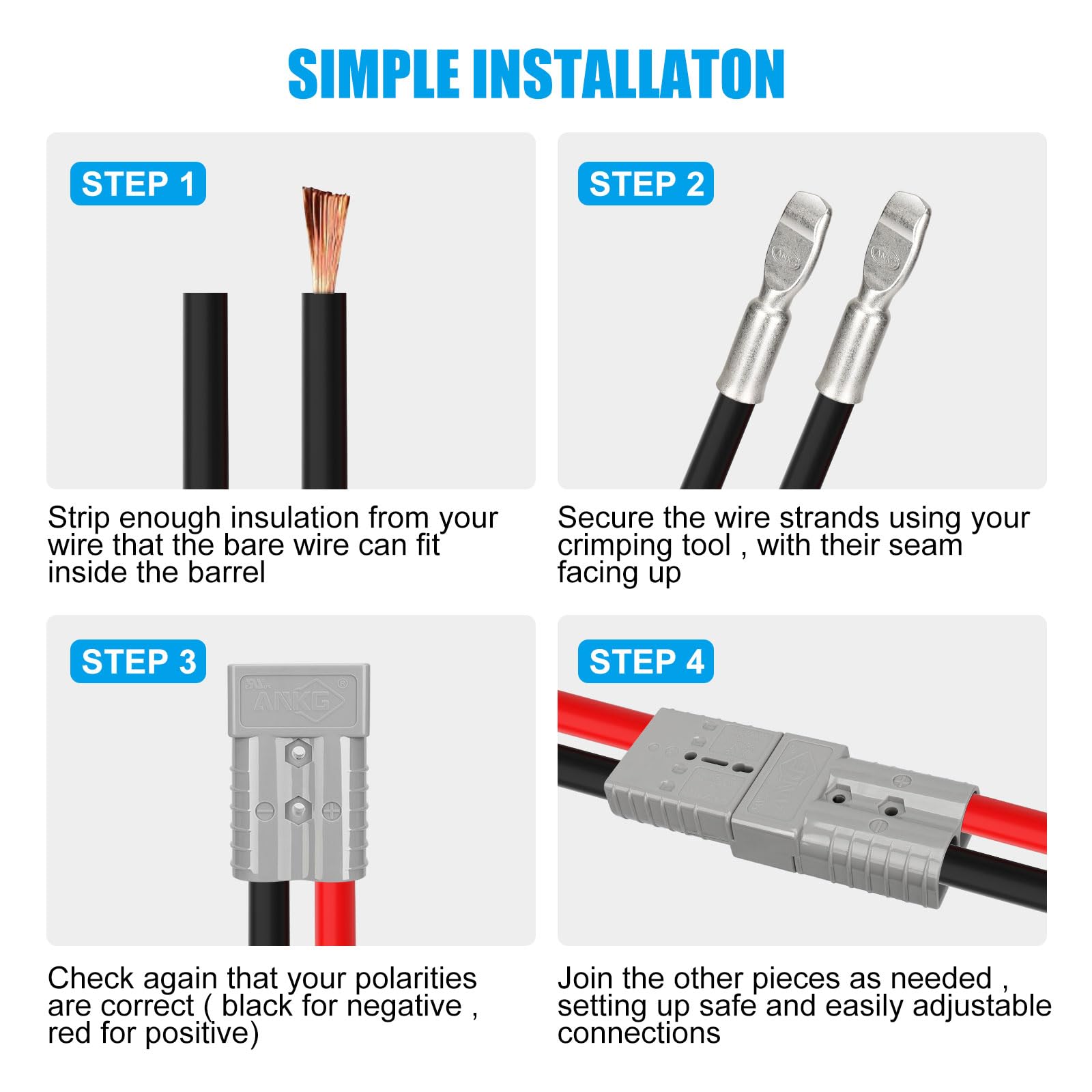

Can I install it without specialized tools?

Yes — the ANKG quick disconnect is designed for crimp or solder installation without needing specialized equipment. Strip the cable, crimp or solder the terminal, and insert it into the housing; a built-in spring lock secures the terminal and prevents back-out under vibration.

• Tool-free insertion into the housing after crimping or soldering
• Integrated spring lock for vibration-proof retention
• Compatible with common crimp terminals for 6–8 AWG cables
• Genderless design simplifies assembly and inventory

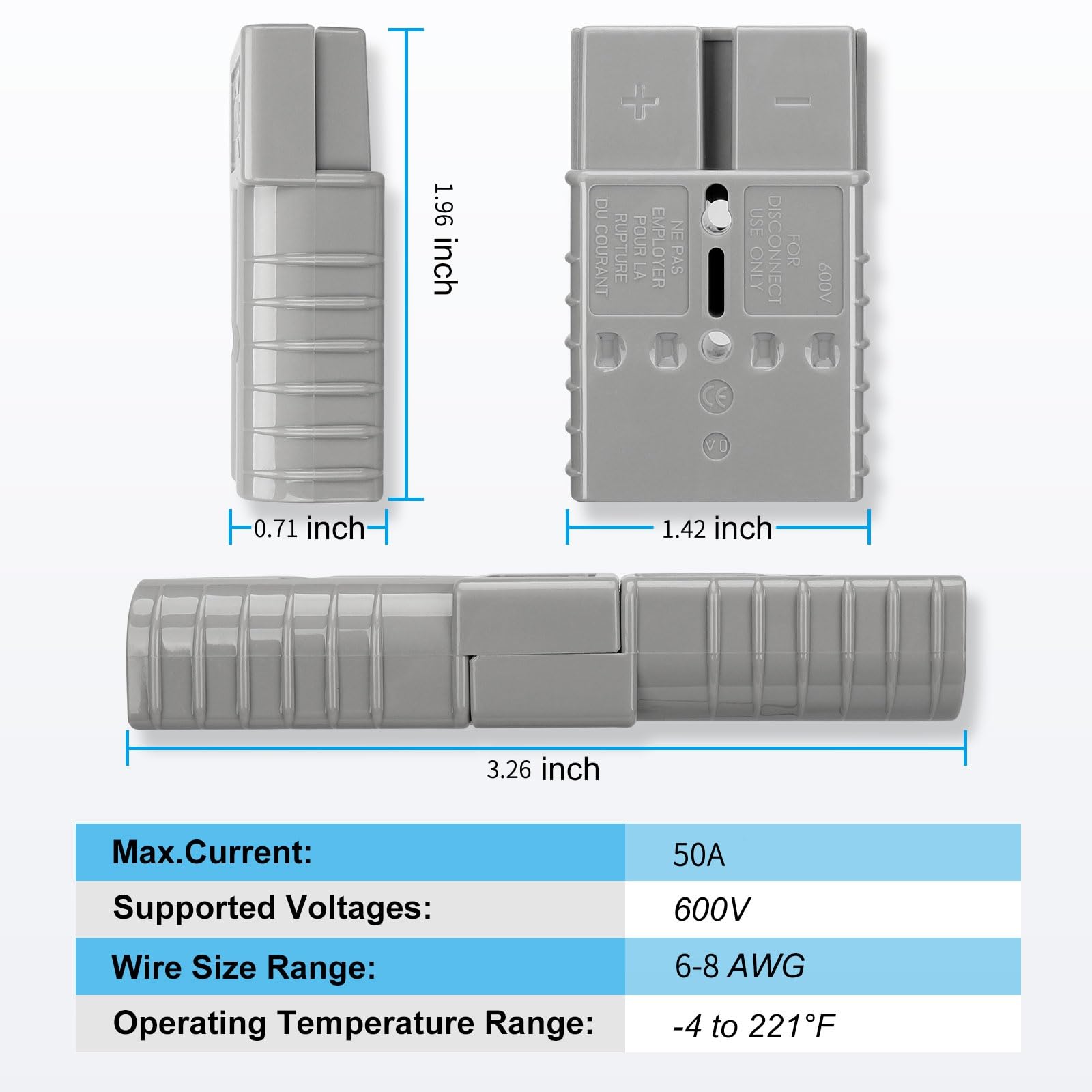

Is the housing durable enough for outdoor and marine use?

The connector housing is molded from flame-retardant polycarbonate and tested for high insertion cycles, impact resistance, and a wide temperature range. That makes it suitable for environments that see heat, cold, moisture, or mechanical stress.

• Flame-retardant PC shell resists heat, impact, and corrosion
• Operational temperature range: -20°C to 105°C (-4°F to 221°F)
• Tested for 10,000+ insertions for long service life
• Rust-proof stainless steel components for marine environments

What specific uses and systems is this connector best suited for?

This quick connect is tailored to DC power systems that demand frequent connections or require rugged reliability. Typical uses include winches, towing setups, trailer wiring, RV battery banks, ATVs, and off-grid solar battery systems.

• Winches and towing battery leads
• RV and trailer power connections
• Solar off-grid battery disconnects and portable power kits
• Industrial and DIY heavy-duty DC wiring projects

Who is this for: The ANKG 50 Amp Battery Quick Connect is for mechanics, riggers, RV owners, off-grid installers, and hobbyists who need a robust, low-resistance 50A DC disconnect that’s easy to assemble and dependable under vibration and weather. It’s especially useful when you need quick removal or modular battery connections without compromising current capacity or safety margins.
