ApplianPar A/C Compressor Clutch Assembly Kit for Ford 7.3L (1999–2003) — coil, pulley, hub

Replacement A/C compressor clutch assembly kit engineered to restore the air conditioning drive on Ford Super Duty 7.3L Turbo Diesel trucks from 1999–2003.

This ApplianPar clutch kit gives you the main components needed to rebuild the compressor coupling on select Ford Super Duty diesel models. Designed for the 7.3 liter Turbo Diesel engines used in F-250, F-350, F-450 and F-550 trucks (1999–2003), the package supplies the hub, pulley bearing, pressure plate and electromagnetic coil so you can replace a failed clutch without swapping the entire compressor. The listing below outlines what’s included, basic fit notes and step-by-step installation checks to help you judge compatibility and perform a clean replacement.

How do I confirm this kit matches my truck?

Verify your truck model year and engine: this kit is made for Ford Super Duty vehicles with the 7.3L Turbo Diesel engine from 1999 through 2003. Double-check the compressor mounting pattern and electrical connector on your existing clutch to ensure the parts align.

• Compatible models: Ford F-250, F-350, F-450, F-550 (1999–2003) with 7.3L Turbo Diesel.
• Compare mounting bolt pattern and pulley diameter to your current compressor.
• Confirm the clutch electrical connector type and wiring condition before ordering.

What components come in the kit and why they matter?

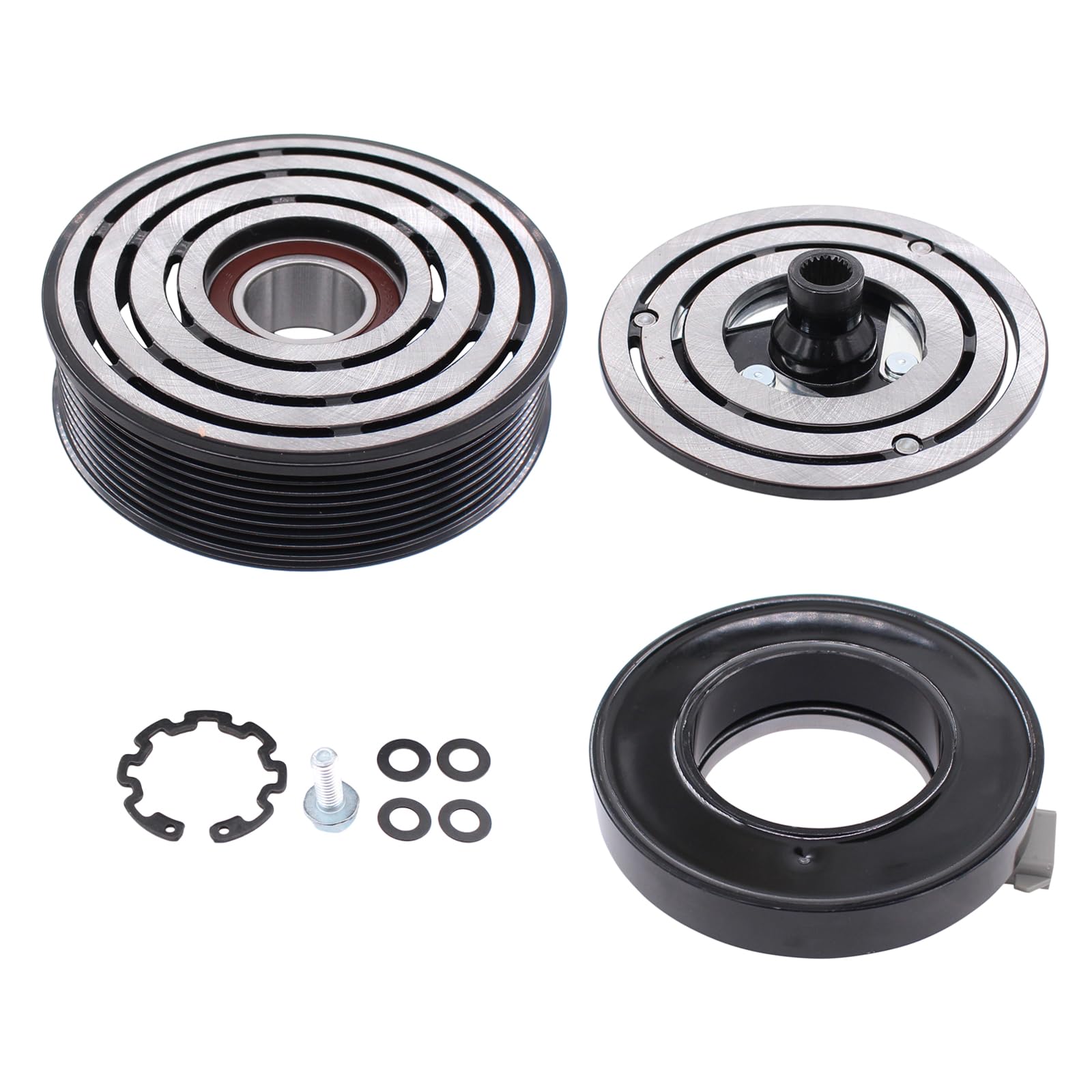

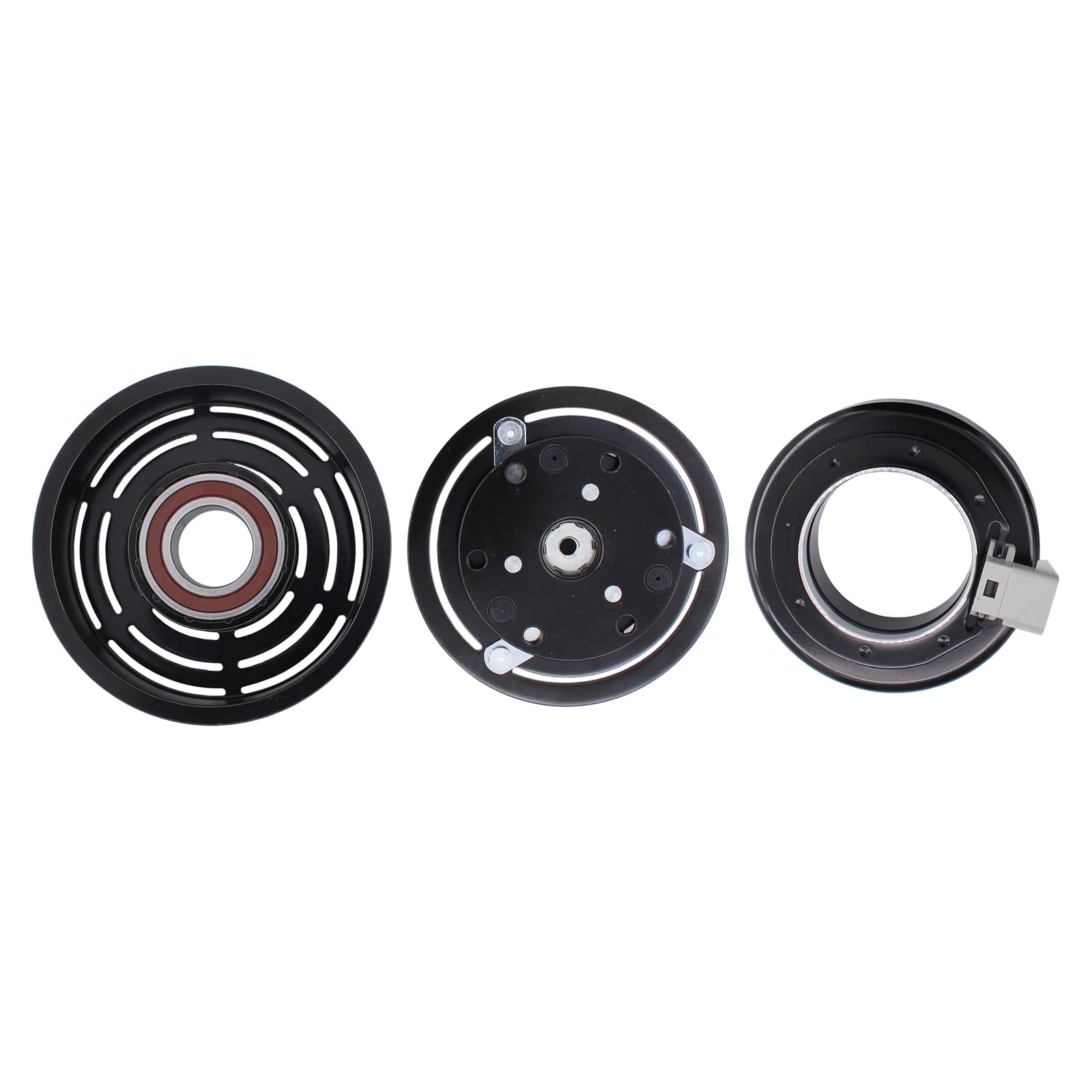

The kit contains the electromagnetic coil, the pulley bearing, the clutch hub and the pressure plate—these parts form the mechanical and magnetic interface that engages the compressor shaft. Replacing them together helps ensure smooth engagement and reduces the chance of premature wear caused by mixing old and new parts.

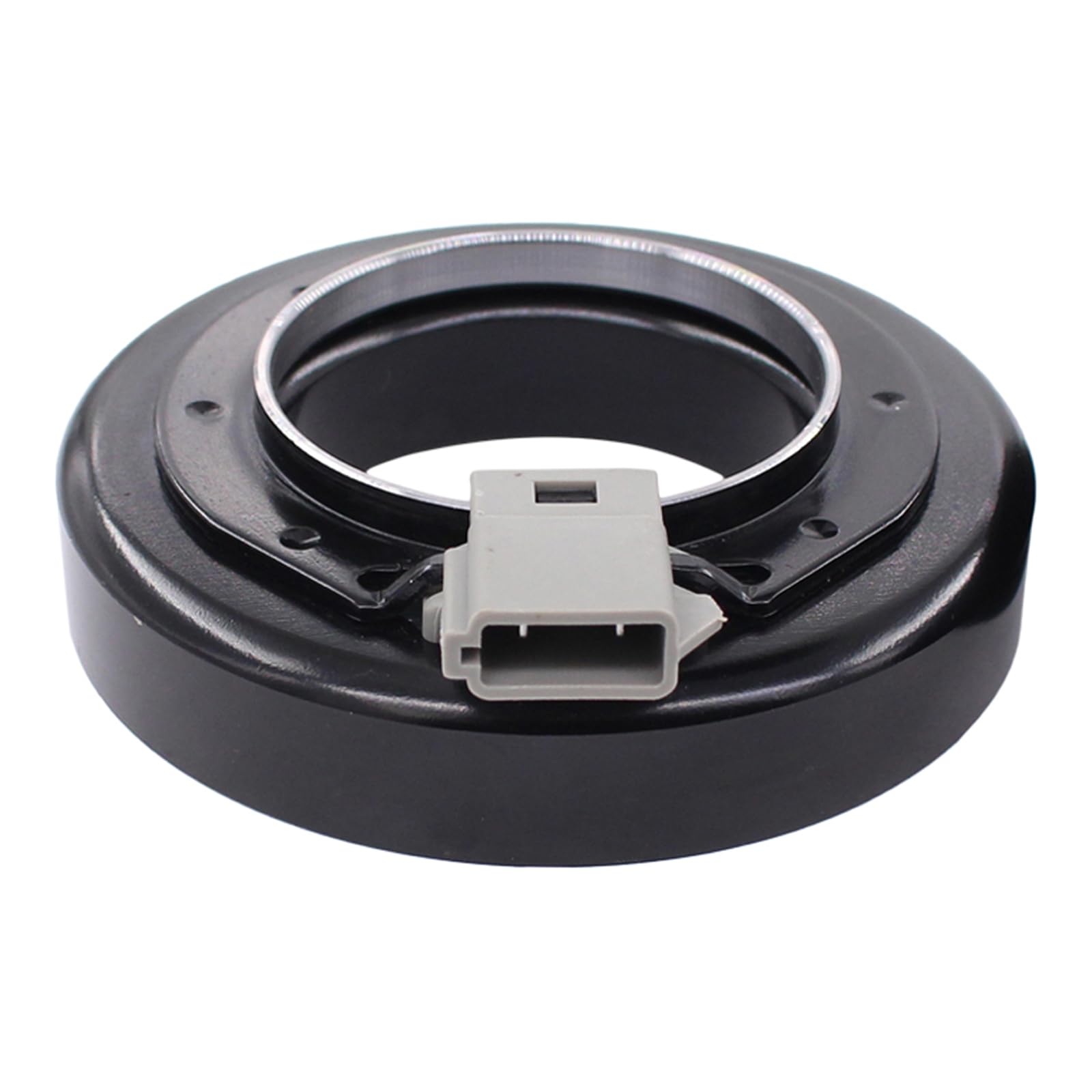

• Electromagnetic coil: creates magnetic pull to engage the clutch plate when energized.

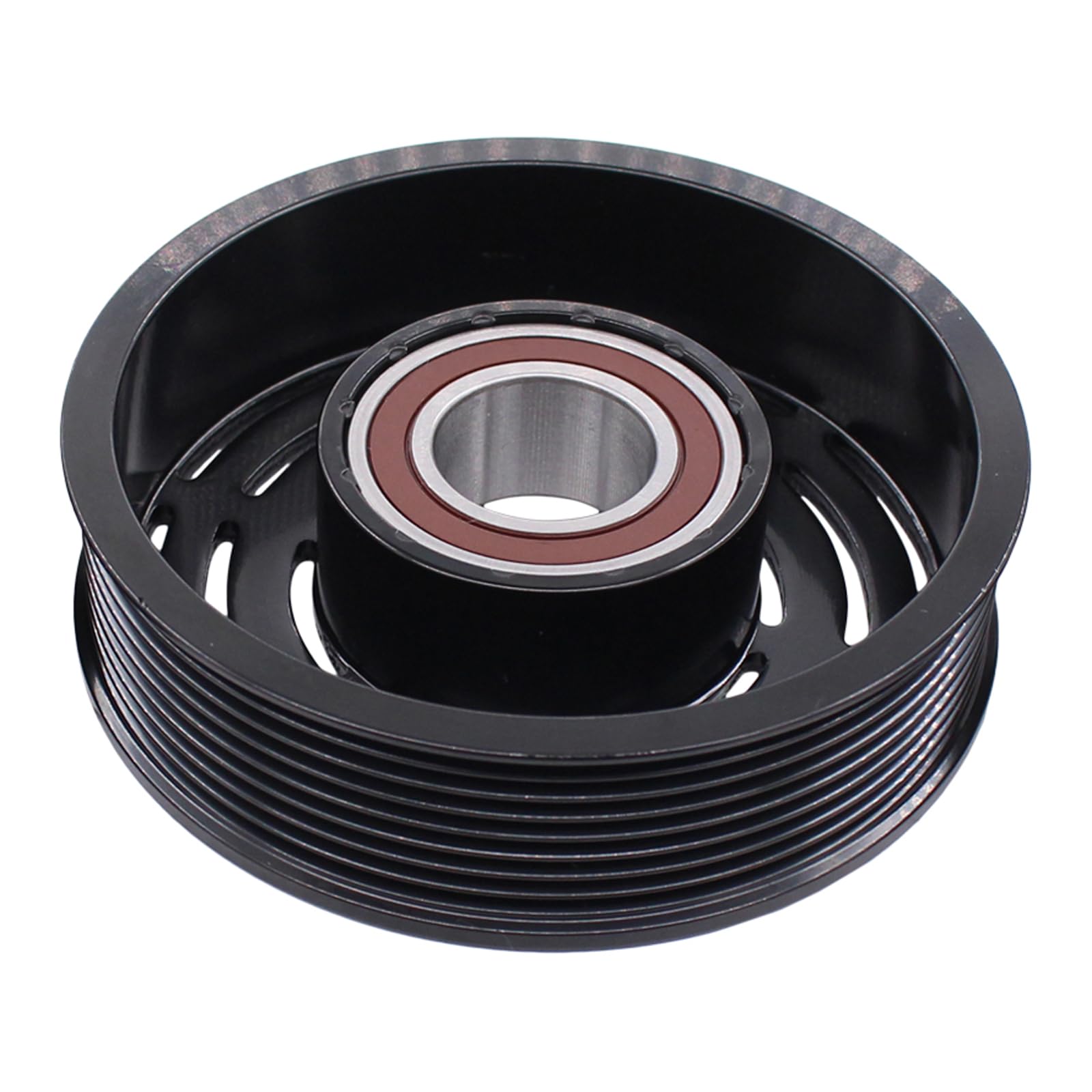

• Pulley bearing: enables free rotation of the pulley when the clutch is disengaged.

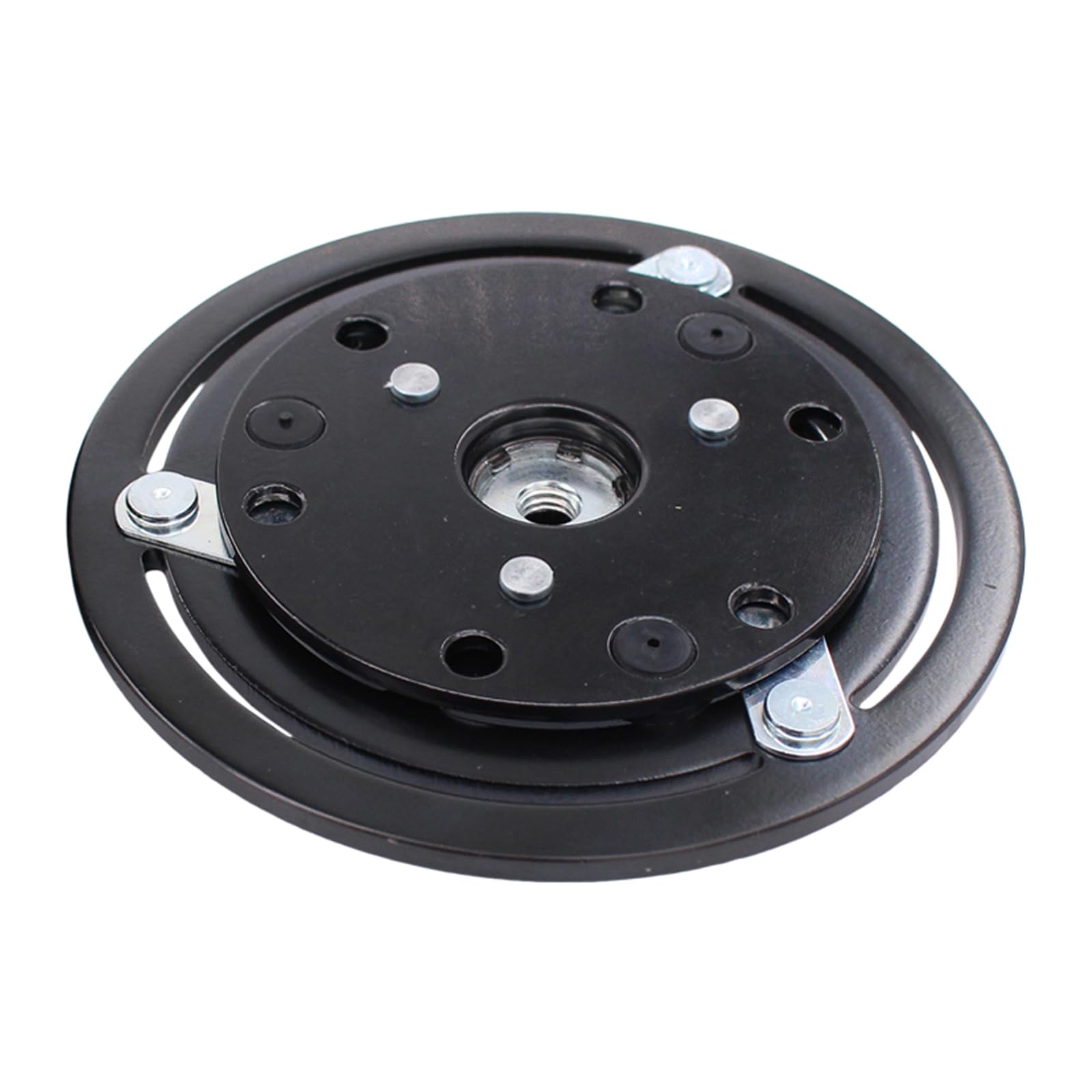

• Hub and pressure plate: transfer torque from the pulley to the compressor shaft.
• Supplied as a complete kit to avoid mismatched wear and fit issues.

What is the correct installation process and key checks?

Before installing, confirm the problem is a clutch failure and not an electrical or compressor fault. The general service flow is: remove the compressor, take off the old clutch, inspect the compressor front cover, fit the new coil and pulley, set the air gap, then test for proper engagement and free rotation.

• Diagnosis: verify the power circuit and coil energizing before clutch removal.
• Inspection: remove old clutch and examine compressor front face for damage or contamination.
• Mounting: secure new coil and pulley with screws or retaining rings per torque specs.
• Air gap: set the clutch gap to 0.4–0.6 mm and test engagement under power.

How can I troubleshoot common post-install issues?

If the pulley rubs the coil, or the clutch fails to engage after installation, recheck alignment, gap and connector continuity. Address any friction or lack of engagement before finishing reassembly to prevent further damage.

• Friction check: spin the pulley by hand to confirm it clears the coil without scraping.
• Gap recheck: adjust shims or pads to maintain the recommended 0.4–0.6 mm clearance.
• Electrical test: ensure the coil receives battery voltage when A/C is requested.
• Compressor health: reconfirm compressor front cover is not warped or contaminated.

Who is this for: This ApplianPar clutch assembly kit is intended for professional mechanics, experienced DIY truck owners and restoration shops working on late‑90s and early‑2000s Ford Super Duty diesel trucks with the 7.3L Turbo Diesel engine. It’s best suited for users who can diagnose A/C clutch and electrical faults, have basic hand tools or a shop press for pulley installation, and want to rebuild the compressor drive without replacing the entire compressor unit.
