ASPL 12-LED Surface Mount Strobe Lights — 8-Pack Ultra Slim, IP67 Waterproof, 17 Flash Patterns

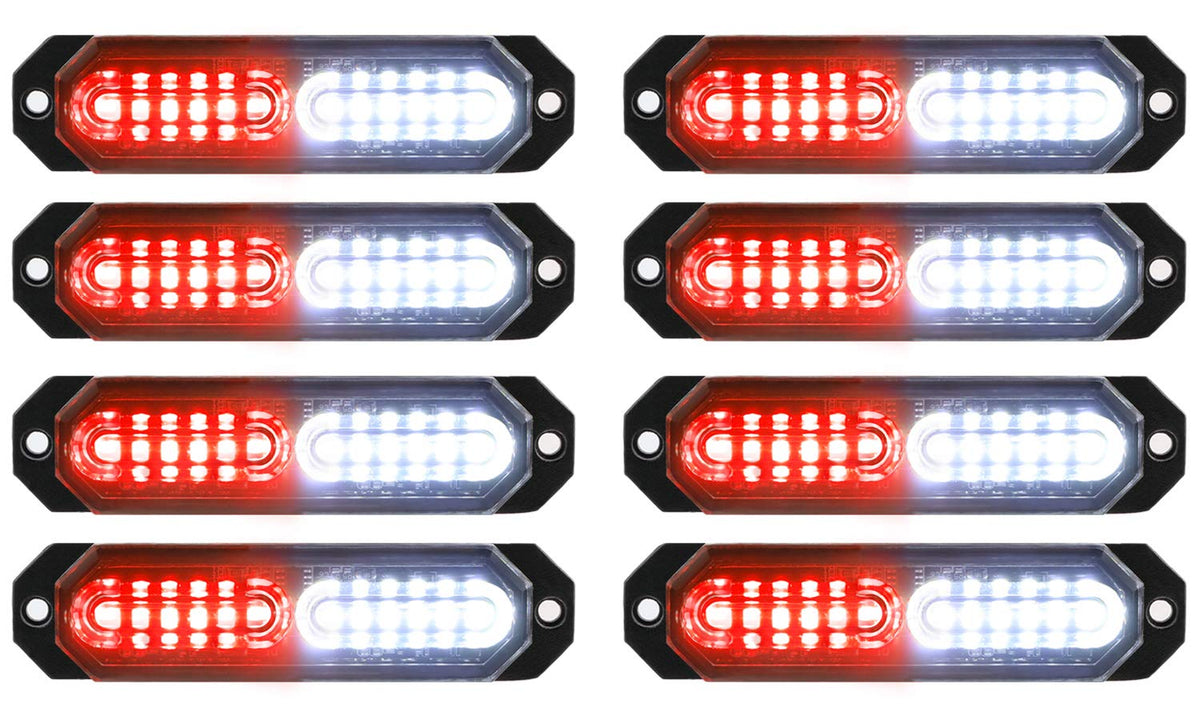

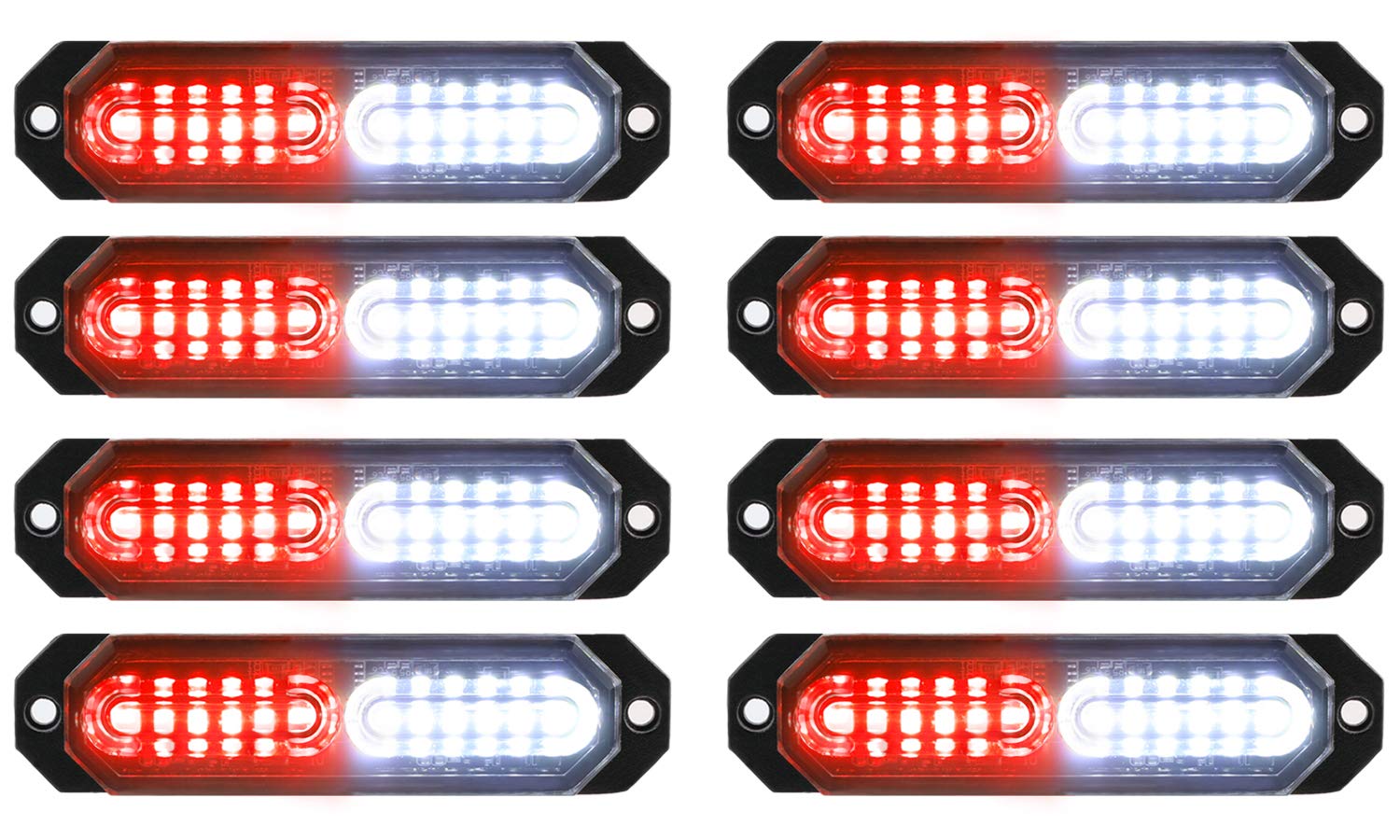

ASPL 8pcs Ultra Slim 12-LED Surface Mount Strobe Lights are a low-profile, high-intensity 12-LED warning kit with 17 selectable flash patterns and IP67 weather resistance.

These slim surface-mount strobes are built for vehicles that need compact yet highly visible warning lights. Each of the eight modules contains 12 high-output LEDs in an aluminum alloy housing with an ABS magnifying lens, engineered to deliver long life and wide-angle visibility. The set supports 12–24V systems, includes mounting hardware and gaskets, and features a synchronization option for coordinated patterns across all lights.

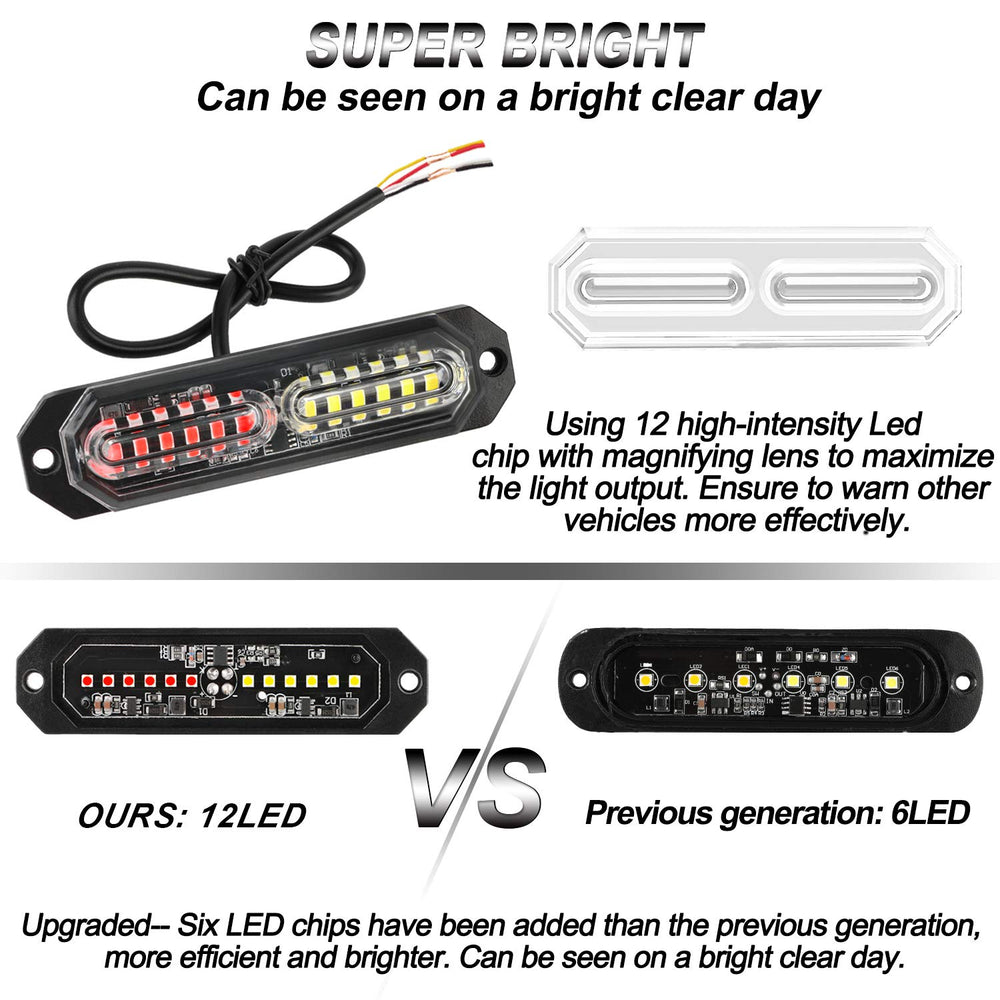

How bright and visible are these strobes on the road?

Brightness is achieved through 12 high-intensity LED chips per module and a magnifying ABS lens that directs light efficiently. The aluminum alloy housing helps with heat dissipation so the LEDs can run bright for long periods without premature degradation.

• 12 high-output LEDs per light for strong lumen output.
• ABS lens for amplified beam projection and wider visibility.
• Visible from hundreds of feet under daylight and low-light conditions.

Will these lights hold up in bad weather and heavy use?

The ASPL strobes are built to last: they carry an IP67 waterproof rating and are manufactured to resist moisture, dust, vibration, and temperature swings. Long operating life is supported by quality components and an improved production process that extends LED longevity.

• IP67-rated housing protects against immersion and dust ingress.
• Moisture- and vibration-resistant construction for vehicle use.
• Rated over 50,000 hours under normal operating conditions.

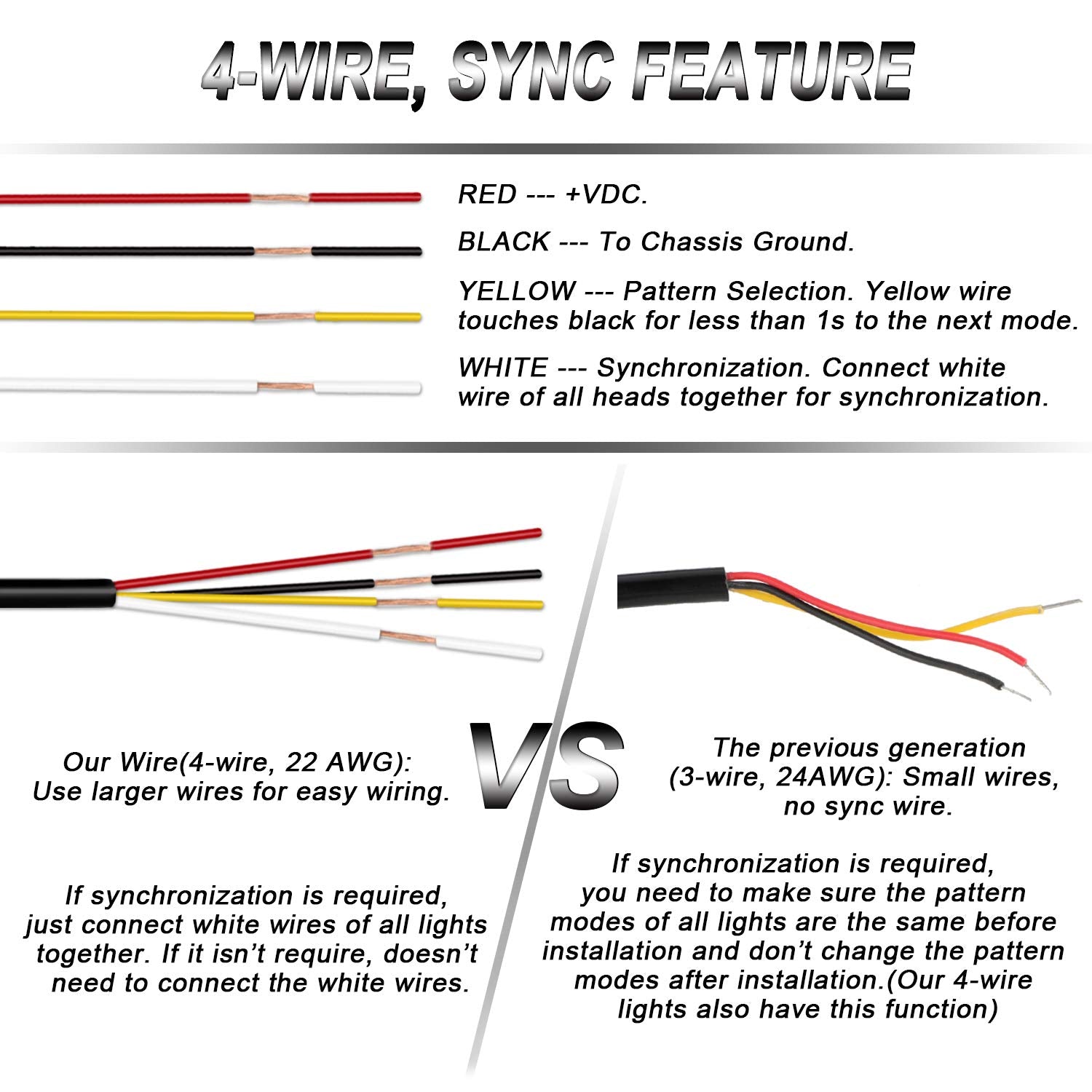

How do I wire and synchronize the 8-piece kit?

Wiring follows a simple color-code: red for positive 12–24V, black to chassis ground, and yellow for selecting flash patterns. An upgraded synchronization method allows you to link white wires across modules so multiple lights flash in unison when desired.

• Red = +VDC, Black = Ground for power connection.
• Yellow wire cycles modes; touch to black briefly to change pattern.
• Connect all white wires together to enable synchronized flashing across lights.

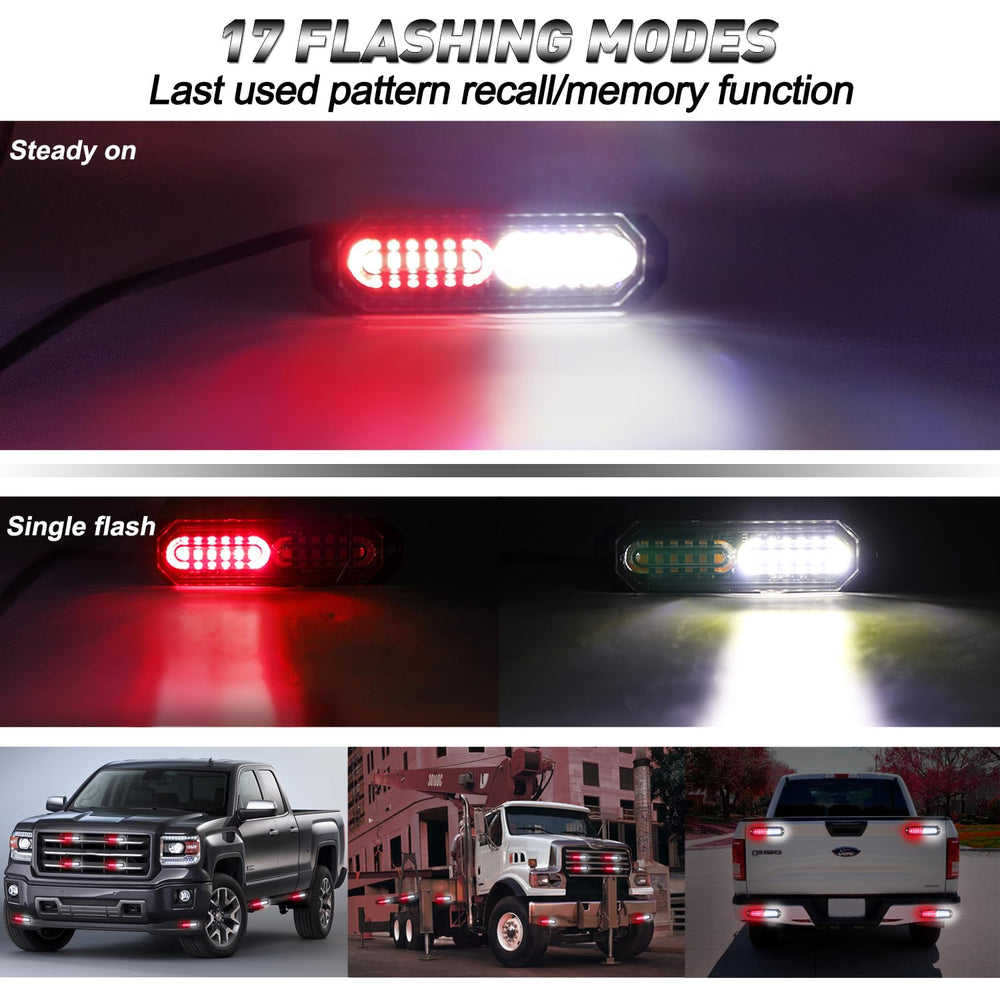

What mounting options and flash patterns does the kit offer?

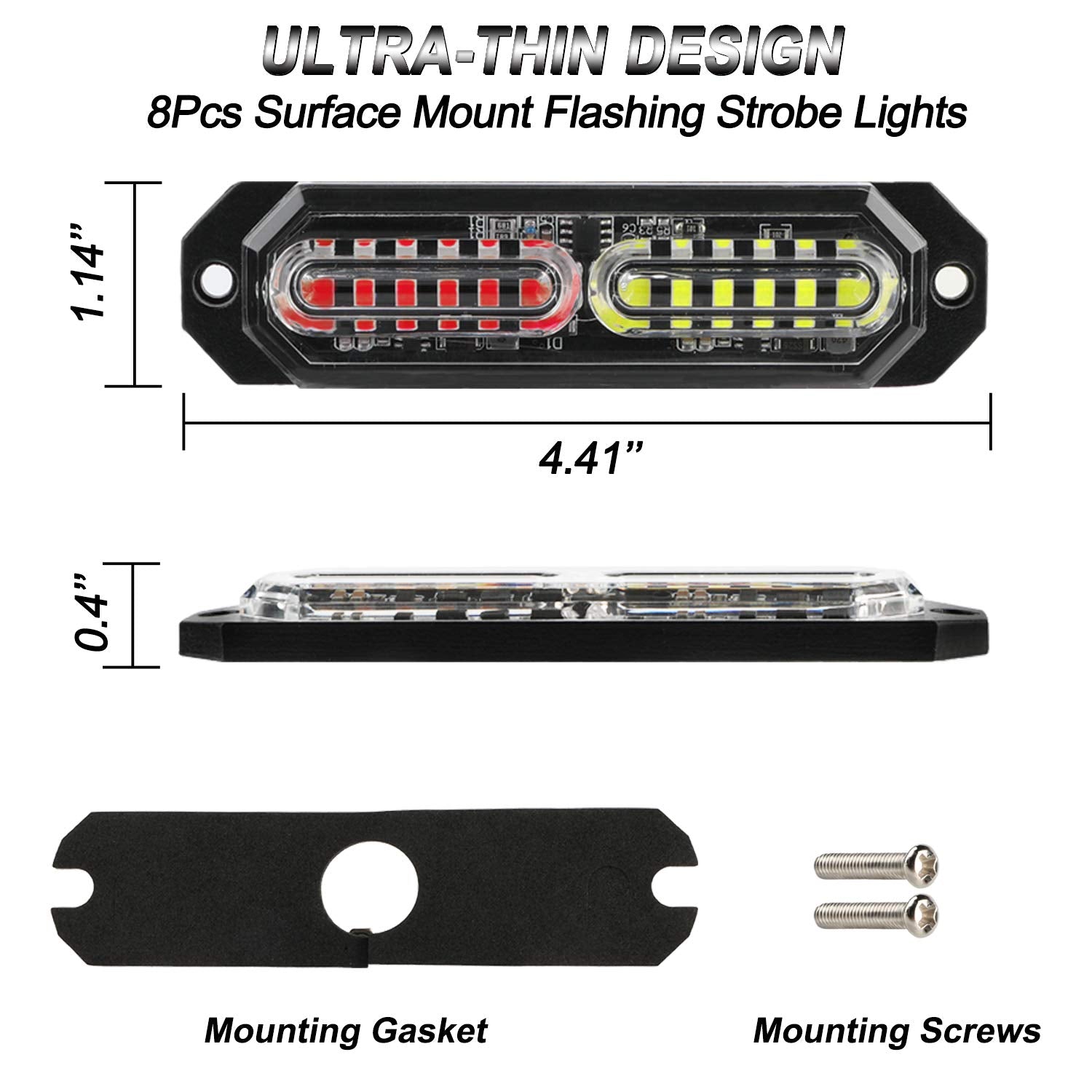

The ultra-slim profile fits discreetly on grilles, bumpers, or other vehicle surfaces and comes with gaskets and screws for a secure install. A built-in flasher chip provides 17 selectable modes, plus a memory function that recalls the last used pattern after power is reapplied.

• Includes gaskets and screws for grille or bumper mounting.
• 17 selectable patterns including steady-on, single and double flash.
• Pattern memory recalls the last selected mode after power loss.

Who is this for: The ASPL 8pcs Ultra Slim 12-LED kit is ideal for fleet managers, off-road drivers, service vehicles, emergency support units, and anyone needing unobtrusive yet powerful exterior warning lights. It suits installations where space is tight but visibility and durability are essential, and for users who want flexible pattern selection and optional synchronization across multiple units.
