ATRACYPART AVR automatic voltage regulator 0F97190SRV — drop-in replacement with temperature compensation

This AVR steadies generator voltage by automatically adjusting excitation current, protecting connected equipment from large voltage swings and improving power quality. It is designed for many modern RV and air-cooled standby generators (excluding variable-speed units) and replaces legacy part numbers such as 81918, 83049, 0830490SRV and related variants. The unit includes temperature compensation and fast load-response features for reliable performance under changing conditions.

How does this AVR keep generator voltage steady under load changes?

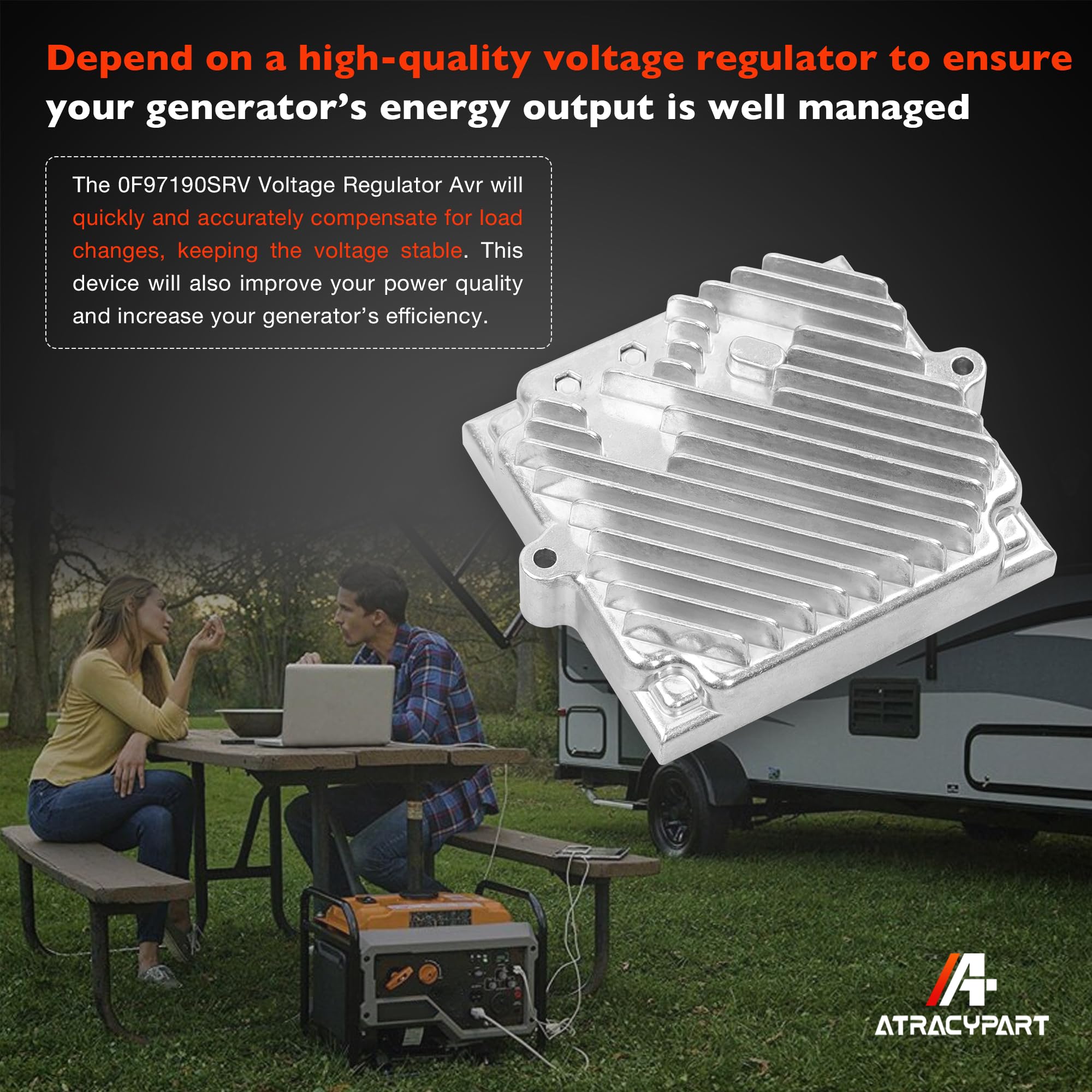

The 0F97190SRV continuously senses output voltage and generator frequency, then alters excitation to correct deviations. When load increases suddenly, the AVR boosts excitation to maintain target voltage; when load drops, it reduces excitation to avoid overshoot.

• Automatic excitation adjustment for rapid load response
• Frequency detection to sync compensation with engine speed
• Temperature compensation to prevent thermal drift
• Designed to hold voltage within tight tolerance under normal conditions

Will this part fit my old 83049 or 083049 regulator?

Yes — the 0F97190SRV is functionally compatible with a range of legacy part numbers and is intended as a replacement for many discontinued 83049-series AVRs. Note mechanical differences like cooling-fin thickness that may affect bolt length when swapping units.

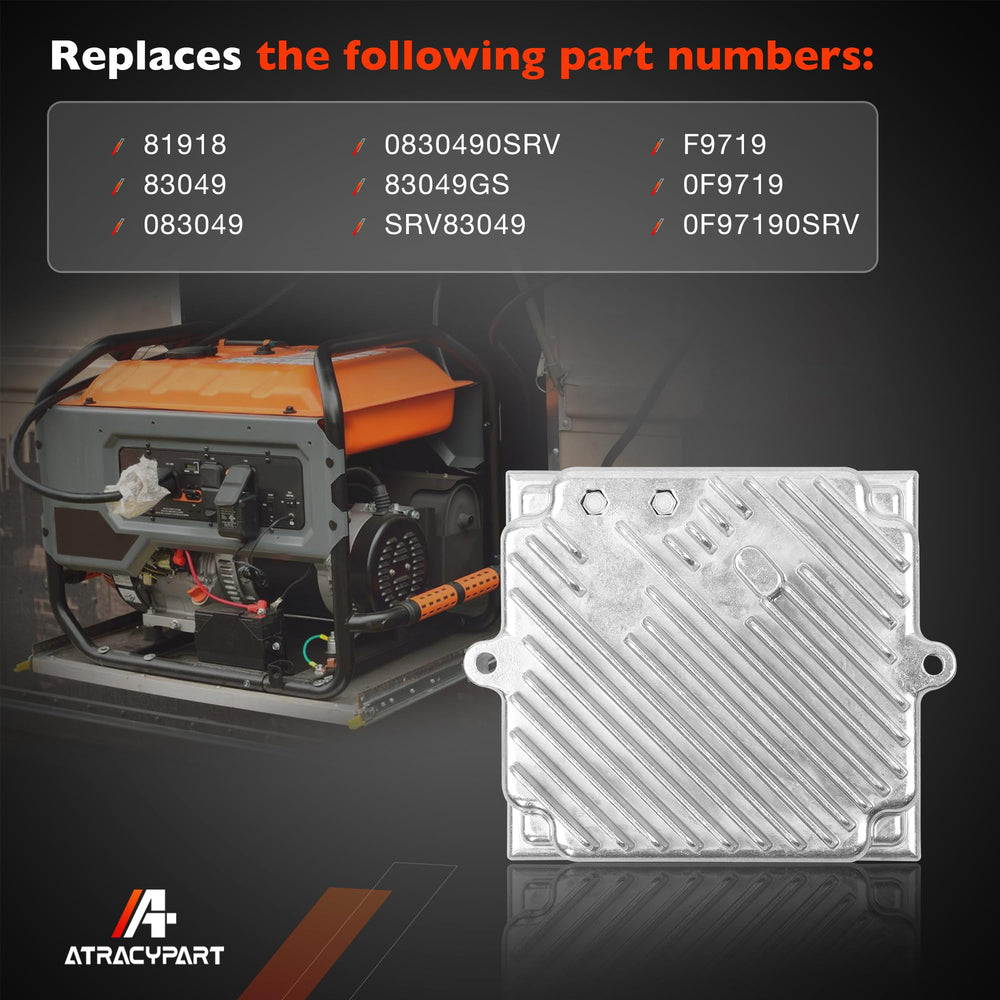

• Replaces 81918, 83049, 083049, 0830490SRV, 83049GS, SRV83049, F9719, 0F9719
• 083048 is similar but lacks cooling fins; may need shorter bolts

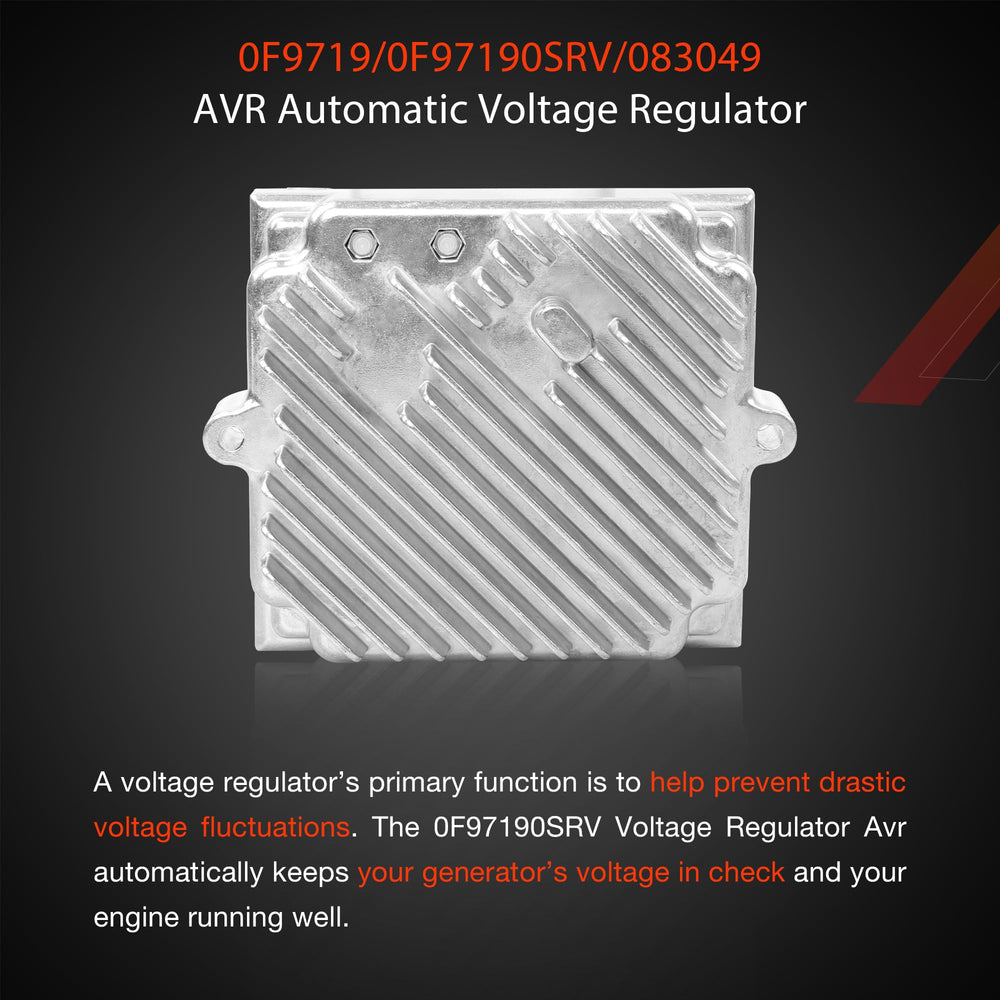

• 0F97190SRV is thicker where fins exist — prepare for longer mounting fasteners

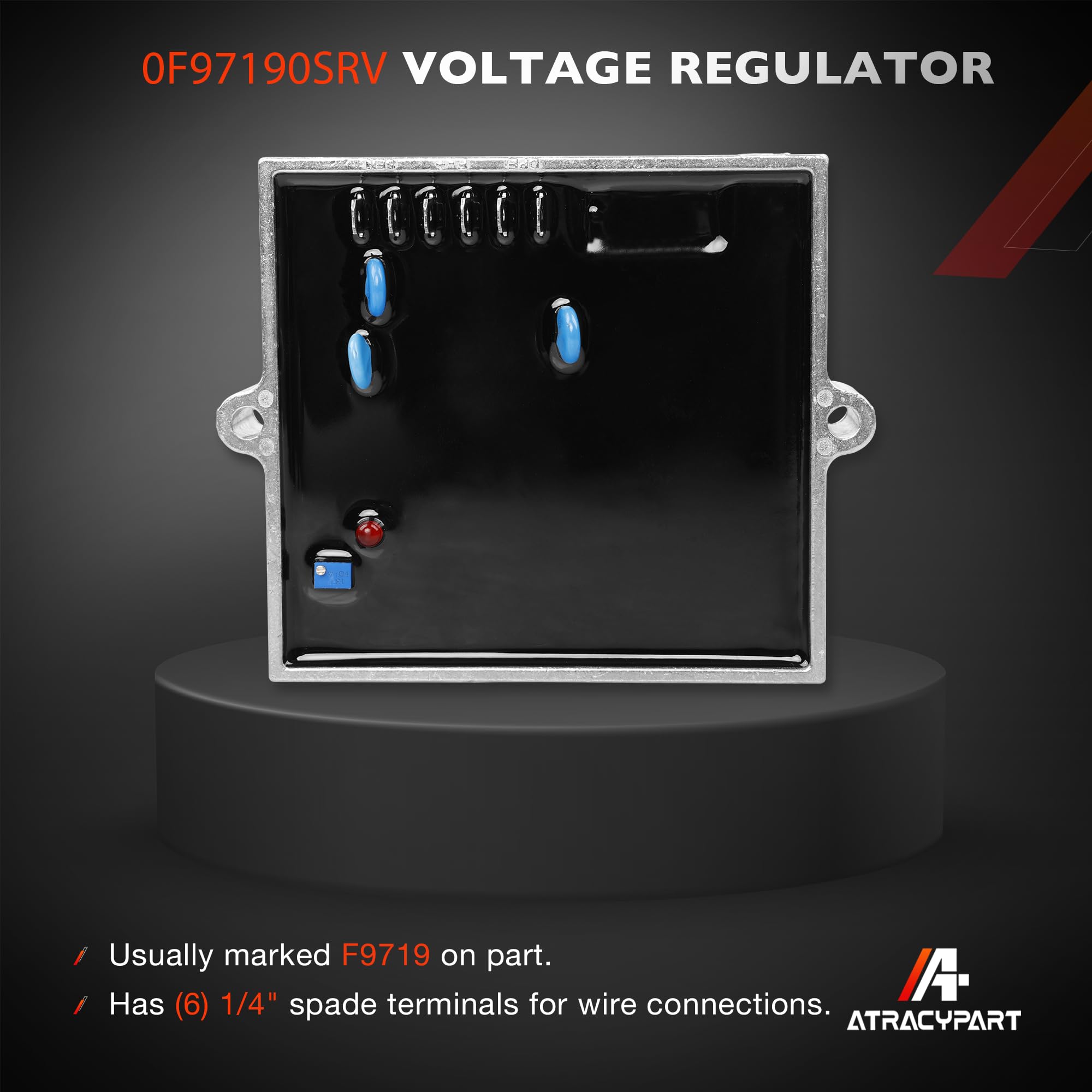

• Electrical connections and function remain equivalent for direct replacement

What setup or calibration is required after installation?

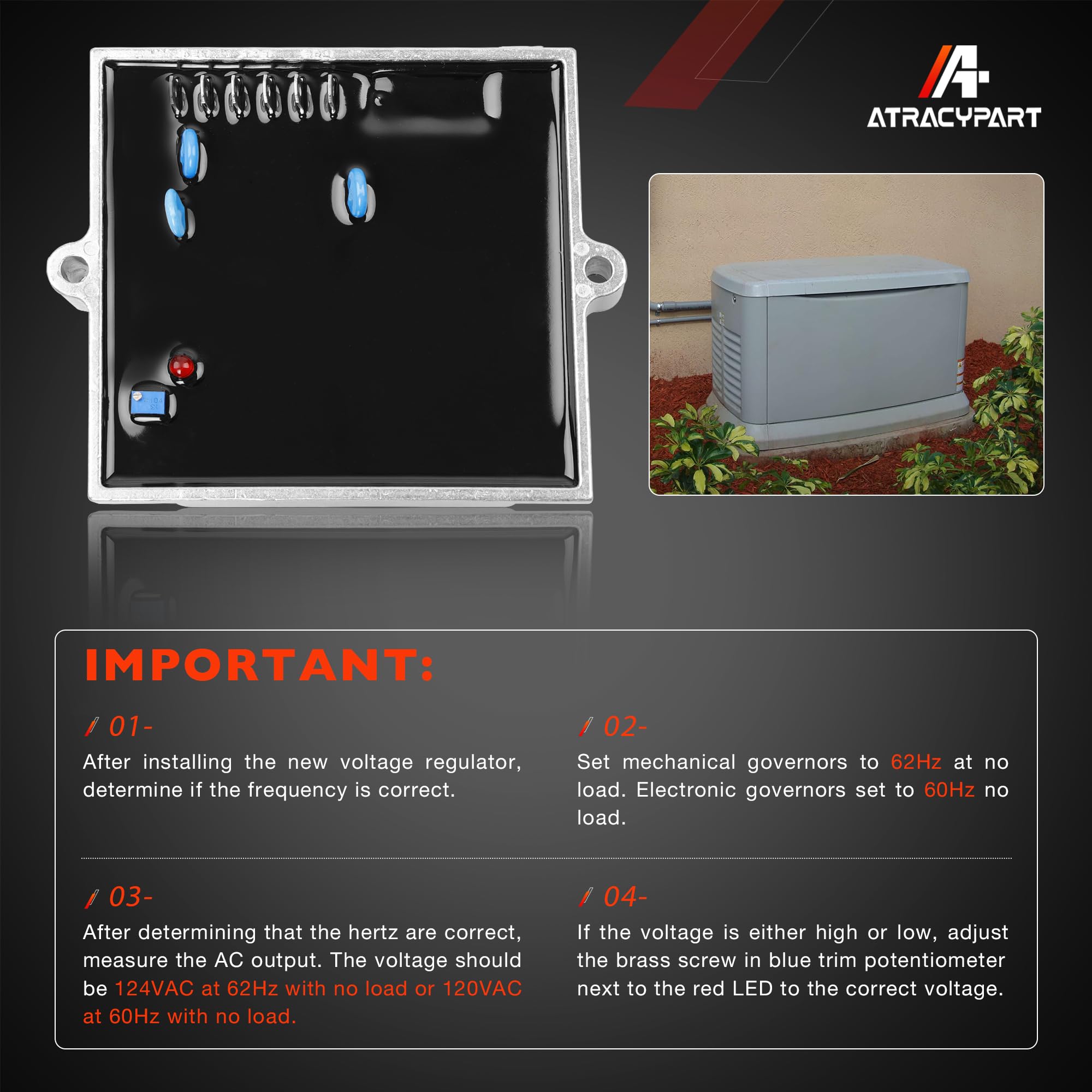

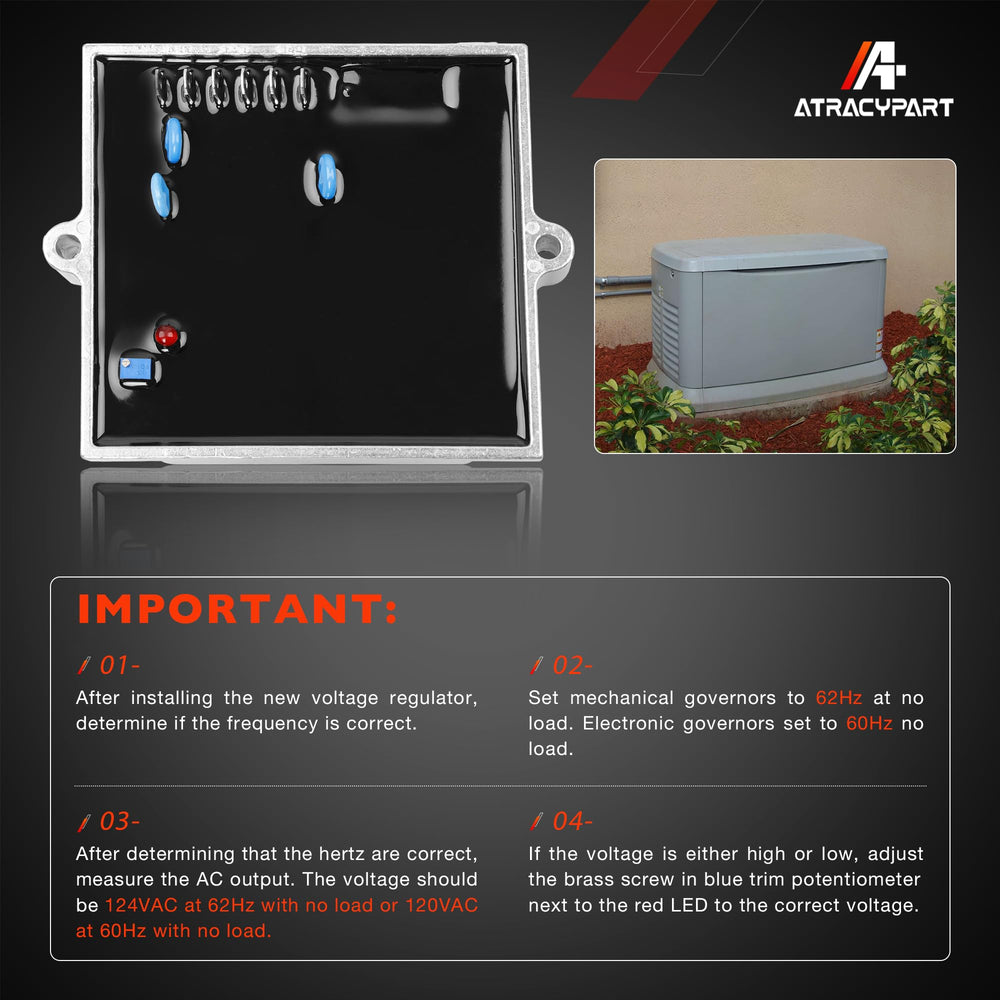

Calibration is essential: verify generator frequency first, then measure no-load AC voltage and adjust the built-in potentiometer to the target voltage. Follow frequency guidance for mechanical or electronic governors before fine-tuning output.

• Set mechanical governors to 62 Hz no-load; electronic governors to 60 Hz no-load
• Target no-load voltage: 124 VAC at 62 Hz or 120 VAC at 60 Hz

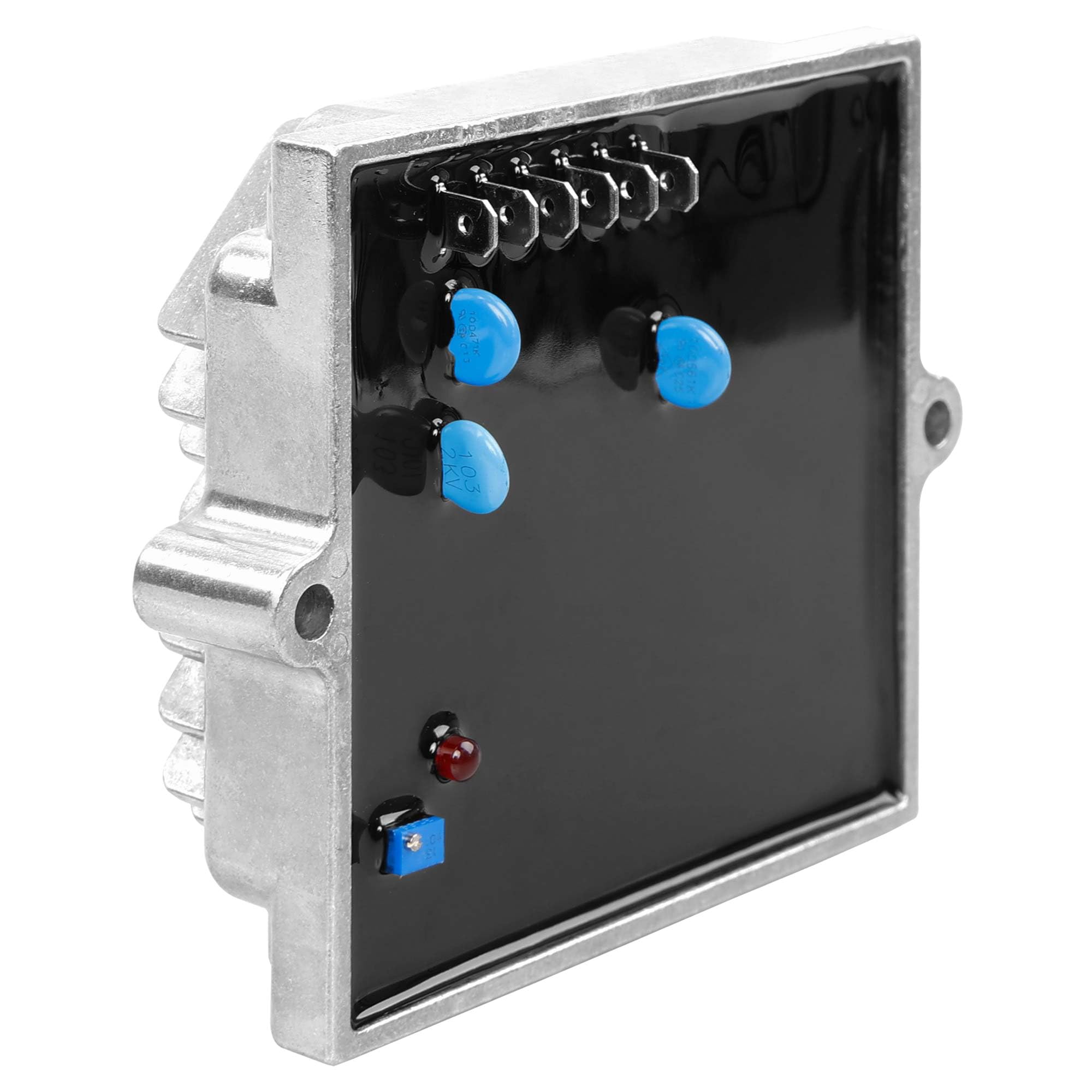

• Use brass screw on the blue-trim potentiometer near the red LED to adjust voltage
• Confirm stable voltage under light and full loads after calibration

What protections and durability features does this AVR include?

The regulator delivers overvoltage and undervoltage protection and incorporates temperature compensation to reduce thermal faults. Built from corrosion-resistant materials and precision-manufactured, it’s intended for long service life in mobile and standby generator environments.

• Overvoltage and undervoltage protection to protect equipment
• Temperature compensation prevents overheating-related failures
• Robust construction resists wear and environmental exposure

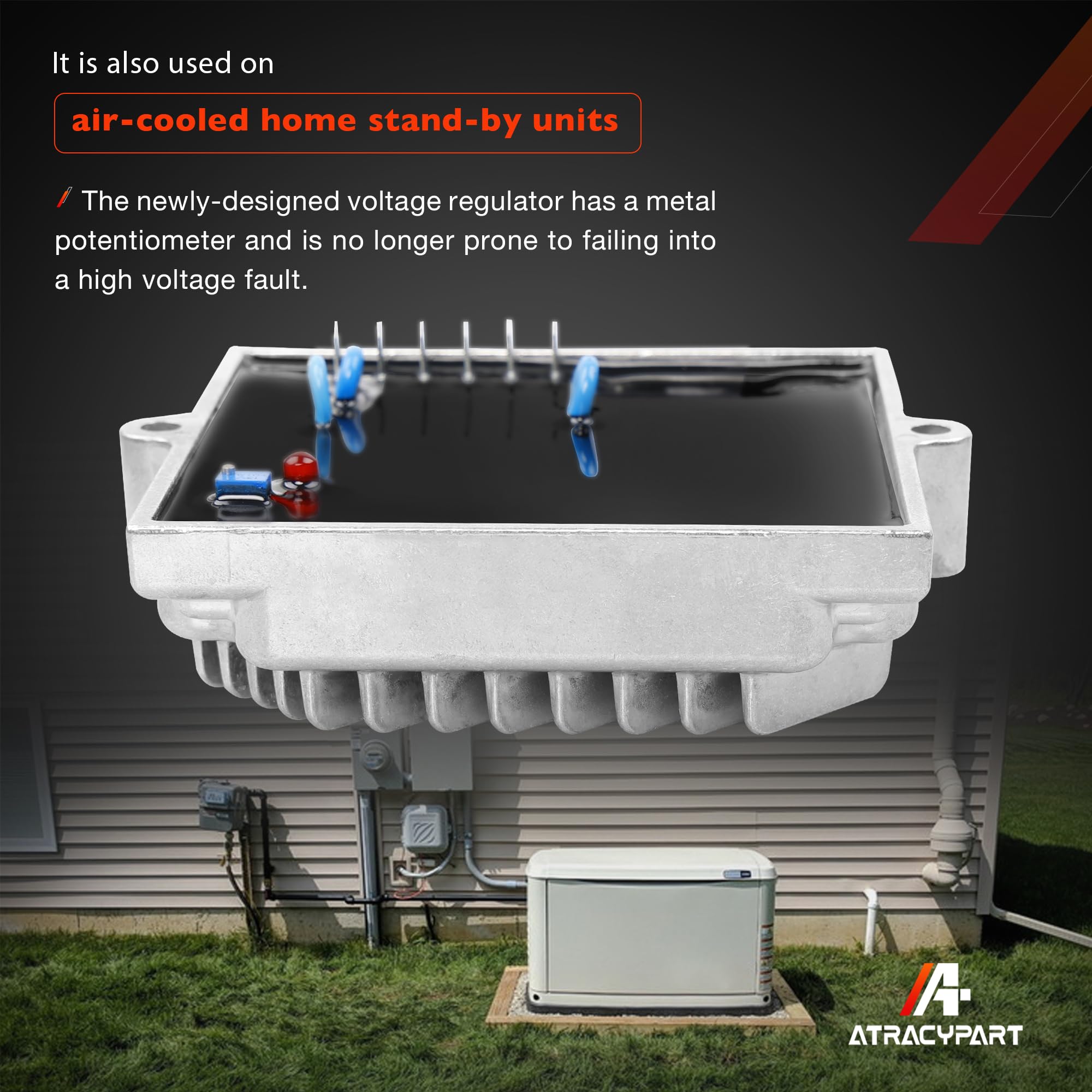

• Improved metal potentiometer design reduces high-voltage fault risk

Who is this for: The ATRACYPART 0F97190SRV is aimed at technicians, fleet managers, RV owners, and homeowners who maintain air-cooled standby or RV generators and need a reliable, cost-effective replacement for discontinued 83049-series AVRs. It’s especially useful where quick, accurate voltage regulation is required and where swapping older regulators with slightly different mounting profiles is anticipated. If you plan to replace an AVR yourself, have a voltmeter, know how to confirm generator frequency, and can make the small potentiometer adjustments, this unit provides a straightforward upgrade with durable construction and broad compatibility.
