AUTO-GEKKO LED Trailer Light Kit — Full Set with 25 ft Harness, IP68 Waterproof, DOT/SAE Compliant

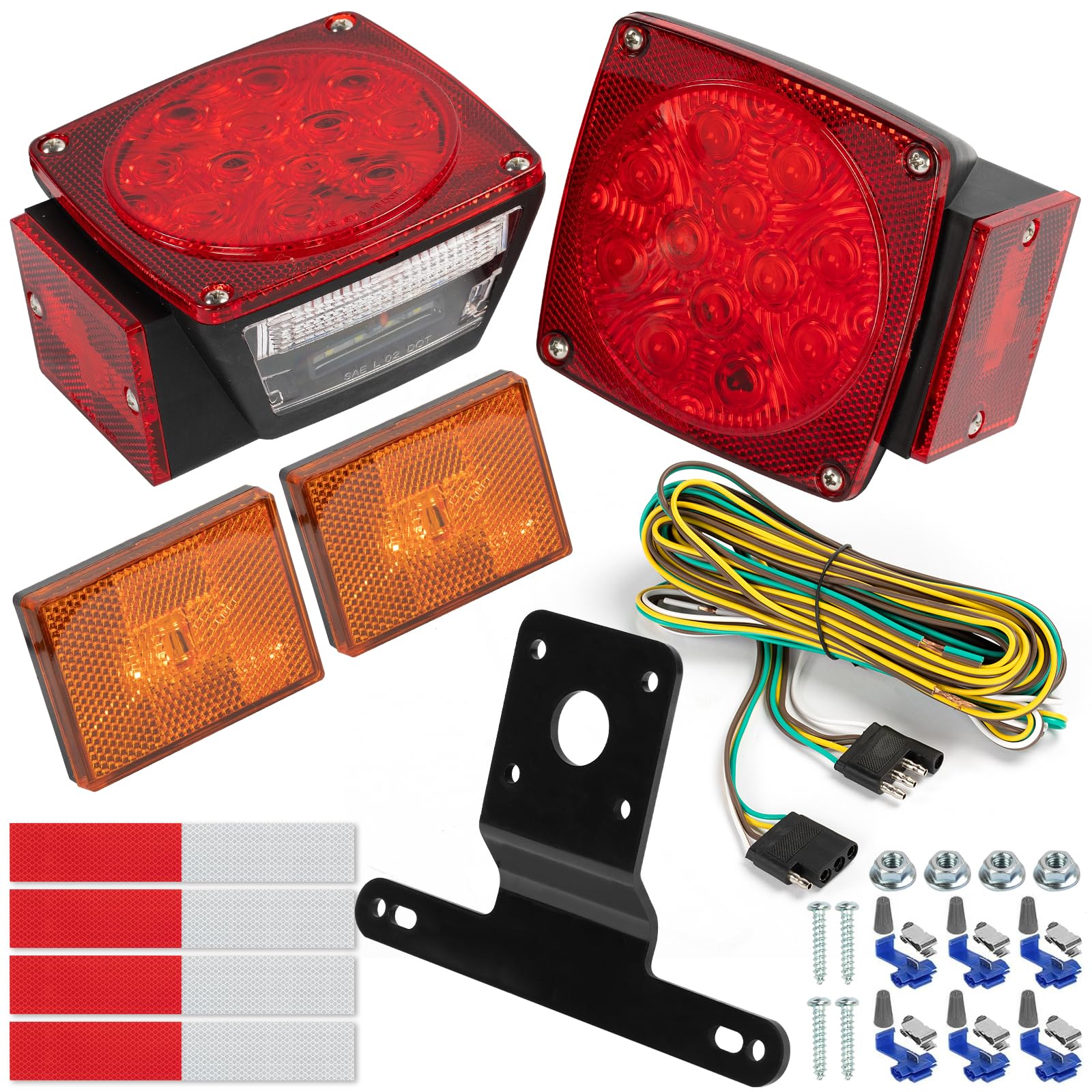

Whether you're wiring a new utility trailer or upgrading older lights, this full set from AUTO-GEKKO bundles the main components you need: two combination tail/turn lights, two amber clearance LEDs, a 25-foot harness, license plate bracket, and all mounting hardware. Each lamp is engineered to meet SAE and DOT standards and sealed to IP68 for dependable performance in rain, mud, and road spray. The wiring follows a clear color-coded scheme that simplifies hookup and supports vehicles up to 12V DC across trailers up to 80 inches wide.

How is the kit organized for an easier installation?

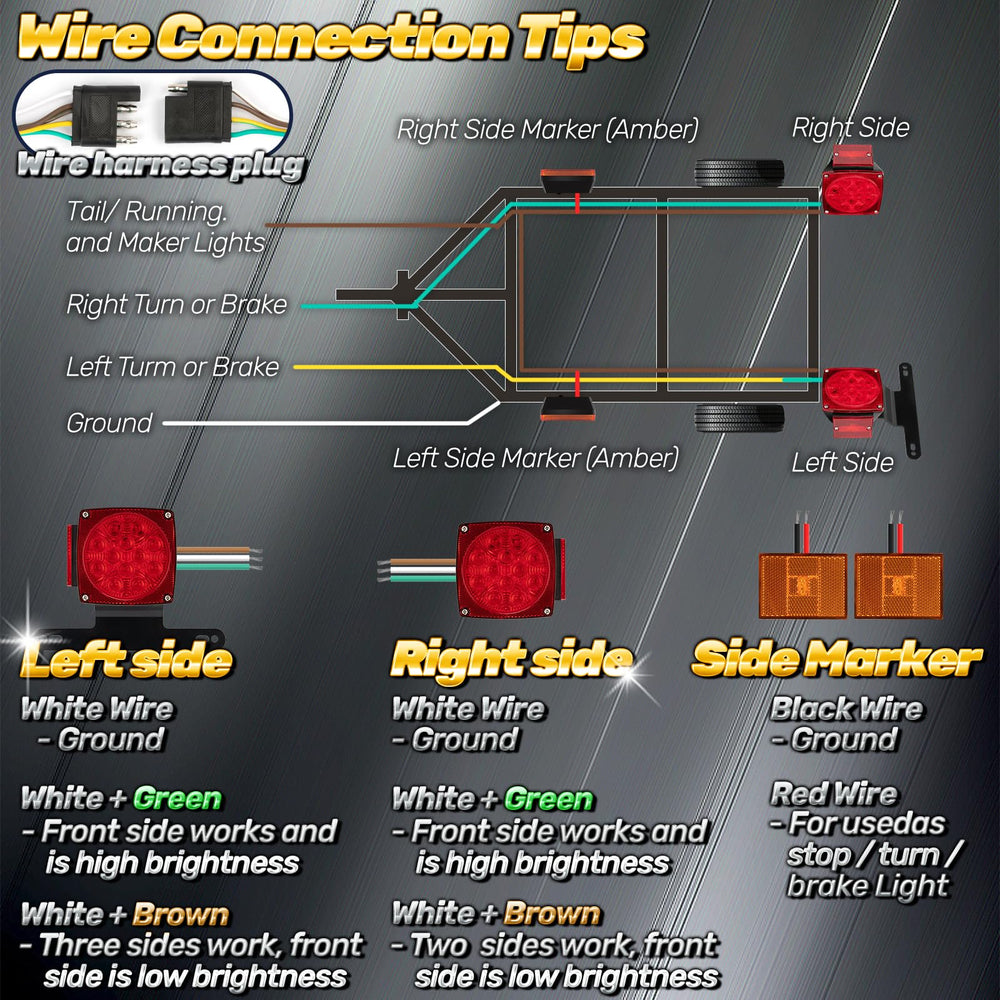

The harness and connectors are designed to minimize guesswork during installation. Wires are color-coded and each lamp uses an intuitive split-wire arrangement so you can attach high and low brightness circuits or combine functions as needed. The package also includes mounting brackets and fasteners so you won’t need extra parts for a standard setup.

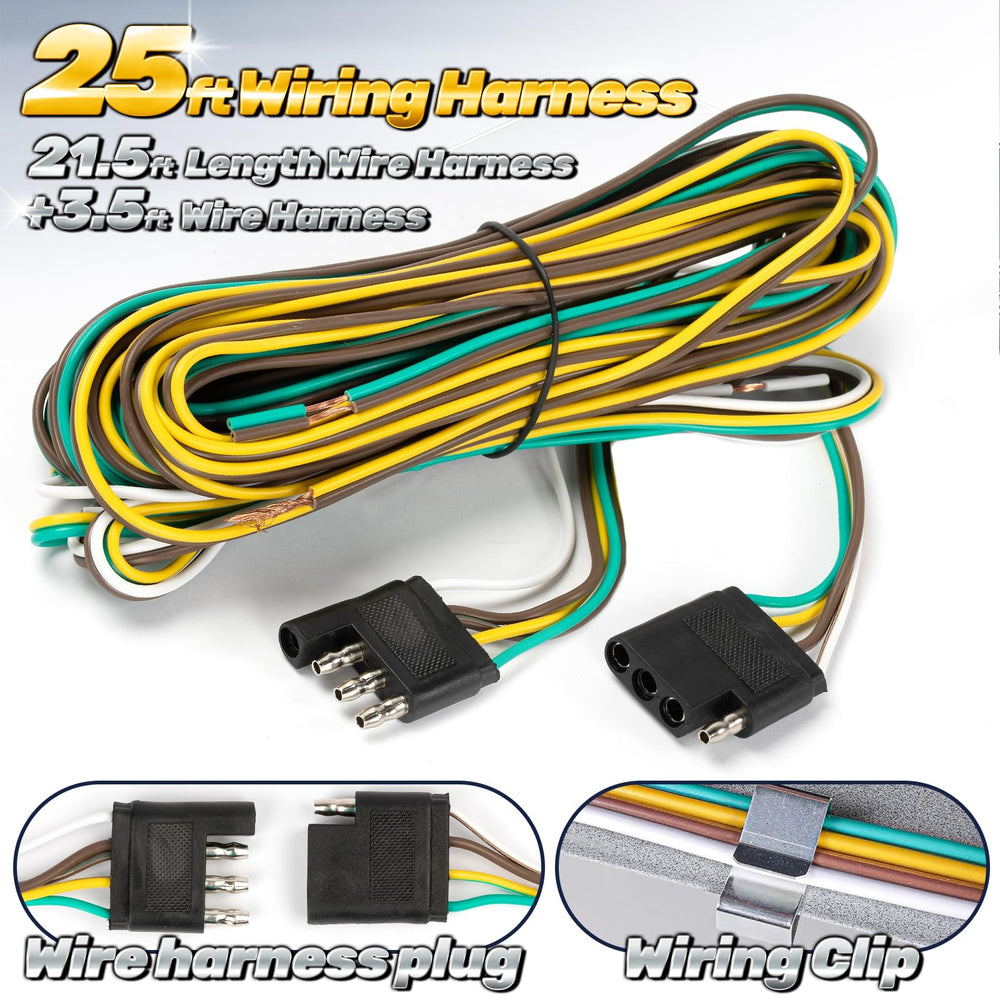

• 25 ft wiring harness with labeled leads for left/right circuits
• Color code: white for ground; white+green for high brightness; white+brown for low brightness
• License plate bracket and all mounting hardware included
• Connectors pre-routed to reduce wire splicing

What durability and weather protection does the kit provide?

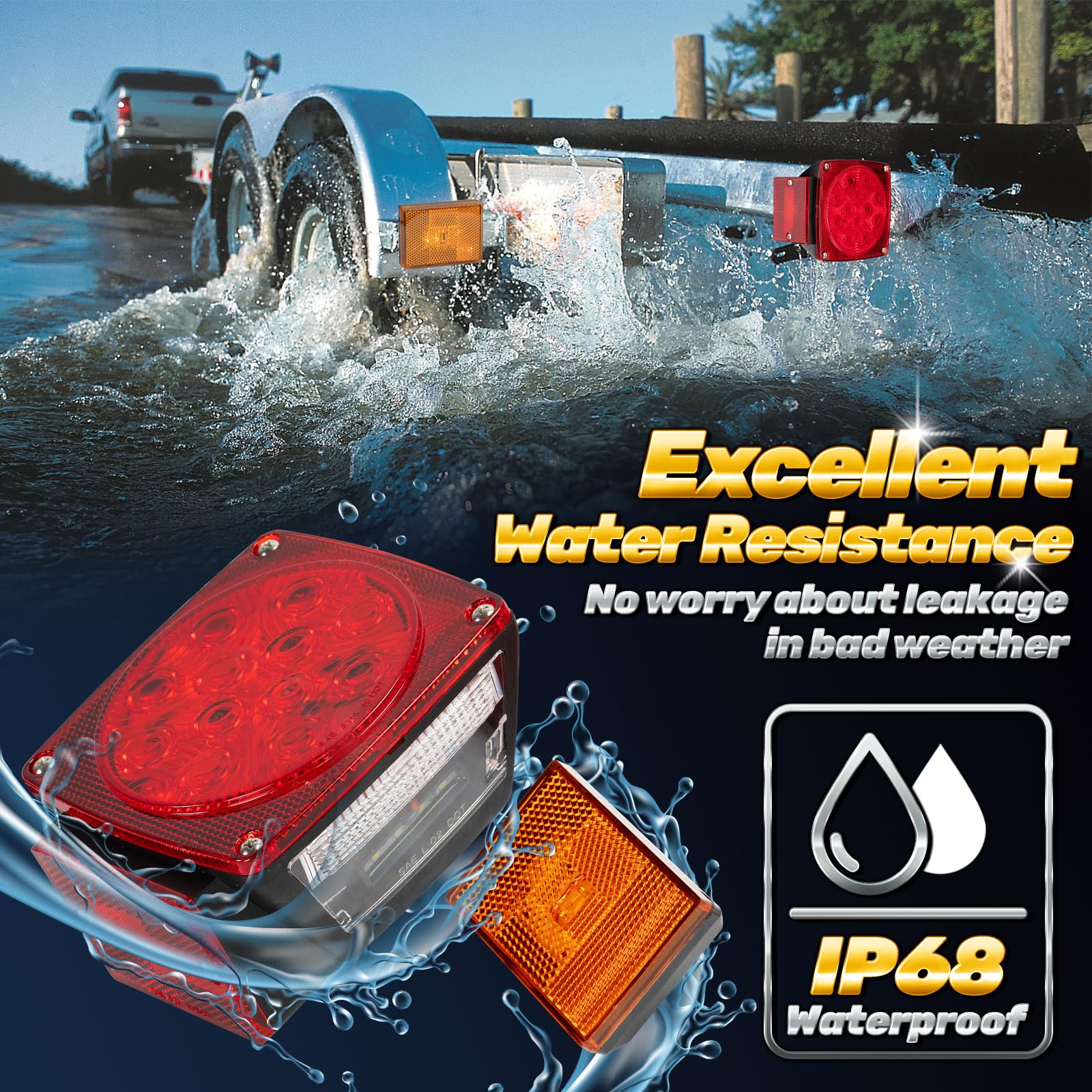

Lights are sealed to IP68 standards, meaning they resist dust and can withstand immersion in water for short periods—ideal for wet road conditions or launching a boat. The LED construction reduces heat and the durable housings resist cracking, corrosion, and UV fading for longer service life than many incandescent alternatives.

• IP68-rated waterproof housings for heavy weather exposure
• LEDs provide long-lasting illumination with lower heat output
• UV-resistant lenses and corrosion-resistant mounting hardware
• Meets DOT and SAE regulatory requirements for road use

Will this kit work with my vehicle and lighting needs?

The kit is made for 12V DC systems and fits trailers up to 80 inches wide, covering most small trailers, utility trailers, boats, RVs, and farm equipment. The smart wiring allows you to run combined tail/turn circuits or separate signals depending on your vehicle’s wiring. If you have a custom setup, the clear wiring labels make adapting or extending the harness straightforward.

• Designed for 12V DC electrical systems
• Compatible with trailers up to 80 inches wide
• Works for boats, utility trailers, campers, trucks, tractors
• Easy to extend or adapt using the labeled wires

Who is this for? This AUTO-GEKKO Full Set LED Trailer Light Kit is aimed at DIYers, mechanics, and fleet managers who need a reliable, regulation-compliant lighting solution that’s quick to install and built to withstand harsh conditions. It’s especially useful for owners of small trailers, boat trailers, campers, and light commercial equipment who want brighter, longer-lasting lighting than factory incandescent setups. If you need clear wiring instructions, a waterproof build, and DOT/SAE compliance in one package, this kit delivers the core components and accessories to get your trailer road-ready with minimal fuss.
