AUTOOL CT160 Fuel Injector Cleaner & Tester — 4‑Injector Ultrasonic 45°C Heating, 9‑in‑1 Diagnostic

This compact benchtop unit combines ultrasonic heating with a programmable injector test system so technicians and advanced DIYers can clean injectors without disassembly and verify performance under simulated engine conditions. It pairs 28 kHz ultrasonic cavitation with digital pressure control, adjustable pulse width, and multiple adapters to handle a wide range of injector types.

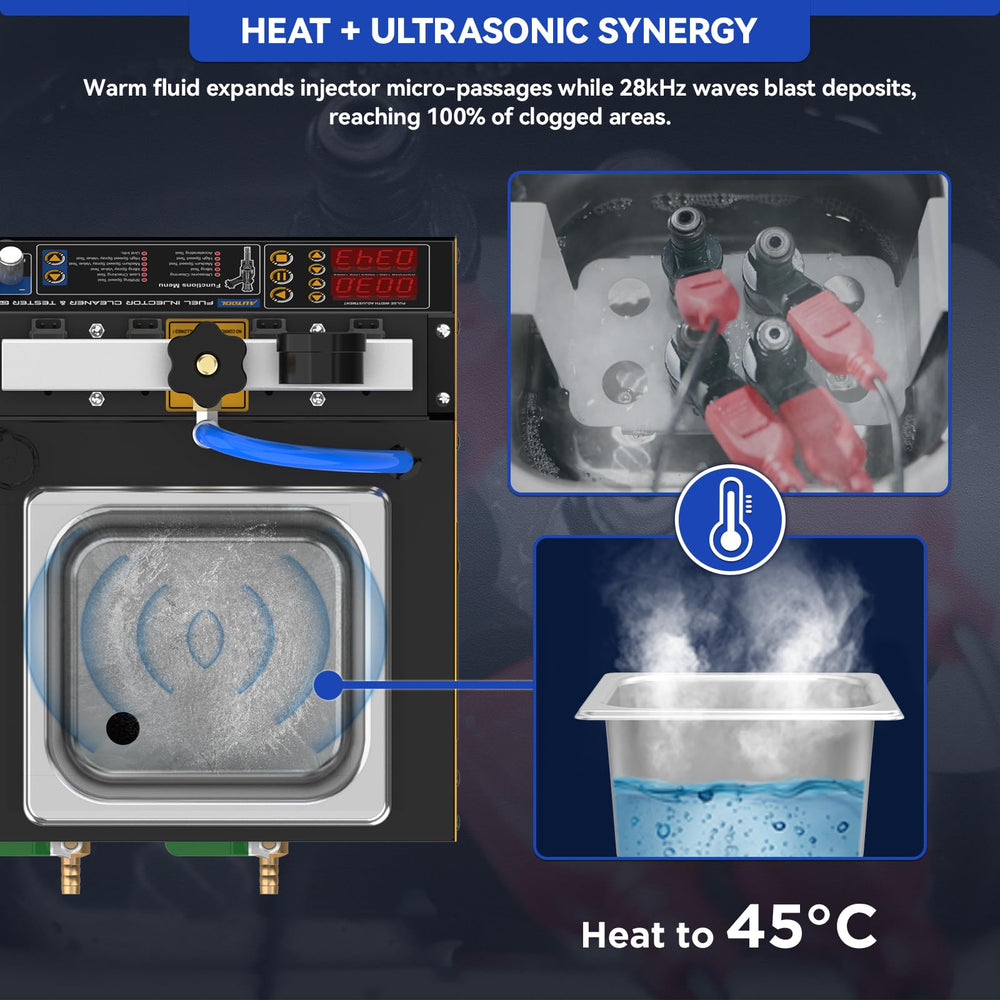

How does ultrasonic heating improve injector cleaning?

Ultrasonic waves create microscopic cavitation bubbles that agitate and lift carbon, varnish, and deposits from injector surfaces and internal passages. Warming the cleaning fluid to about 45°C increases solvent action and speeds deposit breakdown without aggressive mechanical disassembly.

• 28 kHz ultrasonic frequency for deep penetration into injector orifices
• Heating to 45°C to accelerate cleaning chemistry
• Simultaneous cleaning of four injectors in explosion-proof glass tubes

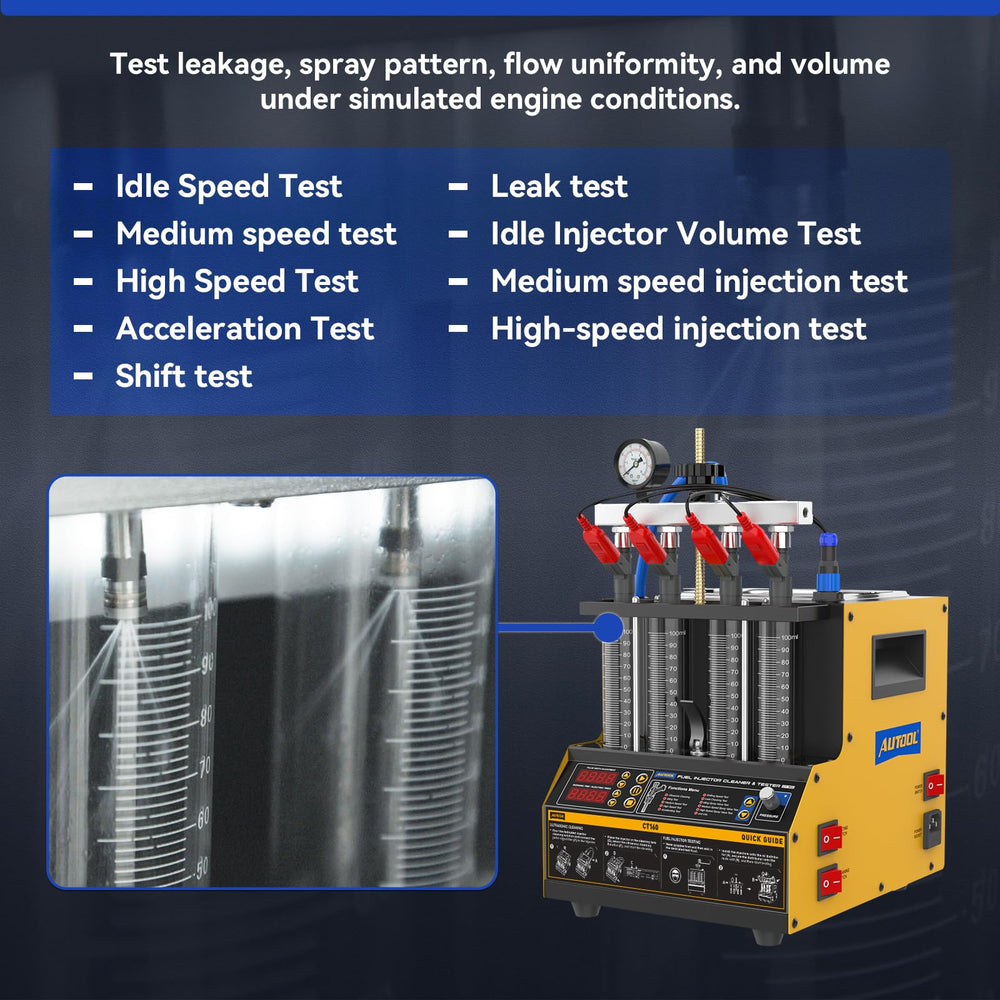

What diagnostic tests does the CT160 run?

The unit offers a 9-in-1 test suite that reproduces idle, medium, high-speed, accelerating, shifting and leakage conditions so you can quantify spray behavior and flow consistency. Results let you compare injectors side-by-side and determine whether replacement or further service is needed.

• Idle, medium-speed, and high-speed spray value tests
• Accelerating and shifting speed simulations
• Leakage and spray-pattern inspection with volumetric comparison

Will it work with my vehicle’s injectors?

The CT160 includes a variety of interchangeable adapters and supports both low- and high-pressure injector types through adjustable digital pressure control up to 5 bar. Pulse width and pulse count are user-configurable to match many OEM injection characteristics.

• 0–5 bar digital pressure range for precise simulation
• Adjustable pulse width from 0–20 ms and configurable pulse counts
• Multiple connector sizes for diverse injector styles, including direct injection adapters

How does the design help save time and fluid?

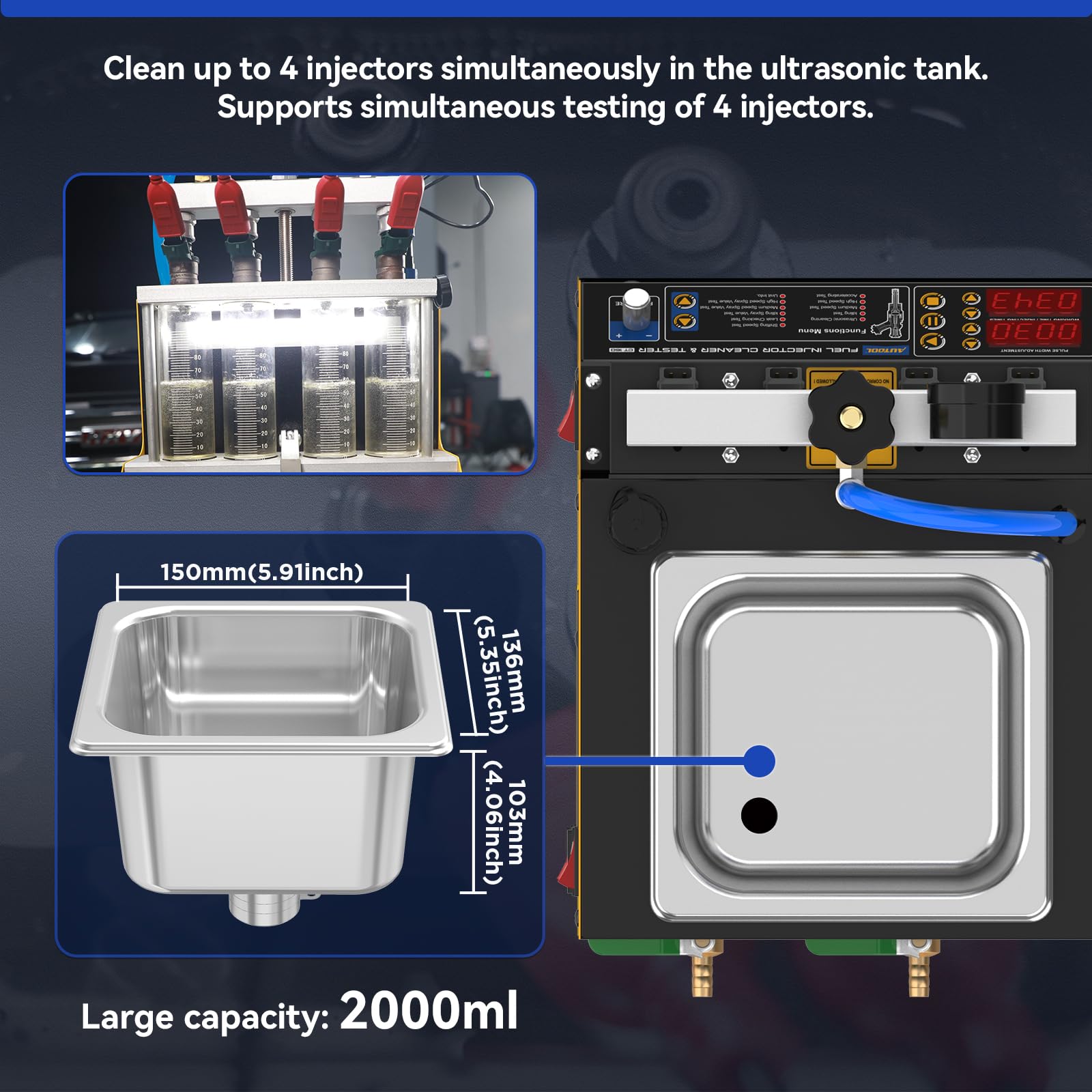

Four sturdy 100 ml explosion-proof glass tubes let you test and clean four injectors at once, while the visible fluid level and discharge valve make managing cleaning solution efficient and tidy. The system is built for repetitive shop use with a focus on reducing downtime and consumable waste.

• Clear test tubes for real-time fluid-volume observation
• Drain valve to recover and reuse cleaning solution when appropriate

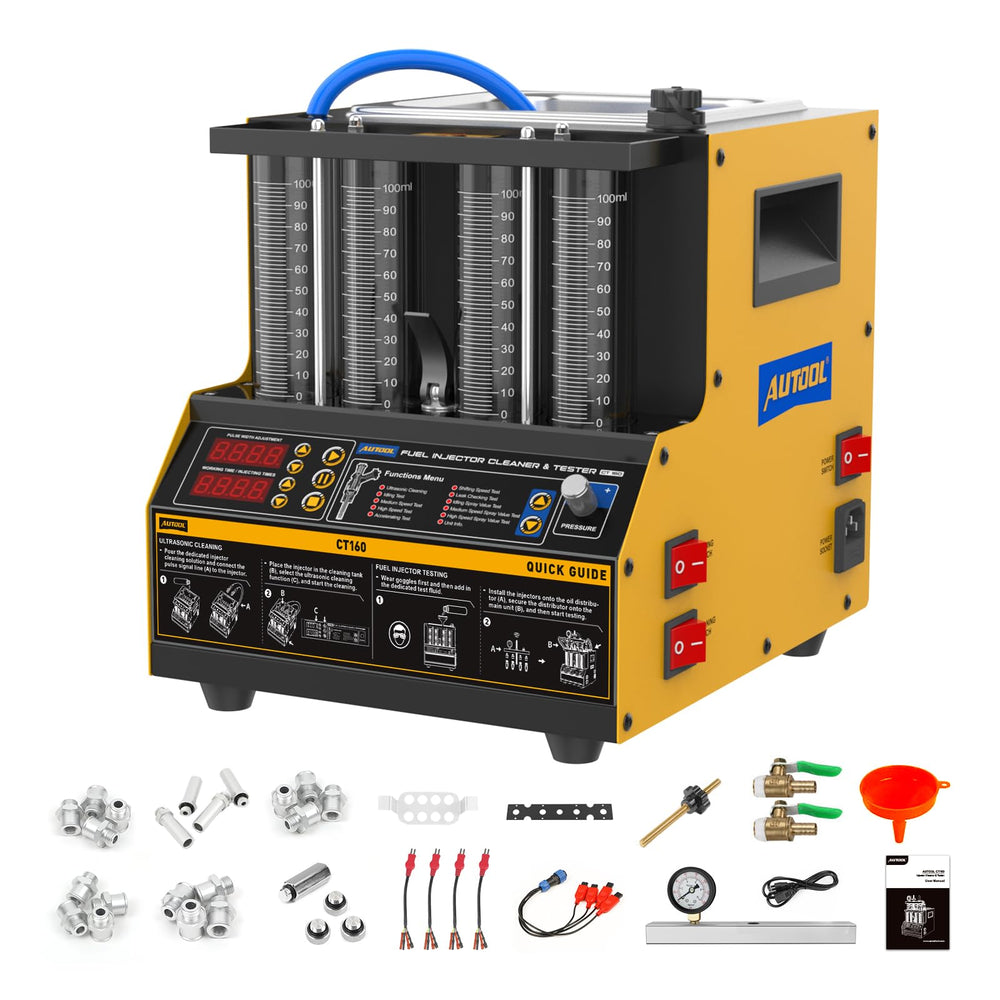

• Intelligent display for easy selection of test modes, pressures, and timings

Who is this for? If you run an independent repair shop, a performance tuning garage, or you’re a knowledgeable DIYer servicing multiple vehicles, the AUTOOL CT160 delivers professional-grade cleaning and diagnostic capability in a compact footprint. It’s ideal when you need repeatable test data, reduced injector downtime, and a safer alternative to disassembly-based cleaning. AUTOOL backs the CT160 with a three-year warranty and lifetime technical support to assist with setup, adapters, and troubleshooting.
