Auxbeam slim 6-gang switch panel AS-R60 — RGB backlight, memory, 12–24V protection

The Auxbeam AS-R60 is a slim 6-gang vehicle switch panel with RGB backlighting, auto-dimming, memory recall, and built-in safety protections for 12–24V vehicles.

Designed to give drivers and vehicle builders a compact, reliable way to control multiple accessories, the AS-R60 combines customizable RGB illumination with three lighting modes and a memory function so your settings return after power cycles. Its low-profile housing fits dashes, consoles, overheads, and more, while the included control box, resettable breaker, and silicone cover add electrical and environmental protection for on- and off-road use.

How does the AS-R60 protect my vehicle electronics?

The AS-R60 uses solid-state relays inside the control box to switch loads cleanly and reduce mechanical wear. A resettable circuit breaker is included to protect against overcurrent, and the unit guards against reverse polarity, overvoltage, and overheating.

• Solid-state relays for quieter, longer-lasting switching.
• Included resettable breaker for quick recovery after faults.
• Protection vs reverse polarity, overcurrent, overvoltage, and heat.
• Silicone cover offers splash resistance for the panel face.

What lighting and control options does the AS-R60 offer?

The panel features fully adjustable RGB backlighting with an auto-dimming function that responds to ambient light, plus three user-selectable button behaviors: TOGGLE, MOMENTARY, and PULSED. You can also turn the backlight off with a single MODE press and rely on the panel’s memory to restore previous settings.

• RGB backlight with countless color choices to match interior themes.
• Auto-dimming brightens or dims according to surroundings to reduce glare.
• Three switch modes: constant on, press-and-hold momentary, and strobe.
• Single-button backlight OFF and memory recall for saved settings.

Where can I install this panel and how is it mounted?

The AS-R60 is built for broad compatibility with 12–24V vehicles including trucks, boats, ATVs, UTVs, cars, and heavy machinery. Auxbeam supplies two mounting brackets and double-sided tape so you can bolt or stick the panel to the dash, center console, overhead, or sunglasses holder.

• Compatible with most 12–24V vehicle electrical systems.
• Two mounting brackets plus adhesive tape included for flexible placement.
• Low-profile slim bezel designed to sit flush or surface-mount.
• Suitable for marine, off-road, powersports, and work vehicles.

How simple is installation and what should I know before buying?

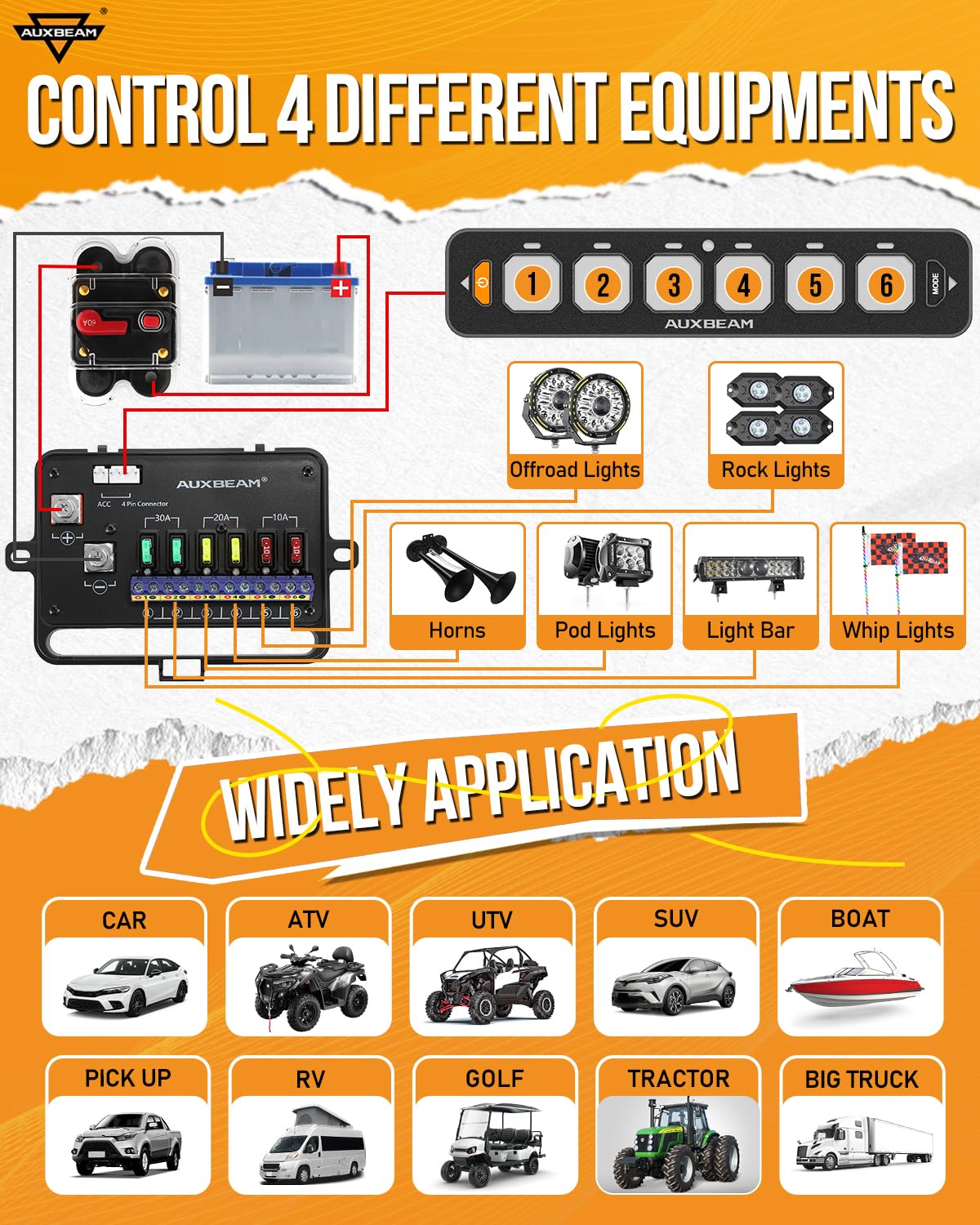

Wiring is centralized through the control box; the package includes safety components and straightforward mounting hardware to streamline install. Note that the AS-R60 does not support Bluetooth or app control; it relies on onboard buttons and hardware settings.

• Central control box simplifies wiring to multiple accessories.
• Resettable breaker and protective cover included for safer installs.
• No Bluetooth or mobile app — settings are changed on the unit itself.
• Three-year warranty covers manufacturing issues; contact Auxbeam for support.

Who is this for: The Auxbeam AS-R60 fits drivers, off-roaders, boat owners, and vehicle upfitters who want a compact, customizable switch solution with strong safety features. It’s ideal for anyone installing lighting, compressors, winches, or auxiliary electronics who needs a slim, robust panel that remembers settings and offers flexible control modes without relying on phone apps.
