BFXM R1234yf Quick Coupler Adapter Kit — Plated Bronze, Low‑Leak Ball‑Bearing Lock

The BFXM R1234yf Adapter kit is a quick coupler set that lets technicians attach R1234yf service hoses to vehicle service ports for safe, low-leak evacuation and recharge.

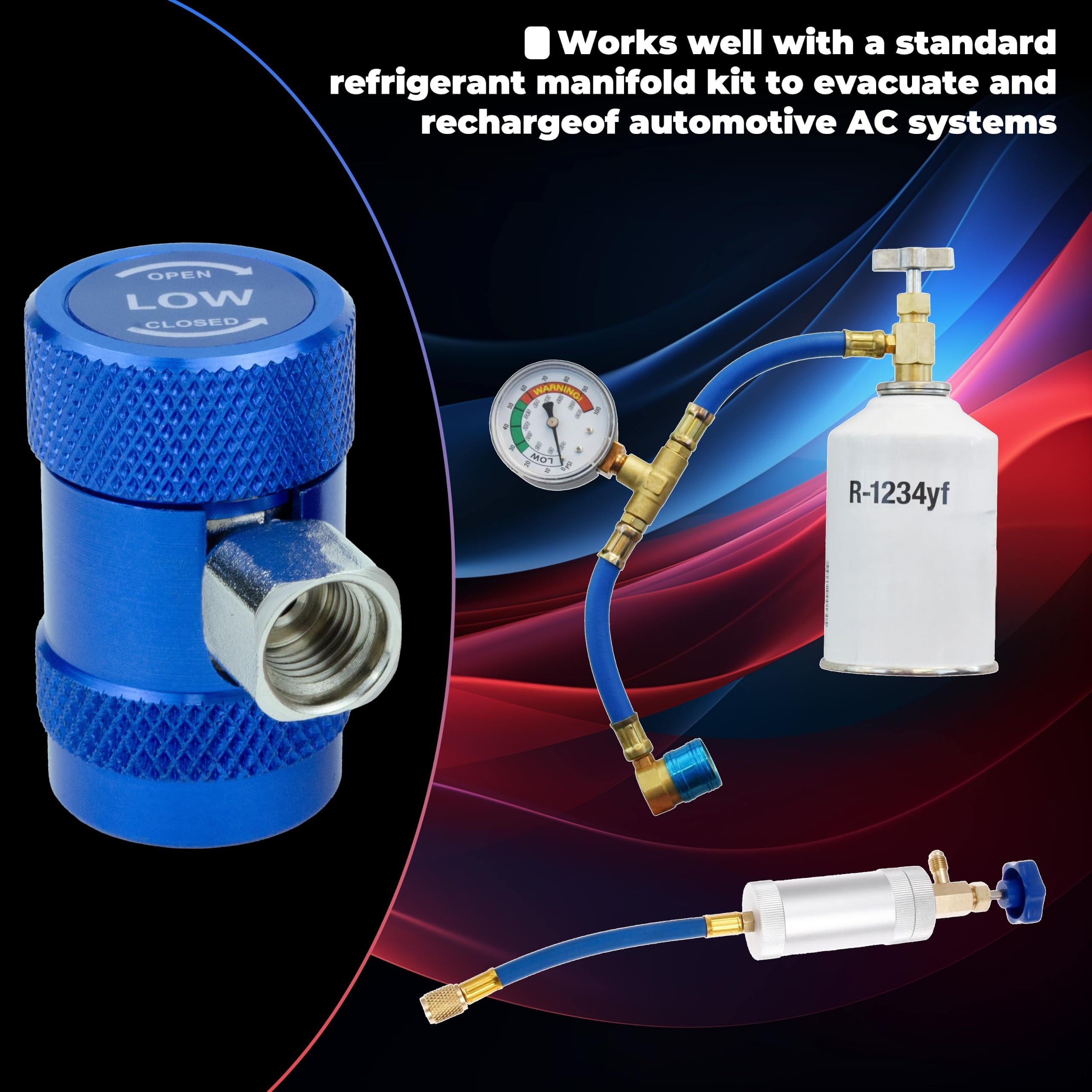

This compact adapter assembly is designed for use with standard refrigerant manifold gauges and service hoses to work on modern automotive air conditioning systems that use R1234yf. Built from plated bronze with rubber sealing and a spring-loaded ball-bearing lock, the coupler gives a durable connection that minimizes refrigerant loss during service. Clear high/low and open/close markings simplify hookups and reduce user error when performing evacuation, pressure checks, or recharging procedures.

How does the BFXM R1234yf Adapter connect to my vehicle and tools?

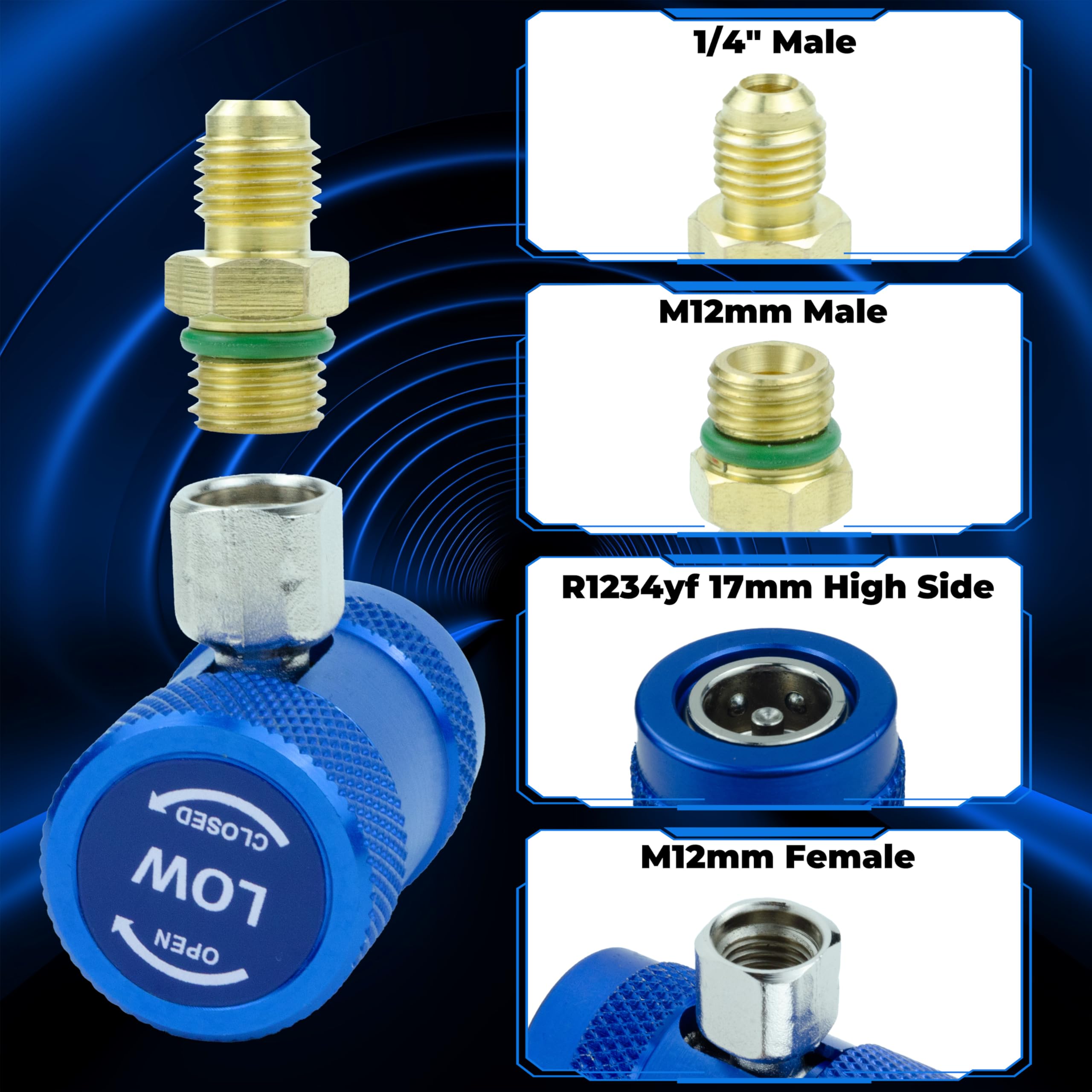

The adapter couples a vehicle’s R1234yf service port to a 1/4" service hose or manifold gauge quickly. One end uses a ball-bearing quick connector for the car’s service valve and the other end accepts a standard 1/4" fitting.

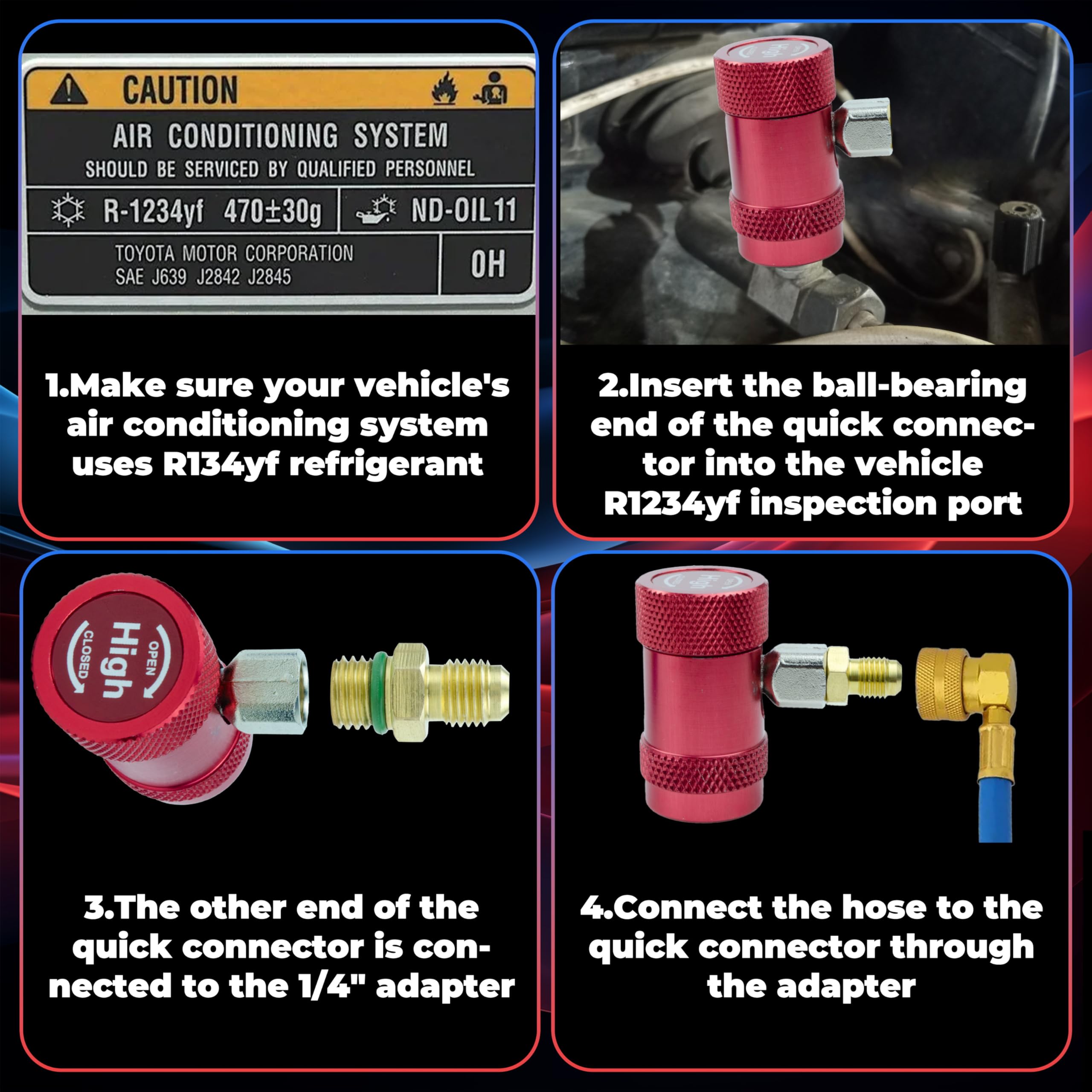

• Insert the ball-bearing quick connector into the vehicle inspection port.
• Attach the adapter onto the quick connector to secure the seal.
• Connect your manifold or hose to the 1/4" threaded end for charging or vacuum.
• High/LOW and OPEN/CLOSE markings guide correct orientation during hookup.

What features reduce refrigerant leakage during service?

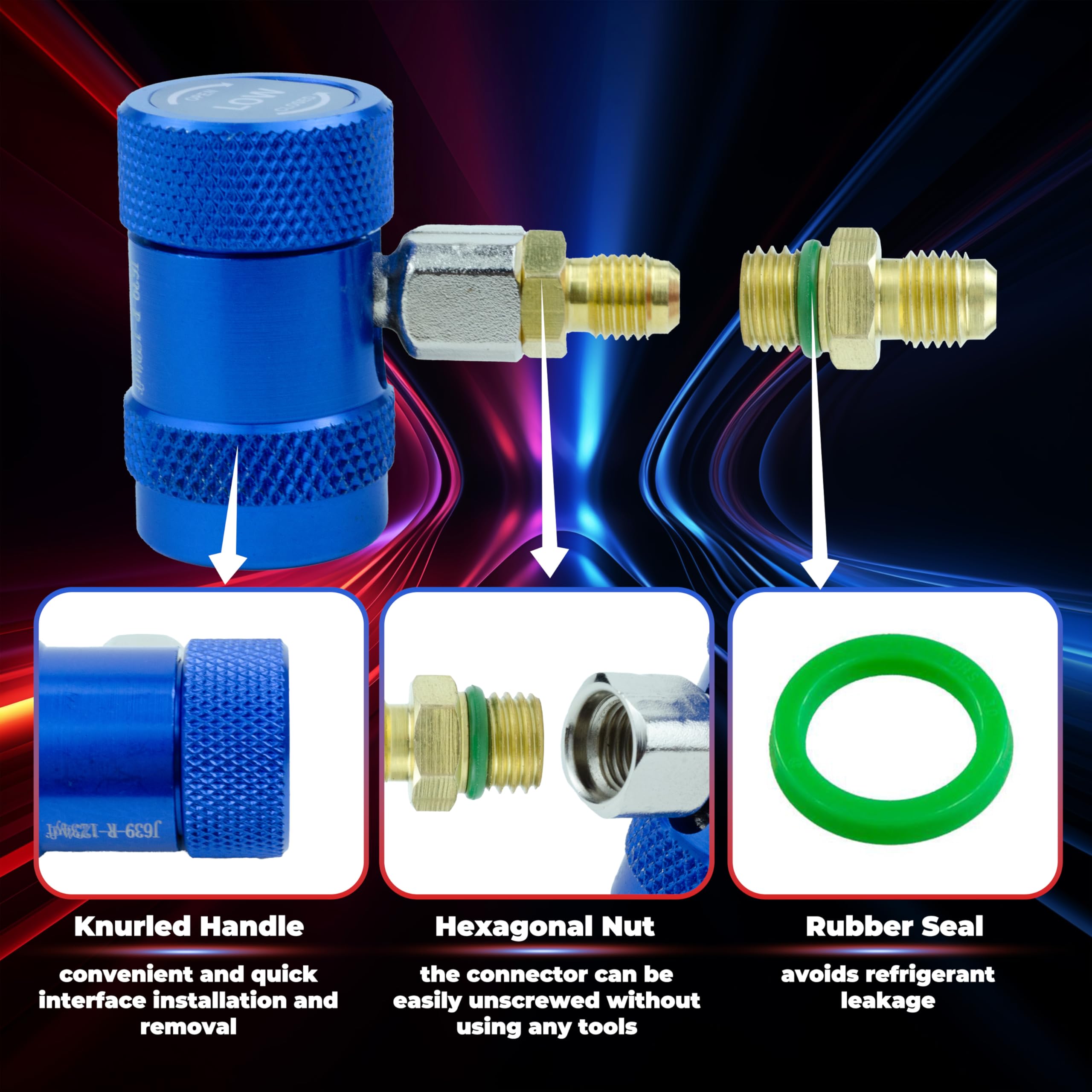

Leak control relies on a molded rubber seal plus a spring-loaded ball-bearing lock that holds the connector in place and compresses the seal. The combination limits refrigerant loss while hoses are connected for evacuation or recharge.

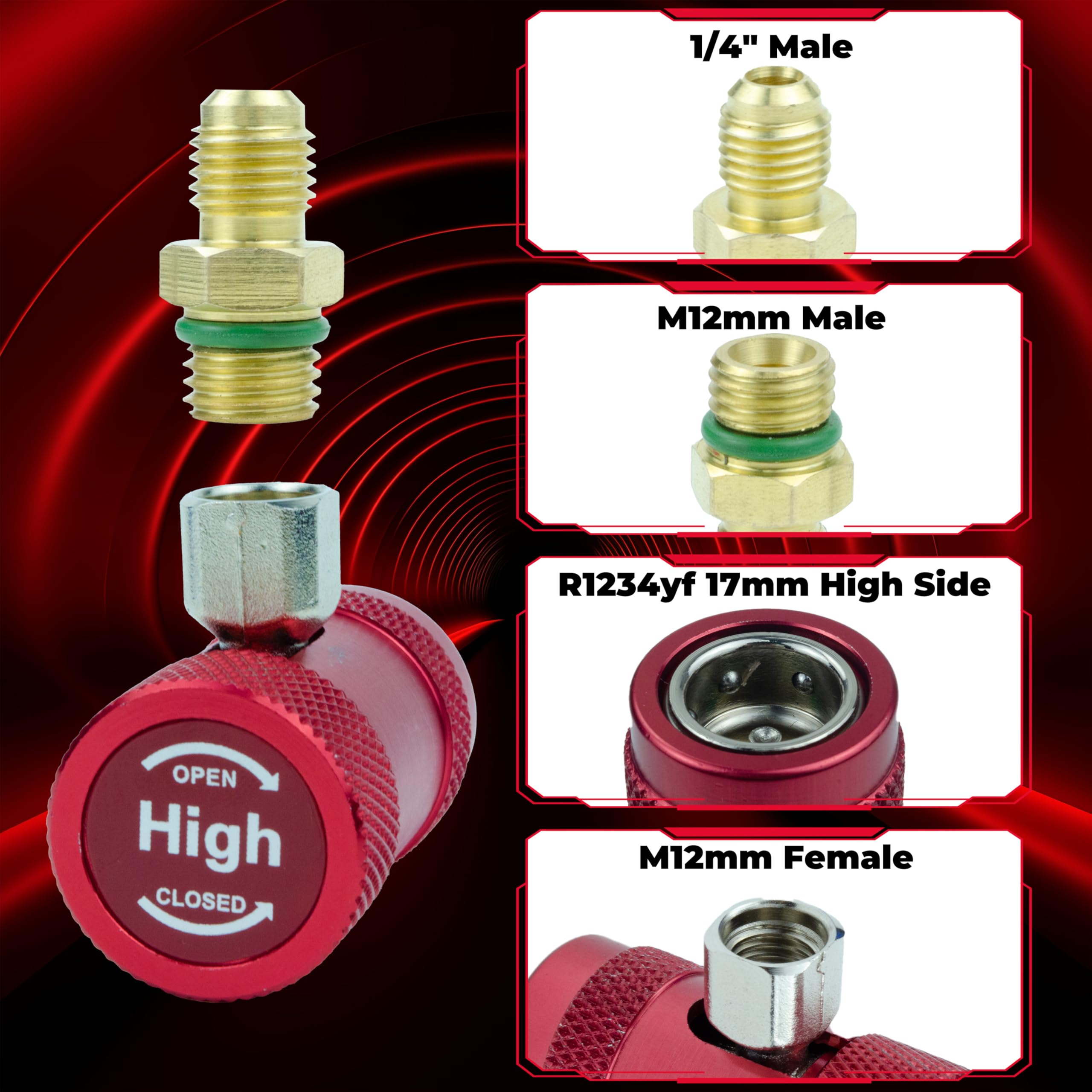

• Rubber sealing ring creates a gas-tight barrier at the service port interface.

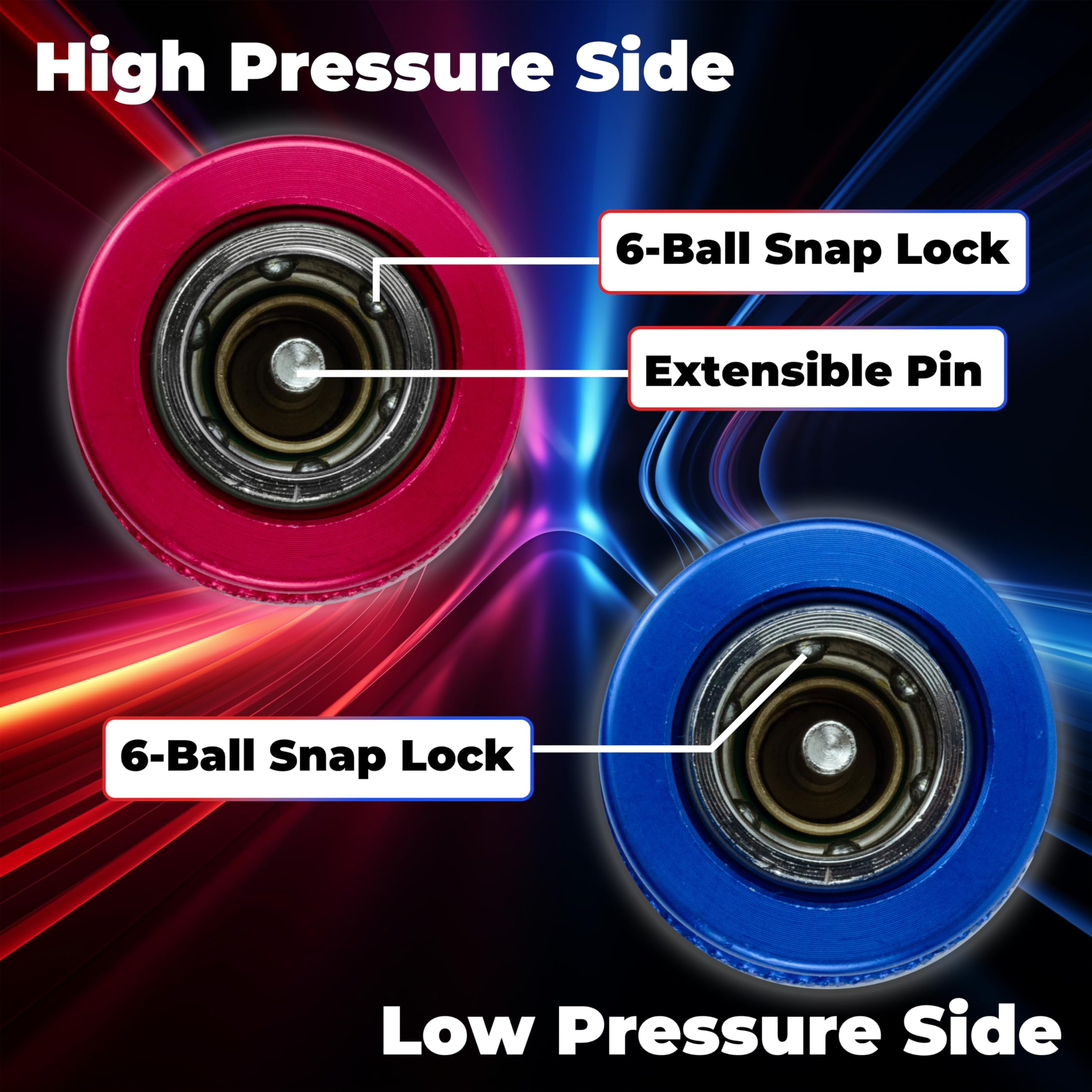

• Ball-bearing lock retains the connector and prevents accidental release.
• Nickel and aluminum-plated bronze resists wear that can cause leaks over time.
• Clear markings help avoid improper connections that lead to loss.

Will this adapter withstand repeated professional use and rough conditions?

Yes — the adapter’s plated bronze construction provides abrasion resistance and corrosion protection, making it suitable for repeated field service. The metal finish reduces wear at threaded and contact surfaces compared with unplated parts.

• Plated bronze body offers strength and surface durability.
• Nickel and aluminum coatings help resist corrosion from shop environments.
• Compact form factor reduces risk of bending or damage during use.
• Designed for compatibility with common R1234yf manifold and hose setups.

How do I use the adapter safely and avoid common mistakes?

Follow stepwise connections and confirm valve positions using the adapter’s markings. Always work with the vehicle off and system pressures verified; use personal protective equipment and follow refrigerant handling rules.

• Verify vehicle type uses R1234yf before attaching the adapter.
• Match the adapter to your 1/4" hose or manifold thread before connecting.
• Watch the OPEN/CLOSE and HIGH/LOW indicators to avoid wrong port use.
• Inspect rubber seal for damage before each use to maintain leak control.

Who this product is for: The BFXM R1234yf Quick Coupler Adapter kit is aimed at professional auto technicians, independent shops, and knowledgeable DIYers who service modern automotive A/C systems that run on R1234yf. It suits anyone who needs a compact, durable coupling solution that integrates with standard manifold gauge sets and hoses while prioritizing low leakage and clear, error-reducing markings. If you perform regular evacuation, pressure testing, or refrigerant charging on R1234yf systems, this adapter provides a reliable, easy-to-use connection to speed service and reduce refrigerant loss.
