BIG RED 12-Ton Welded Low-Profile Bottle Jack, Red — Stubby 6.2"–10.9", Overload Valve

BIG RED’s Torin ATH91207AR is a welded, low-profile 12-ton (24,000 lb) hydraulic bottle jack engineered to lift heavy vehicles and equipment reliably while resisting leaks and abuse.

Built for demanding residential, commercial, agricultural, and industrial environments, this stubby bottle jack combines a drop-forged alloy steel body and inner/outer welded construction to maximize strength and minimize leakage. The compact low-profile design reaches down to 6-3/16" and extends to 10-15/16", giving it the reach needed for many service and field applications while keeping a rugged wide base for stability. Factory-tested and backed by a limited 1-year warranty, the ATH91207AR emphasizes durability, safety features, and ease of use.

How does the ATH91207AR handle heavy loads safely?

This Torin BIG RED bottle jack includes an integrated overload valve and oil-bypass protection to prevent the hydraulic system from being overextended. The Y-style polyurethane sealing ring with a backup ring keeps the piston secure under load, reducing the chance of gradual descent. Together these features provide a safer lift cycle for heavy vehicles and equipment.

• 12 ton (24,000 lb) rated capacity for cars, trucks, and machinery
• Built-in overload valve prevents over-travel of the hydraulics
• Polyurethane sealing ring with backup ring for secure load retention

What makes this bottle jack durable in harsh conditions?

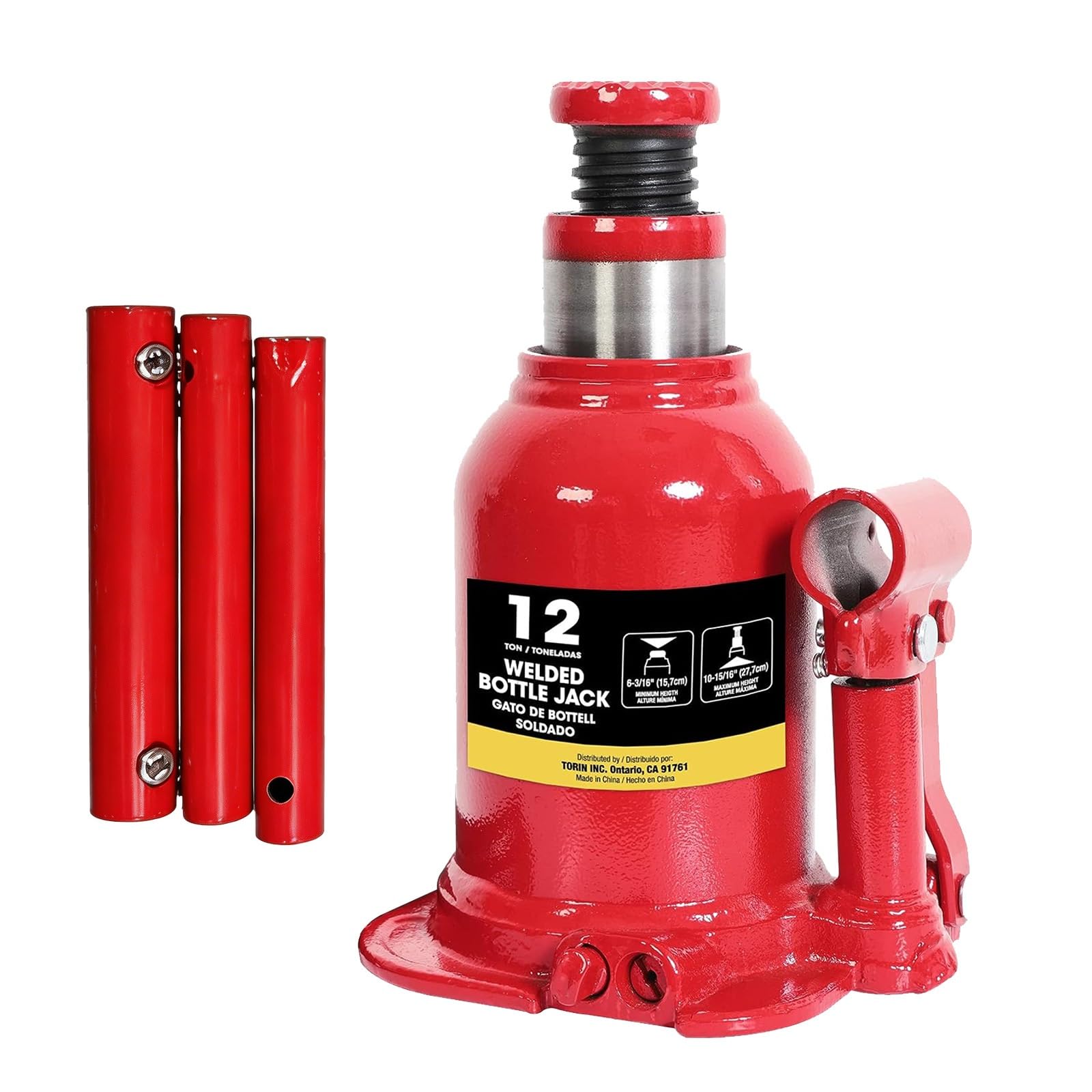

The ATH91207AR is constructed from drop-forged alloyed steel and uses a fully welded inner/outer structure to minimize leak points and increase structural integrity. The unit is filled with high-quality hydraulic oil that offers corrosion resistance and maintains performance across a wide temperature range, allowing reliable operation in cold or hot environments. A serrated, heat-treated saddle provides wear resistance and a solid grip on lifting points.

• Drop-forged alloy steel body with welded construction for long service life
• Hydraulic oil suited for -13°F to 140°F operating conditions
• Serrated, heat-treated saddle for secure contact and reduced slippage

How easy is it to use the low-profile design during maintenance?

The stubby low-profile frame reaches into tight clearance areas where taller jacks cannot access, while an adjustable screw top extension adds a few extra inches when needed. A glide-action pressure pump reduces the physical effort required to lift heavy loads, making repeated use less taxing. The wide base keeps the unit stable during jacking, which is especially helpful on uneven surfaces.

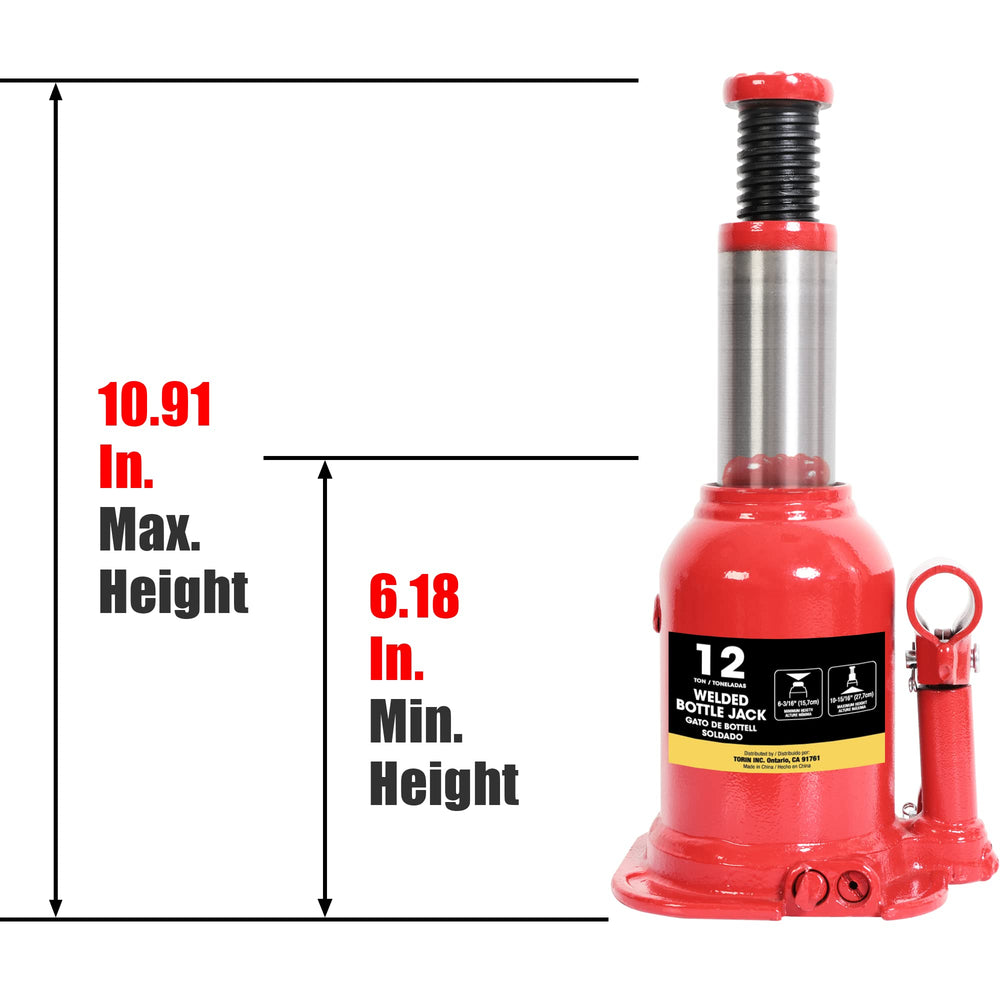

• Low-profile 6-3/16" minimum height for confined spaces
• Adjustable screw top extension for added lift height versatility
• Glide-action pump minimizes required muscle effort

What routine checks and maintenance keep this jack reliable?

Simple periodic inspections help ensure long-term performance: check for oil leaks, verify the saddle and base are free from excessive wear, and keep the hydraulic fluid at the recommended level. If the jack operates in extreme temperatures or heavy-duty cycles, inspect seals and the bypass valve more frequently to maintain safe lifting performance. The unit ships factory-tested, but regular upkeep preserves that reliability.

• Inspect for leaks and damaged welds before each use
• Verify hydraulic oil level and refill with manufacturer-specified fluid
• Check seals, saddle, and base for wear after heavy or frequent use

Who is this for: The BIG RED Torin ATH91207AR is aimed at owners and operators who need a compact, heavy-capacity jack that withstands tough use — professional mechanics, fleet and farm operators, industrial maintenance crews, and serious DIYers. It suits situations where space is tight but lifting demands are high: low-clearance vehicles, workshop service pits, agricultural equipment, and heavy machinery maintenance. Backed by a limited one-year warranty and factory testing, it’s geared toward users who prioritize strength, leak resistance, and dependable hydraulic protection.
