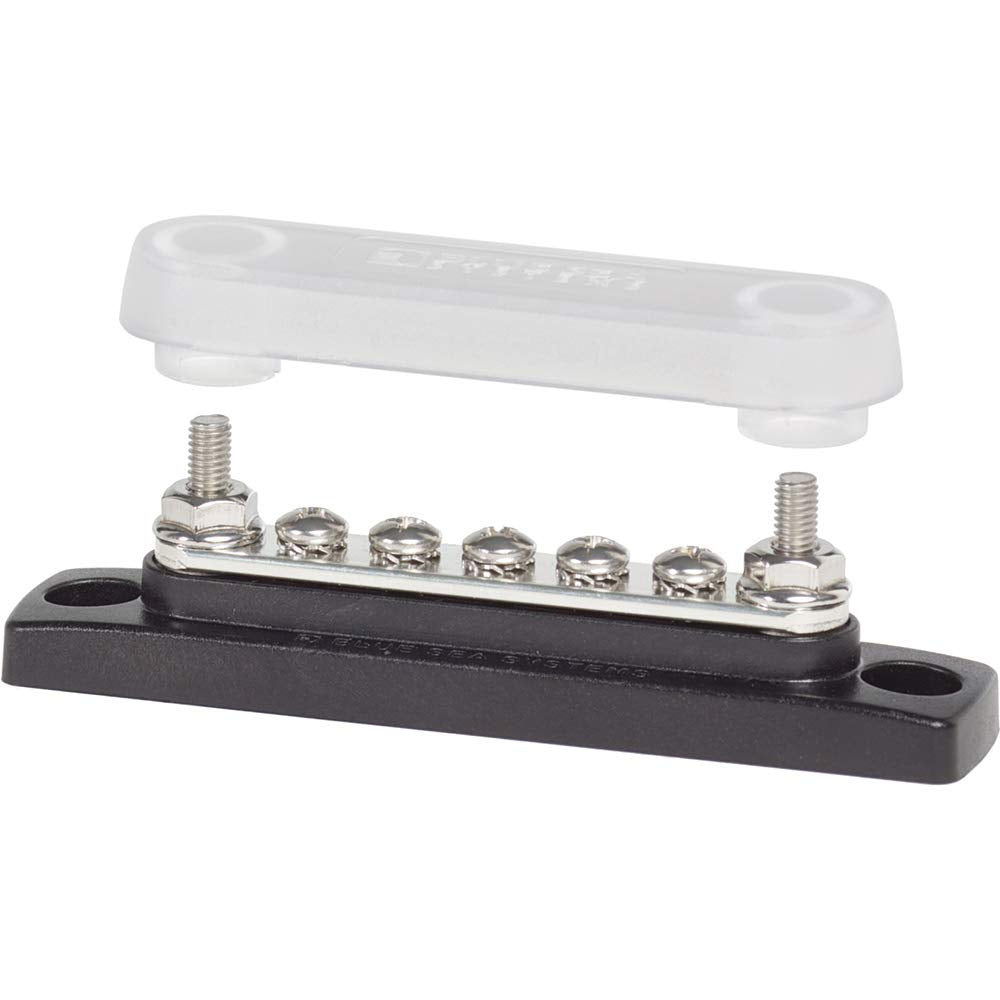

Blue Sea Systems Minibus 5-Gang Bus Bar 100A – Covered 5-Terminal DC Distribution, Tin-Plated Copper

This compact bus bar brings safe, tidy power routing to marine, automotive, or off-grid DC systems where space is limited and corrosion resistance matters. Built on a reinforced polycarbonate base and using tin-plated pure copper conductors, the unit balances conductivity and durability while its clear cover allows visual inspection without exposing terminals. It accepts common screw sizes and mounts with two #10 (M5) screws, making installation straightforward for workshop or field wiring.

How will this bus bar simplify my wiring layout?

The Minibus centralizes five screw terminals plus two stud terminals so you can terminate multiple circuits in one, neat location. That reduces cable clutter, shortens run lengths, and helps keep fuses and switches easier to trace during maintenance. The clear cover keeps connections protected while remaining visible for quick checks.

• Five #8-32 screw terminals for individual branch circuits
• Two #10-32 stud terminals for main in/out connections
• Compact footprint to consolidate wiring in tight panels
• Clear polycarbonate cover for visible, protected terminations

What electrical limits and compatibility should I expect?

This bus bar is designed for common low-voltage systems: it handles up to 300V AC or 48V DC and carries a continuous 100A rating. Use it in DC house banks, small inverter systems, or accessory power distribution where those voltage and current limits are within system design. Match wire gauge and overcurrent protection to the amperage rating and application.

• Continuous current rating: 100A (AC/DC)
• Maximum voltage: 300V AC / 48V DC
• Terminal screw type: 5 × #8-32; stud type: 2 × #10-32
• Recommended: size conductors and fuses to the 100A rating

Is it durable and corrosion resistant for marine use?

Yes—the base uses reinforced polycarbonate and the bus conductor is tin-plated pure electrical copper, providing excellent conductivity and improved resistance to corrosion compared with bare copper. The clear polycarbonate cover shields connections from spray and accidental contact while letting you inspect terminations without removal. Two mounting holes accept #10 (M5) hardware for secure attachment in cabins, engine rooms, or equipment bays.

• Reinforced polycarbonate base for structural strength
• Tin-plated pure copper conductors for conductivity and corrosion resistance
• Clear polycarbonate cover for protection and inspection
• Two #10 (M5) mounting holes for secure installation

How easy is it to install and maintain?

Installation is straightforward: secure the bus bar with two #10 (M5) screws, terminate the main feeds to the #10-32 studs, and wire branch circuits to the five #8-32 screw terminals. The cover can be removed for access and replaced to protect live connections, and the visible design helps you spot loose or corroded terminations quickly during routine checks.

• Mount with two #10 (M5) screws for a firm attachment
• Terminal layout supports clear main and branch separation
• Clear cover simplifies visual inspections and maintenance
• Compact design fits panels, nav stations, and tight cabinets

Who is this for? The Blue Sea Systems Minibus 5-Gang Bus Bar is ideal for boat owners, RV enthusiasts, electricians, and hobbyists who need a small, reliable distribution point for low-voltage systems. Choose this unit when you want a corrosion-resistant conductor, visible protected terminations, and a compact footprint for consolidating multiple circuits in limited spaces without sacrificing a 100A continuous rating.
