Bonbo Timing Tool Kit for Ford 4.6L 5.4L 6.8L 3V Engines — Cam Phaser Holder & Valve Spring Compressor

Bonbo Timing Belt Tools Set is a complete kit engineered to lock, align and compress key components on Ford 4.6L, 5.4L and 6.8L 3V engines so technicians and DIYers can service cam phasers, timing chains and valve components accurately.

This Bonbo timing tool kit gathers the specialized tools you need to service the timing system on Ford 3‑valve V8 and V10 engines without improvisation. Designed as direct replacements for common OEM service tools, the set saves time and reduces risk by holding cam phasers and the crankshaft at the correct positions, securing the pulley bolt, locking the timing chain, and compressing valve springs for safe disassembly and reassembly.

How does this kit prevent timing system movement during service?

The kit includes dedicated locking and positioning tools that secure the cam phaser, timing chain and crankshaft at fixed positions so components don’t rotate during repairs. Using the correct holding points prevents accidental valve-to-piston contact and keeps chain tension intact while parts are changed.

• Cam phaser holding tool locks the camshaft or phaser without removing the timing cover.
• Timing chain wedge tool maintains chain tension between guides during removal or installation.
• Crankshaft positioning tool holds the crank at TDC for accurate alignment.
• Included pulley bolt matches OEM fit to secure gears while you work.

Which Ford vehicles and engines are compatible with this set?

Bonbo designed this set for a wide range of Ford 3‑valve engines and popular models from the mid‑1990s onward. The tools fit many Mustang, F‑Series, Expedition, Explorer, Navigator and related vehicles when equipped with 4.6L, 5.4L or 6.8L 3V engines.

• Fits 4.6L, 5.4L and 6.8L 3‑valve V8/V10 Ford engines used across F‑150, Super Duty, Mustang, Explorer and more.
• Includes direct replacements for common OEM numbers for accurate fitment.
• Compatible with Lincoln and Mercury models sharing Ford 3V engine platforms.
• Check vehicle year and engine code against OEM references before use.

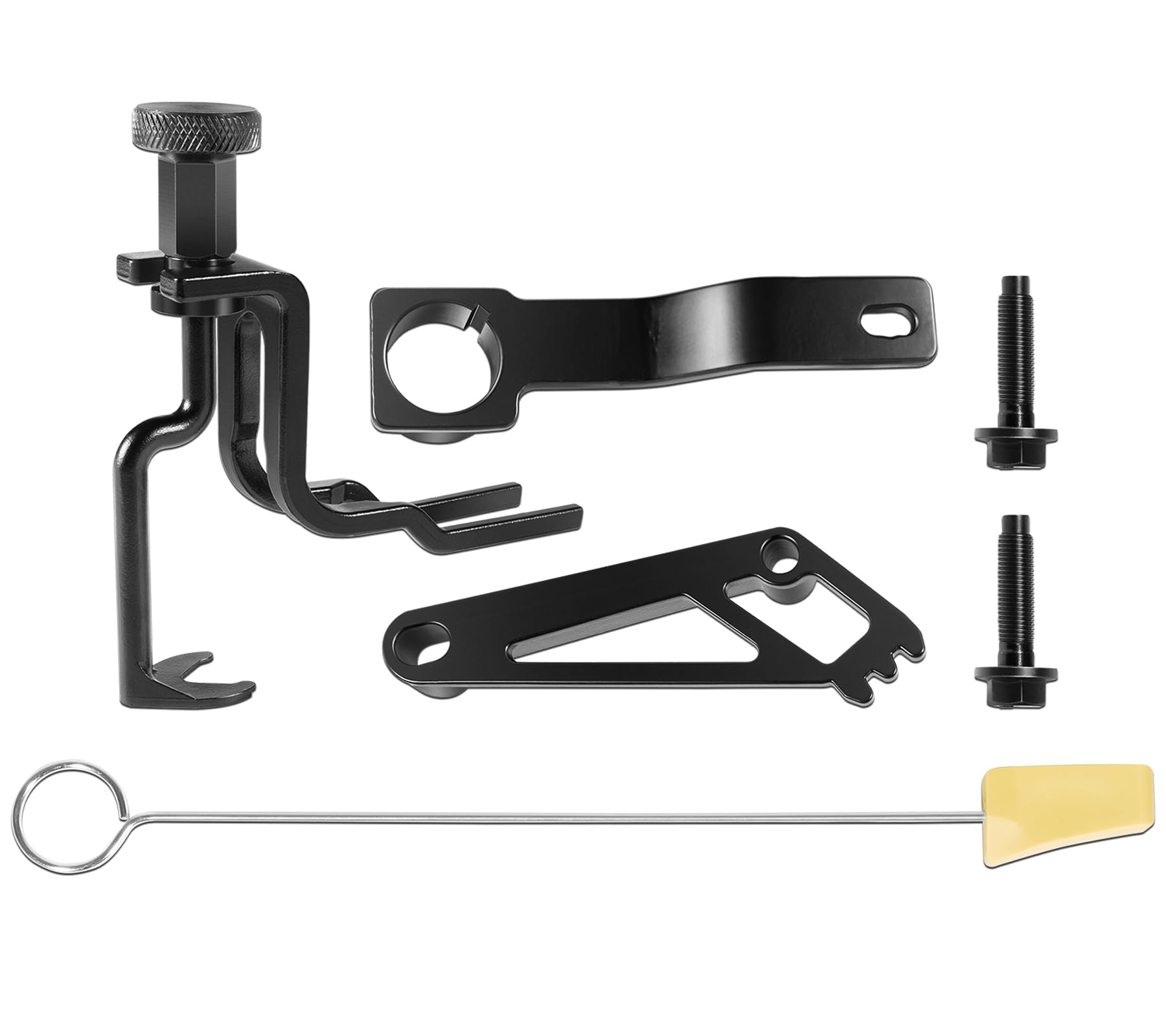

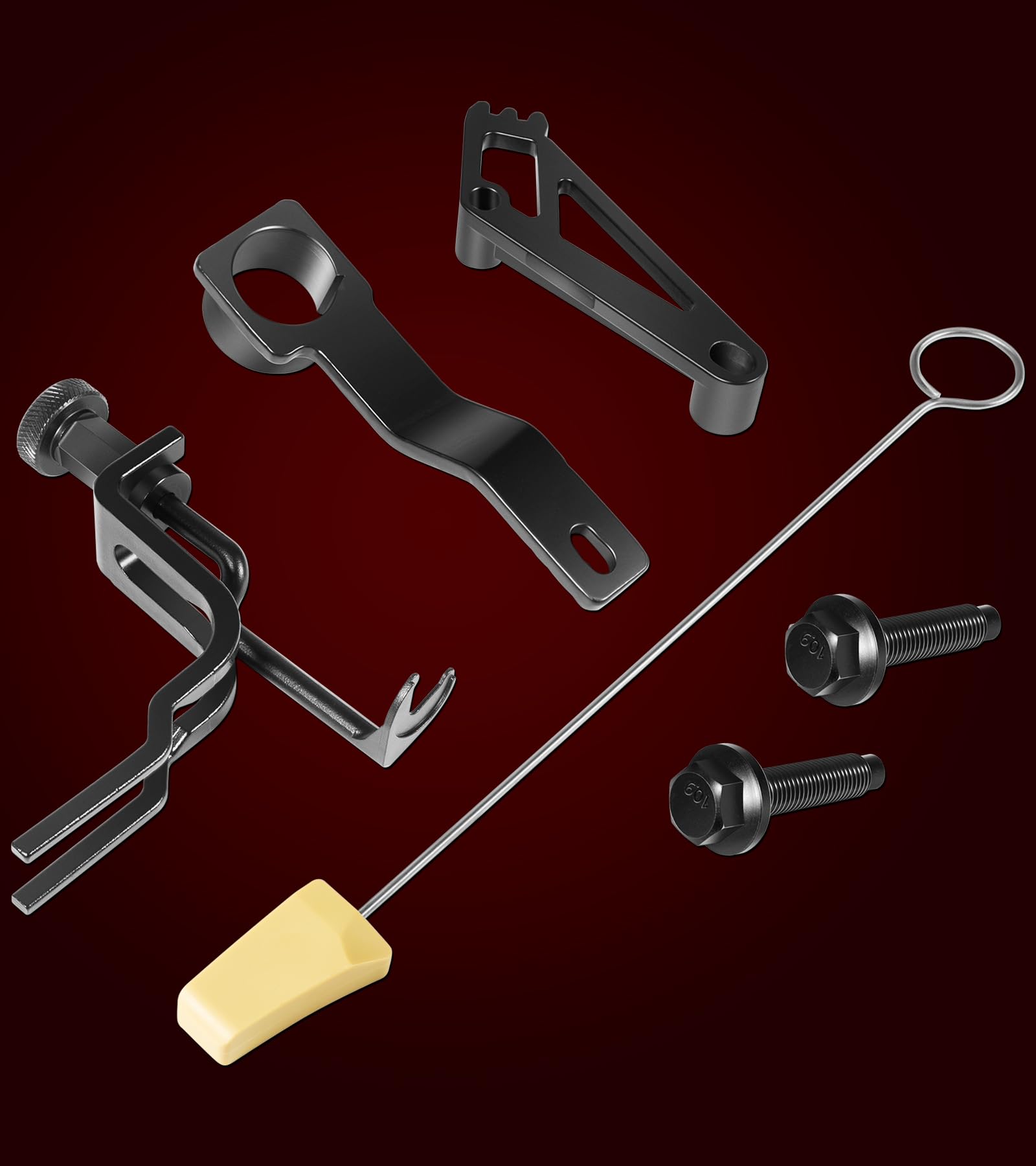

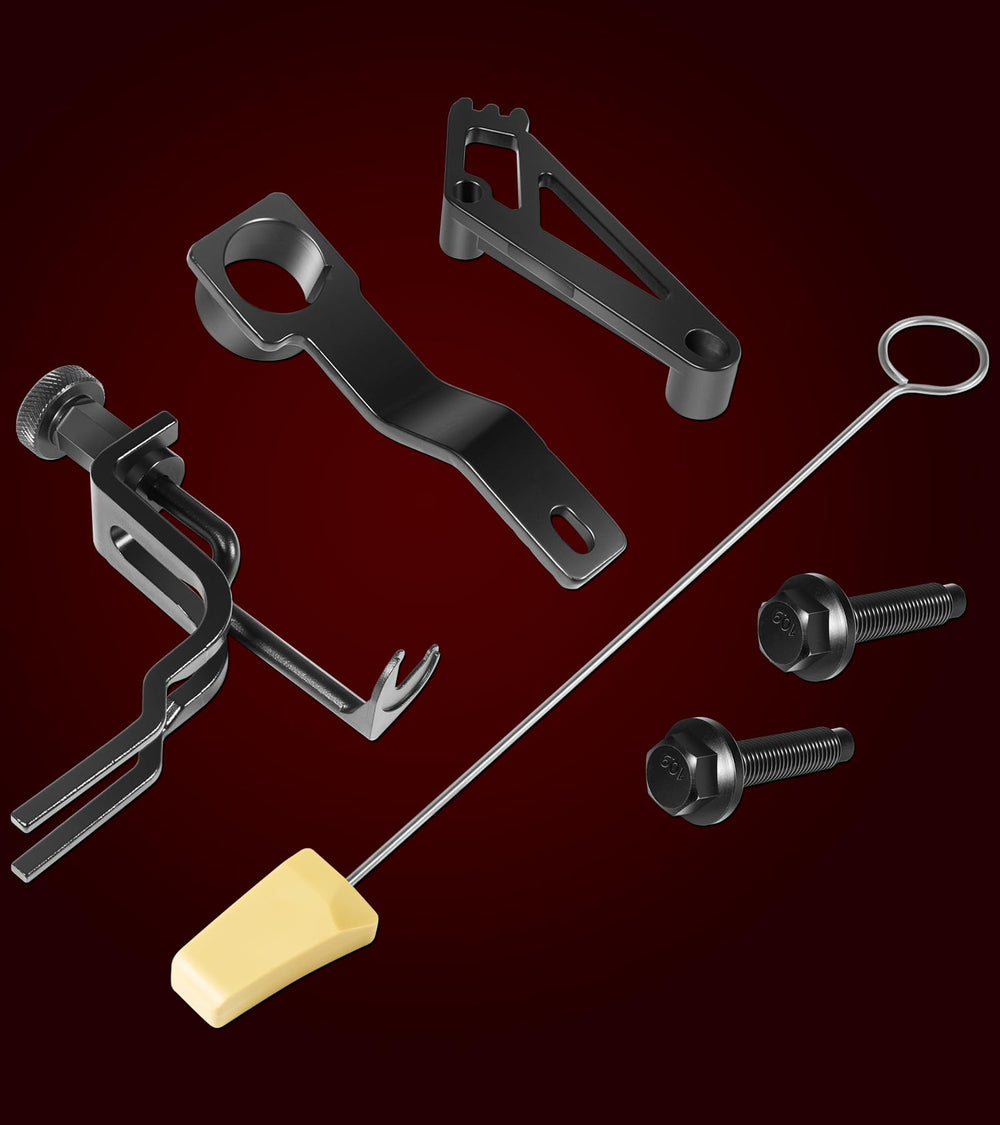

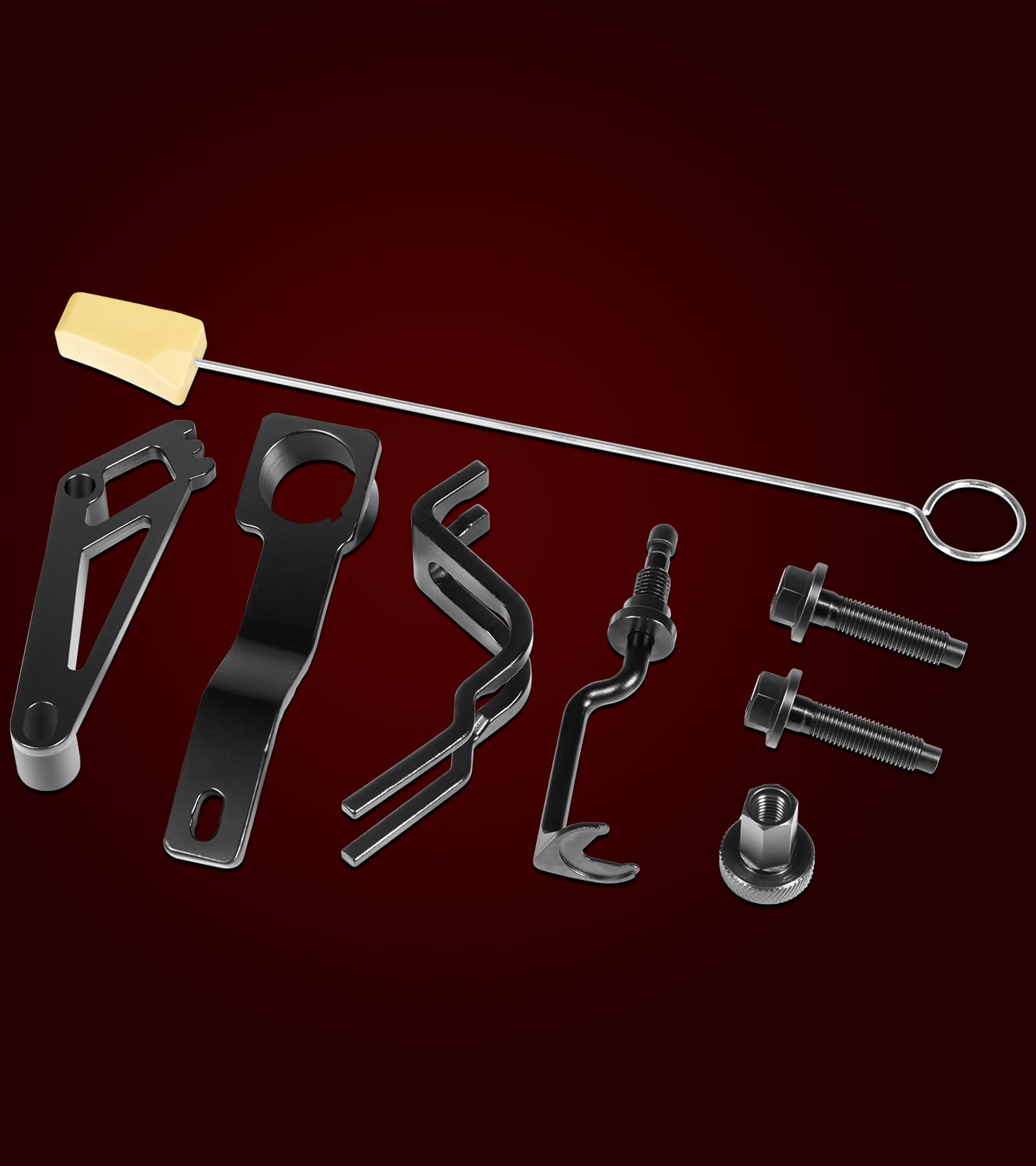

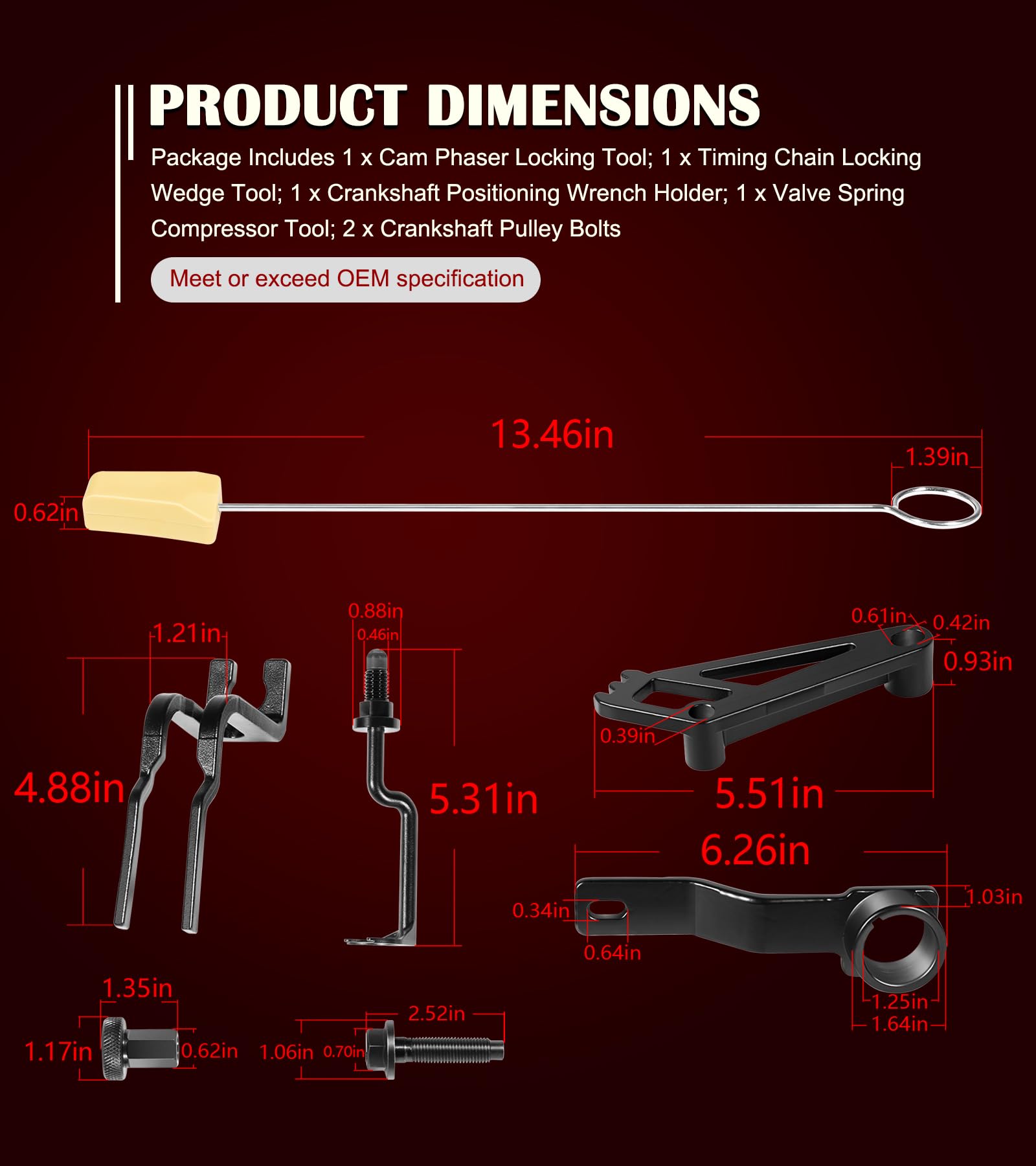

What tools are included and what specific jobs do they perform?

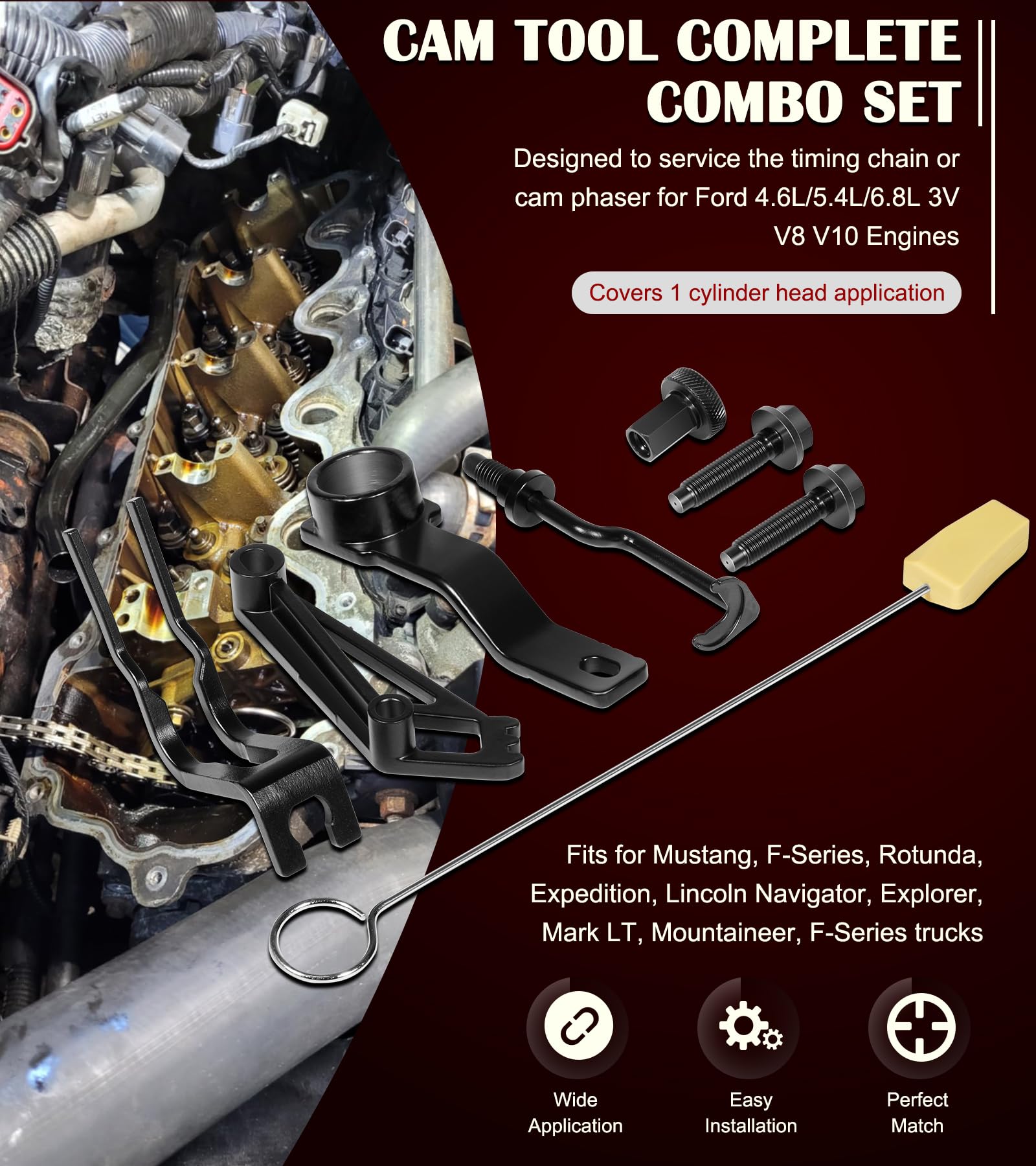

This package contains six service items that are typically required together when replacing cam phasers, timing chains or valve components. Each tool addresses a distinct step in the procedure to streamline workflow and protect engine parts.

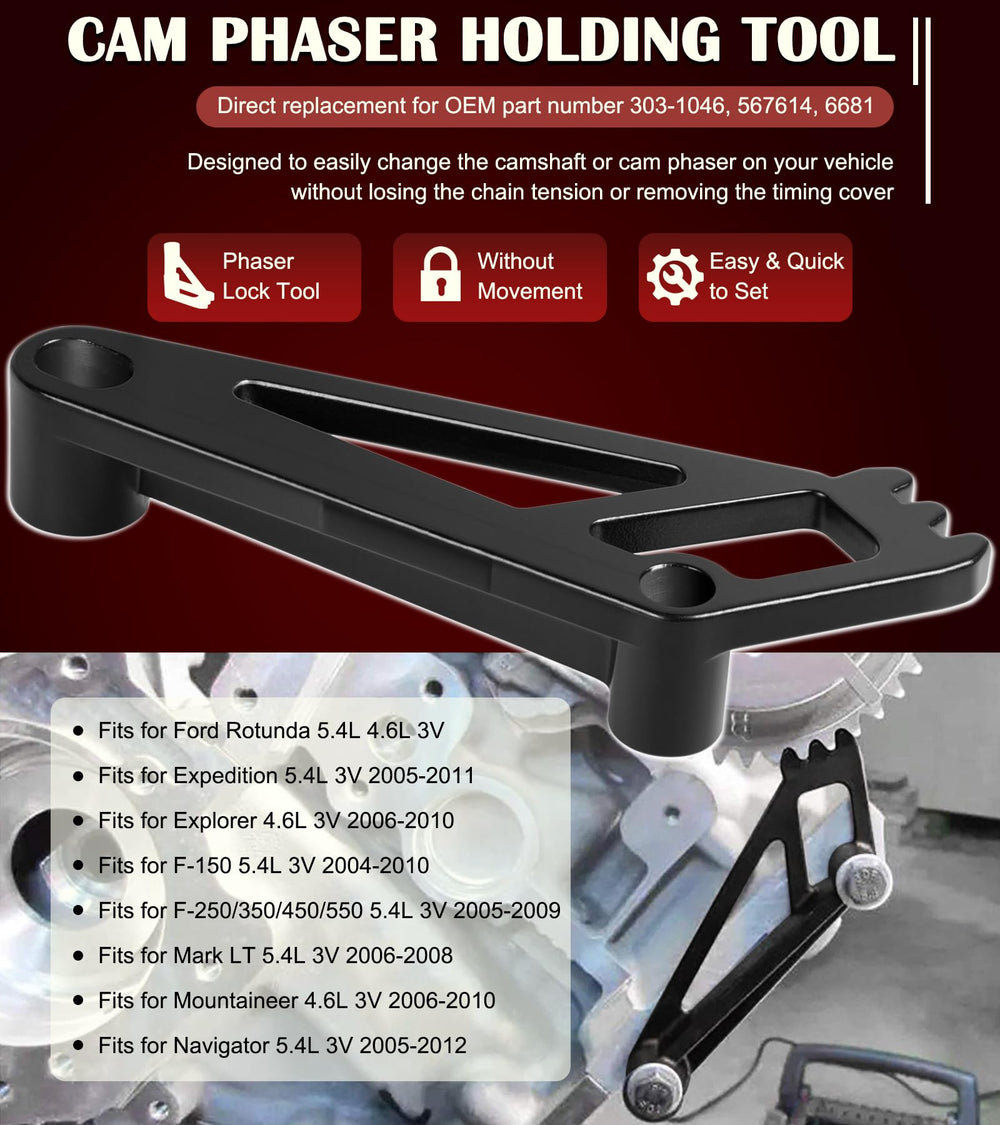

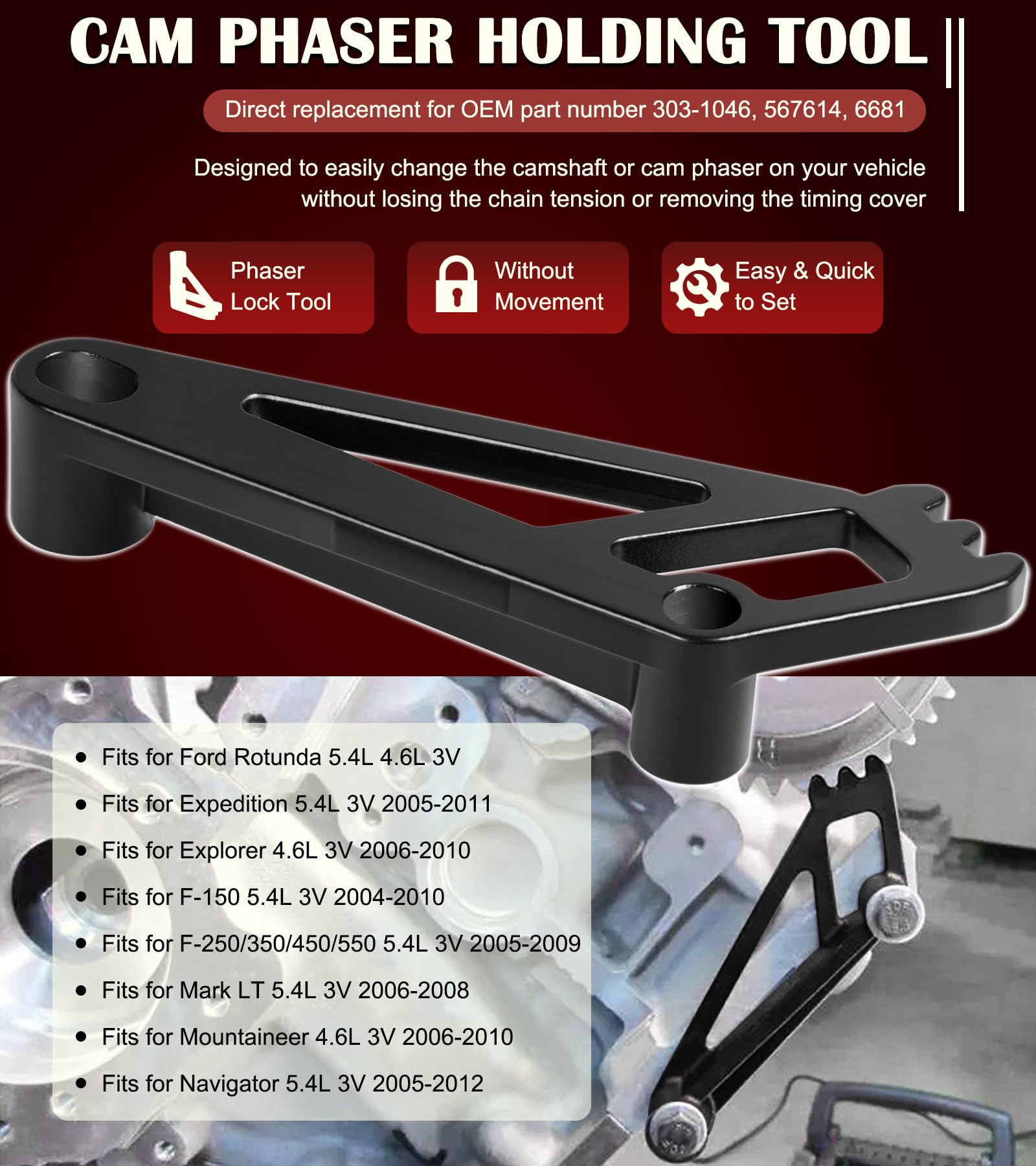

• Cam phaser holding tool — locks camshaft/phaser to retain timing alignment.

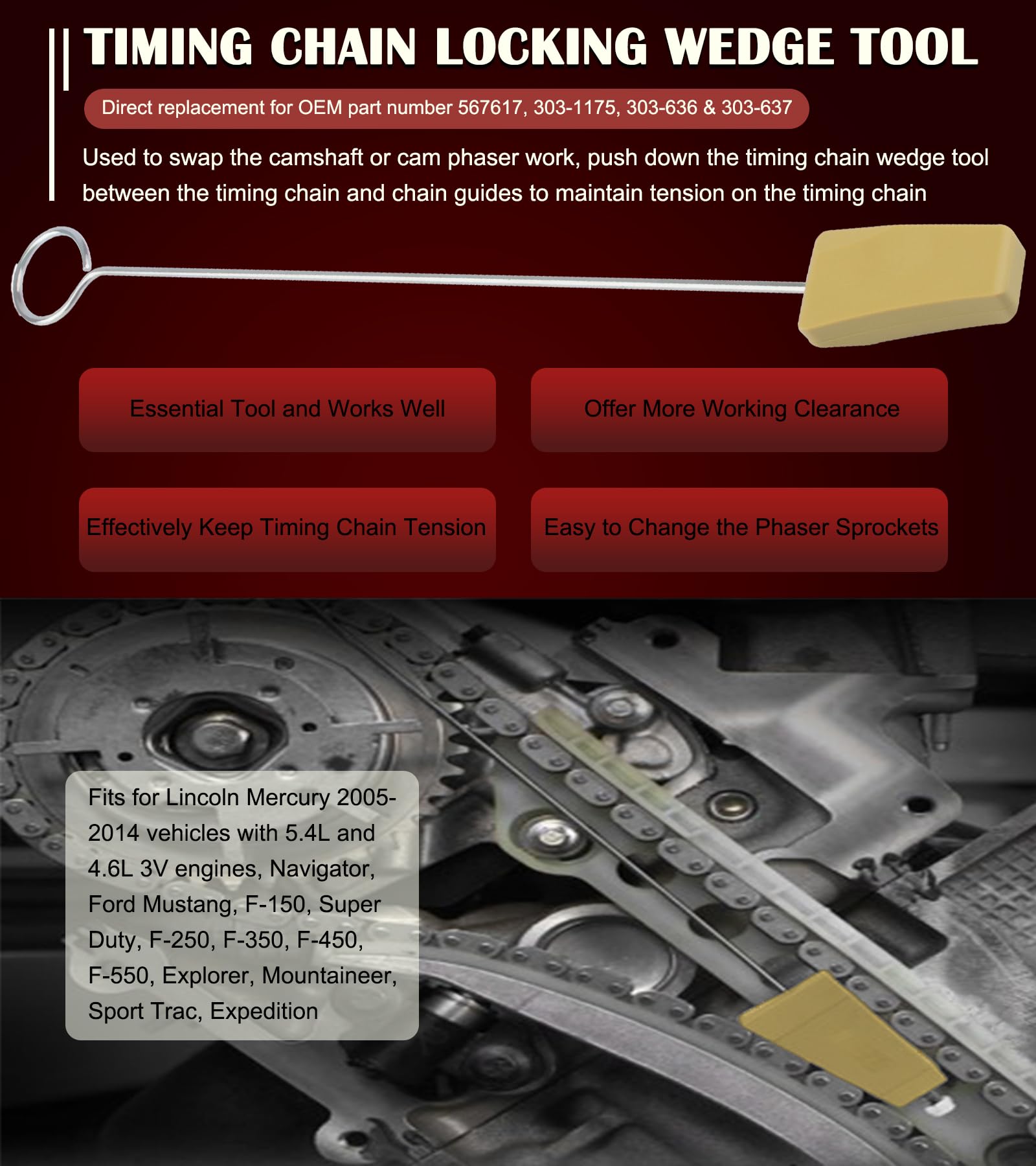

• Timing chain locking wedge — holds chain tension between guides during service.

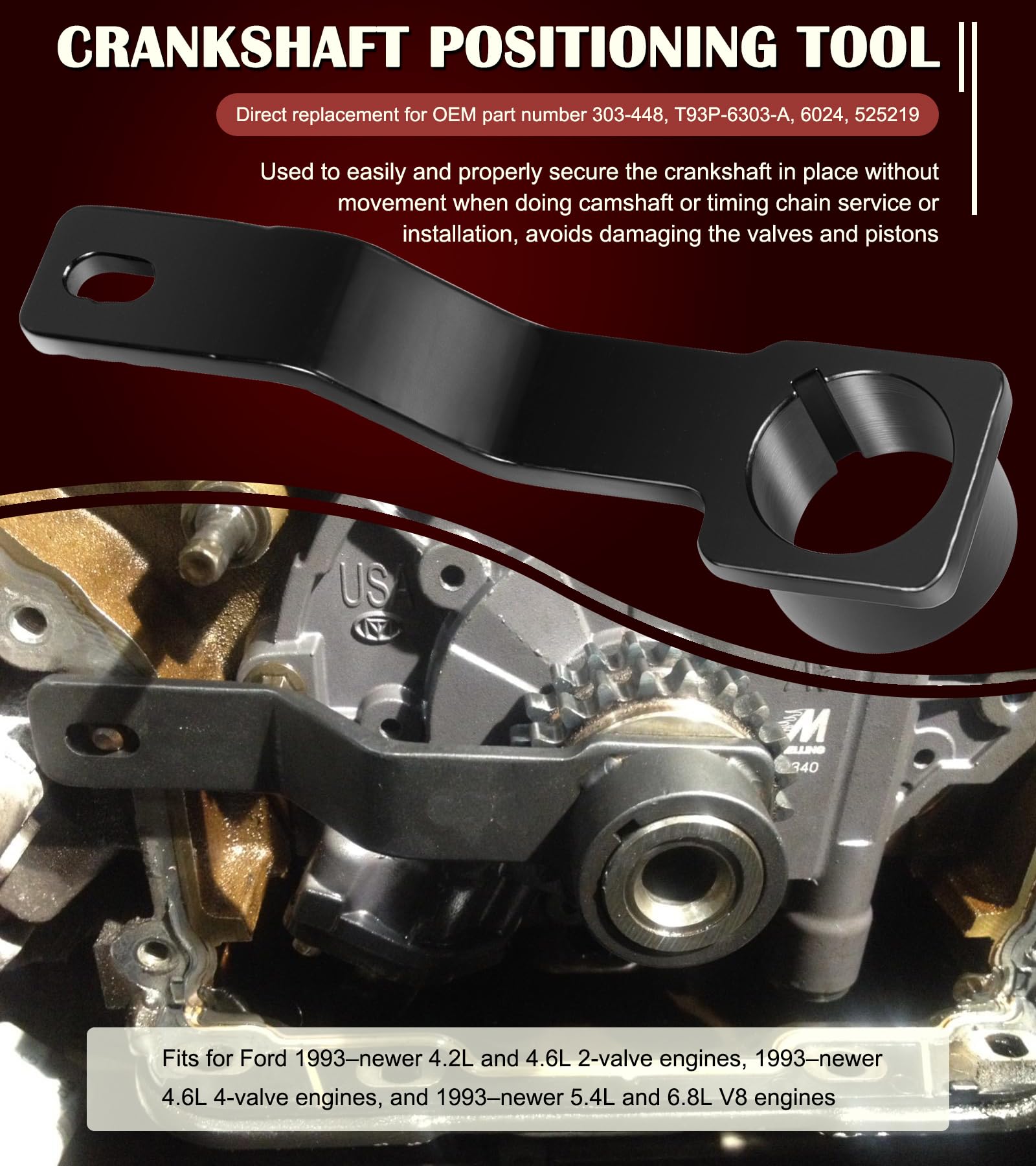

• Crankshaft positioning tool — secures crank at top dead center for accurate timing.

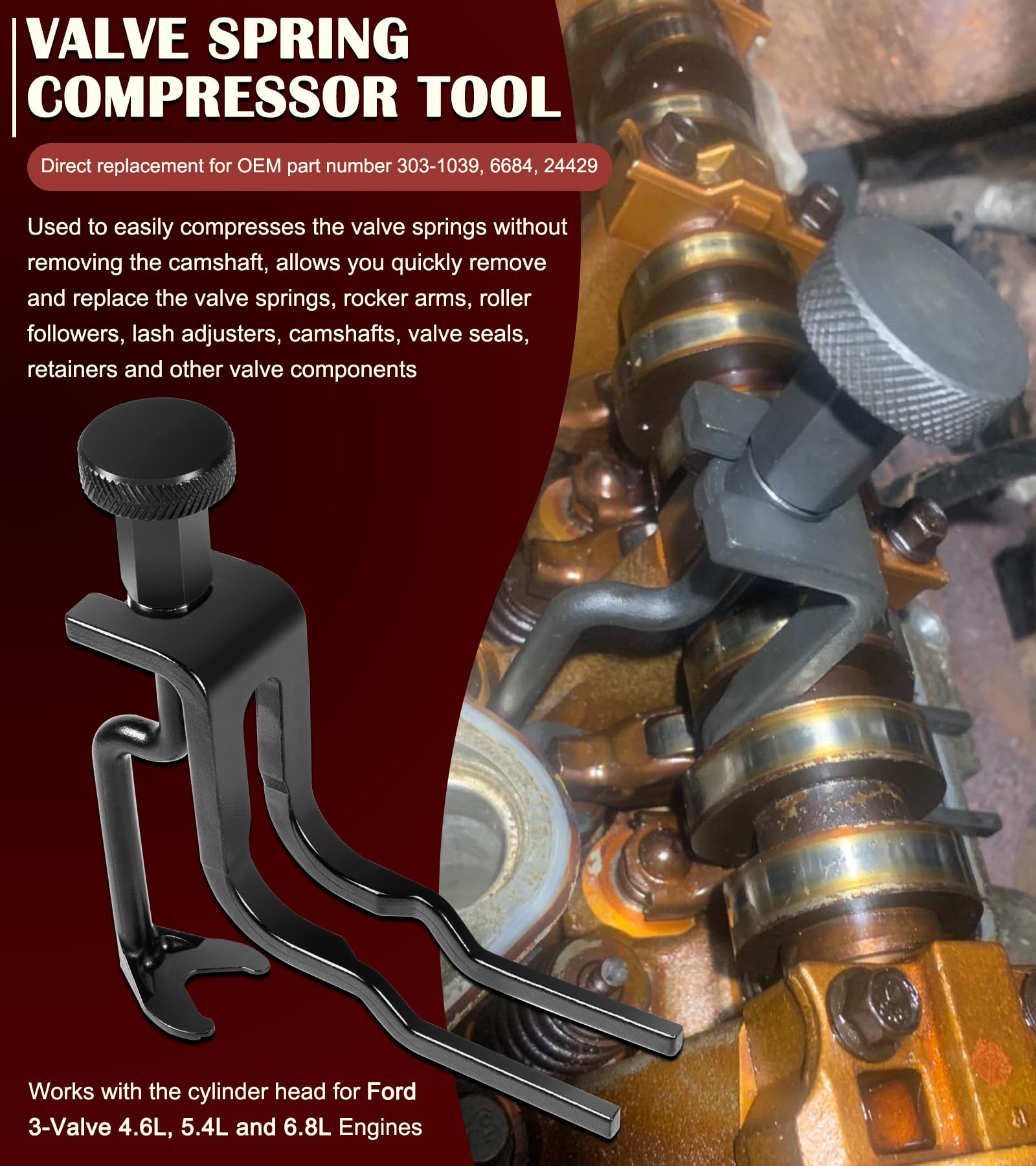

• Valve spring compressor — compresses springs without removing the camshaft.

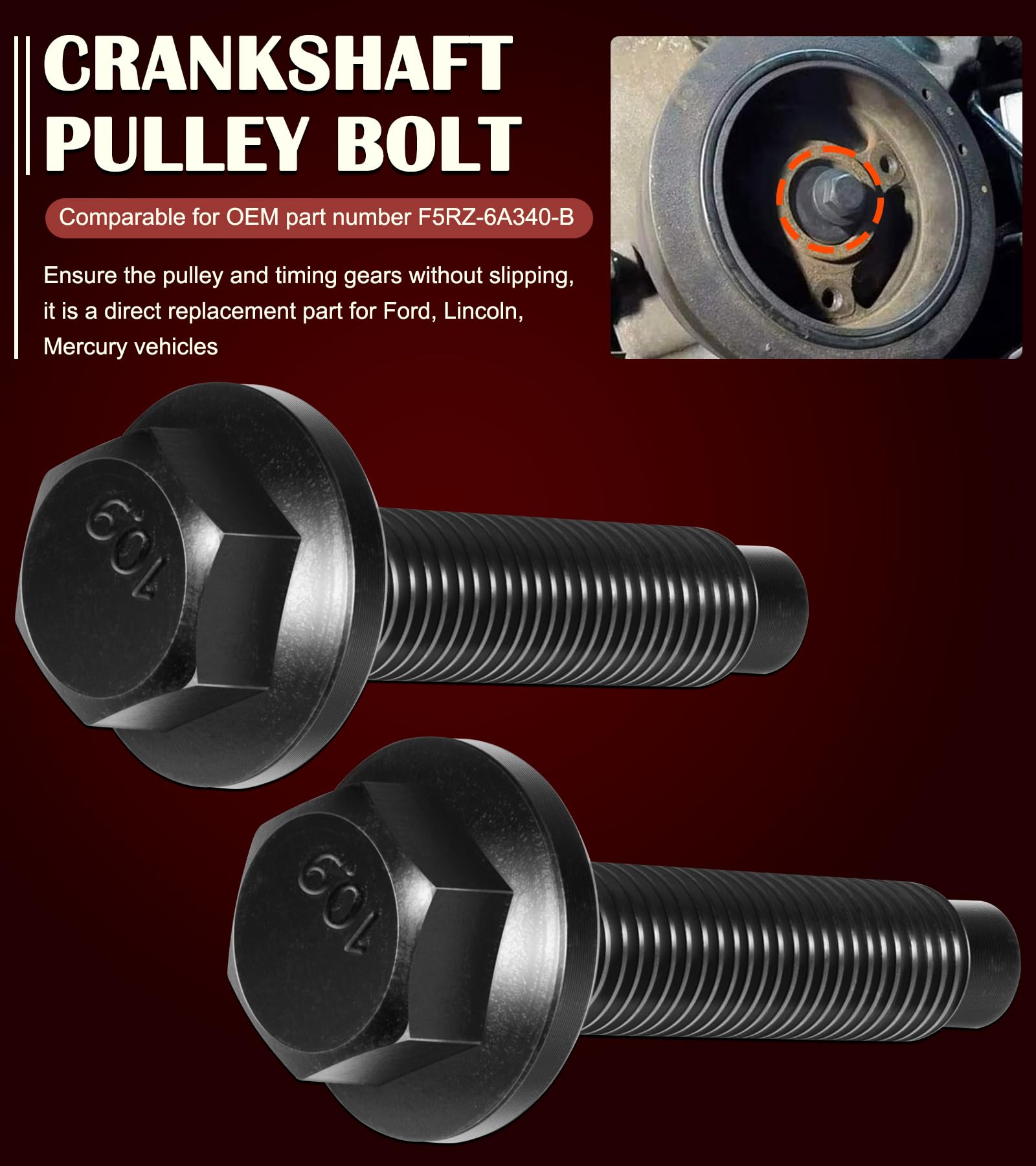

• Crankshaft pulley bolts (2pcs) — OEM‑style bolts to secure the pulley and gears.
• Complete kit labeled for single cylinder head use during timing or valve work.

How does this kit help a mechanic or DIYer reduce repair risks?

By replacing makeshift solutions with purpose-built tools, the kit reduces the chance of misalignment or dropped parts and minimizes the risk of internal engine damage. Clear engagement points and OEM‑equivalent fit mean faster, more repeatable servicing with less guesswork.

• Direct‑fit parts reduce setup time and remove the need to fabricate holding tools.
• Properly holds components to prevent valve or piston contact during work.
• Two pulley bolts match OE form and function to avoid slippage while torquing.
• Valve compressor lets you service seals, springs and retainers safely.

Who is this for: The Bonbo Timing Belt Tools Set is aimed at professional mechanics, independent repair shops and experienced DIYers who service Ford 4.6L, 5.4L and 6.8L 3‑valve engines. If you perform cam phaser swaps, timing chain replacements, valve spring work or any procedure that requires precise engine locking and alignment, this kit supplies the essential, OEM‑style holding and positioning tools to complete the job with greater confidence and control.
