BORRITT Automatic Shut-Off Fuel Nozzle 3/4" NPT Black — 13/16" Spout, 16 GPM Cast-Aluminum

The BORRITT 3/4" NPT Automatic Shut-Off Fuel Nozzle is a heavy-duty, cast-aluminum refueling nozzle with a 13/16" spout and an automatic shut-off sensor for safe, controlled dispensing of diesel, gasoline, kerosene and biodiesel.

Designed for commercial and industrial refueling, this nozzle combines a durable aluminum body with thermoplastic controls and an integrated sensor that stops flow when the tank reaches the spout level. With a 3/4" NPT inlet, 13/16" outlet, up to 16 GPM flow capacity, and a hold-open clip option, it suits gas stations, transport fleets, and equipment fueling where reliable automatic shut-off and robust construction are required.

How does the automatic shut-off work and why does it matter?

The nozzle uses a sensor built into the discharge spout outlet that senses back-pressure when the tank level rises to the outlet. That triggers the internal mechanism to shut off flow, minimizing overfills and spills without needing manual intervention. It’s a mechanical, passive system that operates during normal pressurized fueling.

• Sensor located at the spout tip for accurate level detection
• Automatic cut-off reduces fuel waste and cleanup time
• Works with pressurized pumping systems (not for gravity tanks)

What are the nozzle’s main specifications and performance limits?

This BORRITT nozzle has a cast-aluminum body, thermoplastic trigger and guard, and a 7" (180mm) straight spout with a 13/16" outlet OD. It fits a 3/4" NPT or 19mm inlet and delivers a maximum flow of about 16 GPM, with recommended working pressures in the 15–50 PSI range.

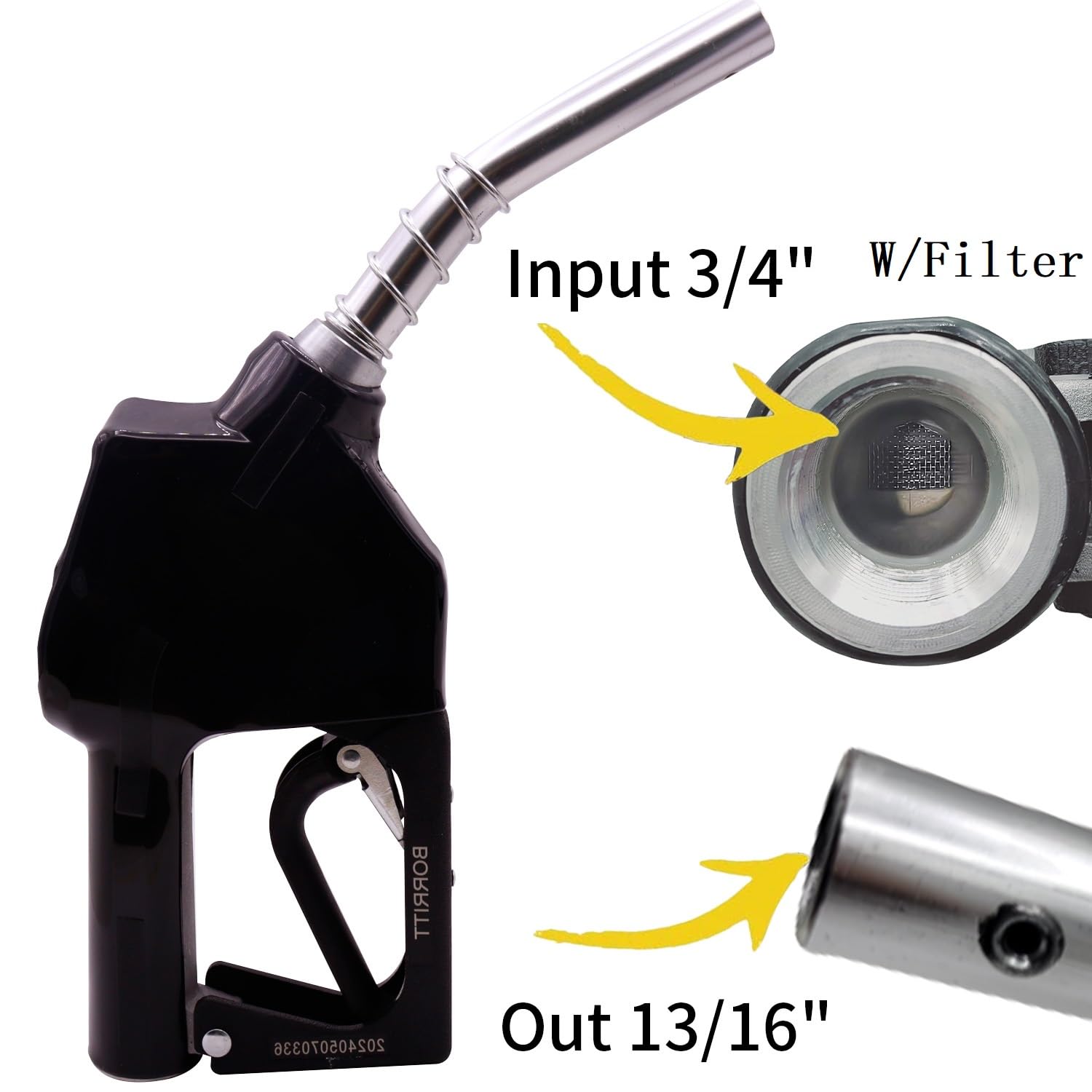

• Inlet: 3/4" NPT (19mm) — Outlet: 13/16" OD spout
• Spout length: 7" (180mm); Max flow rate: 16 GPM
• Working pressure range: 15–50 PSI; max rated pressure 32 PSI

Can this nozzle handle different fuels and jobsite conditions?

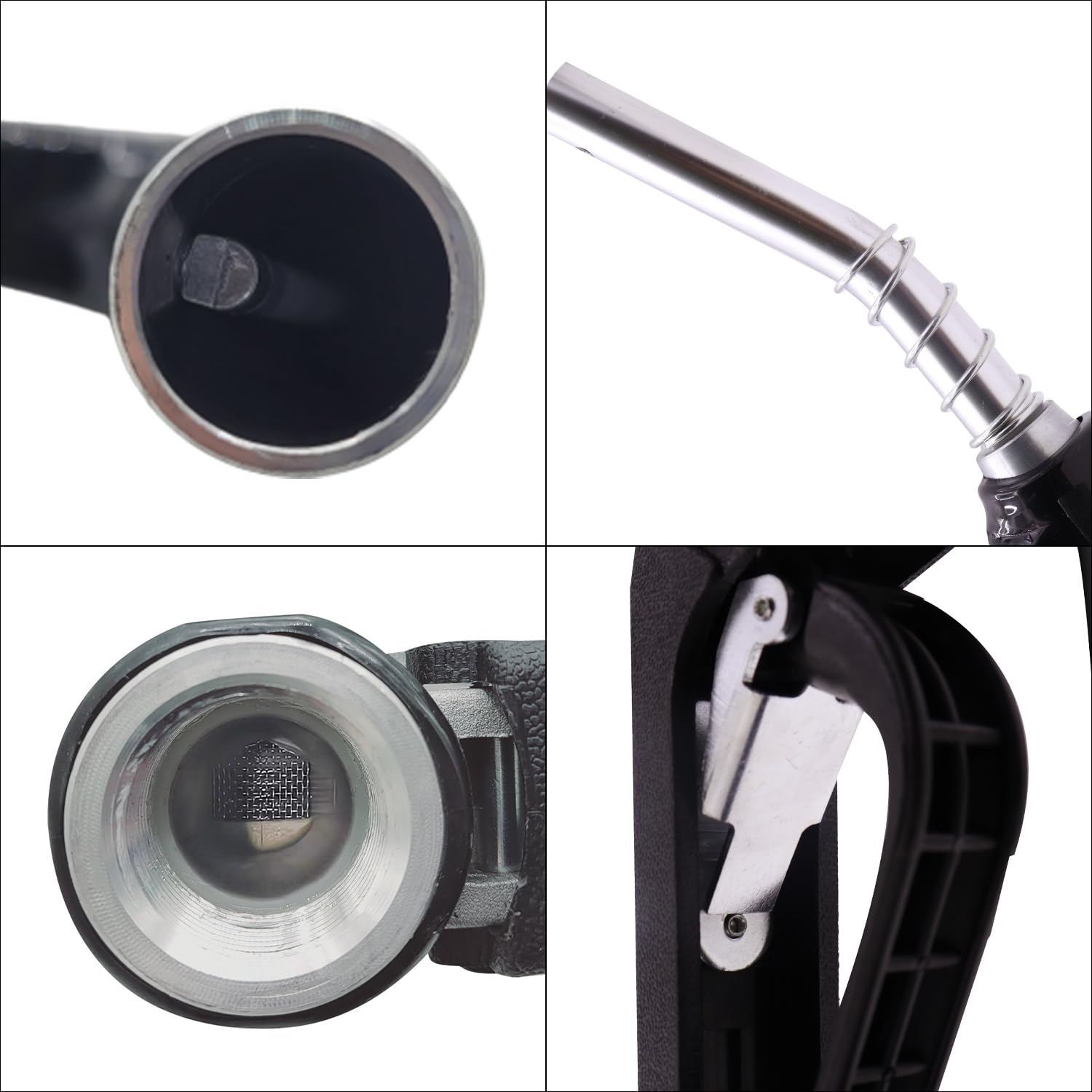

The BORRITT nozzle is suitable for diesel, gasoline, kerosene, and biodiesel blends commonly used in industrial and transportation settings. The materials—heavy-duty cast aluminum for the body and chemical-resistant thermoplastic for the trigger and guard—are chosen for durability and compatibility with standard petroleum fuels.

• Compatible with kerosene, diesel, gasoline and biodiesel
• Durable construction for frequent commercial use
• Not suitable for gravity-fed tanks; requires pressurized fueling

How is the nozzle operated and maintained on-site?

Operation is straightforward: connect the 3/4" NPT inlet to your hose or pump, squeeze the thermoplastic trigger to start flow, and use the 3-notch hold-open clip when continuous dispensing is needed. Routine visual checks, cleaning the spout tip, and confirming the shut-off sensor are free of debris will keep performance reliable.

• Trigger with optional 3-notch hold-open clip for continuous flow
• Full grip guard for safe handling and lever protection
• Periodic inspection of spout sensor and fittings recommended

Who is this for: The BORRITT automatic shut-off fuel nozzle is built for service station operators, fleet maintenance teams, construction and agricultural equipment owners, and industrial facilities that need a dependable, high-capacity nozzle for routine fueling. Choose this model when you require an automatic shut-off for spill control, a robust aluminum body for long service life, and compatibility with a range of petroleum fuels. Note: it is intended for pressurized dispensing systems and not for gravity-feed tanks.
