Bxmgr RV Fridge Control Board 3316348.900 — 3-top/7-bottom Pin Replacement for Dometic DM2652 RM2652, Restores Propane Ignition &

This Bxmgr 3316348.900 control board is a drop-in lower power module designed for a wide range of Dometic DM and RM series refrigerators. It handles the propane ignition circuit and supplies AC and DC power to the fridge components. Before ordering, check the pin layout on your existing board: this version has three pins on the top and seven pins on the bottom. Older boards with eight or ten bottom pins or legacy microboards (part numbers beginning with "293" or long-legacy designs) may not be compatible.

How do I confirm this board fits my refrigerator?

Compatibility depends on the connector layout and model family. Inspect the old board and count the pin interfaces, and compare the fridge model numbers to the supported list included below.

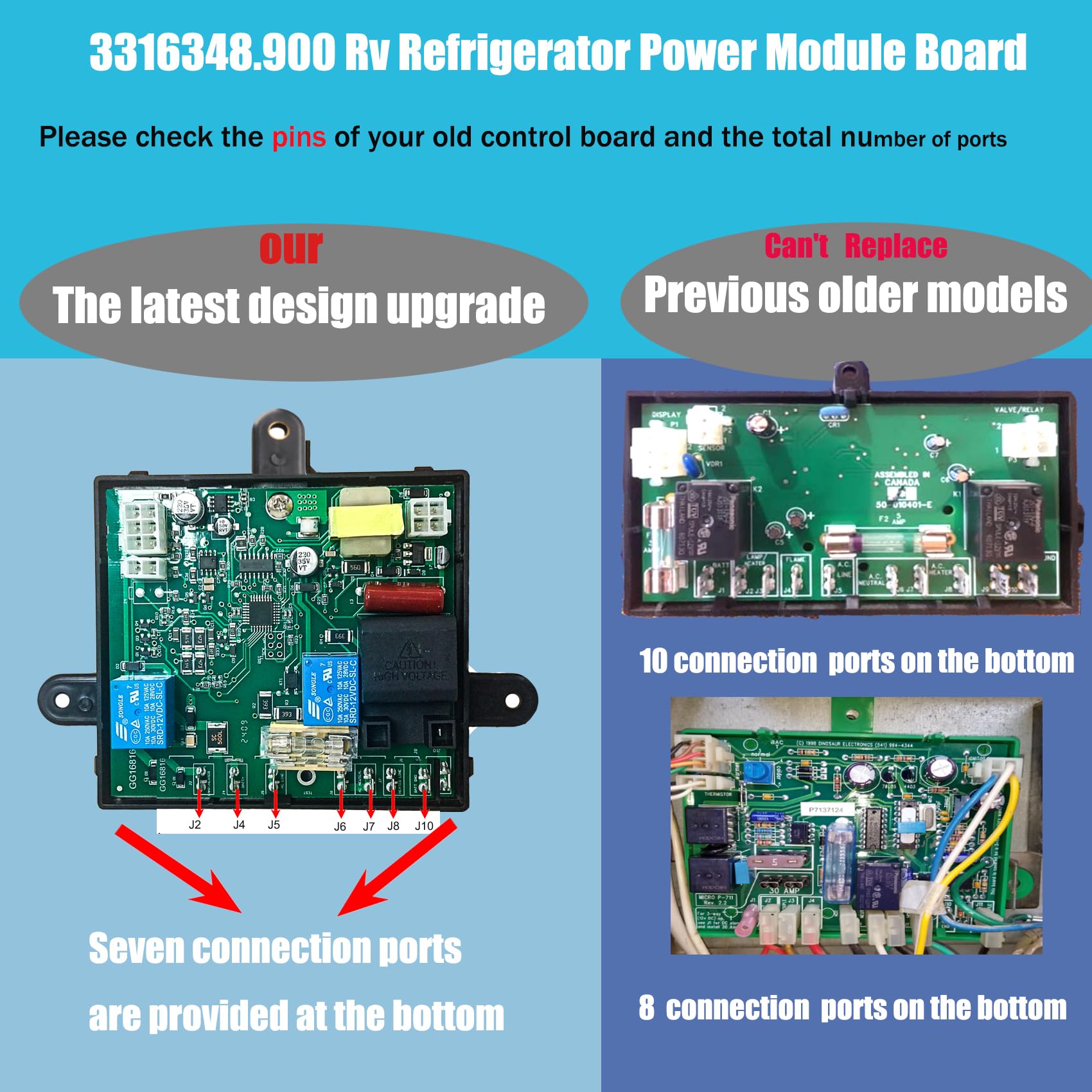

• Top row: 3 pins; bottom row: 7 pins — confirm visually against your board.

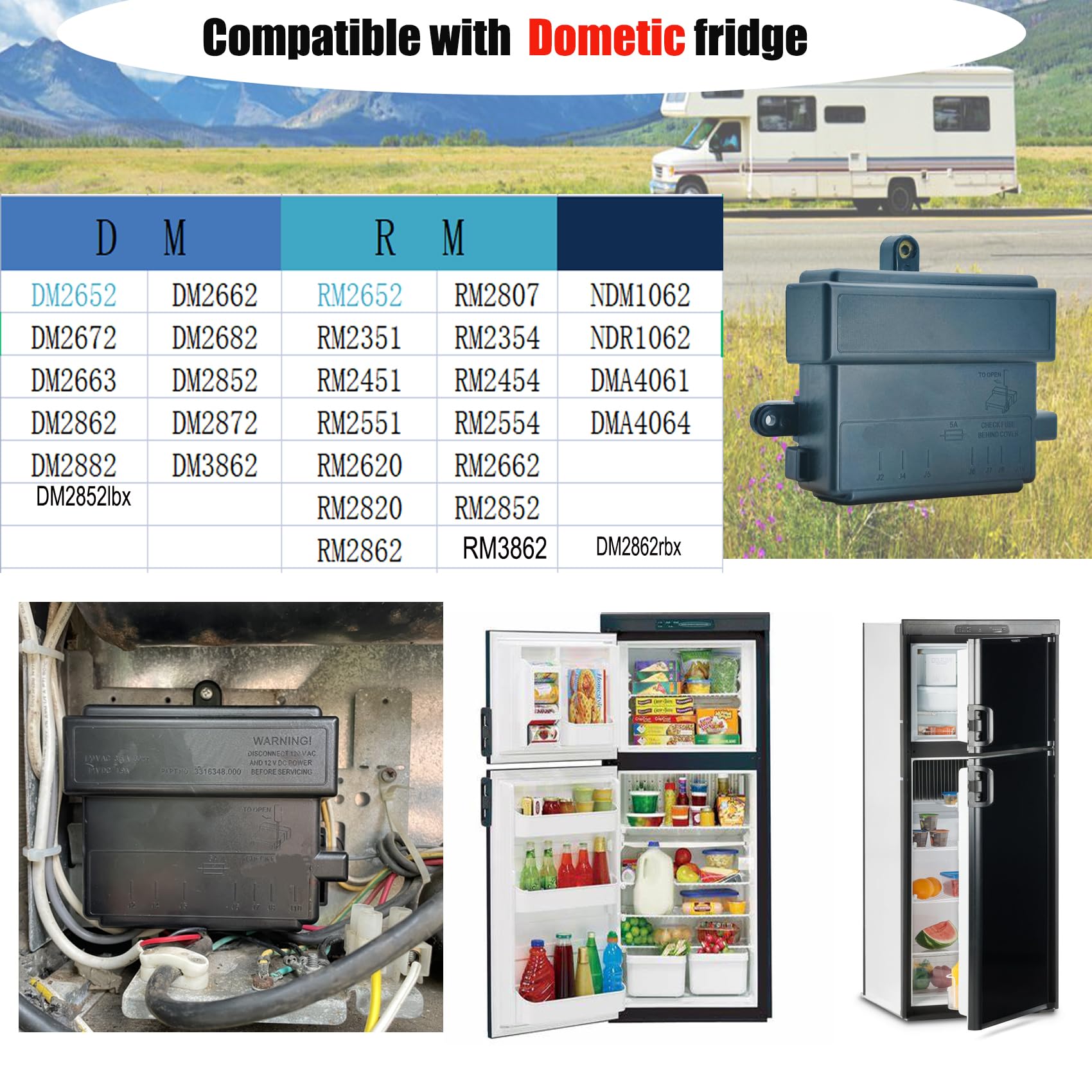

• Supported Dometic models include DM2652, RM2652, DM2662, DM2672 and many RM/NDM/NDR variants.
• Do not install if your board uses 8 or 10 bottom ports or a Micro p-711 style board starting with "293".

What electrical and connector details should I check before installation?

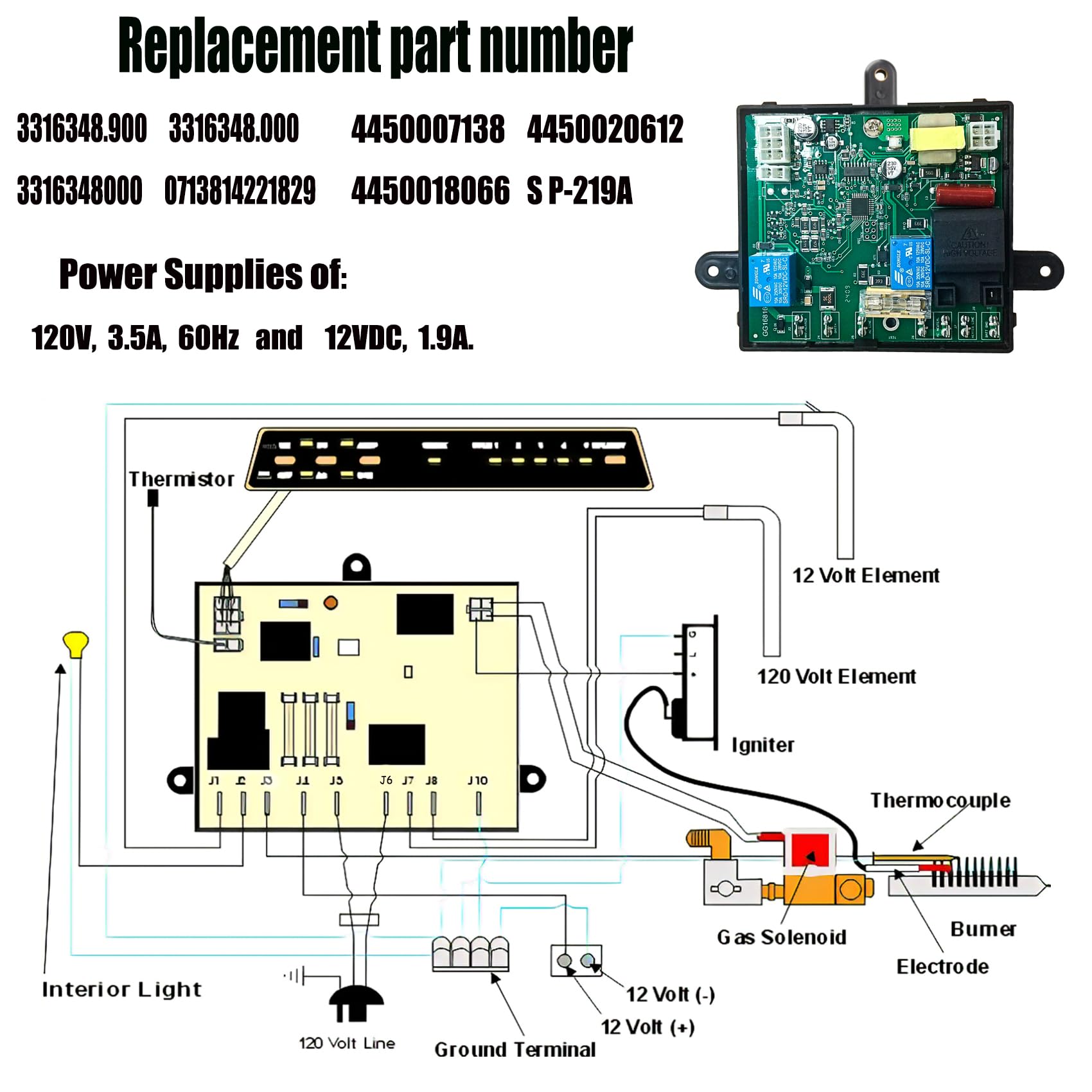

The 3316348.900 board supplies both AC and 12V DC rails for refrigerator functions and includes labeled terminals for fuse, thermistor, gas valve and lighting. Confirm the voltage ratings and that terminal assignments match your fridge wiring.

• Power ratings: 120V AC, 3.5A, 60Hz and 12V DC, 1.9A.

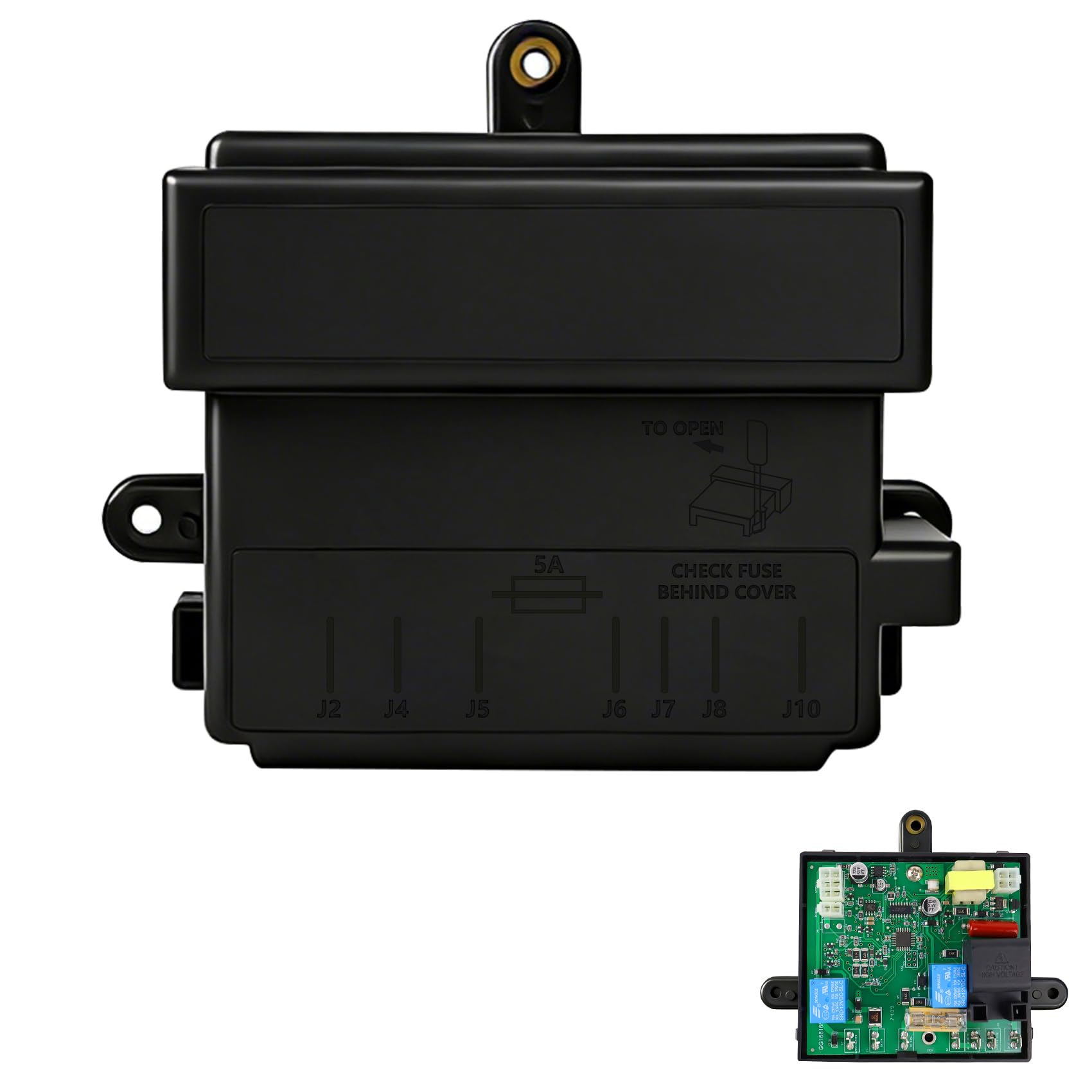

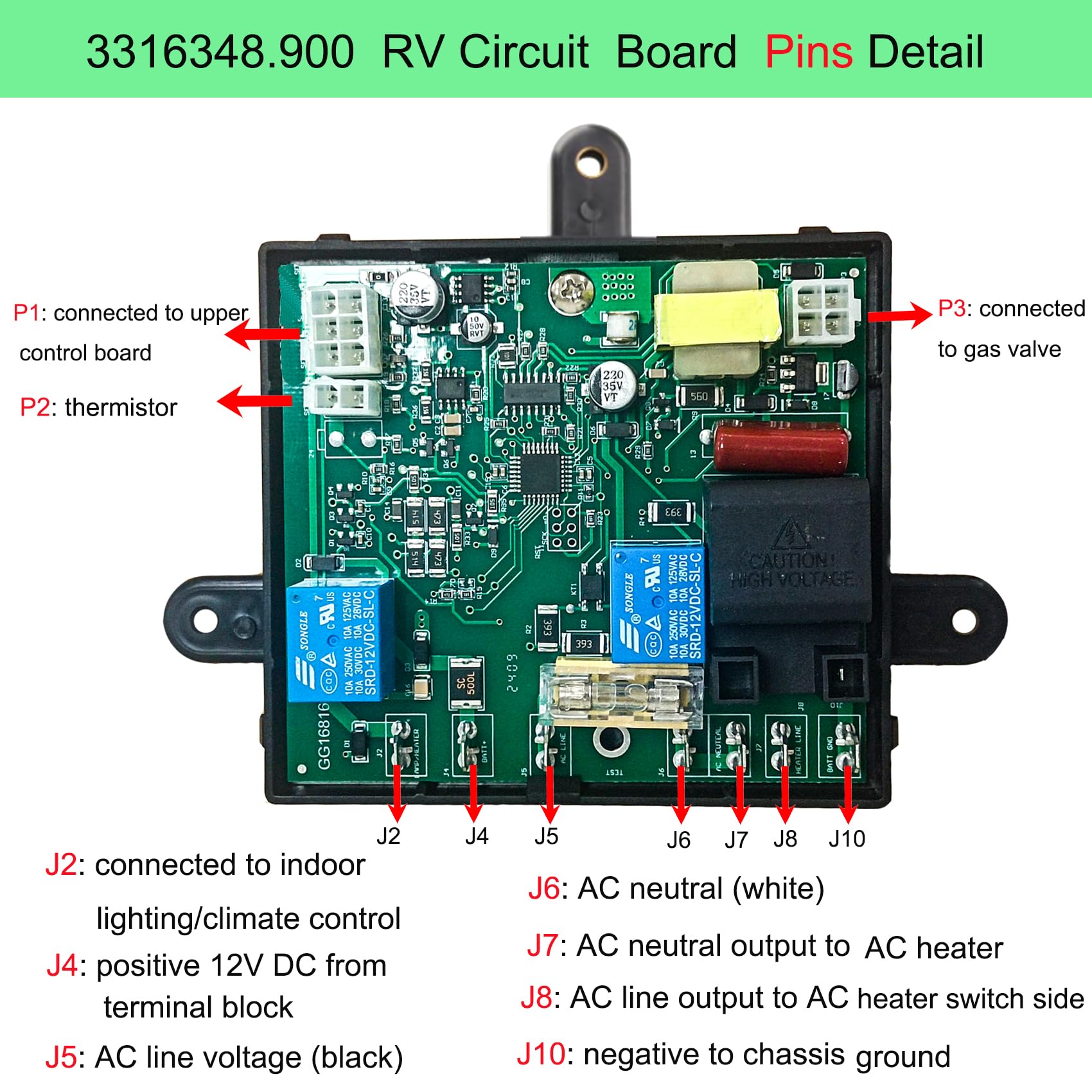

• Terminal roles: P1 (upper control board), P2 (thermistor), P3 (gas valve), J4/J5/J6/J7/J8/J10 as described on the label.
• Avoid replacing if your board layout or terminal count differs from this listing.

What problems can this replacement board address?

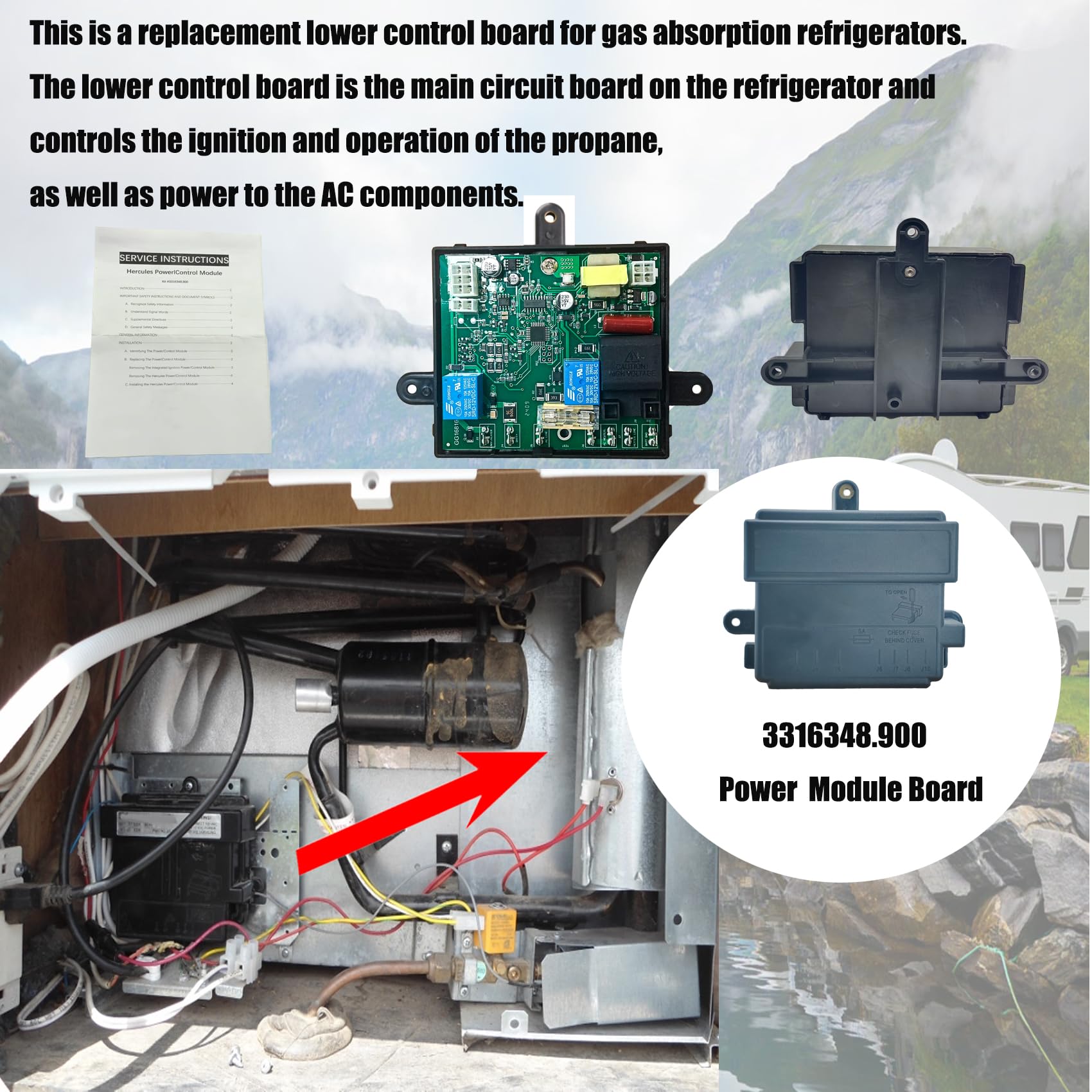

Installing the replacement lower control board can restore propane ignition, reestablish AC power to the fridge circuits, and fix lighting or heater outputs that stopped working due to a failed lower module. It is intended as a component-level swap for compatible units.

• Restores propane ignition sequence for gas operation (where applicable).
• Re-establishes AC and 12V power distribution to lights, heater outputs and control interfaces.
• Replaces failed lower control board part numbers like 3316348900, 3316348.000 and others listed by manufacturers.

What warranty and support does Bxmgr provide?

Bxmgr backs this control board with an extended support window and a replacement-focused after-sales policy. Contact the seller for troubleshooting help or to arrange a return if the product does not match your fridge.

• 5 years warranty coverage as stated in the product title.
• Three years of after-sales support and 180-day no-reason returns policy.
• Customer service response typically within 24 hours to help with fitment or installation questions.

Who is this for: Technicians, RV owners and DIYers who need a compatible replacement lower control board for Dometic DM and RM series gas-absorption refrigerators, and who can confirm pin layout and terminal assignments before installation. If you have an older refrigerator with an 8- or 10-port lower board or a legacy microboard beginning with "293," this part will likely not fit — verify your current board carefully to avoid returns.
