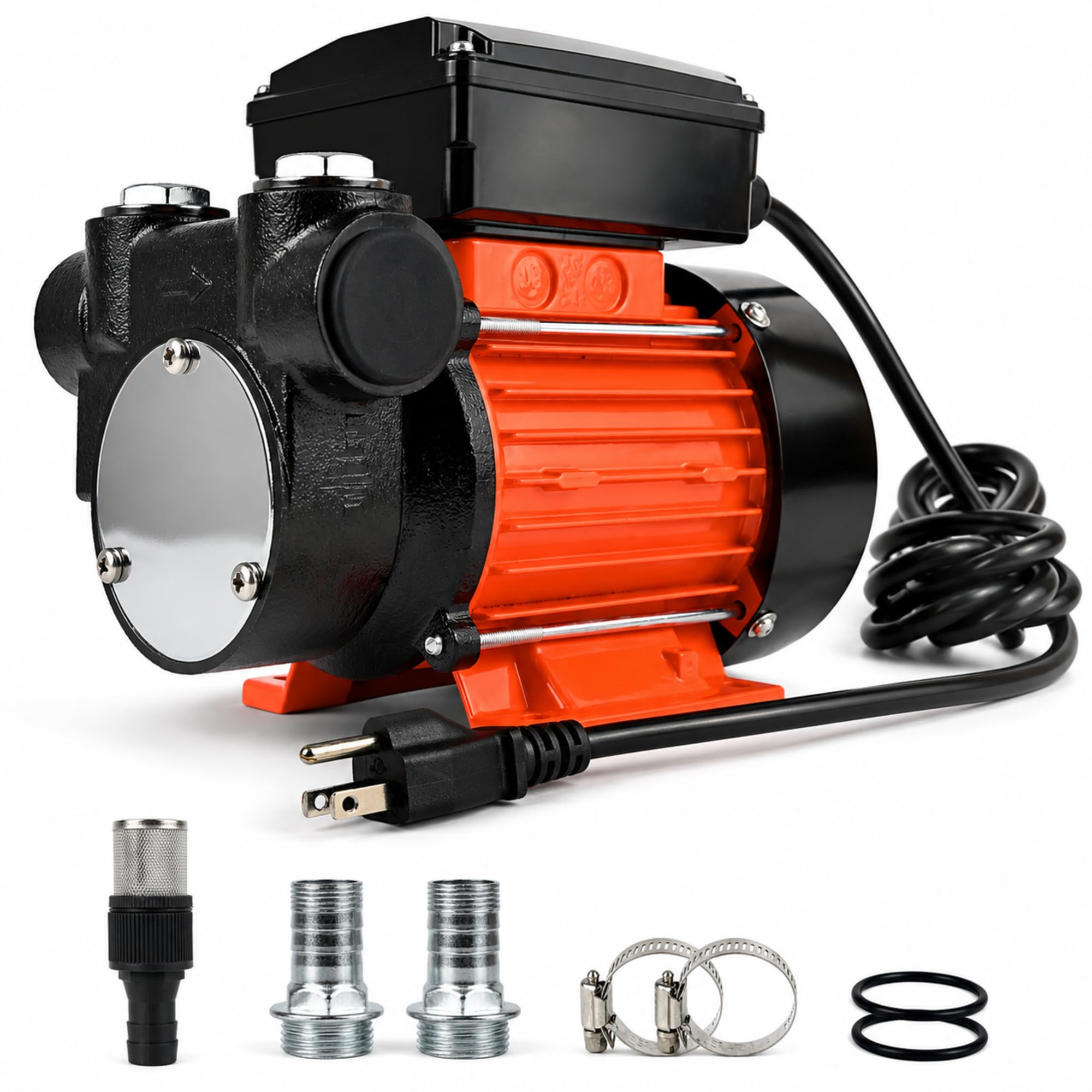

Calenon Fuel Transfer Pump 110V 1/2 HP, 18 GPM — Cast-Iron Head & Self-Priming

The CALENON 110V Oil Transfer Pump is a plug-in, self-priming electric fuel pump that delivers up to 18 GPM for diesel, kerosene, biodiesel, and light fuel oils.

This compact, workshop-ready pump pairs a 1/2 HP copper-wound motor with a cast-iron pump head to move fuel from drums, tanks, and barrels to tractors, trucks, and equipment. It fits fixed or semi-fixed installations where 110V power is available, and ships with basic fittings and a strainer so you can hook up standard 3/4" hose setups quickly. The design emphasizes routine fuel transfer tasks—easy placement, stable mounting, and user-supplied hoses and nozzles for application flexibility.

How quickly will this pump move diesel and other approved fuels?

The pump is rated for up to 18 gallons per minute under suitable conditions, driven by a 1/2 HP motor. Actual flow depends on hose length, lift height, fluid viscosity, and system restrictions. It performs best with 3/4" NPT-compatible fittings and when installed with minimal suction lift.

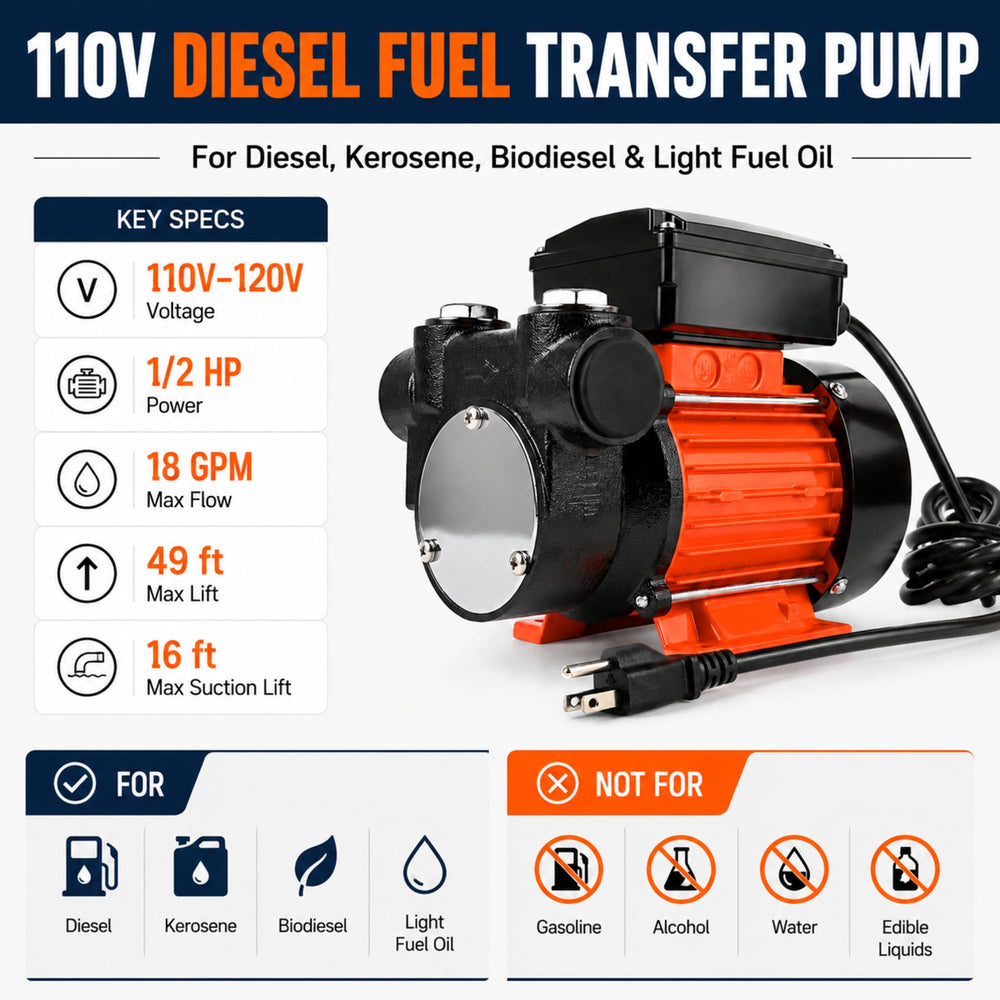

• Maximum nominal flow: 18 GPM with proper setup
• Motor: 1/2 HP, 110V plug-in
• Included fittings: two hose barb adapters and two hose clamps
• Use for: diesel, kerosene, biodiesel, light fuel oil

Can I use this pump to lift fuel from drums, barrels, or tanks?

Yes — the unit is self-priming after correct hookup and supports significant lift for practical drum and tank transfers. It lists maximum lift ranges so you can plan placement and hose routing on jobsites, farms, or workshops. Follow electrical and installation guidelines for reliable priming and steady suction.

• Self-priming after proper connection
• Maximum lift: up to 49 ft in pressure lift scenarios
• Maximum suction lift: up to 16 ft when set up correctly
• Best practice: minimize hose length and avoid kinks for top performance

What materials and accessories are included, and what else will I need?

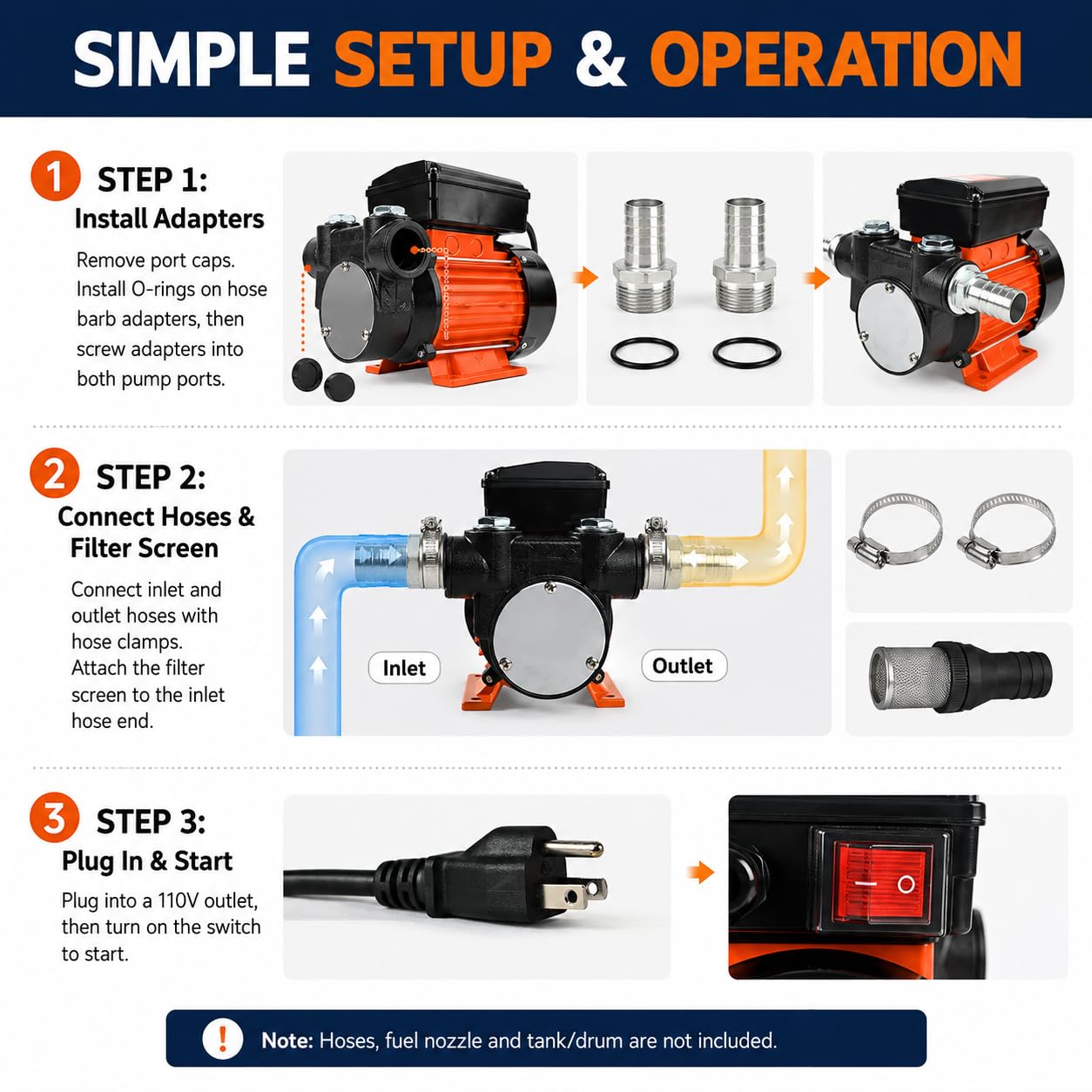

The pump’s wet end is cast iron and the motor is copper-wound for durability during regular fuel transfers. The package includes a filter screen, two hose barb adapters, two hose clamps, and two O-rings for standard 3/4" NPT hose connections. You will need to supply hoses, a fuel nozzle, a meter, and any automatic shutoff hardware you want to use.

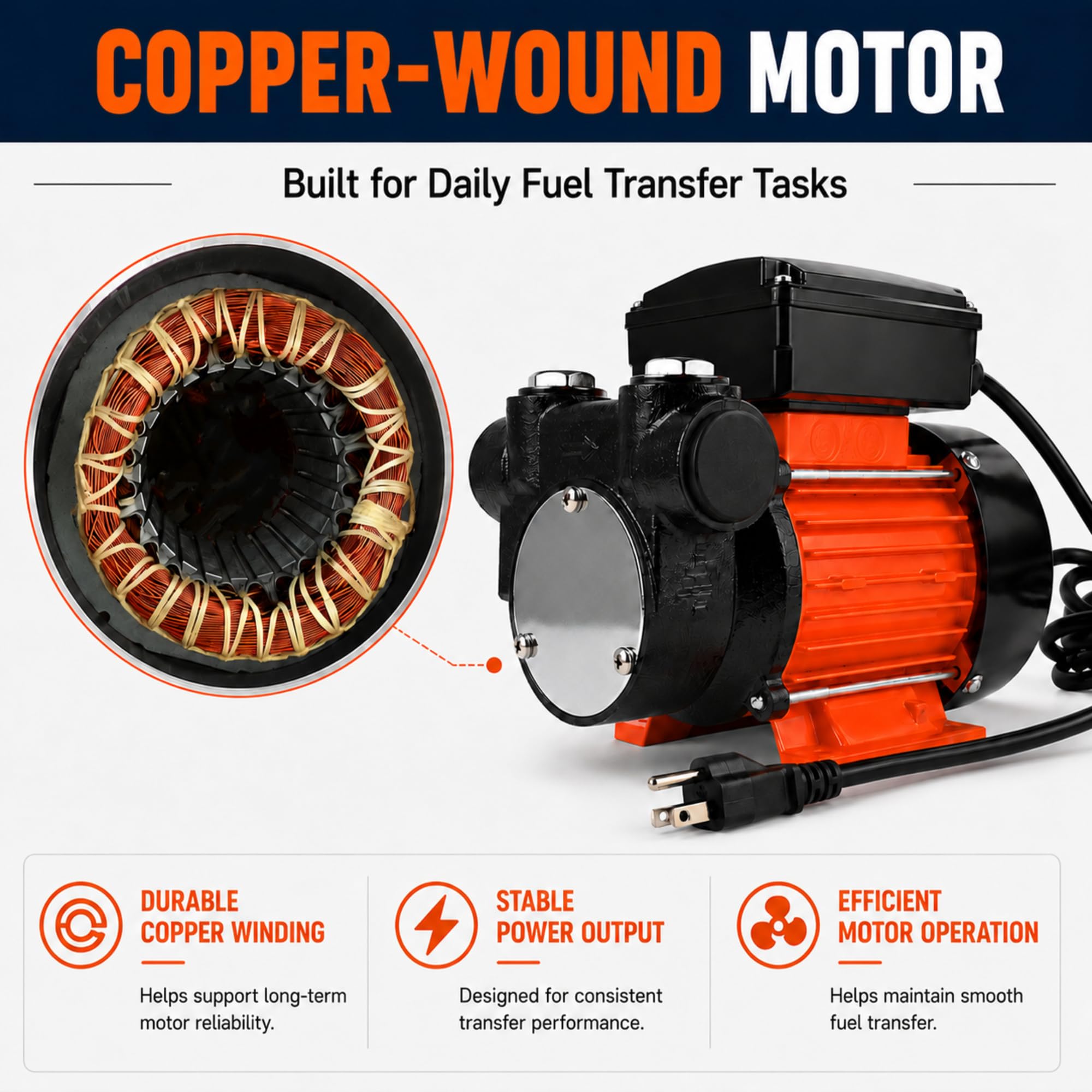

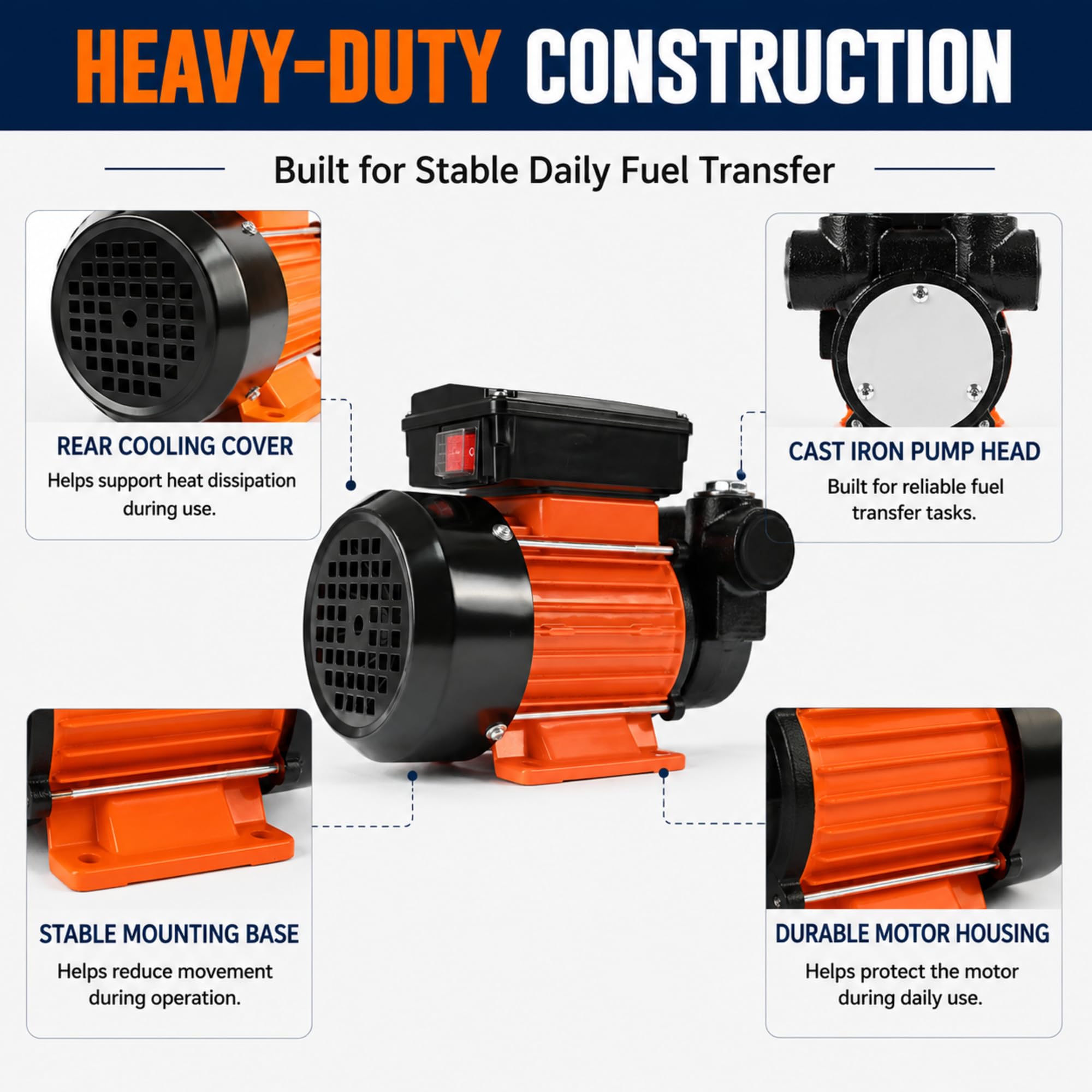

• Durable components: cast iron pump head and copper-wound motor

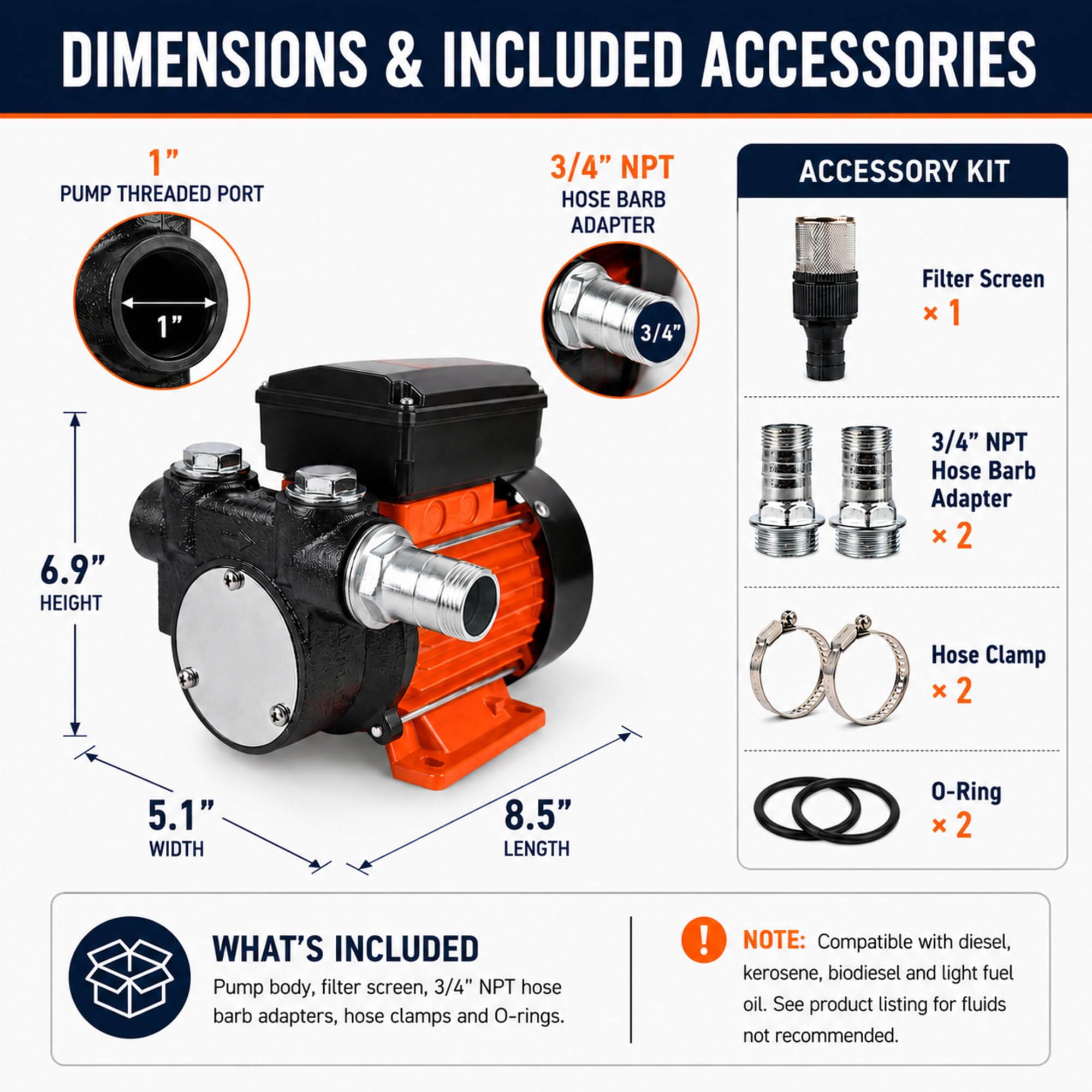

• Included items: filter screen, hose adapters, clamps, O-rings
• Not included: hoses, nozzles, flow meters, auto-shutoff devices
• Mounting: stable base for fixed or semi-fixed installations

Are there fuels or situations I should avoid with this pump?

This pump is designed for diesel, biodiesel, kerosene, and light fuel oils only. Do not use it with gasoline, alcohols, edible liquids, aviation fuels, or fluids containing significant water or solids. Never leave the pump running unattended and always disconnect power before maintenance or cleaning.

• Approved: diesel, biodiesel, kerosene, light fuel oil
• Not for: gasoline, alcohols, water-containing fluids, edible liquids, aviation fuel
• Safety: disconnect power before servicing
• Operational note: do not operate unattended

Who is this for: The CALENON 110V Oil Transfer Pump suits farmers, fleet managers, mechanics, construction crews, and small shops that need a dependable, plug-in pump for moving diesel and similar fuels. Choose this unit when you want a compact, durable pump that installs easily in fixed or semi-fixed locations and provides solid flow rates for routine refueling, tank-to-tank transfer, and equipment servicing.
