Caltric Starter Motor Replacement for Kawasaki 21163-7002/7014/7026 — Direct Bolt-In, 202.3mm Length

The Caltric starter is a high-quality direct-replacement starter motor designed to replace Kawasaki part numbers 21163-7002, 21163-7014, and 21163-7026 for lawn, garden and light industrial engines.

If your compact tractor, mower or small-engine equipment has a worn or failed starter, this Caltric unit offers a ready-to-install alternative engineered to match mounting points, size and electrical connections of common Kawasaki and John Deere OEM starters. The unit is engineered for compatibility across several engine brands (Kawasaki, Kohler, Kubota) and models listed below, and it’s sized to fit within the original starter envelope so swapping is straightforward for anyone comfortable with basic mechanical work.

Will this starter fit my Kawasaki or John Deere engine?

Compatibility covers many small engines from Kawasaki and John Deere as well as select Kohler and Kubota applications. Confirm fit by matching the part numbers and dimensions provided, and visually comparing the posted photo to your existing starter before ordering.

• Compatible Kawasaki part numbers: 21163-7026, 21163-7014, 21163-7002
• John Deere cross-references: SE501873, AM133636, AM127877, MIA11408

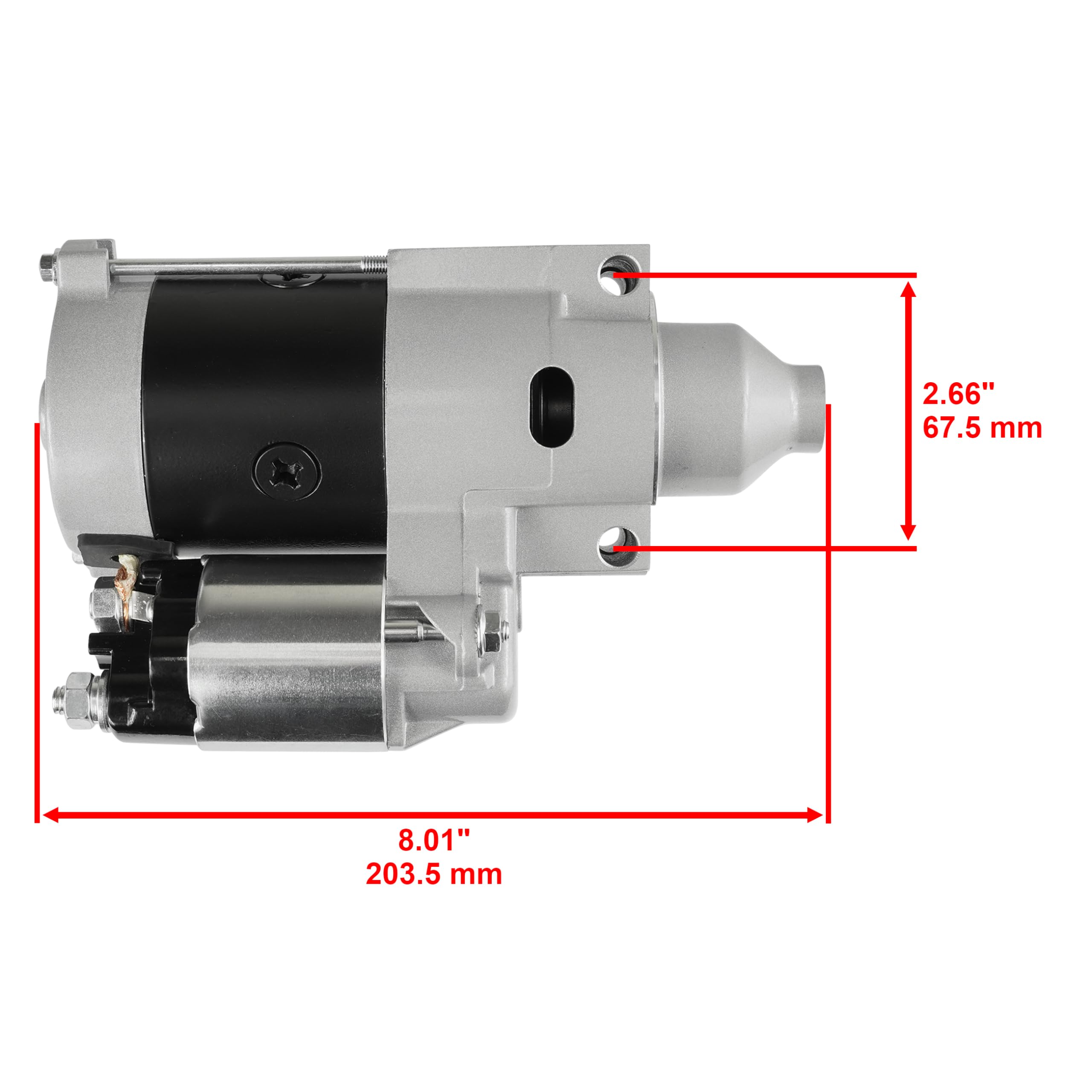

• Double-check mounting hole distance: 67.5 mm (2.66 in) and overall length 202.3 mm (8 in)

How easy is it to install the Caltric starter?

Installation is typically straightforward: remove the battery negative, unbolt the old starter, disconnect electrical terminals, then swap in the Caltric unit using the same mounting points. No special modifications are required when the match is confirmed.

• Direct bolt-in replacement with matching mounting hole spacing
• Standard electrical terminals align with OEM wiring harnesses
• Dimensions: 202.3 mm L × 127 mm W × 75.2 mm H for proper clearance

What engine models and equipment are supported?

This starter is compatible with a broad range of small engines used in lawn tractors, zero-turn mowers and utility equipment. The listing includes relevant Kubota, Kohler, Kawasaki, Gravely and John Deere models—check the full compatibility list to confirm your application.

• Kubota fits: T1770 (2-cyl) and T1870 series engines
• Kohler fits: CH12.5, CH14, CH18, CH22 and CV12.5 series
• Gravely and John Deere models as specified in the product features

What should I inspect before purchasing?

To avoid returns, compare the picture, electrical connector style and mounting pattern with the starter you are removing. Confirm the part numbers listed and measure the mounting hole distance if possible.

• Compare the provided product photo to your existing starter
• Verify part numbers and engine compatibility in the feature list
• Measure the 67.5 mm mounting hole spacing for a secure fit

Who is this product for? This Caltric starter is aimed at owners and technicians maintaining lawn tractors, zero-turn mowers, compact utility equipment and small engine machines that use Kawasaki-style starters. It’s a practical replacement for DIYers and repair shops seeking a cost-effective, drop-in alternative to OEM starters—provided the part numbers and dimensions match the unit being replaced.
