Carbman Voltage Regulator Rectifier for Kohler 8–24 HP Engines — 15 AMP, 3‑Inline Terminal Direct Fit

This replacement regulator-rectifier converts alternator output to stable DC for battery charging and electrical systems while maintaining proper voltage on Kohler 8–24 HP engines equipped with 15 AMP alternators. Built to match the three-inline terminal layout of the original Kohler parts, the Carbman AM106358 provides a straightforward swap for many M, MV, CH and CV series engines when the stock regulator shows signs of wear, overheating, or inconsistent charging.

How does this Carbman regulator restore charging performance?

The Carbman AM106358 stabilizes the alternator’s AC output and rectifies it into DC at a regulated voltage so batteries charge correctly and lights or ignition components receive consistent power. It replaces failed diodes and voltage regulation circuitry present in worn OEM units, preventing overcharging or undercharging conditions that harm batteries.

• Converts alternator AC to regulated DC for reliable charging.
• Matches Kohler three-inline terminal configuration for simple fit.
• Rated for 15 AMP alternator systems found on Kohler small engines.
• Reduces electrical noise and voltage spikes that stress components.

Which Kohler engines and models will this part fit?

This Carbman regulator is designed for Kohler engines in the 8–24 HP range that use a 15 AMP alternator and the inline three-terminal mounting pattern. It is compatible with specific Kohler part numbers and engine families commonly used in lawn tractors, generators, and other small engine equipment.

• Compatible Kohler part numbers: 25-403-03-S, 25-403-37-S, 41-403-10-S and related items.
• Fits engine series M8–M20, MV16–MV20, CH5–CH15 and CV11–CV15.
• Intended for 15 AMP alternator systems on 8–24 HP engines.

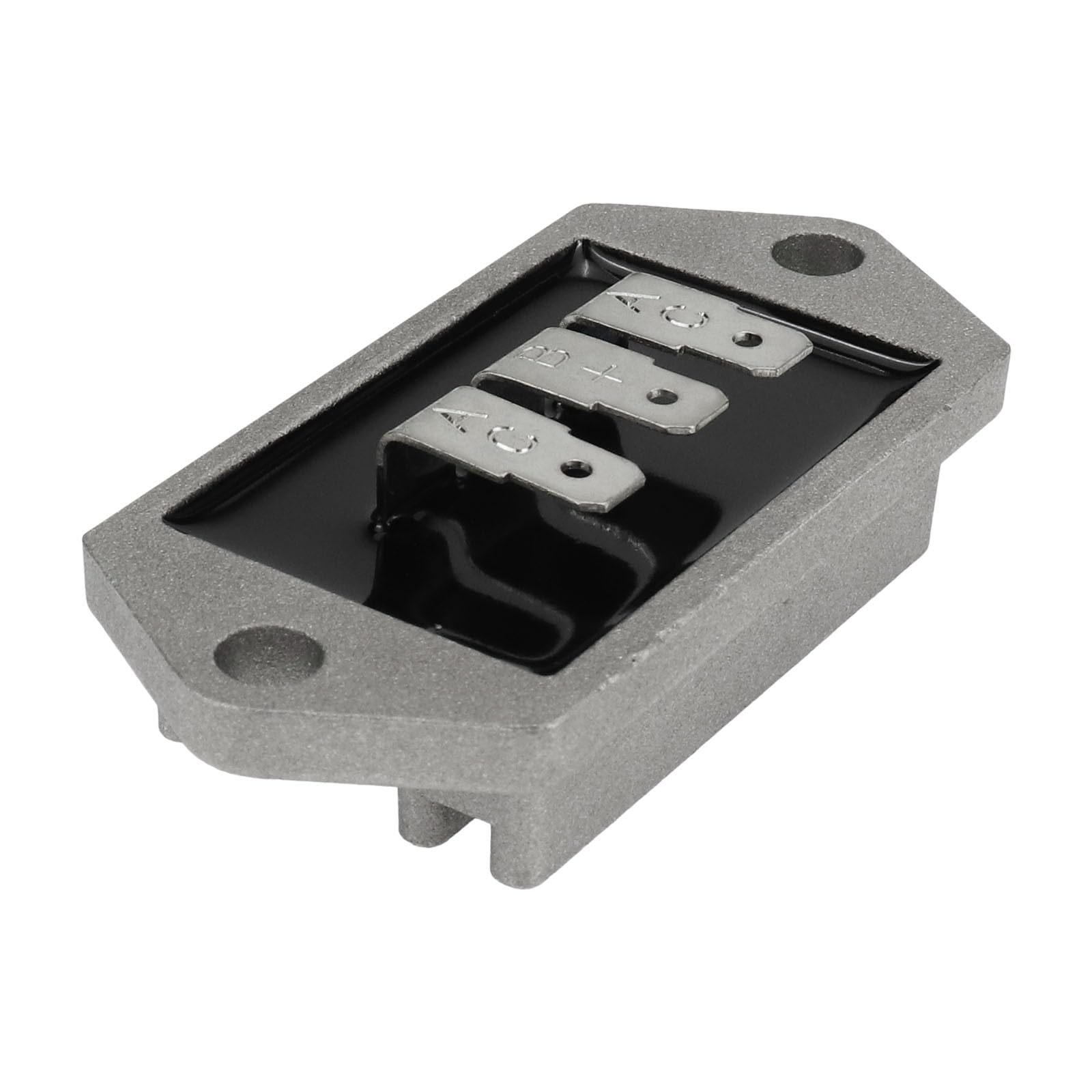

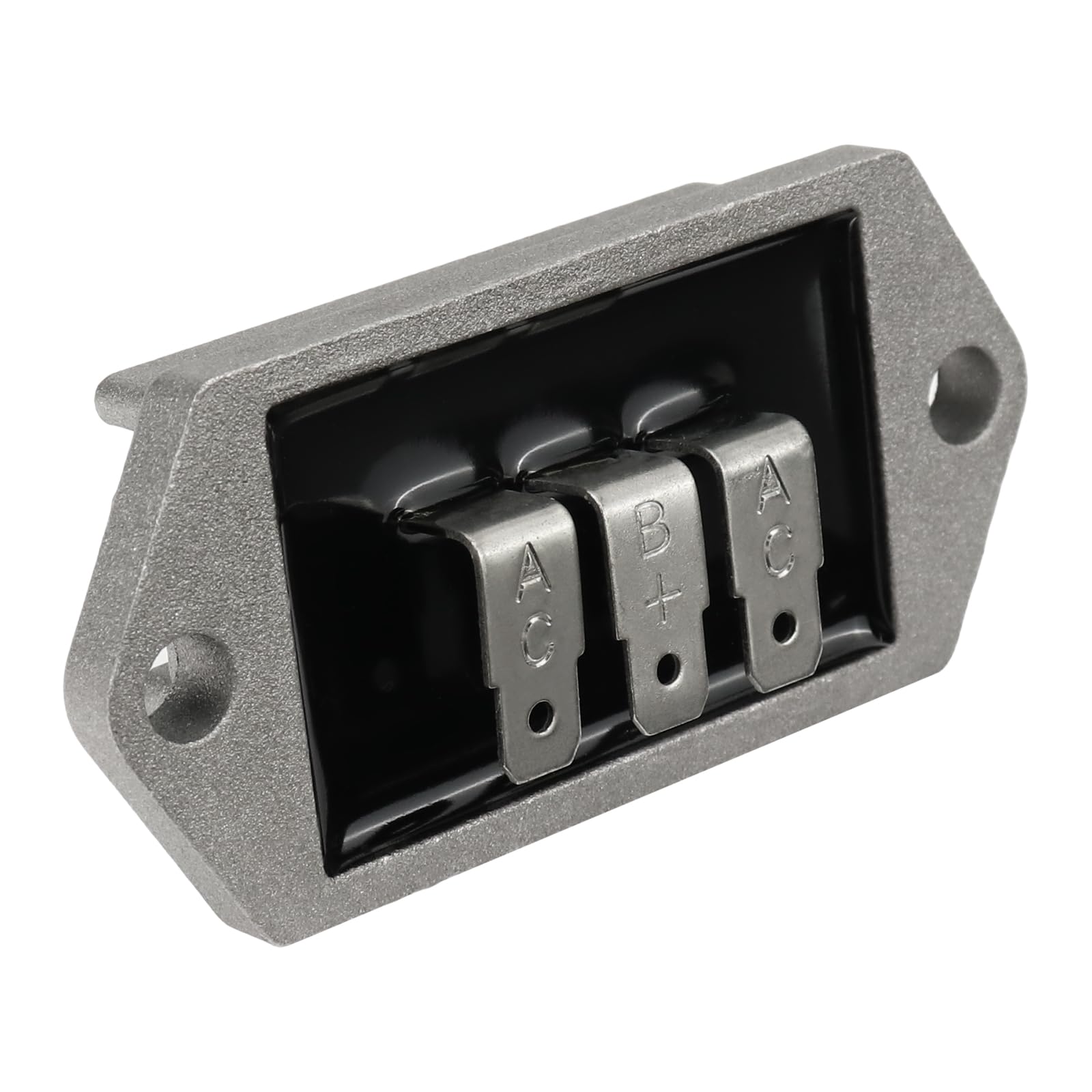

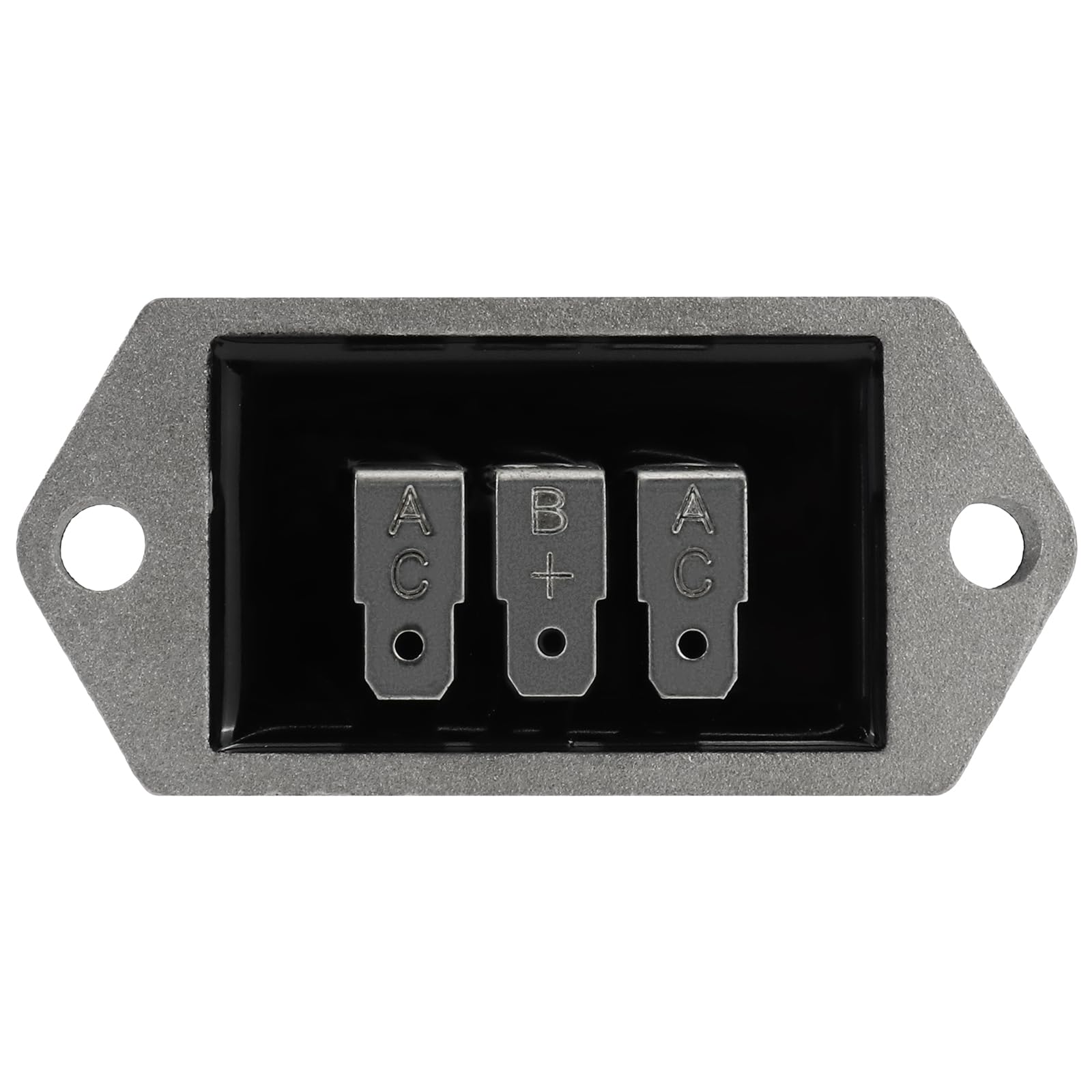

• Three inline electrical terminals match original Kohler layout for direct replacement.

What should I know about installation and compatibility checks?

Installation is generally a direct swap if your original regulator uses the same three-inline terminals and 15 AMP specification, but professional installation is recommended. No printed instructions are included, so verify wiring color codes and terminal positions before disconnecting the old unit to avoid miswiring.

• Confirm your engine’s OEM part number and 15 AMP alternator rating first.
• Disconnect battery before starting replacement to prevent shorts.
• Match three-inline terminal wiring and secure mounting to avoid vibration issues.
• Consider a mechanic if you are unfamiliar with small-engine electrical systems.

What performance or maintenance benefits can I expect after fitting this regulator?

Replacing a failing regulator with the Carbman AM106358 helps restore steady charging, improves electrical reliability, and can extend battery life by preventing over- or undercharging. It also minimizes voltage-related faults for ignition and lighting systems, leading to fewer intermittent problems while the engine runs.

• More consistent battery charging and longer battery life.
• Reduced flicker and electrical noise in lights and instrumentation.
• Lower risk of alternator or accessory damage from voltage spikes.
• Simple replacement lowers downtime for lawn tractors and equipment.

Who this is for: technicians, small-engine mechanics, and DIY owners of lawn tractors, compact generators, and utility equipment powered by Kohler 8–24 HP engines who need a reliable, drop-in 15 AMP regulator-rectifier replacement. Choose the Carbman AM106358 if your machine uses the listed Kohler part numbers or if you require a direct-fit three-terminal regulator for improved electrical stability. If you’re unsure about compatibility or wiring, consult a qualified mechanic before installation.
