CarBole 12V Universal Electric Fuel Pump (Black) — 30 GPH 5–9 PSI Inline Transfer Pump

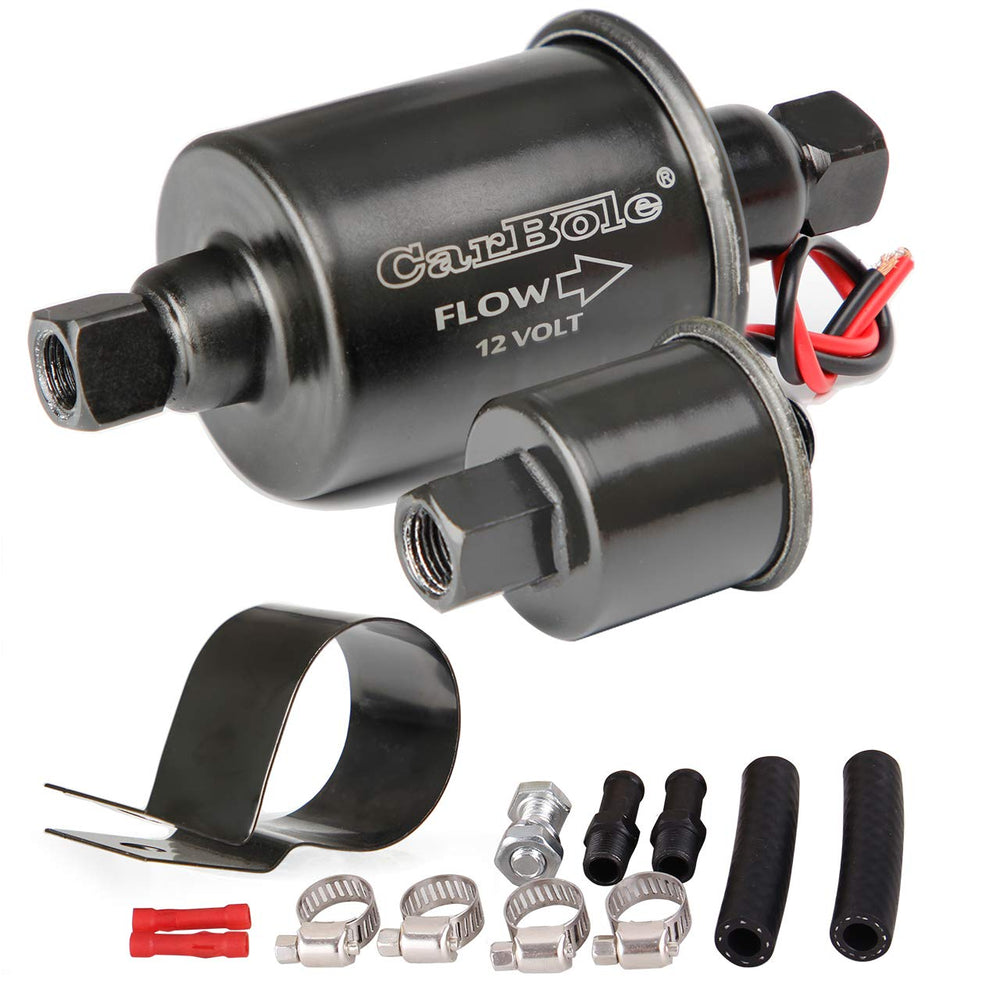

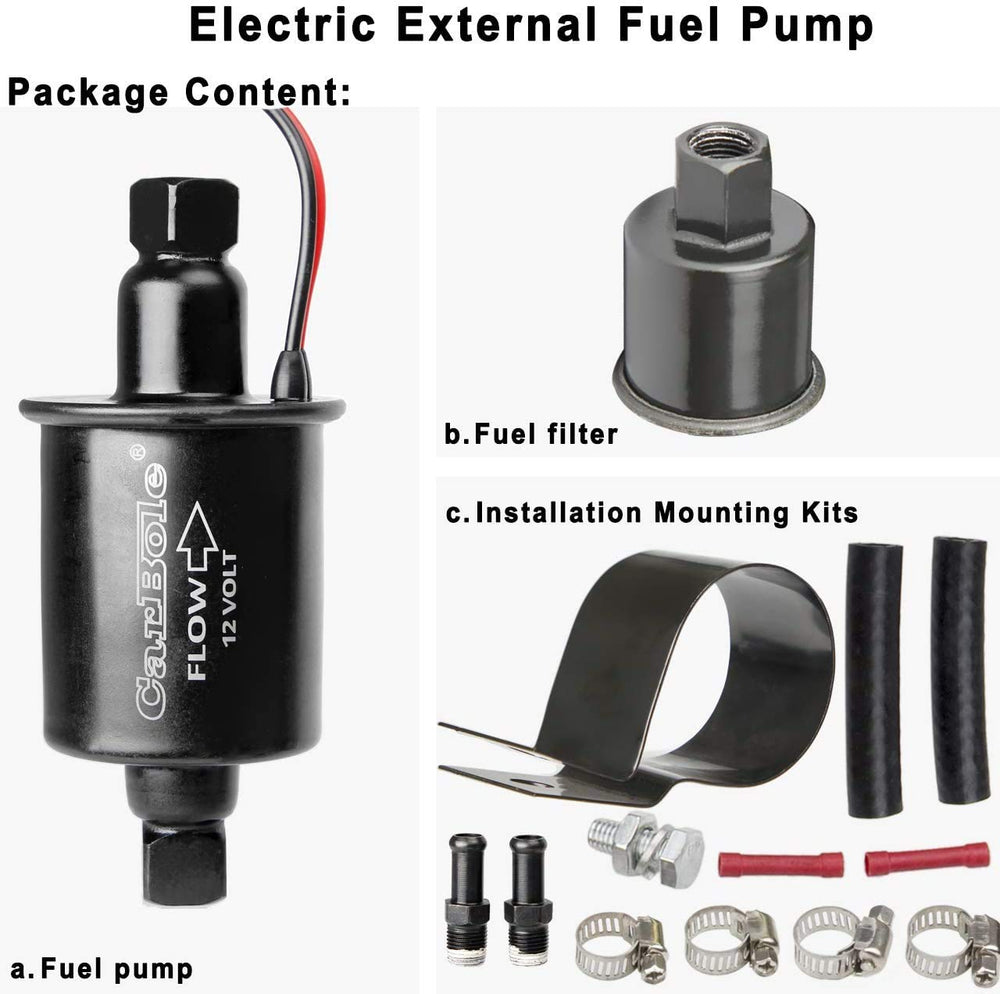

This high-quality replacement pump is built to OE-level standards with a durable copper-clad aluminum motor and plunger design for steady suction and consistent fuel delivery. It’s a 12V inline electric transfer pump suited for carbureted engines, small boats, generators and classic cars where reliable, low-pressure fuel flow is required. The unit ships with fittings and a two-year warranty and cross-references common part numbers for easy substitution.

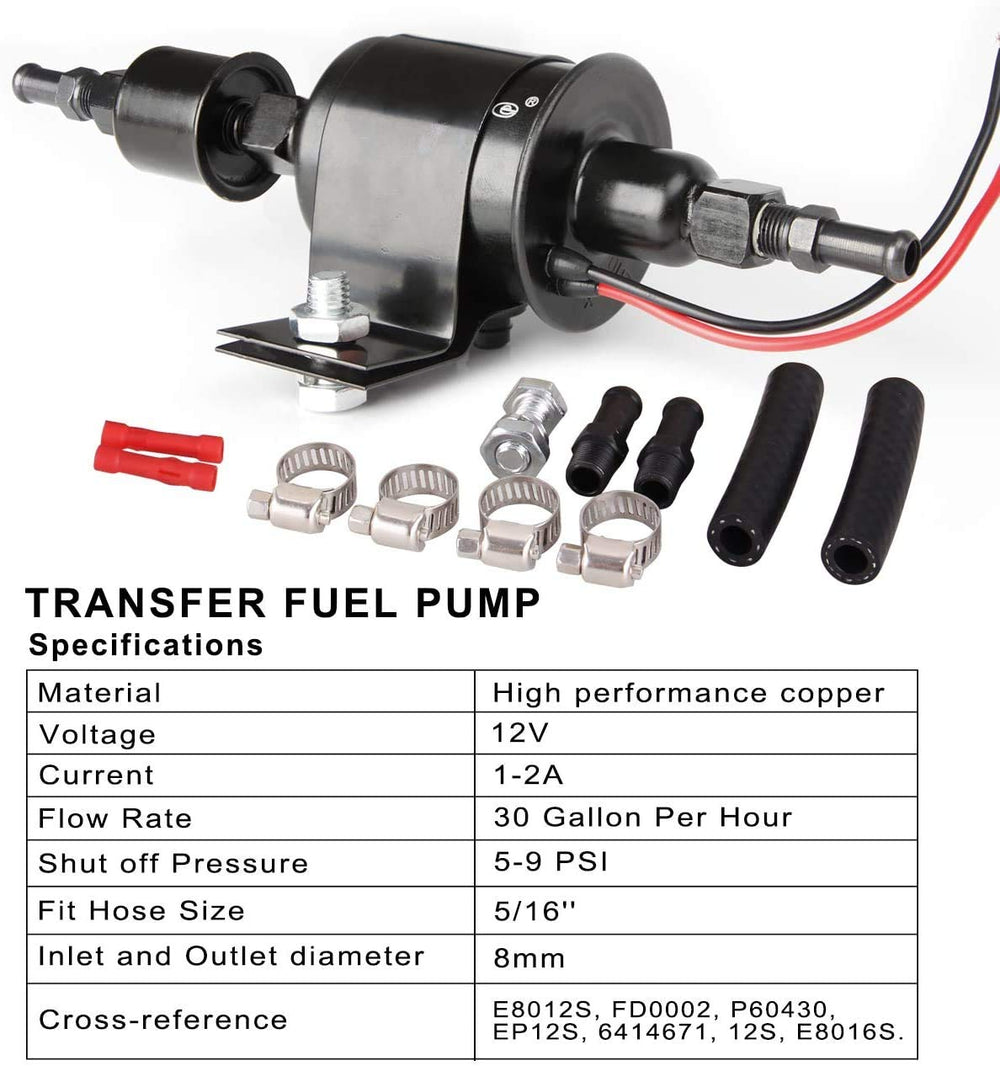

How much pressure and flow can I expect from this pump?

The CarBole pump operates between 5 and 9 PSI and produces about 30 gallons per hour (GPH). That low-pressure range is ideal for carburetors and gravity-feed systems where excessive pressure could cause problems.

• Pressure: 5–9 PSI, suitable for carbureted engines
• Flow rate: ~30 GPH for steady transfer and feeding
• Current draw: approximately 1–2 A at 12V
• Hose compatibility: 8 mm (5/16") inlet/outlet

What fuels and engines are compatible with this pump?

This pump handles gasoline and diesel but is not rated for high-ethanol blends (E85), methanol, race fuels, or water-heavy mixtures. It’s a universal 12V unit commonly used on older vehicles, boats, and portable equipment that require moderate fuel flow at low pressure.

• Suitable: gasoline, diesel (standard formulations)
• Not suitable: E85, methanol, ethanol-heavy blends, race fuels, or water
• Install with an inline filter to protect internal components
• Cross-reference: E8012S, FD0002, P60430, 6414671

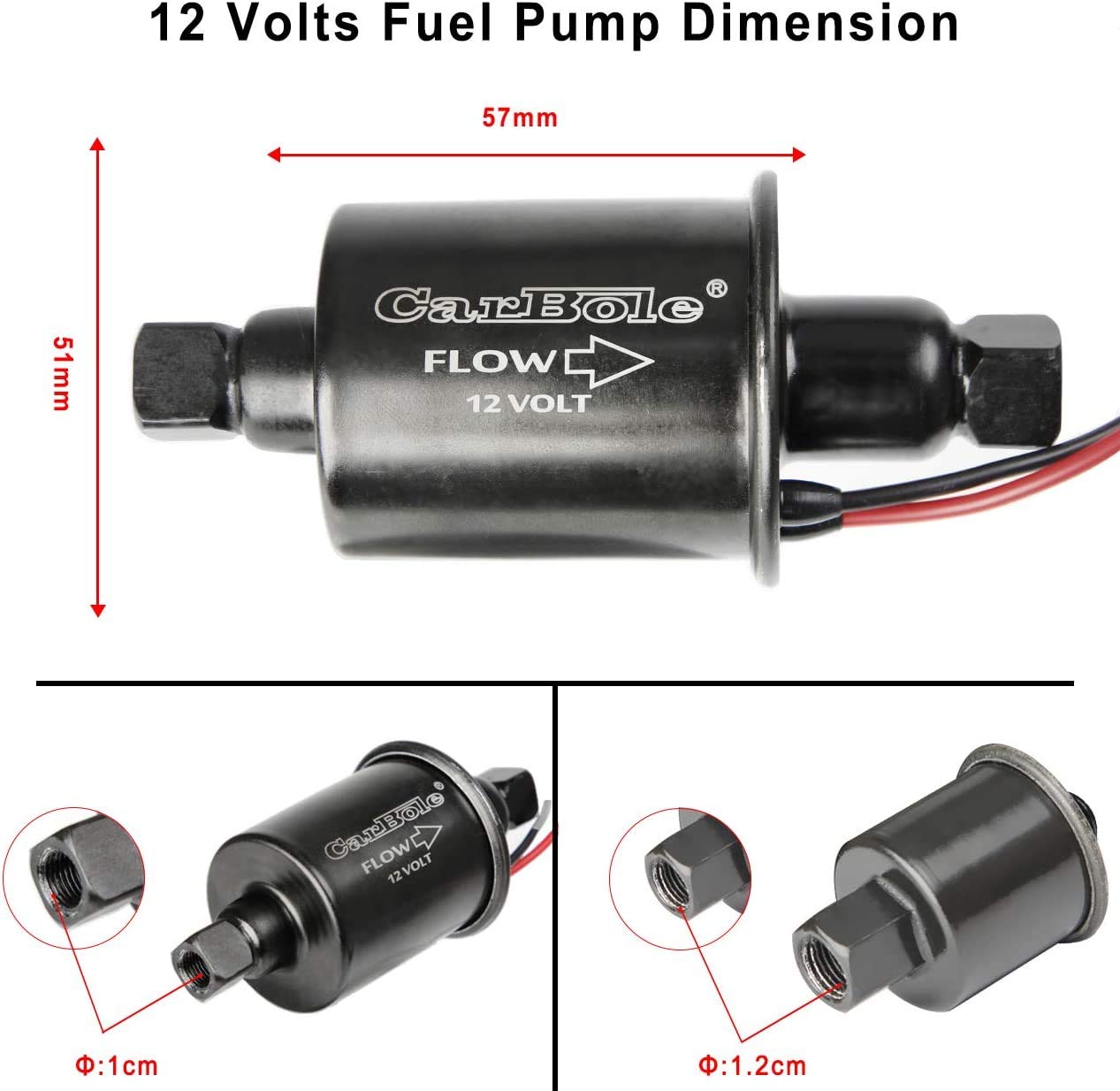

How easy is installation and what are the physical dimensions?

Installation is straightforward: two-bolt mounting and a two-wire electrical connection make for quick swaps. The total assembled length from pipe end to pipe end is about 145 mm (5.71"), and mounting holes are spaced 6.7 cm (2.64") apart, so it fits many retrofit and replacement applications.

• Total length: 145 mm (5.71") overall
• Mounting hole spacing: 6.7 cm (2.64") for two-bolt fit
• Hose size: 5/16" (0.315") inlet/outlet
• Wiring: simple two-wire design; 12V power required

What durability and warranty should I expect?

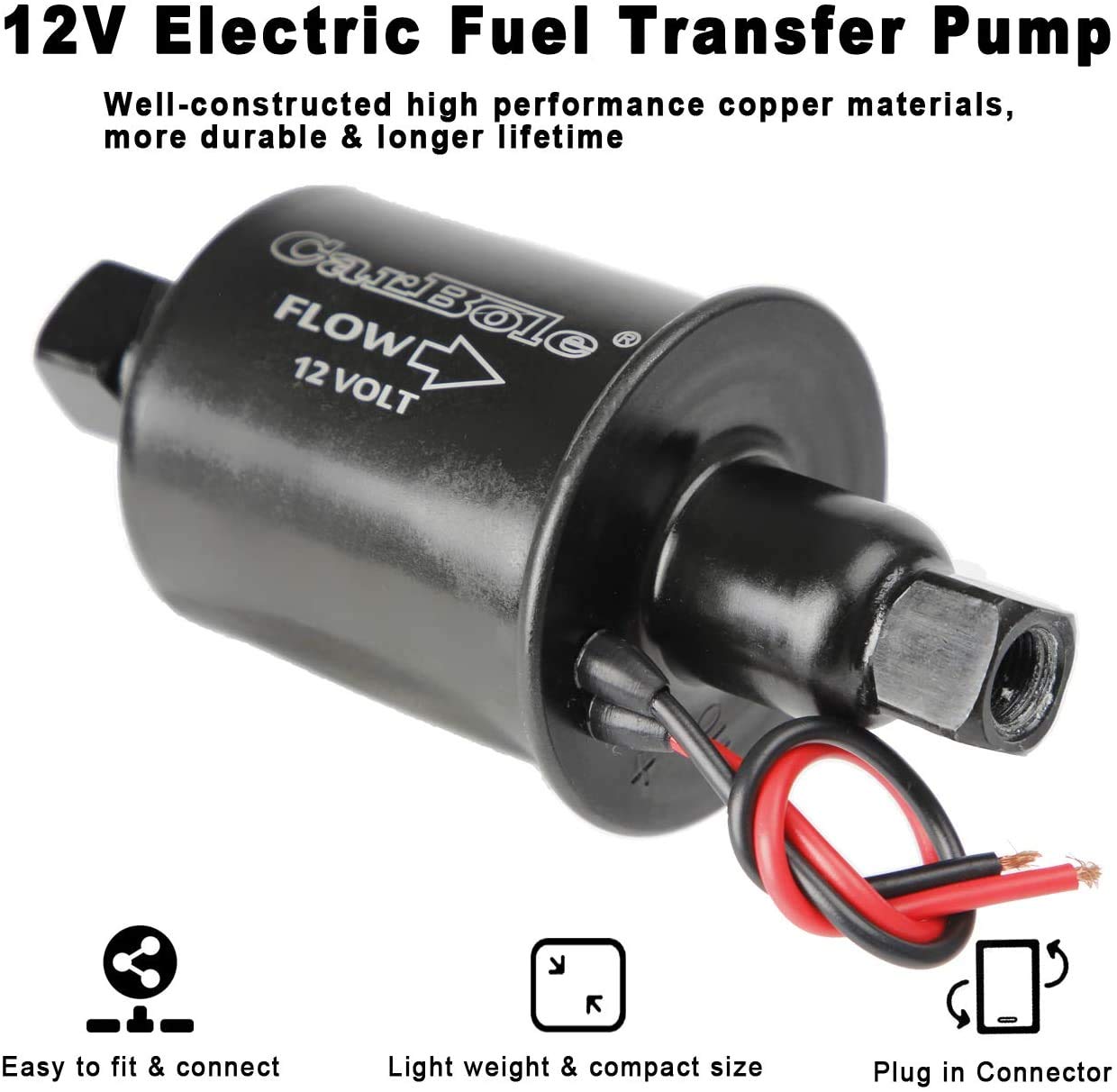

CarBole constructs the pump with precision commutator and brush materials and a copper-clad aluminum motor to resist wear in typical fuel environments. While it's engineered for consistent performance, using a filter and avoiding incompatible fuels will significantly extend service life.

• Materials: copper-clad aluminum motor and durable plunger design
• Recommended: use inline fuel filter to prevent debris damage
• Warranty: 2-year limited warranty from CarBole
• Designed for steady, low-pressure fuel delivery across varied conditions

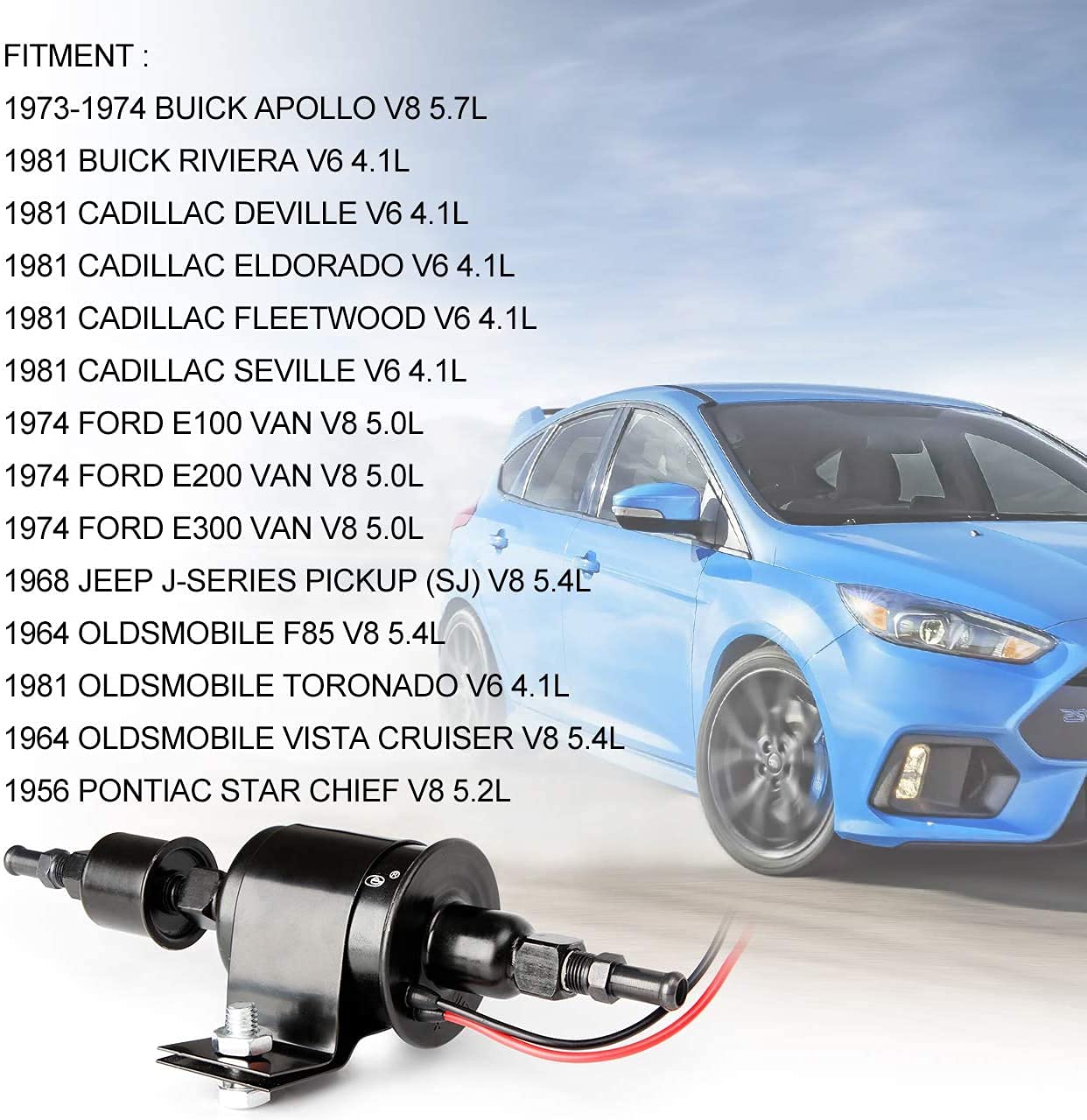

Who is this for: The CarBole 12V Universal Electric Fuel Pump is ideal for classic car restorers, small boat owners, RV and generator users, and anyone needing a reliable low-pressure replacement pump for carbureted engines. Choose this unit if you require an OE-style, easy-to-install 12V pump that supports both gasoline and diesel (standard blends) and matches common replacement part numbers for straightforward fitment.
