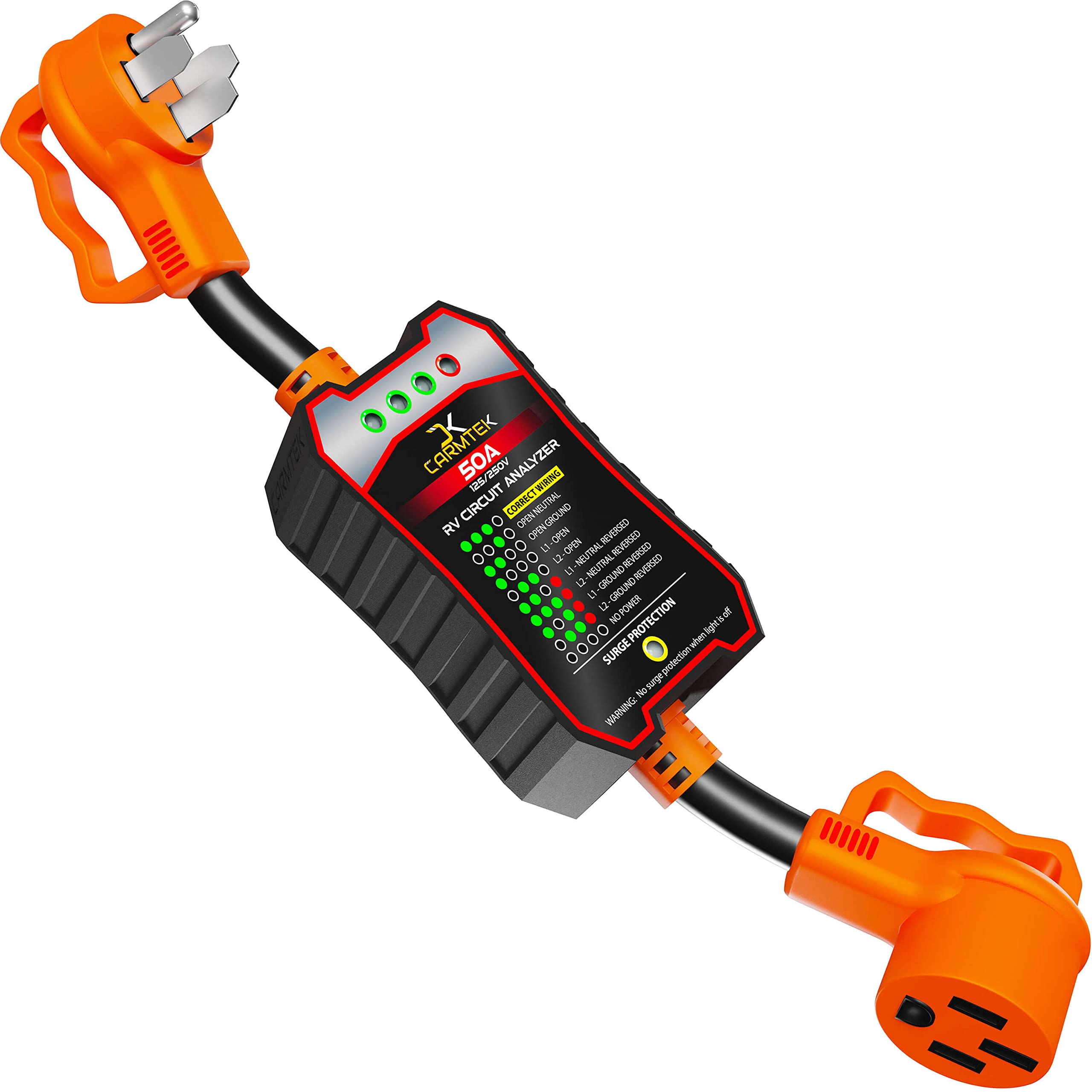

CARMTEK 50 Amp RV Surge Protector with 4200J Surge Suppression — Weather‑Resistant Circuit Analyzer, Ergonomic Grip

Before you plug in at a campground or RV park, you want to know the power is safe. This CARMTEK unit combines a 4200‑joule surge suppression module with a 50A circuit analyzer to detect common wiring faults and transient spikes. Built from flame‑retardant materials, thermally protected, and designed for outdoor use, it gives clear diagnostics and an ergonomic grip for fast, safe connections.

How does the circuit analyzer help prevent electrical damage?

The built‑in analyzer checks the incoming power and reports wiring conditions so you can spot problems before they reach your RV. It identifies open circuits, reversed neutrals, ground faults, and missing legs, helping you avoid appliances damage caused by miswired pedestals or intermittent power.

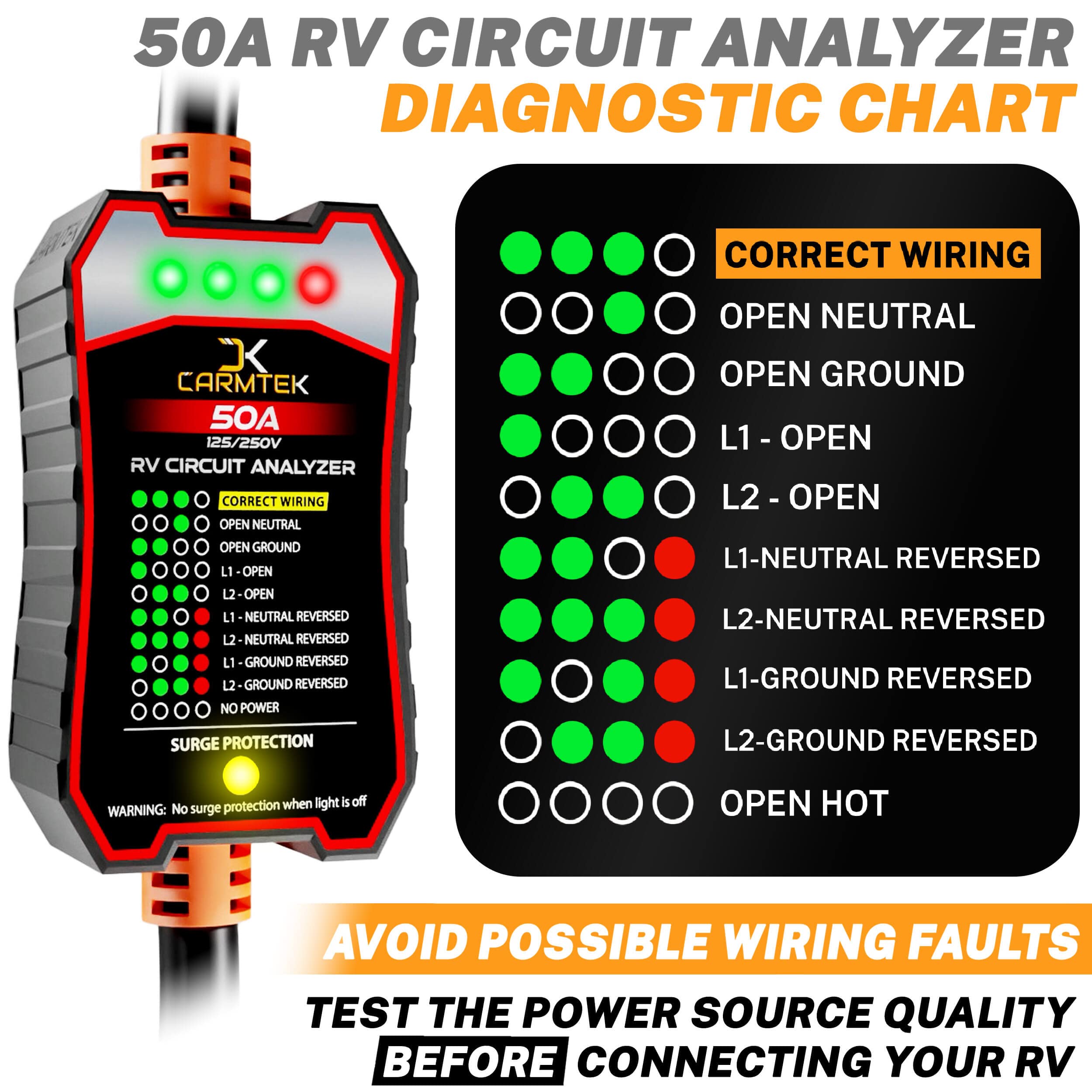

• Diagnoses: Correct Wiring, Open Ground, Open Neutral, L1/L2 Open
• Detects: L1/L2-Neutral or Ground reversals and no‑power conditions

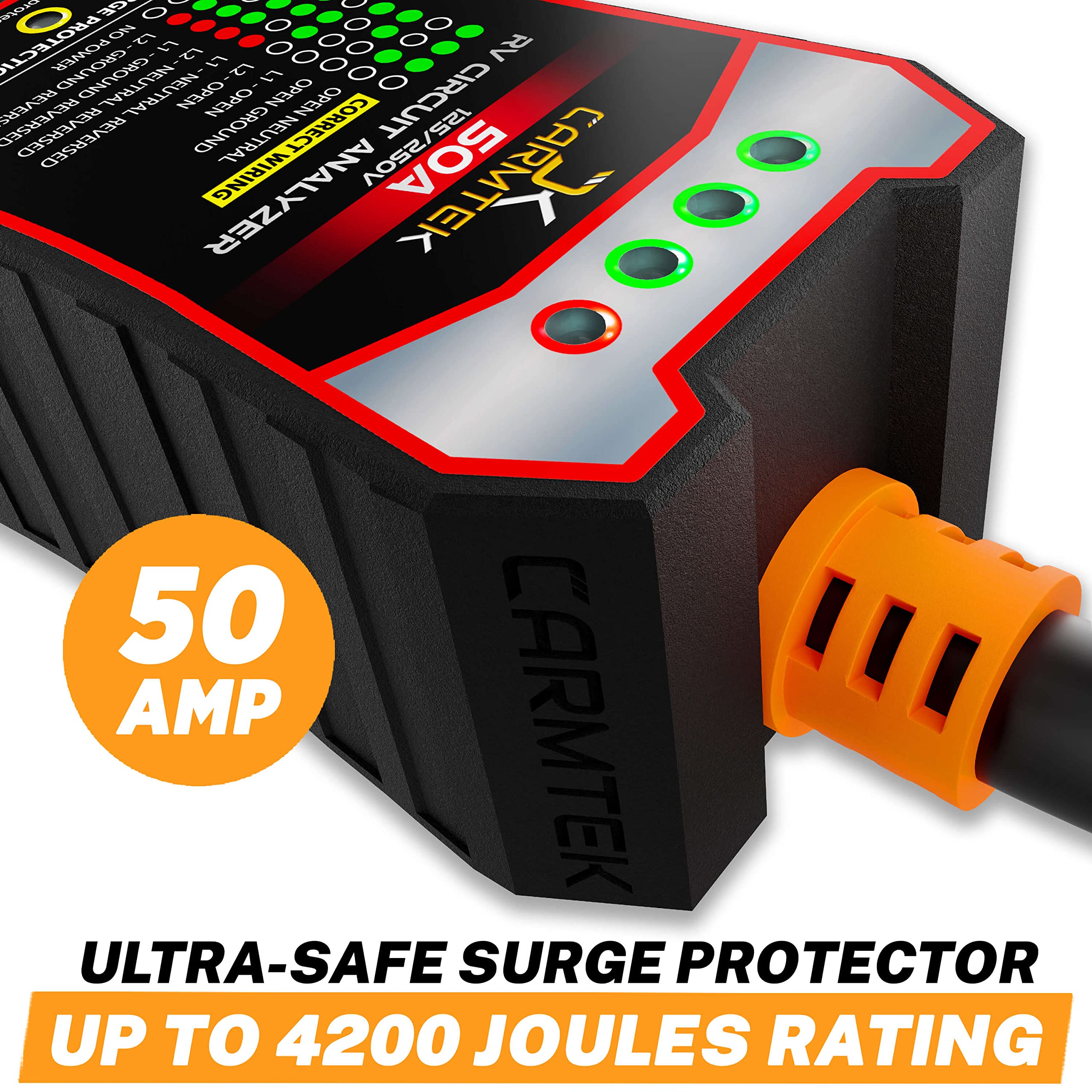

• Easy readout: diagnostic chart for quick interpretation

What level of surge protection does this model provide?

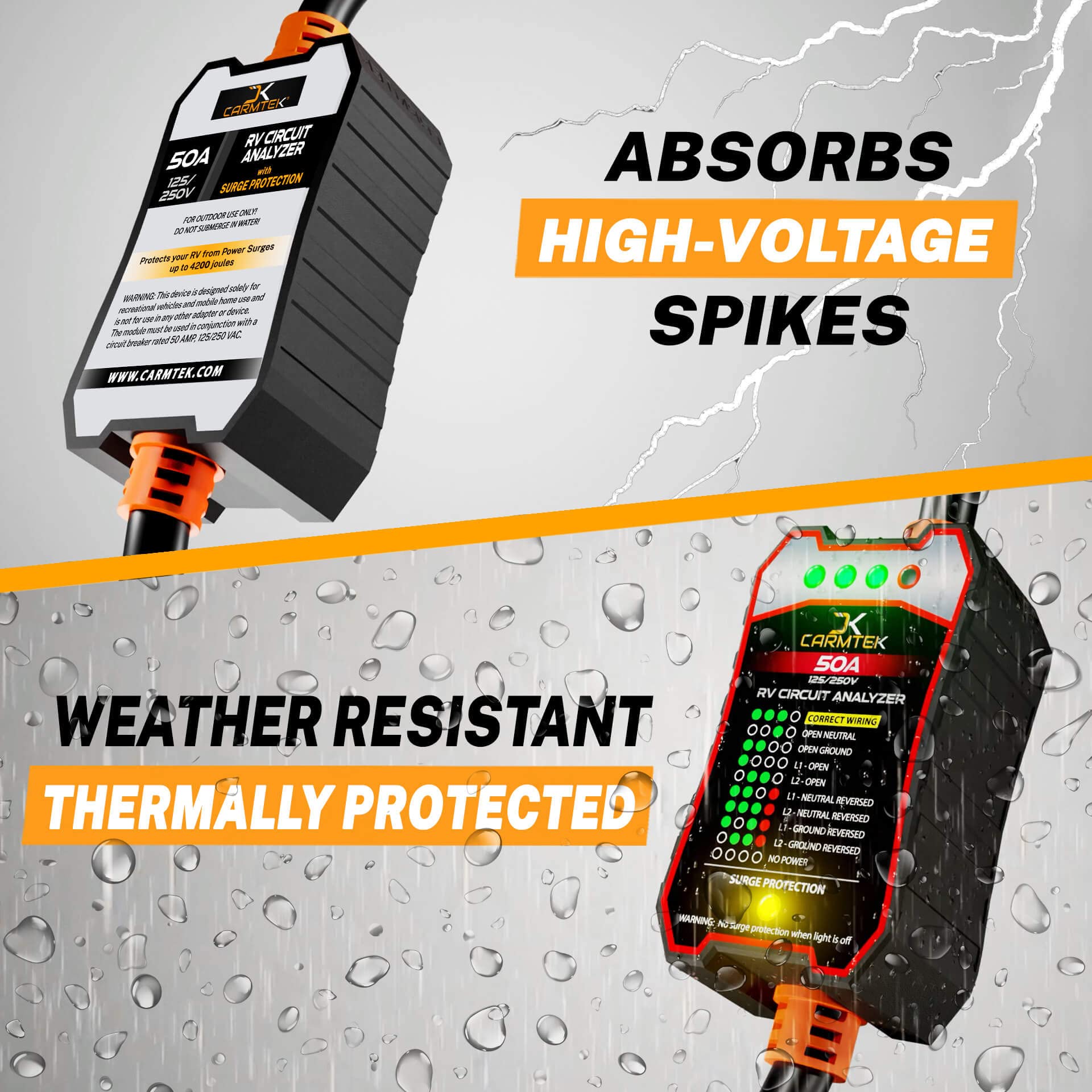

This CARMTEK protector uses a 4200‑joule suppression rating to absorb high‑energy transients from lightning strikes, utility switching, or faulty equipment. It helps clamp dangerous voltage spikes and reduces the risk of electronics and appliance failure during sudden surges.

• Surge rating: 4200 Joules for robust transient absorption
• Voltage handling: compatible with 125/250V systems at 50A
• Thermal protection: prevents overheating under stress

Is the unit durable and simple to operate in outdoor conditions?

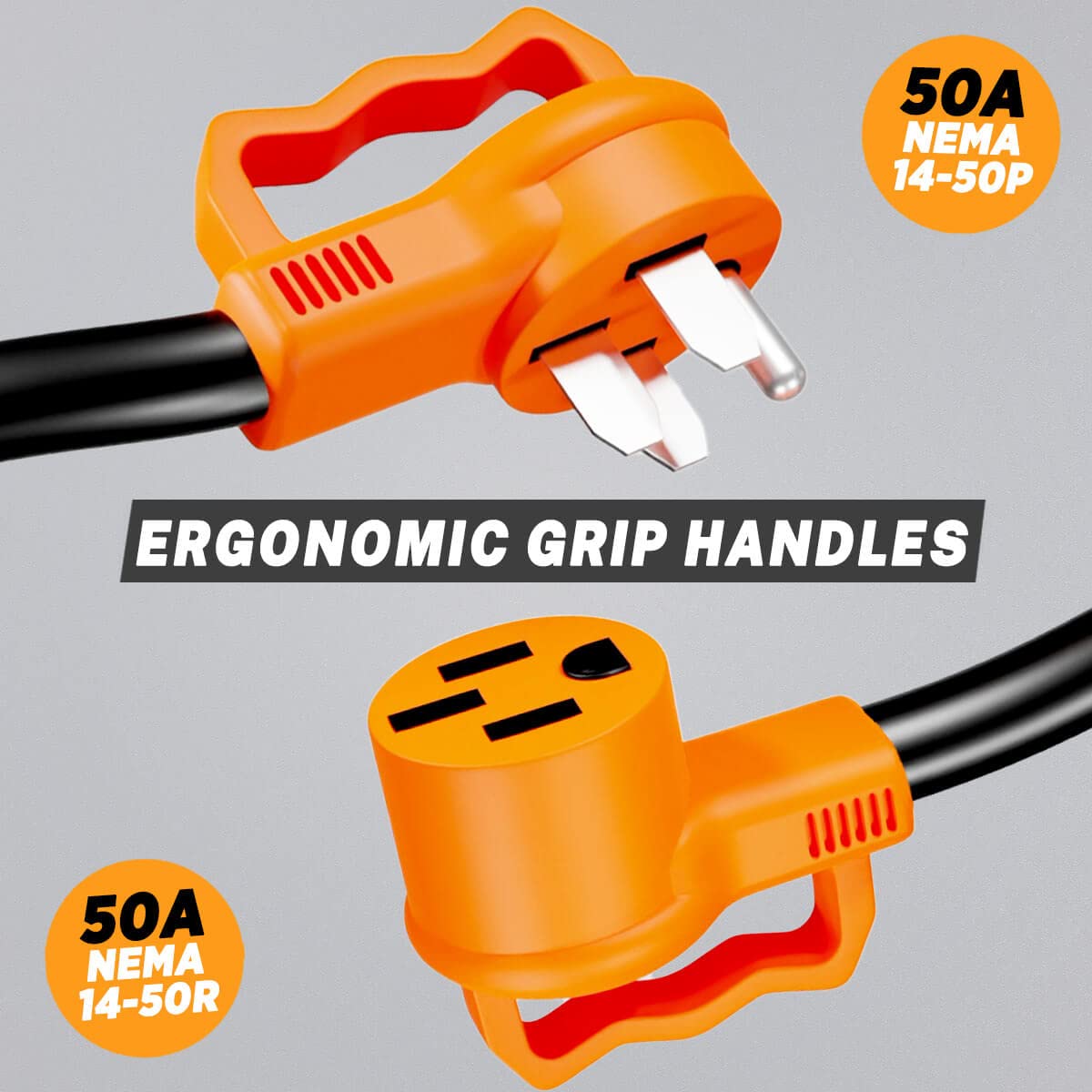

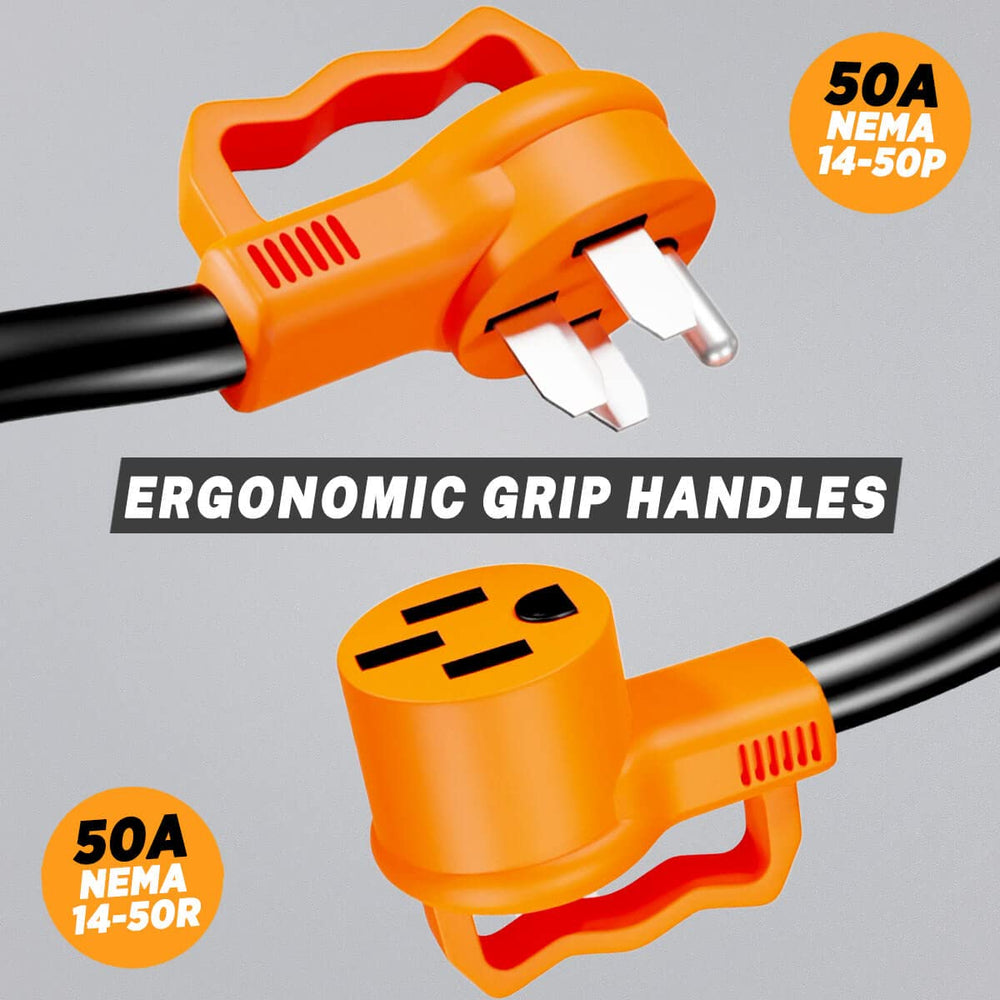

Yes — the housing is made from flame‑retardant material and is weather resistant for outdoor service on RV pedestals. Ergonomic grip handles and a right‑angle male plug make hookup straightforward and reduce stress on cables, while temperature ratings allow reliable function in extreme climates.

• Weather resistant and outdoor rated for campgrounds
• Right‑angle NEMA 14‑50P male plug reduces bend strain
• Operating range: −35°C to +110°C for wide climate tolerance

How will this protector fit into my RV power setup?

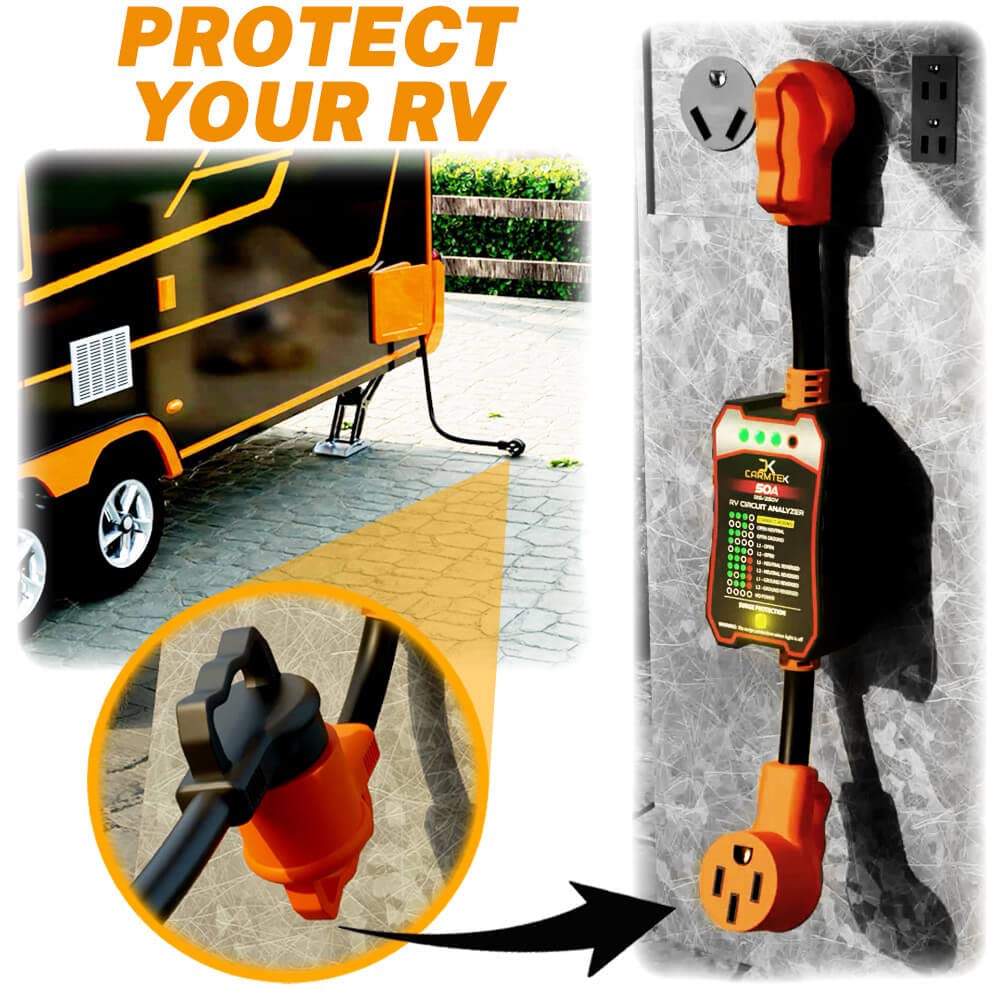

The CARMTEK protector interfaces directly between the campground pedestal and your RV using standard 50‑amp connectors. It supports typical 50A/125V/250V shore power systems and works as an in‑line safety layer without altering existing wiring.

• Connections: NEMA 14‑50P male to NEMA 14‑50R female
• Ratings: 50A, 50/60Hz suitable for common RV shore power
• Plug‑and‑play: no installation tools required, diagnostic chart included

Who is this for? If you own an RV and want a straightforward way to verify pedestal wiring and defend appliances from surges, this CARMTEK 50 Amp surge protector is designed for you. It suits weekend campers, full‑time RVers, and fleet operators who need clear diagnostics, weather‑resistant construction, and a high‑energy suppression rating to protect sensitive electronics and major appliances while on shore power.
