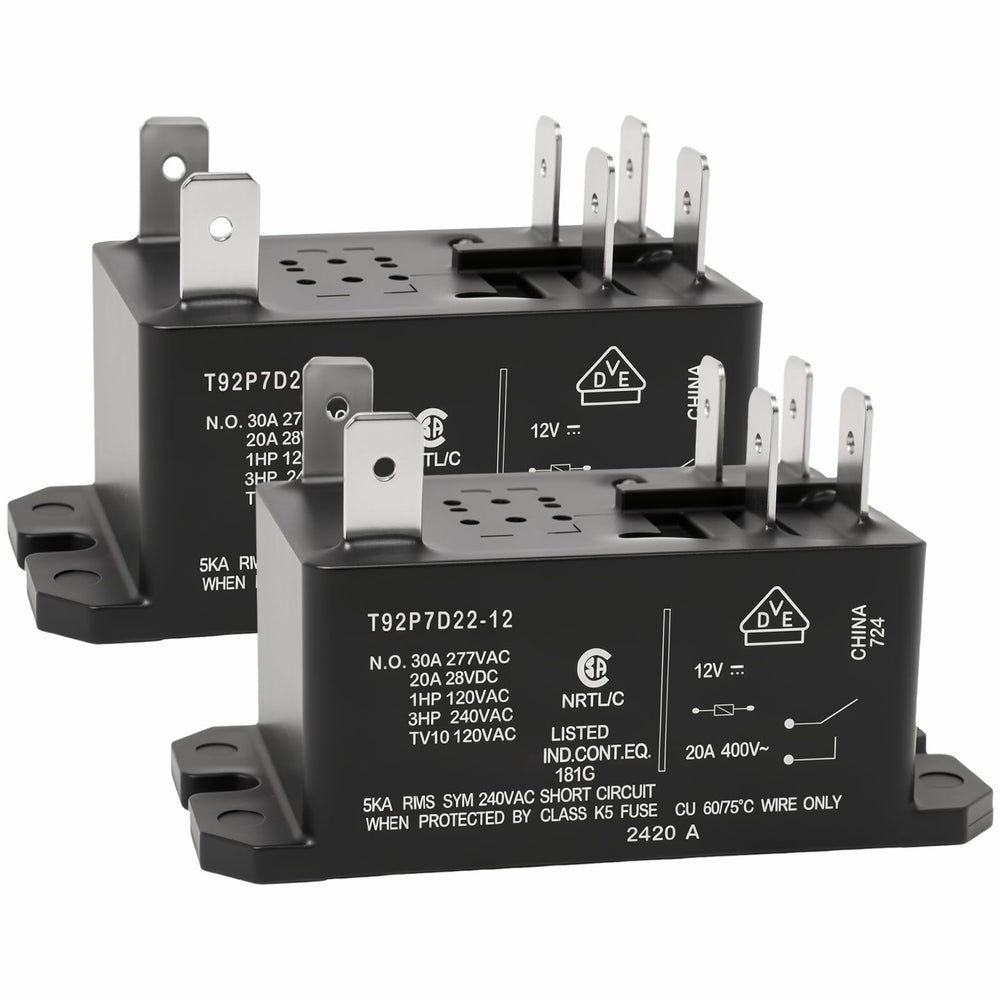

Casalytics T92P7D22-12 Power Relay 12VDC 30A DPST-NO Panel-Mount (Pack of 2) Class F Coil

The Casalytics T92P7D22-12 (6-1393211-9) is a 12VDC, 30A DPST-NO high-power panel-mount relay built for reliable heavy-load switching in industrial and automotive control panels.

This two-pack of Casalytics power relays combines a robust 30-amp contact capacity with a DPST-NO contact arrangement and a panel-mount form factor, making it a practical choice for projects that need dependable switching for motors, heaters, pumps, lighting banks, or other high-current circuits. The relay’s Class F coil insulation and compatibility with standard 12V control systems help it integrate into existing setups while meeting common industrial safety expectations.

How much current can this relay switch and where is it appropriate?

The T92P7D22-12 is rated to switch loads up to 30 amps, which covers many medium- to high-power applications in industrial control and heavy-duty automotive systems. It’s intended for circuits where a single control signal needs to open or close two independent normally-open contact paths simultaneously.

• Rated contact current: up to 30 A per contact path.
• DPST-NO configuration permits two independent circuits to be switched by one coil.
• Suitable for motors, resistive heaters, pump control, and heavy lighting.
• Panel-mount design supports secure installation in control enclosures.

How do I wire and install the panel-mount Casalytics relay?

Installation is straightforward: secure the relay to the panel using the mounting points, connect the 12VDC control coil to the specified coil terminals, and route load conductors to the DPST contact terminals. Follow torque specifications and wiring best practices to ensure reliable contacts and safe operation.

• Mount to panel cutout using the relay’s panel-mount flange for stable positioning.
• Connect 12VDC coil input to the coil terminals; observe polarity if marked.
• Attach load conductors to the two normally-open contact outputs for switched circuits.
• Use appropriate gauge wiring for 30A service and secure terminals to rated torque.

What durability and safety features does this relay include?

The T92P7D22-12 uses a Class F coil insulation system, which provides thermal endurance consistent with many UL-style industrial relays. Its construction is optimized for repeated switching of high currents while minimizing heat build-up and maintaining contact integrity over time.

• Class F coil insulation for reliable thermal performance.
• Robust contact design to handle frequent switching at high current.
• Panel-mount hardware reduces vibration and mechanical stress on terminals.
• Meets common industrial safety and handling expectations when installed correctly.

Can this relay be used with common 12V systems and control modules?

Yes — the coil is designed for a 12VDC control voltage, making it compatible with many automotive, marine, and industrial control modules that operate on 12V. Its DPST-NO contacts let one control source manage two independent load circuits simultaneously.

• 12VDC coil voltage for wide compatibility with standard control systems.
• Works with manual switches, PLC outputs, and automotive control signals.
• Pack of two provides spares or matched relay pairs for multi-circuit projects.

Who this is for: engineers, electricians, and system builders who need a dependable, high-current panel-mount relay for 12V control circuits will find the Casalytics T92P7D22-12 a practical choice. It’s aimed at professionals and serious hobbyists installing motor controls, pump systems, heavy lighting, or other applications that require two normally-open contact paths switched by a single coil at currents up to 30A. Buy this two-pack if you want matched relays for redundancy, paired circuits, or to keep a spare on hand during installations.
