Chatovalo 6-Circuit Blade Fuse Box — 150A Total, Built-In Ground Bus, LED Indicators

Chatovalo's 6-circuit blade fuse box provides six independently fused DC outputs with a built-in ground bus and flexible cable entry, handling up to 150A total for 12V, 24V, or properly fused 48V systems.

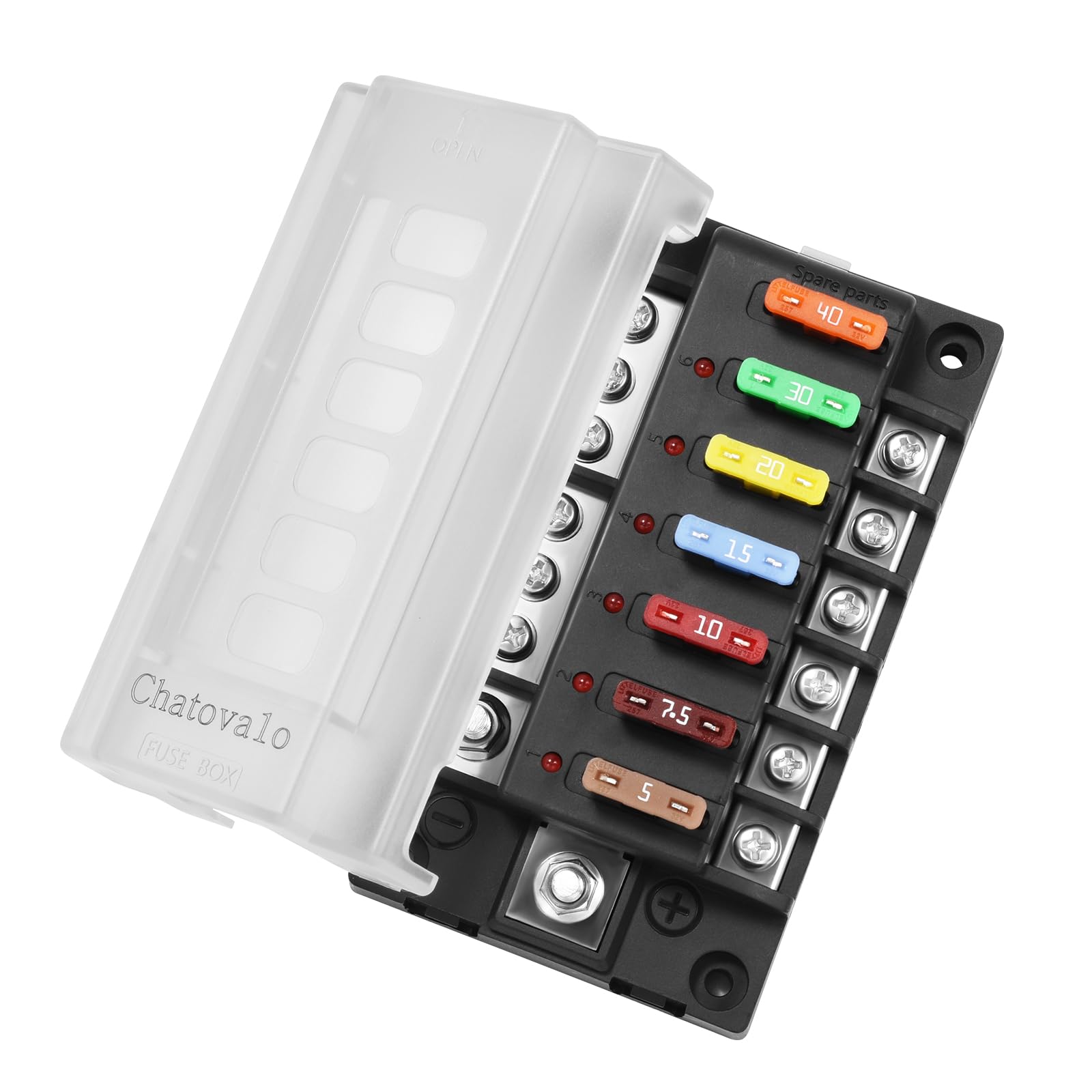

This compact single-row fuse block consolidates auxiliary power distribution into one organized module. Each of the six circuits is protected by its own blade fuse (up to 40A per circuit) and monitored with an LED indicator to speed troubleshooting. A nickel-plated copper ground bus with six M4 negative terminals removes the need for a separate grounding bar, while the M5 positive stud accepts cable entry from three sides to adapt to tight installations.

How does the built-in ground bus simplify installation?

The integrated ground bus centralizes negative connections so you don’t have to run separate ground wires to a remote bar. This reduces wiring clutter and shortens installation time—especially useful in vans, boats, and custom panels.

• Nickel-plated copper busbar for reliable conductivity and corrosion resistance
• Six M4 negative terminals matching the six fused circuits
• No additional ground distribution bar needed—fewer components to mount

Can I fit this fuse box into cramped spaces or unconventional orientations?

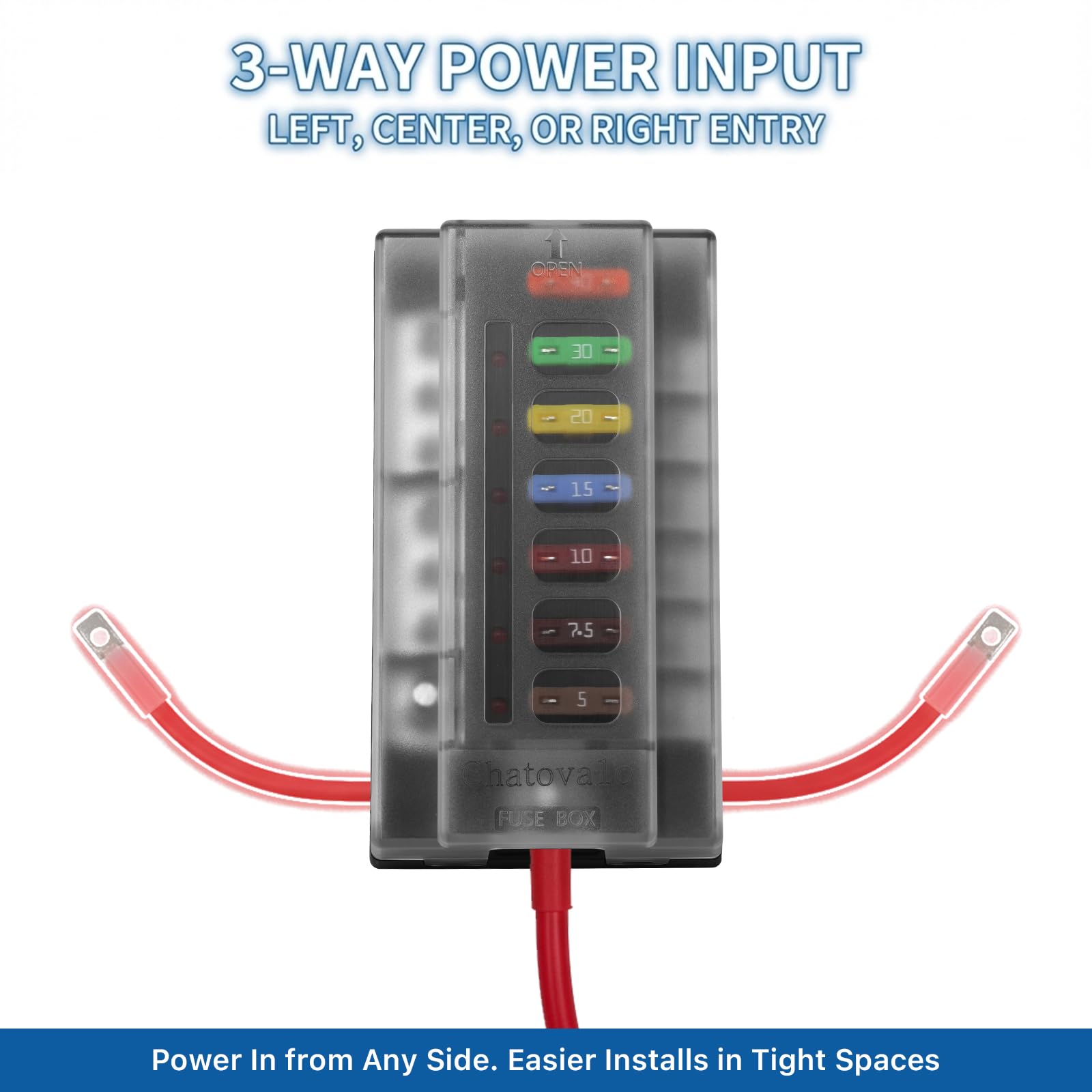

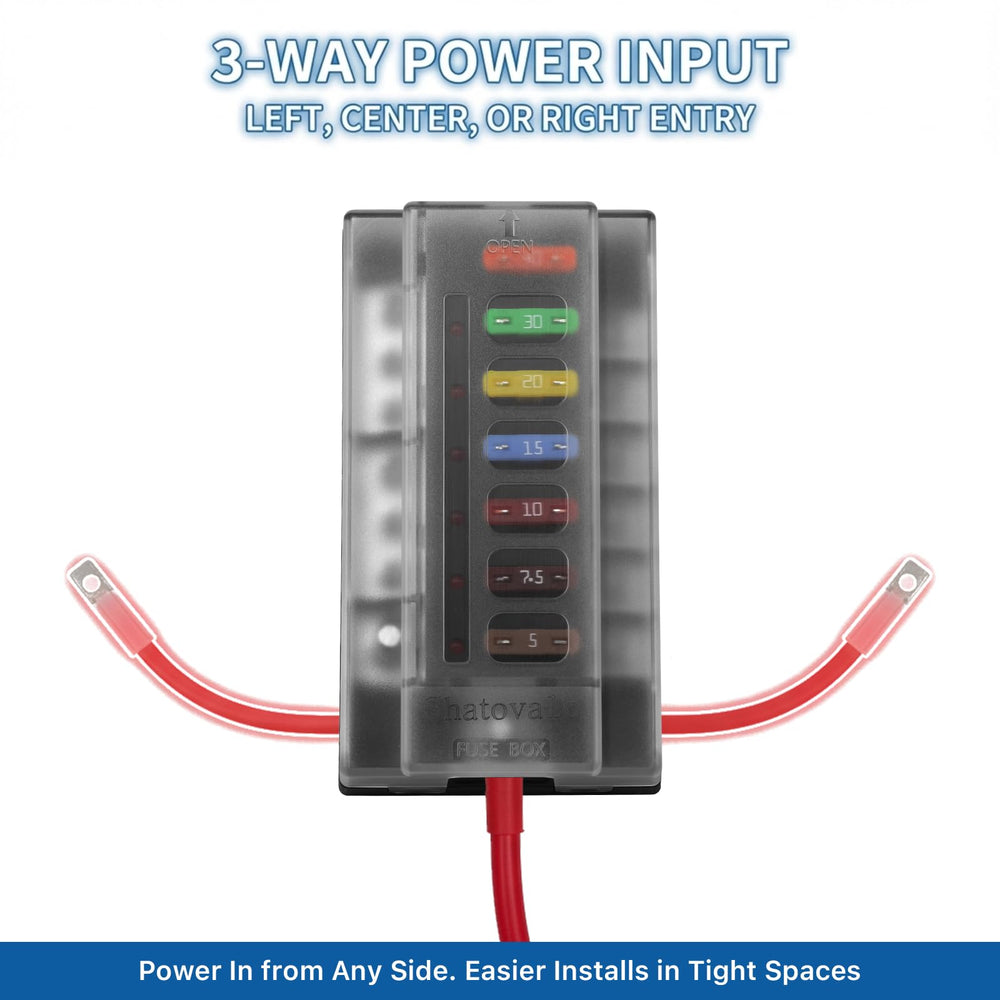

Yes—the main M5 positive stud accepts cable entry from the left, bottom, or right, so you can route power where it’s easiest. The single-row layout keeps wiring tidy and accessible in tight panels or rack installations.

• 3-way power input (left/bottom/right) for flexible cable routing
• Single-row fuse arrangement for compact footprint and clear labeling

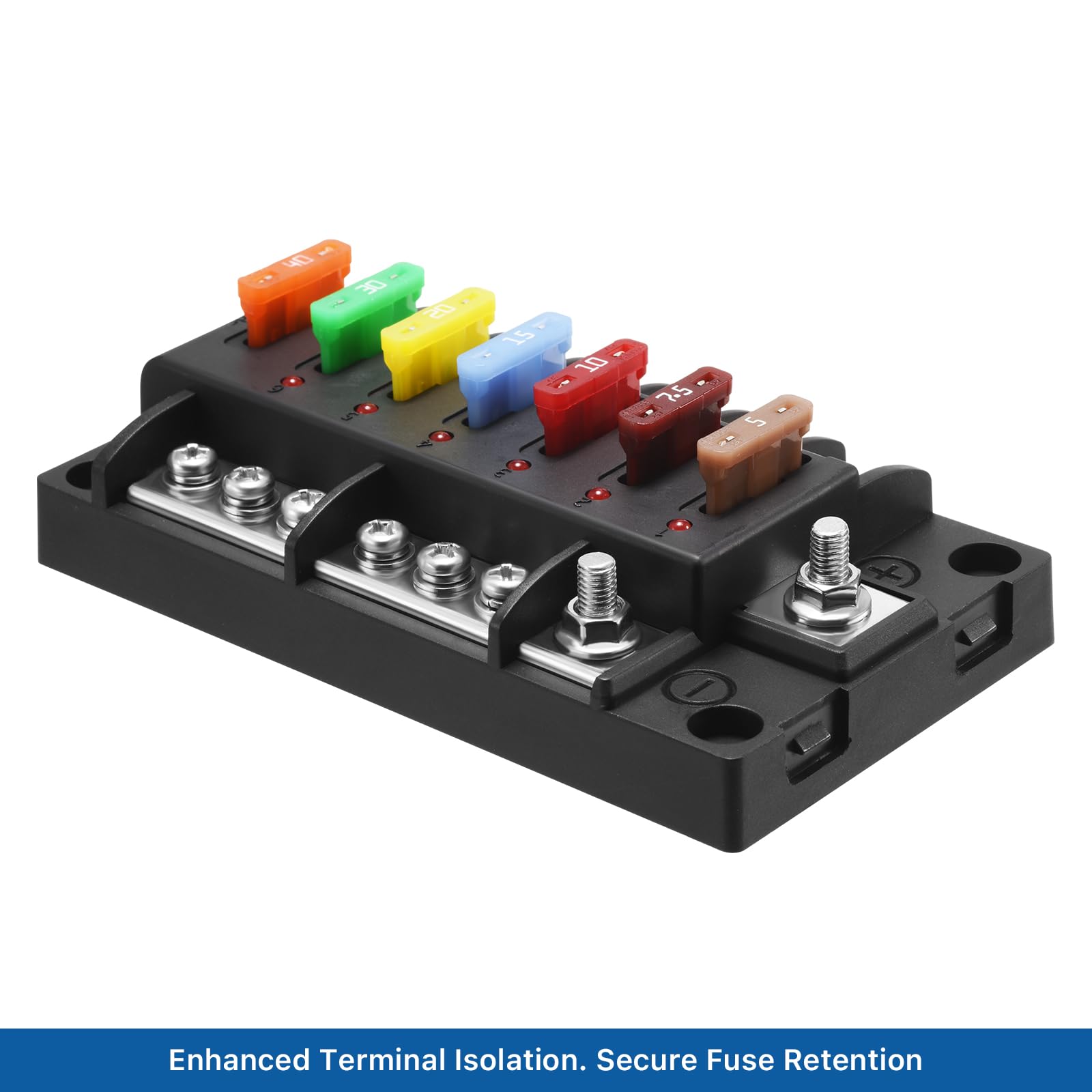

• LED indicators aligned with each circuit for fast visual fault detection

What fuse ratings and voltages does this support?

Each channel supports up to 40A, with 150A total at the positive input. The unit ships with 32V ATO blade fuses suitable for 12V and 24V systems; for 48V installations, use appropriately rated DC blade fuses to match system voltage and safety requirements.

• 40A maximum per circuit, 150A combined rating at the main input
• Includes 32V ATO fuses for 12V/24V systems—replace with 48V-rated fuses for 48V use
• LEDs highlight blown fuses for quicker maintenance and uptime

Who this is for: installers, DIYers, and fleet managers who need a compact, serviceable DC power distribution center for auxiliary loads. The Chatovalo 6-circuit blade fuse box is suited to van conversions, marine electrical panels, solar accessory distribution, industrial control cabinets, and any application where organized, clearly indicated fused outputs and a consolidated ground are valuable. It’s engineered to simplify wiring runs while providing clear visual fault indication and flexible cable entry for constrained spaces.
