CHXWJZH Front Brake Master Cylinder Reservoir 7/8" for Honda ATVs — Direct-Fit, Durable

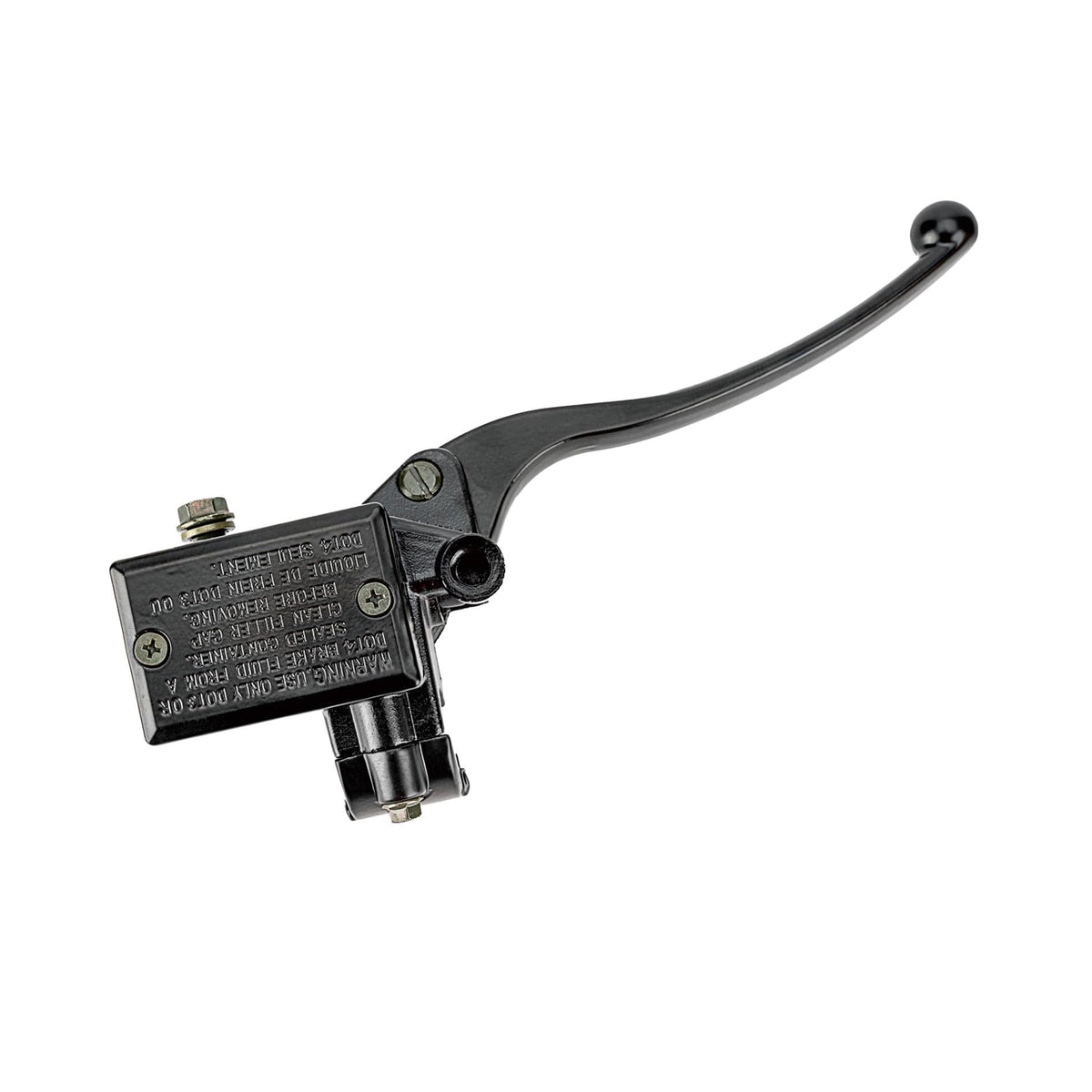

This CHXWJZH 7/8" front brake master cylinder reservoir is a direct-fit replacement that restores consistent brake pressure for many Honda ATVs and utility models.

If your ATV's front brake master cylinder reservoir is cracked, leaking, or giving spongy lever feel, this replacement part is made to match factory fit and restore reliable stopping performance. Built to precise dimensions, the unit is compatible with a wide range of Honda FourTrax, TRX, Rancher, Foreman, Rincon, Recon, Sportrax and other models listed below. It focuses on straightforward installation and durable operation so you can get back to riding with confidence.

Which Honda models will this reservoir fit?

This master cylinder reservoir covers many classic and newer Honda ATVs across multiple families. It was designed to suit TRX, FourTrax, Foreman, Rancher, Rincon, Recon, Sportrax, and select street models, matching common years and variants.

• TRX 200/250/300/350/400/450 ranges and TRX250X (2011–2016), TRX300X (2009).
• Sportrax 250/300/400/450/90 (various years 1993–2008) and early CX500/CB750/FT500/GL500 references.
• Foreman 400/450/500, FourTrax 300/Foreman 400, Rancher 350/400/420, Recon 250, Rincon 650/680 and Rubicon 500 across listed years.
• Check the vehicle-specific fitment list for exact model-year compatibility before ordering.

How does the reservoir match my original part dimensions and fittings?

The replacement mirrors critical factory measurements so it connects to your existing brake lines and lever components without modification. Key thread sizes and bore measurements are specified to ensure mechanical compatibility.

• Handlebar diameter: 7/8" (standard ATV front brake lever size).
• Mirror-hole thread: M10 × 1.25 for compatible mirrors and mounting hardware.
• Banjo-bolt thread: M10 × 1.25 to match common brake line fittings.
• Piston bore: 14 mm to reproduce correct hydraulic pressure characteristics.

What material and quality details should I expect?

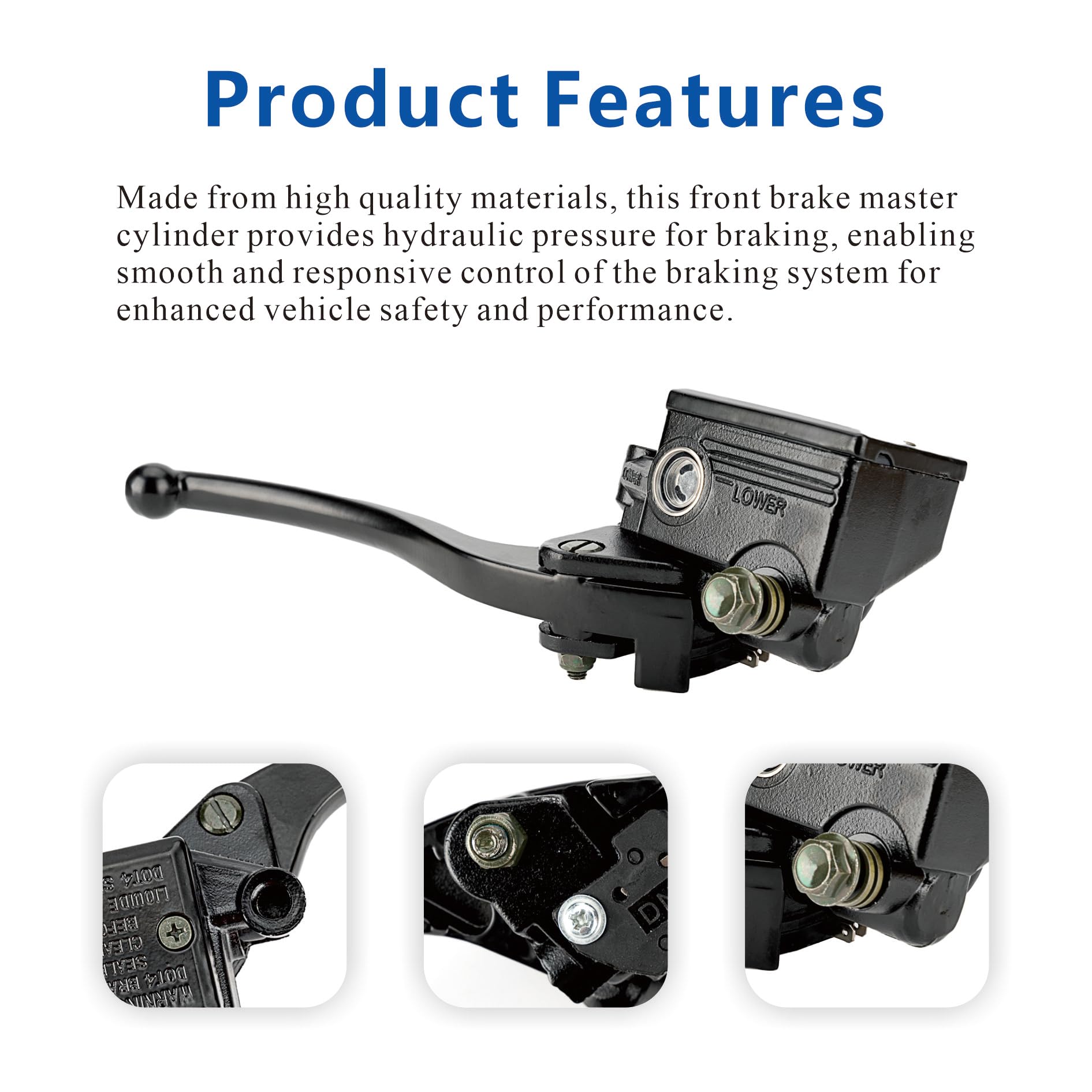

This master cylinder is manufactured using durable materials and tight tolerances intended for long service life under normal riding conditions. The unit is designed for robust sealing, resistance to brake fluid, and stable lever response when installed correctly.

• Machined and molded components sized for repeatable fitment and sealing.
• Brake-fluid compatible surfaces to minimize leaks and swelling.
• Durability focused on everyday trail and utility use, not for racing abuse.

How easy is installation and what should I prepare?

Installation is straightforward for anyone comfortable with basic ATV brake work: remove the old reservoir, transfer or attach the banjo fitting, and bleed the brake system to remove air. Basic hand tools, brake fluid, and a fluid-bleeding procedure will get you back on the trail.

• Tools: wrench for M10 banjo bolts, screwdriver, and catch bottle for old fluid.
• Consumables: DOT-specified brake fluid and a lint-free rag for cleanup.
• Procedure: replace reservoir, torque banjo to spec, then bleed until lever feels firm.

Who is this for: Riders and mechanics who need a cost-effective, accurate replacement front master cylinder reservoir for a variety of Honda ATVs. It’s aimed at owners maintaining older machines or replacing damaged reservoirs with a part that matches original specifications. If you want a durable, straightforward swap-in component with documented thread and bore sizes, this CHXWJZH unit is tailored to that need. For any product issues within a year, customer support is available to assist.
