CMVT Auto LED Tail Lights for Jeep CJ/YJ/TJ (Smoked Lens) — Plug‑and‑Play LEDs with Reverse Bar

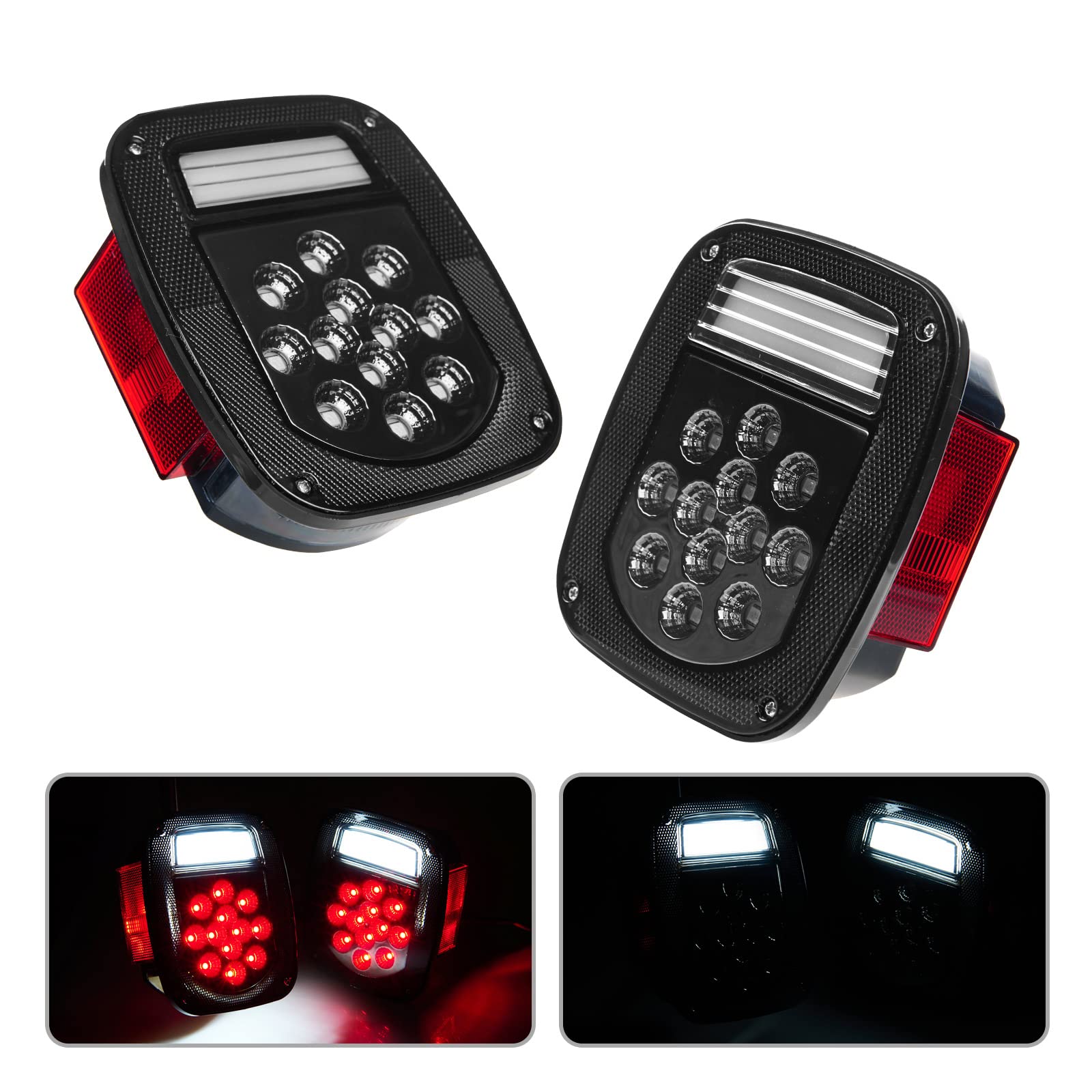

These CMVT Auto smoked LED tail light assemblies are direct-fit replacement lamps for classic Jeep CJs, YJs and TJs, combining bright LEDs for brake/turn/tail, white reverse bars, side markers and a left-side license plate light in a weather-sealed housing.

If you drive a vintage Jeep Wrangler or CJ from the late 1970s through 2006 and want improved visibility with a modern smoked look, these plug-and-play LED rear lights are built for that upgrade. They pair red LEDs for tail/stop/turn, white bars for backup, and integrated side-marker illumination in an ABS housing with a PMMA lens. Installation requires splicing the factory pigtail to the new assemblies but no custom mounting modifications.

How do these tail lights improve visibility and signaling?

The CMVT Auto assemblies use multiple high-intensity LEDs positioned for clear brake, turn and tail indication, plus a white LED reverse bar for backup illumination. The concentrated LED arrays light faster and stay brighter than many incandescent replacements, enhancing recognition by other drivers.

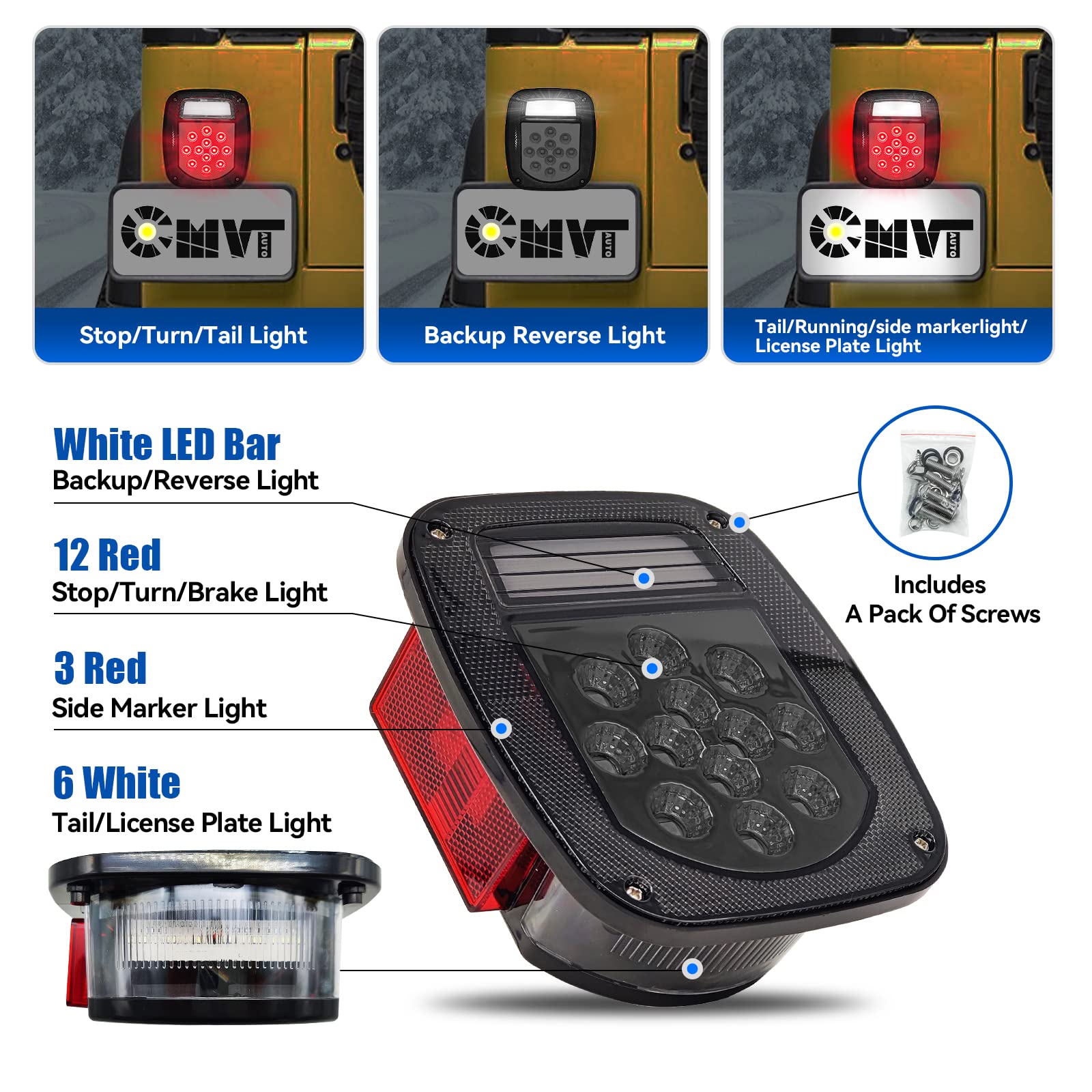

• 12 red LEDs for combined tail/turn/stop functions
• White LED bar specifically for reverse lighting
• 3 red LEDs dedicated to side marker function
• 6 white LEDs illuminate the license plate (left side only)

Will these fit my Jeep and how hard is installation?

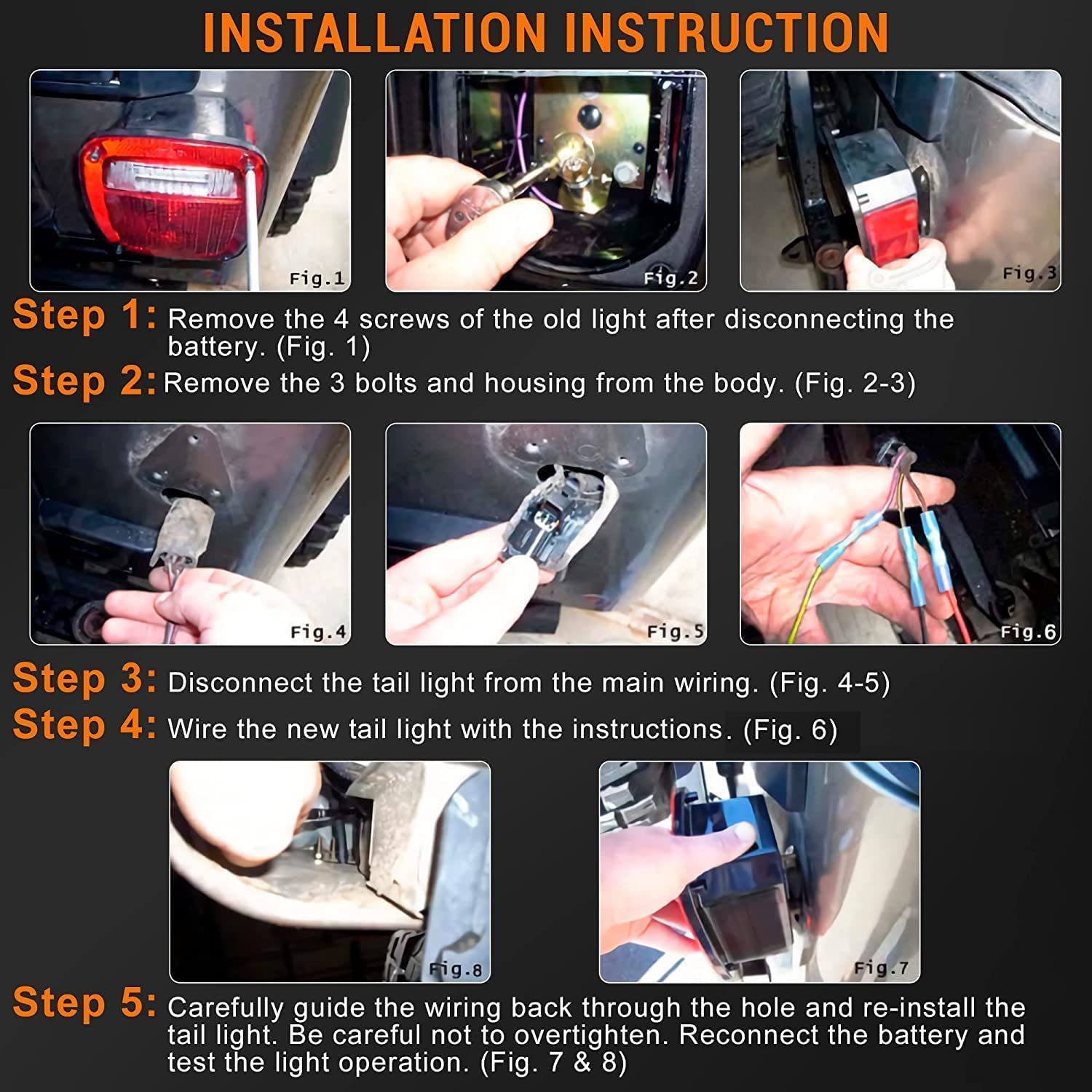

These lights are made as a direct fit for CJ5 (1976–1983), CJ7 (1976–1986), CJ8 (1981–1985), Wrangler YJ (1987–1995) and Wrangler TJ (1997–2006). They bolt into the stock tail light locations, but you will splice the vehicle’s original tail lamp pigtail to the new assembly wires to complete the electrical connection.

• Direct fit for listed CJ, YJ and TJ model years
• Bolt-in physical replacement—no cutting of body panels
• Requires splicing of stock tail lamp pigtail to new wires
• Lens removable for access or maintenance

What wiring and polarity details should I know before installing?

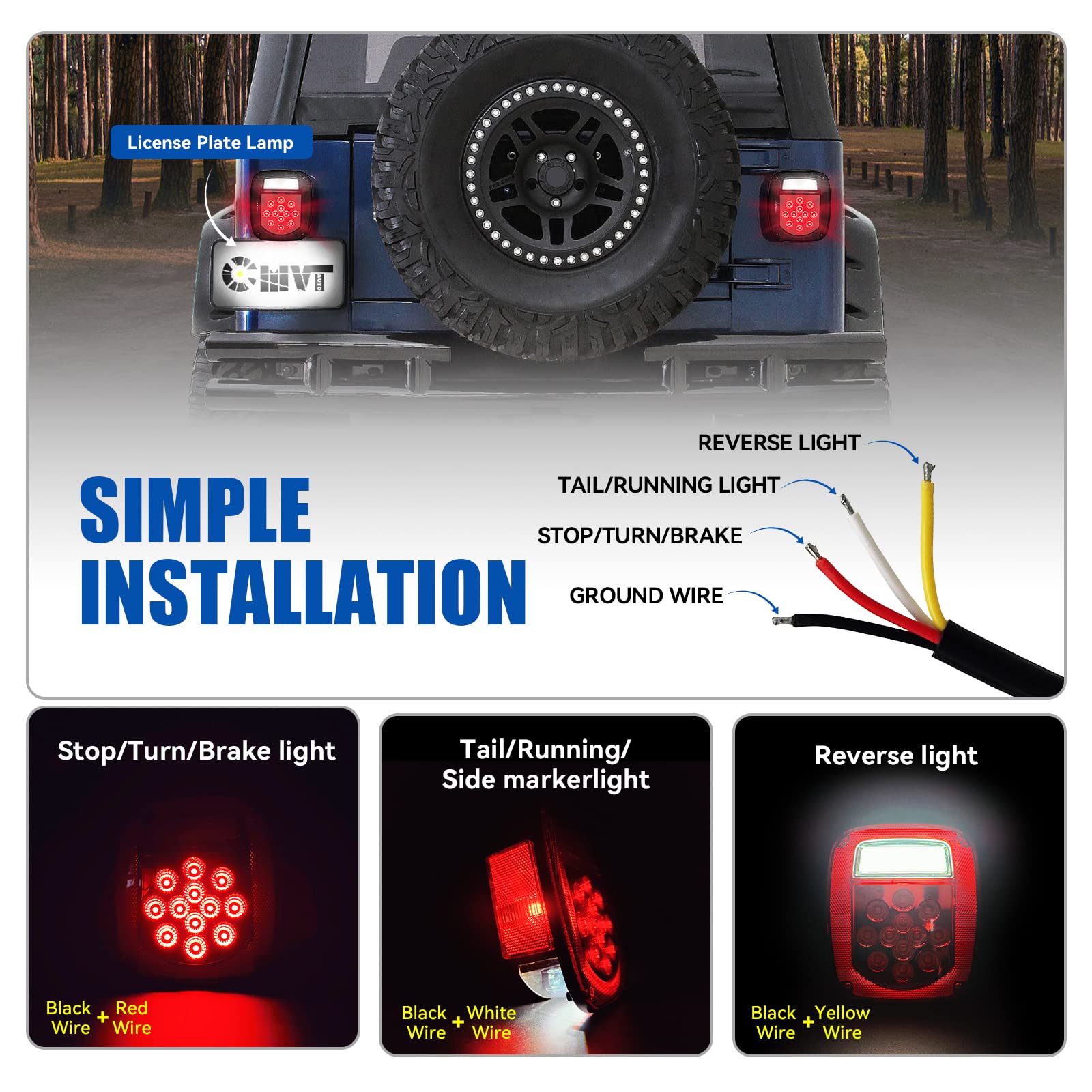

CMVT Auto provides a straightforward wire color map so you can splice correctly: black is ground, red runs turn/stop/brake, white controls tail/running/side marker and plate light, and yellow powers the reverse LED bar. Confirm connections and test functions before sealing splices to avoid troubleshooting after installation.

• Black = Ground
• Red = Turn/Stop/Brake
• White = Tail/Running/Side Marker/License Plate (left only)
• Yellow = Reverse LED bar

Are these lights durable and weather resistant for off-road use?

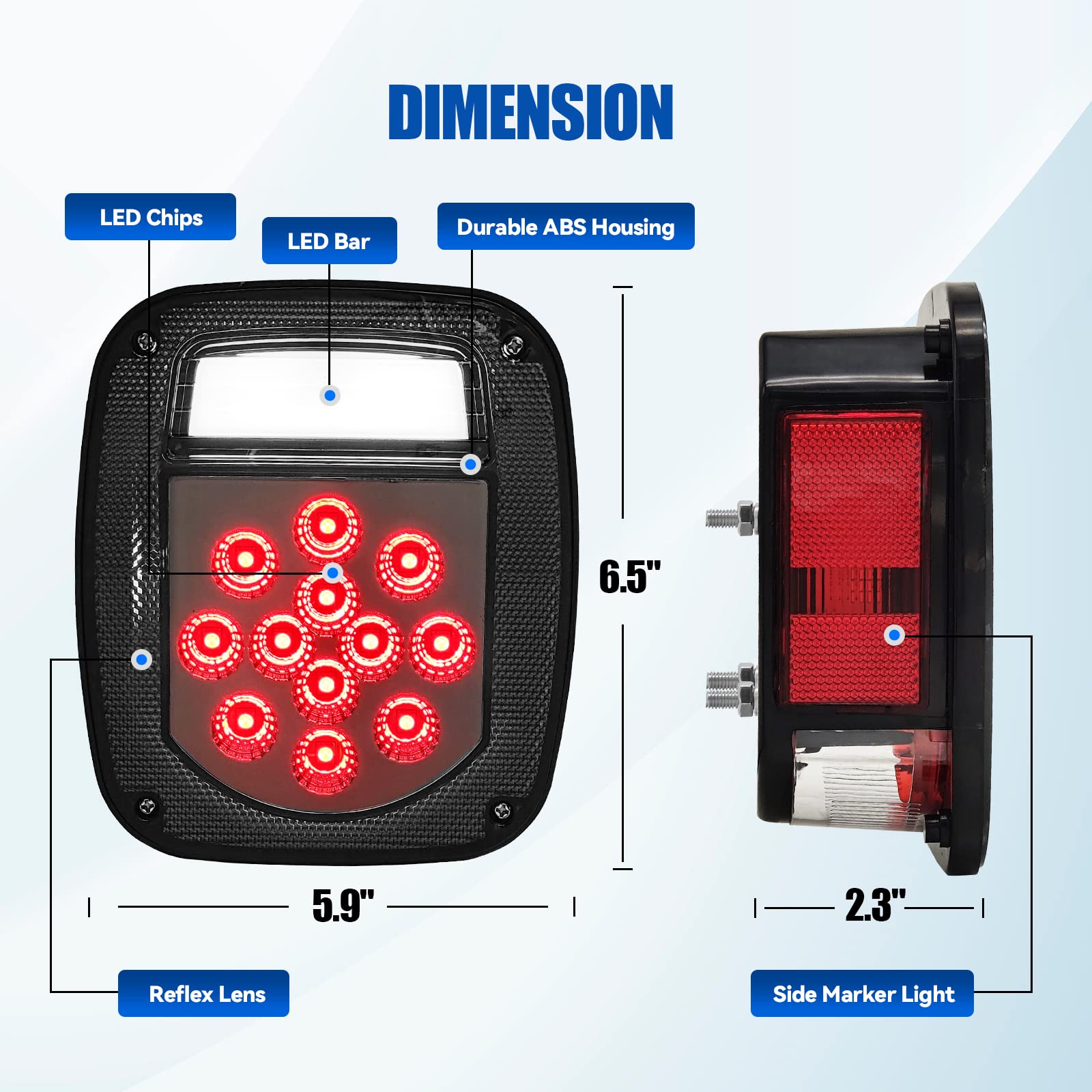

The housings use ABS construction and a PMMA lens chosen for UV resistance and clarity, providing protection against moisture, shock and vibration encountered on and off the trail. Weather sealing helps keep the LEDs and circuitry protected, but proper sealing of spliced wires is still recommended for long-term reliability.

• ABS housing for impact and vibration resistance
• PMMA lens with UV resistance and clear light transmission
• Weather-sealed assembly to limit moisture ingress
• Lifetime technical support plus a one-year warranty

Who is this for? These LED tail lights are designed for owners of older Jeep CJ, YJ and TJ models who want a smoked, updated rear lighting package that improves visibility and modernizes appearance without modifying the vehicle’s body. They suit weekend trail rigs, daily drivers seeking reliability, and restoration projects that accept minor wiring splices to retain original mounting points.
