CURT 2" Class 3 Ball Mount 45050 — 2x2 Shank, 4" Drop/2" Rise, 7,500 lb GTW

The CURT Class 3 Ball Mount 45050 is a heavy-duty 2" x 2" hitch accessory rated for 7,500 lb gross trailer weight and 750 lb tongue weight, offering a 4" drop and 2" rise with a durable black powder coat finish.

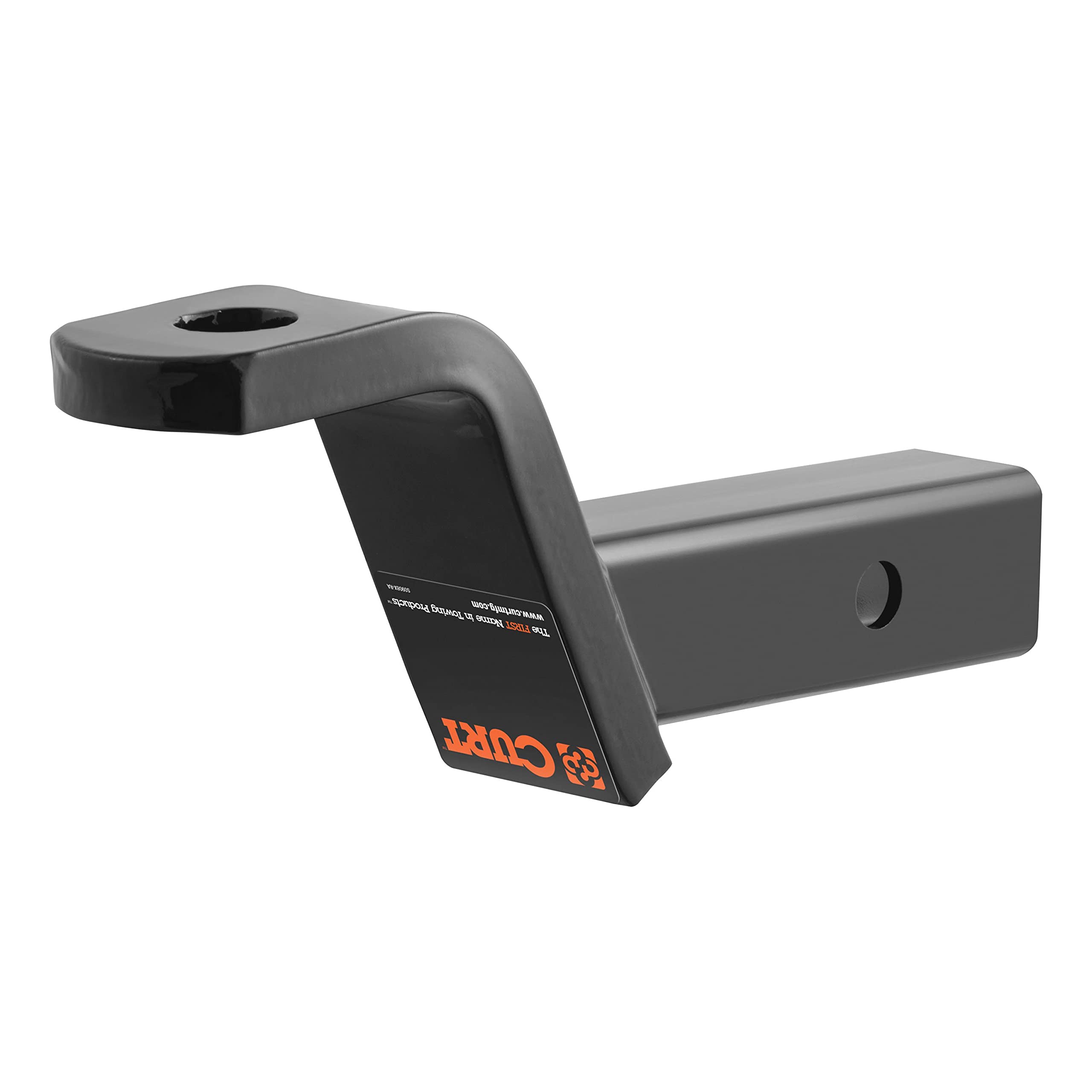

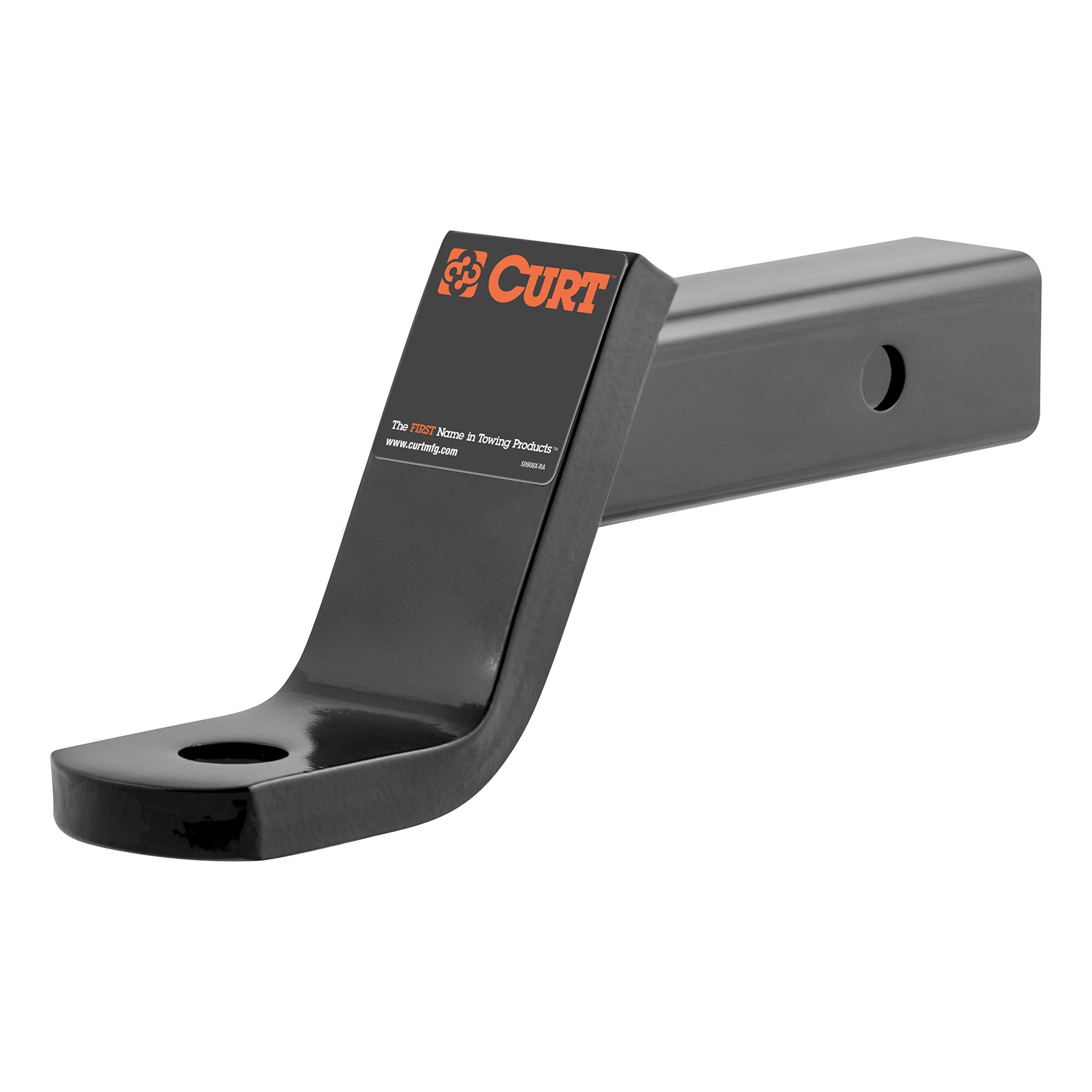

This ball mount is designed for trucks and SUVs equipped with standard 2" receivers that need a dependable, everyday towing solution. CNC-formed steel and robotic welding deliver consistent strength from unit to unit, while a gloss black powder coat resists corrosion, scratches, and UV exposure. The 8-1/4" length and rounded shank make installation straightforward, and the 1" hitch ball hole accepts most 1" shank trailer balls (sold separately).

How much weight can this CURT ball mount safely tow?

The 45050 ball mount is rated for a maximum gross trailer weight (GTW) of 7,500 pounds and a tongue weight (TW) of 750 pounds. These numbers represent the physical limits of the ball mount itself; never exceed the lowest rated component in your towing setup (vehicle, hitch, ball, or trailer).

• Gross trailer weight capacity: 7,500 lb
• Maximum tongue weight: 750 lb
• Follow the lowest-rated component rule to ensure safe towing

Will this ball mount fit my vehicle and trailer setup?

This ball mount has a standard 2" x 2" shank that fits most Class 3 receivers on pickup trucks and many SUVs. The 1" diameter hitch ball hole fits typical 1" shank trailer balls, and the 4" drop or 2" rise helps achieve a level trailer connection for common trailer types.

• Shank size: 2" x 2" (fits standard 2" receiver)

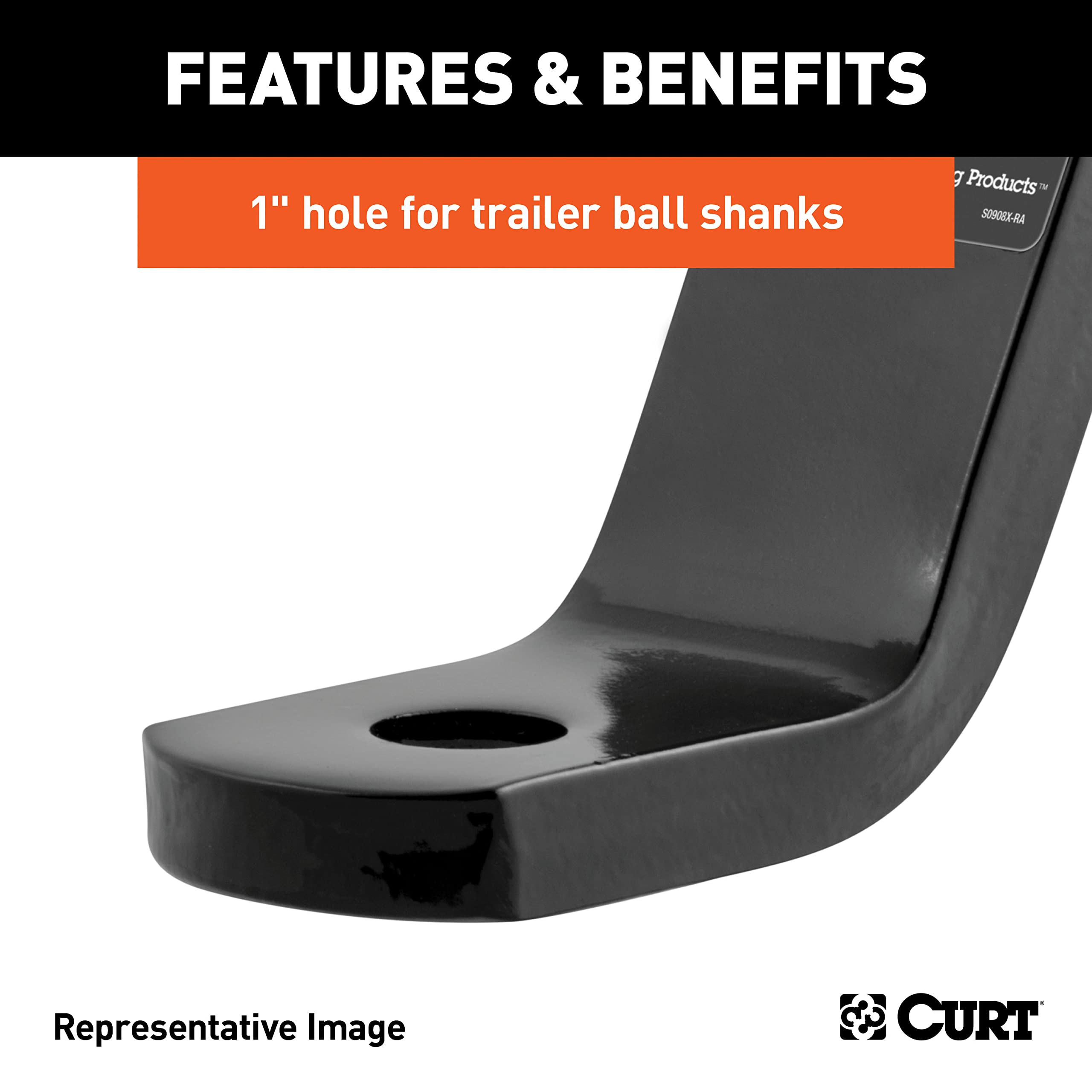

• Ball hole: 1" diameter (trailer ball sold separately)

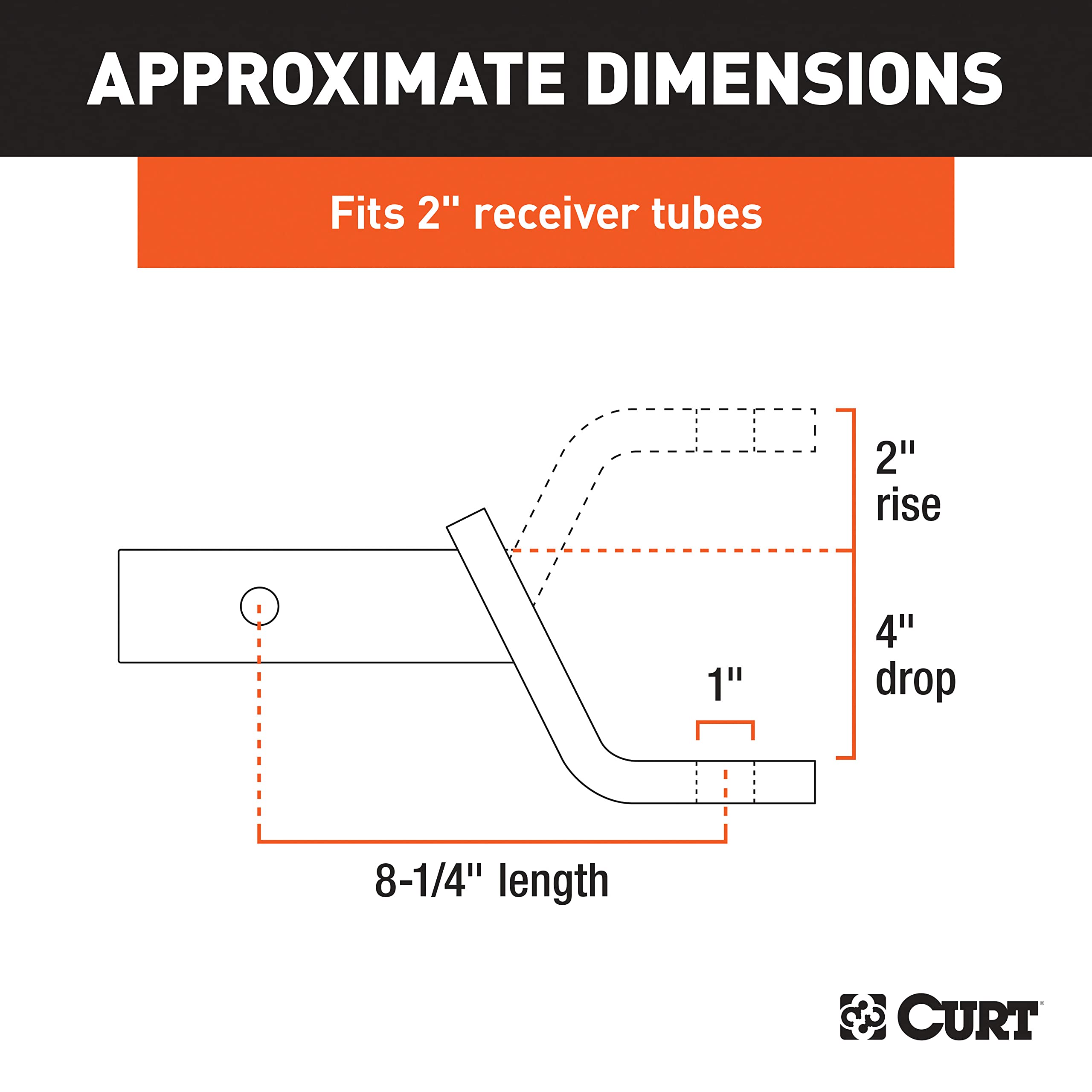

• Drop/rise options: 4" drop or 2" rise for leveling trailers

What materials and finish protect the ball mount from wear?

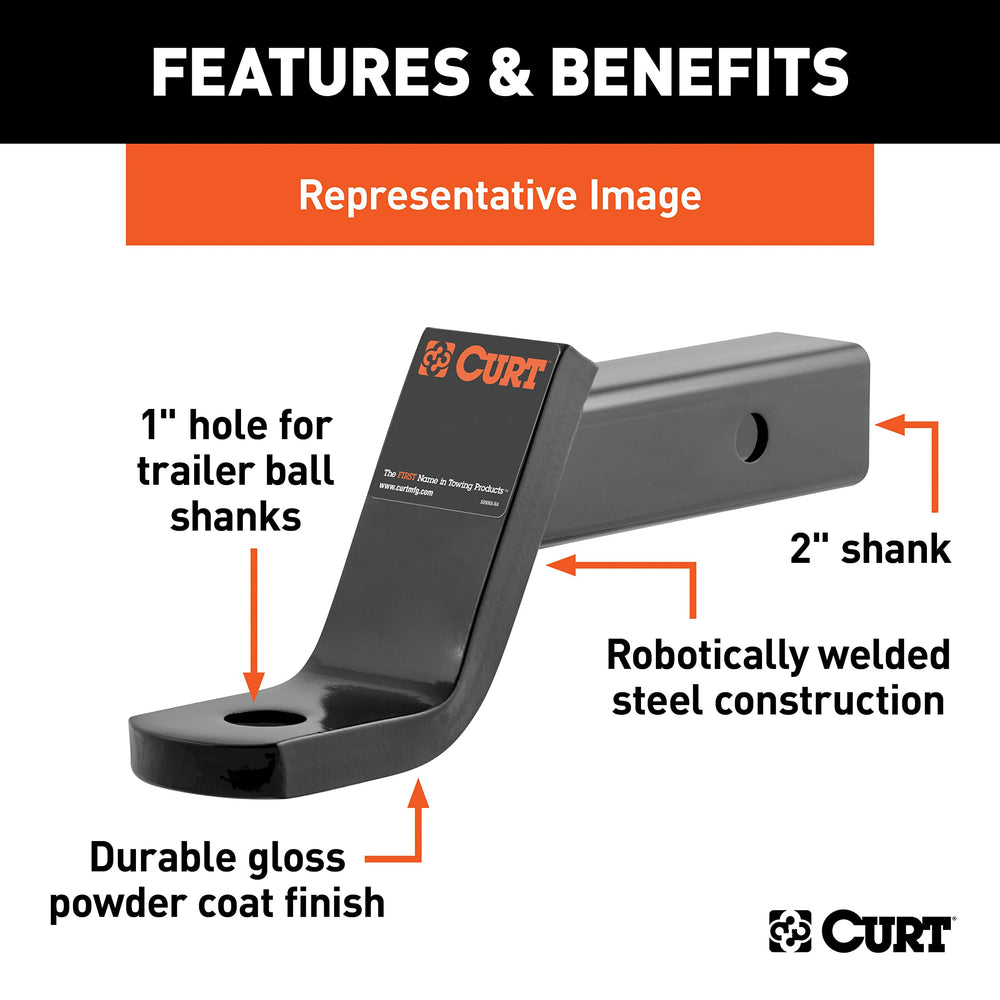

The CURT 45050 is made from high-strength steel and manufactured with CNC forming and robotic welding for consistent durability. A mechanically descaled surface receives a gloss black powder coat that defends against rust, road grime, and UV-related fading.

• Construction: high-strength steel with CNC forming
• Welds: robotic welding for uniform strength
• Finish: gloss black powder coat for corrosion resistance

How easy is it to install and use the 45050 ball mount?

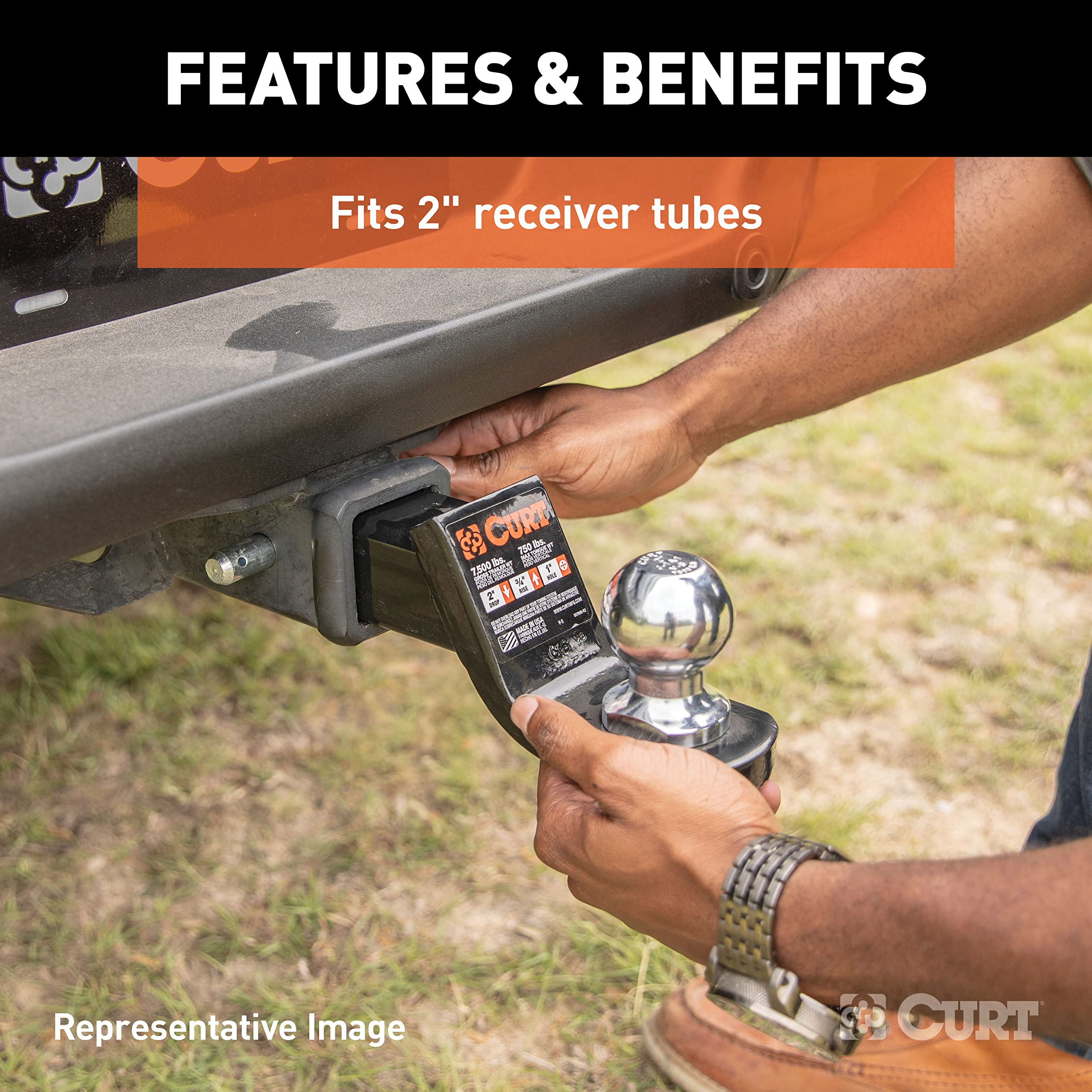

Installation is straightforward: slide the 2" shank into your vehicle's receiver and secure it with a hitch pin or locking hitch pin (sold separately). The rounded shank profile makes insertion and alignment easier, and the single 1" ball hole keeps hitching simple.

• Length overall: 8-1/4" for common clearance and leverage
• Mounting hole: accepts standard 1" trailer balls
• Securing method: hitch pin or locking pin (not included)

Who this product is for: The CURT Class 3 Ball Mount 45050 suits pickup truck and SUV owners who tow medium-to-large trailers such as utility trailers, boat trailers, campers, and many RV trailers. If you have a 2" receiver and need a reliable, corrosion-resistant ball mount rated for up to 7,500 lb GTW and 750 lb TW, this model offers a balanced combination of strength, fit, and everyday usability. Remember to match the mount's capacities with your vehicle, hitch, ball, and trailer ratings to maintain safe towing limits.
