CURT Trailer Hitch Ball 1-7/8" Chrome — 2,000 lb Capacity, 3/4" Shank

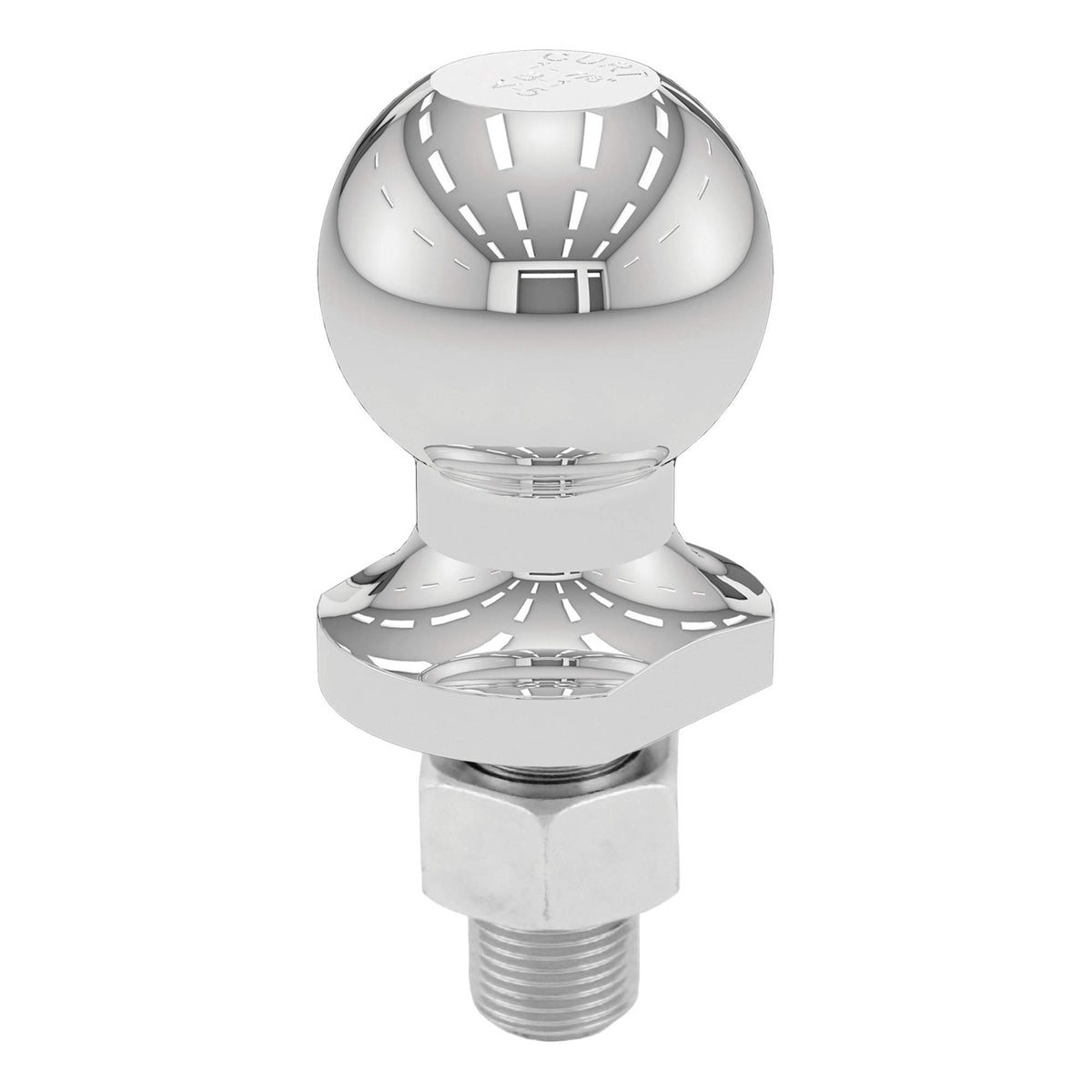

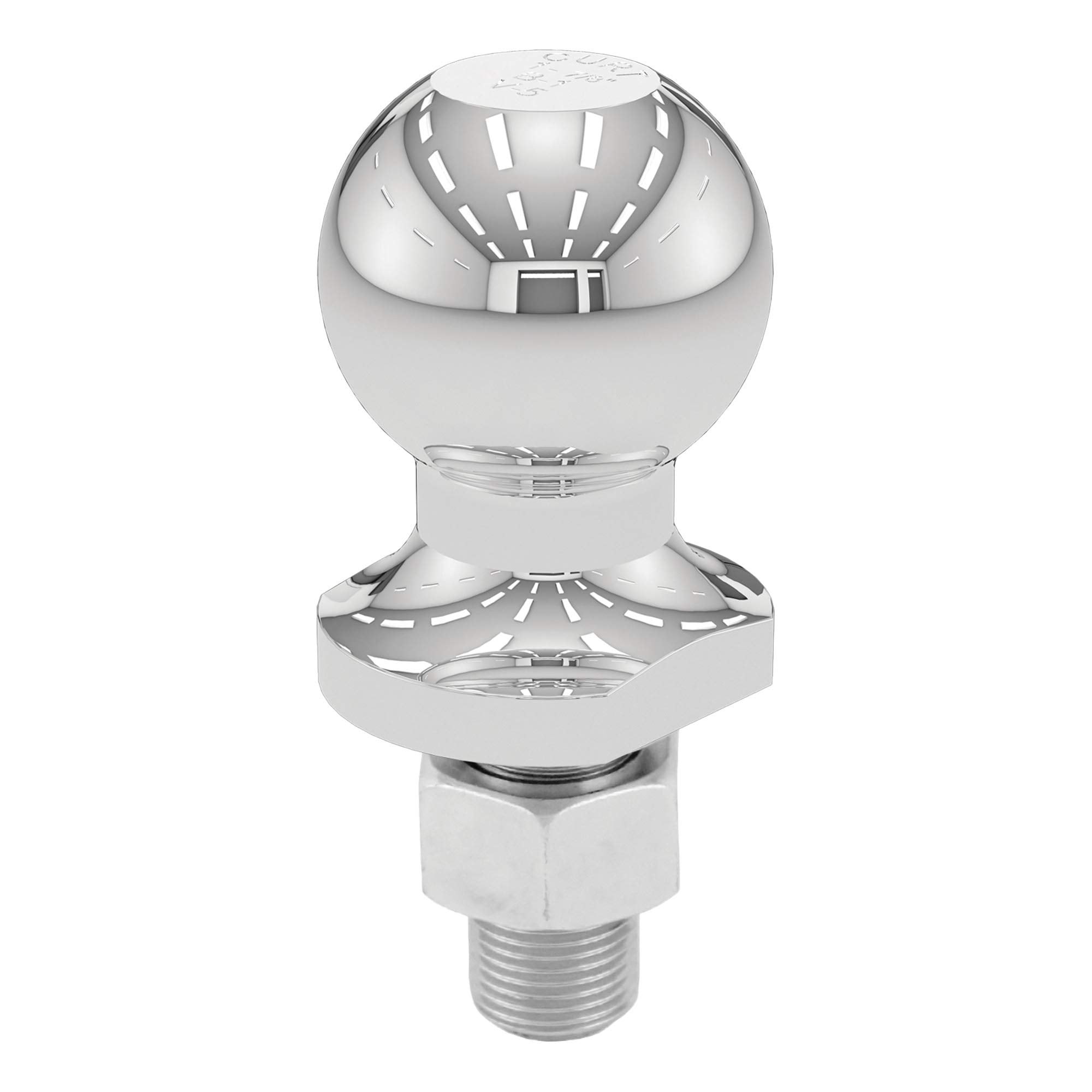

CURT 40001 is a 1-7/8-inch chrome trailer hitch ball built from hot-forged steel and rated to tow up to 2,000 pounds when installed with compatible towing components.

This compact tow ball is designed to pair with class 1 and class 2 hitch assemblies and standard 1-7/8" couplers. CURT machines the ball diameter to exact tolerances so a stamped 1-7/8" corresponds to the real contact surface, and the nickel-chrome finish helps resist corrosion and road wear. The shank uses fine threads and includes a zinc-plated hex nut and helical lock washer for a secure, long-lasting connection to a ball mount.

Will this hitch ball fit my trailer coupler?

The CURT 40001 is sized specifically for 1-7/8" couplers; check the stamped size on your trailer coupler or measure the inside of the coupler throat. Ensure your ball mount accepts a 3/4" shank and that the 1-5/8" shank length provides enough thread engagement with the mount.

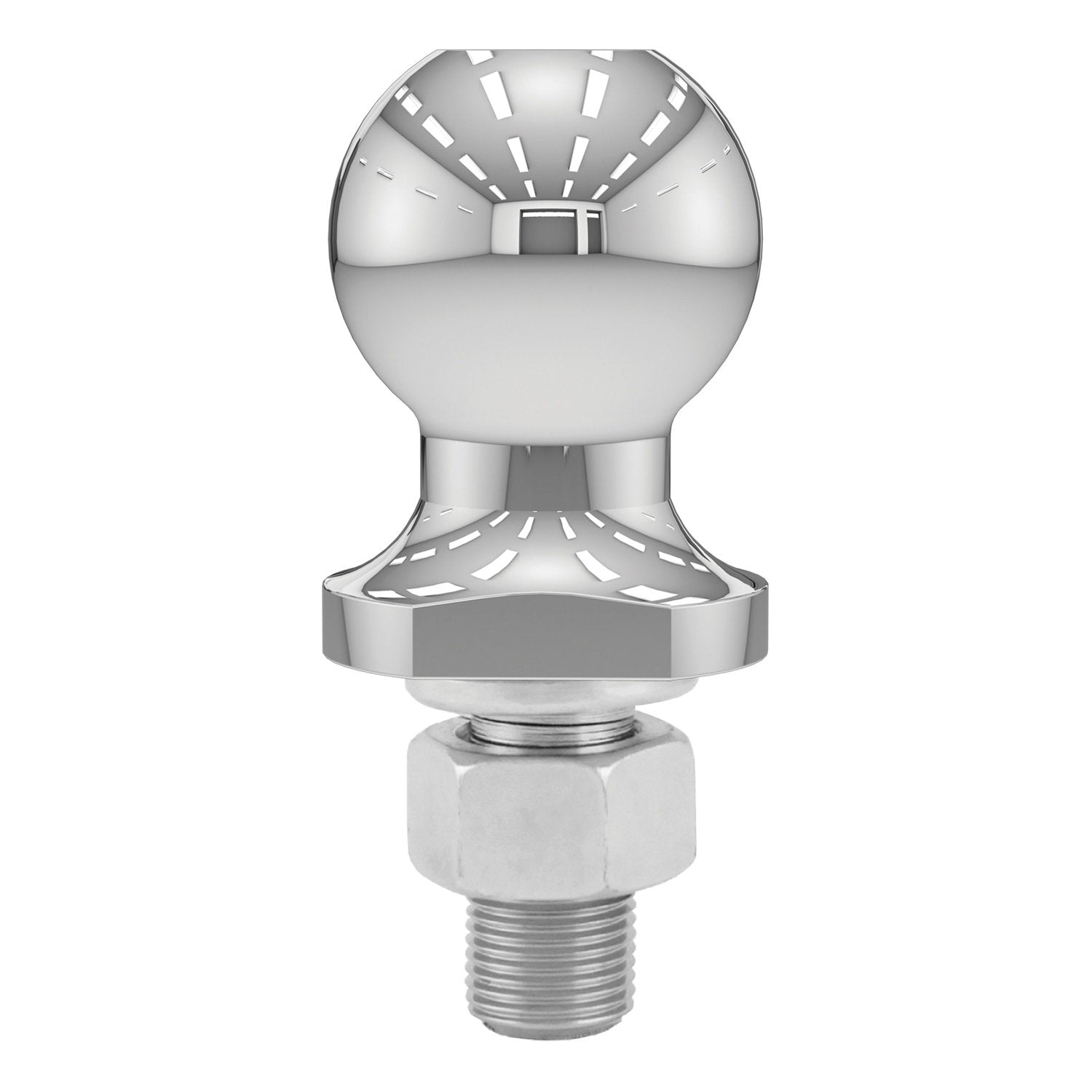

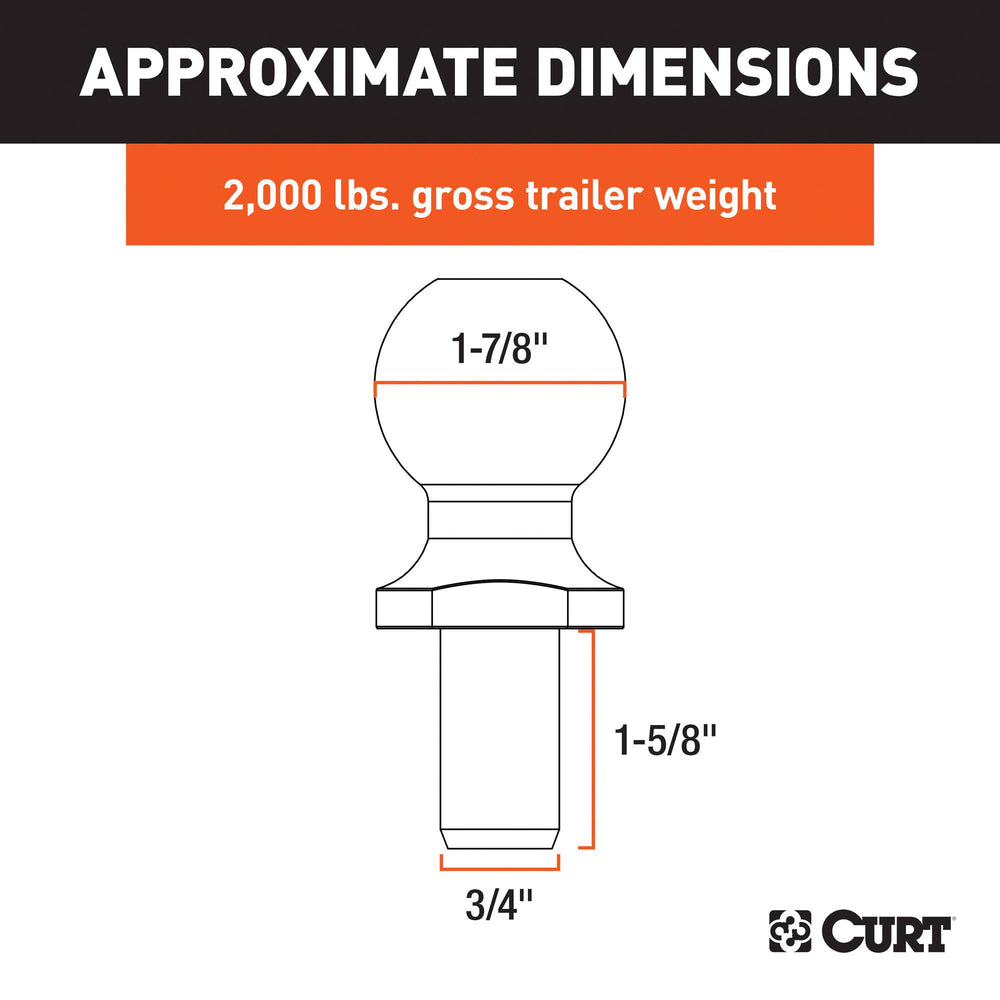

• Ball diameter: 1-7/8" — matches most 1-7/8" couplers.
• Shank diameter: 3/4" — fits mounts drilled for 3/4" shanks.
• Shank length: 1-5/8" — secure thread engagement with included hardware.

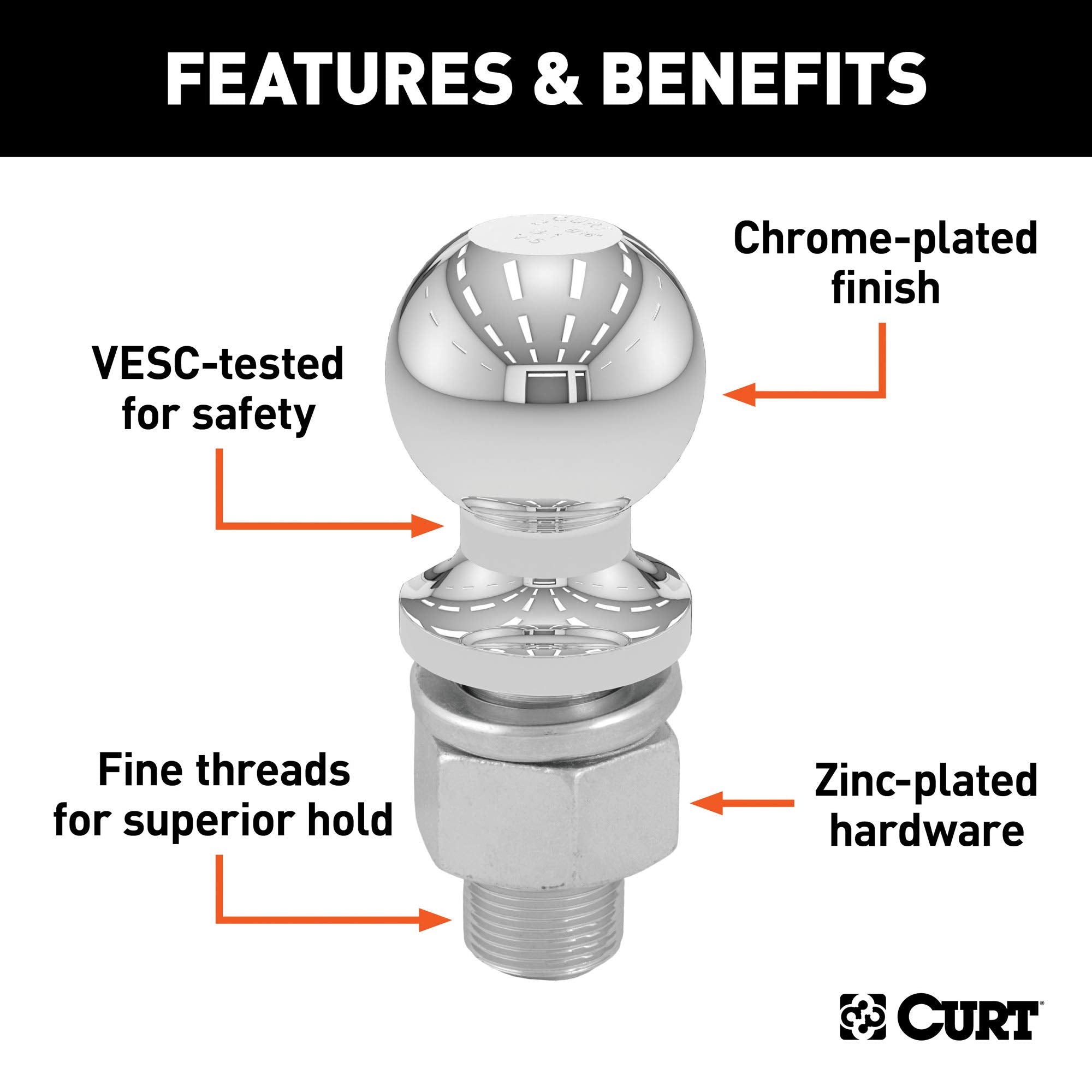

• Fine threads and hex nut — improved holding strength.

How much weight can I tow with this ball?

This CURT tow ball is rated for a gross trailer weight (GTW) of 2,000 pounds. Always confirm the lowest rated component in your towing setup — vehicle, hitch, coupler and ball — and never exceed that weakest link when loading.

• Rated capacity: 2,000 lb GTW.
• Designed for utility trailers, small campers, boat trailers and similar loads within rating.
• Follow vehicle and hitch manufacturer weight limits for safe towing.
• Tested to U.S. VESC specifications for consistent performance.

What protects the ball from rust and wear?

The CURT 40001 features a nickel-chrome plating that shields the steel core from moisture, dirt and abrasion common in towing conditions. Regular inspection and basic maintenance extend service life and preserve the protective finish.

• Nickel-chrome finish resists corrosion and surface wear.
• Hot-forged steel core for structural durability under load.
• Wipe clean and lightly lubricate contact surfaces as needed.
• Replace if deep pitting or deformation is observed.

How do I install and secure the hitch ball?

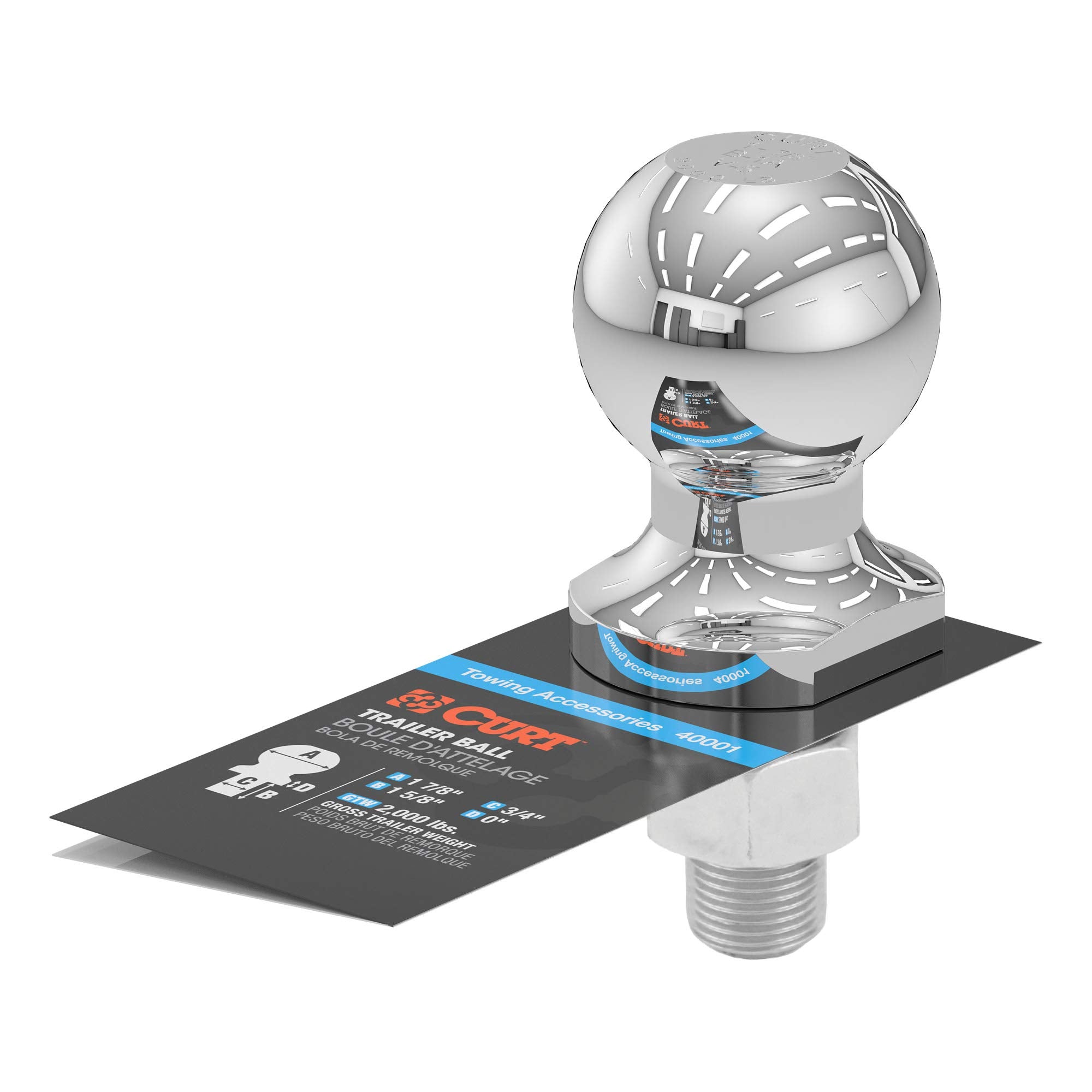

Installation requires sliding the shank through the ball mount hole, then fastening with the supplied hex nut and helical lock washer. Torque to the manufacturer-specified value to achieve proper clamping force and prevent loosening during use.

• Insert 3/4" shank through mount hole; ensure flat seating on mount surface.
• Use supplied zinc-plated hex nut and helical lock washer for secure hold.
• Tighten to recommended torque (160 lb-ft) for full engagement.
• Recheck torque and condition before each towing trip.

Who is this for? The CURT 40001 1-7/8" trailer hitch ball is ideal for vehicle owners who tow light loads such as small utility trailers, compact campers, or personal watercraft trailers and who need a precisely sized, corrosion-resistant ball with dependable hardware. It's a practical, engineered choice for DIY installers, fleet maintainers, and anyone wanting a reliable, road-ready hitch ball that meets U.S. VESC testing standards.
