DAIERTEK 12V 10-Way Relay Box — Pre-Wired Dustproof Relay & Fuse Panel

DaierTek Relay Box is a fully pre-wired 12V relay and blade-fuse panel that combines ten relay-controlled circuits with ten ATC/ATO fuse positions in a dustproof housing for tidy, safer automotive and marine installations.

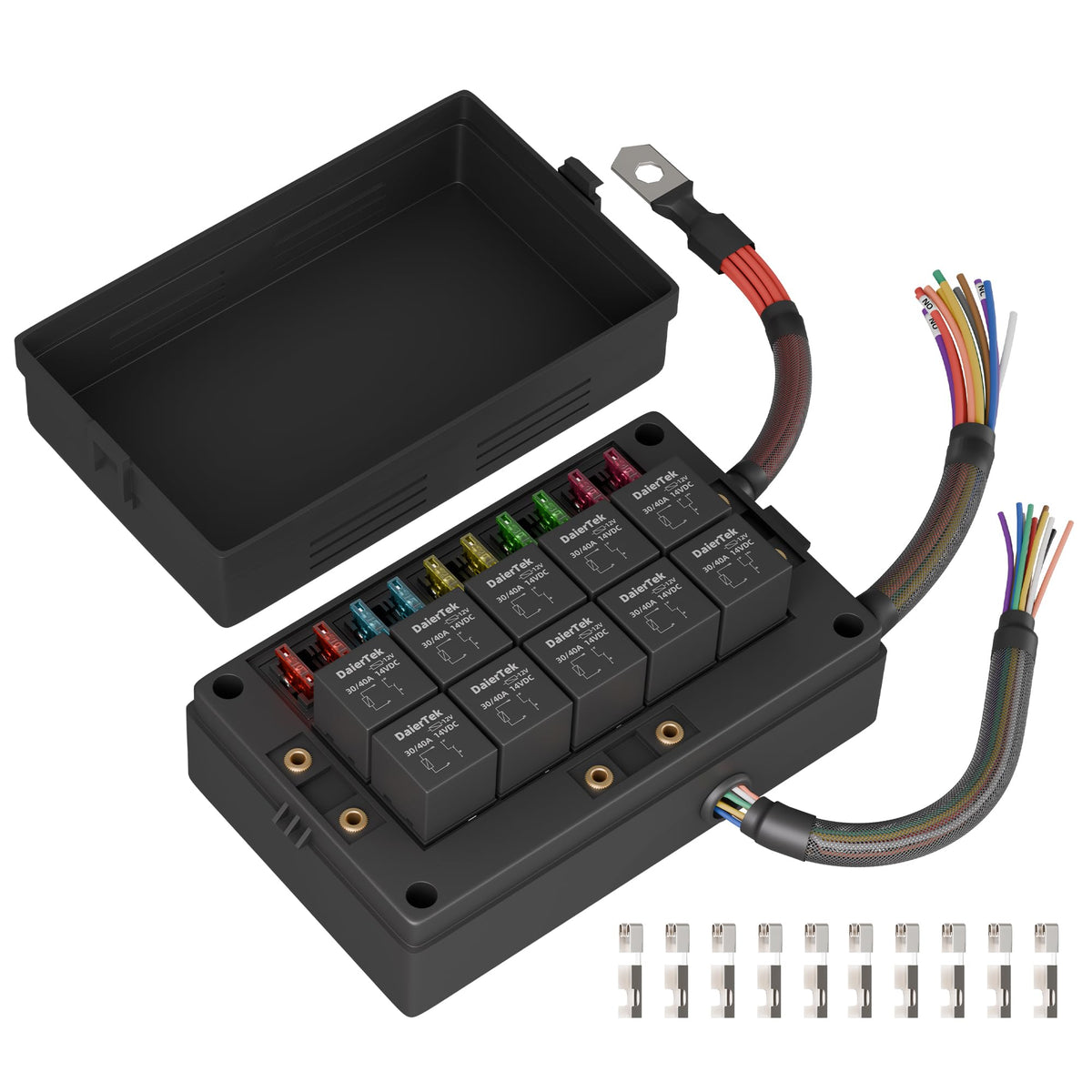

This compact relay and fuse assembly is made to simplify wiring on cars, trucks, boats and other 12V systems. It brings relays and blade fuses together into one organized module so multiple accessories can be powered and protected from a single, color-coded wiring hub. The top and bottom covers keep dust and stray wires away from terminals while the mix of 4-pin and 5-pin relays lets you handle both simple on/off loads and circuits that require a switched ground or multiple contacts.

How does this relay box simplify vehicle wiring?

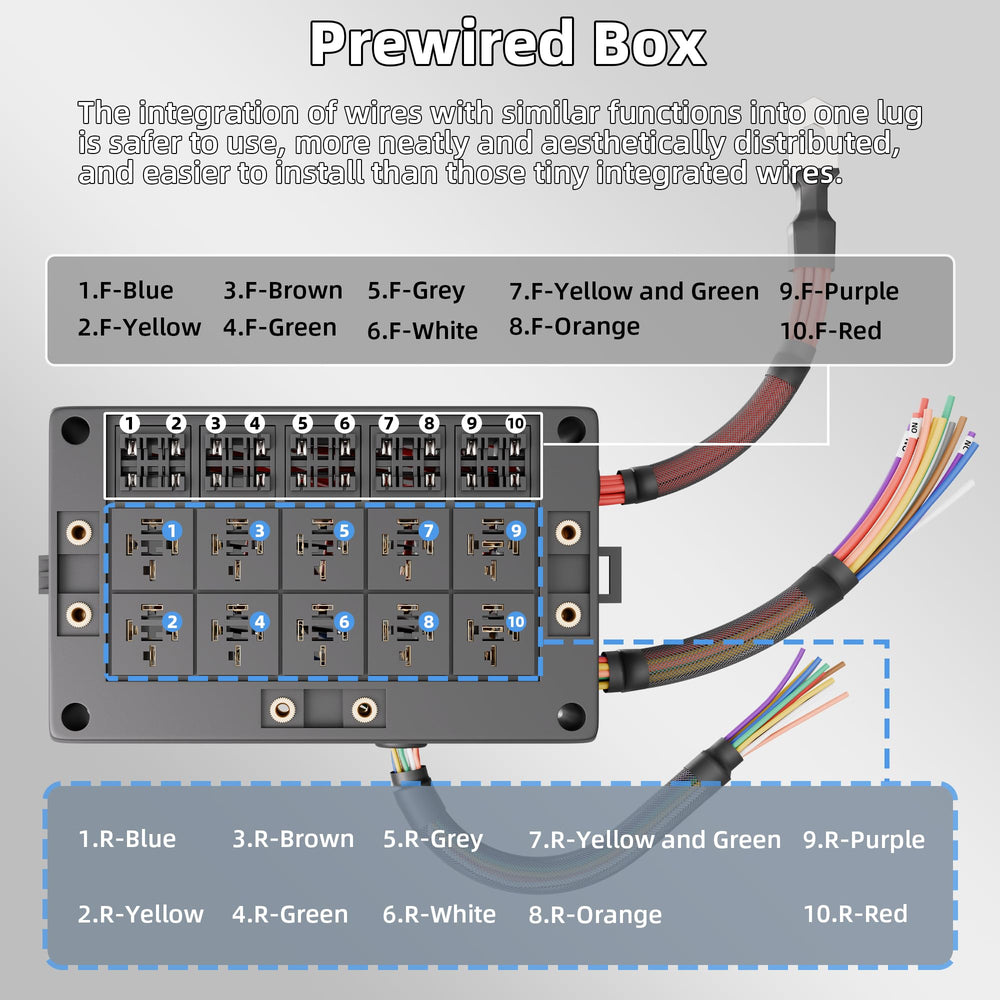

The DaierTek panel arrives pre-wired and color-coded to reduce installation time and wiring errors. You won’t need to build a relay panel from scratch; instead you mount the box, connect power and grounds, and route accessory leads to the labelled fuse slots. This is especially useful for retrofits, custom installs, or adding several accessories at once.

• Pre-wired relays with color-coded leads for quick identification.
• 12 AWG high-power wiring on the main feed for stronger current capacity.
• Integrated fuse slots aligned with each relay-controlled circuit.
• Mounting points and compact footprint for neat installations.

What protection does the unit provide for electrical accessories?

The design uses both fuses and relays to protect circuits from overload and to control high-current loads safely. Each accessory circuit has a dedicated ATC/ATO blade fuse and many circuits are relay-switched to isolate switches from heavy currents. This dual-layer arrangement reduces strain on control switches and protects wiring and devices from excessive current.

• Ten ATC/ATO blade fuses supplied for individual circuit protection.
• Ten relay slots combining 4-pin and 5-pin relays for varied switching needs.
• Dustproof covers that prevent dust and accidental wire contact with terminals.
• Appropriate terminals for additional, non-relay fuse uses.

Which relays and fuses are included, and how are they arranged?

The kit contains 15 blade-fuse positions overall, with 10 intended for direct relay association, and a mix of ten pre-wired relays: eight 4-pin and two 5-pin. Color-coded relays and matched fuse slots make it straightforward to map accessory functions and replace fuses without tracing wires.

• 10 relay positions: eight 4-pin relays and two 5-pin relays for flexible circuit designs.
• 15 blade-fuse slots total; 10 come with matching fuse wiring for relays.
• Mixed terminal options to accommodate custom wiring needs.
• Relays provided in distinct colors for easier identification during setup.

Is this relay and fuse box suitable for marine and off-road use?

The enclosure includes top and bottom covers that reduce dust ingress and shield terminals from accidental contact, which helps in harsher environments. While built to tidy and protect wiring in cars, trucks and boats, always seal mounting points and cable entries per your environment and follow appropriate corrosion-resistant practices for marine installations.

• Dustproof top and bottom covers to protect terminals in dusty or damp settings.
• Robust 12AWG feed wiring for reliable power delivery to heavy accessories.
• Compact, mountable housing for secure attachment in cabins or engine bays.
• Use recommended seals and corrosion protection for long-term marine service.

Who is this for: The DaierTek Relay Box is aimed at vehicle owners, installers and fabricators who want a faster, cleaner way to add multiple 12V accessories—such as lights, pumps, fans and audio amplifiers—without splicing together separate relays and fuse holders. It’s equally useful for hobbyists doing custom wiring, fleet maintenance technicians seeking consistent panels, and marine installers who need a compact, protected relay-fuse solution. If you plan to control several circuits from a single centralized module while keeping wiring organized and protected, this pre-wired DaierTek unit is a practical choice.
