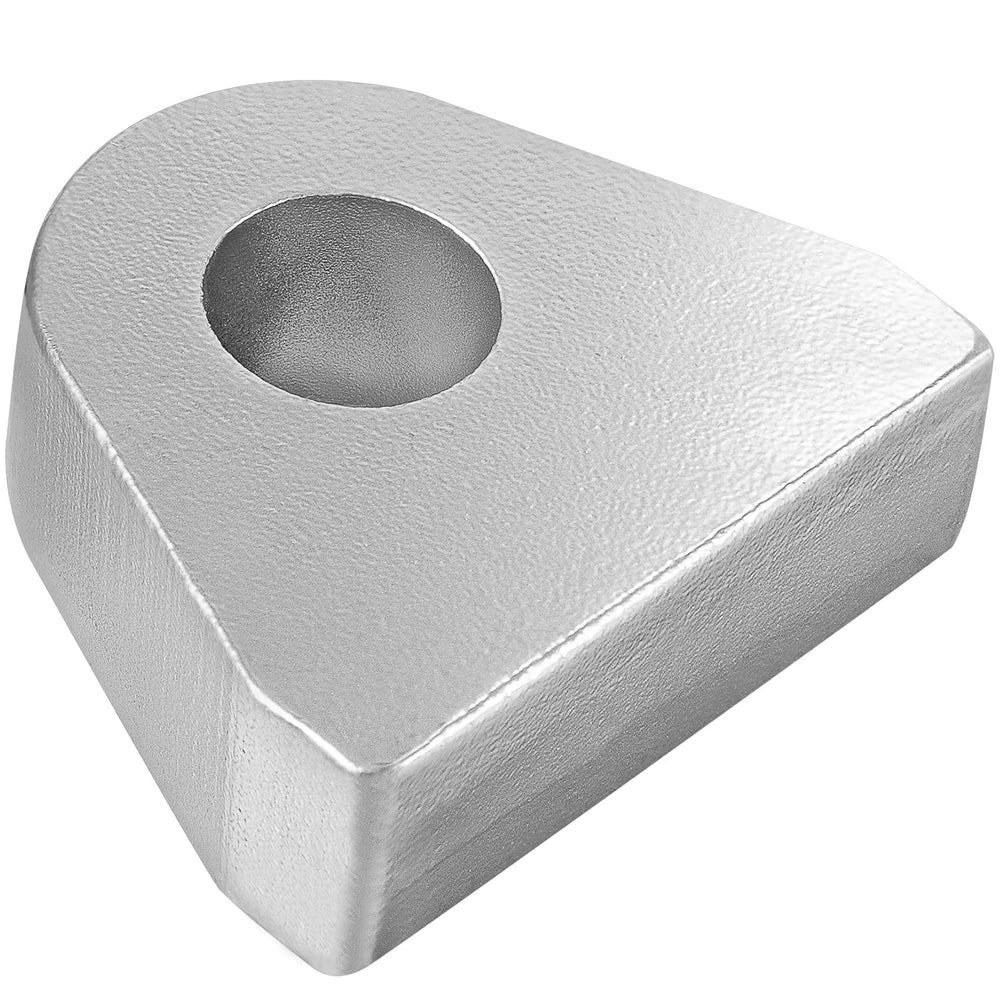

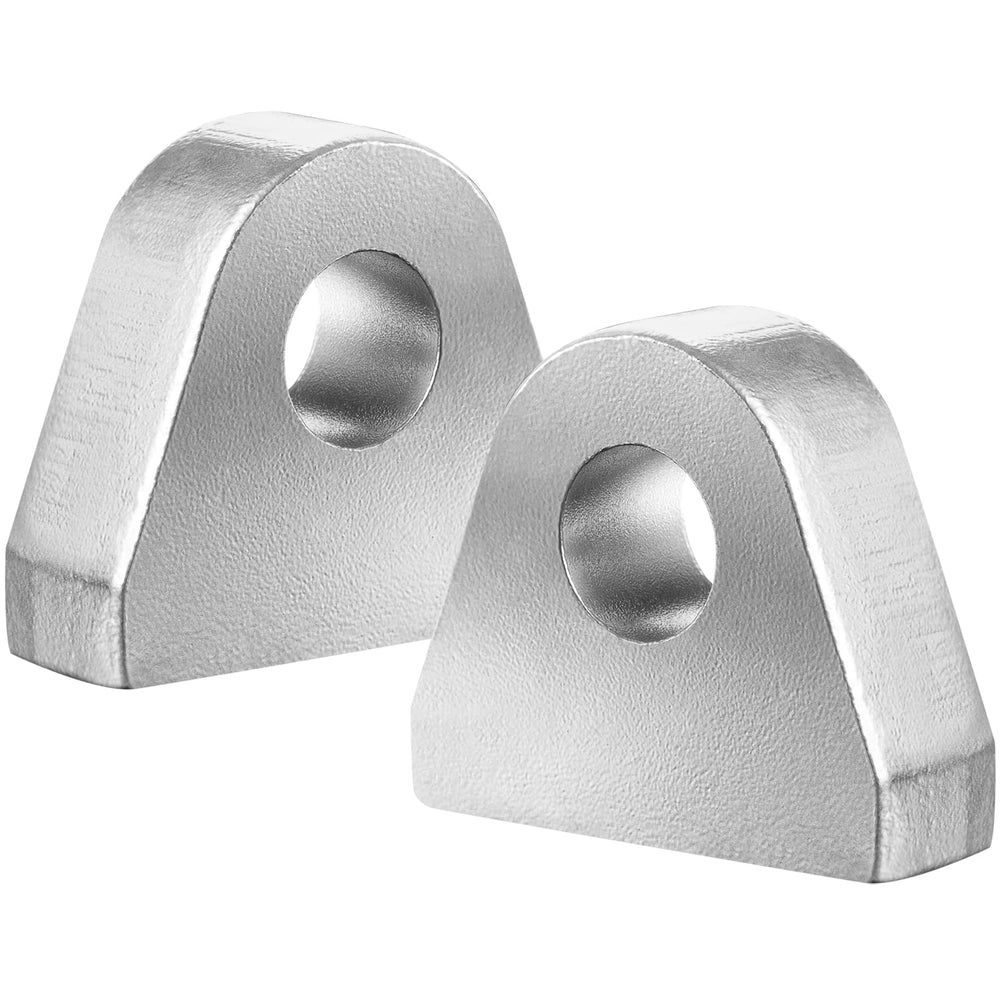

Danti Weld-On Shackle/Clevis Mounts — 1" Thick Pair, Heavy-Duty Steel & 0.90" Hole

Danti Weld-On Shackle/Clevis Mounts are a pair of 1" thick, heavy-duty steel brackets designed to be welded directly to frames or bumpers to create strong, reliable shackle attachment points. These weld-on clevis mounts offer a simple, robust solution for adding shackle recovery points to off-road vehicles, trailers, and work rigs. Manufactured from thick steel with a true round 0.90" connecting hole and beveled-base design, the mounts are built to resist wear, concentrate weld penetration, and give a solid anchor for D-rings, shackles, and tow hardware. They arrive sold in pairs to make installation on both sides of a frame straightforward.

How do these mounts improve recovery and towing reliability?

By providing a purpose-made weld-on attachment, these clevis mounts convert ordinary steel bumpers and frames into secure recovery points. The full-thickness 1" plate and reinforced bevels channel weld material for a deeper, stronger joint so the hardware stays put under load.

• True 0.90" round hole fits common shackle pins and D-rings.
• Beveled base increases weld surface and penetration.
• 1" thickness resists bending and deformation under stress.

What are the exact dimensions and fit considerations?

Each clevis mount measures 2.84" wide by 2.44" tall with a 1" plate thickness. The connecting aperture is a true round 0.90" diameter, suitable for standard recovery shackles; confirm pin diameter compatibility before ordering.

• Overall width: 2.84" — allows clearance for most D-ring widths.
• Overall height: 2.44" — compact profile for tight bumper areas.
• Plate thickness: 1" — heavy-gauge steel for structural strength.

How simple is installation, and what welding practices improve strength?

Installation requires welding the base directly to a clean, suitably thick substrate. Removing paint and rust, tacking in multiple spots, and running continuous fillet welds along the beveled edges ensures maximum fusion and load distribution.

• Clean surface of paint and corrosion before welding.
• Tack-weld then complete continuous welds along both beveled edges.
• Use appropriate welding method matching base metal (MIG/TIG stick as applicable).

Who is this for?

These Danti weld-on shackle/clevis mounts are aimed at vehicle owners, off-road enthusiasts, fabricators, and service shops needing dependable recovery points. If you rebuild bumpers, add towing hardware, or retrofit older frames for modern shackles, these heavy-duty, wear-resistant mounts provide a low-profile, long-lasting solution. They come as a pair to simplify mirror installations and are well suited for trucks, SUVs, trailers, and custom metalwork projects where a strong welded attachment is required.

FAQ

Q: Are these mounts compatible with standard bow shackles?

A: Yes. The mounts have a true 0.90" round hole that fits most standard shackle pins, but verify pin diameter before use.

Q: Can I weld these to thin-sheet bumpers?

A: They perform best on adequately thick steel. For thin-sheet bumpers, reinforce with backing plates before welding for safe load transfer.
