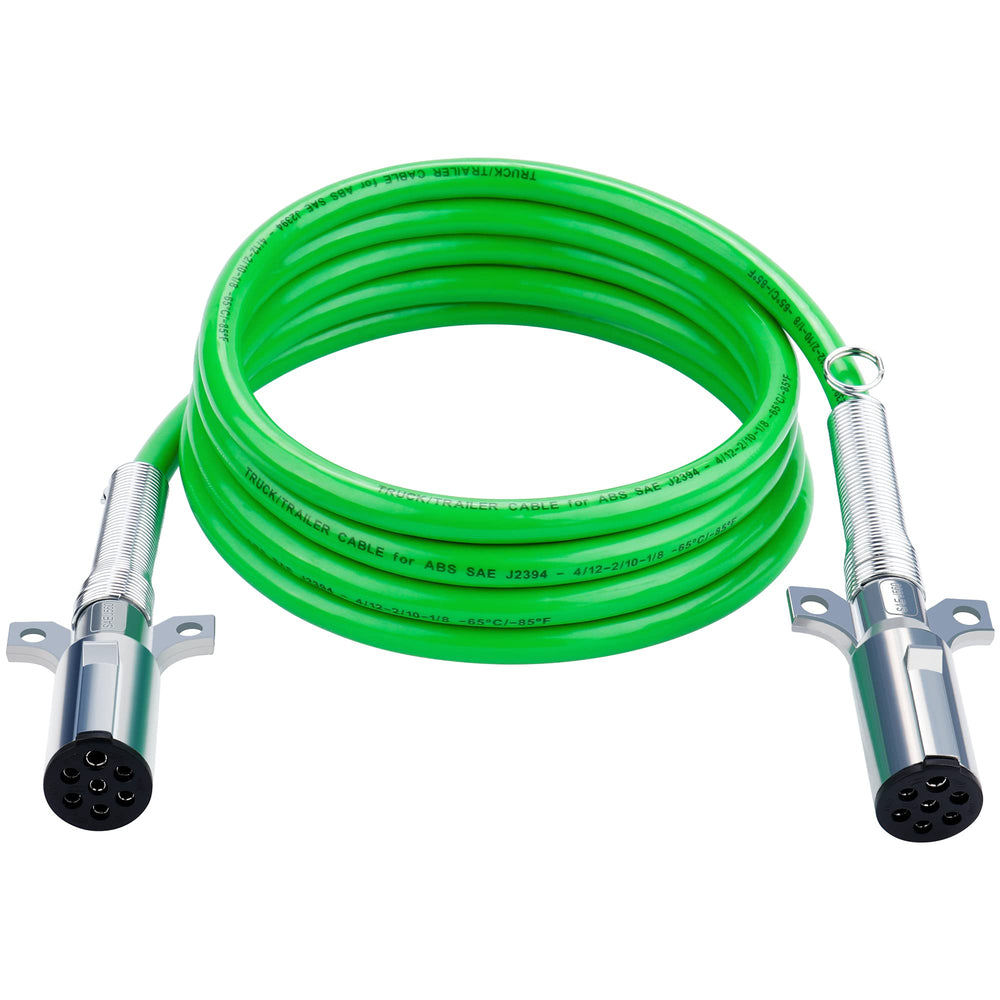

Dazakoot 12ft 7-Way Coiled Trailer Power Cord — Heavy-Duty SAE J560, Pure Copper

Dazakoot 12FT 7-way coiled electrical power cord is a heavy-duty trailer cable designed to reliably connect tractors and semi-trailers for lights, brakes and auxiliary power.

This coiled 12-foot cable delivers a compact, stretchable connection between a towing vehicle and its trailer while meeting SAE and DOT performance standards. Built with pure copper conductors and zinc die-cast SAE J560 plugs, the cord resists deformation and maintains consistent conductivity for lighting circuits, brake signals and auxiliary power on RVs, food trucks, caravans and commercial trailers.

How does the coiled design improve towing convenience?

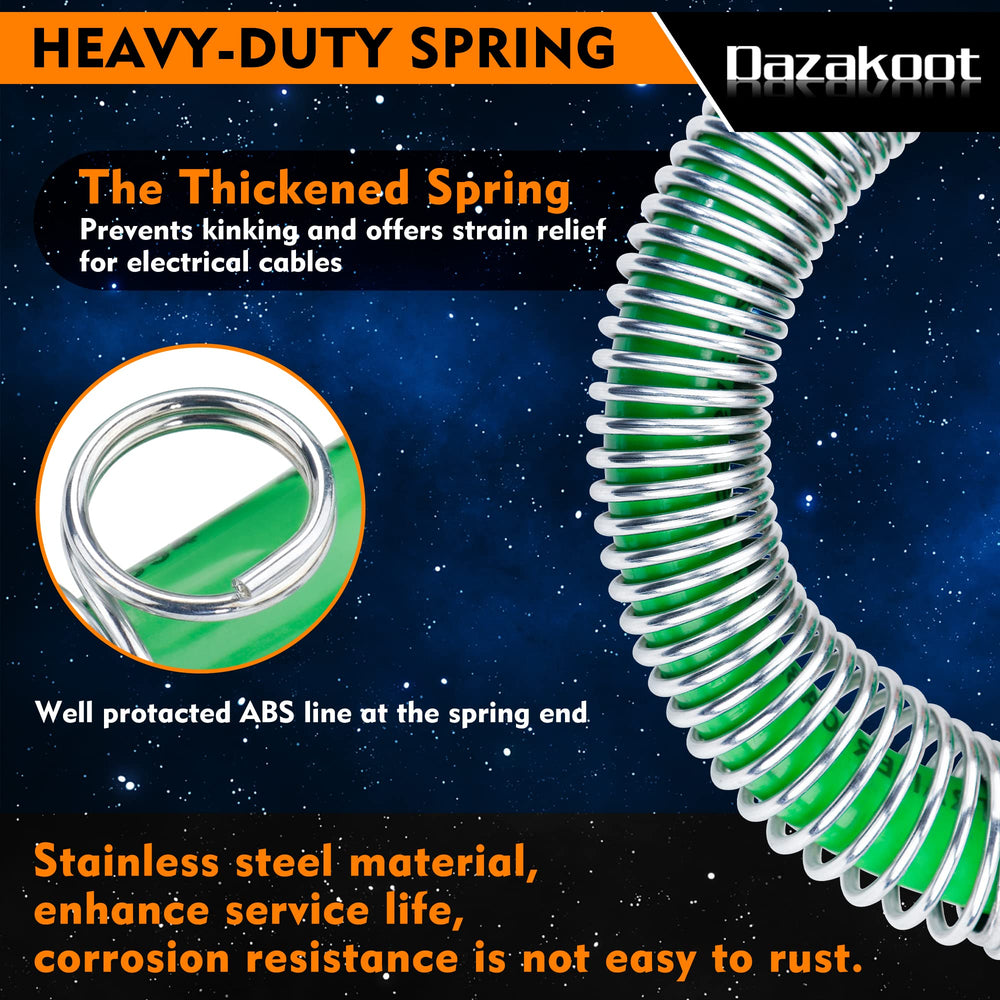

The coiled construction keeps the cable compact when not under tension and stretches smoothly when vehicles turn or separate slightly, reducing snagging and road debris contact. It minimizes slack dragging beneath the trailer and retracts to avoid tangles during storage.

• 12FT nominal length that extends as needed for safe cornering
• Elastic coil reduces ground contact and abrasion
• Compact storage profile for easy mounting near the coupler
• Durable jacket resists UV and road chemicals

What electrical standards and materials ensure safe, steady performance?

This cable incorporates high-purity copper conductors for superior electrical and thermal conductivity and uses SAE J560-spec zinc die plugs for reliable mating and durability. It meets DOT requirements for ABS and multi-conductor trailer cables, providing consistent signal delivery for turn signals, brake lights and reverse circuits.

• Pure copper wiring for reduced resistance and heat build-up
• SAE J560 compliant plugs for industry-standard compatibility
• DOT-tested ABS cable ratings for temperature and mechanical stress
• Reinforced terminations to prevent rupture under load

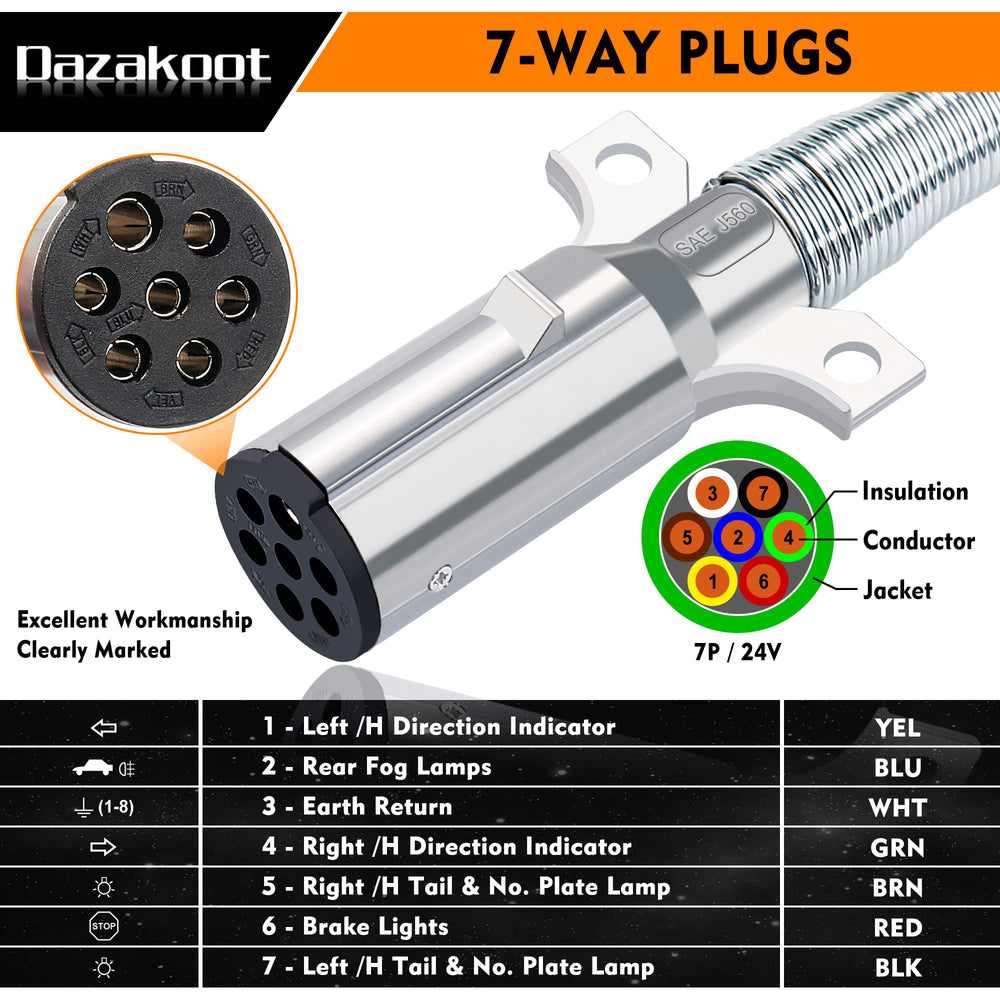

Which trailers and vehicles are compatible with this 7-way cord?

The Dazakoot 7-way cord is intended for semi-trucks, trailers and a wide range of towed vehicles including RVs, campers, food vans and utility trailers that use a 7-pin SAE J560 or equivalent connection. It's a direct-fit replacement option for several common part numbers used across the industry.

• Works with 7-pin SAE J560 electrical sockets on tractors and trailers
• Replacement for parts like Philips 30-4621 and Velvac 590161
• Suitable for brake, tail, reverse, auxiliary and signal circuits
• Recommended for commercial and recreational towing applications

How do I maintain and install the Dazakoot power cord for long life?

Installation is straightforward: match the SAE J560 plug to your vehicle receptacle and secure any mounting points to keep strain off the ends. Regular visual inspections and cleaning of contacts help maintain conductivity and prevent corrosion over seasons of use.

• Inspect plugs and jacket for cuts, corrosion, or bent pins before each trip
• Use dielectric grease on contacts to reduce oxidation
• Avoid pinching the cable when storing or routing near suspension parts
• Replace if insulation or conductors show significant wear

Who is this for: The Dazakoot 12FT 7-Way Coiled Power Cord is aimed at professional truck owners, fleet managers and recreational vehicle owners who need a compact, rugged trailer electrical cable that meets SAE and DOT requirements. If you tow semi-trailers, RVs, food trucks or caravans and want a dependable 7-pin connection with proven materials and industry-standard plugs, this cable offers a straightforward, serviceable solution without extra bulk.
