DICMIC Fuel Filter Kit 1200KTF7018 Spin-On Particulate 25 GPM 3/4" NPT Head, Elbow & Nipple

DICMIC 1200KTF7018 is a spin-on particulate fuel filter kit designed to protect transfer pumps by removing dirt, silt and corrosion particles while supporting compatible fuels.

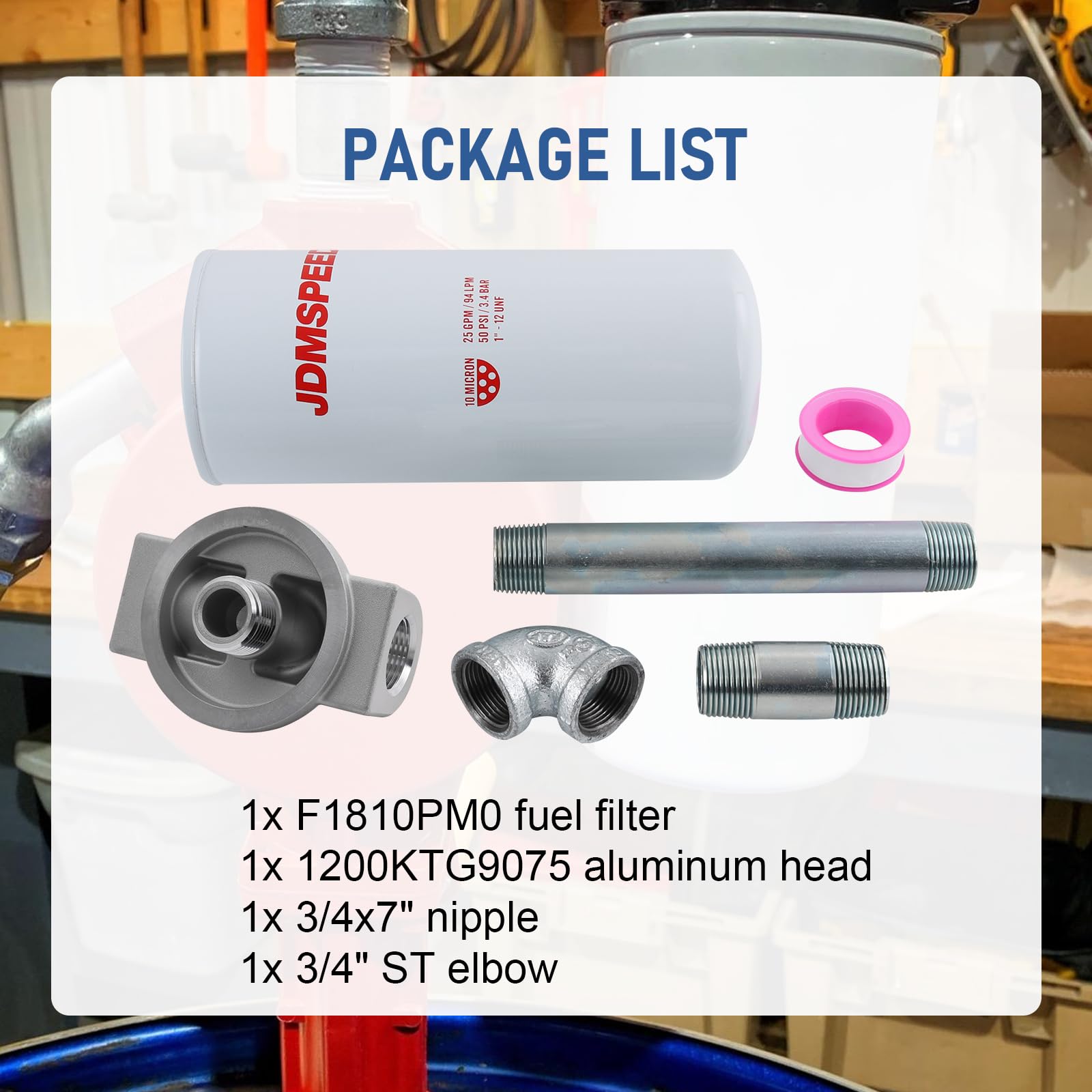

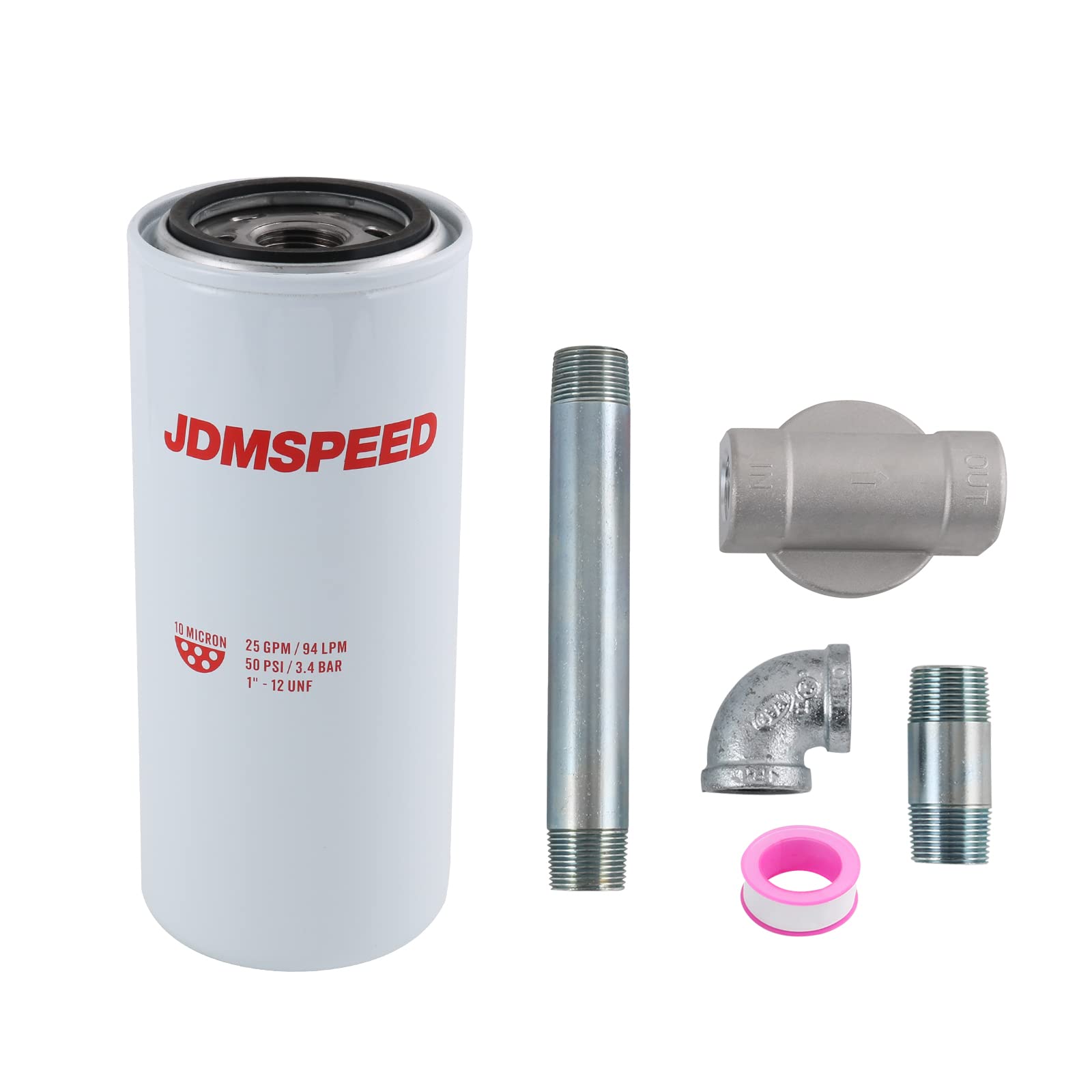

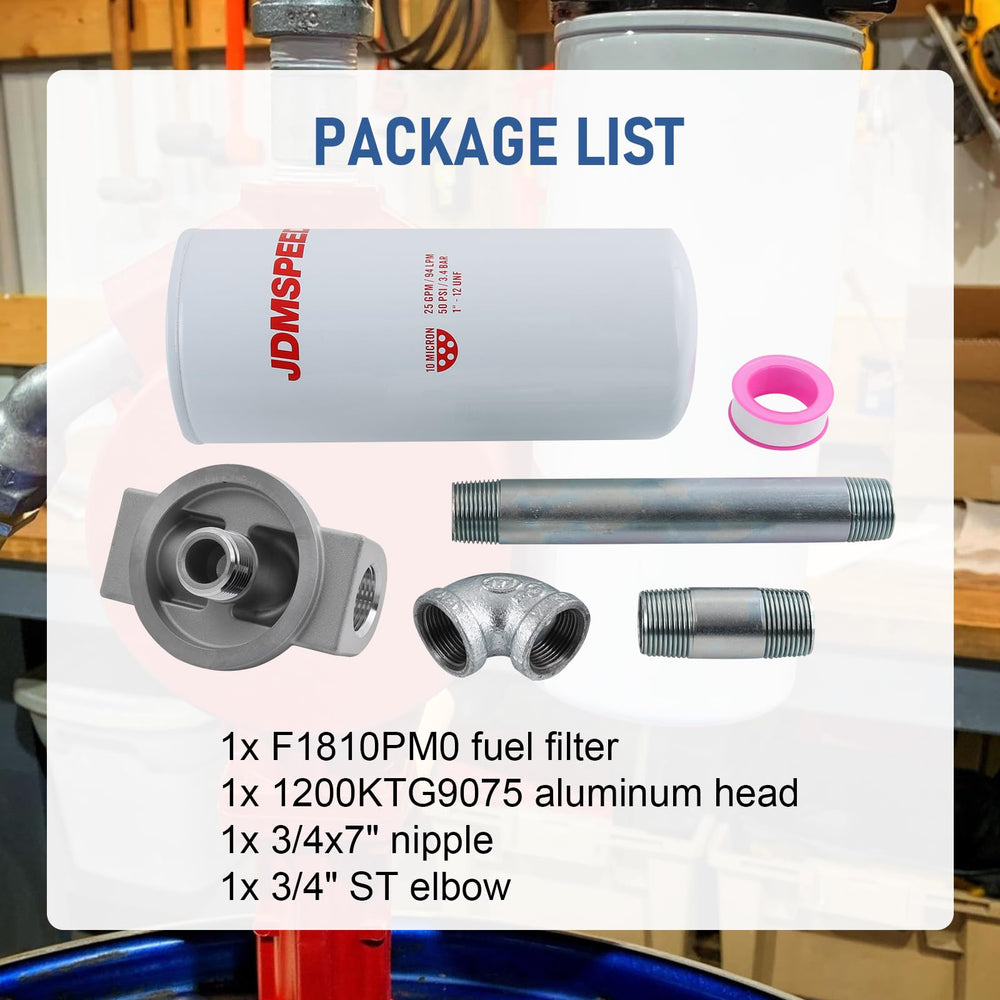

This complete replacement kit includes a F1810PM0 spin-on particulate filter, 1200KTG9075 filter head, a 3/4" street elbow and a 3/4" x 7" nipple to give you a ready-to-install solution for transfer pumps. It’s engineered for a 25 GPM flow capacity and up to 50 PSI, and it’s compatible with many common transfer pump models. Whether you’re maintaining a service station, farm fuel system or on-site equipment fueling, this kit helps keep contaminants out of your fuel lines and pump internals.

How does this filter kit reduce pump wear and clogging?

The DICMIC spin-on particulate element traps solid contaminants before they reach sensitive pump components and downstream injectors or nozzles. By intercepting dirt, rust and sediment, it prevents abrasive wear and reduces the likelihood of flow restrictions that can stress pump seals and valves. The replaceable cartridge design makes scheduled maintenance fast and clean.

• Particulate media captures dirt, silt and corrosion particles
• Spin-on cartridge simplifies replacement and disposal
• Removes solids without altering fuel chemistry
• Helps maintain steady 25 GPM flow under typical conditions

Which pumps and fuels are compatible with this kit?

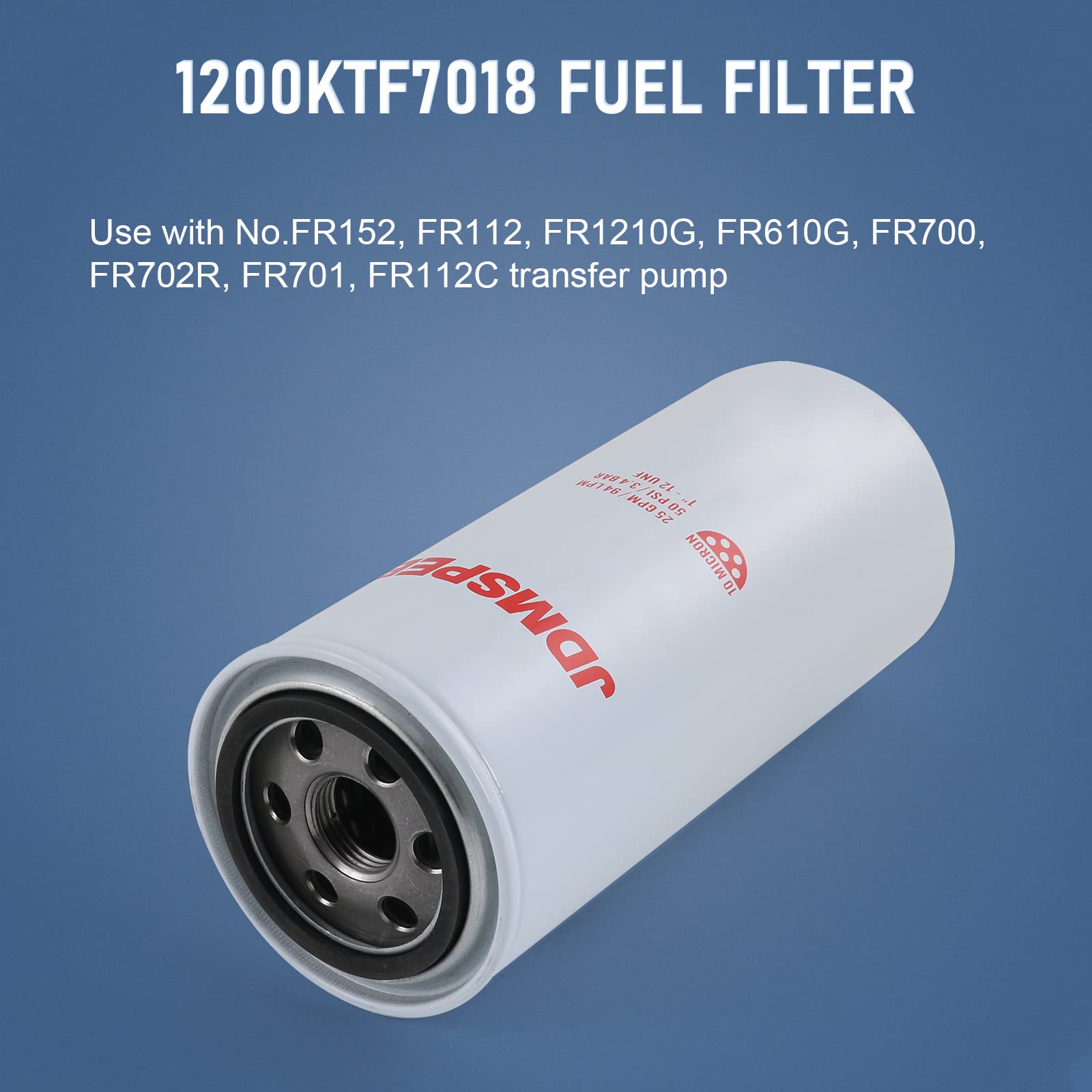

This assembly is made to fit a range of transfer pump models including FR152, FR112, FR1210G, FR610G, FR700, FR702R, FR701 and FR112C when using standard 3/4" NPT connections. The filter media is suitable for diesel (including biodiesel blends up to B20), gasoline blends up to E15, and kerosene — providing broad compatibility for mixed-fuel environments.

• Designed for transfer pumps listed above and similar 3/4" NPT setups
• Works with diesel, biodiesel up to B20, gasoline up to E15 and kerosene
• Includes head, elbow and nipple for direct replacement installations

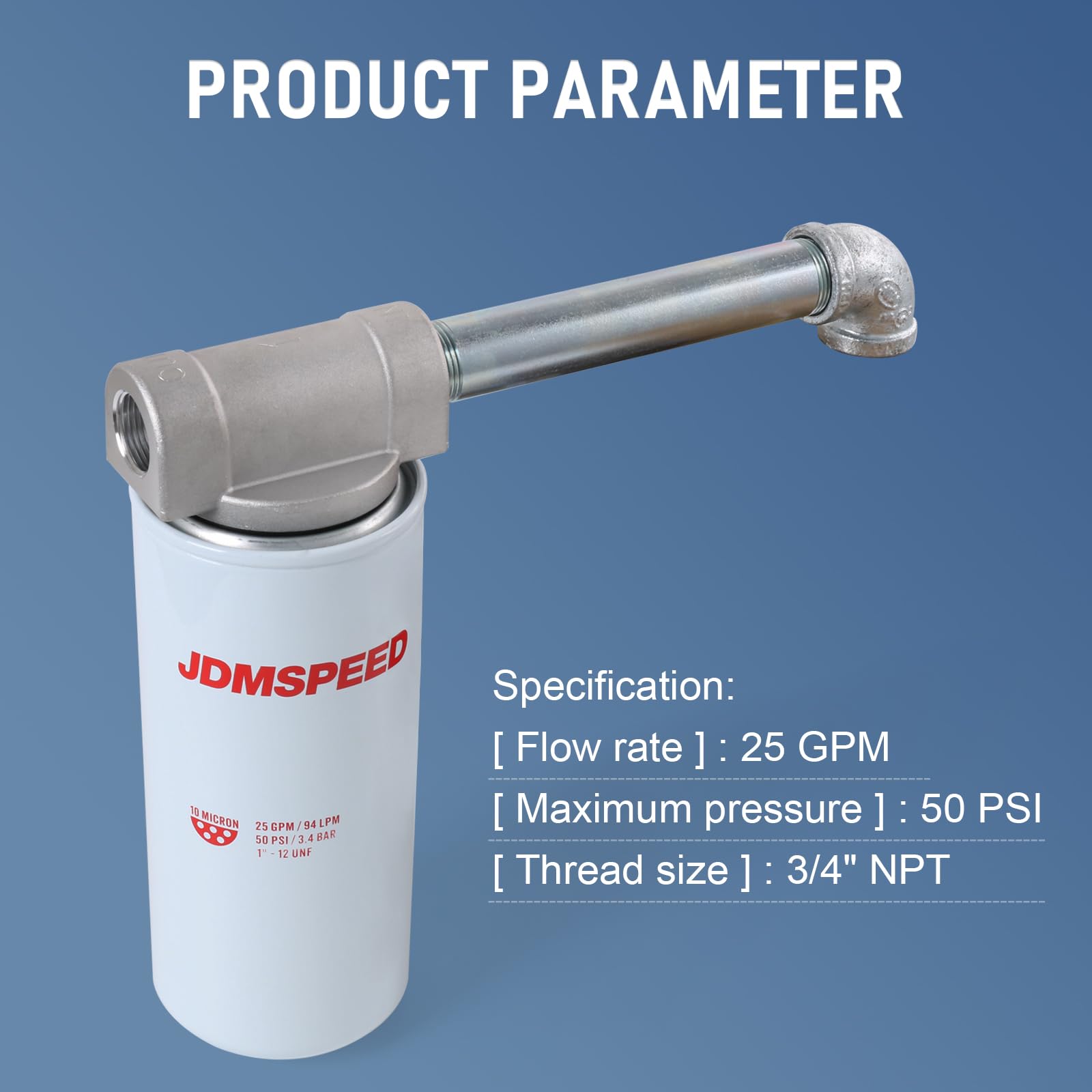

• Flow rating: 25 GPM; Max pressure: 50 PSI

What are the installation and maintenance steps?

Installation is straightforward: mount the 1200KTG9075 head to the pump, connect the included 3/4" x 7" nipple and 3/4" street elbow as needed, then screw on the F1810PM0 spin-on cartridge. Replace the cartridge on a regular service interval or whenever you notice reduced flow or visible contamination. Always follow fuel-handling safety practices and depressurize the line before servicing.

• Mount filter head to pump inlet using 3/4" NPT thread
• Install nipple and elbow for correct hose or pipe routing
• Hand-tighten spin-on cartridge and check for leaks at startup
• Replace cartridge when flow decreases or at scheduled intervals

Will this kit affect fuel flow or pressure?

The kit is rated for a nominal flow of 25 GPM with a maximum operating pressure of 50 PSI; under proper installation it should not significantly impede normal pump performance. Over time a clogged cartridge can reduce flow, so timely replacement keeps pressure and throughput within expected ranges. Choose replacement intervals based on fuel cleanliness and operating hours.

• Rated flow: 25 GPM for typical transfer applications
• Maximum pressure: 50 PSI to match common pump limits
• Monitoring required: replace element when flow drops
• Spin-on design enables quick swap without special tools

Who is this for: The DICMIC 1200KTF7018 kit is intended for fleet operators, fuel station technicians, agricultural and construction equipment owners, and maintenance professionals who use FR-series transfer pumps or similar 3/4" NPT systems. It fits sites that need a reliable particulate-only filtration upgrade or replacement that supports diesel, biodiesel blends (up to B20), gasoline blends (up to E15) and kerosene with minimal downtime.
