Dyness 12V 20A Lithium Battery Charger — 0V Activation, Fast 3-Stage Charging for LiFePO4

Dyness 12V 20A Lithium Battery Charger is a high-speed AC-DC charger that safely reactivates and charges 12V LiFePO4 batteries, including those at 0V, with smart 3-stage control and multi-layer protections.

This compact charger was designed for users who need reliable, rapid charging and confident startup for 12V lithium (LiFePO4) battery systems. With a 20A output it charges a 12V 100Ah battery in roughly five hours—about twice as fast as typical 10A chargers—while offering a precharge stage to revive batteries protected by BMS. Sturdy aluminum housing, an upgraded Anderson connector plus M8 terminal, and clear LED status indicators make it both durable and simple to monitor during use.

How does this charger revive a battery that reads 0V?

The Dyness charger includes a 0V activation mode that applies a controlled precharge to low-voltage cells protected by a battery management system (BMS). This gentle start sequence brings the voltage back into a normal range so the battery can accept a full charge safely.

• Precharge (T1) slowly raises voltage on deeply discharged batteries
• Works with BMS-protected LiFePO4 packs to reactivate protection trips
• Automatic transition to fast charge once safe voltage is reached
• Red blinking LED indicates error or protection during activation

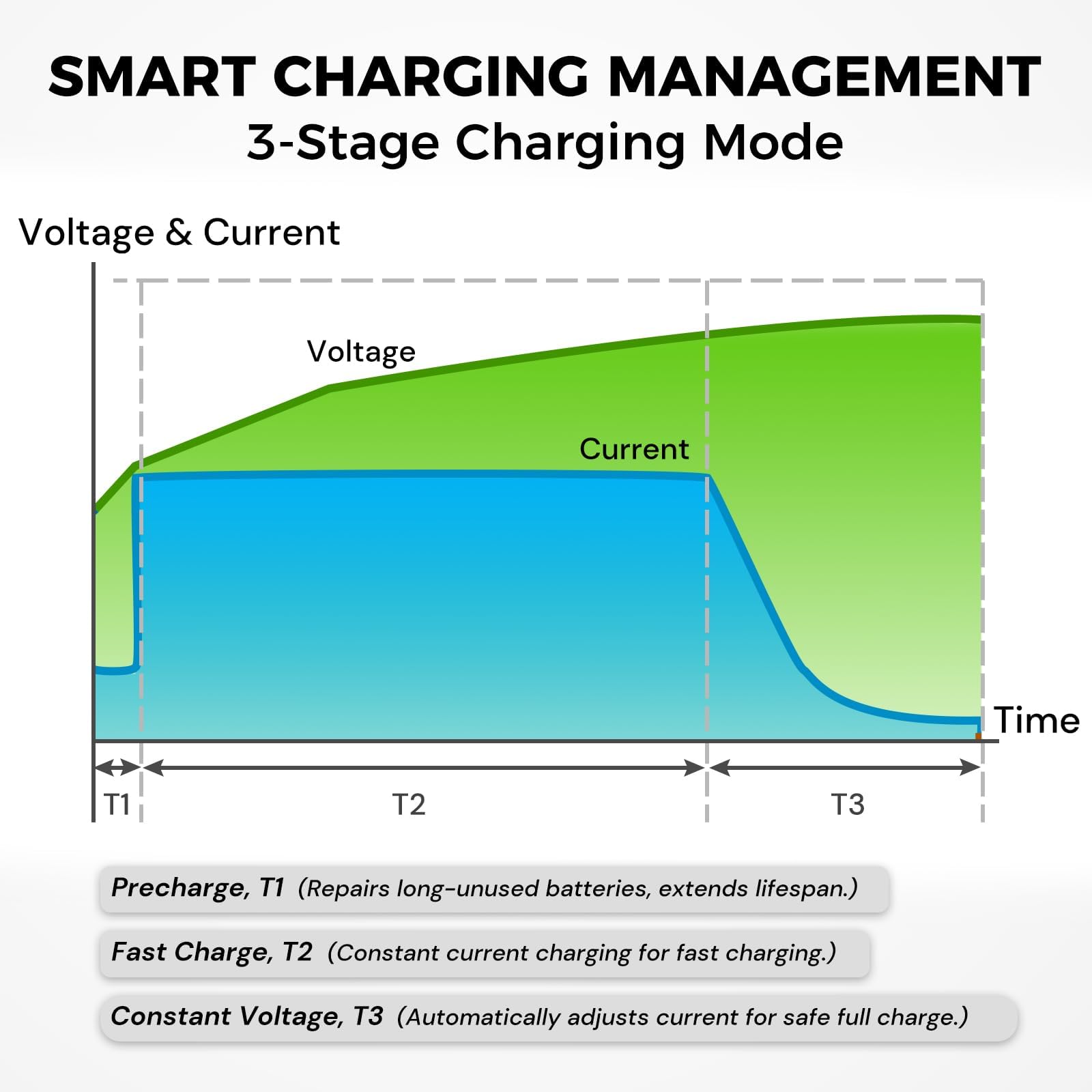

What charging stages and safety features are built in?

This unit uses a smart three-stage charging profile—precharge, fast charge, and constant voltage—to restore and preserve battery longevity. Multiple protections guard both the charger and battery from common faults so you can leave charging unattended with confidence.

• T1 precharge, T2 fast charging, T3 constant-voltage maintenance

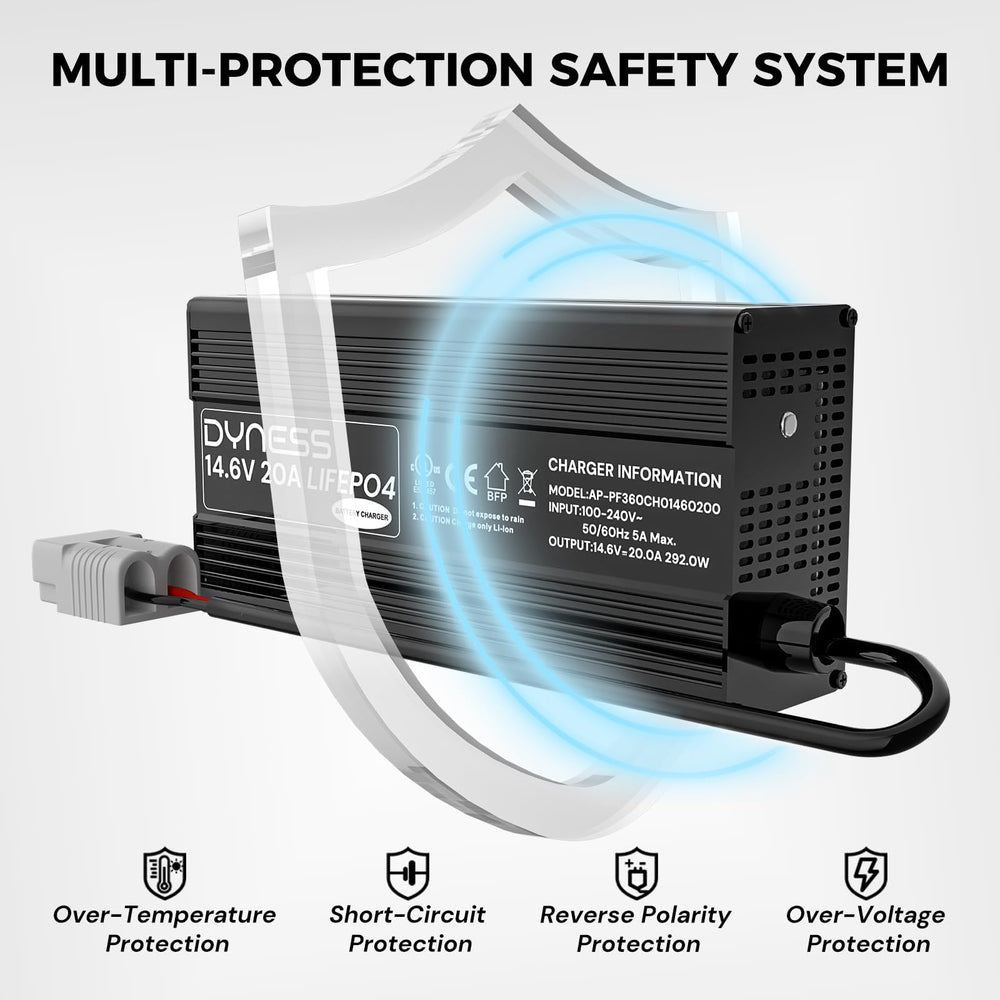

• Over-temperature, short-circuit, reverse polarity, and over-voltage protection
• Aluminum alloy housing and active cooling fan for thermal control

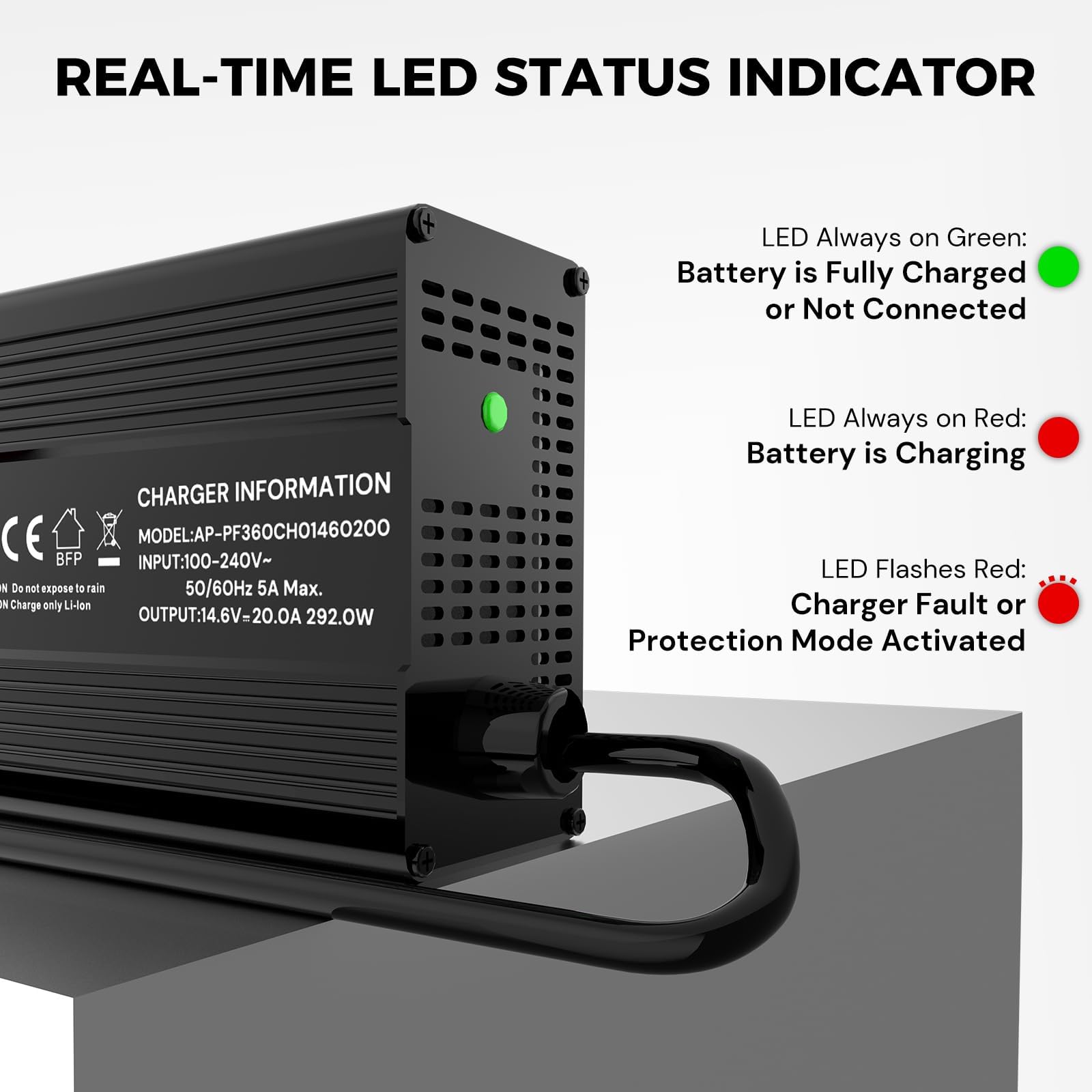

• LED indicators: solid red charging, solid green full/no load, blinking red error

How fast and efficient is the Dyness 20A charger for everyday use?

At 20A output, the charger powers a 12V 100Ah LiFePO4 battery to full in about five hours—roughly twice as quick as a 10A unit—while shifting to a float/maintenance stage to avoid overcharging. The efficiency and thermal design help maintain stable performance under repeated cycles.

• 20A output for faster replenishment of large 12V battery banks
• Cooling fan plus alloy casing reduces heat for consistent charging
• Constant-voltage stage prevents overcharge and preserves capacity
• Clear LED status makes it easy to confirm charge progress at a glance

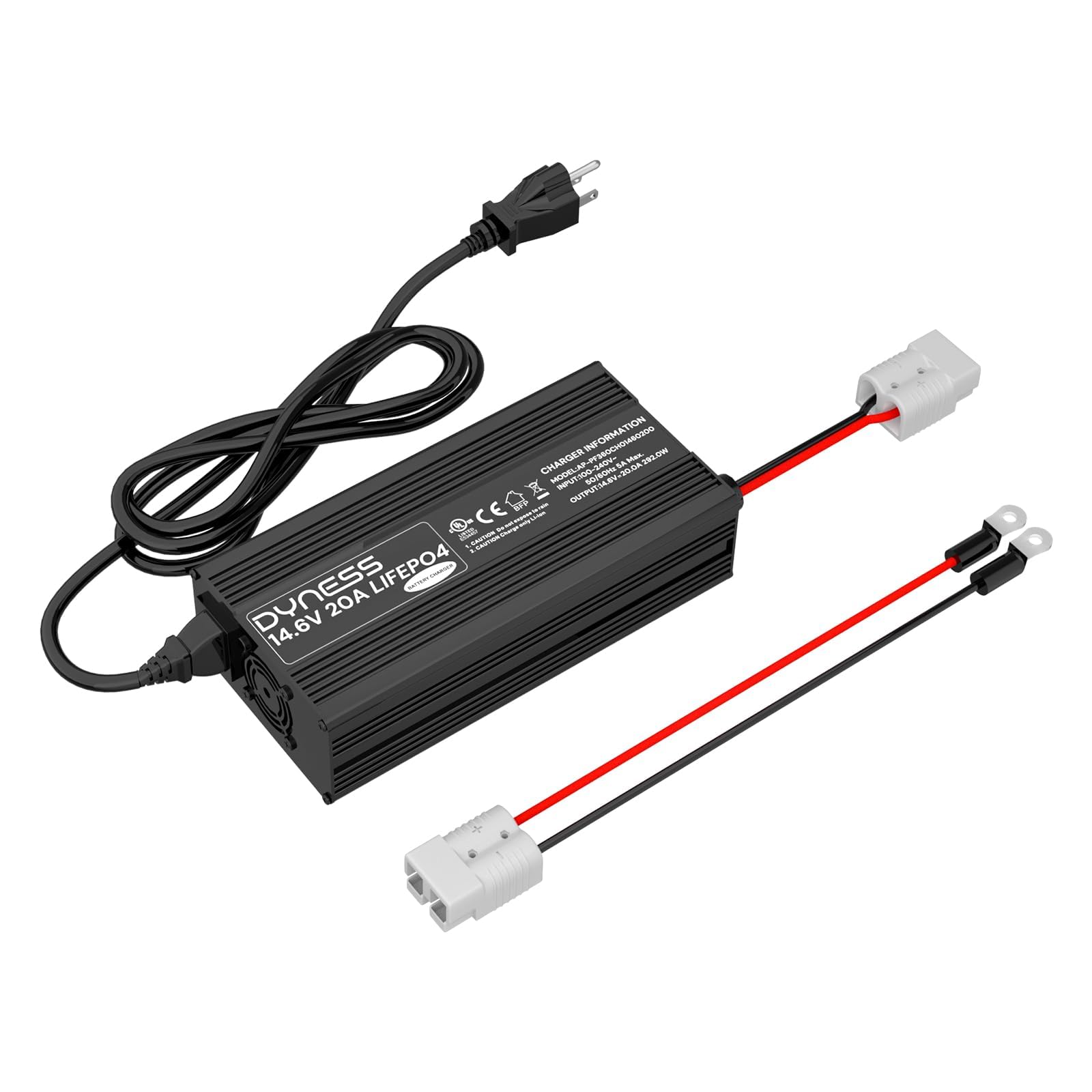

What connectors and installation conveniences are included?

The charger is fitted with an upgraded M8 terminal and a 50A Anderson plug so you can connect quickly to different systems without soldering or custom wiring. This combination supports both permanent installs and portable use in vehicles, boats, and off-grid setups.

• M8 terminal for solid, tool-mounted connections
• 50A Anderson connector for fast, reliable plug-and-play hookup
• Compact footprint for mounting in tight spaces or onboard systems
• LEDs positioned for easy visibility from common mounting angles

Who this is for: The Dyness 12V 20A charger suits homeowners, RV and marine owners, installers, and off-grid enthusiasts who need a dependable, fast charger that can resurrect BMS-protected LiFePO4 batteries and keep them topped up safely. It’s ideal when faster recharge times, robust protection, and flexible connection options matter—whether for daily cycling or emergency reactivation of a low-voltage battery.
