E-Shin HVAC Mode Door Actuator for 1999-2002 Chevy/GMC/Cadillac — Direct-Fit, Restores Vent Airflow

The E-Shin 604-113 HVAC mode door actuator is a direct-fit aftermarket replacement that restores air-direction control in compatible 1999–2002 Chevy, GMC and 2002 Cadillac models.

If your vehicle’s vents no longer switch cleanly between defrost, floor and dash outlets or you hear clicking noises from the dash, a worn mode actuator is a common cause. This E-Shin actuator replaces OE numbers 1572505, 52473356 and 604-113 and is engineered to match the original position and function so you can regain consistent airflow control without replacing the entire HVAC assembly.

How will this actuator fix vent direction problems?

When the mode actuator fails, the blend or mode doors inside the HVAC box don’t move reliably, so airflow can be stuck on one outlet or shift randomly. Installing this actuator restores electric control of those internal doors and returns selectable airflow to the vents you choose.

• Direct replacement for OE part numbers 1572505, 52473356, 604-113
• Restores movement to mode/blend doors for defrost, floor and vent positions
• Stops intermittent airflow or clicking noises caused by stripped gears

Which vehicles will this E-Shin part fit?

This actuator is designed for a range of late-1990s to early-2000s GM trucks and SUVs. Check model year and engine notes carefully; some 2000 V8 5.7L Tahoe/Yukon variants are excluded.

• Chevy: Avalanche 1500/2500 (2002), Silverado 1500/2500/3500 (1999–2002, includes HD years)
• Chevy: Suburban 1500/2500 and Tahoe (2000–2002; not for 2000 Tahoe V8 5.7L)
• GMC/Cadillac: Sierra and Yukon variants (1999–2002), Cadillac Escalade and Escalade EXT (2002)

How difficult is installation and what else should I do after fitting it?

Installation is straightforward for anyone comfortable removing a dash panel or glovebox to access the HVAC housing. No special tools are normally required, but modest hand tools and a short inspection routine will save time.

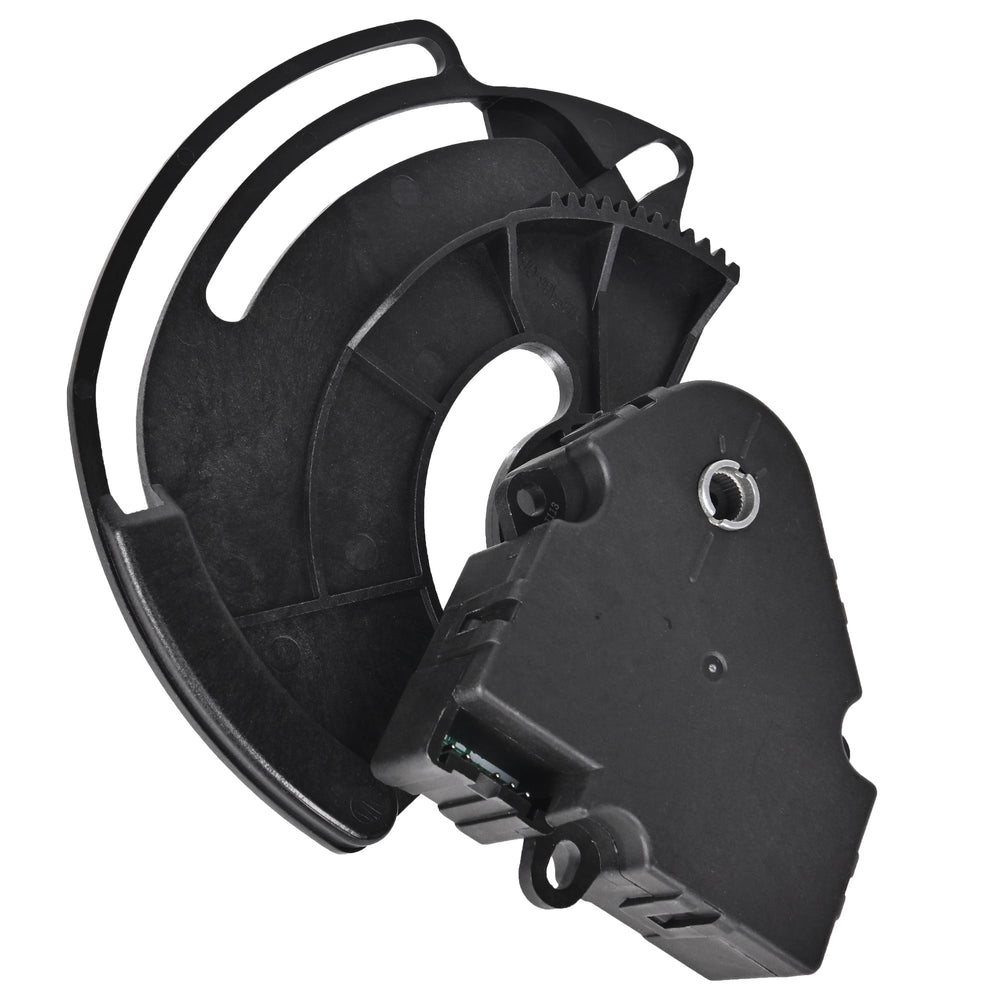

• Plug-and-play electrical connector and mounting holes match the factory location
• Typical install time: 30–90 minutes depending on access in your model
• Recalibrate the HVAC system after installation to ensure correct door positions

What are the unit’s key features and expected performance?

This E-Shin mode actuator is built to replicate the OEM motor assembly that directs airflow. It offers reliable motion for the mode doors and is intended as a cost-effective repair alternative to dealer parts.

• Replaces OEM units with compatible electrical and mounting interface

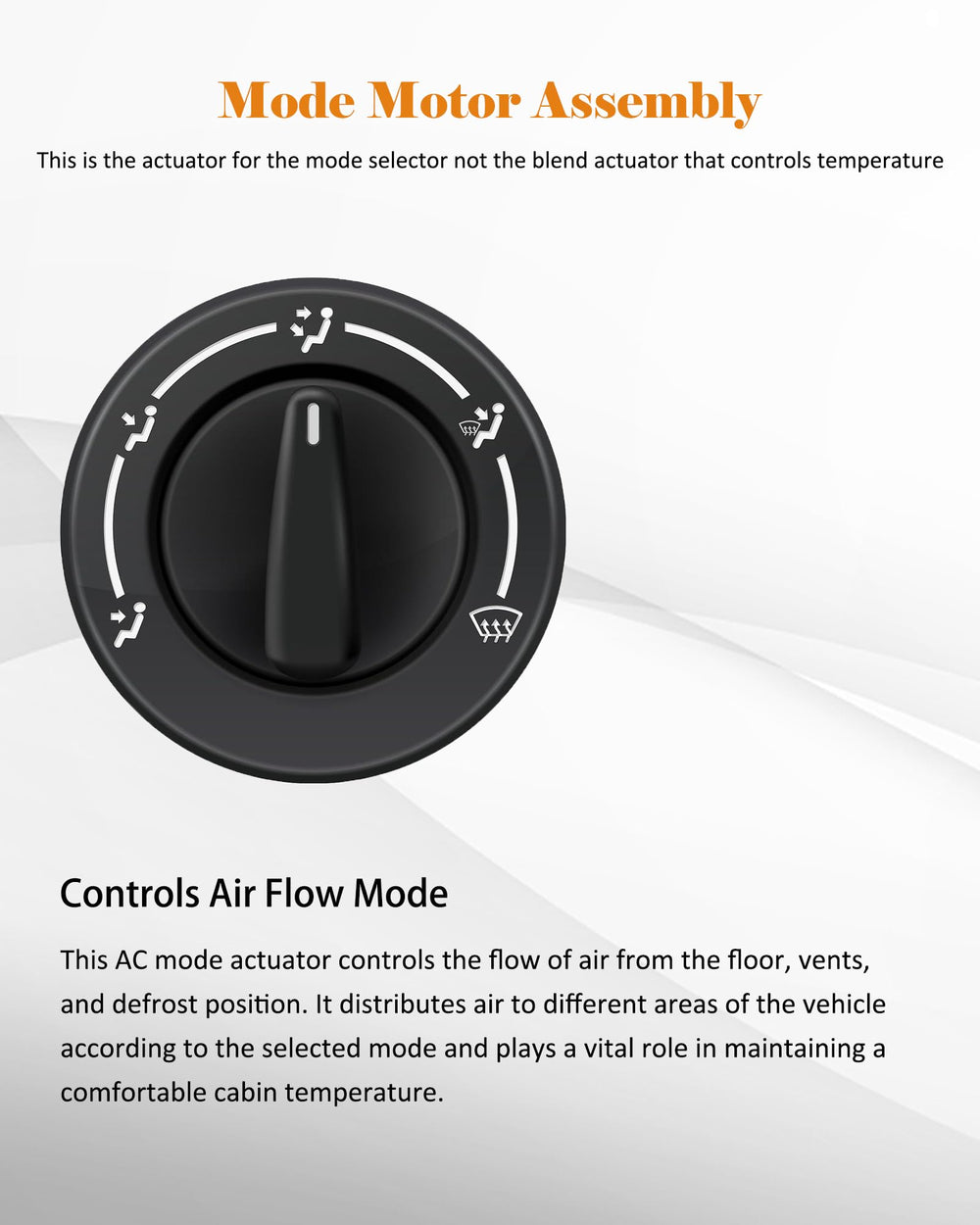

• Functions as the main mode actuator to route air for defrost, floor, or panel vents
• Manufactured as a new aftermarket component for consistent fit and operation

Who is this for: Drivers and DIY mechanics who own compatible 1999–2002 Chevy, GMC or 2002 Cadillac trucks and SUVs and want a reliable, affordable replacement for a failing HVAC mode/blend door actuator. It’s especially useful if you hear clicking from the dash, can’t change vent modes, or want to avoid higher dealer part costs—provided you confirm vehicle-year fitment and perform a simple post-install HVAC recalibration.
