Elitech HVAC Digital Manifold Kit with Hoses & R410A Adapter — Dual Temp Probes, Auto Superheat/Subcool

The Elitech LMG-10Plus is a handheld digital HVAC manifold kit that measures pressures and temperatures, calculates superheat/subcooling, and includes hoses plus an R410A adapter for professional refrigeration work.

Designed for HVAC technicians and serious DIYers, the LMG-10Plus combines a multi-port digital manifold with dual temperature probes, three color-coded service hoses, and an R410A service adapter. It replaces bulky analog gauges with a compact, battery-powered unit that supports 88 refrigerants, auto-calculates overheating and supercooling, and offers temperature compensation to improve reading accuracy during diagnostics, leak tests and system servicing.

How accurate and reliable are the pressure and temperature readings?

The LMG-10Plus gives precise pressure and temperature readings suitable for service diagnostics and verification. It features temperature compensation and supports five pressure units and two temperature units so you can work in the units you trust.

• Digital pressure display with selectable units: psi, kg/cm², kPa, MPa, bar
• Dual clamp thermometers for suction and liquid line temperatures
• Automatic temperature compensation to refine pressure-derived calculations

What refrigerants and calculations does it support for modern HVAC systems?

This manifold supports 88 refrigerant types including R410A, allowing technicians to choose the correct refrigerant curve for accurate superheat and subcooling calculations. Built-in formulas produce auto-calculated overheating (superheat) and supercooling (subcooling) values to speed troubleshooting.

• Preloaded refrigerant library with R410A compatibility via included adapter
• On-screen auto-calculation of superheat and subcooling values
• Saves time by eliminating manual chart lookups and conversion errors

How durable and portable is the kit for fieldwork?

The unit is built for jobsite use with an emphasis on low power draw and long battery life, plus a replaceable battery for extended service. A hanging hook, robust housing and included hoses make the kit ready for rigging and onsite diagnostics.

• Ultra-low power consumption with up to 200 hours of battery life
• Replaceable battery and rugged casing for field durability
• Integrated hanging hook for hands-free operation while servicing systems

What accessories and user features are included to streamline work?

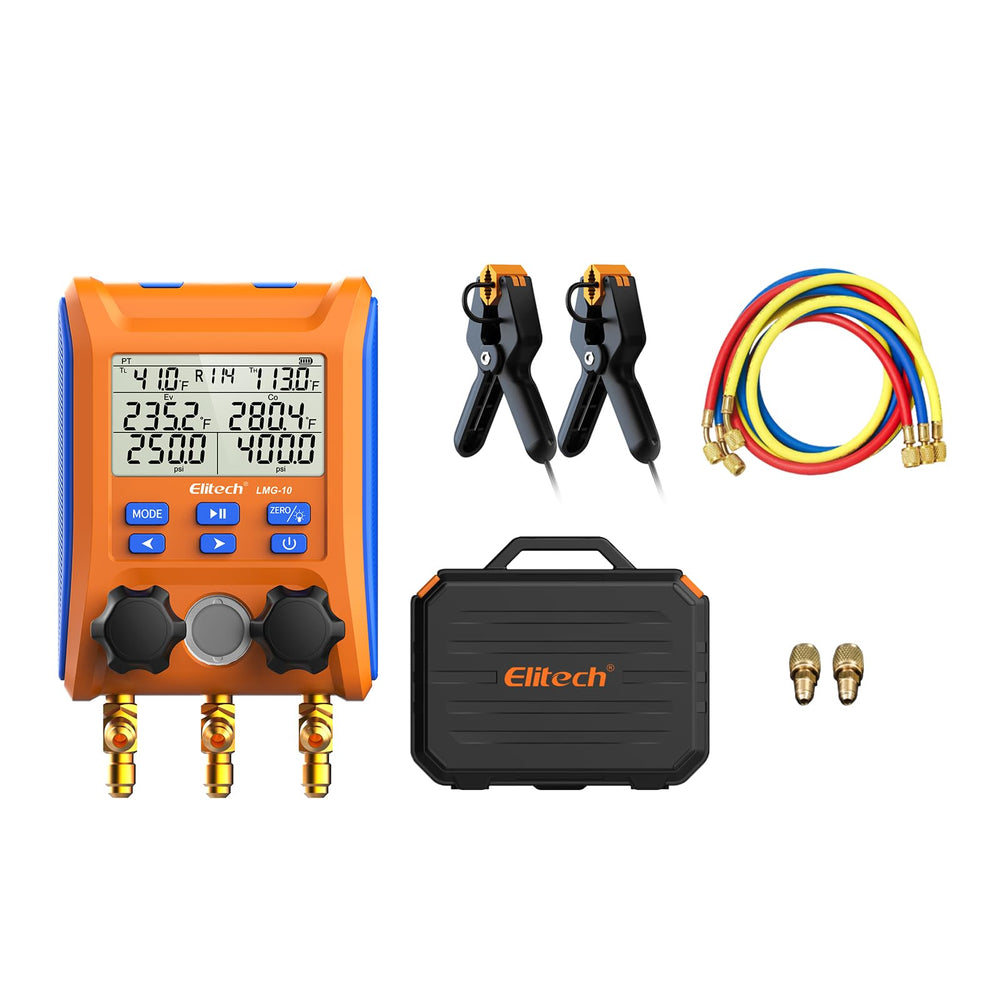

The Elitech LMG-10Plus ships with two temperature clamps, three service hoses, an R410A adapter and a large, easy-to-read display. User-focused features like auto-off, selectable units and 24/7 technical support help make setup and troubleshooting faster.

• Two temperature clamps included for simultaneous line measurements
• Three color-coded hoses for high, low and center service connections
• Large display, auto-off function and round-the-clock U.S. technical support

Who is this for? The Elitech LMG-10Plus is aimed at HVAC technicians, refrigeration service professionals, and advanced DIYers who need a compact, accurate digital manifold for routine maintenance, leak and vacuum testing, and performance diagnostics. Its broad refrigerant support and easy-to-read calculations make it especially useful for multi-system techs who service residential and light-commercial equipment and who prefer a portable, long-life tool set with practical accessories like an R410A adapter and temperature clamps.
