ESI Front Rail Seal XL 5.5 ft EPDM Truck Cap Gasket — Fills .488"–1" Gap, Preapplied 3M Tape

ESI Front Rail Seal XL is a 5.5‑foot EPDM rubber gasket designed to bridge front‑rail height gaps between .488" and 1" when installing a truck cap or camper shell.

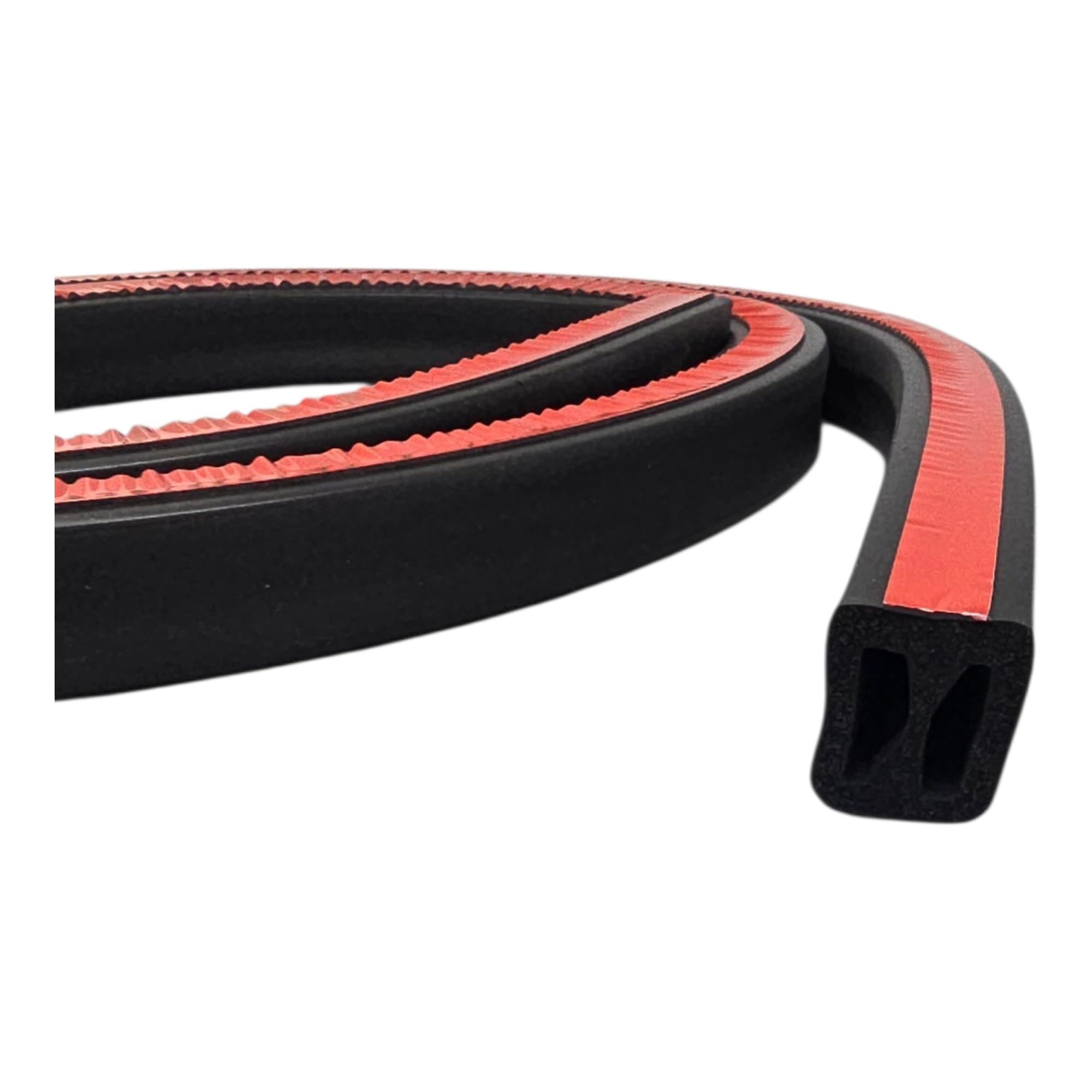

When mounting a camper shell, small differences in rail height can cause leaks, wind noise, and poor fit. The ESI Front Rail Seal XL is molded from durable EPDM rubber and sized for extended rail gaps so the cap seats securely against the truck bed. It arrives with factory‑applied 3M 4011 acrylic foam tape for fast adhesion and long service life, and it’s manufactured in the USA for consistent quality.

How does this seal solve uneven front‑rail gaps?

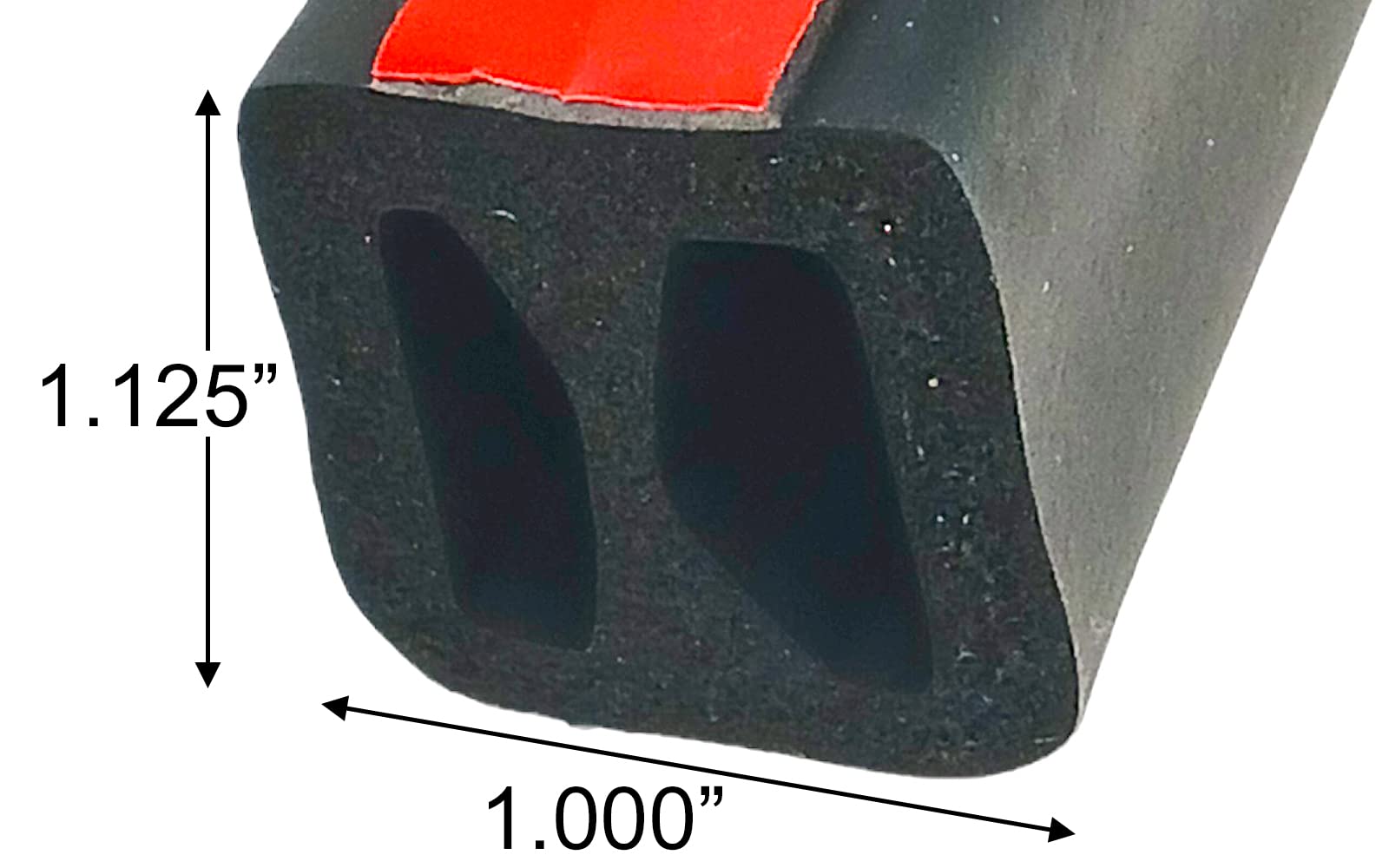

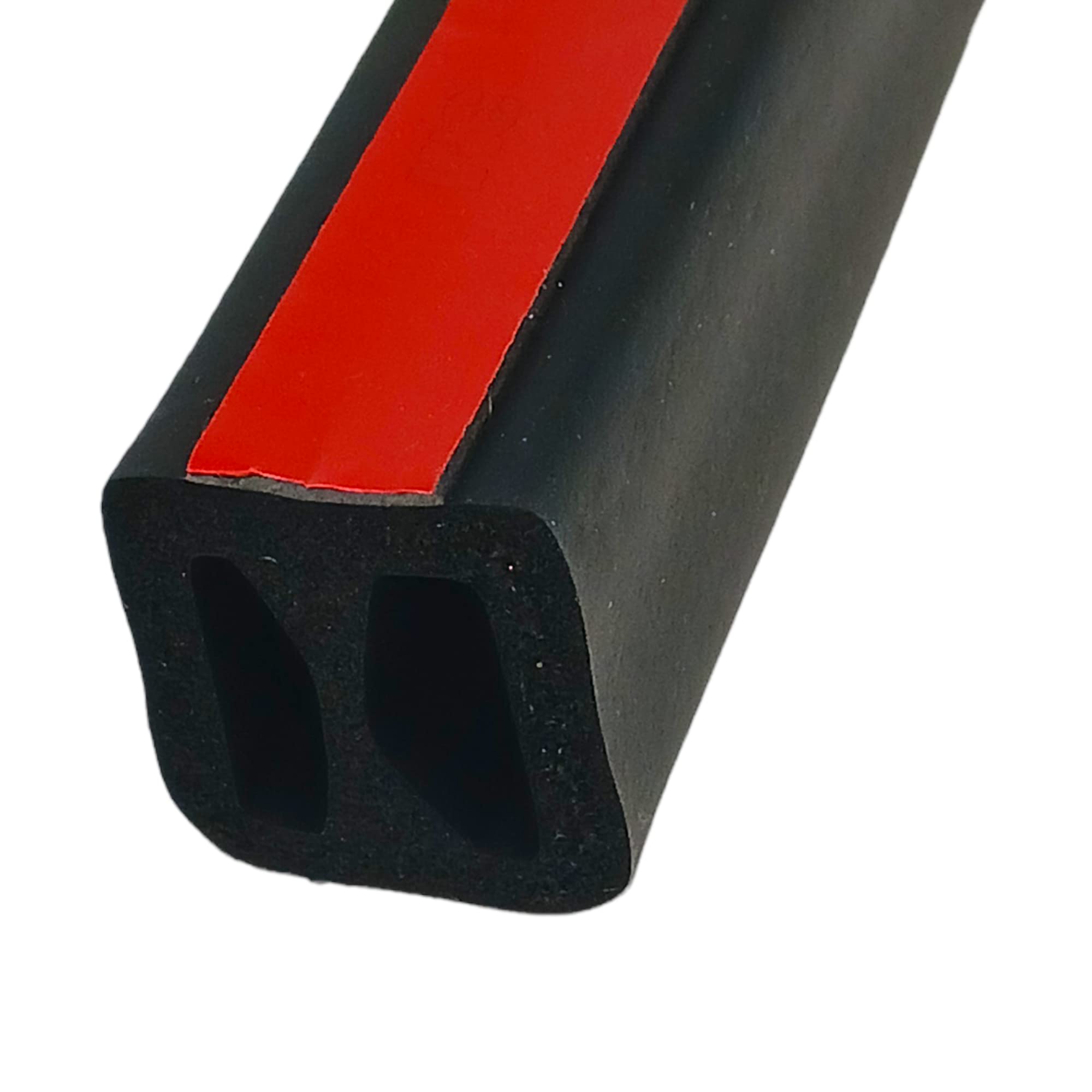

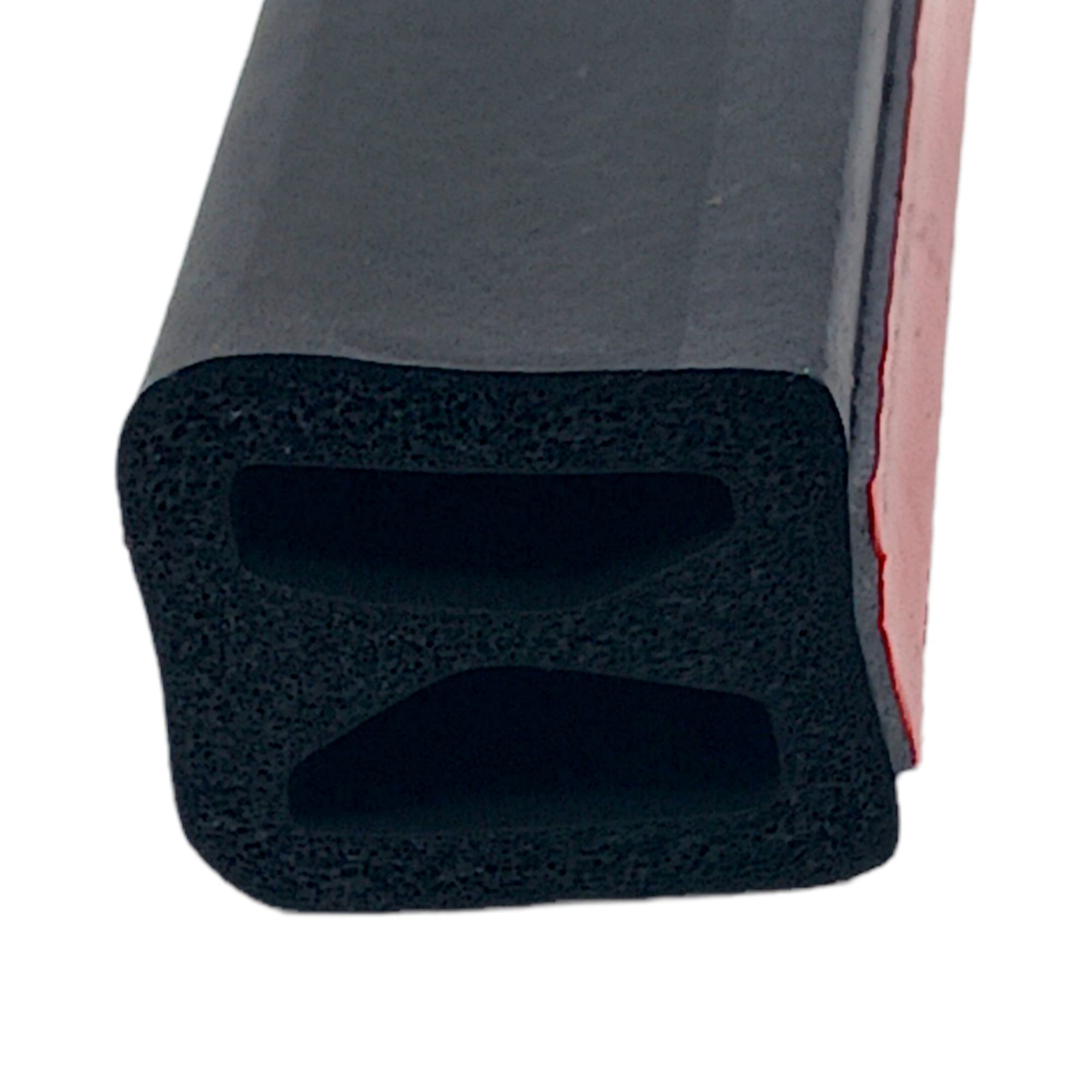

The XL profile adds height and compresses to create a tight barrier between the cap and sidewalls. Its 1.125" nominal height and 1" width are tuned to span gaps from just under half an inch up to a full inch, filling voids that standard seals can’t cover. Because it’s flexible EPDM, it conforms to small irregularities while resisting weathering.

• Designed to bridge .488"–1" height differences
• 1" width and 1.125" nominal height for proper compression
• EPDM rubber resists ozone, UV, and temperature cycling
• Conforms to uneven surfaces for improved sealing

What’s included and how do I install it?

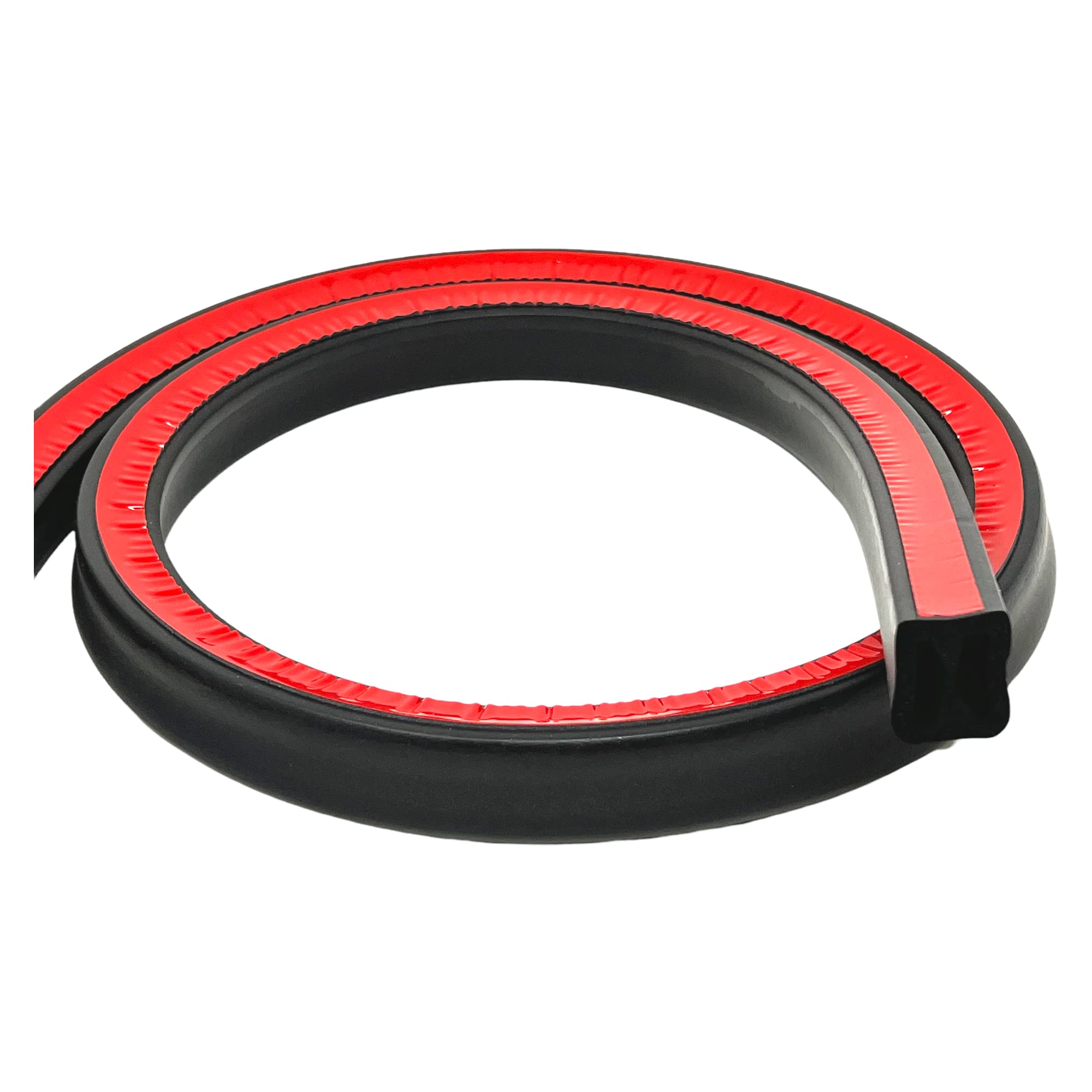

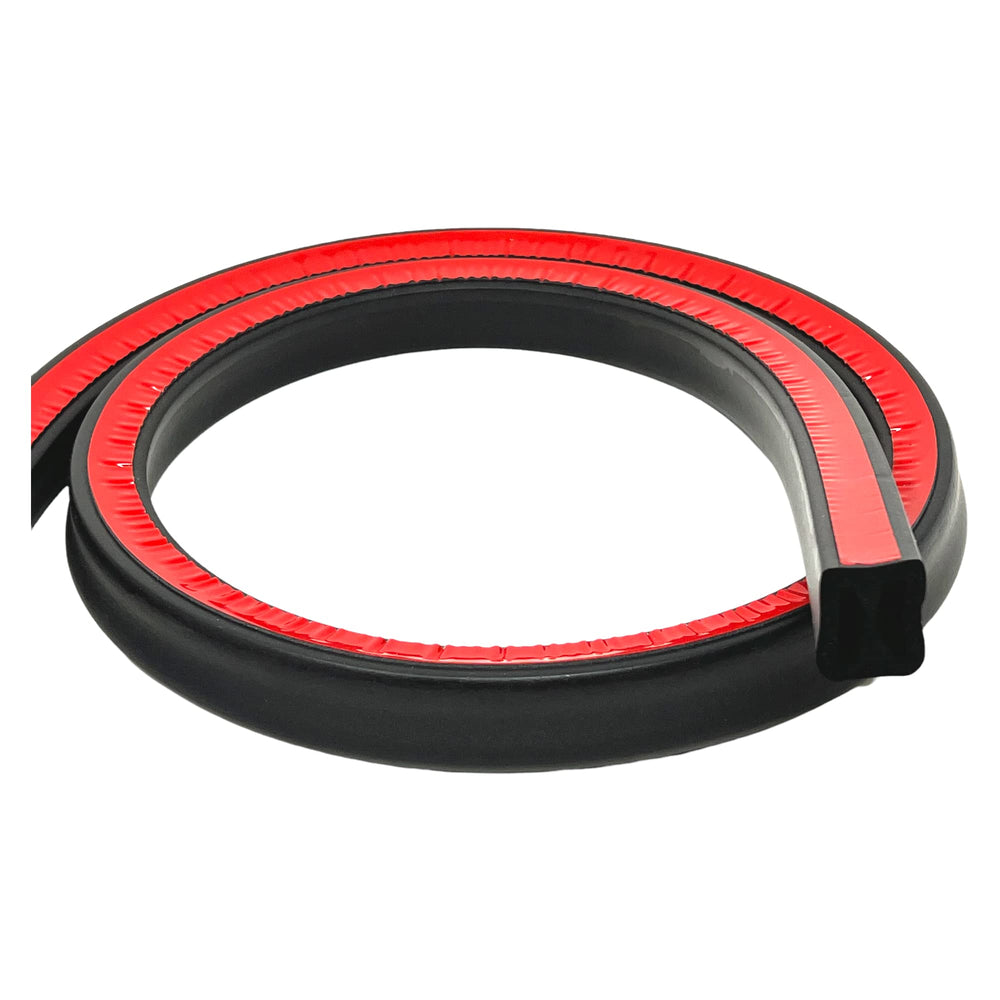

The seal ships as a single 5.5‑foot length with peel‑and‑stick 3M 4011 foam tape already applied for a quick retrofit. Surface preparation—clean, dry, and grease‑free—ensures the best bond; then align the seal to the front rail and press firmly along the length. No special tools are required, and the adhesive holds through repeated cap removals so you typically won’t need to replace it each time.

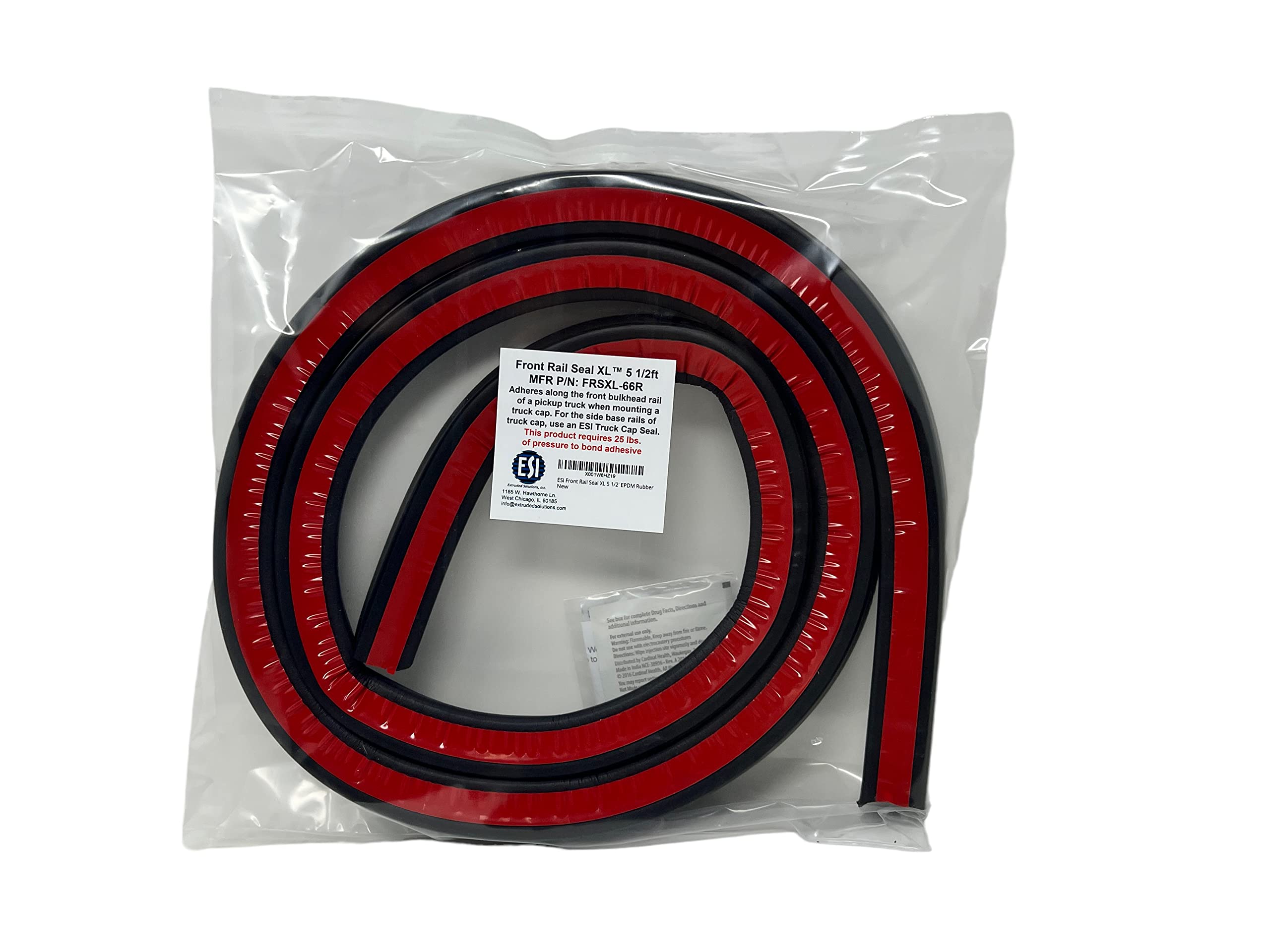

• One 5.5 ft ESI Front Rail Seal XL with preapplied 3M 4011 tape
• Clean the rail with alcohol, position, peel backing, and press in place
• No fasteners needed; cures to a durable adhesive bond
• Remains installed during cap removal in most installations

Will this work for my truck cap height — when should I choose a different seal?

Use this XL profile when the gap measures between .488" and 1". If your gap is smaller—.250" or less—standard ESI extruded seals for all three rails are a better fit. For mid‑range gaps (.251"–.487"), ESI offers an alternate front rail profile that matches those dimensions. Measuring before purchase ensures the right sealing performance.

• Choose XL for gaps from .488" to 1"
• For .251"–.487", pick the medium front rail seal (different ASIN)
• For .250" or less, use standard extruded seals on all three rails
• Measure at multiple points along the rail for accuracy

How durable is the material and adhesive over time?

EPDM rubber is widely used for outdoor seals because it tolerates sunlight, ozone, and temperature swings better than many rubbers. The 3M 4011 acrylic foam tape provides a strong, weather‑resistant bond formulated for automotive trim and seals. Together they deliver a long‑lasting barrier without frequent replacement under normal use.

• EPDM resists UV degradation and hardening
• 3M 4011 tape offers long‑term adhesion in outdoor conditions
• Engineered to remain flexible across temperature ranges
• Made in USA for consistent manufacturing standards

Who is this for: The ESI Front Rail Seal XL is for truck owners, installers, and camper‑shell retailers who face tall front‑rail gaps when mounting caps. It’s ideal for pickups requiring a robust, weather‑resistant seal that fills up to a 1" height difference without complicated hardware. Choose this part when you need a simple, durable retrofit that speeds installation and improves fit and protection for your truck cap.
