EVIL ENERGY 1.75" Exhaust Clamp — 1 3/4" Butt Joint Stainless Steel Band Clamp, 360° Seal

EVIL ENERGY’s 1.75-inch stainless steel lap-joint exhaust clamp secures two 1.75" OD pipes together with a 360° sealing band, no welding required.

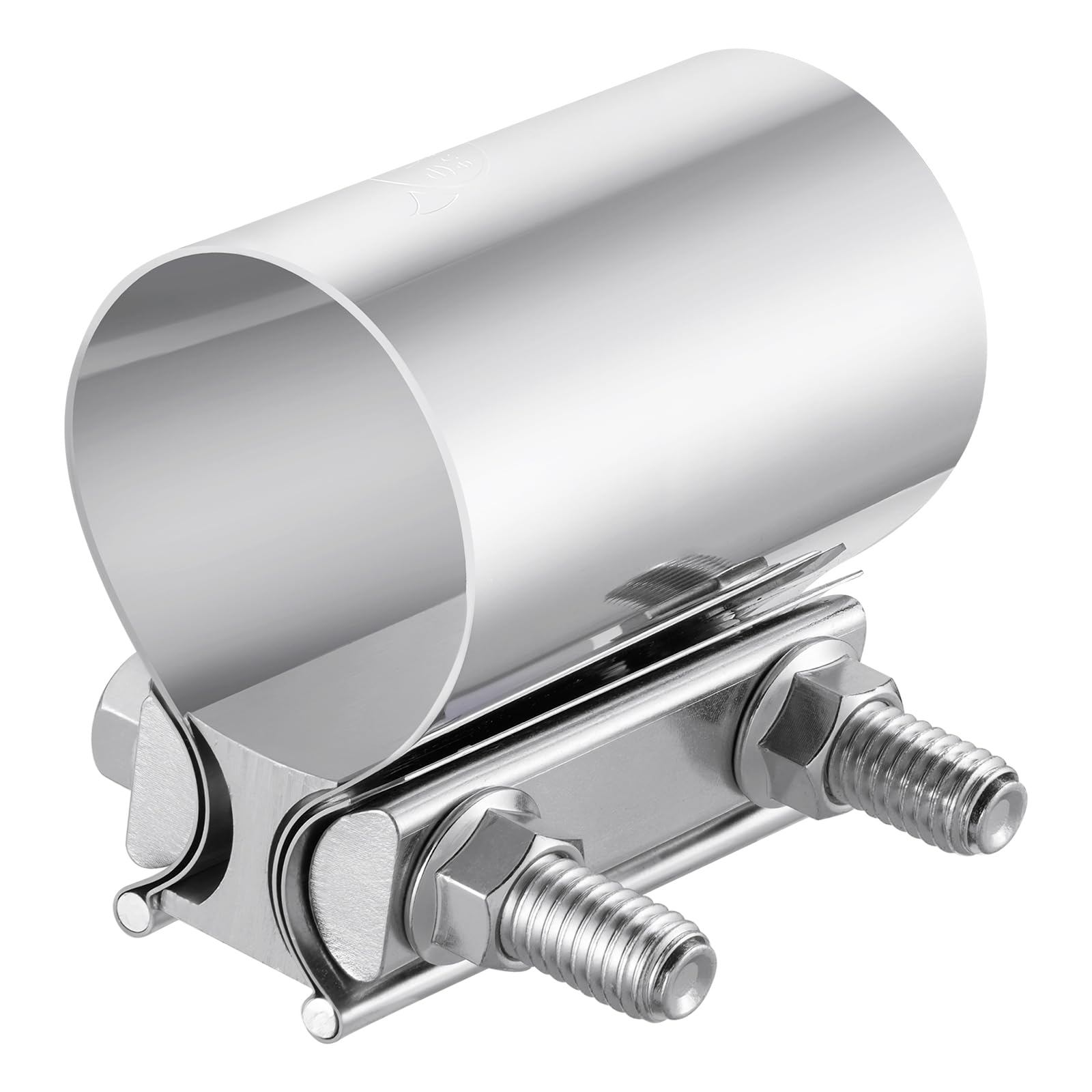

This heavy-duty butt joint band clamp is engineered to join 1.75" outside-diameter exhaust pipes, mufflers, or catalytic converter ends with a straightforward, removable connection. Constructed from 304 stainless steel strap, a zinc-plated M10 bolt and nut, a steel gasket, and an aluminum alloy I-block, the clamp concentrates sealing force evenly around the joint to reduce leaks and deformation during use.

How does this clamp create a reliable seal without welding?

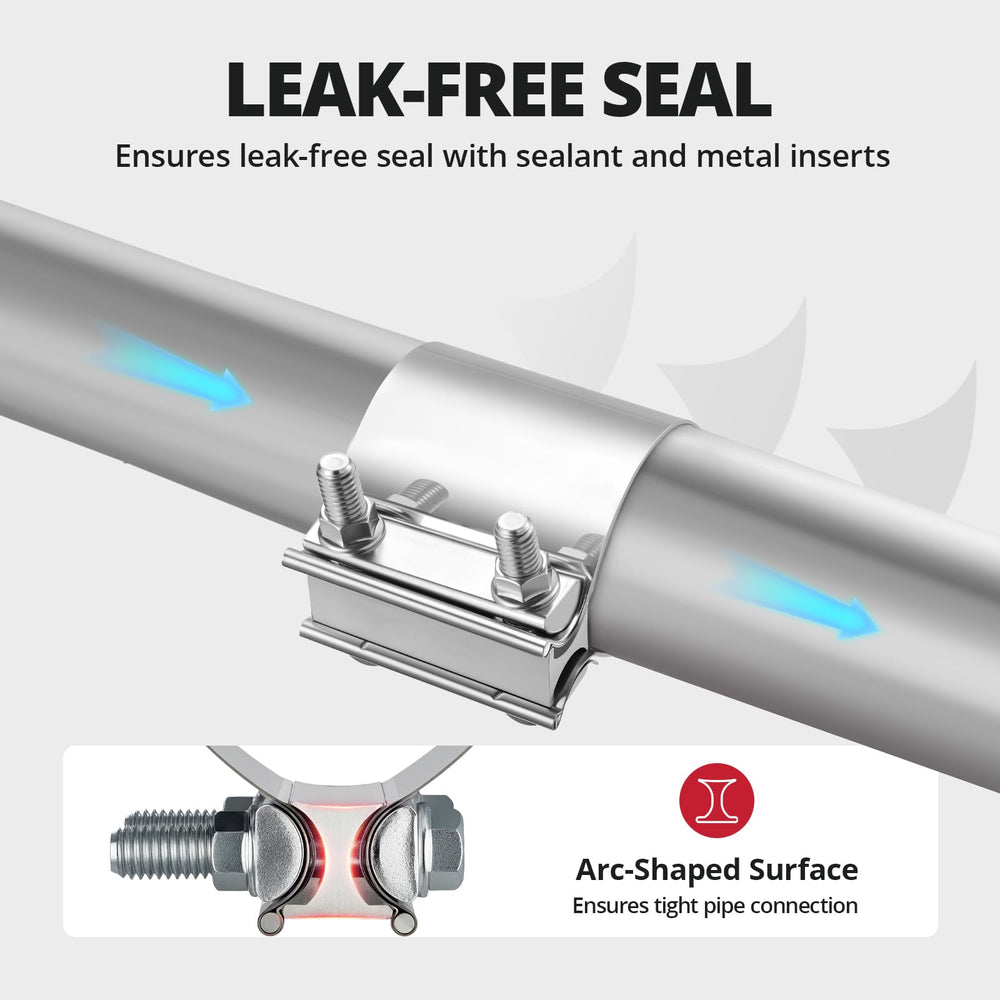

The design relies on a full-circumference band that compresses the joint uniformly, rather than a single-point fastener. As the M10 bolt is torqued, the aluminum I-block drives the strap evenly around the pipe interface, pressing the included steel gasket into the gap and forming a tight mechanical seal.

• 360° force distribution prevents localized buckling and gaps.
• Torque rating of 63 N·m for consistent compression.
• Steel gasket helps bridge irregularities between pipe ends.
• Removable connection avoids cutting or welding when servicing.

What materials and corrosion resistance does it offer?

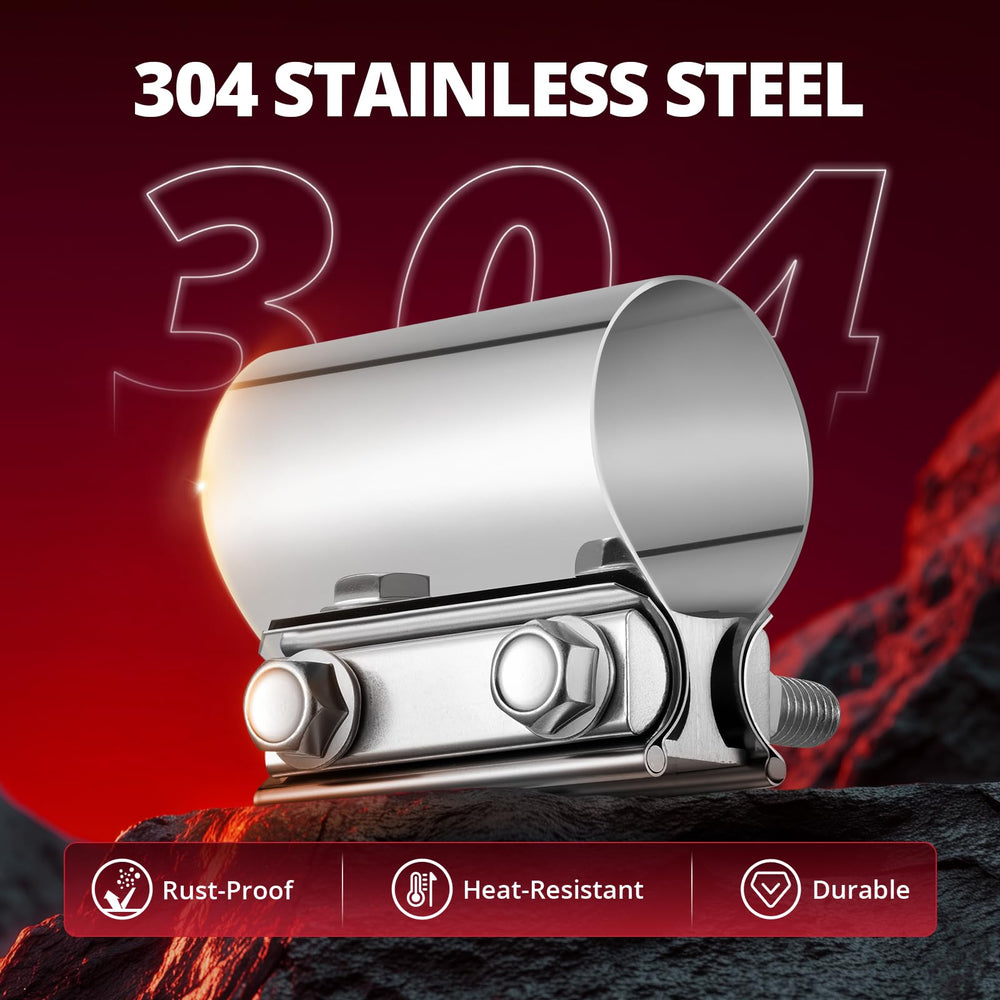

The clamp’s band is made from 304 stainless steel, chosen for its balance of strength and corrosion resistance in exhaust environments. Fastening hardware is zinc-plated to resist surface rust, while the aluminum alloy I-block reduces galling and helps distribute clamp load.

• 304 stainless steel strap for durability and rust resistance.
• Zinc-plated M10 bolt and nut for extra protection against corrosion.
• Aluminum I-block minimizes thread wear and concentrates clamping action.
• Steel gasket improves sealing on uneven pipe ends.

Is installation complex and what tools are needed?

Installation is straightforward and requires only basic hand tools—no welding or cutting is necessary for a standard butt joint installation. Slide the band around the mating pipe ends with the gasket between them, align the I-block, then snug the M10 fastener to the specified torque for a dependable hold.

• Tools required: wrench or socket set sized for M10 fastener.
• Recommended torque: 63 N·m for consistent clamping.
• Works on pipes with 1.75" OD each side; strap width is 3 inches.
• Single-piece design allows quick removal for maintenance.

Will this clamp fit my exhaust components and what are its limits?

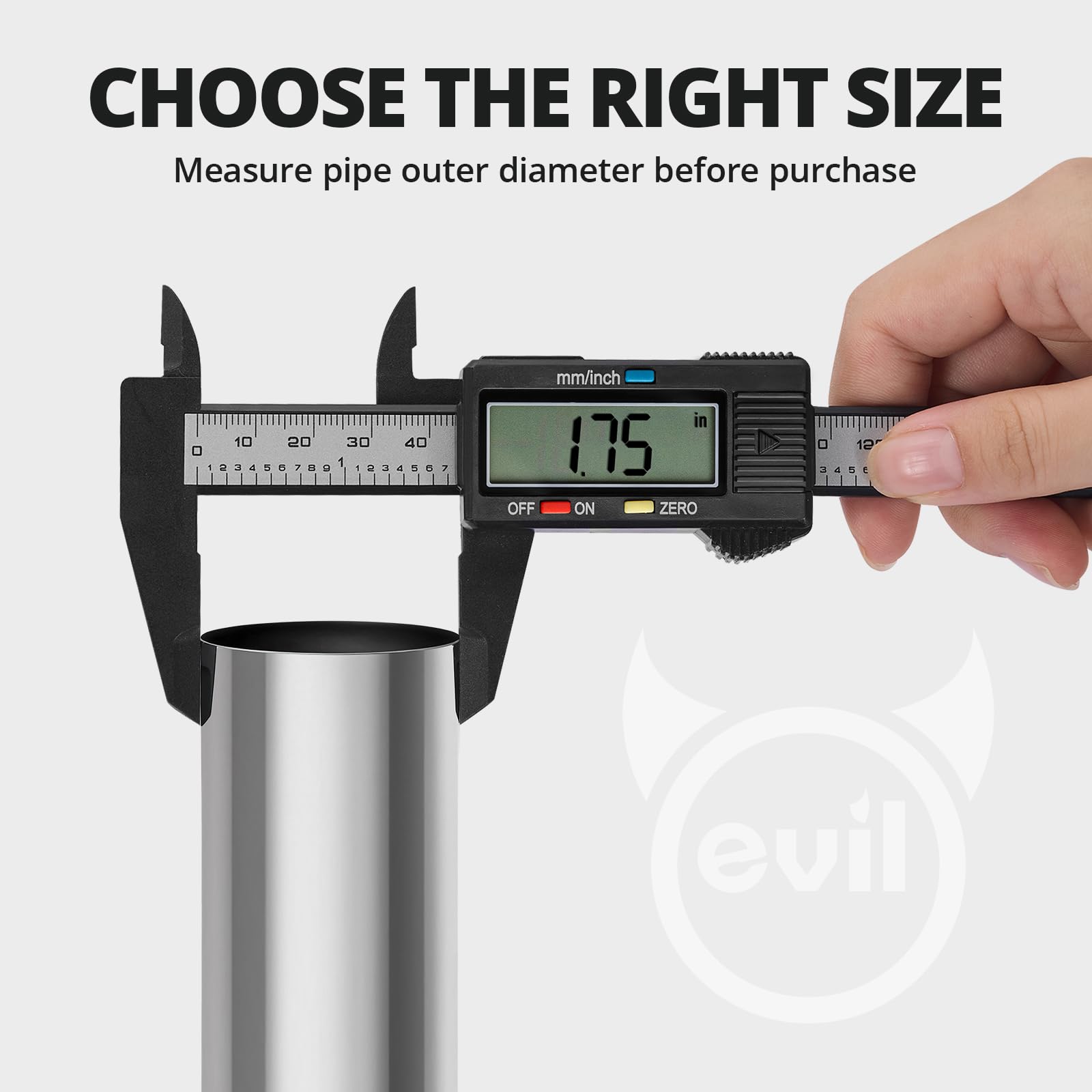

This clamp is sized specifically for butt joints between two pipes or components that each have a 1.75" outside diameter. The 3-inch (76.7 mm) strap width and gasket help accommodate small surface irregularities, but it’s not a substitute for components with significantly mismatched diameters or severely damaged pipe ends.

• Designed to join two 1.75" OD pipes (butt joint configuration).
• Not intended to adapt different diameters without additional fittings.
• Ideal for mufflers, straight sections, and catalytic converter joins of matching size.
• Single-piece (1PCS) supply—additional clamps may be needed for long runs.

Who this is for: Mechanics, DIY car enthusiasts, and fabrication shops needing a no-weld solution for 1.75" exhaust joins will value this clamp. It’s a practical option for repair, replacement, or temporary connections on mufflers, pipes, and converters where a reliable, removable seal is preferred over permanent welding.
