EVIL ENERGY 6AN Hose End Fitting Kit for CPE Braided Fuel Hose — Black 6061‑T6 Aluminum, Swivel Ends & Clamp

EVIL ENERGY's 6AN hose end fitting kit is a complete set of black-anodized 6061-T6 aluminum swivel adapters and clamps made to mate with 6AN CPE braided fuel lines for secure, leak-resistant connections.

This kit supplies the essential fittings and organizing clamps needed when building or repairing 6AN stainless steel or nylon braided fuel and fluid lines. Each component is machined from 6061-T6 aluminum, treated with a protective black anodized finish, and sized specifically for AN6 hose—offering compatibility, tidy routing, and a pressure rating suitable for most automotive and motorsport low-pressure fuel, transmission, and cooling applications.

What components are included and how do they work together?

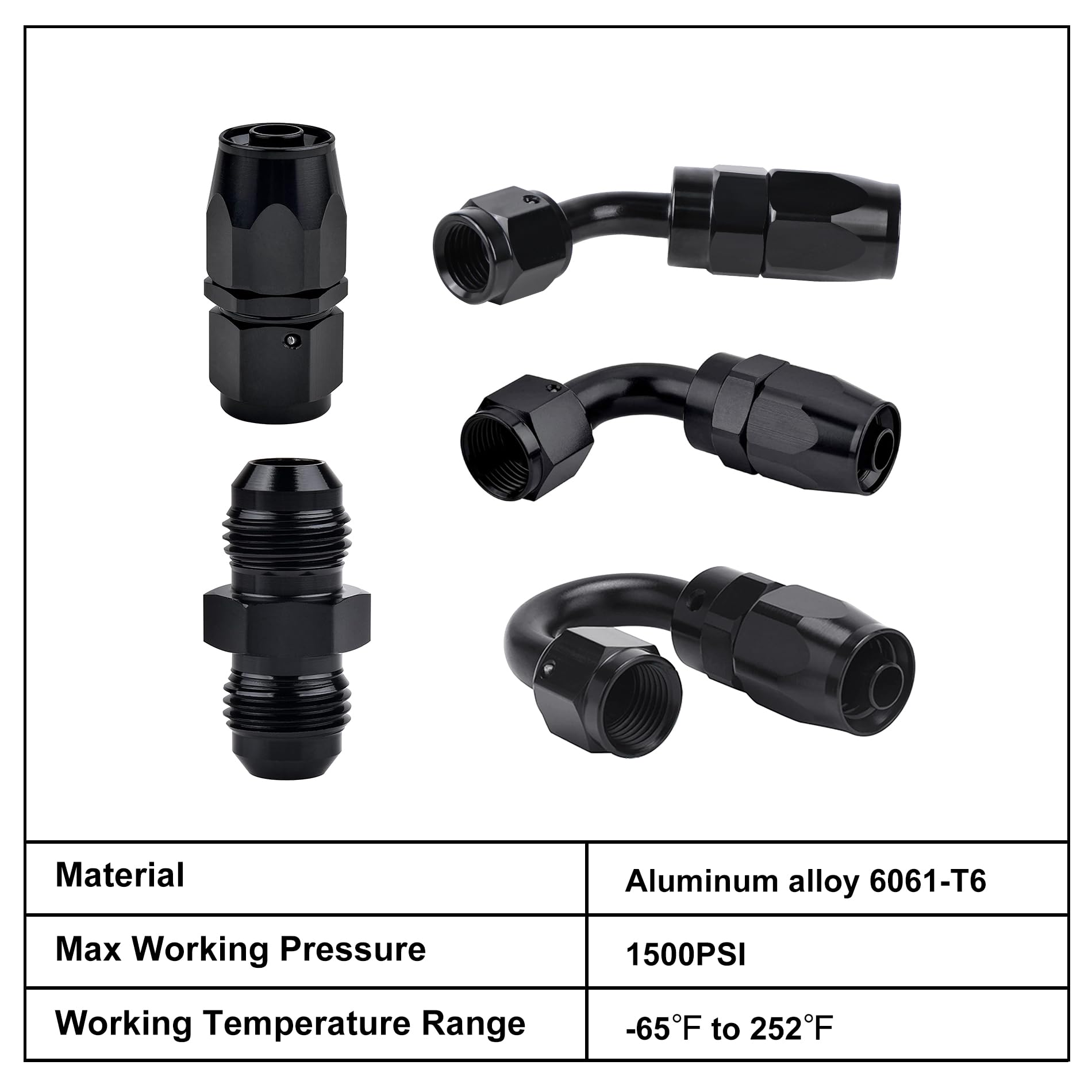

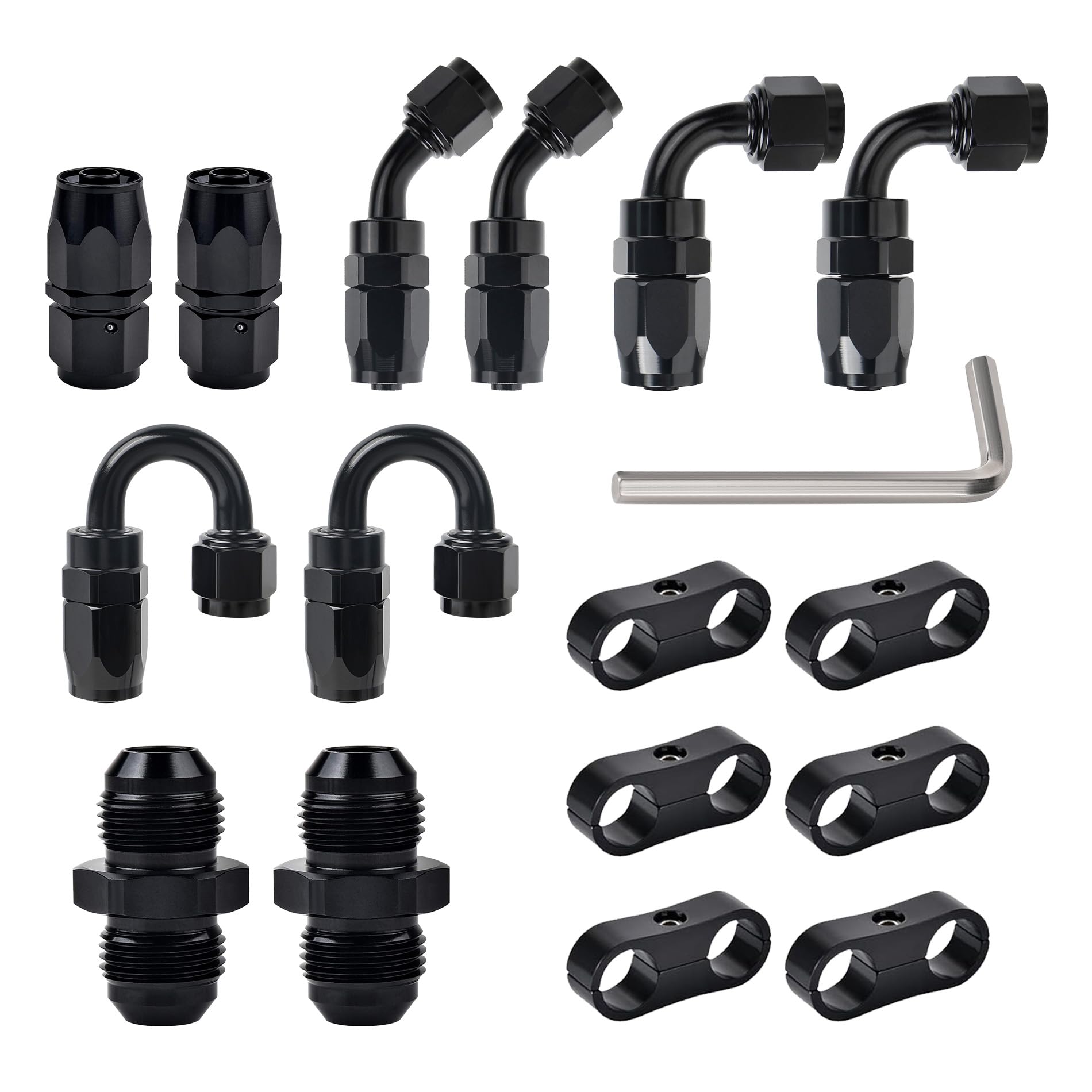

The kit bundles multiple 6AN hose end swivel fittings, unions, and a line clamp to cover common routing needs. Swivel hose ends thread onto AN6 hoses and allow angled routing without twisting the hose, while unions join two AN6 fittings for inline connections.

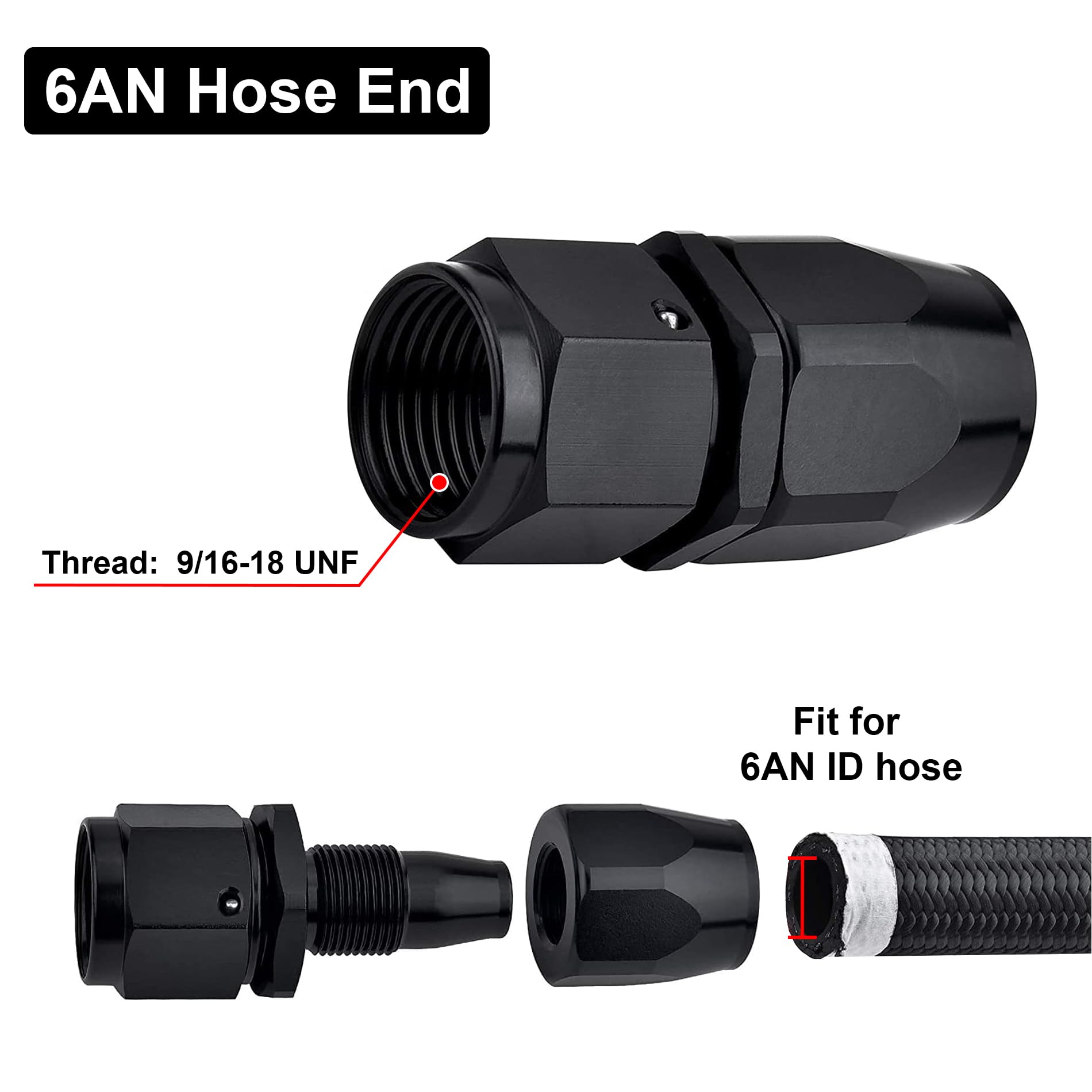

• 6AN thread size: 9/16-18 UNF, matching standard AN6 fittings
• Includes angled swivel hose ends and straight unions for flexible layouts

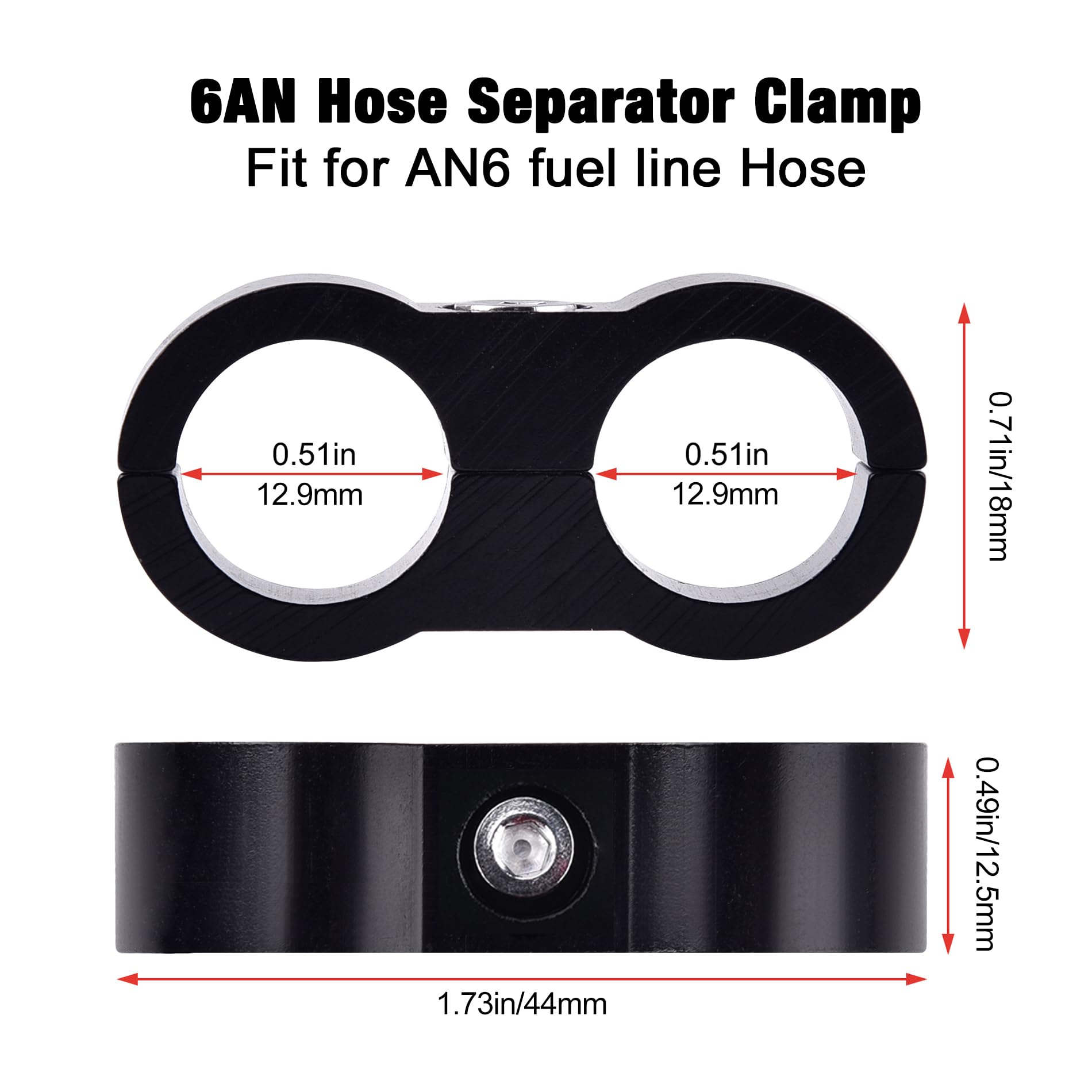

• Line clamp ID 0.51 in (12.9 mm) holds and organizes AN6 hose runs

How durable and heat-resistant are these fittings?

Fittings are CNC-machined from 6061-T6 aluminum and receive a black anodized surface for corrosion resistance and wear protection. The material and finish make the parts lightweight and robust enough for routine automotive use while resisting environmental exposure.

• Base material: 6061-T6 aluminum for strength-to-weight balance
• Black anodized finish helps resist corrosion and scratching
• Operating temperature range: -65°F to 252°F (suitable for most engine bay conditions)

What pressure and hose types are supported?

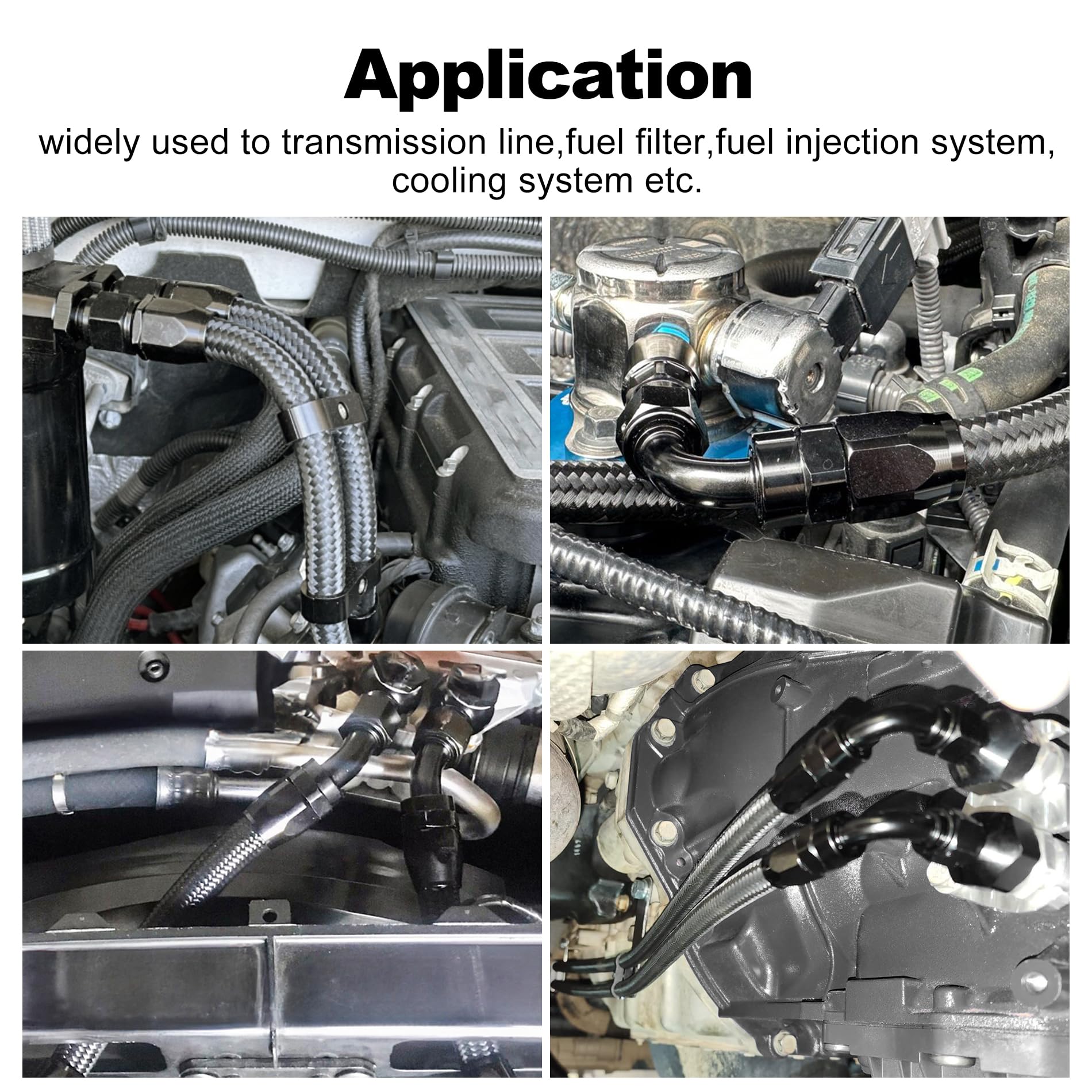

This fitting kit is specified for use with AN6 stainless steel and nylon braided hoses and is rated to a maximum working pressure of 1,500 PSI. While suitable for many fuel systems, transmission feed lines, and cooling return lines, confirm hose and system requirements before installation.

• Maximum working pressure: 1,500 PSI

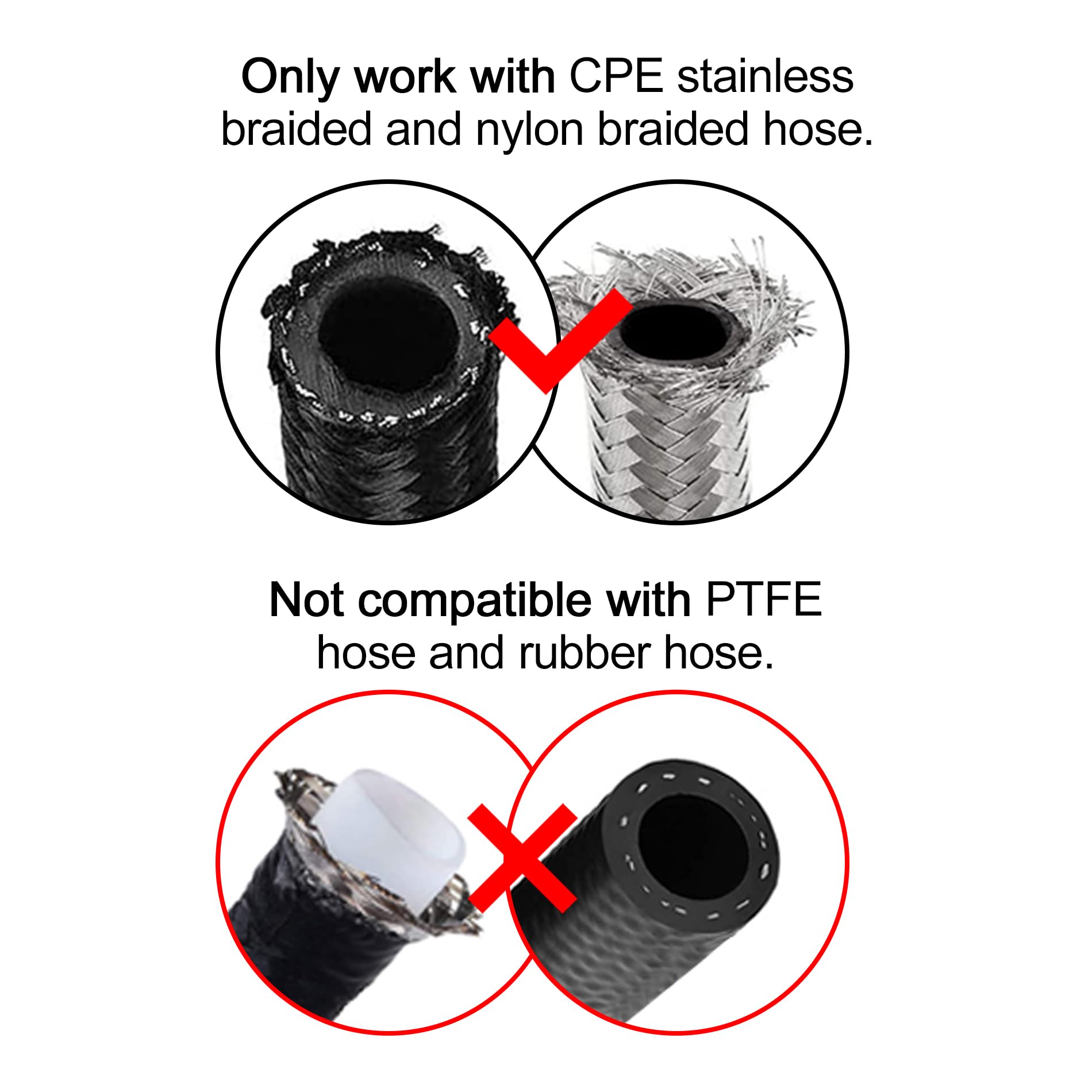

• Compatible with 6AN stainless steel and nylon braided hoses only
• Not intended for use with hoses or systems outside AN6 sizing

How does the kit improve installation and maintenance?

The included swivel ends and line clamp simplify routing and keep lines secure, reducing strain at fittings and presenting a cleaner installation. Using the correct AN6 unions and swivel pieces minimizes hose twisting and speeds up assembly and future servicing.

• Swivel ends allow angled connections without hose torsion
• Separator clamp organizes multiple lines and prevents chafing
• Standard 9/16-18 UNF threads make the kit compatible with most AN6 components

Who is this for: The EVIL ENERGY 6AN hose end fitting kit is designed for DIY mechanics, race teams, and professional installers who build or repair AN6 braided fuel, transmission, or coolant lines and want durable, lightweight fittings with tidy routing options. It’s ideal if you need compatibility with standard AN6 hoses, a durable aluminum finish, and parts that make assembly and future maintenance easier. Always match fittings to your hose type and confirm pressure and temperature requirements for your specific application before use.
