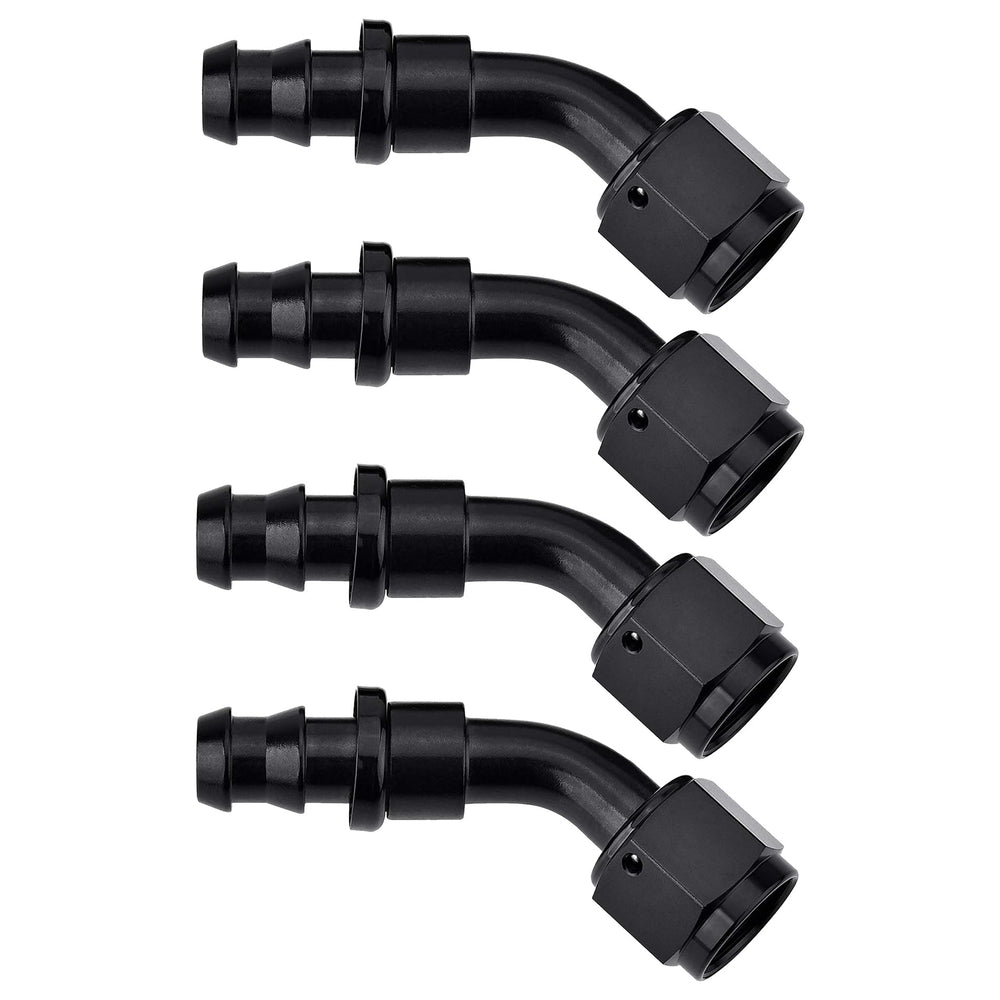

EVIL ENERGY 6AN to 3/8" 45° Push-Lock Hose Fitting Kit — 4pc Black Anodized Aluminum, 1500 PSI

Designed for motorsport and performance plumbing where space and routing matter, this 4-piece kit converts a 6AN threaded port (9/16-18 UNF) to a 3/8" barb with a 45-degree offset. Machined from 6061-T6 aluminum and finished in anodized black, each fitting accepts push-on rubber fuel hose and is rated for demanding environments with a maximum working pressure of 1,500 PSI and a temperature tolerance from -40°F to 248°F. The angled profile helps clear tight engine bays and simplifies hose bends without creating severe kinks.

How does the 45° angle improve hose routing?

The 45° offset reorients the hose entry to reduce sharp bends and rubbing points, improving flow consistency and extending hose life. It helps when clearance around fittings is limited or when you need to route hoses around brackets and cylinder heads.

• Creates gentler hose curves compared with straight fittings
• Helps avoid contact with hot components and moving parts
• Allows more compact plumbing layouts in tight engine bays

What hoses and sealing methods are compatible with this fitting?

This barb fitting is engineered specifically for rubber fuel lines; push-on installation is straightforward, but clamps are recommended to ensure a leak-free seal under pressure. The barb profile provides mechanical grip, while hose clamps add security for track or road use.

• Compatible with rubber fuel hoses sized for 3/8" barb connections
• Use worm-gear or crimp clamps for reliable sealing
• Not intended for PTFE, hard tubing, or push-lock (quick-disconnect) hoses

What materials and performance ratings should I expect?

Each adapter is CNC-machined from 6061-T6 aluminum, giving a favorable strength-to-weight balance and corrosion resistance when anodized. The fittings are rated to a maximum working pressure of 1,500 PSI and operate from -40°F up to 248°F, suitable for most automotive fuel system conditions.

• 6061-T6 aluminum construction for durability and low weight
• Anodized black finish for added corrosion protection and aesthetics
• Working pressure: up to 1,500 PSI; temperature range: -40°F to 248°F

How easy is installation and what size details matter?

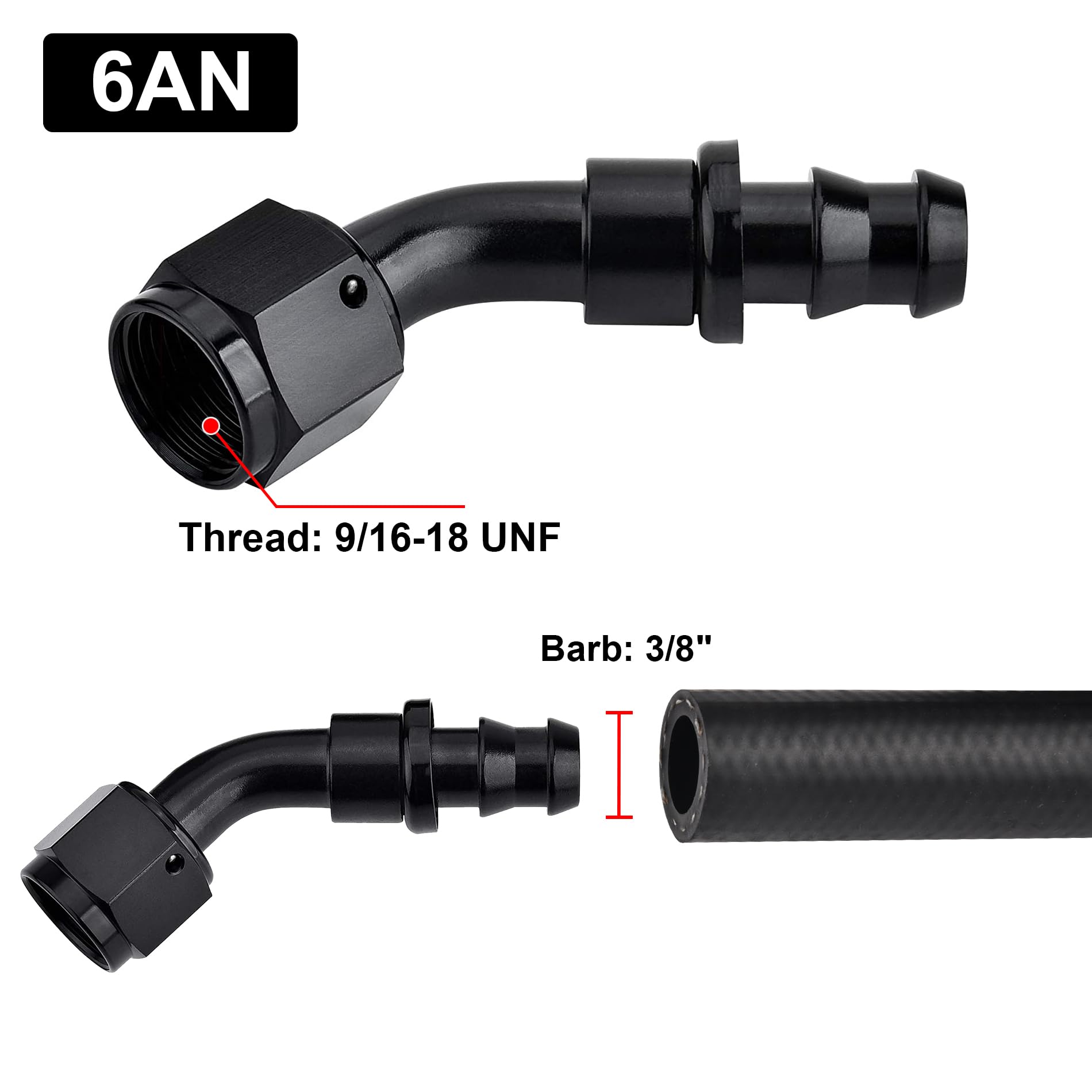

Installation is quick: thread the 6AN male end (9/16-18 UNF) into the mating port, slide a compatible 3/8" rubber hose onto the barb, and secure it with a clamp. The compact 45° profile reduces the need for additional elbows, making plumbing faster in tight spaces.

• Thread size: 6AN male with 9/16-18 UNF threads
• Barb size: 3/8" — fits corresponding rubber fuel lines
• Sold as a 4-piece set for multiple connections or spares

Who is this for? EVIL ENERGY's 6AN to 3/8" 45° push lock barb fittings suit DIY mechanics, race teams, and custom builders who need compact, reliable hose transitions in confined engine bays. If you work with rubber fuel lines, want a lightweight aluminum fitting with a clean black finish, and value easier hose routing with recommended clamp sealing, this four-pack provides practical, ready-to-install adapters for performance plumbing projects.
