EVIL ENERGY 8AN to 1/2" 90° Push-Lock Hose Fitting 2-Pack — Black Aluminum, 1500 PSI

EVIL ENERGY 8AN to 1/2" barb 90° push-lock hose fitting is a compact aluminum adapter that lets you turn an 8AN threaded line into a 1/2" rubber fuel hose at a right angle for tidy routing and reliable service in pressurized systems.

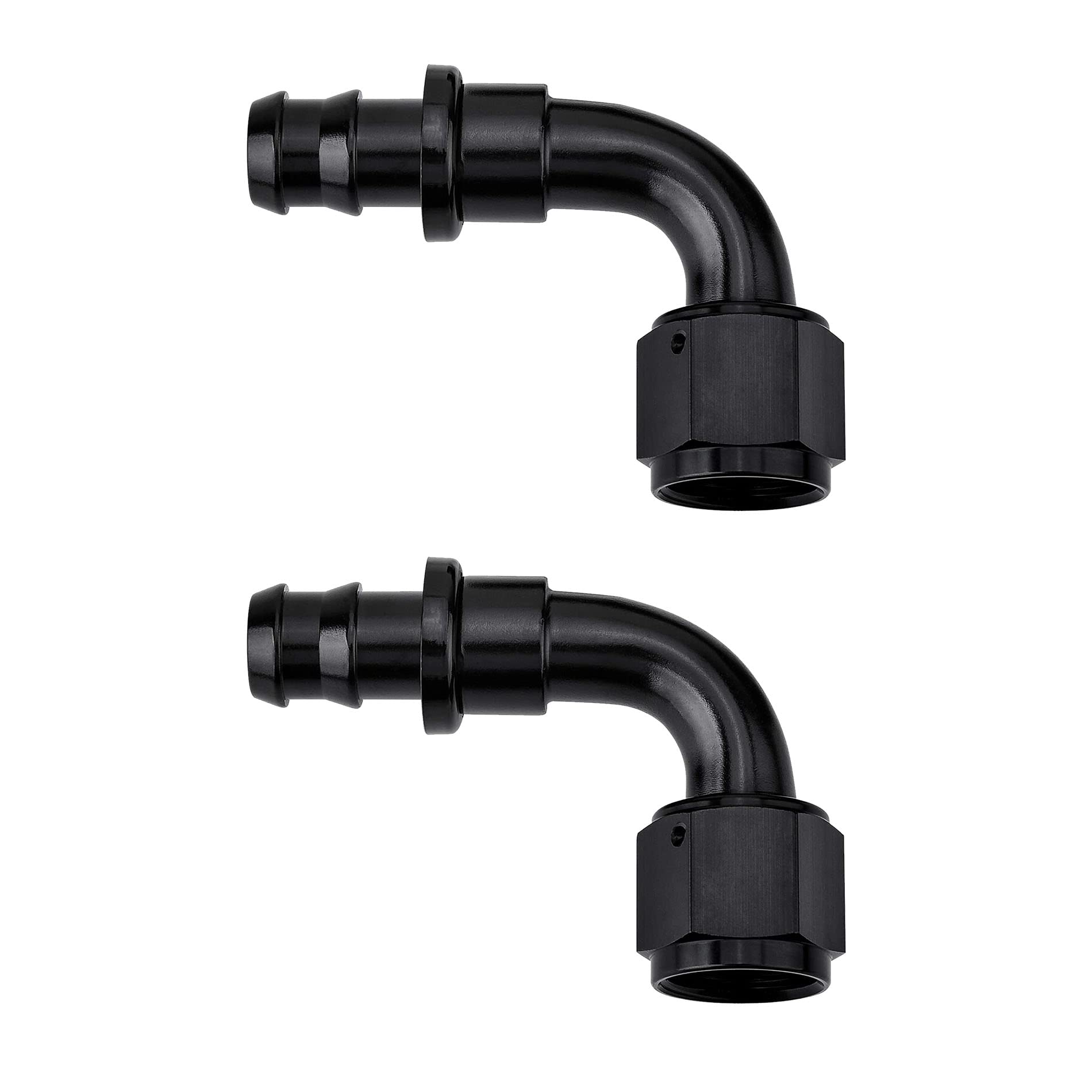

This pair of 90-degree push-lock fittings is built from 6061-T6 aluminum and finished in black, designed for use with rubber fuel lines in automotive and motorsport applications. Each fitting converts an 8AN threaded connection (3/4-16 UNF) to a 1/2" barb and is rated for a maximum working pressure of 1,500 PSI. The fittings tolerate a wide temperature range from -40°F to 248°F and are intended to be secured with hose clamps for the best seal.

How does this 90° adapter help with tight hose routing?

The right-angle design changes flow direction without sharp bends in the hose, freeing up space and reducing stress on connections. Its compact elbow keeps lines close to the chassis or engine components for cleaner installations.

• 90-degree bend minimizes hose kinks and preserves flow.
• Short profile fits confined engine bays and bracketed areas.
• Smooth internal path reduces turbulence at the joint.
• Black anodized finish offers corrosion resistance and discreet appearance.

What hoses and threads are compatible with this fitting?

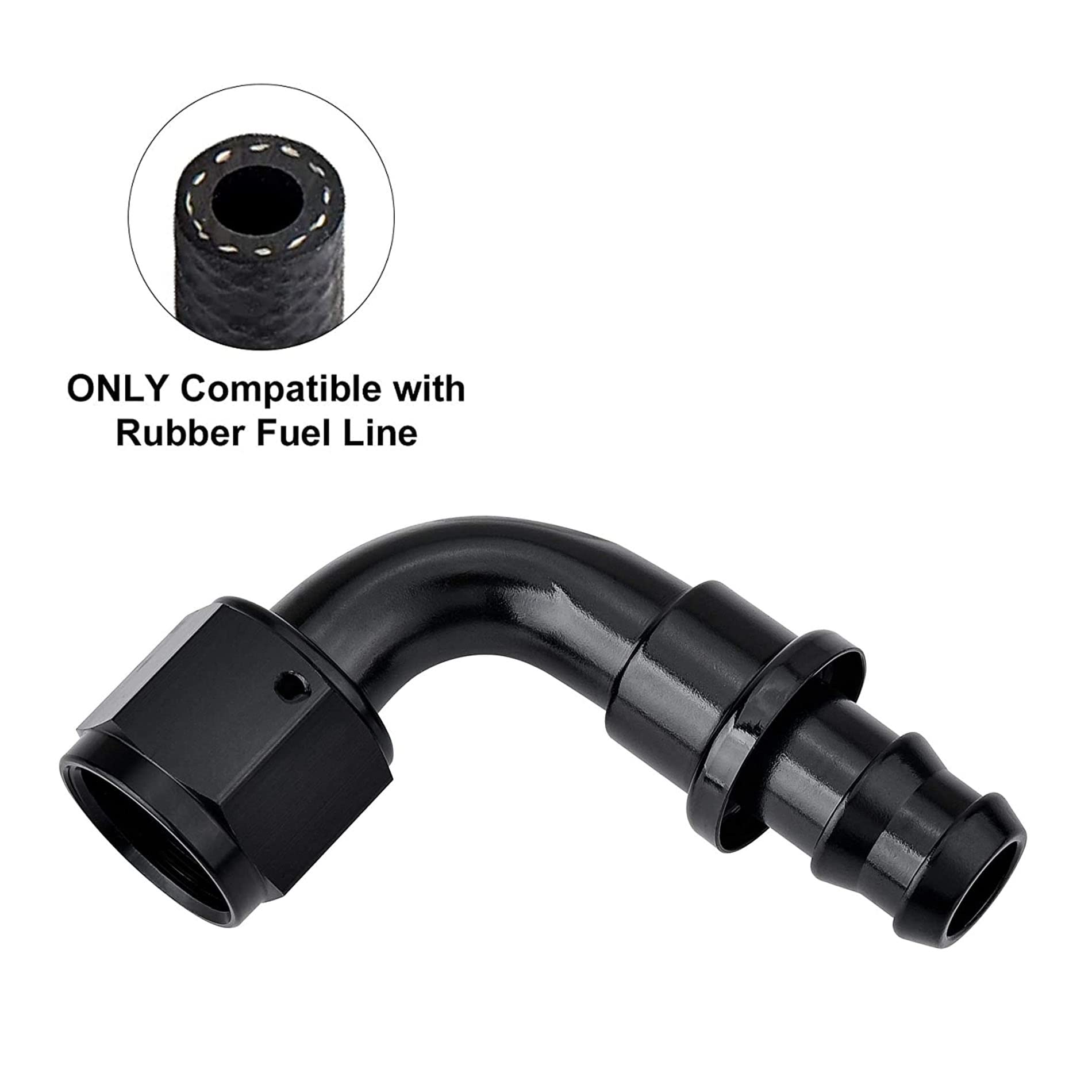

This adapter converts an 8AN threaded port (3/4-16 UNF) to accept a 1/2" barb hose end. It is specifically made for rubber fuel lines and should be used with hose clamps to ensure a leak-free connection.

• Thread end: 8AN (3/4-16 UNF) male thread.
• Hose end: 1/2" barb for rubber fuel hoses only.
• Not designed for PTFE or braided lines without appropriate transition fittings.
• Use compatible AN sealing practices (crush washer or tape where applicable).

What are the performance limits and material details?

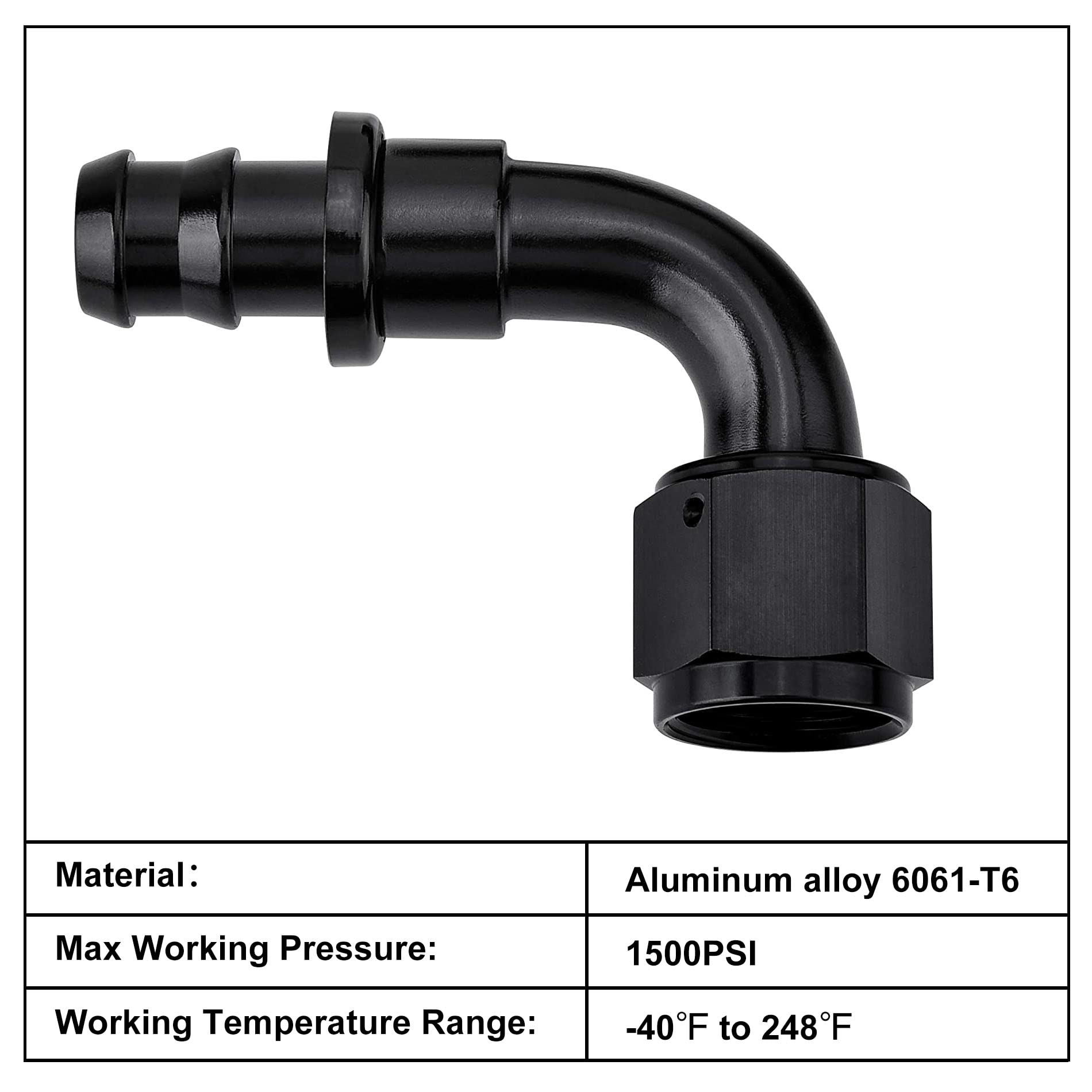

Made from 6061-T6 aluminum, these fittings balance strength and light weight. They are rated to a maximum working pressure of 1,500 PSI and function across a broad temperature range, suitable for many fuel delivery and low-pressure fluid systems.

• Material: 6061-T6 aluminum alloy for strength and corrosion resistance.
• Pressure rating: up to 1,500 PSI working pressure.
• Temperature range: -40°F to 248°F (-40°C to 120°C).
• Finish: black anodized for added surface protection.

How should I install and secure these push-lock fittings?

Installation is straightforward: thread the 8AN end into the corresponding port and push the rubber hose onto the 1/2" barb. For safe, long-lasting service, clamp the hose at the barb and inspect for alignment and clearance after initial use.

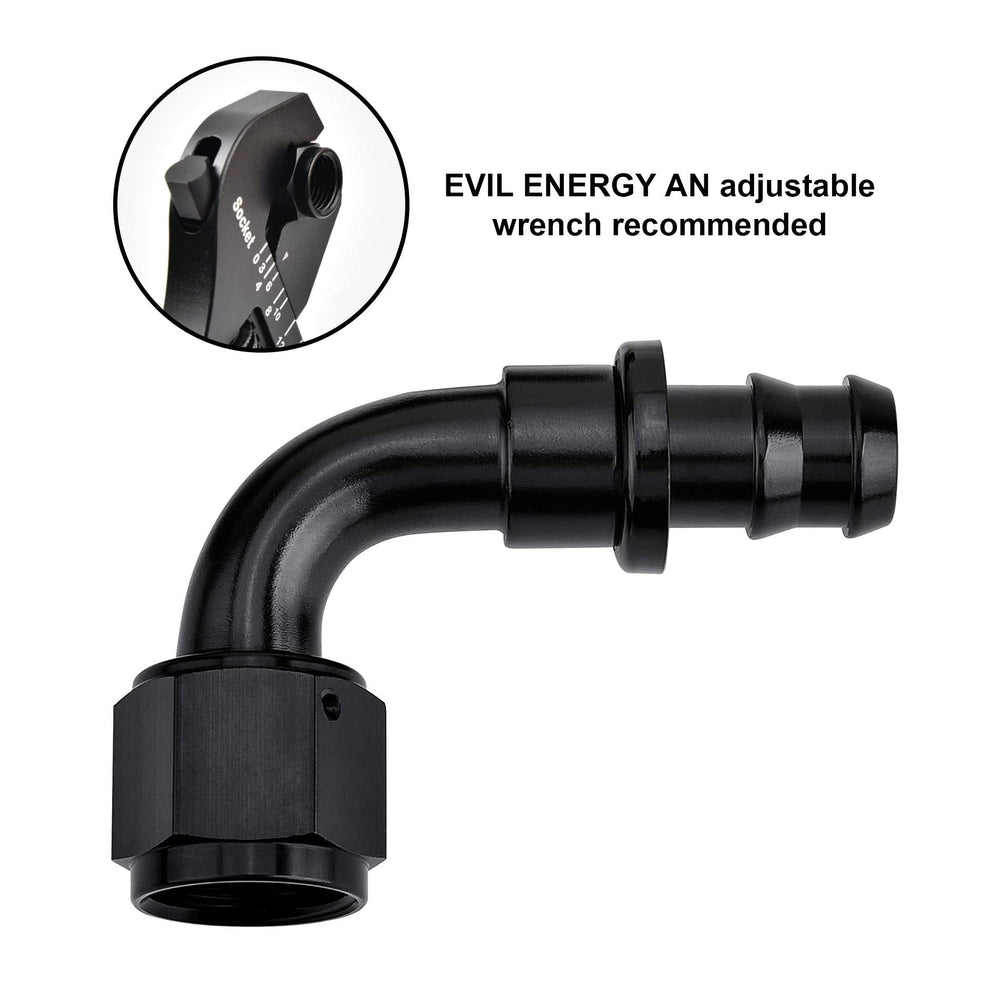

• Hand-start threads, then torque to recommended spec for your application.
• Push the rubber hose fully onto the barb before clamping.
• Use quality stainless-steel or OEM-style clamps to improve sealing.
• Check for chafing and re-torque after the first heat cycle.

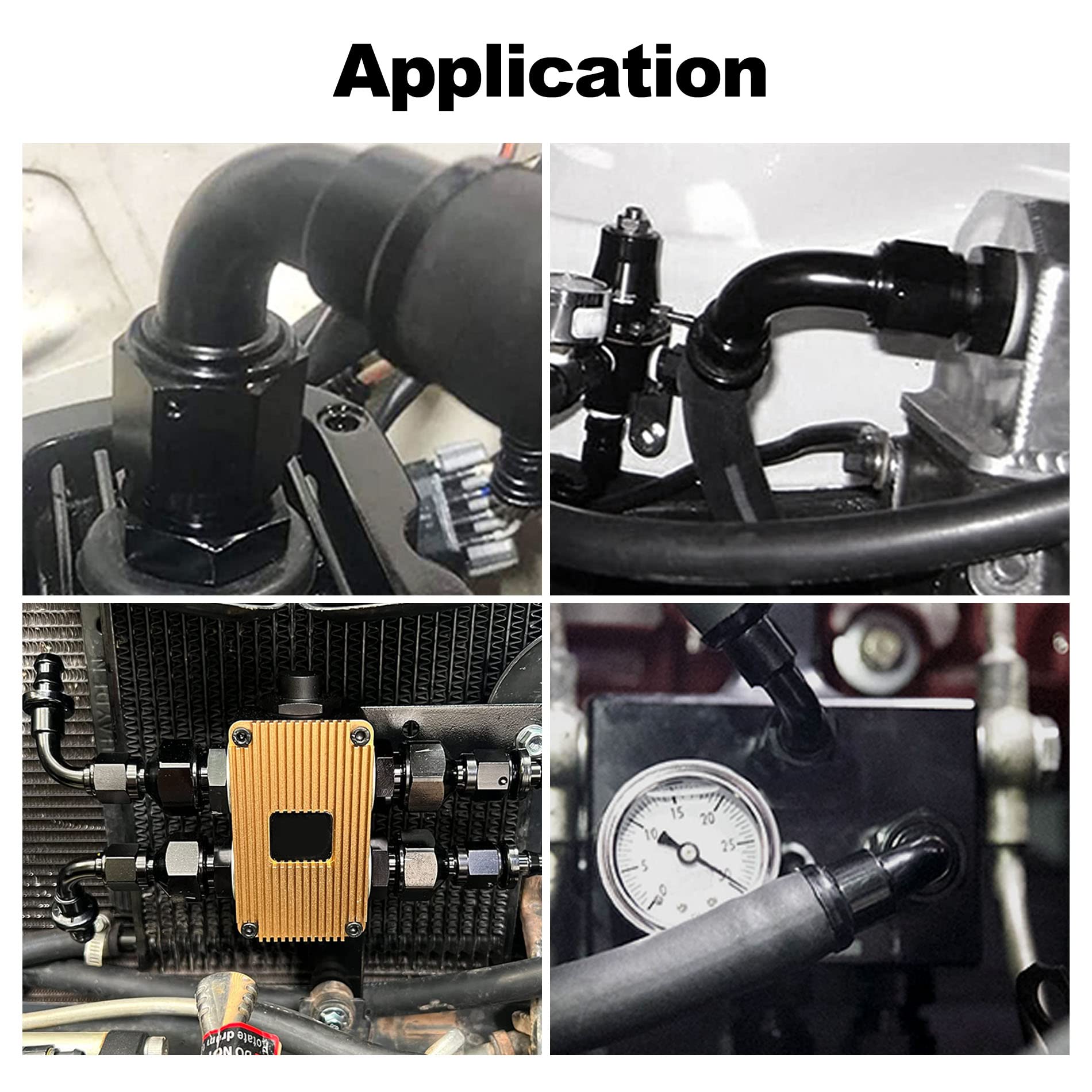

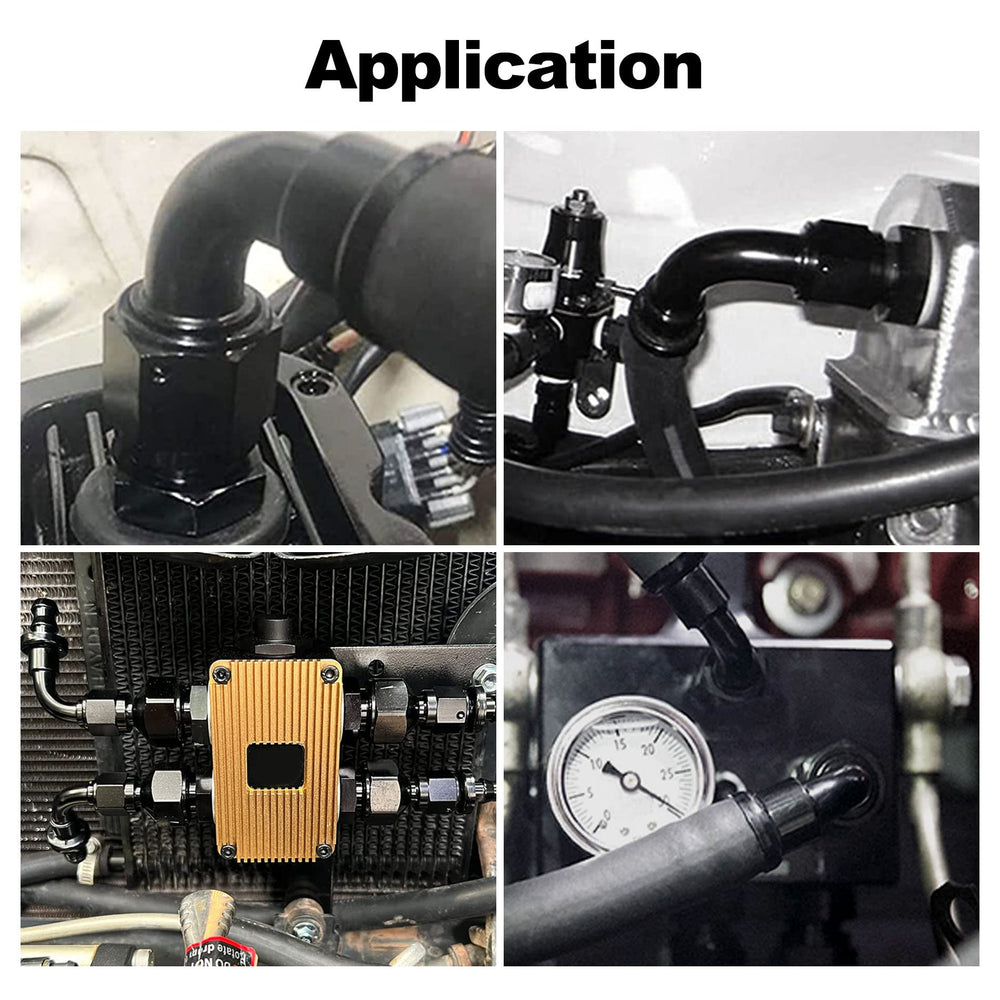

Who is this for: These EVIL ENERGY 90° 8AN to 1/2" barb fittings are aimed at home mechanics, racers, and fabricators who need compact, durable adapters for fuel or low-pressure fluid routing. They are best suited to systems that use rubber fuel hoses and require a right-angle solution to improve packaging, prevent hose kinks, and maintain secure connections in confined spaces.
