EXCELFU NEMA 14-50R EV Power Outlet — 50A 125/250V Weatherproof Lockable Box

EXCELFU 50 Amp 125/250 Volt NEMA 14-50R EV power outlet box is a weatherproof, lockable receptacle for Level 2 EV charging, RV use, and other high-load applications.

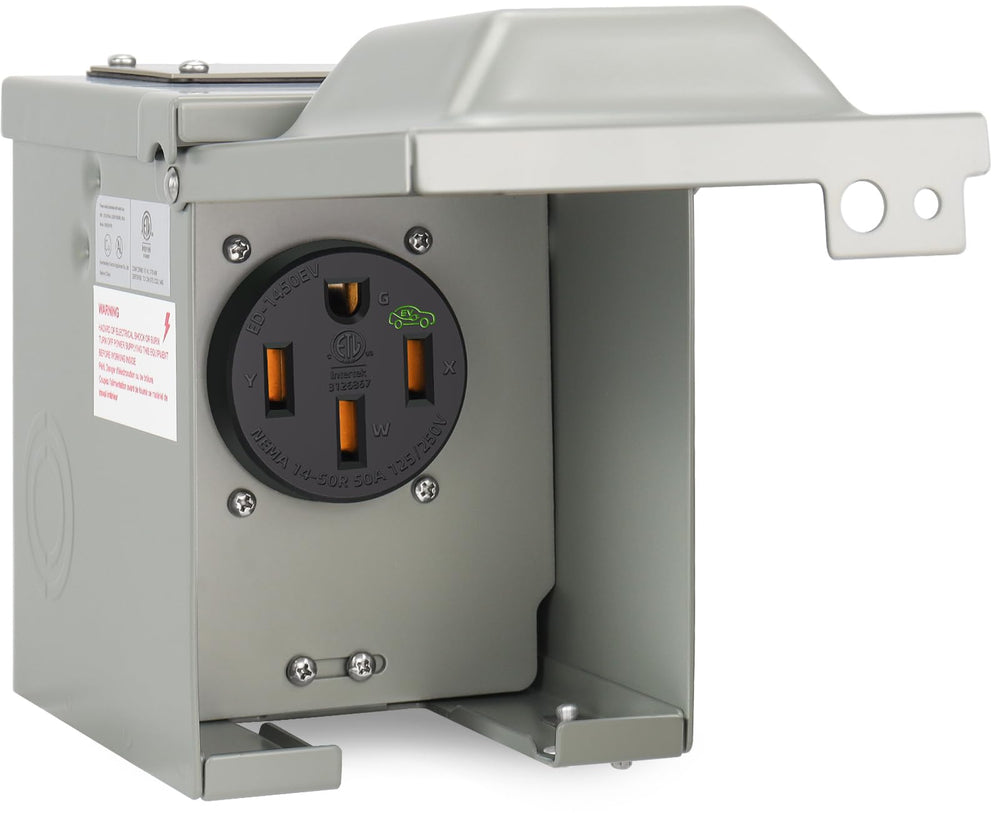

This heavy-duty outlet enclosure provides a dedicated 50A, 125/250V NEMA 14-50R receptacle built for outdoor and indoor mounting. Constructed with robust metal housing, brass terminal blades, and copper contacts, the unit is ETL listed and engineered to handle frequent insertions from EV chargers while protecting the connection from rain, dust, and tampering. It arrives as a surface-mount box with multiple wiring entry options so you can position charging where you need it most.

How does this outlet handle outdoor conditions?

The box uses a Type 3R-rated weatherproof enclosure and a hinged cover to shield the receptacle from precipitation and debris. Corrosion-resistant components and impact-resistant plastics help maintain reliability in varied climates without compromising safety.

• Type 3R rainproof enclosure for outdoor mounting
• Hinged swing cover seals against moisture and dust
• Durable metal body and UV-resistant materials
• Lockable door prevents unauthorized use and tampering

What electrical specifications and certifications does it meet?

This receptacle is rated for 50 amps at 125/250 volts and uses the standard NEMA 14-50R socket shape, compatible with common 50A EV and RV plugs. It is ETL listed, indicating it has been evaluated to meet recognized safety standards for electrical products.

• 50 Amp continuous current rating
• 125/250 Volt NEMA 14-50R socket
• ETL listed for safety compliance
• Brass terminal blades and copper contacts for reliable conductivity

How easy is installation and wiring?

The enclosure is designed for flexible mounting: wall-mounted, recessed with a flush plate, or installed on a pedestal. Marked knockout locations require drilling a hole with a hole saw when using side or back entries — the box is not pre-punched — and the interior has ample room for heavy-gauge cable and tidy terminations.

• Multiple wiring entry points: top, side, or back
• Interior space for large gauge wire and connectors
• Includes swing cover and mounting flanges for easy attachment
• Installation requires drill/hole saw for marked circles (not pre-drilled)

What anti-theft and safety features are included?

The front cover can be locked to prevent unauthorized disconnects or cable theft, and the robust terminal materials reduce wear from repeated plug cycles. The sealed cover helps reduce exposure to live parts, lowering the risk of accidental contact.

• Lockable door to prevent tampering and theft
• Brass and copper contact materials resist wear from frequent use
• Cover stays open during maintenance to secure working access
• Designed to reduce exposure to live components

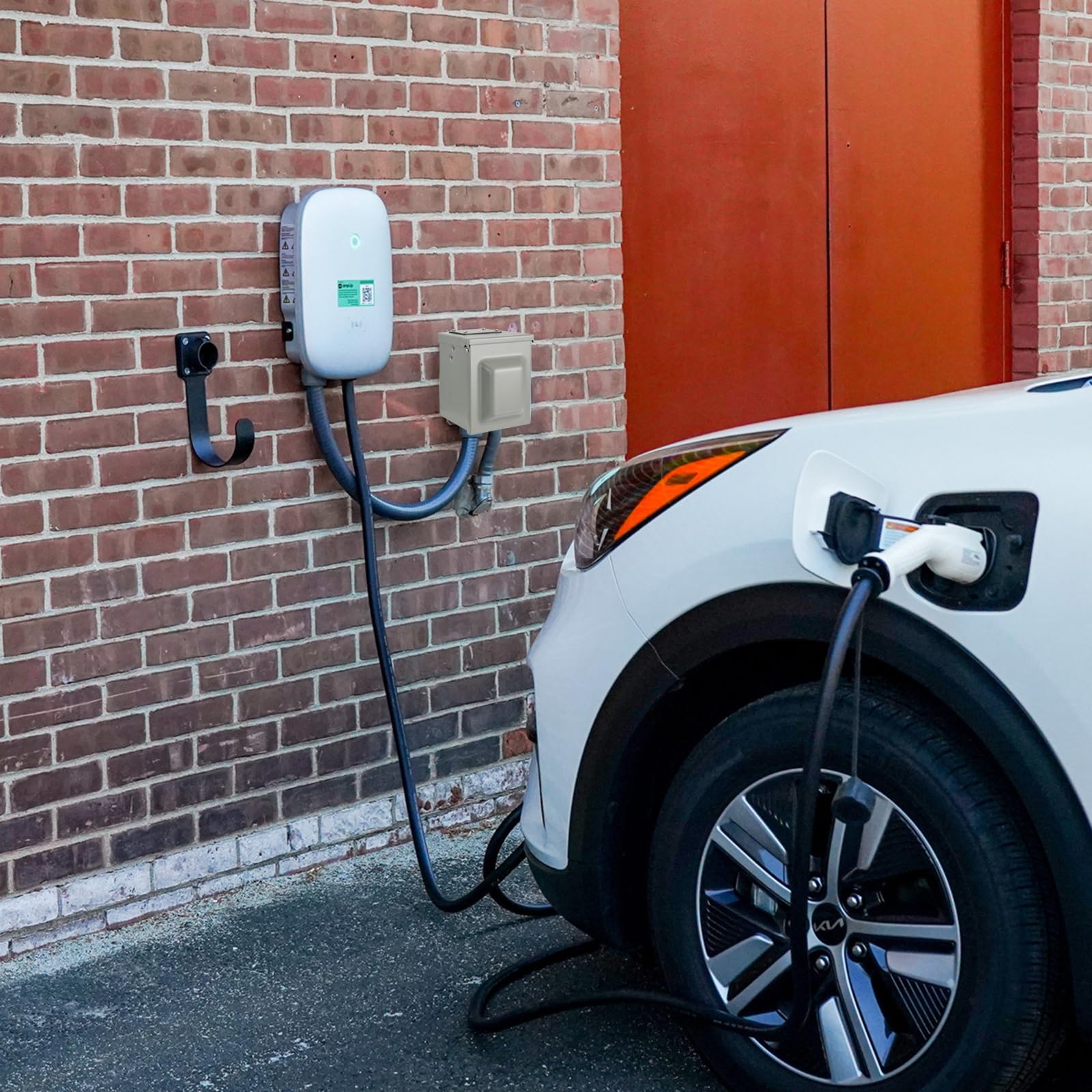

Who this is for: Homeowners, RV owners, small business operators, and property managers who need a durable, code-compatible 50A outlet for Level 2 EV charging or heavy-load equipment will find this EXCELFU receptacle suitable. It’s aimed at users who want a weatherproof, lockable charging point that accepts standard 14-50 plugs and offers a clean, installable solution where vehicles or equipment park regularly. Always consult a licensed electrician to confirm breaker sizing and local code compliance before installation.
