FASTSTORM 5-in-1 Ignition Rocker Switch Panel 12V with Red Engine Push Button, Pre-wired Relay Harness & LED

FASTSTORM's 5-in-1 ignition rocker switch panel is a pre-wired 12V push-to-start and toggle switch kit that consolidates master power, three accessory circuits, and a red engine start button with relay harness and LED backlighting.

This compact racing-style panel brings a professional, durable control center to cars, trucks, boats, RVs and ATVs. Built from carbon-fiber-look and aerospace-grade aluminum, the unit ships pre-wired with relays, fuse holders, waterproof covers, and bright red LED illumination so you can install a reliable push-start and accessory system without fabricating a custom harness.

How does the FASTSTORM panel simplify vehicle ignition and accessory control?

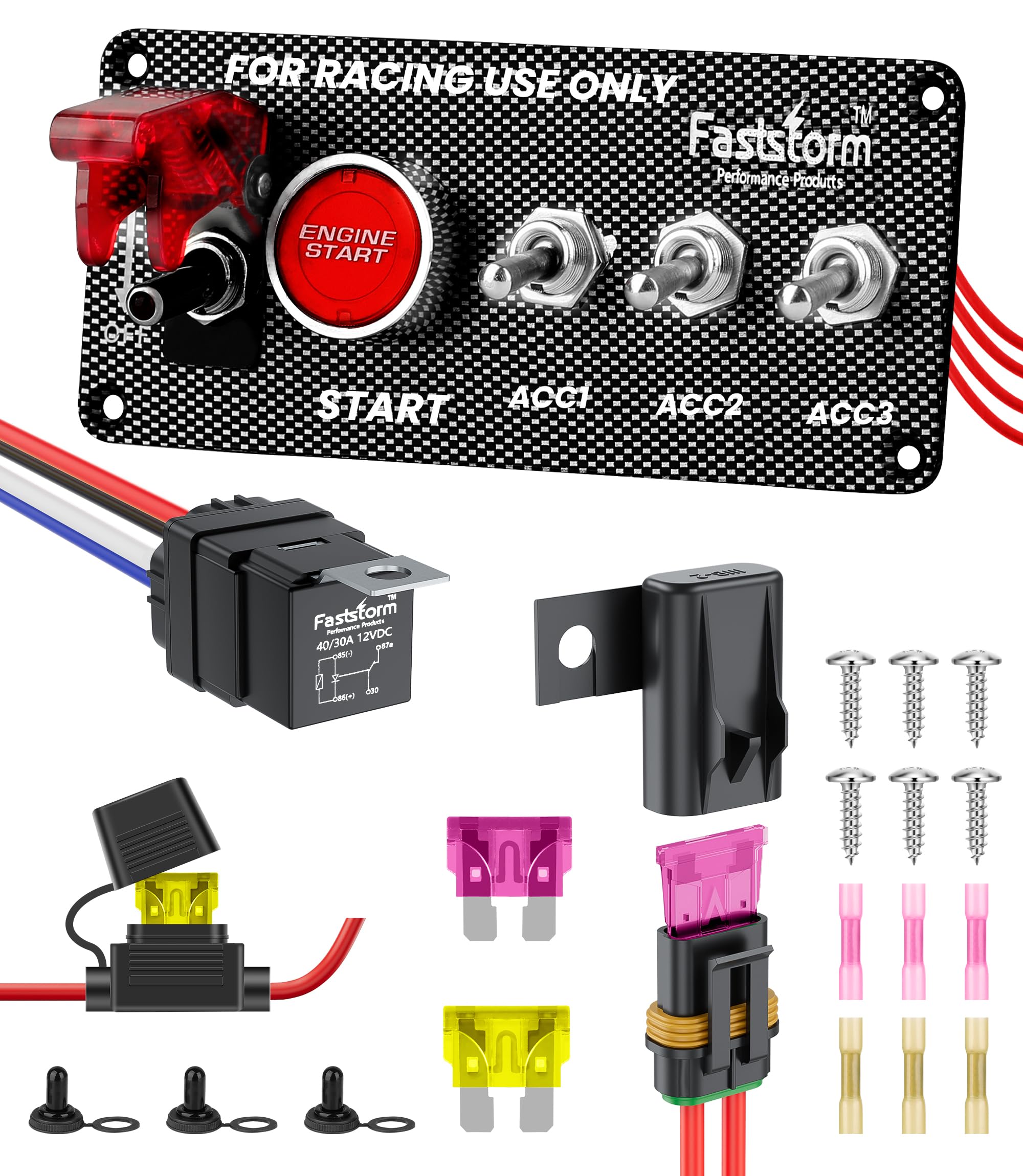

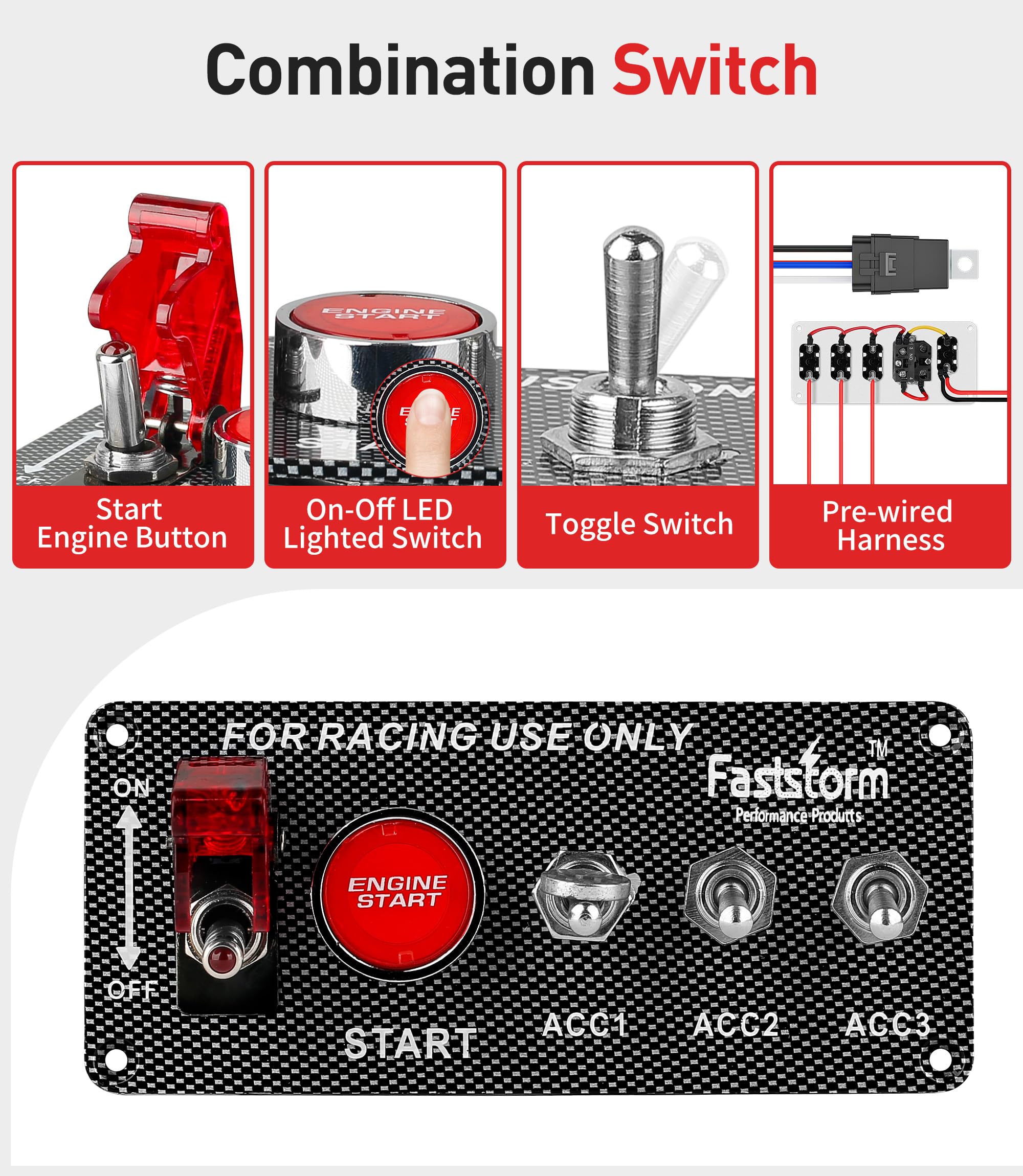

The panel replaces scattered switches and bulky starter solenoids with one organized module. It integrates a master safety toggle, three ACC toggles and a momentary red engine start button that activates through a relay, keeping starter current off delicate switches.

• Master SPST toggle cuts all power with a protective 20A safety cover.
• Red LED momentary engine push button triggers starter relay for instant cranking.
• Three waterproof ACC toggles control lights, audio, winch or other accessories.
• Pre-wired relay harness and fuse holders reduce installation time.

What wiring, protection, and components are included for safety?

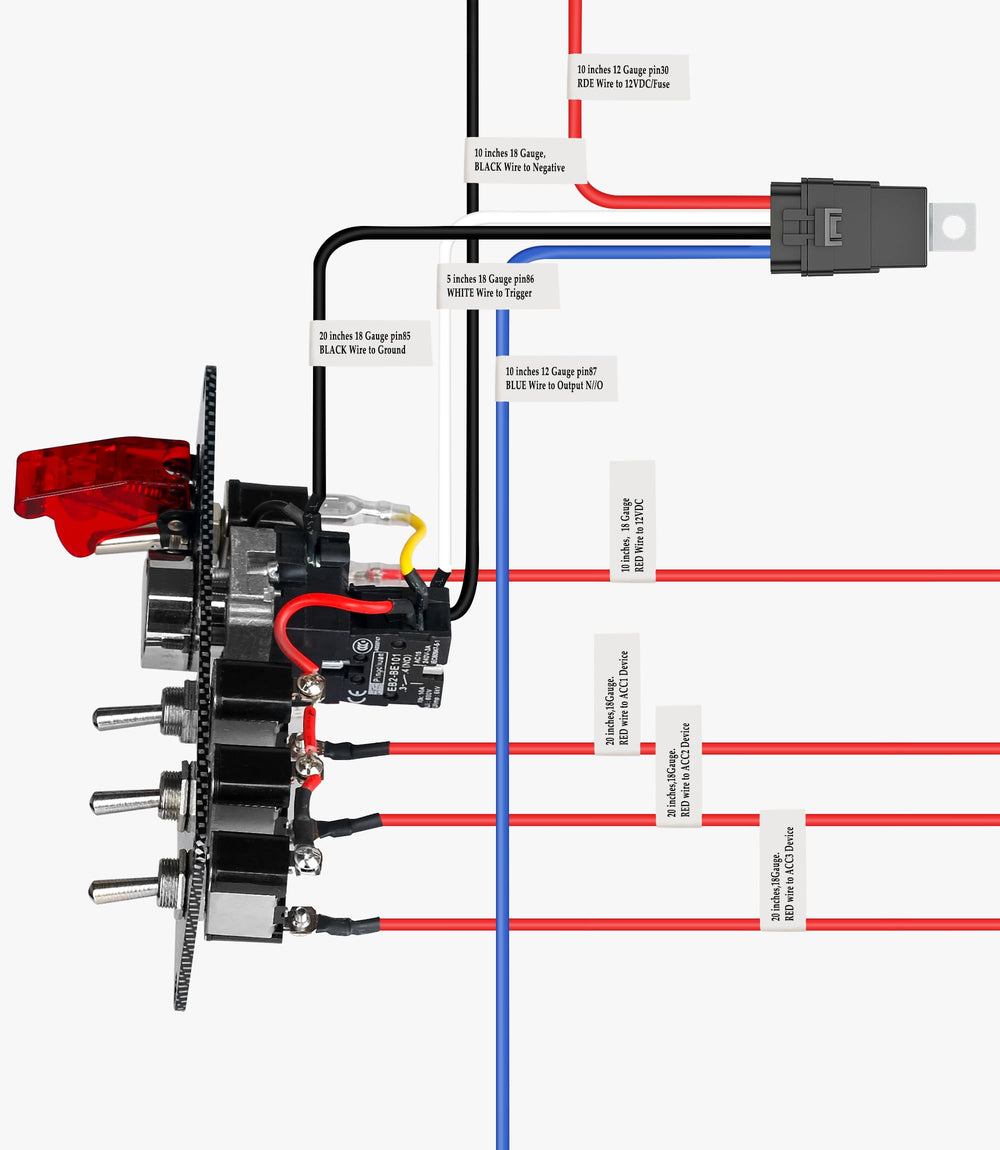

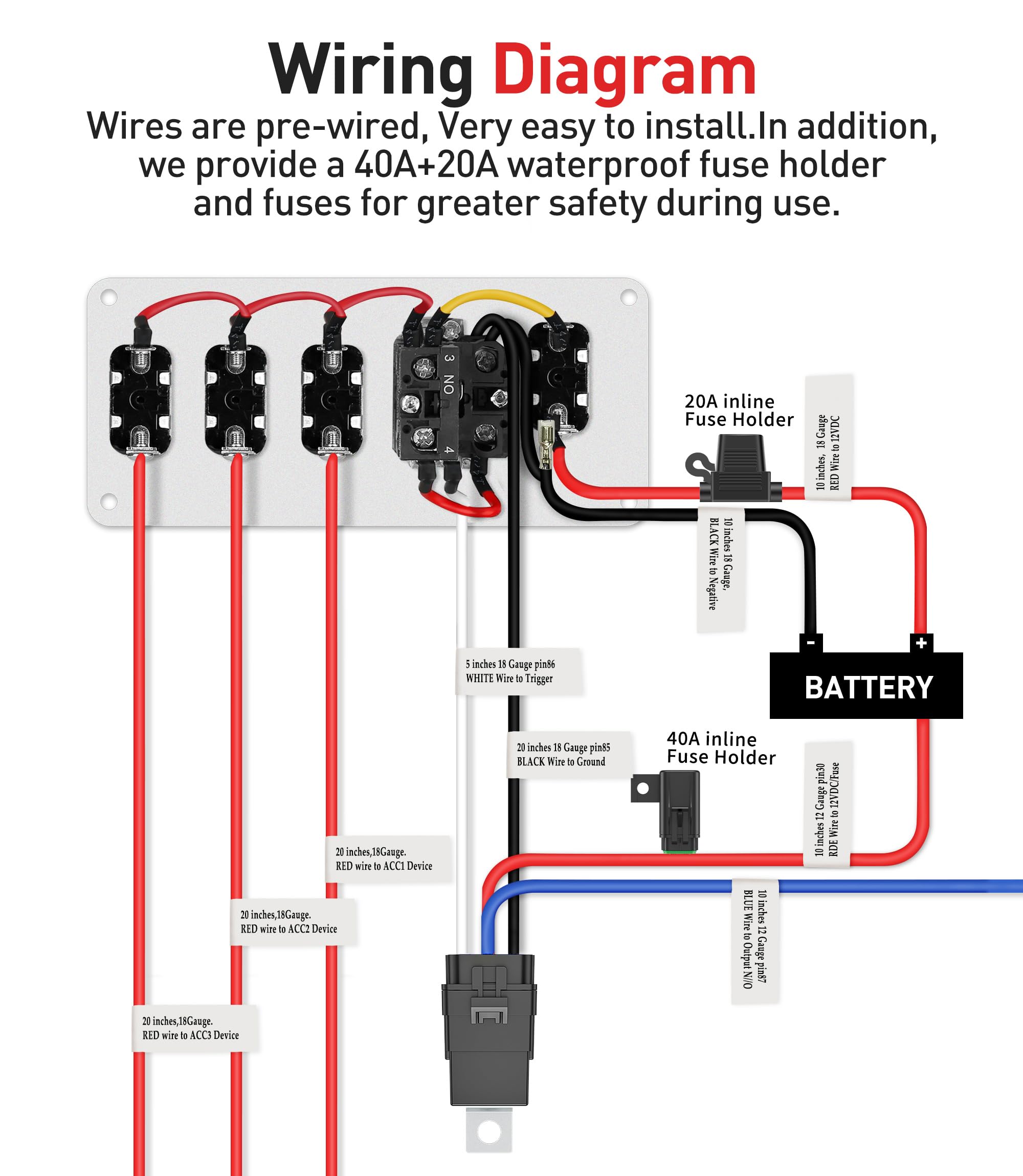

FASTSTORM supplies a relay-driven harness and multi-fuse protection to handle high currents while protecting circuits from overload or shorting. The kit includes inline fuse holders, blade fuses and a 40/30A relay setup so the high-load starter and accessories remain isolated from the switches.

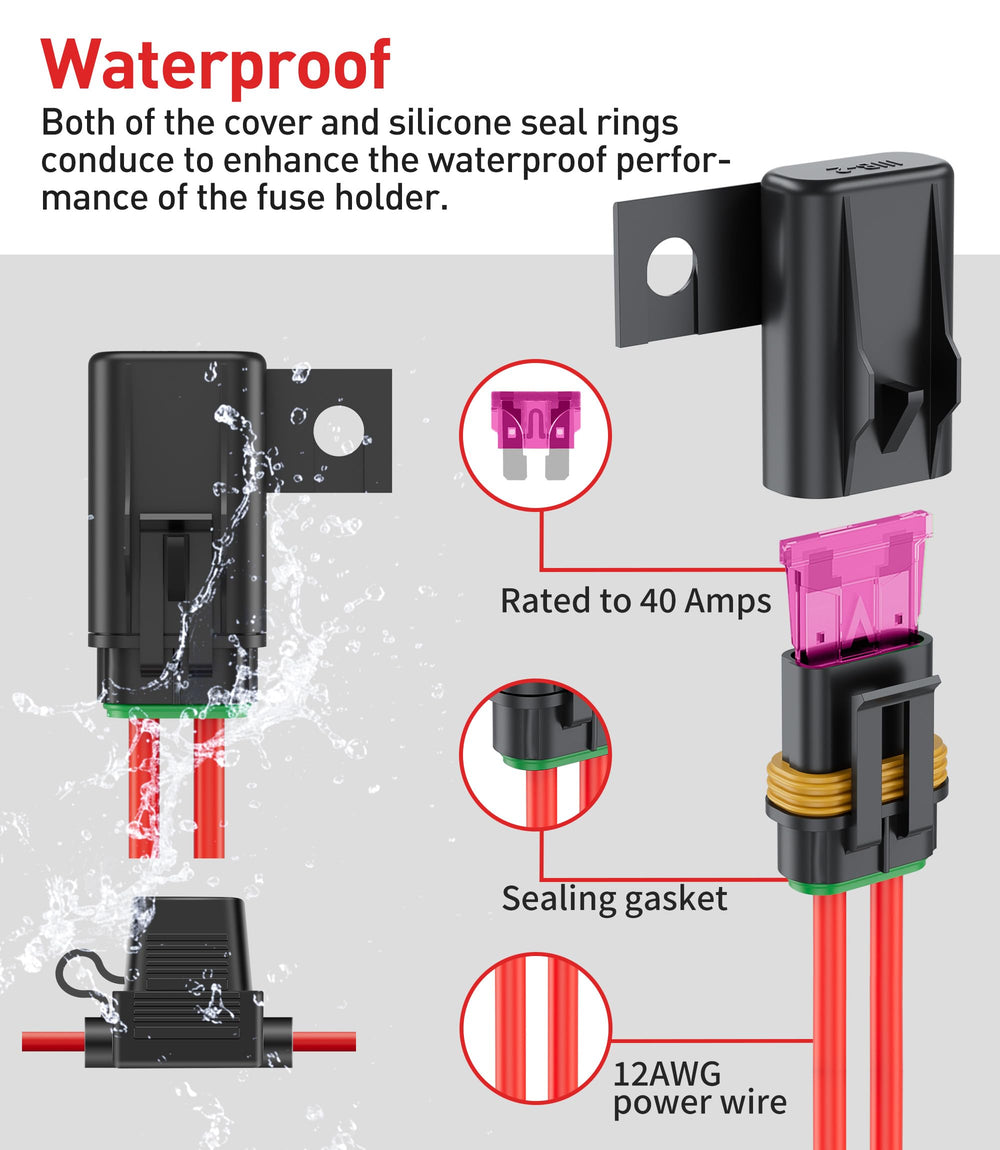

• 40A waterproof inline fuse holder and two 40A blade fuses for heavy loads.
• 20A fuse holder plus two 20A blade fuses for the starter/master circuit.

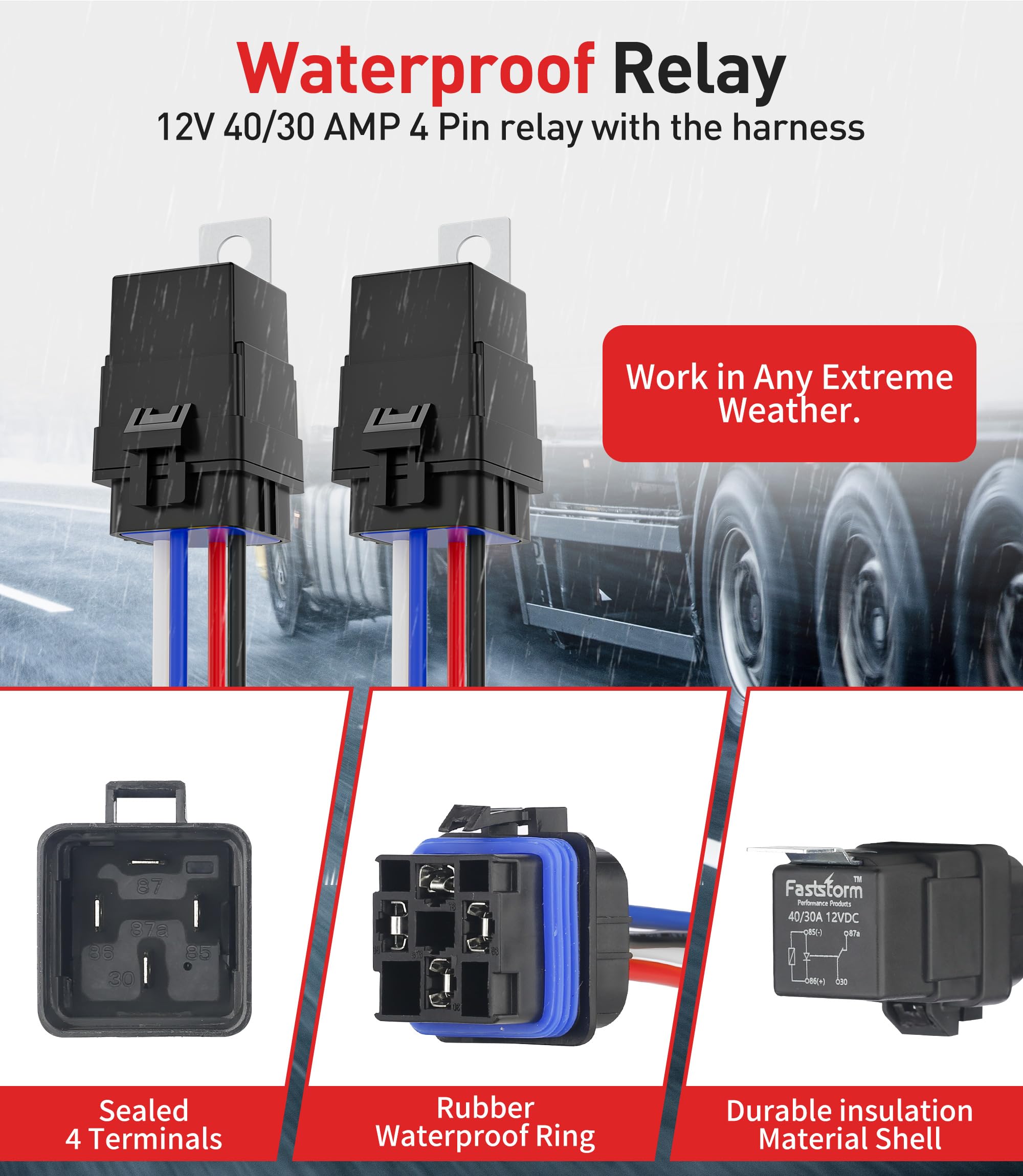

• 40/30A relay harness to carry starter current safely away from switches.
• Triple-layer circuit protection design for long-term reliability.

Will this panel hold up to track, marine, or off-road use?

Yes — the assembly uses aircraft-grade materials and weather-resistant components to resist vibration, dust and moisture. Waterproof caps, rugged fasteners and durable finishes make it suitable for racing cockpits, boat helms and off-road dashboards.

• Carbon-fiber-style face and aerospace aluminum construction for strength.
• Waterproof switch caps and sealed toggle bodies protect against moisture.
• Vibration-resistant mounting and durable hardware for harsh conditions.
• LED illumination optimized for night visibility without glare.

How easy is installation for a DIY mechanic?

The FASTSTORM panel arrives mostly pre-wired to speed installation; no custom loom fabrication is required for standard 12V systems. Labels, plugs and included mounting screws let a competent DIYer or professional complete the install in a short session.

• Pre-wired 40/30A relay harness minimizes wiring decisions.
• Clear fuse placement with included inline fuse holders and blade fuses.
• Mounting screws and simple panel cutout make physical installation straightforward.
• Works with typical 12V vehicle electrical systems—cars, trucks, boats, ATVs.

Who is this for: The FASTSTORM Ignition Rocker Switch Panel is ideal for motorsport enthusiasts, boat owners, RV and off-road drivers who want a compact, professional-grade push-to-start and accessory control solution. Choose it if you need a durable, pre-wired 12V ignition and accessory panel with relay protection and bright LED visibility, without the hassle of building a custom switch harness from scratch.
