FEITON Electric Proportional Trailer Brake Controller 1-4 Axles — Digital Display, 3 Boost Levels

The FEITON 90195 is an electric proportional trailer brake controller that delivers smoother, adjustable braking for trailers with one to four axles.

Built for drivers who tow utility trailers, travel trailers or heavier haulers, this compact controller senses vehicle deceleration and applies matching braking force to the trailer. The unit includes an easy-to-read digital display, three selectable boost settings, a manual override, and the ability to save multiple profiles — all designed to make setup quicker and reduce guesswork on the road. It installs using the supplied mounting hardware and wiring pigtail; a vehicle-specific plug-in harness may be needed depending on your tow vehicle.

How does proportional braking improve towing control?

Proportional braking measures how quickly your tow vehicle slows and applies an equivalent amount of braking to the trailer, reducing jerks, sway and uneven stopping. This approach produces more intuitive, balanced stops compared with time-delayed controllers, especially when towing different trailer weights.

• Inertia sensor matches trailer braking to vehicle deceleration
• Smoother stops under sudden or gradual braking events
• Reduces trailer tug and improves directional stability

What adjustments can I make for different trailers or loads?

The 90195 gives you three selectable boost settings to tune how aggressively the controller applies initial braking, plus a manual override to lock in trailer braking when needed. Stored profiles let you recall preferred settings quickly for different trailers or hitching scenarios.

• Three boost levels for lightweight to heavy trailers
• Manual override lever for immediate trailer-only braking
• Stores up to five user profiles with multilingual menu support

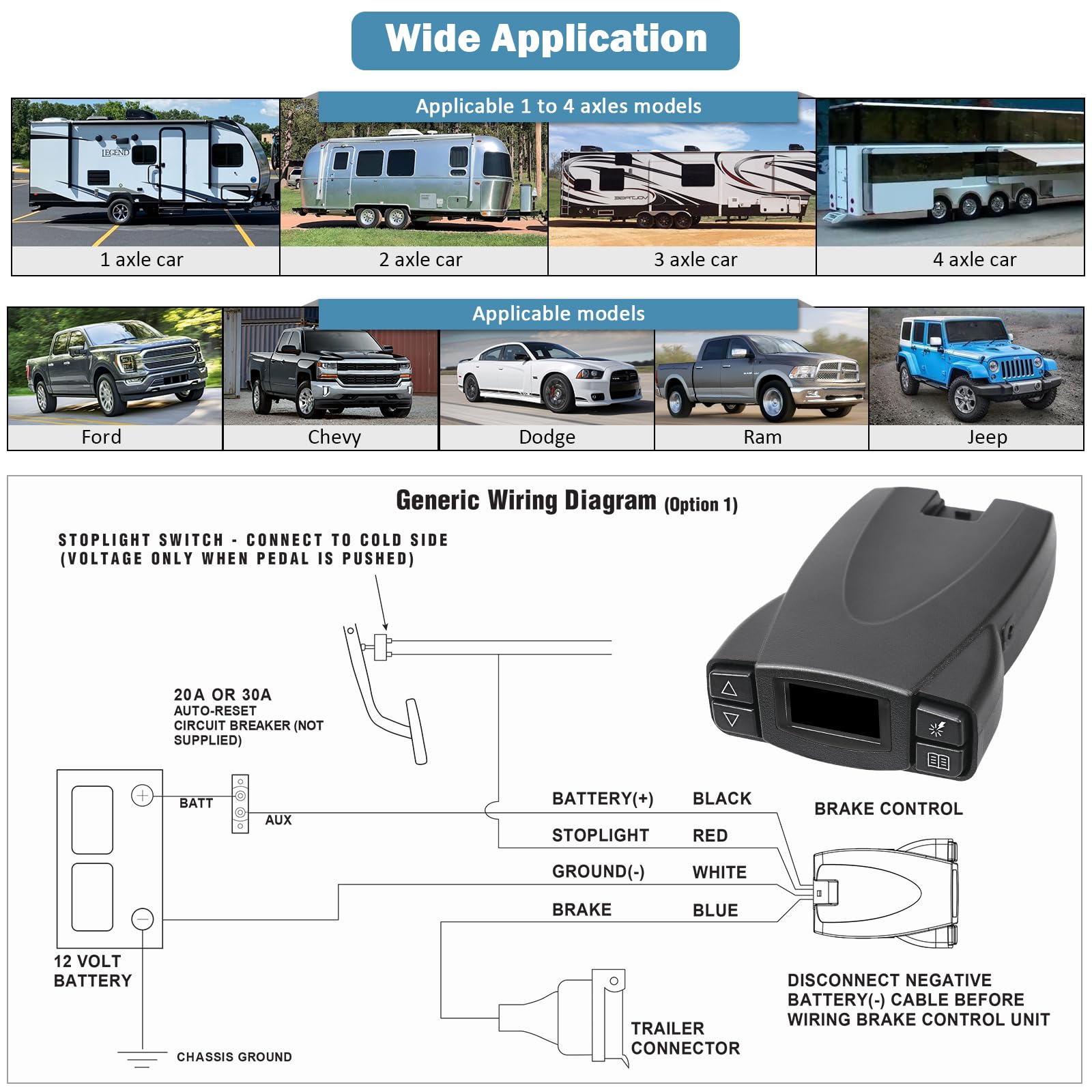

Will this unit work with my truck or trailer setup?

This FEITON controller is engineered to fit many popular trucks and SUVs and supports trailers with one to four electric brake axles. Verify your vehicle’s wiring and connector style before purchasing; some vehicles require an additional plug-and-play harness for a complete install.

• Compatible with many Ford, GM, Dodge, Toyota and other models
• Supports 1–4 axles on electric-brake trailers

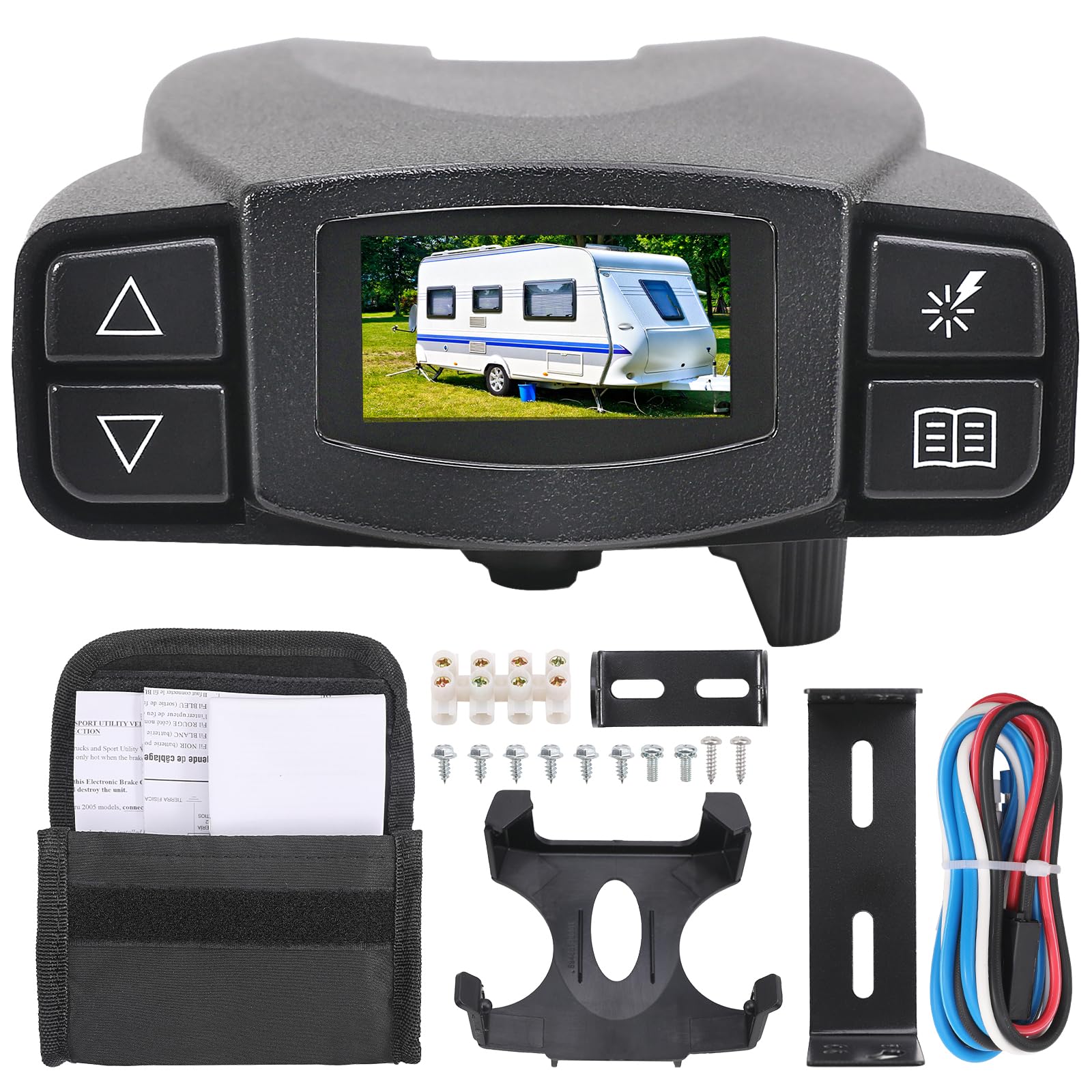

• Includes controller, pigtail, mounting hardware and instructions

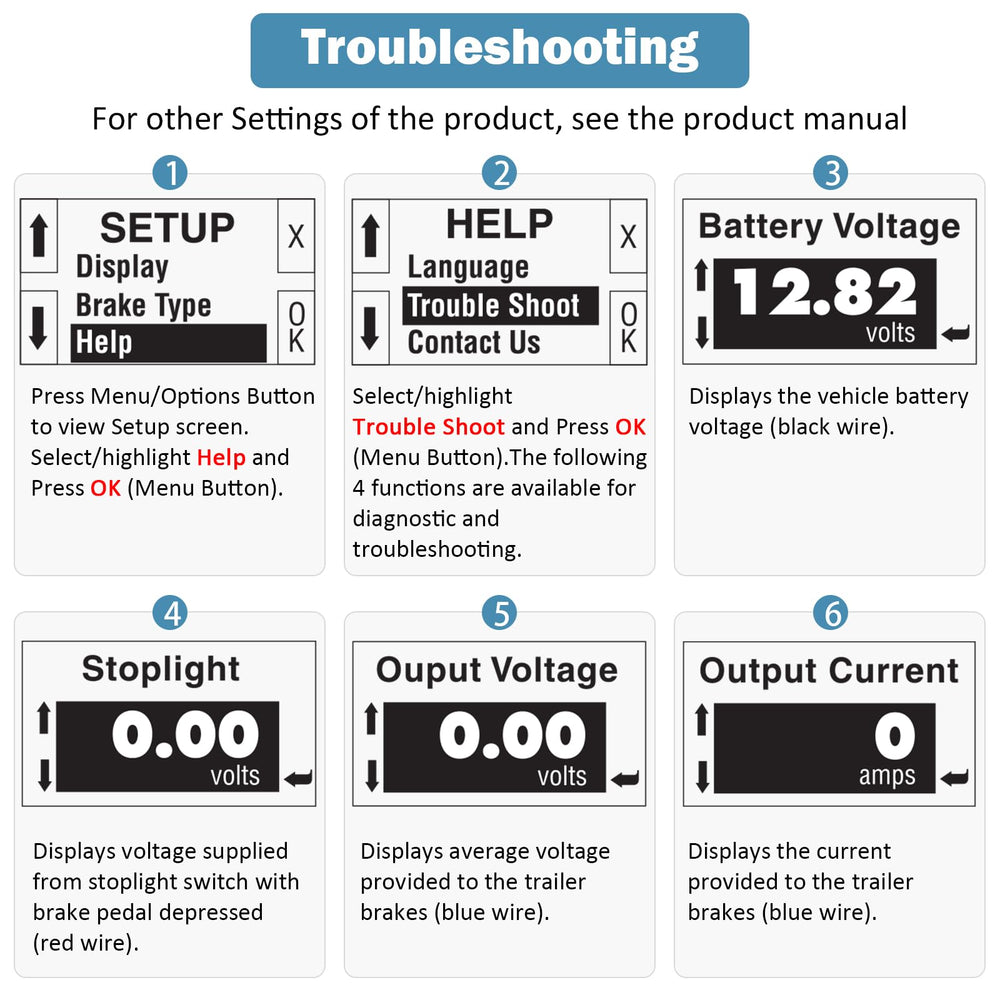

What information does the display provide and how easy is setup?

The bright LCD reports brake output, system voltage and diagnostic/error messages so you can monitor performance at a glance. The menu walks you through adjustments in English, Spanish or French, and saved settings speed repeat installations when you switch trailers.

• Digital readout of brake output and voltage
• Diagnostic messages to identify wiring or brake issues
• Multilingual menus and five stored setting slots

Who is this for? The FEITON 90195 suits owner-operators, weekend campers and professional haulers who want finer brake modulation than a time-delayed unit provides. It’s a good match if you tow varying trailer sizes and prefer quick recall of tailored brake settings, or if you need a Tekonsha P3-compatible replacement. Confirm your vehicle’s connector and wiring before ordering to ensure a smooth installation.
