Fill-Rite 3/4" Fuel Transfer Filter Kit — 18 GPM Hydrosorb 10‑Micron Element with Head & Fittings

The Fill-Rite 1210KTF7019 is a complete fuel transfer filter kit that combines a 10‑micron Hydrosorb filter element and a threaded filter head to remove particulates and indicate excess water during high‑flow fuel transfer.

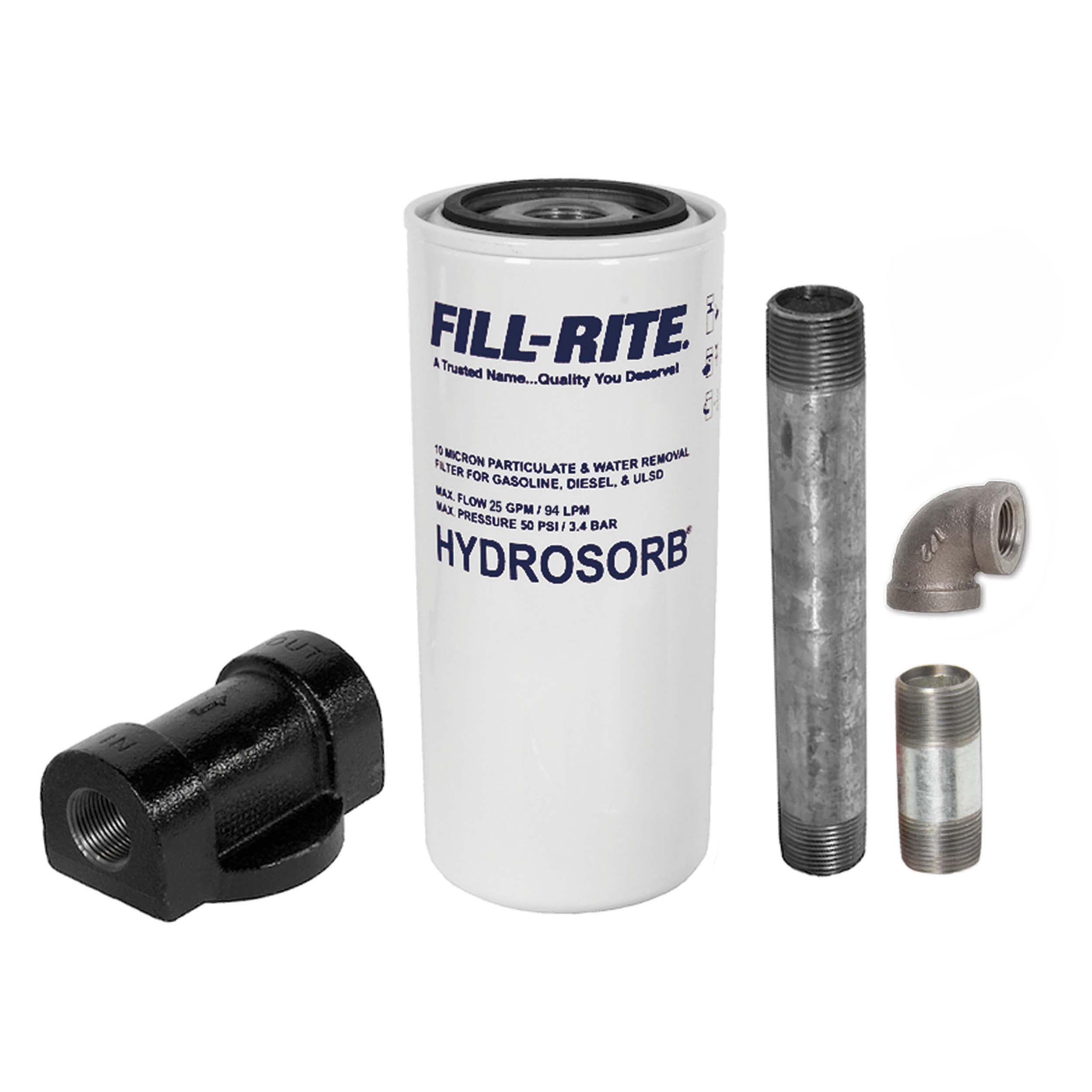

Built for fuel transfer systems that demand steady flow and reliable contamination control, this kit pairs the F1810HM0 Hydrosorb element with the 1200KTG9075 filter head and includes the fittings needed for immediate installation. It handles up to 18 gallons per minute (about 68 LPM) through 3/4" ports and uses 1"-12 UNF filter threads for a secure seal. The Hydrosorb media traps solid debris down to 10 microns while the design also restricts flow when liquid water accumulates, offering an early indicator that attention is needed.

How does this kit fit into a fuel transfer line?

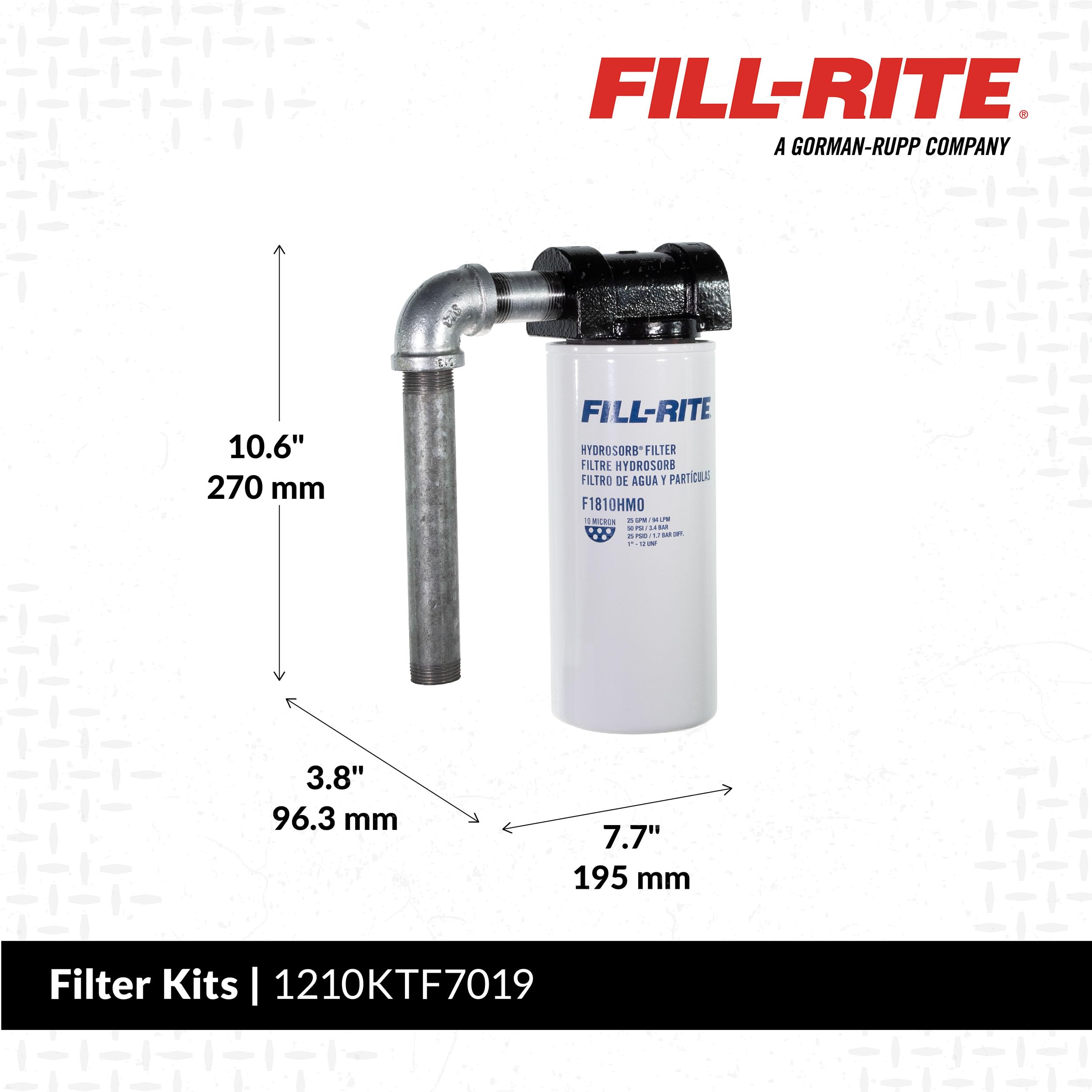

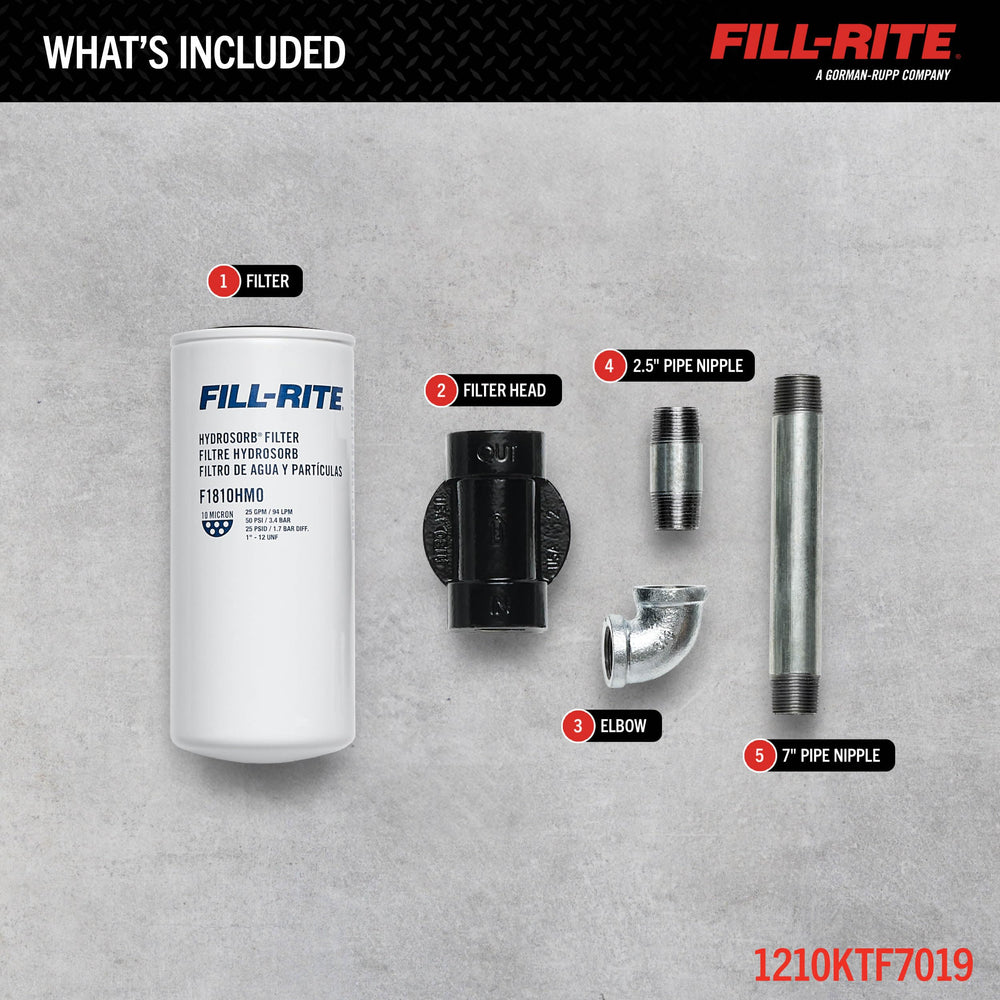

The filter head accepts the F1810HM0 element and mounts inline with standard 3/4" fuel ports. The kit includes a 3/4" elbow plus 3/4" x 7.25" and 3/4" x 2.5" pipe nipples so you can orient the assembly for your pump or hose routing. Threaded 1"-12 UNF connection ensures the element screws in and seals securely for leak‑free operation.

• 3/4" fuel ports on the head for common transfer hose and pump connections
• Included elbow and two nipples for flexible installation angles
• 1"-12 UNF filter threads provide a tight, repeatable seal

What contaminants does the Hydrosorb element handle?

The Hydrosorb media is engineered to trap solid particulates and to indicate excess free water in the fuel line. It captures particles down to 10 microns—protecting pumps, meters and engine fuel systems from abrasive debris. When water builds up in the media, the filter’s flow characteristics change, making it a practical water‑detection solution during transfers.

• 10‑micron nominal particulate retention for fine debris
• Hydrosorb media accumulates free water and restricts flow as it saturates
• Helps prevent rust, dirt and microbial contaminants from entering equipment

How much flow and equipment protection can I expect?

This kit is rated for up to 18 GPM (approximately 68 LPM) through the 3/4" ports, making it suitable for many commercial and jobsite fuel transfer applications. The element’s filtration prolongs the life of downstream components by reducing particle load and alerting operators to water presence before damage occurs. For continued performance, replace the element at recommended intervals or sooner if you notice increased pressure drop.

• Rated flow: 18 GPM (68 LPM) for typical transfer tasks
• Reduces particulate ingress to pumps, meters and engines
• Replace filter per operating conditions; Fill‑Rite recommends six‑month intervals

Who is this kit intended for? The 1210KTF7019 is aimed at professionals and fleet operators who perform regular bulk fuel transfers and need dependable contamination control—service stations, construction sites, agricultural users, fleet maintenance shops and rental operations. It’s useful wherever steady flow and proactive water detection help avoid equipment downtime and costly repairs, and the included fittings make it straightforward to install in existing 3/4" transfer lines.
