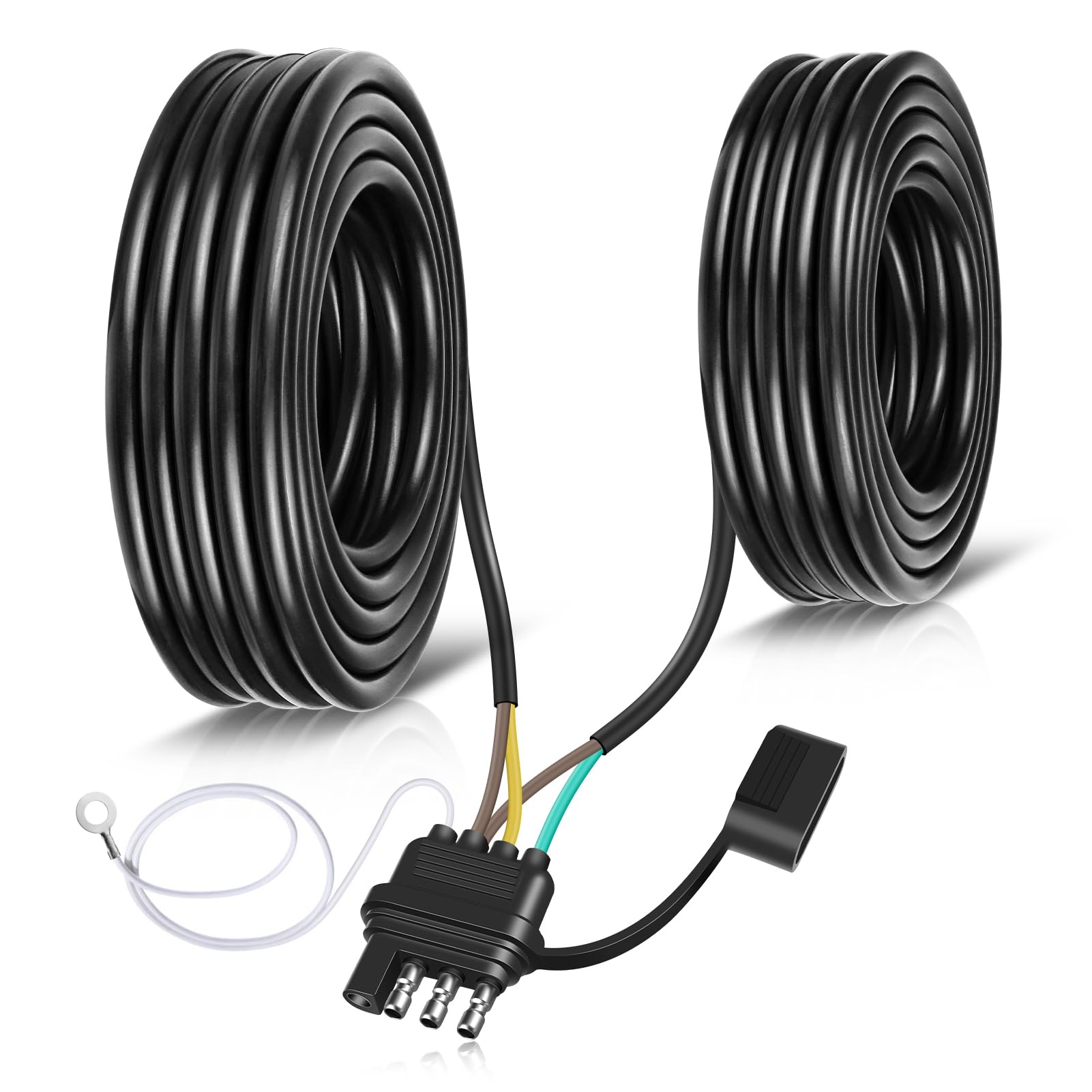

FLETERGIB 26FT 4-Pin 5-Wire Trailer Wiring Harness — PVC-Jacketed Y-Split, 16AWG Waterproof

FLETERGIB's 26-foot 4-pin, 5-wire trailer wiring harness is a Y-shaped, PVC-jacketed wiring kit that delivers waterproof, color-coded connections for both-side taillights and reliable trailer lighting.

This full-length harness is built for trailer owners who need a durable, weatherproof wiring solution that reaches from the tow vehicle to the rear of the trailer without extra splices. With 16 AWG conductors and a protective PVC jacket, the assembly aims to reduce resistance and resist corrosion in marine and outdoor environments. The Y-style split routes power to left and right taillights simultaneously, simplifying installation and improving lighting consistency on boats, campers, utility trailers, and cargo trailers that use a 4-way flat plug.

How does the Y-shaped design simplify trailer lighting installation?

The Y-shaped layout splits the taillight feed so a single brown wire is routed to both sides without extra splices. This reduces labor, fewer connection points mean fewer failure sources, and it keeps wiring neat under the trailer frame. Installers save time while maintaining correct signal distribution to both taillights.

• Single run splits to left and right taillights for even power delivery
• Eliminates the need for additional junctions or splicing
• Cleaner, easier routing under the trailer frame

Will this harness stand up to wet, corrosive, or marine environments?

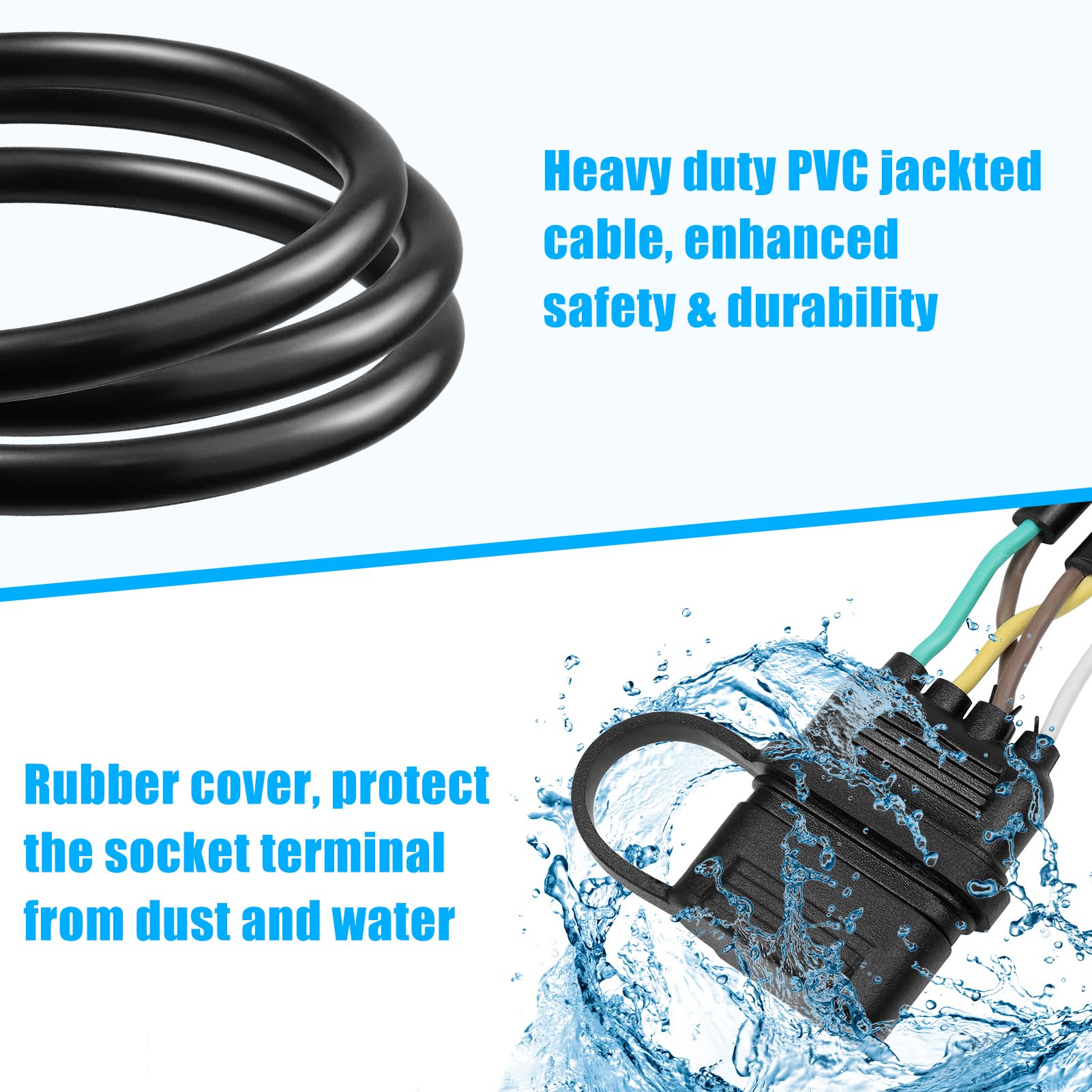

The harness is jacketed in robust PVC that resists moisture, salt, and general corrosion encountered on boat trailers and outdoor rigs. The sealed jacket helps protect conductors and connections from water ingress, extending service life versus unprotected wire. It’s designed for exposure to rain, splash, and occasional immersion associated with launching and loading boats.

• PVC outer jacket repels water and blocks corrosive elements
• Protects wiring from abrasion and environmental wear
• Suitable for frequent outdoor or marine trailer use

What electrical specs affect performance and safety?

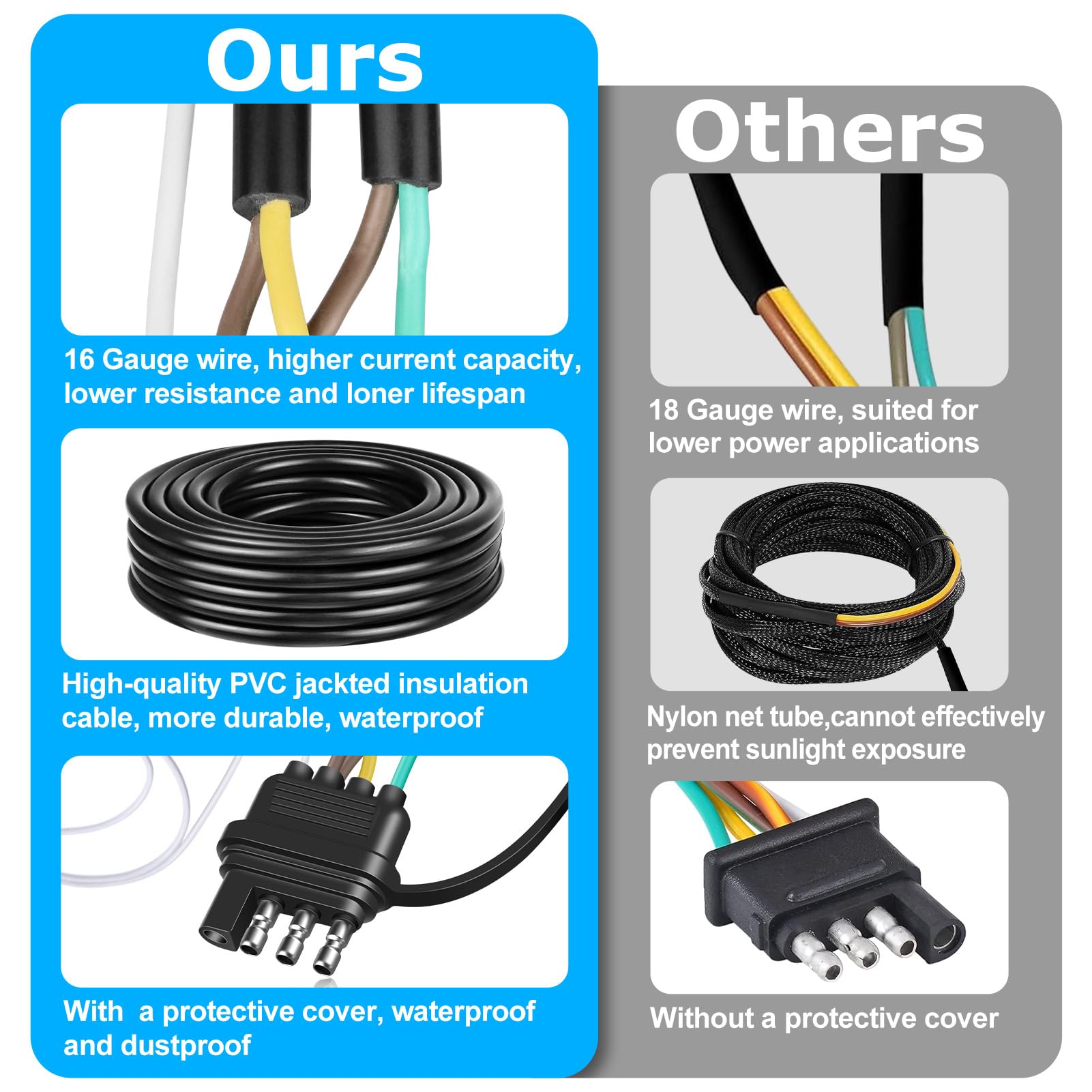

Conductors are 16 AWG copper-clad aluminum (CCA), which lowers resistance compared with thinner wiring and supports higher current flow for trailer lights. The harness is rated up to 300V and operates across a wide temperature span, reducing chance of overheating and brittleness in extreme climates. Color-coded wires match industry-standard 4-way flat connectors for straightforward hookup.

• 16 AWG CCA wires for improved conductivity and less energy loss
• 300V rated insulation and -22°F to 221°F operating range

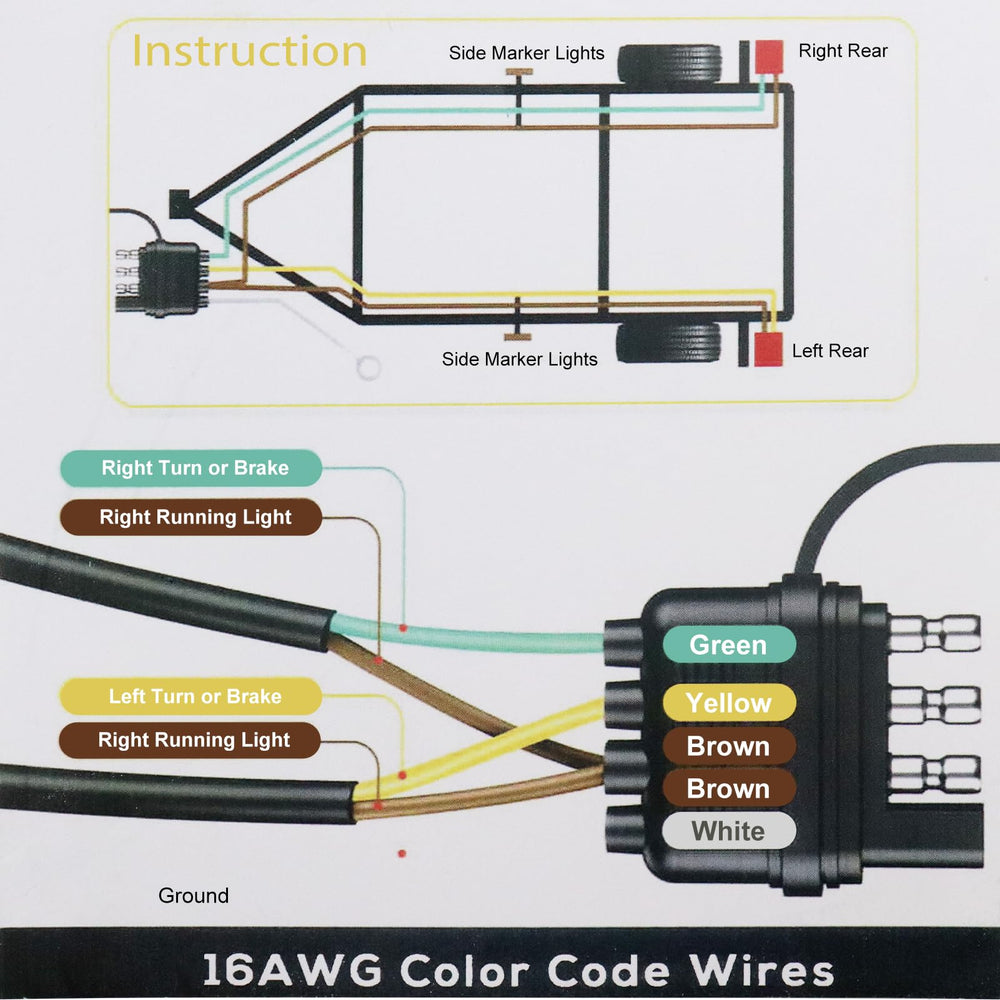

• Standard color coding for brake, turn, ground, and running lights

How long is the harness and what trailers does it fit?

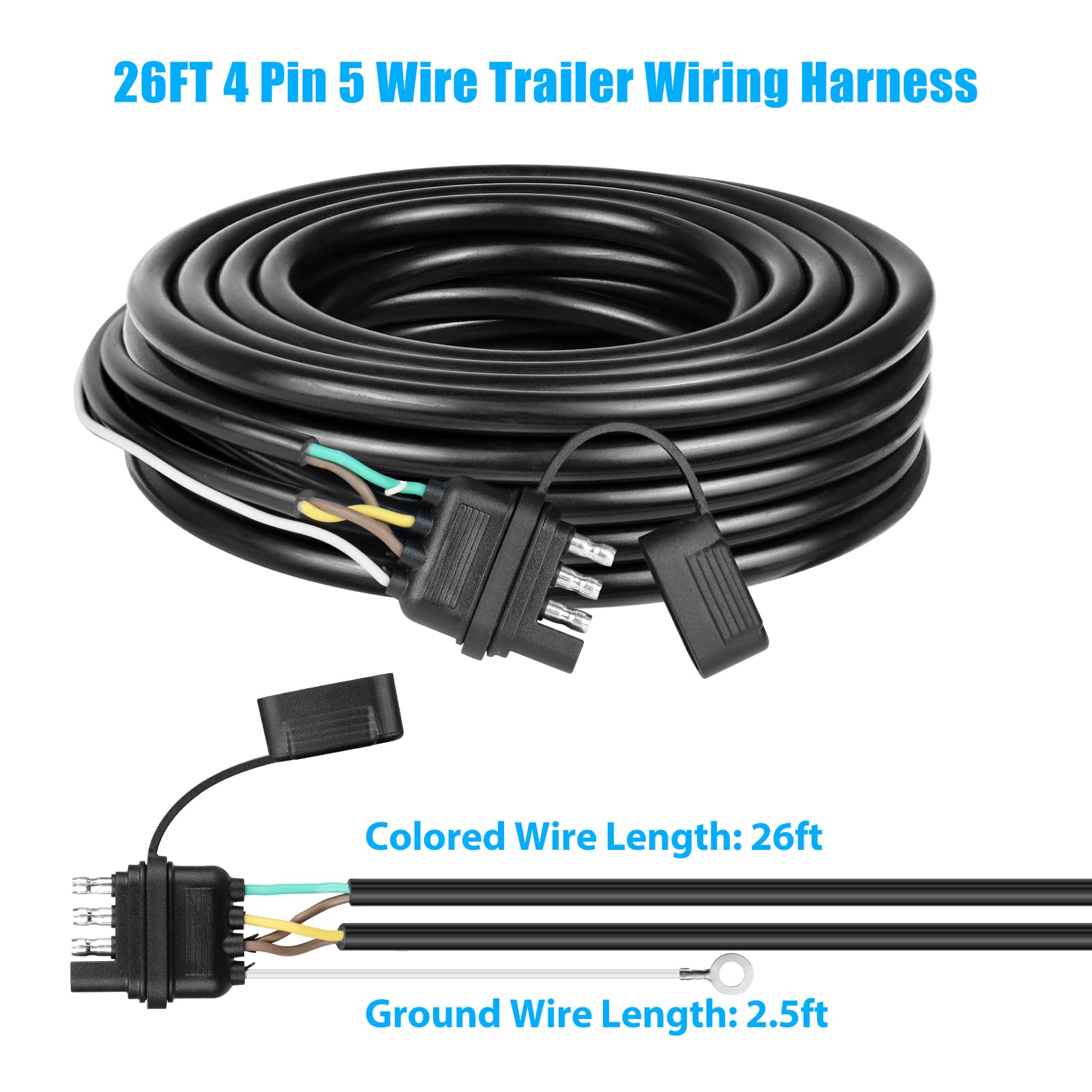

The main harness measures 26 feet, with an additional 2.5-foot ground lead to ensure convenient attachment to the trailer frame. Length is sufficient for most trailers up to roughly 90 inches wide or longer setups where extra routing is required. It’s compatible with any trailer using a 4-way flat socket, including light utility trailers, boat trailers, ATVs, cargo trailers, and small campers.

• 26-foot main length provides ample run for most trailer builds
• 2.5-foot dedicated ground wire simplifies chassis grounding
• Works with industry-standard 4-way flat trailer plugs

Who is this for? This FLETERGIB wiring harness is intended for trailer owners, DIY mechanics, marine enthusiasts, and service shops that want a dependable, weather-resistant 4-way wiring solution that reaches the rear of the trailer without extra splices. Choose this kit if you need a long, color-coded harness that simplifies both-side taillight wiring, tolerates outdoor exposure, and fits trailers using a standard 4-pin flat connector.
