FOMIUZY RV Slide-Out Gearbox Motor R25076 High-Torque 12V 13-Tooth Sprocket 3/16" Shaft

The FOMIUZY R25076 high-output PMDC slide-out motor is a heavy-duty replacement motor and gearbox engineered to provide maximum pushing power for RV slide-outs with a 13-tooth sprocket and 3/16" output shaft.

This robust motor assembly is designed as a direct-fit upgrade or replacement for common Accu Slideout and OEM part numbers (R25076, R25076-1, R25075, 225008, 25076-1, R25074, 64ZY-CJ001-039). Built for 12 VDC operation, it delivers 45 W at 16 A and runs at approximately 12 rpm to convert rotary torque into reliable linear motion for extending and retracting RV slide-outs. The unit features a reinforced metal gearbox and a 13-tooth sprocket tuned for high torque and long service life. Because the design emphasizes power and durability, expect louder operation than stock low-torque motors.

How does this motor improve slide-out performance?

This FOMIUZY motor increases pushing force and reduces strain on worn slide mechanisms, helping stubborn or heavy slide-outs move smoothly. The heavy-duty gearbox sustains higher loads without slipping, and the 13-tooth sprocket provides stronger mechanical engagement than smaller sprockets.

• High-torque metal gearbox for sustained load handling
• 13-tooth sprocket gives greater mechanical advantage
• 12 VDC, 45 W output suitable for typical RV electrical systems
• Direct replacement for listed OEM part numbers

Will this motor fit my RV and how easy is installation?

The motor is made to match the dimensions and mounting points of the referenced OE part numbers so it installs in most compatible RV slide-out systems without modification. Typical installs require removing the old gearbox, aligning the 3/16" single output shaft with the slide mechanism, and ensuring proper chain or sprocket tension.

• Direct-fit for R25076-family part numbers
• 3/16" single output shaft replaces same-type shafts
• Factory-tested to meet or exceed OEM specs
• Adjust slide tension after installation to prevent binding

What should I know about noise, durability, and maintenance?

This upgraded unit favors strength over stealth: the heavy-duty gears and tighter engagement make it louder than standard motors but much more durable under demanding use. Regular inspection and keeping the geartrain clean will extend service life; the motor is built from wear- and corrosion-resistant materials for long-term reliability.

• Expect louder operation due to high-torque gearbox engagement
• Reinforced materials reduce wear and resist corrosion
• Factory-tested performance and lifetime warranty coverage
• Periodic cleaning and correct tensioning recommended

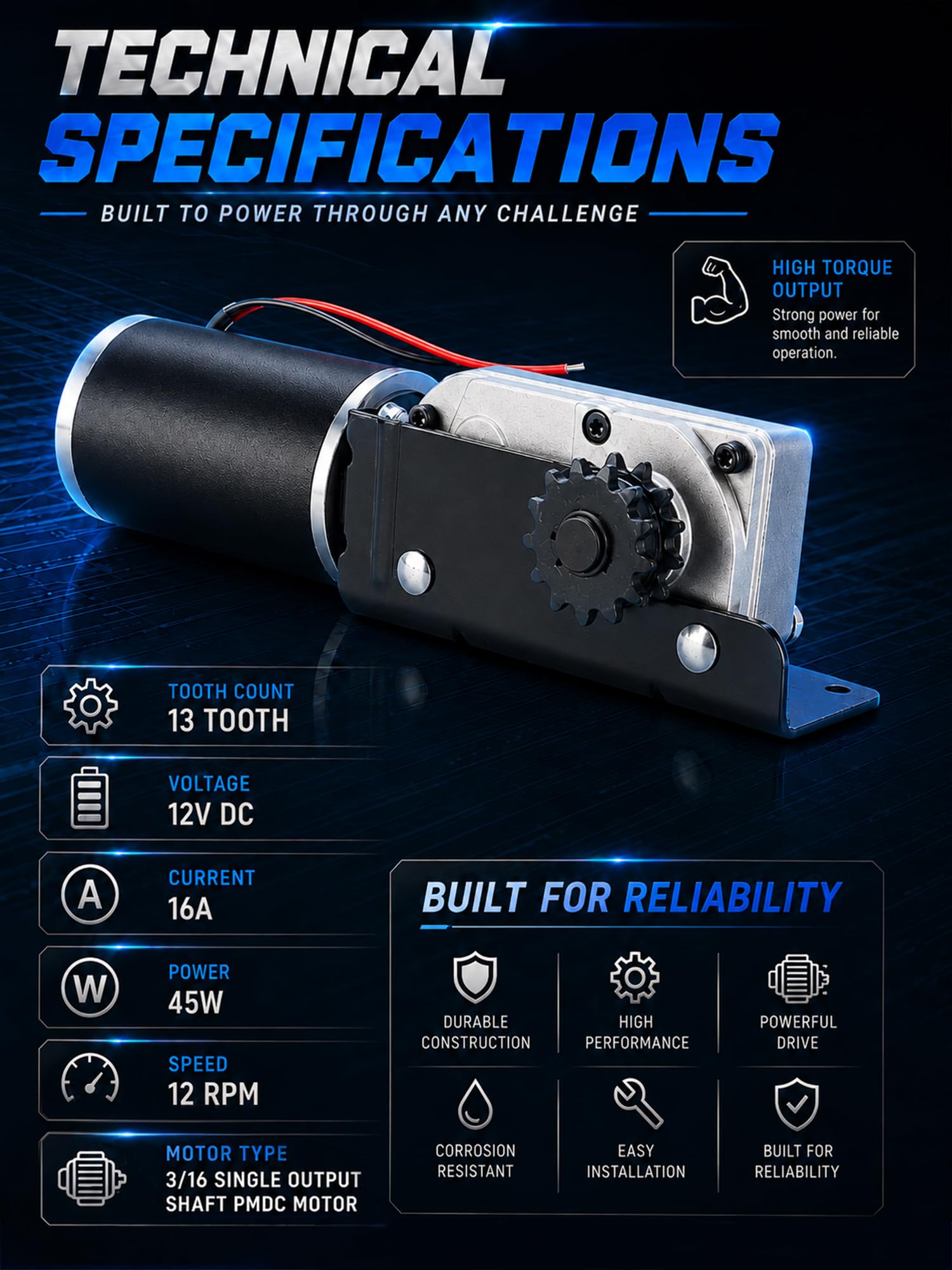

What electrical and mechanical specs matter for compatibility?

Match the motor to your RV's electrical system and slide mechanism by confirming voltage, shaft type, and part number equivalence. This FOMIUZY unit runs on 12 VDC, draws about 16 A under load, and rotates at ~12 rpm—specs useful when comparing with your existing motor or wiring capacity.

• Voltage: 12 VDC — suitable for typical RV battery systems
• Current: ~16 A under load (45 W power rating)
• Output: 3/16" single output shaft, 13-tooth sprocket
• Speed: ~12 revolutions per minute for steady extension/retraction

Who this is for: RV owners, technicians, and DIYers who need a durable, higher-capacity slide-out motor to replace failing or weak OEM units will benefit most from this FOMIUZY upgrade. Choose this model if your slide-out is heavy, sticking, or subjected to frequent use and you prioritize pushing power and long-term durability over ultra-quiet operation. If silence is the top priority, consider a lower-torque OEM-style motor instead.
