GANETZO Battery Disconnect Switch - Side-Post Negative 12–48V, 275A Vertical Compact

GANETZO ON/Off Battery Disconnect Switch is a heavy-duty side-post negative battery isolation switch that safely cuts power for 12–48V systems, handling up to 275A continuous and protecting batteries during storage or maintenance.

Designed for vehicles, boats, RVs, ATVs and seasonal equipment, this vertical, side-post disconnect provides a clear mechanical break in the negative battery circuit to prevent parasitic drain, simplify maintenance and reduce the risk of accidental starts. The compact unit fits standard 17–19mm side post terminals and installs quickly without modifying the battery or vehicle wiring. Rugged materials and a firm rotary action ensure stable connections in demanding environments.

How do I install the GANETZO disconnect switch quickly?

Installation is straightforward and intended to be done in minutes with no special tools. The switch clamps directly onto the battery's side-post negative terminal (17–19mm) so you don’t have to alter cables or add adapters. The firm rotational action requires deliberate force to change states, ensuring the switch won’t turn on or off accidentally.

• Fits standard side-post negative terminals (17–19mm).
• No cable cutting, splicing or extra hardware required.
• Typical install time: under 5 minutes for most vehicles.
• Rotation requires deliberate force to prevent inadvertent operation.

What electrical loads and voltages does this switch support?

This GANETZO unit works across 12–48V DC systems and is engineered for rugged current demands. It supports 275A continuous current, 500A intermittent, and up to 1300A momentary (at 12V), making it suitable for starter circuits and higher-draw accessories while offering reliable isolation during storage.

• Voltage range: 12–48V DC compatibility.
• Continuous rating: 275A; intermittent: 500A; momentary: 1300A (12V).

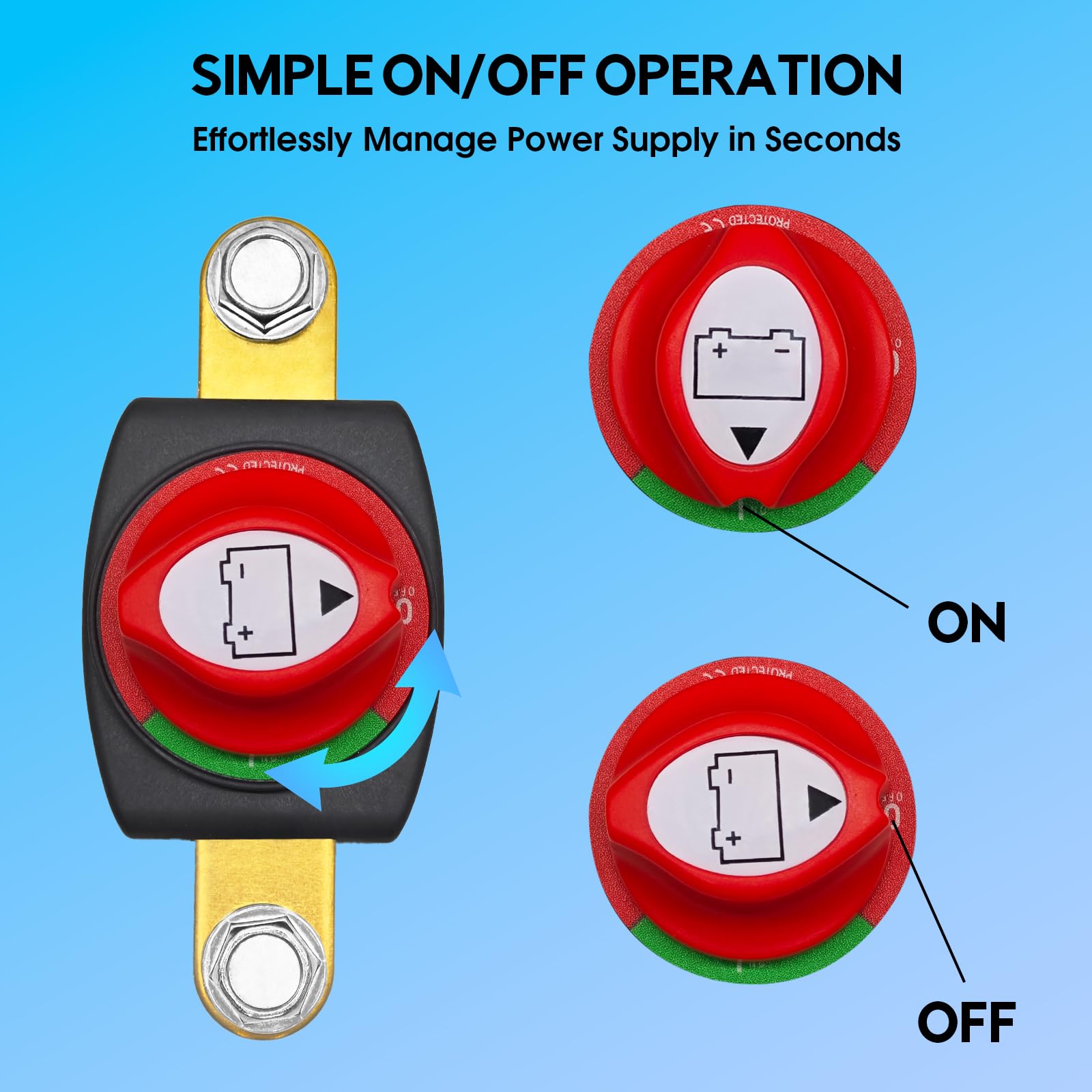

• Clear mechanical open/closed positions for visual confirmation.
• Suitable for automobiles, marine craft, RVs, ATVs and off-grid systems.

Will the switch survive exposure to outdoor or marine conditions?

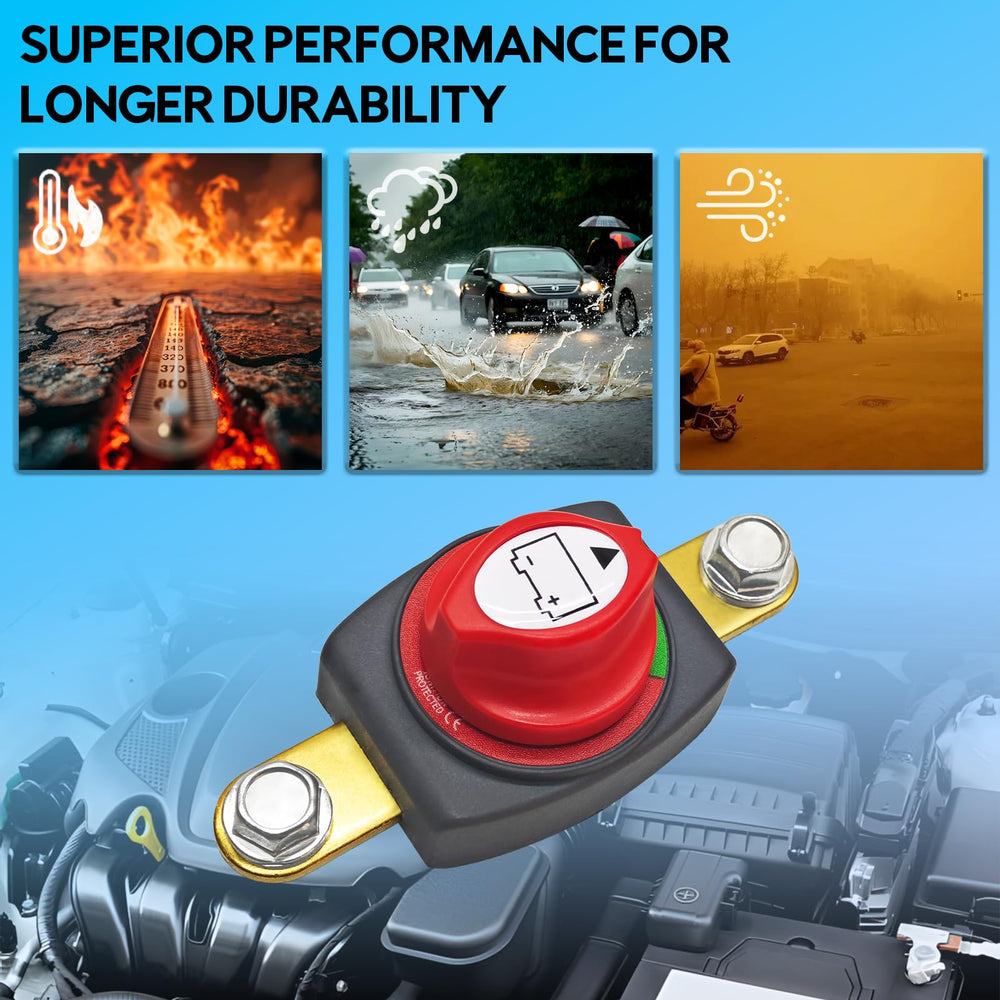

The switch housing is reinforced ABS designed to resist temperature extremes and moisture commonly encountered in engine bays and onboard boats. The mechanism’s smooth action and durable construction reduce wear and help maintain reliable performance over time, even when installed in tight or harsh environments.

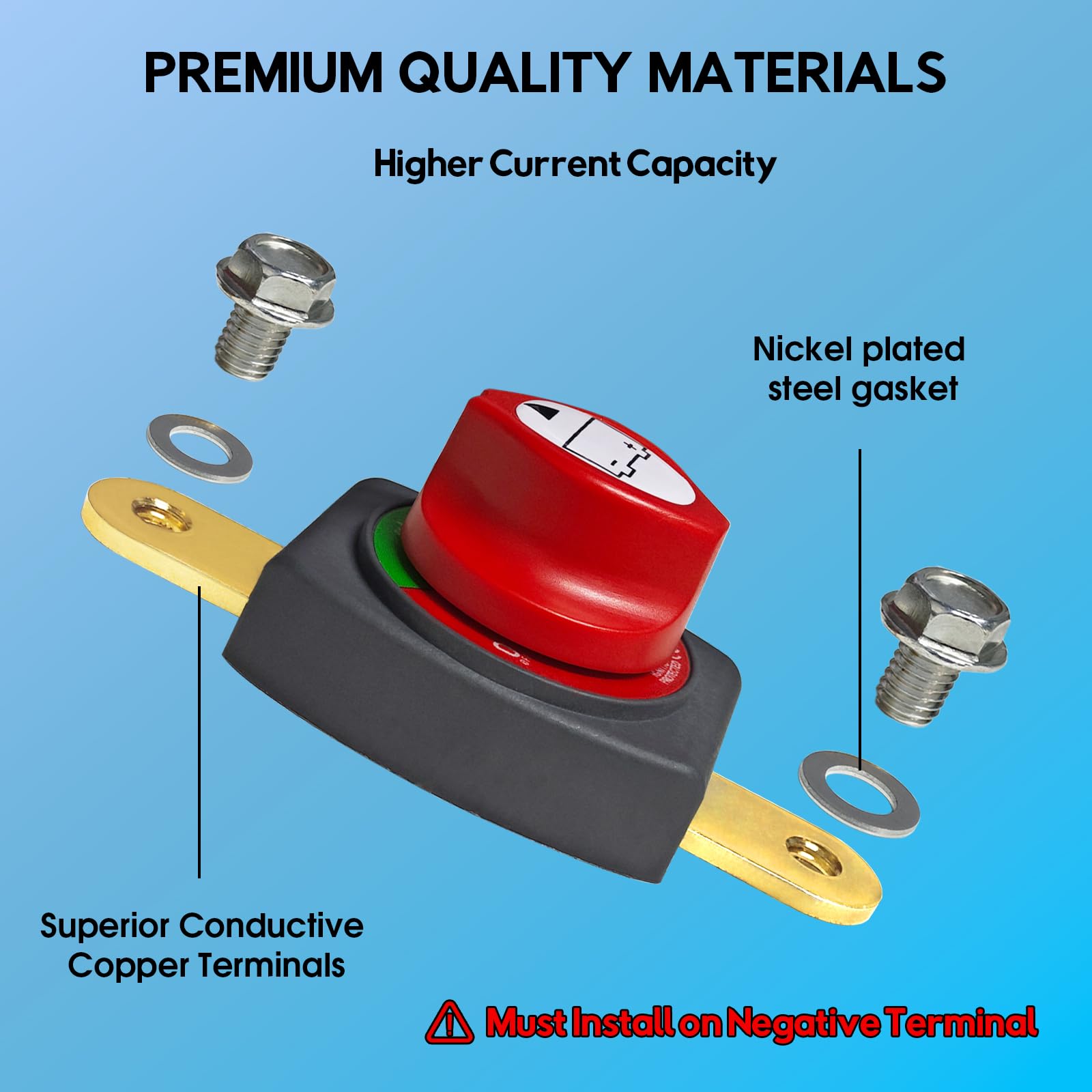

• Reinforced ABS housing for temperature and moisture resistance.
• Robust internal mechanism for long-term switching reliability.
• Compact vertical design fits confined battery compartments.
• Built to withstand vibration and regular use.

How does this switch help extend battery life and simplify maintenance?

By providing a positive physical disconnect of the negative terminal, the GANETZO switch eliminates parasitic draws from electronics and accessories when vehicles or equipment are stored. This reduces slow discharge, lowers the chance of dead batteries, and makes maintenance or transport safer with one simple twist to the OFF position.

• Stops parasitic battery drain during storage or seasonal use.
• Prevents accidental engine starts and simplifies servicing.
• Quick manual operation—no tools required after installation.
• 24/7 support from GANETZO for setup or troubleshooting.

Who is this for: The GANETZO ON/Off Battery Disconnect Switch is aimed at vehicle owners, marine operators, RV and trailer users, powersports enthusiasts and professional mechanics who need a dependable, compact method to isolate batteries. It’s particularly useful for seasonal equipment, fleet vehicles, and anyone who wants to prevent battery drain and simplify maintenance without rewiring or permanent modifications.
