Gearhead Zone Chain & Sprocket Alignment Tool — Black Anodized CNC Laser Gauge, Clamp-On, 1mm Accuracy

The Gearhead Zone Chain & Sprocket Alignment Tool is a CNC-machined laser alignment gauge that quickly and accurately lines up motorcycle, ATV, and kart drive trains to reduce wear and improve efficiency.

If you maintain bikes, ATVs, or karts, consistent chain and sprocket alignment matters. This tool was designed by a rider to replace guesswork with repeatable, factory-grade measurements using a coplanar laser centerline and clamp face leg. Built from 5-axis CNC aluminum with a black anodized finish, it resists dings and delivers clear reference lines for precise adjustments.

How does the laser alignment tool speed up chain setup?

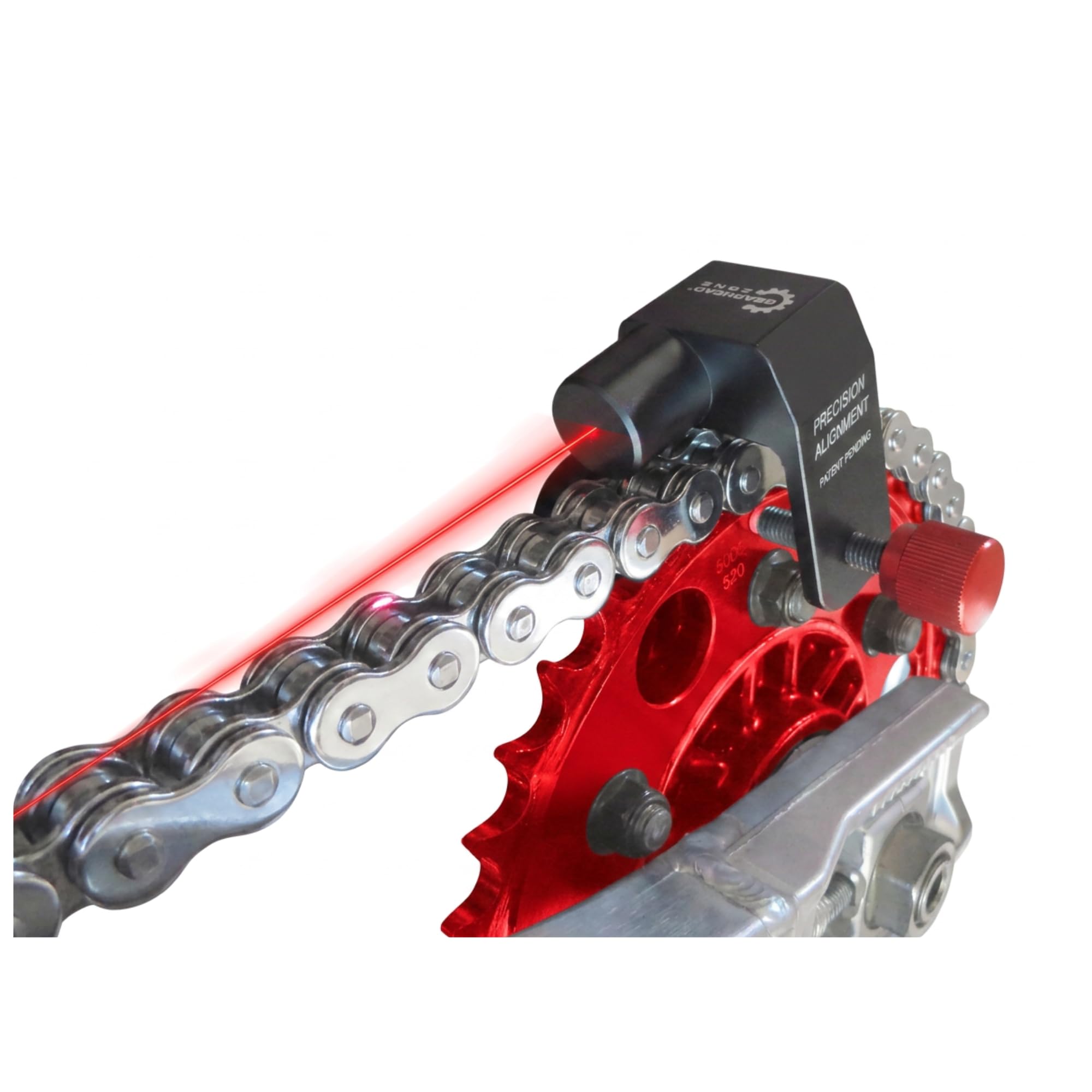

Instead of relying on visual estimates or short steel rods, the Gearhead Zone tool projects a visible centerline to show exact alignment along the drive train. That saves time during routine checks and reduces iterative adjustments at the rear axle.

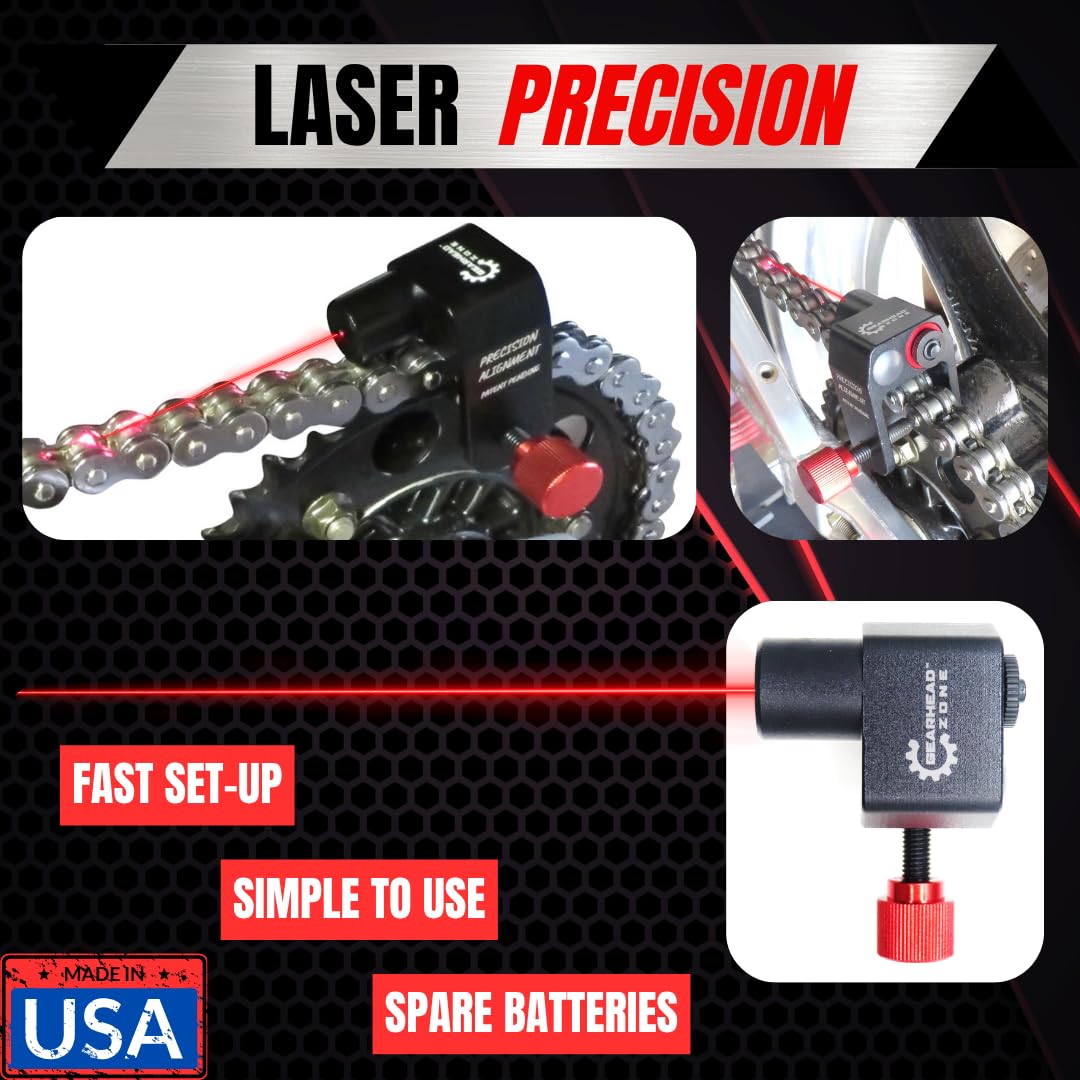

• Instant visual centerline from laser for quicker alignment checks

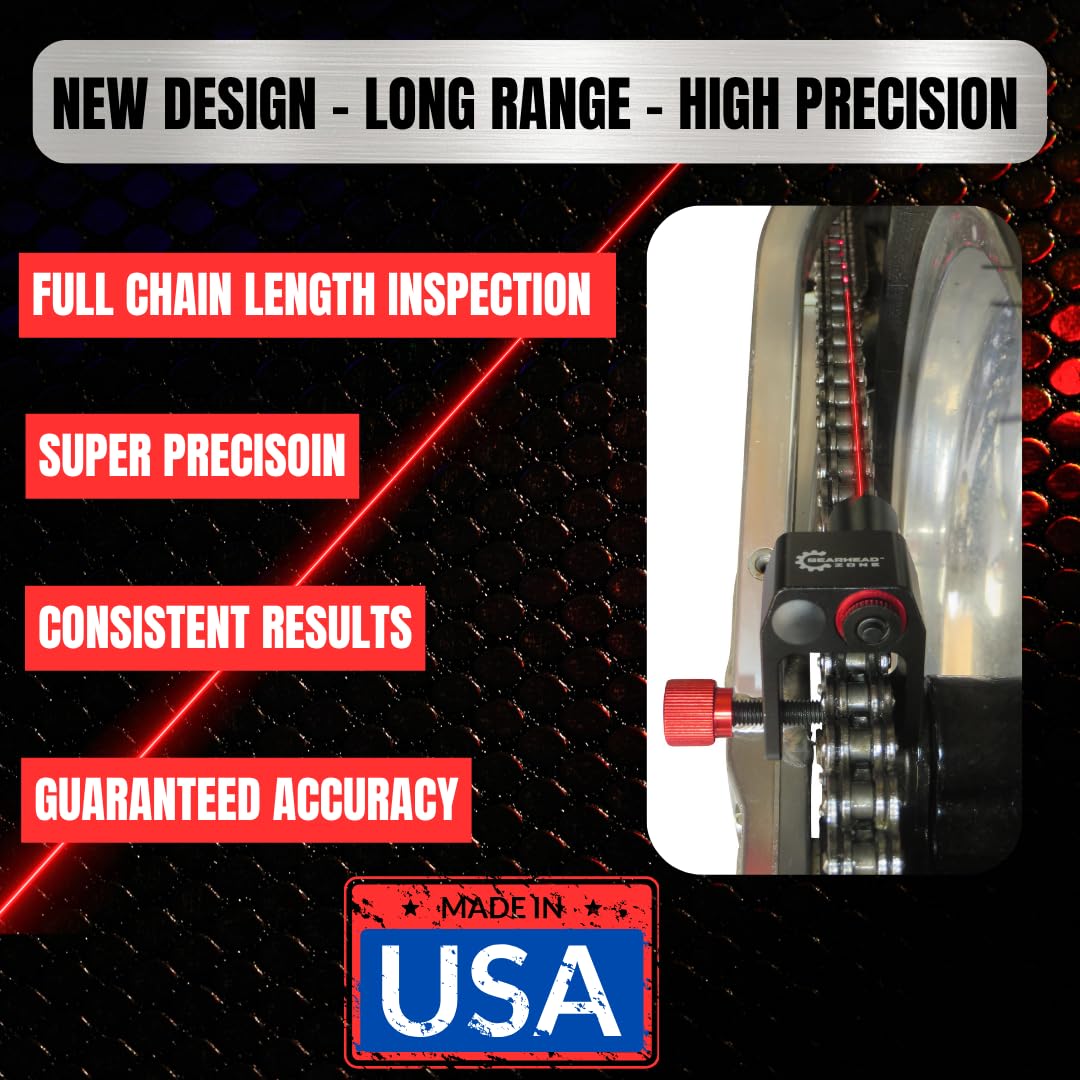

• Coplanar laser centerline and clamp face ensure consistent reference
• Clamp-on design enables fast set-up without complex fixtures
• Durable anodized aluminum body stands up to shop use

Will this tool improve chain and sprocket longevity?

Proper alignment minimizes lateral stress and uneven wear on chains and sprockets, and this tool provides repeatable measurements accurate to within 1mm over one meter. Regular use helps you maintain a straight drive train, which can extend component life when combined with correct tension and lubrication.

• Factory-certified accuracy: within 1mm (0.04") over 1 meter
• Precision alignment reduces drive train friction when used correctly
• Identifies subtle misalignment that eyeballing might miss
• Supports preventive maintenance schedules for longer part life

What vehicles is the alignment tool compatible with?

The tool is versatile for common two- and four-wheeled recreational and racing applications, designed to work on motorcycles, ATVs, and karts. Its clamp and laser geometry suit a wide range of swingarms and axle setups used in these vehicle types.

• Designed specifically for motorcycles, ATVs, and karts
• Clamp fits typical swingarm and axle faces found on those vehicles
• Laser centerline works across standard chain-sprocket layouts
• Compact, portable format for shop or track-side use

What builds and materials ensure lasting accuracy?

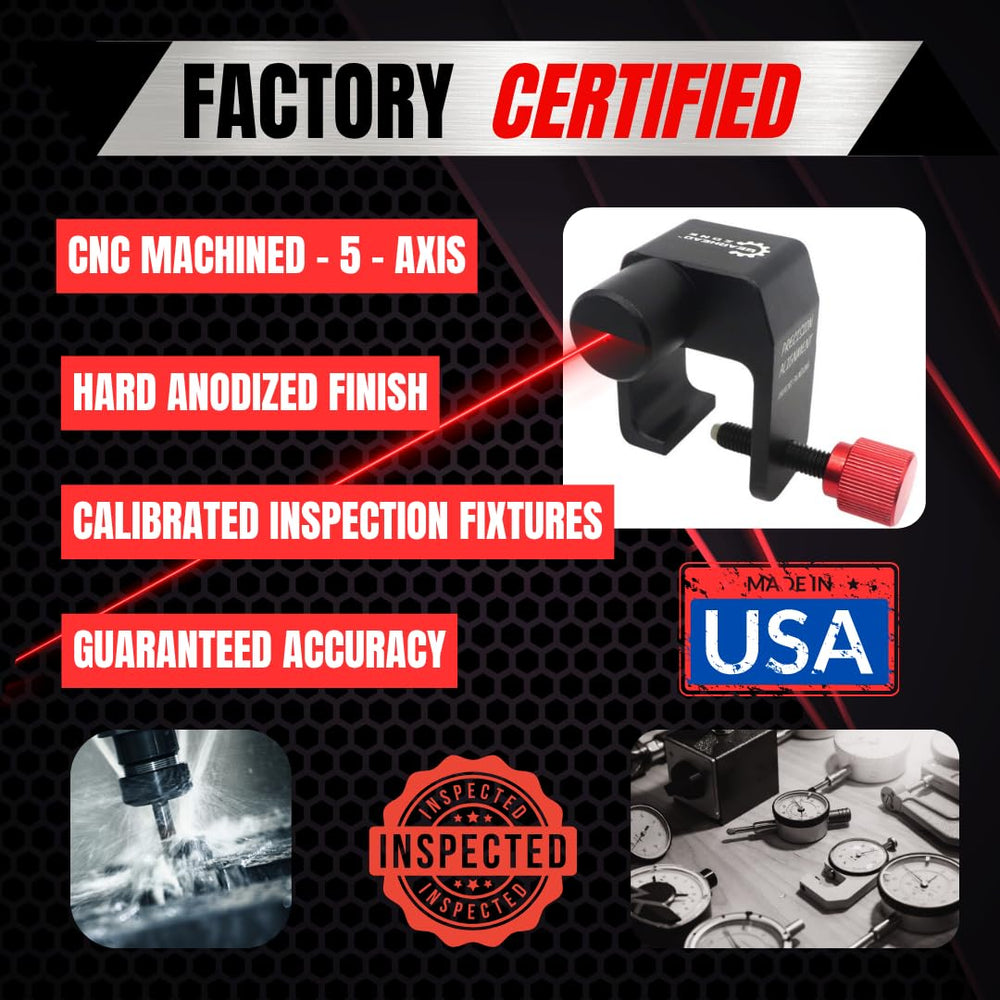

This alignment tool is manufactured on 5-axis CNC equipment from high-grade aluminum, then black anodized to resist corrosion and physical damage. The precise machining keeps the laser centerline and clamp face coplanar so the tool remains reliable over repeated use.

• 5-axis CNC machined aluminum body for dimensional stability
• Black anodized finish to prevent scratches and corrosion
• Laser and clamp designed to be coplanar for accurate readings
• Built to withstand shop and track conditions without deforming

Who is this for? The Gearhead Zone Chain & Sprocket Alignment Tool is ideal for riders, mechanics, and racers who want consistent, shop-quality alignment without expensive fixtures. If you perform regular drive train maintenance, prepare vehicles for competition, or simply want more reliable chain life and smoother power delivery, this compact laser gauge delivers repeatable accuracy in a durable, portable package.
