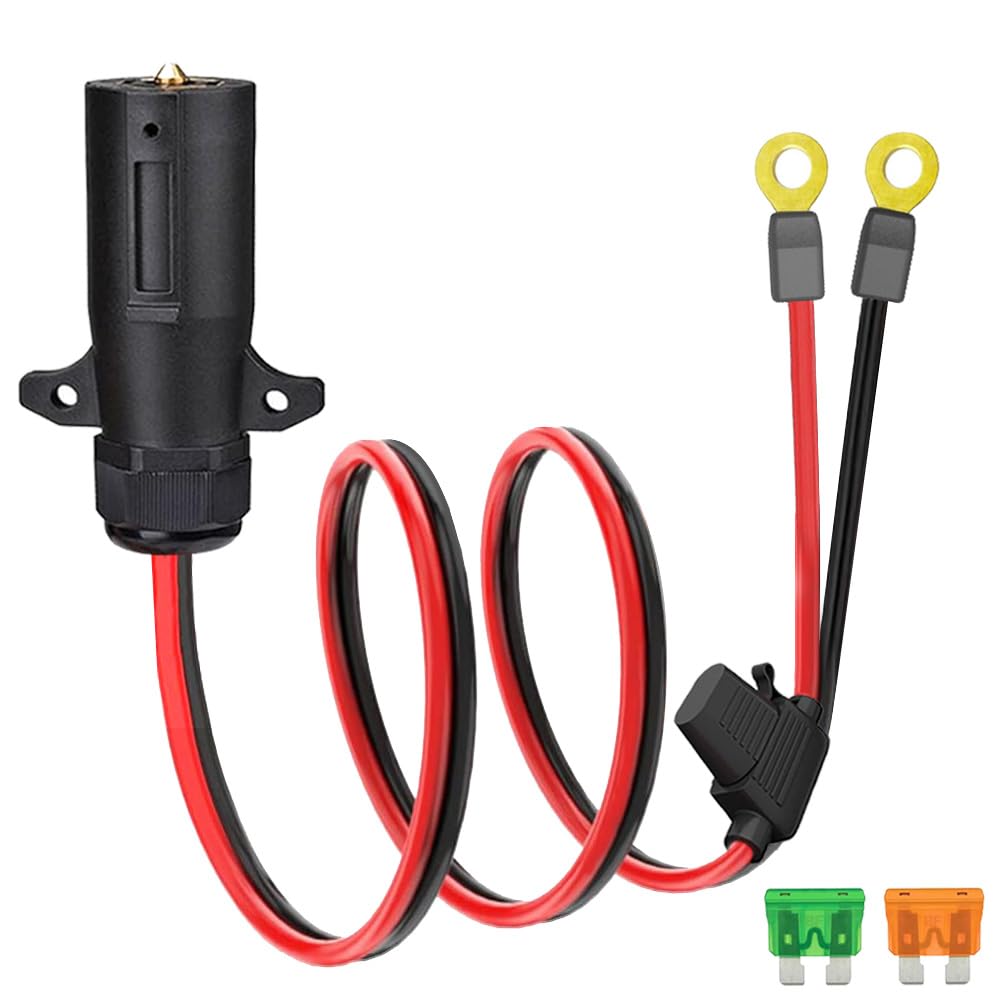

GragicSZ 7-Way Trailer Plug to O-Ring Adapter 2 ft 10AWG with 30A/40A Fuses — Heavy-Duty 12V Tinned Copper

GragicSZ's 7 Way Trailer Plug 12V Power Access to O Ring Connector Cable is a 2-foot, 10AWG adapter that converts a standard 7-pin trailer socket to an O-ring quick-connect with built-in fuses for safer, reliable 12V power and signal transfer.

This heavy-duty adapter cable is designed for dependable electrical connections between tow vehicles and accessories. Built with UL1015-certified 10AWG tinned copper conductors and a heat-resistant PVC-nylon jacket, the cable balances low resistance and corrosion resistance with flexibility. The assembly includes a standard O-ring quick connector, robust ring terminals, and an integrated fuse box offering 30A and 40A protection to safeguard equipment from overloads.

How does this adapter ensure a steady electrical connection?

The cable uses tinned pure copper conductors (10AWG) that reduce resistance and resist corrosion, preserving voltage and preventing intermittent faults. The 2-foot length is short enough to minimize voltage drop while long enough to bridge common connection points between vehicle harnesses and accessories.

• 10AWG UL1015 tinned copper for low-resistance conductivity
• Heat-resistant PVC-nylon jacket rated to 105°C for durable insulation
• Short 2 ft length to limit voltage drop

Will the O-ring connector fit my equipment and how easy is it to use?

The O-ring quick connector is made to match most standard O-ring ports so you can plug and unplug quickly without tools. The mating surfaces are manufactured for a snug fit that resists vibration and maintains electrical contact during towing or marine use.

• Standard O-ring quick-connect compatible with common ports
• Tool-free connect/disconnect for fast installation
• Precision molding minimizes looseness and vibration-related faults

What safety features protect my vehicle and accessories?

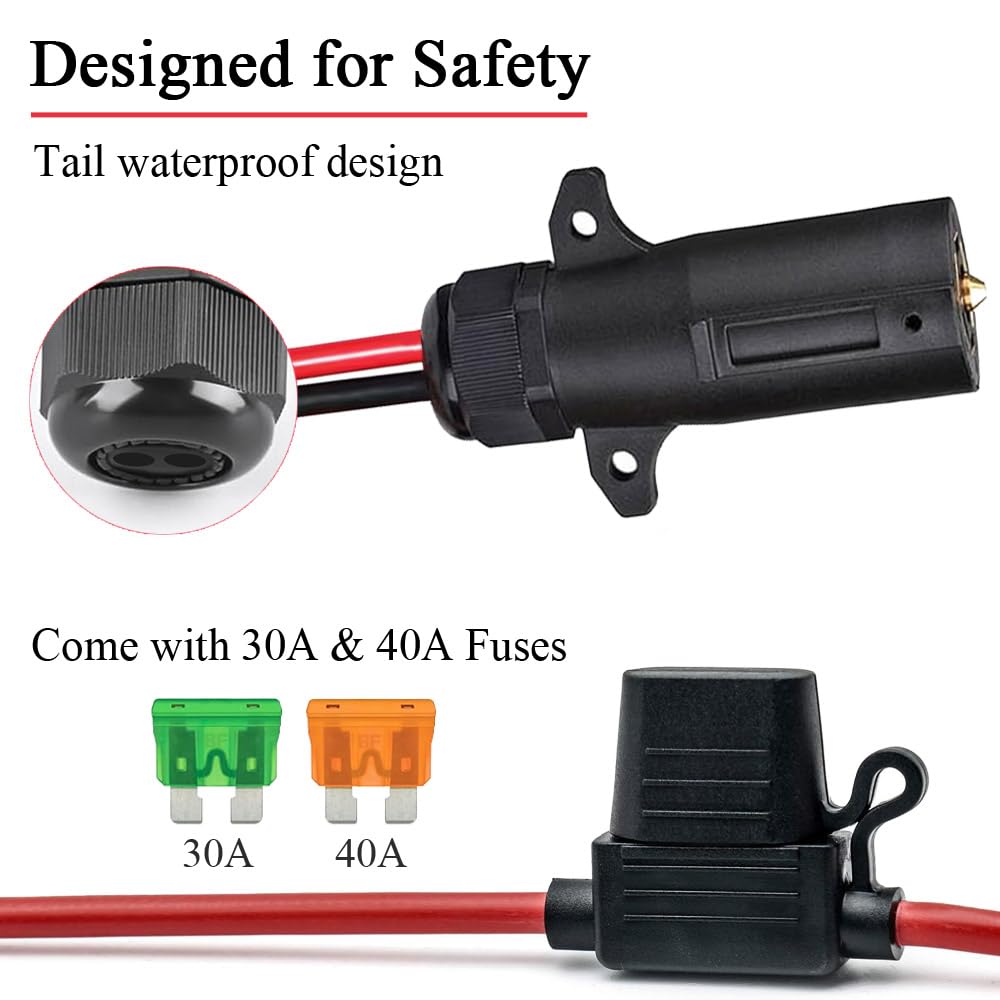

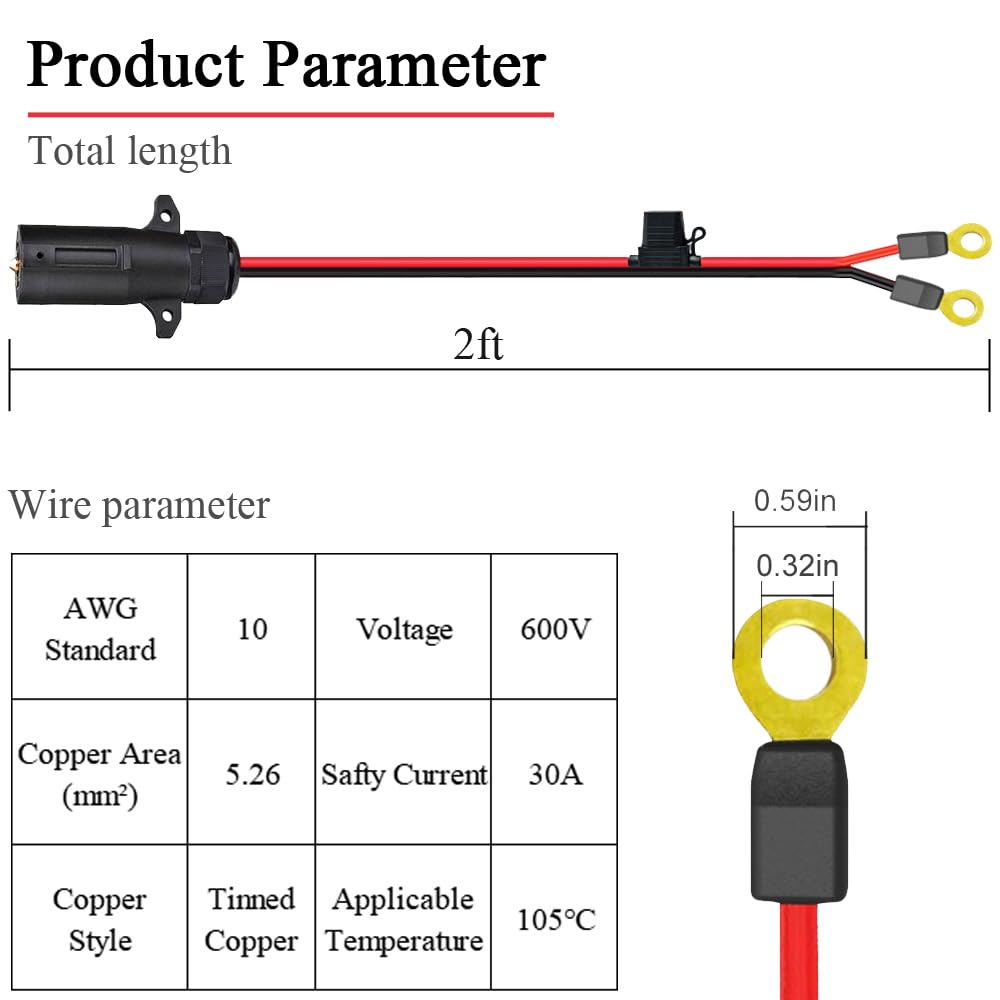

This adapter incorporates a compact fuse box with both 30A and 40A fuses to protect circuits from overload and short conditions. Ring terminals are injection-molded and sized to accept 5/16" (0.85 cm) studs, providing a secure mechanical connection that reduces the chance of arcing or loose contacts.

• Integrated fuse box with 30A and 40A fuses for circuit protection
• New clamp eyelets with injection molding for long-term durability
• Rated voltage 600V and high-temperature tolerance up to 105°C

Which uses and vehicles is this adapter best suited for?

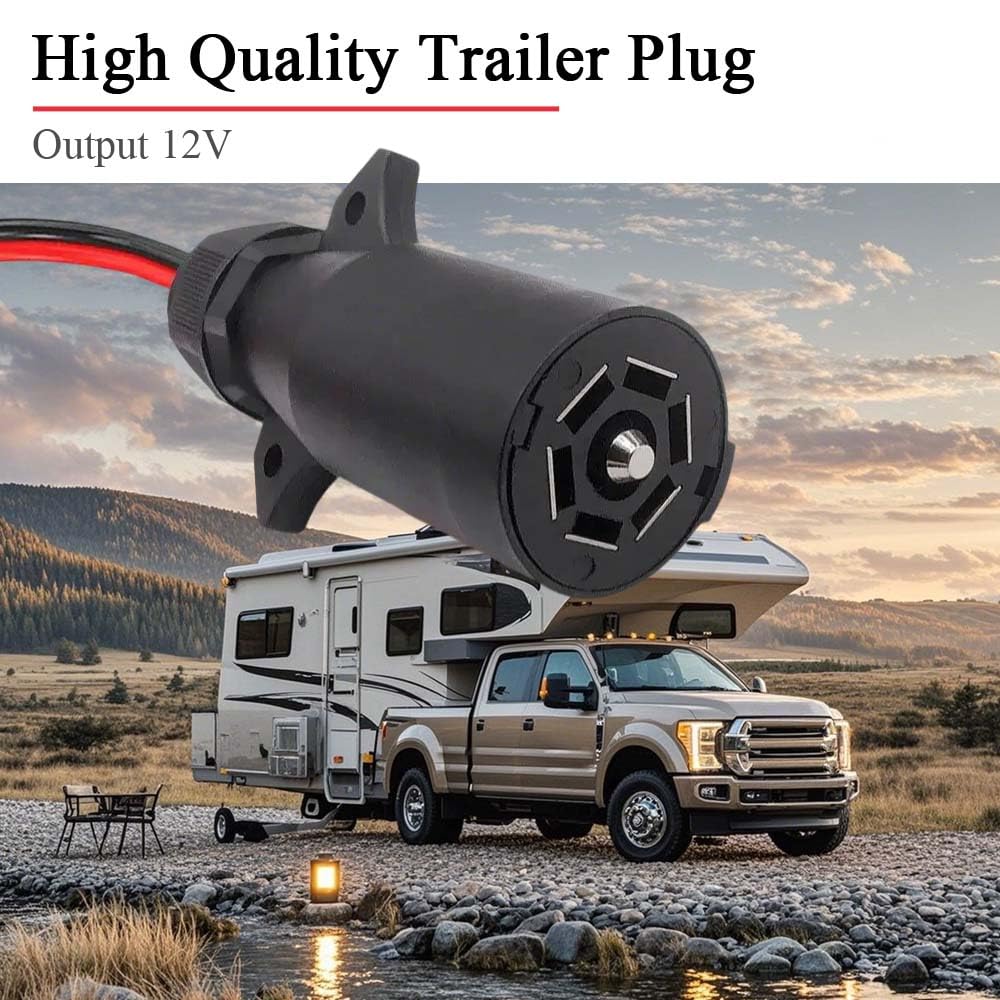

The 7-pin to O-ring adapter serves a wide range of towing, RV, and marine applications where a reliable 12V power and signal interface is required. It works well when converting a vehicle’s standard 7-way trailer plug to feed auxiliary equipment, battery chargers, or other O-ring-equipped accessories.

• Towing setups: cars, trucks, trailers with 7-pin sockets
• RV and camping gear that uses O-ring power ports
• Boats and marine systems needing a secure quick-connect power feed

Who this is for: If you need a rugged, short-length adapter to convert a 7-pin trailer plug to an O-ring quick-disconnect — and you want tinned-copper conductors, high-temperature insulation, and built-in fuse protection — this GragicSZ 7 Way Trailer Plug to O Ring Cable is tailored for vehicle owners, RV and marine enthusiasts, and professionals who demand reliable 12V power and signal transfer without complex wiring changes.
